INSTRUCTION ON MOUNTING AND USE
Model Häfele article number
HH-TVG90A 539.81.065

14
EN - Instruction on mounting and use
Closely follow the instructions set out in this manual. All
responsibility, for any eventual inconveniences, damages or
fires caused by not complying with the instructions in this
manual, is declined. This appliance is intended to be used in
household and similar application such as: - staff kitchen
areas in shop, offices and other working environments; - farm
houses; - by clients in hotels, motels and other residential type
environments; - bed and breakfast type environments.
The hood can look different to that illustrated in the
drawings in this booklet. The instructions for use,
maintenance and installation, however, remain the same.
!It is important to conserve this booklet for consultation at
any moment. In the case of sale, cession or move, make
sure it is together with the product.
!Read the instructions carefully: there is important
information about installation, use and safety.
!Do not carry out electrical or mechanical variations on the
product or on the discharge conduits.
!Before proceeding with the installation of the appliance
verify that there are no damaged all components.
Otherwise contact your dealer and do not proceed with
the installation.
Note: the elements marked with the symbol “(*)” are optional
accessories supplied only with some models or elements to
purchase, not supplied.
Caution
Before any cleaning or maintenance
operation, disconnect hood from the
mains by removing the plug or
disconnecting the mains electrical supply.
Always wear work gloves for all
installation and maintenance operations.
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory
or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a safe
way and understand the hazards
involved.
Children shall not be allowed to tamper
with the controls or play with the
appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
The premises where the appliance is
installed must be sufficiently ventilated,
when the kitchen hood is used together
with other gas combustion devices or
other fuels.
The hood must be regularly cleaned on
both the inside and outside (AT LEAST
ONCE A MONTH).
This must be completed in accordance
with the maintenance instructions
provided. Failure to follow the instructions
provided regarding the cleaning of the
hood and filters will lead to the risk of
fires.
Do not flambé under the range hood.
The use of exposed flames is detrimental to the filters and
may cause a fire risk, and must therefore be avoided in all
circumstances.
Any frying must be done with care in order to make sure that
the oil does not overheat and ignite.
CAUTION: Accessible parts of the hood may become hot
when used with cooking appliances.
For lamp replacement use only lamp type indicated in the
Maintenance/Replacing lamps section of this manual.
WARNING! Do not connect the appliance to the mains until
the installation is fully complete.
With regards to the technical and safety measures to be
adopted for fume discharging it is important to closely follow
the regulations provided by the local authorities.
The air must not be discharged into a flue that is used for
exhausting fumes from appliance burning gas or other fuels.
Do not use or leave the hood without the lamp correctly
mounted due to the possible risk of electric shocks.
Never use the hood without effectively mounted grids.
The hood must NEVER be used as a support surface unless
specifically indicated.
Use only the fixing screws supplied with the product for
installation or, if not supplied, purchase the correct screws
type.
Use the correct length for the screws which are identified in
the Installation Guide.
In case of doubt, consult an authorised service assistance
centre or similar qualified person.

15
WARNING! Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
Do not use with a programmer, timer, separate remote control
system or any other device that switches on automatically.
When handling the hood do not put hands within the range of
action of the pull-out suction panel (trolley)
The hood is equipped with safety switches which inhibit
operation when the front filter panel is unhooked.
With the intention of constantly improving our products, we
reserve the right to make all the changes in their technical,
functional or design characteristics, deriving from their
evolution. In case of the version with external motor, the
normal operation of the hood requires the use of a suction unit
(external motor) of the same manufacturer.
This appliance is marked according to the European directive
2012/19/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this appliance may
not be treated as household waste. Instead it should be taken
to the appropriate collection point for the recycling of electrical
and electronic equipment. Disposal must be carried out in
accordance with local environmental regulations for waste
disposal.
For further detailed information regarding the process,
collection and recycling of this product, please contact the
appropriate department of your local authorities or the local
department for household waste or the shop where you
purchased this product.
Appliance designed, tested and manufactured according to:
• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC
62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO
5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3;
ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2;
EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a
correct use in order to reduce the environmental impact:
Switch ON the hood at minimum speed when you start
cooking and kept it running for few minutes after cooking is
finished. Increase the speed only in case of large amount of
smoke and vapour and use boost speed(s) only in extreme
situations. Replace the charcoal filter(s) when necessary to
maintain a good odour reduction efficiency. Clean the grease
filter(s) when necessary to maintain a good grease filter
efficiency. Use the maximum diameter of the ducting system
indicated in this manual to optimize efficiency and minimize
noise.
Use
The hood is designed to be used either for exhausting or filter
version.
Ducting version
In this case the fumes are conveyed outside of the building by
means of a special pipe connected with the connection ring
located on top of the hood.
Attention! The exhausting pipe is not supplied and must be
purchased apart.
Diameter of the exhausting pipe must be equal to that of the
connection ring.
Attention! If the hood is supplied with active charcoal filter,
then it must be removed.
Filter version
The aspirated air will be degreased and deodorised before
being fed back into the room.
In order to use the hood in this version, you have to install a
system of additional filtering based on activated charcoal.

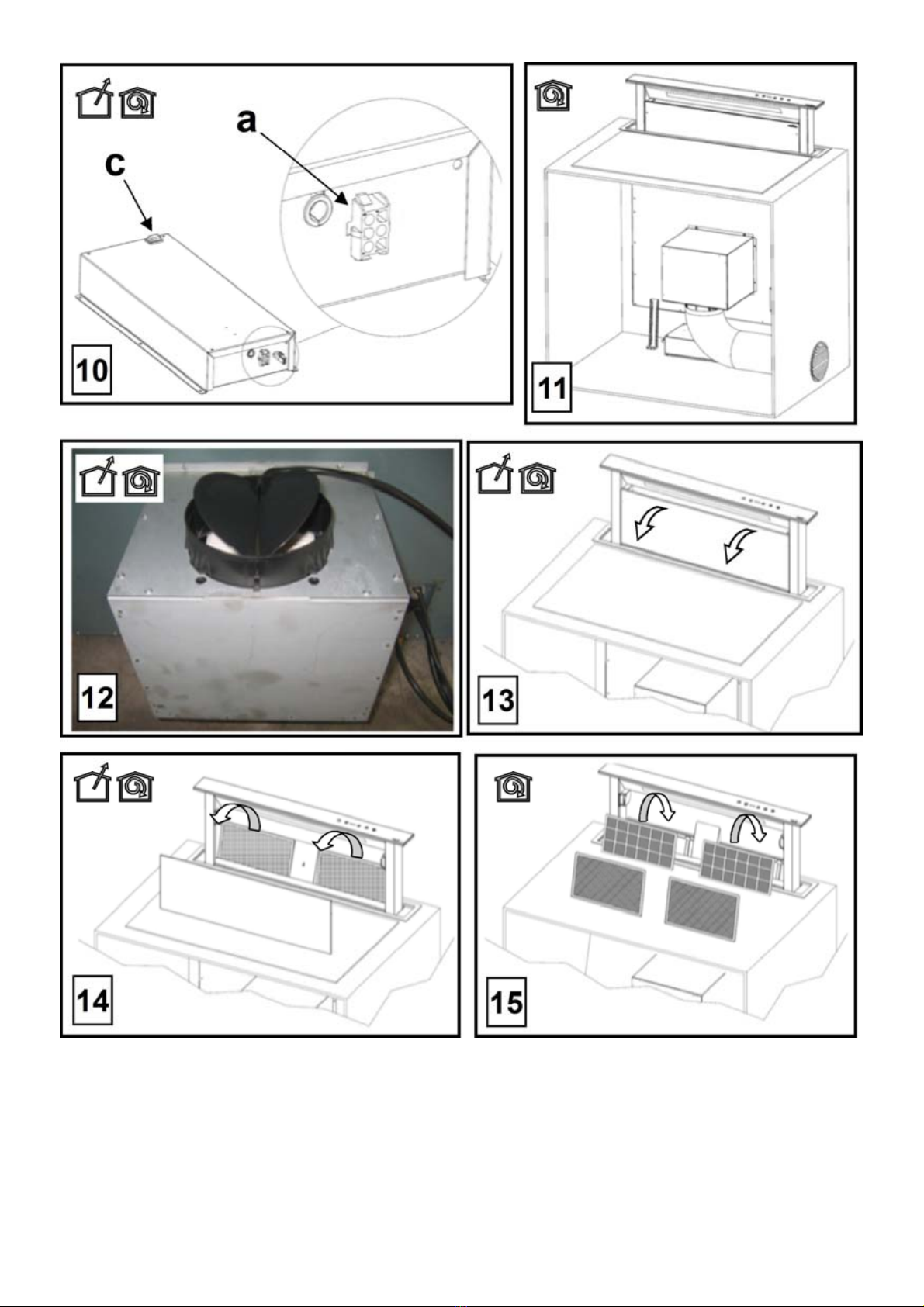

Note: The recycled air in the charcoal filter is sent back to the
kitchen through a duct which conveys air on a side of the
cabinet (Picture 11).
Non-return valve locking
Attention, before connecting the flexible air outlet pipe make
sure that the non-return valves of the suction unit can freely
rotate (Picture 12).
The models with no suction motor only operate in ducting
mode, and must be connected to an external suction device
(not supplied).
The connecting instructions are supplied with the peripheral
suction unit.
Installation

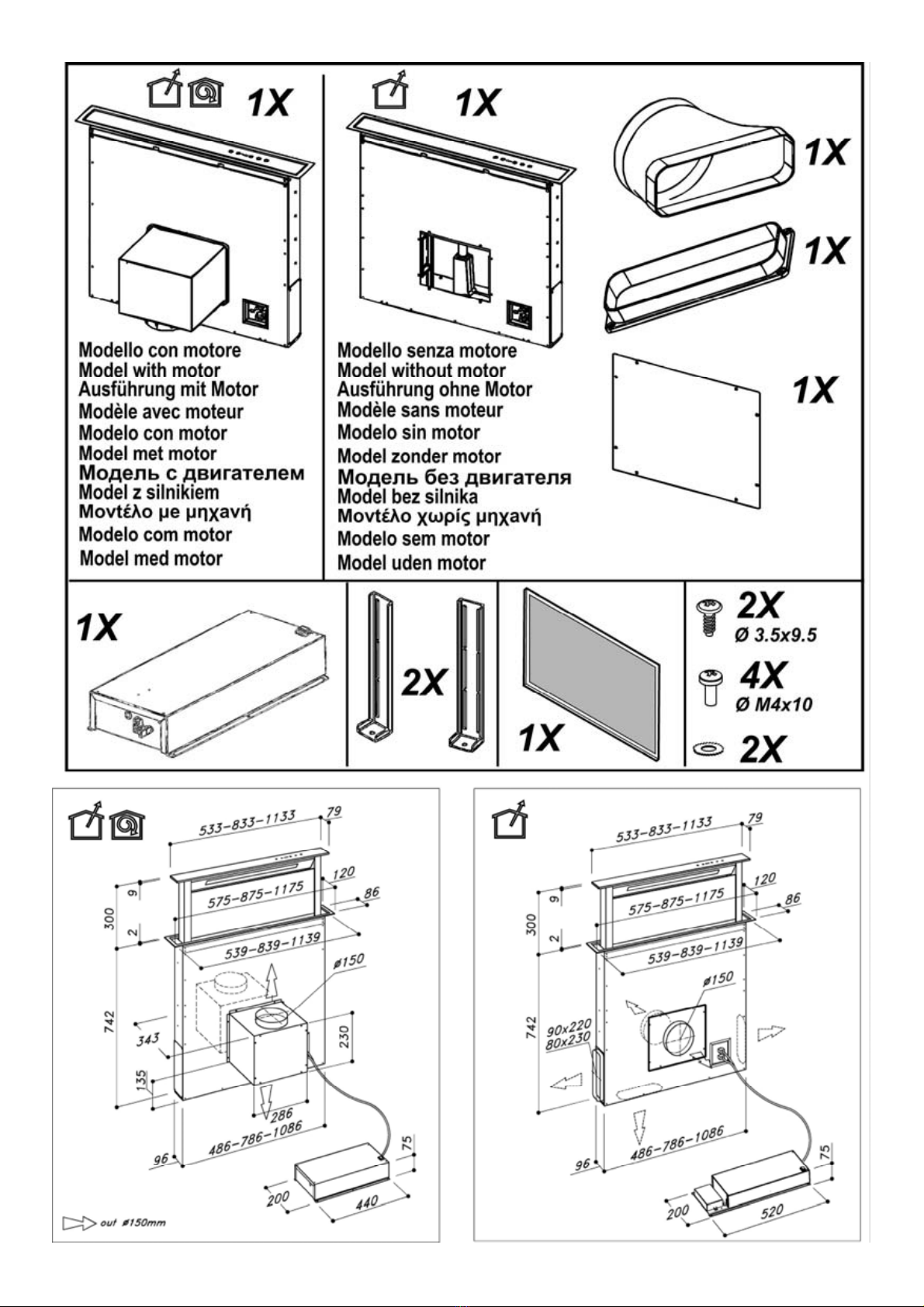

Note: The installation must be performed so that accessibility
to the hood and its electronic components is always ensured
for possible technical assistance interventions.
When installing the product, it is recommended to keep a
minimum distance of 400mm between the worktop and any
components laid on top of the hood.
This is to let the suction panel move upwards (opening) and
downwards (closing) without any obstacles, and to facilitate
access to the hood controls on the panel.
WARNING: Put the metal box containing the electronic
components at a distance not shorter than 65 cm from the gas
hob or 65 cm from the hood suction point.
The minimum distance between downdraft edge and hob
edge must be at least 50mm.

16
RECOMMENDATION: We recommend you to install the
metal box containing the electronic components at a distance
of at least 10 cm from the ground and sufficiently from all the
sources of heat (e.g.: side of an oven or hob).
If the instructions for installation for the gas hob specify a
greater distance, this must be adhered to.
Electrical connection
The hood must be connected to the mains supply by qualified
and trained technicians.
The mains power supply must correspond to the rating
indicated on the plate situated inside the hood. If provided with
a plug connect the hood to a socket in compliance with current
regulations and positioned in an accessible area, after
installation. If it not fitted with a plug (direct mains connection)
or if the plug is not located in an accessible area, after
installation, apply a double pole switch in accordance with
standards which assures the complete disconnection of the
mains under conditions relating to over-current category III, in
accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains
supply and checking the efficient function, always check that
the mains cable is correctly assembled.

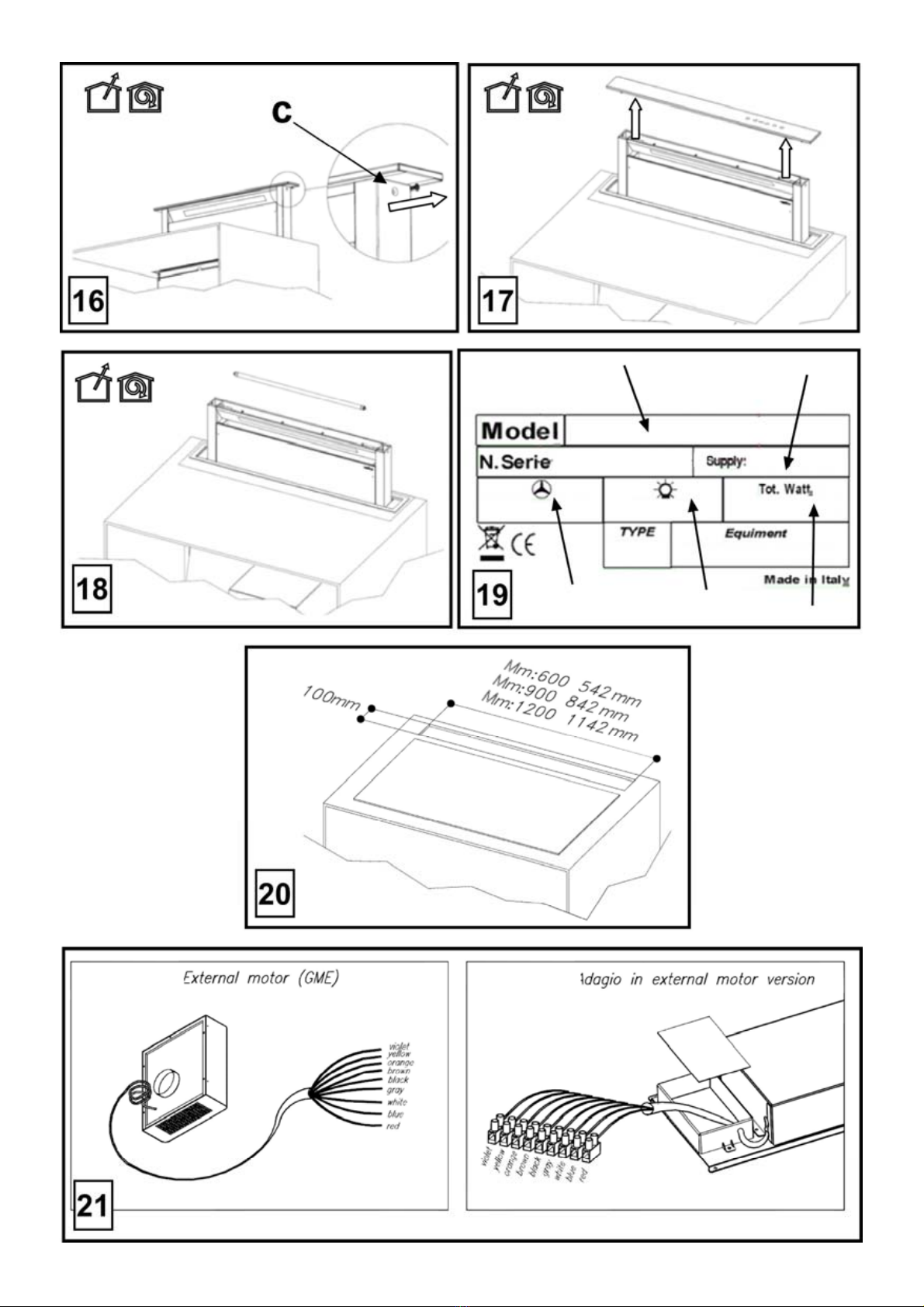

Note: in applications with a remote GME motor, connect the
cable of the motor unit in the designated terminal board
located inside the plastic box in the downdraft's wiring. Make
sure you follow the colours of the cables during the
connection.
Fig. 21
Caution! Do not cut the cable between the hood and the
engine to avoid losing your right to warranty!
Mounting
Before starting to mount the appliance, make sure that no
component is damaged, otherwise contact the dealer and stop
mounting. In addition, read all the instructions below carefully.
• Use an air outlet pipe no longer than 5 metres.
• Limit the number of curves in the duct since each curve
reduces the suction effectiveness equivalent to 1 linear
metre. (E.g.: if two 90° curves are used, the duct should
be no longer than 3 metres).
• Avoid drastic changes of direction.
• Use a duct with 150mm diameter constant for the whole
length.
• Use a duct made of standard complying material.
• Remove the safety shim highlighted in the picture (Fig. 1-
2) at the end of the installation.
• In case of failure to observe the instructions above, the
supplier can not be held responsible for capacity or noise
problems and no warranty will be granted.
• Before making the hole, make sure that the inside of the
cabinet, near the hood housing area, does not have the
structure of the cabinet or other particulars which may
cause problems for the proper installation. Make sure
that the overall dimensions of the hood and the hob ae
compatible with the cabinet and therefore the installation
is feasible.
• Perform, in the back of the hob, a rectangular hole with
the following dimensions: (Fig. 20)
Hood 60cm Model: 542x100mm.
Hood 90cm Model: 842x100mm.
Hood 120cm Model: 1142x100mm
• Install the hood in the hole made, inserting it from above,
as shown (Fig. 3). In case of version with motor on
board, it is necessary to remove the suction unit before
inserting the product into the cabinet.
• Fix the hood inside the cainet using the special brackets
supplied (Fig. 4). Start mounting the brackets in the lower
part of the hood (Fig. 5a) making sure that there is a
distance of 2 mm between the lower part of the bracket
and the cabinet bottom (Fig. 5b). This distance allows
the traction of the product downwards on fixing, (Fig. 5c),
so that the stainless steel frame adheres perfectly on the
worktop.
• Before inserting the screws into the cabinet, make sure
that the product is perfectly perpendicular to the worktop.
• After completing the installation and connecting the
product to the power supply, lift the hood and remove the
door lock (Fig. 6).
• In case of version with motor on board start mounting the
motor unit directing the air outlet to the chosen position
downwards or upwards (Fig. 7b). The motor can be
installed on both the front side and the back one of the
hood. Once the installationof the motor has been
comleted, start mounting the duct for the air outlet.
• In case of version with external motor put the suction unit
(external motor) in a suitable area and arrange the air
outlet duct. Start mounting the air outlet duct between the
external motor and the hood. Select the air outlet among
the five possibilities (Fig. 7a) and install the union
supplied.
• Put the metal box containing the electronic components
in an easily accessible area for any assistance
operations (Fig. 8), connecting the electric connectors of
the same to the hood: pushbutton panel connector (Fig.
9a), 9-pole connector (Fig. 9b), neon connector (Fig. 9c)
• In case of installation with remote motor,connect the
power unit cable to the special connector placed on the
electronic components box (Fig.10a)
• Connect the product to the power supply

17
Operation

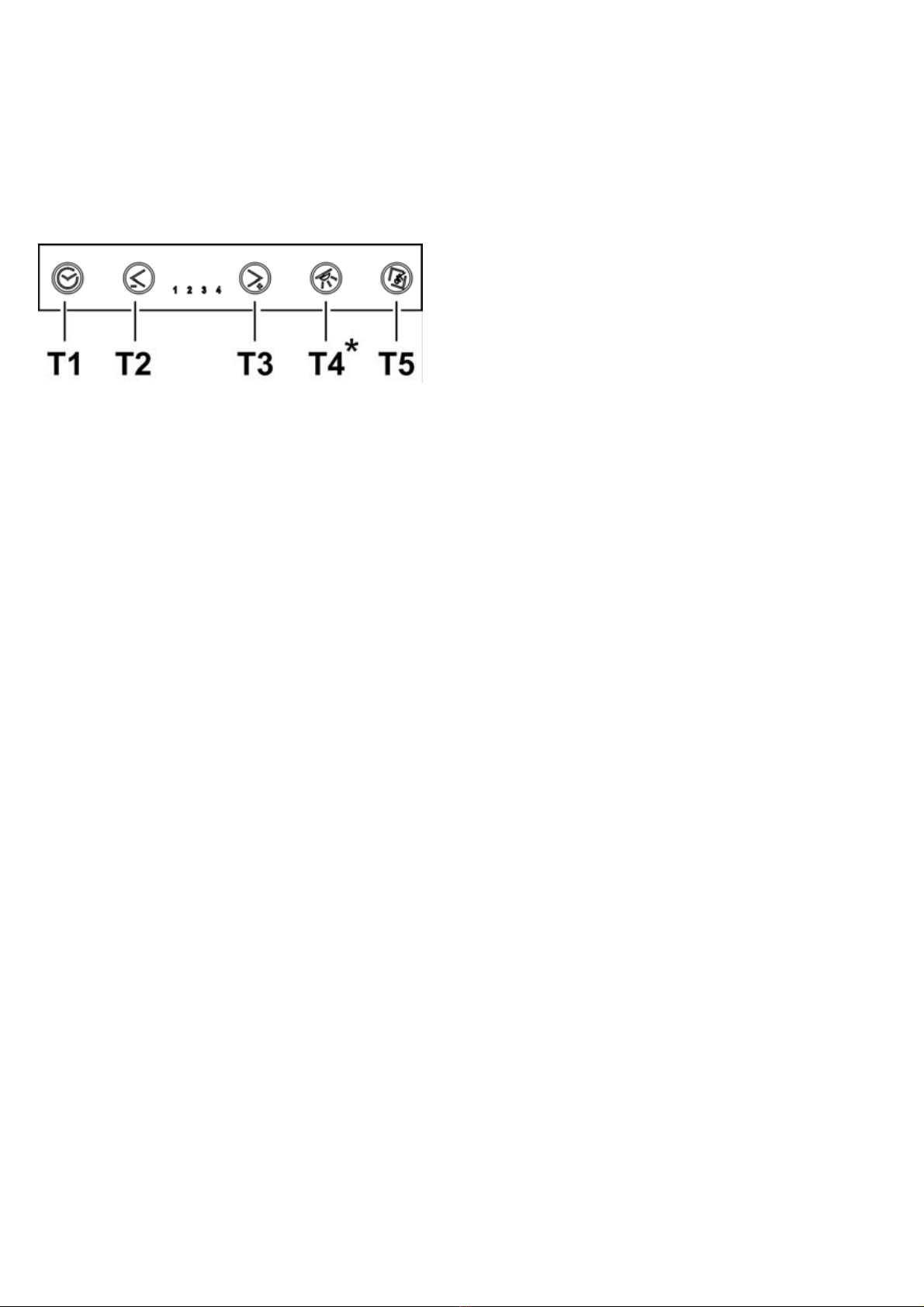

The hood is equipped with a “TOUCH” device to control the
lights and speed.
For the correct use please carefully read the intructions below.
The cooker hood can be controlled through a remote control
available as accessory kit (see the paragraph relating to the
functioning of the remote control).
• Key T1: delays hood switching off timing the speed set
for some minutes.
By such function, when the timing is elapsed, the hood
switches off.
The timing is divided as follows:
• suction speed (power) 1: 20 minutes
• suction speed (power) 2: 15 minutes
• suction speed (power) 3: 10 minutes
• suction speed (power) 4: 5 minutes
PLEASE NOTE: When operating the timer, the hood
might switch to a lower intake speed (power) before
turning off, as on some speeds there is already a timing
on the speed reduction itself.
When keys T2 and T3 are pressed, the hood leaves the
timed function and the suction speed (power) increases
or decreases according to the key pressed. During the
timing phase the LED related to the corresponding speed
flashes.
• Key T2: Decreases the active suction speed (power)
(4Ļ3Ļ2Ļ1ĻOFF).
The speed is displayed through the LED related to the
corresponding speed.
Key T2 has no effect on the opening/closure of the
suction panel.
• Key T3: Increases the active suction speed (power)
(1Ļ2Ļ3Ļ4).
The speed is displayed through the LED related to the
corresponding speed.
Note: (only for models fitted with a motor or a remote
GME 22):
Suction speed 4 (power) is timed for 6 minutes, after
which the hood will automatically switch to suction speed
3 (power).
Note: (only for remote GME 88):
Suction speed 3 (power) is timed for 7 minutes, after
which the hood will automatically switch to suction speed
2 (power).
Suction speed 4 (power) is timed for 6 minutes, after
which the hood will automatically switch to suction speed
2 (power).
Note: If the panel is closed (hood is off) key T3 activates
the opening of the suction panel first and then sets the
hood to the suction speed (power) 1.
• Key T4*: Switches on the light
Note: If the suction panel is closed (hood is off) key T4
activates the opening of the suction panel first and then
switches on the light.
• Key T5: Opens (Lifts) and closes (lowers) the suction
panel.
With the hood switched off and the panel closed, key T5
opens the suction panel first and then sets the hood to
the suction speed (power) 1.
With the hood switched on (at any speed) and the panel
open, key T5 switches off the hood first (and, if they are
on, it switches off the lights as well) and then closes the
suction panel.
*Depending on the model available.
Additional operating information
During the removal of the front panel due to cleaning and
maintenance operations, all the electronic functions of suction
and movement are locked.
Anti-pinch safety: if an obstacle obstructs the closure of the
Downdraft, the closure is stopped and the trolley goes up.
Grease Filter saturation signal.
Every 40 hours of use the hood signals the need for
maintenance of the grease filter.
The signal is by making all the suction speed LEDs (powers)
flash contemporaneously.
Reset of the grease filter signal
After carrying out the maintenance of the grease filter, press
key T1 for more than 3" in order to reset the signal.
Note: The signal is not displayed with hood switched off
(OFF), regardless of the position of the suction panel.

18

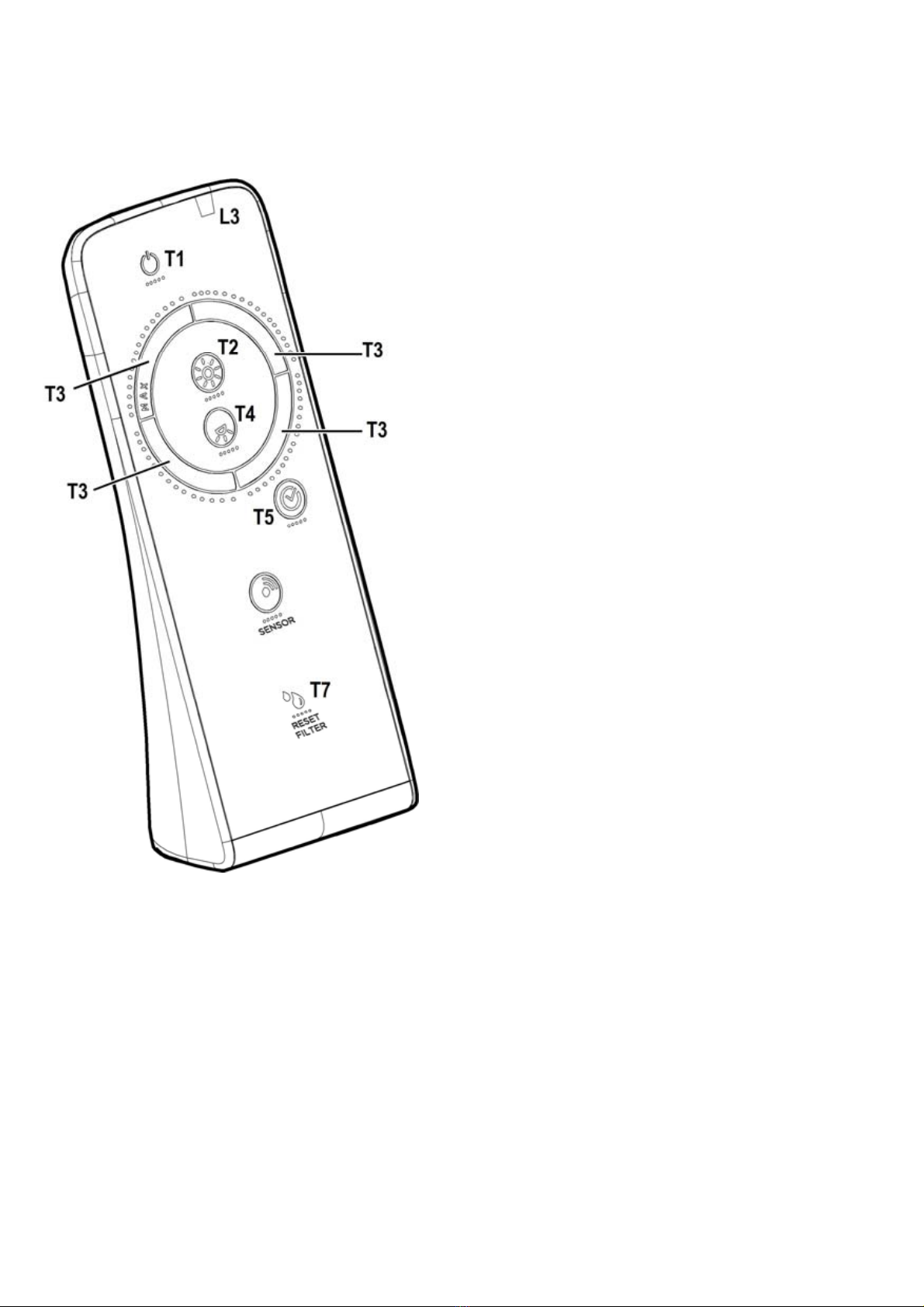

Remote control
Warning! Some functions of this remote control may only be activated with certain hood models.
Remote control affiliation:
Keep T2 +T5 pressed
Description of the remote control functions
T1. OFF key
Open/Close the panel
T2. Remote control affiliation key
T3. Suction speed (power) control key:
Open/Close the panel
T4. Hob light ON/OFF key
T5. Remote control affiliation key
L3. Remote control operation LED
Note: touch the keys lightly to select the available functions.
T1. OFF key
Press to switch the hood off
T3. Suction speed (power) control key
Touch the key starting from any position, turning it clockwise or
anticlockwise to increase or decrease suction speed.
Note: When the hood and the panel are in the OFF position,
touch the key, turning it clockwise to open the panel and
activate the hood at speed 1.
T4. Hob light ON/OFF key
Press for more than 3 seconds to switch the hob light on or off.
Note: If the panel is already open, the light will switch on even
by applying a short pressure.
Note: If you want to close the panel as well, it’s enough to
apply a light pressure for the second time.
T7. Filter clogging indicator reset key
When the hood is in the ON position, press T7, LED L1 will
stop indicating the clogging
Note: (only for models fitted with a motor or a remote GME 22):
Suction speed 4 (power) is timed for 6 minutes, after which the hood will automatically switch to suction speed 3 (power).
Note: (only for remote GME 88):
Suction speed 3 (power) is timed for 7 minutes, after which the hood will automatically switch to suction speed 2 (power).
Suction speed 4 (power) is timed for 6 minutes, after which the hood will automatically switch to suction speed 2 (power).

19
Maintenance of the remote control
Cleaning the remote control:
Clean the remote control with a damp cloth and a neutral
solution of detergent without abrasive substances.

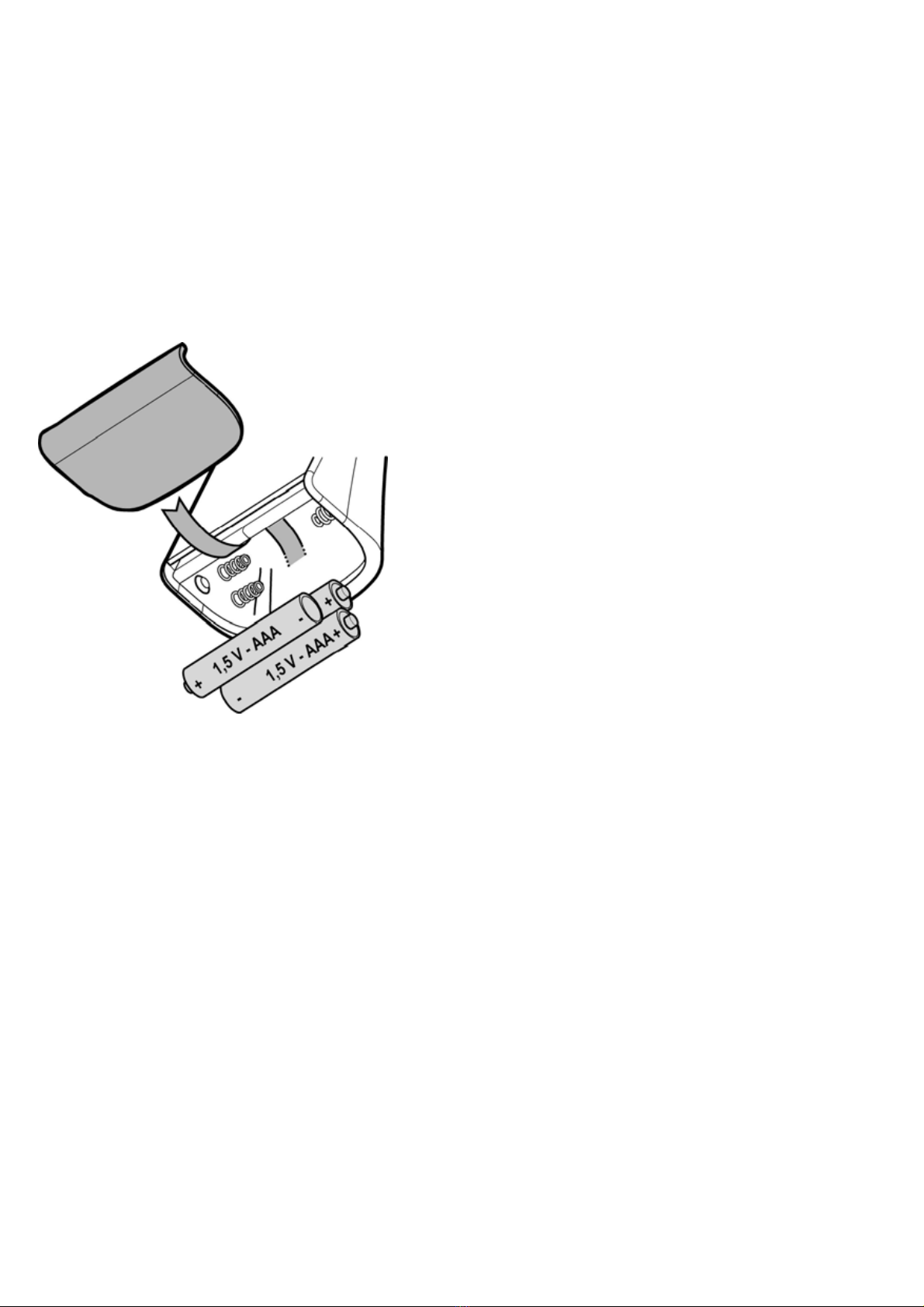

Changing the battery:
• Open the battery casing.
• Replace the flat batteries with 3 new 1.5 V type AAA
batteries.
Respect the polarity indicated in the battery casing when
inserting the new battery!
• Close the battery casing up again.
Disposal of the batteries
Ultimate disposal of the batteries should be handled according
to all national laws and regulations. Do not place used
batteries in your regular waste.
Ultimate disposal of the batteries must be done safely.
Contact your local waste management officials for other
information regarding the environmentally sound collection,
recycling, and disposal of the batteries.
Operation anomalies
The hood does not work
Make sure that:
• There is no current blackout
• A speed has been effectively selected.
• The panel is correctly hooked.
• The 9-pole connection is well inserted (Picture 9b).
• The red reset key above the electric system box is
pressed.
• The wires in the 9-pole connection are well inserted into
the connector. (During connection, exerting an
overpressure may cause the contacts to bend).
The hood has low efficiency
Make sure that:
• The motor speed selected is sufficient for the quantity of
fumes present
• The kitchen is aired enough to allow an air intake and the
charcoal filter is not worn out (filter version hood).
• The air outlet pipe is not clogged.
• The suction unit non-return valves can rotate freely.
The hood stops during operation
Make sure that:
• There is no current blackout
• The differential magnetothermal switch (automatic circuit
breaker) has not been released.
Maintenance
Cleaning
Clean using ONLY the cloth dampened with neutral liquid
detergent. DO NOT CLEAN WITH TOOLS OR
INSTRUMENTS. Do not use abrasive products. DO NOT USE
ALCOHOL!
Grease filter
Traps cooking grease particles.
This must be cleaned once a month (or when the filter
saturation indication system – if envisaged on the model in
possession – indicates this necessity) using non aggressive
detergents, either by hand or in the dishwasher, which must
be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease filter may discolour
slightly, but this does not affect its filtering capacity.
When inserting and removing grease filters and charcoal
filters, please make sure that the extractable unit of the hood
is in open position .In order to do this,pull the OFF (T5)key.
Then remove the front panel ,by pulling on the upper part of
each side at the same time (Fig.13).
The panel turns forward ,so that grease filters can be inserted
(Fig.14).
Charcoal filter (filter version only)
It absorbs unpleasant odours caused by cooking.
The saturation of the charcoal filter occurs after more or less
prolonged use, depending on the type of cooking and the
regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least
every four months.
The charcoal filter may NOT be washed or regenerated.
After removing the grease filter, it is possible to insert the
charcoal filters (Fig. 15) (not supplied).

20
Replacing lamps
(Depending on the model available).Disconnect the appliance
from the electricity.
Warning! Prior to touching the light bulbs ensure they are
cooled down.
Replace the old light bulb with the one of the same type as
specified in the feature label or near the light lamp on the
hood.
To replace the neon proceed as follows:
1. Lift the trolley.
2. Disconnect from power supply. (this operation can be
carried out by disconnecting the plug, if accessible, or
open the switch if envisaged during installation or press
the red button in the control box (Fig. 10c)
3. Remove the screws which fix the upper front as shown in
(Fig. 16)
4. Lift the upper front (Fig. 17)
5. Remove the damaged neon (Fig. 18) and replace it with
one having the same characteristics
If the lights do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.

LIB0007078F Ed. 03/16
