hager FWB Series User manual

univers FWB manual
Wall-mounting cabinets
FWB, FWQ
Degree of protection IP44

Table of contents
2We reserve the right to make changes of a technical nature
Table of contents
1 About this manual 5
1.1 Aim of this manual 5
1.2 Warranty and liability 5
1.3 Symbols and warning signs used 6
2 For your safety 7
2.1 Proper use 7
2.2 Authorised sta requirements 8
3 Technical data 9
4 Information about the FWB, FWQ distribution board range 11
4.1 Cabinet delivery forms (complete / partially equipped / empty) 11
4.2 Body 12
4.2.1 Properties 12
4.2.2 Coding 23
4.2.3 Cabinet references overview 24
4.2.3.1 FWB references 24
4.2.3.2 FWQ references 27
4.2.4 Cabinet details 28
4.2.4.1 FWBxx 28
4.2.4.2 FWBxxA 29
4.2.4.3 FWBxxCSDB 30
4.2.4.4 FWBxxD 31
4.2.4.5 FWBxxD1 32
4.2.4.6 FWBxxGS 33
4.2.4.7 FWBxxK1 34
4.2.4.8 FWBxxK5 35
4.2.4.9 FWBxxM2 36
4.2.4.10 FWBxxN 37
4.2.4.11 FWBxxN3 38
4.2.4.12 FWBxxP 40
4.2.4.13 FWBxxP2 41
4.2.4.14 FWBxxS 42
4.2.4.15 FWBxxT1S 43
4.2.4.16 FWQxxD1 44
4.2.4.17 FWQxxN 45
4.2.4.18 FWQxxN1 46
4.2.4.19 FWQxxP 47
4.2.4.20 FWQxxP1 48

Table of contents
We reserve the right to make changes of a technical nature 3
5 Doors 49
5.1 Properties 49
5.2 Door coding 51
5.3 Door references: Single door with univers door plate (FZ598N) 52
5.4 Door references: Single door with 90SL door plate (FZ598) 55
5.5 Flush-mounting frame 57
5.5.1 properties 57
5.5.2 Flush-mounting frame references overview 57
5.5.3 Frame installation 58
6 Enclosure installation 60
6.1 Packaging 60
6.2 Cabinet feet 61
6.3 Wall installation 62
6.3.1 Wall installation measurements / dimensions 62
7 univers Z internal system 63
7.1 Coding 63
7.2 Supply of fully assembled panels 64
7.2.1 UWxxVx distribution panels 64
7.2.2 Multimedia panels 65
7.2.3 Hybrid panels 69
7.2.4 Protection class by Multimedia panels and Hybrid panels 71
7.3 Supply of individual panel versions 72
7.3.1 univers Z UN0xA mounting rails 72
7.3.2 UZ0xAx fixation towers 72
7.3.3 DIN rails U… 73
7.3.4 UM00M0 plastic mounting plate 75
7.3.5 UZxxMx steel mounting plates 78
7.4 Multimedia accessories 79
7.4.1 Patch panels without socket insertion 82
7.4.2 Berker Integro Design Flow patch panel with socket insertion 87
7.4.3 Patch panel with FLF socket insertion 89
7.4.4 FLF socket holder UM00H0 91
7.4.5 Set VZ00APZ with socket and bracket 93
7.4.6 Volta VZ00AS / VZ00ASF multisocket 93
7.4.7 UM00Sx multimedia covers 94
7.4.8 UM00Mx multimedia sets 95
8 Internal system accessories 96
8.1 Coding 96
8.2 Internal system accessories in detail 97
8.2.1 Flange FZ428 for rear cable entry 97

Table of contents
4We reserve the right to make changes of a technical nature
8.2.2 Cable entry flange 98
8.2.3 Partitions 99
8.2.3.1 Horizontal partitions 99
8.2.3.2 UZx0Fx vertical partitions 100
8.2.4 Mounting rail bracket 105
9 Inspection and maintenance 107
9.1 Recurring test intervals 107
9.2 Minimum inspection / maintenance measures 108
9.3 Cleaning 109
10 Decommissioning, removal and disposal 110
11 List of all references 111
12 Glossary 114
13 Index 117

We reserve the right to make changes of a technical nature 5
About this manual
1 About this manual
This manual is part of the distribution board wall cabinet FWB / FWQ.
1.1 Aim of this manual
This document has been written for users of the distribution board wall cabinets FWB, FWQ by Hager.
The manual contains safety-related information on the life phases of the product for electricians / installers.
- Read and refer to these instructions before working on the cabinet or switching device combination.
- Please also refer to the assembly instructions attached for the respective cabinet or cabinet accessories.
- Keep the instructions in a safe place. Authorised sta must have access to these instructions at all times.
1.2 Warranty and liability
These instructions do not form part of Hager's terms and conditions of sale and supply. No new warranty or
guarantee claims in excess of the terms and conditions of sale and supply may be derived from this manual.
Disclaimer
Hager reserves the right to amend or supplement the product or documentation at any time and without no-
tice.
Hager does not assume any liability for printing errors and resulting damages.

6We reserve the right to make changes of a technical nature
About this manual
1.3 Symbols and warning signs used
Warning sign structure
Signal word
Type and source of the danger!
Consequences of ignoring the danger
¾Measures for preventing the danger
Danger levels in warning signs
Colour Signal word Consequence on non-observance
DANGER Death, serious injury
WARNING Potential death or serious injury
CAUTION Injury
ATTENTION Physical damage
Instructions with a fixed sequence
Step Action
1 Instructions step 1
2 Instructions step 2
Additional symbols and their meaning
Symbol Meaning
All work must be completed by a qualified electrician.
The product is for indoor assembly and use.
Presentation Meaning
1., 2., 3., … Numbered lists with a fixed sequence
- Lists and instructions without a fixed sequence
¾Measures / instructions to prevent danger

We reserve the right to make changes of a technical nature 7
For your safety
2 For your safety
- Avoid danger. Take notice of the safety-related information in this chapter to ensure that the distribution board
is assembled and used safely.
- Please also take note of the safety-related information in other chapters.
2.1 Proper use
The Hager distribution boards FWB and FWQ are made for wall installation up to IP44 for residential and
special purpose buildings up to 125 A infeed current.
The FWB and FWQ distribution boards have a depth of 161 mm and can be installed on the wall, flush or
partially recessed. These cabinets come in 6 heights and 4 widths.
The Hager FWB and FWQ distribution boards are ready to be expanded with the univers Z internal installation
system components.
With the tested FWB and FWQ distribution board and univers Z internal installation system by Hager, switching
device combinations compliant with EN 61439 Part 3 (Distribution boards intended to be operated by ordinary
persons / DBO) can be realised.
Fixed indoor use / wall installation
The FWB and FWQ distribution boards are closed and made for for surface or flush wall installation on the
insides of buildings. The operating conditions for internal installations specified in EN 61439 and the maximum
environmental temperatures must be complied with at the place of installation.

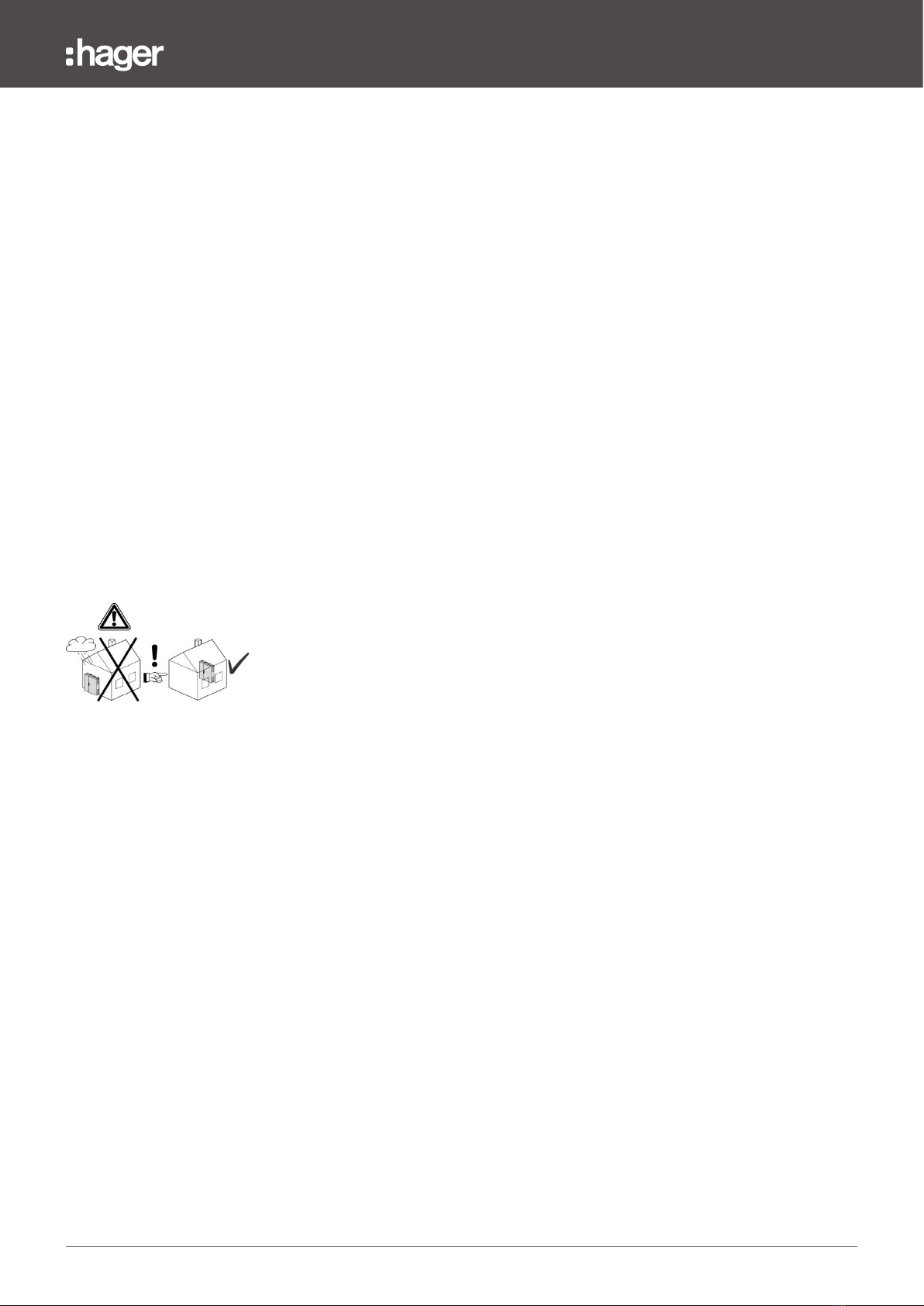

Fig. 1: Indoor installation
By using the FWB and FWQ distribution boards with a plain door, protection class IP44 and/or protection
class IP31 with a slotted door can be achieved. The notices in these instructions regarding compliance with
the protection class must be taken note of when installing the unit.
The FWB and FWQ distribution boards are available in protection class SK II (double insulated).
The notices in these instructions regarding compliance with the protection class must be taken note of when
installing the unit.
For further information, please read the technical data.
Proper use also includes:
- Reading and referring to this manual, installation instructions and the instructions for the internal system
- Compliance with the requirements for authorised sta.
Misuse
Any other or additional use as well as changes and modifications to the distribution board cabinet are
classed as misuse. Hager does not assume any liability for damages resulting from misuse.
Operating area restrictions
The FWB and FWQ distribution boards must not be used in various areas to prevent danger or damage to
the sheath. The distribution board is unsuitable in:
- areas requiring a higher protection class,
- areas in which the ATEX guidelines must be complied with,
- business premises with a high risk of fire,
- corrosive environments. Particularly environments containing chlorine, sulphur, acid or salt can damage
the cabinet and internal components.

8We reserve the right to make changes of a technical nature
For your safety
2.2 Authorised sta requirements
- Switching device combinations must always be
installed, commissioned, expanded repaired, maintained,
removed and disposed of
by qualified electricians.
- Qualified electricians must have experience in initial
testing as well as subsequent commissioning, repairs
and maintenance.
Product life phase Minimum vocational training, qualifications or skills
Planning Qualified electrician, consultant electrical engineer
Transport, assembly, instal-
lation
Qualified electrician
Commissioning Qualified electrician with experience in testing
Operation Short-circuit devices for operation by inexperienced sta
within distribution boards for operation by inexperienced
sta in accordance with EN 61439-3 (DBO)
All additional components must be secured against use by
inexperienced sta.
Inspection and maintenance Qualified electrician with experience in testing
Expansions Qualified electrician, planning and documentation required
Removal and disposal Qualified electrician, for mechanical and electrical work
with specific instructions only: person instructed in work
on electrical installations
- A qualified electrician is able to assess the work assigned to them and recognise potential dangers
thanks to their vocational training, knowledge and experiences as well as knowledge of the relevant
regulations.
- A person instructed in work on electrical installations must be suciently instructed and supervised by a
qualified electrician. The instructed person must therefore be able to recognise risks and prevent
dangers arising from electricity.
- All persons who are not qualified electricians and who have not been instructed in working on electrical
installations must be regarded as persons inexperienced in working with electrical installations. Persons
inexperienced in working with electrical installations must never work inside electrical installations on
their own and independently. Persons inexperienced in working with electrical installations may only
operate short-circuit devices that are intended for operation by inexperienced persons in accordance
with EN61439-3.

We reserve the right to make changes of a technical nature 9
Technical data
3 Technical data
Proper use
The technical data must be consulted to ensure proper use.
Switching device combination information
The FWB and FWQ distribution board is ready for the univers Z internal system (with mounting rails UN0xA and
towers UZ01A2 or UZ04A1). In this configuration, it is suitable as a switching device combination in accordance
with EN 61439-1/-3 for:
- Frequency fn= 50Hz
- Rated voltage Un= 230V / 400V
- Rated surge voltage resistance Uimp = 4kV; overvoltage categoryIII
- Rated isolation voltage Ui = 400 V
- Pollution degree 2
- Minimum clearances = 3 mm
- Minimum creepage distances = 4 mm
Rated current
InA max. 250 A
Inc max. 125 A
Resistance to short-circuiting ICC
ICC < 10 kA
Application / operation
- Fixed
- Indoor installation
- For wall, flush or partially recessed mounting
- Unsuitable for hollow wall application
- When setting up the switching device combination in accordance with EN61439 Part 3, operation by
inexperienced sta is permissible (distribution board for operation by inexperienced sta / DBO). Devices
that must not be operated by inexperienced sta must be marked according to the standards prior to
setting them up and/or must require use of a key or tool. The additional requirements stated in standard
EN61439 must be met.
- Prepared for use under standard operating conditions in accordance with the EN61439 series of standards.
Deviations are possible if agreed between the installer and planner and taking into consideration the
requirements stated in the EN61439 series of standards.
Mechanical installation of devices / internal system
- Prepared for the univers Z internal system
- Compatible with some accessories from univers FW and univers N systems (restrictions due to size)
- For installation on univers Z UN0*A mounting rails (not included in the scope of delivery for empty cabinets)
- Internal system pre-installed in complete cabinets, quick installation / removal thanks to locking technology
- Fixing the internal system with screws, optionally with the help of accessory set ZZ41SF (locknut) or ZZ44F
(locknut + screws)
Protection class
- Protection class II double insulated
Note:
- When using multimedia panel (no covers), all devices and wiring must be double insulated.
Only the distribution panel is double insulated from factory.

10 We reserve the right to make changes of a technical nature
Technical data
Protection classes
- IP44 with door (plain, transparent or multimedia non-slotted) and IPx4 standard lock FZ598N
- IP43 with door (plain, transparent or multimedia non-slotted) and IPx3 lock FZ598
- IP31 with door (slotted, or multimedia slotted)
- IP30 without door with covered internal panels. IP30 without door from factory is only ensured when
distribution panels are inside.
Note:
- Take note of the protection class of the equipment.
Impact protection
- IK09 all around with plain door, except flange (excluded in the Standards)
- IK07 for slotted, transparent or multimedia door
- IK05 for cabinet with internal system, without door
Colour
- Door, exterior walls, covers and internal insulation: RAL 9010 (pure white)
- Metal parts of the internal system: grey and hot-galvanised
- univers Z fixing towers: black
Equipment
- Door and cabinet walls:
- Made of steel, 1 mm thickness
- Powder-coated with epoxy polyester paint, burnt in
- Insulating parts material:
- Polystyrene (PS): covers, top / bottom parts, rear, sides
- Polycarbonate / Acrylester-Styrol-Acrylnitril (PC / ASA): corners, multimedia plate
- Polycarbonate (PC): multimedia door inserts
- Acrylnitril-Butadien-Styrol (ABS): sealing plug
- univers Z mounting towers material:
- Polyamide6 (PA6): bottom parts, double towers
- Polycarbonate (PC): top parts
- Blue seal made from Ethylene-Propylene-Dien (EPDM)
- Mounting rails and DIN rails made from hot-galvanised steel, 1 mm thickness
- Multimedia steel beams (patch panels) made from hot-galvanised steel, 1.5 mm thickness
- Multimedia perforated metal plates made from hot-galvanised steel, 1 mm thickness
Plastic parts in direct contact with the area behind the wall, e.g. corners and top and bottom parts pass the
heat filament test at 750°C. The cabinet is therefore unsuitable for hollow wall application (850 °C required).
Summary of standards and regulations
- Tested in accordance with EN61439 -1/-3 (VDE0660-600 -1/-3)
- Dimensions in accordance with DIN 43780
- IP44 degree of protection in accordance with VDE 0470, part 1 (DIN EN 60529)
- Protection class IP3X with open or without door
- Clearance and creepage distance in accordance with VDE 0110, part 1 and 2/1.89
- Rated isolation voltage: AC400V
- Overvoltage category III
- Pollution degree 2
- Insulation material class I
- Unsuitable for hollow wall application

We reserve the right to make changes of a technical nature 11
Information about the FWB, FWQ distribution board range
4 Information about the FWB, FWQ distribution board range
4.1 Cabinet delivery forms (complete / partially equipped / empty)
The FWB, FWQ cabinet is available in three versions:
Complete: Order number includes enclosure, door and internal system.
Example: FWB42S Example: FWB52N
Partially equipped: Order number includes enclosure but door or part of the internal system is missing.
Customer can optionally complete the cabinet with a door and internal system components. This version is
particularly useful if the multimedia panel design has not yet been clarified, prior to installation at the construction
site or if a special door type is required that is unavailable in the complete version (e.g. multimedia door).
Example: FWB42P2 Example: FWB63T1S

12 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range
Empty: The order number includes one empty cabinet. Customer can optionally complete the cabinet with a
door and internal system. This version is particularly useful if the cabinet is to be installed at the construction
site at a much earlier date and the internal system planning has not yet been full completed.
Example: FWB44D Example: FWQ44D1
4.2 Body
4.2.1 Properties
1 The interior is double insulated with plastic cladding
2 With two cable routing flanges (top / bottom) per panel
3 Two recesses (top / bottom) per panel for feeding cables through the rear panel
4 Entirely closed on the outside
5 With two exterior holes near the edges (top / bottom) for the installation of accessories such as cable
storage box
1
2
3 4 5 6 7 8 9 10 11 12 13 14
1 2
3
4 5 6 7 8 9 10 11 12 13 14
1 2
3
4 5 6 7 8 9 10 11 12 13 14
123
4
5 6 7 8 9 10 11 12 13 14
1234
5
6 7 8 9 10 11 12 13 14
1234
5
6 7 8 9 10 11 12 13 14
1
2 3 4 5 6 7 8 9 10 11 12 13 14
Example: FWB42GS
1
2
3 4 5 6 7 8 9 10 11 12 13 14

We reserve the right to make changes of a technical nature 13
Information about the FWB, FWQ distribution board range
Two cable routing flanges per panel
- 2 cable entries per panel (top and bottom), also available as accessory FZ426
- Flange at top / bottom made from 2 components with knobs for sticking through
- Internal cable entry surface: 191 x 75 mm
- Prepared for various cable diameters:
- 24 x Ø5 / 10.5 mm
- 11 x Ø9 / 11.5 mm
- 8 x Ø11 / 16 mm
- 2 x Ø16 / 32 mm
- 1 x Ø16 / 37 mm
-
Blatt-NrIndex
Kaufteilegruppe / purch.-part group Projekt / project Abteilung / departmentTeile / part-no.
Konstrukteur / technical designer:
Benennung / partname Fertigmaße / finished sizesPos. Stck/pcs
Gewicht Schwindung/shrinkage:
Funktionsmaße
functional dimensions
a . . .
N
Nr.
Ersatz für:
replace :
Ersetzt durch:
replaced by:
Dicke / thickness
Bezeichnung:
designation:
Fortsetzung:
continued :
Volumen / volume
( cm
3)
%
( mm )
Maßstab / scale
Format / size
Datum / date
Datum / date
Werkstoff / material
Geprüft / verified by
Behandlung / treatment
Gezeichnet / drawn by
A2
weight (g)
Farbe / color
/ / PE
/ - /
-
715.14 [.2]
Maße ohne Toleranzen nach
dimensions without tolerances by
DIN/ISO
22-Feb-21 -
/ /
Hager Electro GmbH & Co. KG
Zum Gunterstal
66440 Blieskastel
1:4 1ZN05600_ASM a 1 / 1
/ /
Index
Änderungen/modifications
Kurzbeschreibung/ brief description Datum/date Name
//
// /
//
// /
//
// /
Das URHEBERRECHT an dieser Zeichnung verbleibt uns. Sie darf ohne unsere SCHRIFTLICHE GENEHMIGUNG nicht kopiert oder Dritten zugänglich gemacht werden. The copyright of this draft remains to us. It's not allowed to copy or put the draft to provision in favor of a third party.
Hole pattern of the top / bottom cable entry flange FZ426
Rear cable entries
- 2 rear cable entries (top and bottom) in the top and bottom plastic parts are available in each panel with
a width of 250 mm
- Can be punched out from the outside (first slightly scratch the grooves with a knife)
- Max. cable entry surface: 112 x 82 mm
- With 4 pre-stamps for cutting out for cable routings Ø 29 mm
- Circumferential groove for cutting out for installation of the IP44 flange FZ428. It is recommended to cut out
the metal from the rear (prior to installing on the wall). Flange FZ428 is installed and screwed in from the front.
40
50
ø 29
Rear cable entries in the plastic top / bottom part
1
2
3 4 5 6 7 8 9 10 11 12 13 14

14 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range
- Flange FZ428 is made of 2 dierent plastic materials with knobs for sticking through.
20 cable openings for cable diameters up to Ø 11.5 mm are available.
Holes in the flange that have been opened can be resealed with the FZ401 plug set.
Blatt-NrIndex
Kaufteilegruppe / purch.-part group Projekt / project Abteilung / departmentTeile / part-no.
Konstrukteur / technical designer:
Benennung / partname Fertigmaße / finished sizesPos. Stck/pcs
Gewicht Schwindung/shrinkage:
Funktionsmaße
functional dimensions
a . . .
N
Nr.
Ersatz für:
replace :
Ersetzt durch:
replaced by:
Dicke / thickness
Bezeichnung:
designation:
Fortsetzung:
continued :
Volumen / volume
( cm
3)
%
( mm )
Maßstab / scale
Format / size
Datum / date
Datum / date
Werkstoff / material
Geprüft / verified by
Behandlung / treatment
Gezeichnet / drawn by
A2
weight (g)
Farbe / color
/ / PE
/ - /
-
715.14 [.2]
Maße ohne Toleranzen nach
dimensions without tolerances by
DIN/ISO
22-Feb-21 -
/ /
Hager Electro GmbH & Co. KG
Zum Gunterstal
66440 Blieskastel
1:4 1ZN05600_ASM a 1 / 1
/ /
Index
Änderungen/modifications
Kurzbeschreibung/ brief description Datum/date Name
//
// /
//
// /
//
// /
Das URHEBERRECHT an dieser Zeichnung verbleibt uns. Sie darf ohne unsere SCHRIFTLICHE GENEHMIGUNG nicht kopiert oder Dritten zugänglich gemacht werden. The copyright of this draft remains to us. It's not allowed to copy or put the draft to provision in favor of a third party.

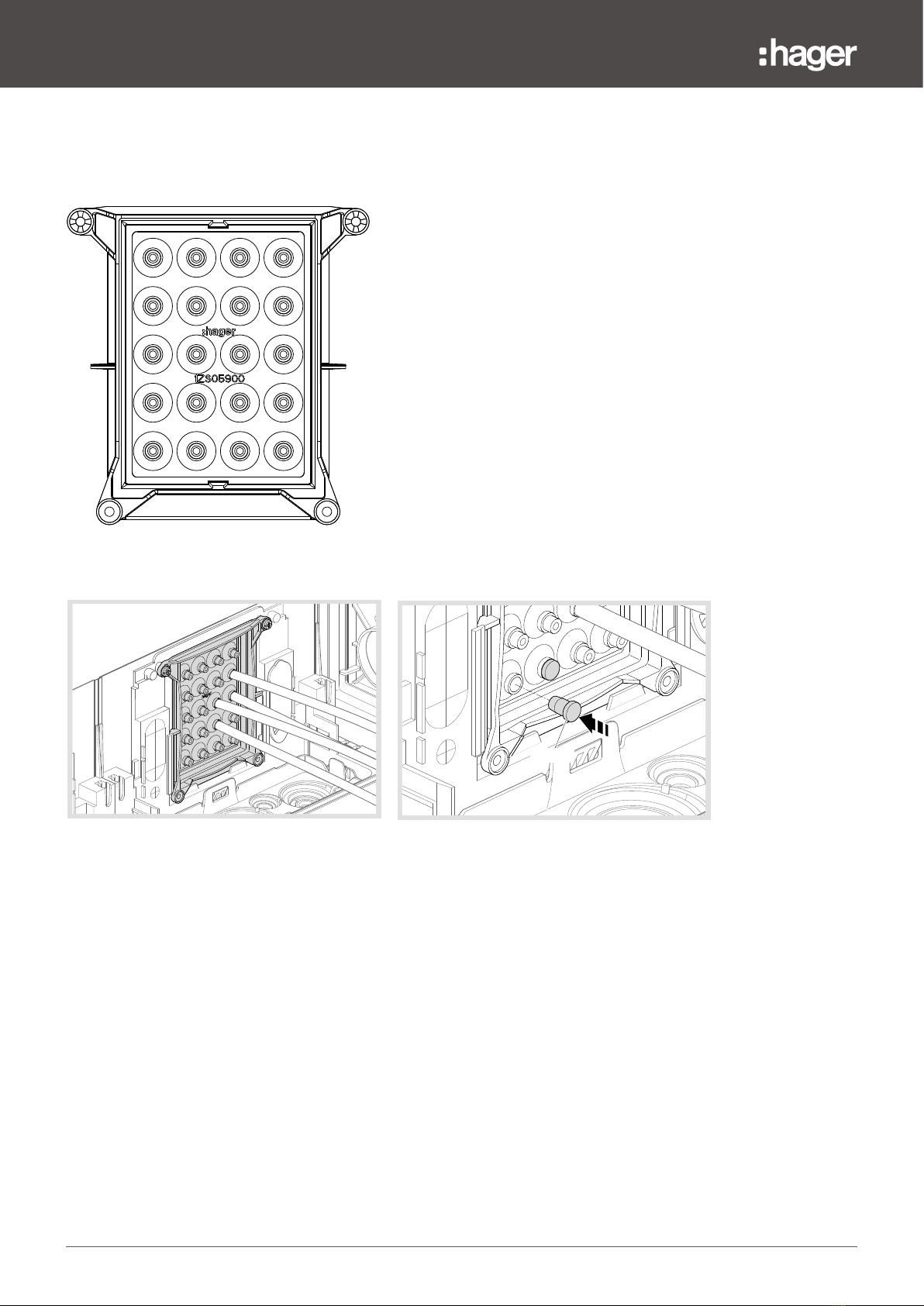

Image of flange FZ428
www.hagergroup.net 6FZ02400c
Hager 09.2009
2
1
2
1
2
2
1
FZ401
Mdmax. = 2 Nm
www.hagergroup.net 6FZ02400c
Hager 09.2009
2
1
2
1
2
2
1
FZ401
Mdmax. = 2 Nm
Cabinet with flange FZ428 installed on the plastic bottom part (front view)
Plug set FZ401

We reserve the right to make changes of a technical nature 15
Information about the FWB, FWQ distribution board range
Cable strain relief
Large pipes and cables can be optionally fixed to the top and bottom of the FWB / FWQ cabinet with a cable
strain relief. The 100 mm long C profile rail FZ850S (30 x 15 x 2 mm) can be used at the top and bottom per 250 mm
panel width. The cable clamp can then be inserted in the C profile rail. Slot width: 16 mm.
Mdmax - 2 Nm
16
Fixing thick pipes to the plastic bottom part of the cabinet

16 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range
Integrated cabinet mounts
The distribution board is available with two dierent mounts: Basic and Quickset.
Basic mount: The FWB (B stands for basic) cabinet has four pre-installed brackets made from 2 mm steel
for mounting the cabinet. The cabinet is mounted to the wall with 4 screws which are pushed through the top
and bottom parts of the cabinet and these 4 brackets. The two top brackets have a key hole. Once the four
wall plugs have been installed in the wall, the two top fixing screws can be installed first. The cabinet can
then be mounted. The two bottom screws can then be pushed into the wall plug from the front.

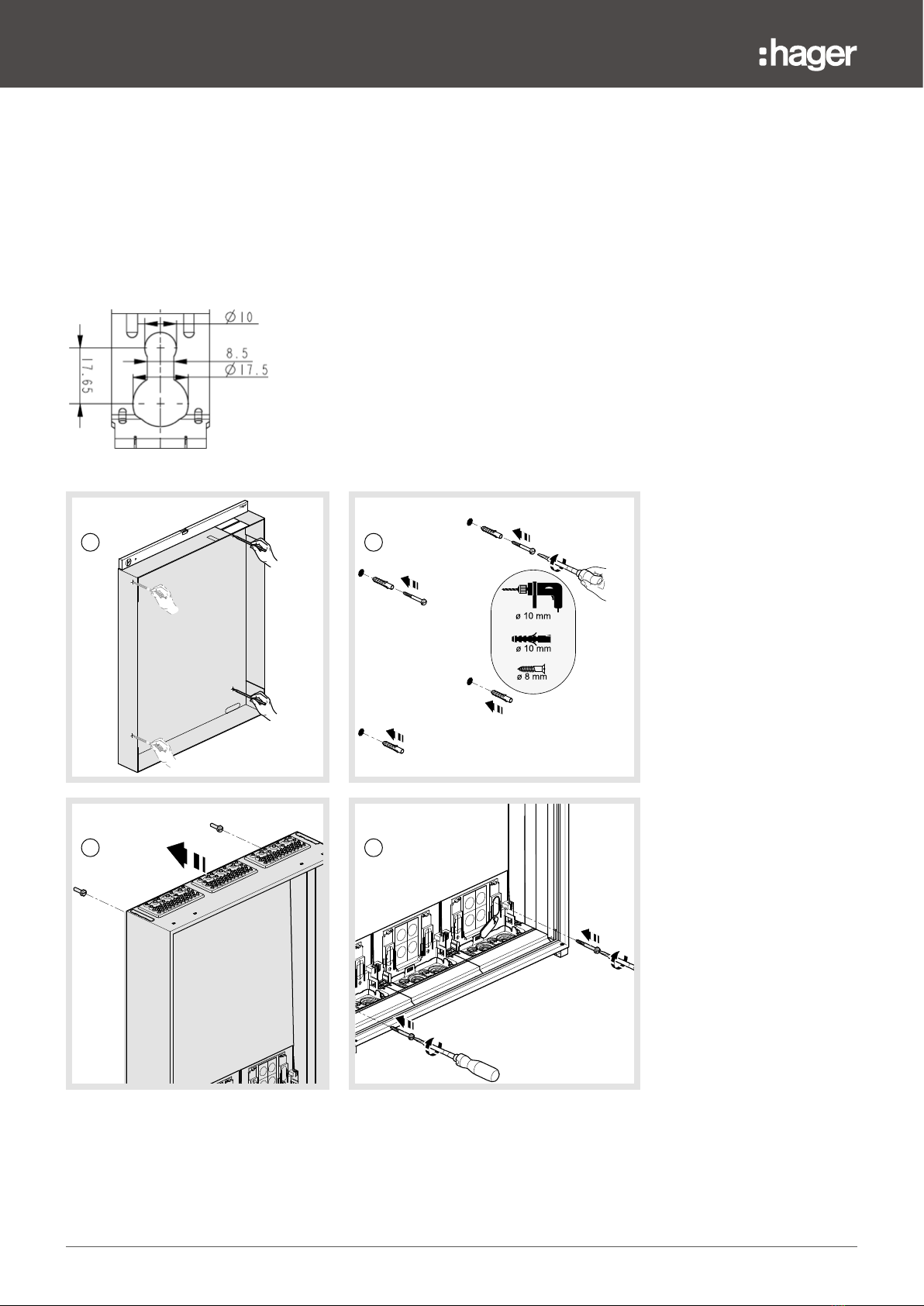

Key hole dimensions, basic mount
Packaging
Installation sequence, basic mount
1. Draw markings in the packaging onto wall
2. Drill holes and insert wall plugs, then screw the 2 top screws into the wall plugs
3. Mount the cabinet
4. Screw the two bottom screws through the cabinet and into the wall plugs
1
3
2
4

We reserve the right to make changes of a technical nature 17
Information about the FWB, FWQ distribution board range

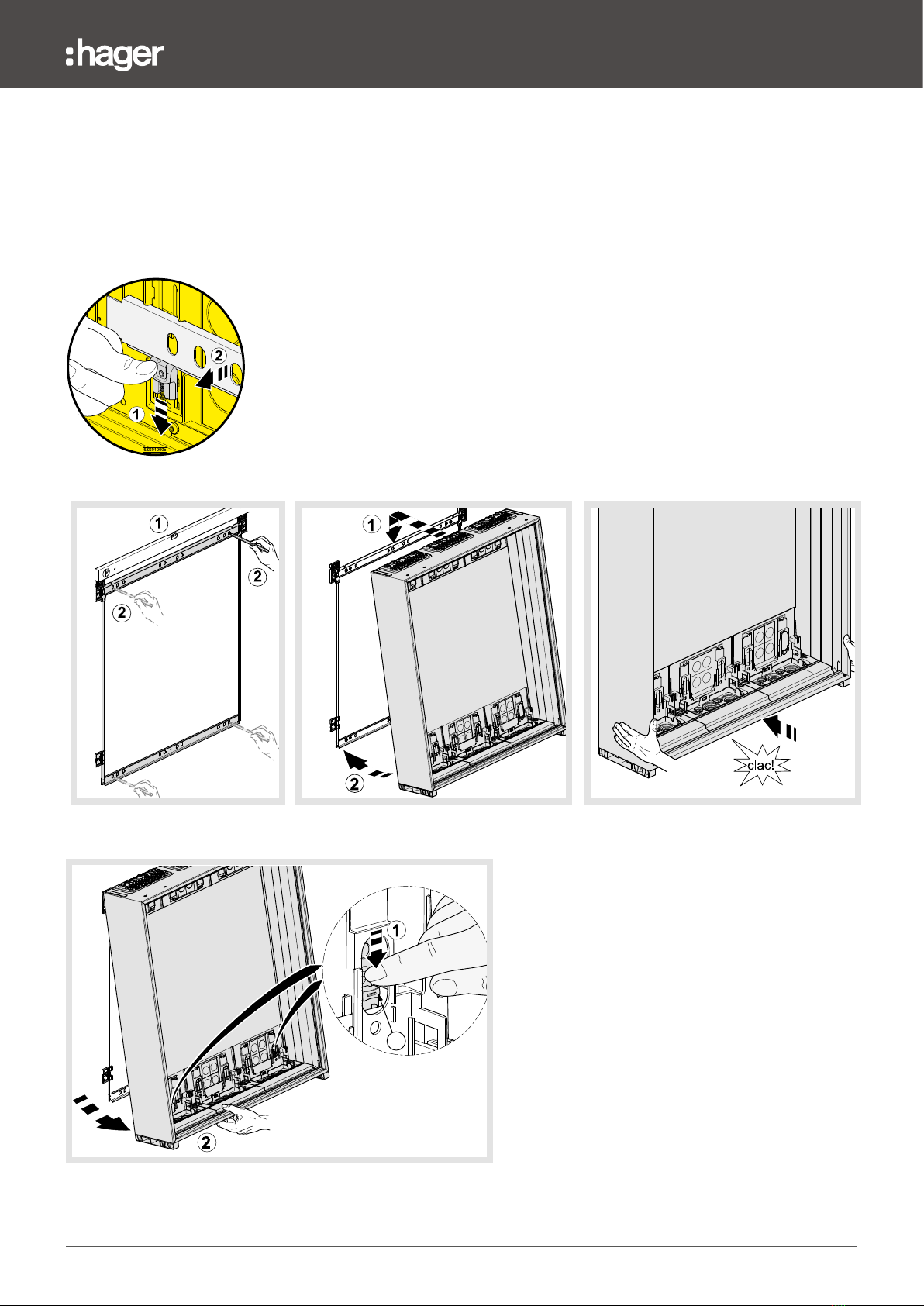

Quickset mounts: In the FWQ (Q stands for quickset) cabinet, four mounts made from 2 mm steel are
pre-installed as well as a steel fixation frame at the rear of the cabinet. The steel fixation frame can be removed
from the outside (1), mounted to the wall and aligned with a spirit level, then fixed with standard screws and
wall plugs (2). The cabinet can then be inserted into the steel fixation frame.
If the bottom cabinet bracket on the steel fixation frame has a certain amount of play, the two operating elements
(K) on the bottom brackets can be quickly screwed tighter, either manually or by using a small screw driver.
The K element (3) is operated for removing the cabinet.
1. Removing the steel fixation frame
6ZS00100e
2
2. Installation sequence with quickset bracket
K
3. Removal quickset bracket (operating the K element)

18 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range

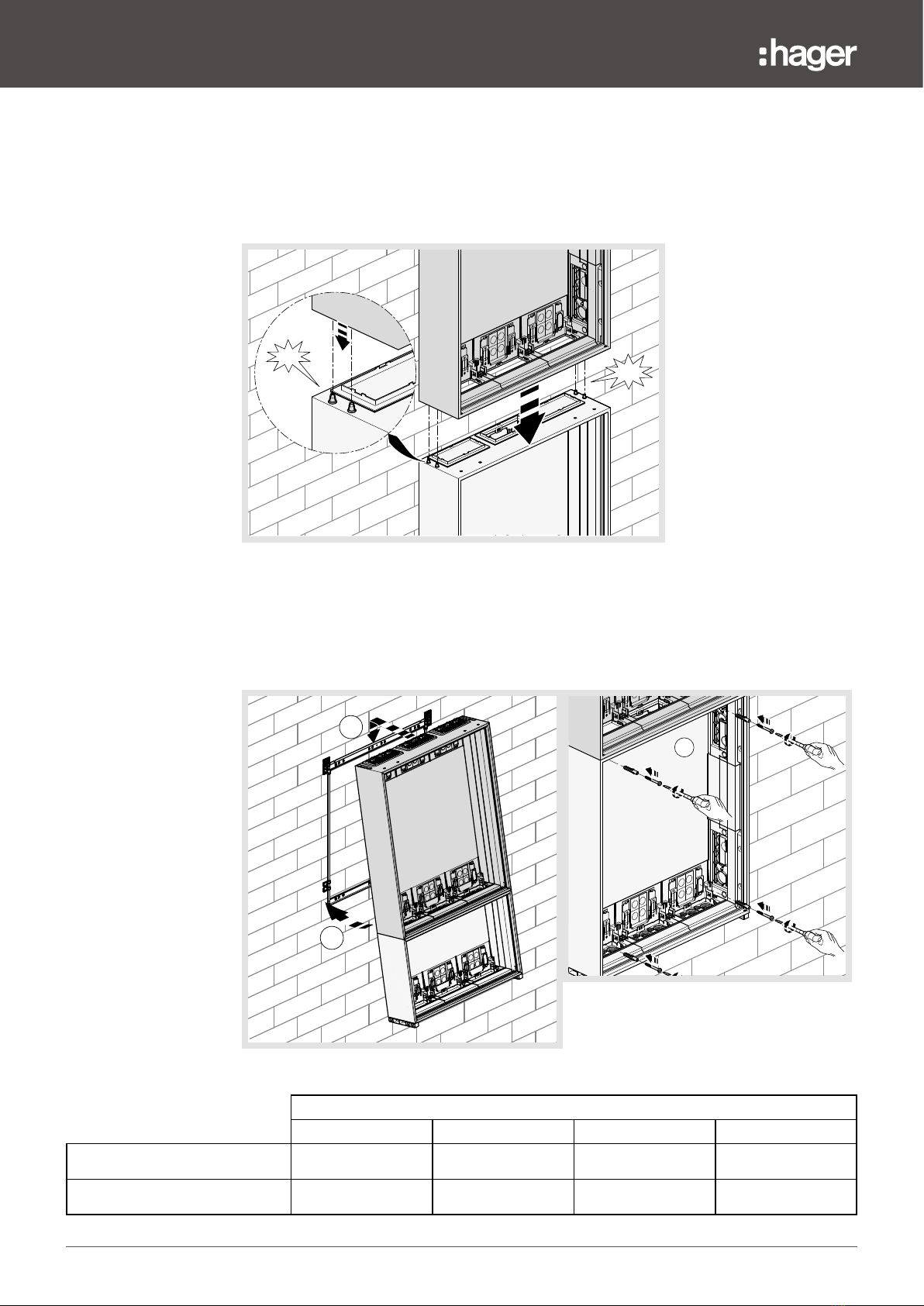

Flush and partially recessed installation
Wall cabinets FWB and FWQ are compatible with wall-mounting accessories FZ900 and FZ900H.
Installation of the FZ900 bracket set for flush and partially recessed installation
www.hagergroup.net 6FZ06500b
Hager 09.2009
2
Installation of the FZ900H bracket set for flush and partially recessed installation

We reserve the right to make changes of a technical nature 19
Information about the FWB, FWQ distribution board range

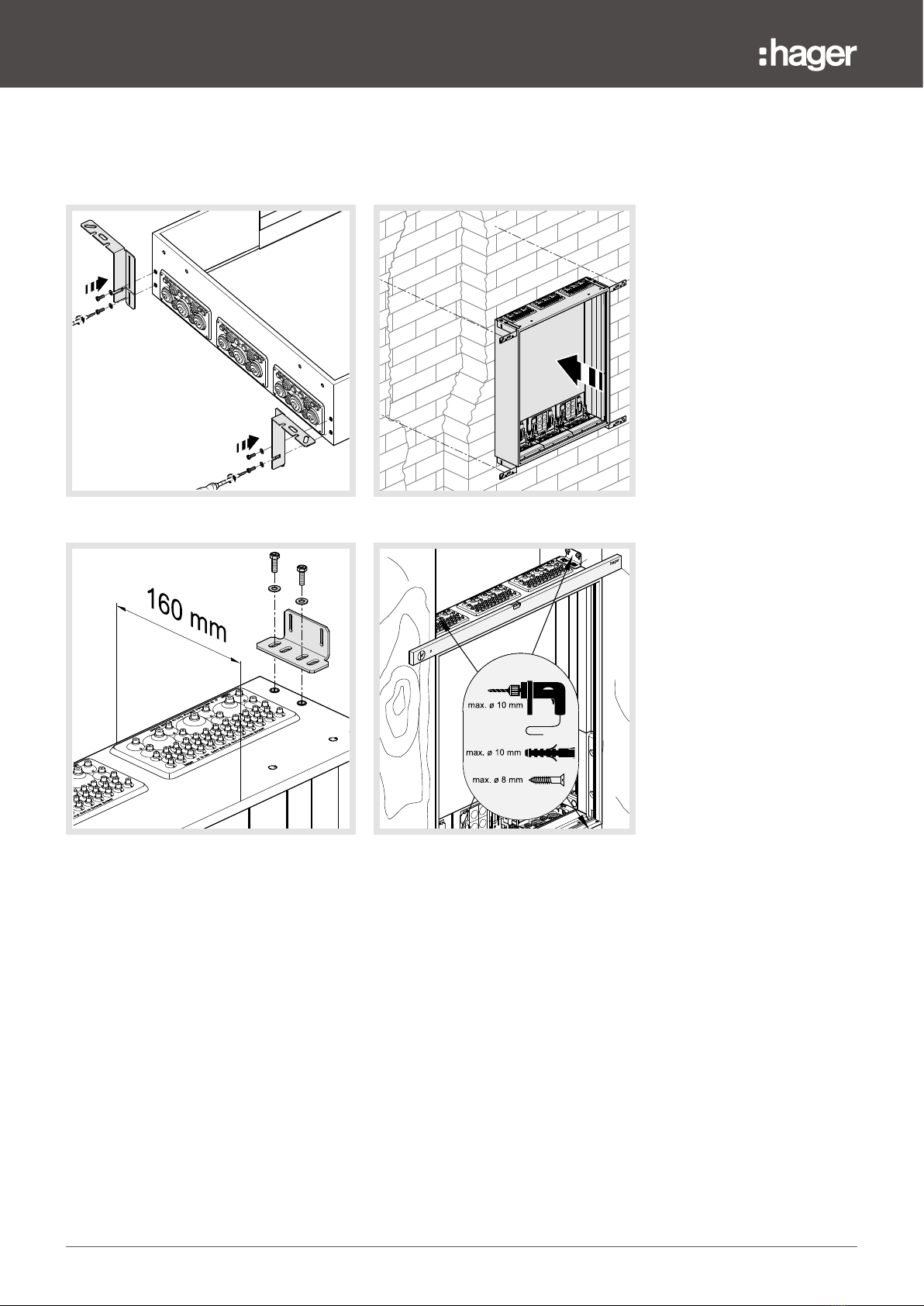

External wall mounting
FWB cabinets can be quickly and easily mounted to the wall with accessories FZ890N and FZ803B.
The FZ890N set consists of a 2100 mm long rail and 4 brackets for mounting two FBW cabinets next to each
other.
FZ890N
Two additional brackets can be ordered using reference no. FZ799N, e.g. for a third cabinet.
FZ799N
The FZ803B accessories can be used for also quickly and easily mounting FWB and FWQ cabinets on the
wall as they contain brackets that are fixed above and below the cabinet.
FZ803B

20 We reserve the right to make changes of a technical nature
Information about the FWB, FWQ distribution board range
Cabinet – vertical cabinet connection
FWB distribution boards can be mounted above each other with the FZ44xB accessories set.
The third digit in the reference stands for the panel width; FZ443B is suitable for connecting 3-panel cabinets
(800 mm width) above each other.
clac!
clac!
FZ443B
FWQ distribution boards can be mounted above each other with the FZ44xS accessories set.
The third digit in the reference stands for the field width; FZ443S is suitable for connecting 3-field cabinets
(800 mm width) above each other.
1
2
3
FZ443S
Cabinet width
Width 1 (300mm) Width 2 (550mm) Width 3 (800mm) Width 4 (1050mm)
Cabinet to cabinet connector for
basic cabinet FWB FZ441B FZ442B FZ443B FZ444B
Cabinet to cabinet connector for
quickset cabinet FWQ FZ441S FZ442S FZ443S FZ444S
