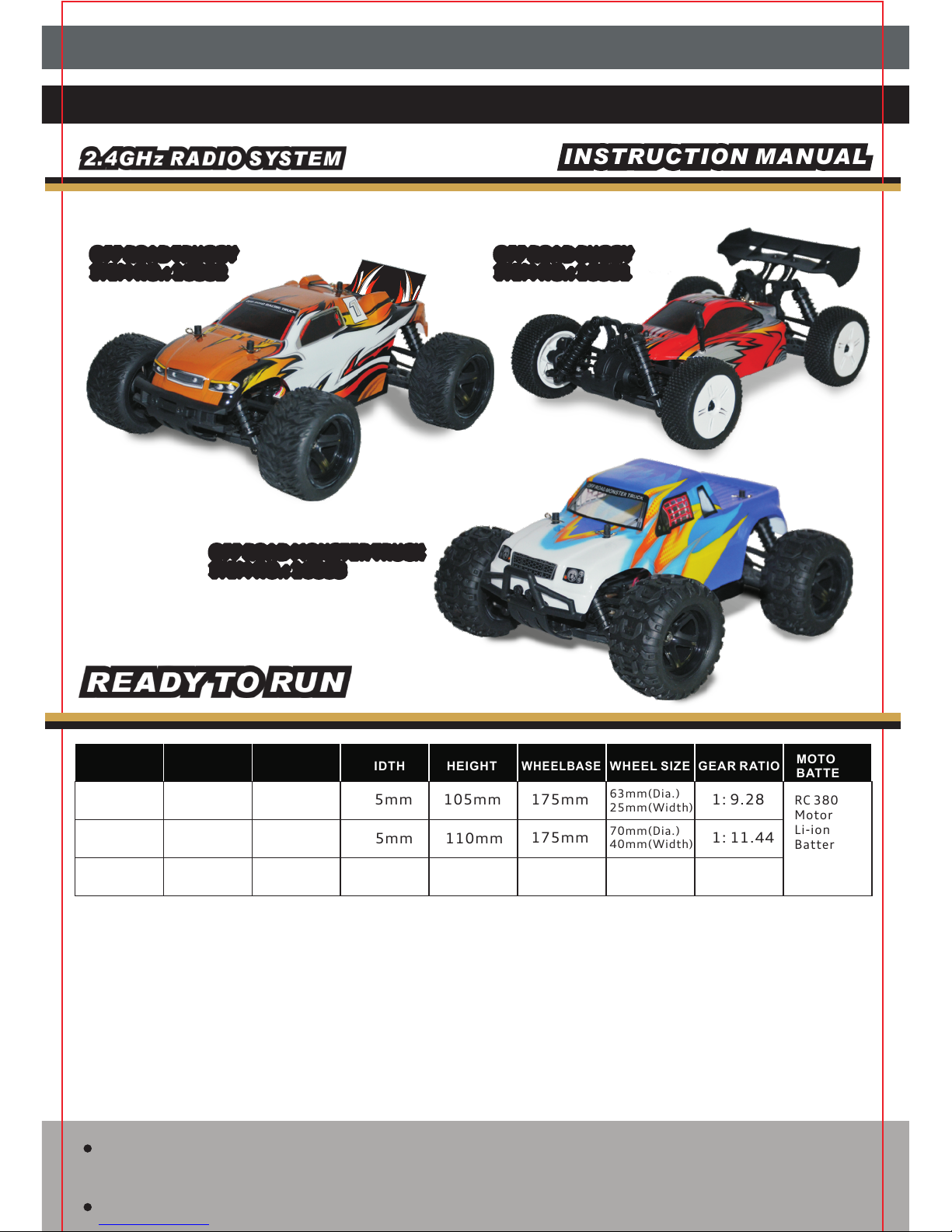

Haiboxing 16881 OFF ROAD BUGGY User manual

Please completely read and understand the entire manual before using, assembling and/or
disassembling your remote controlled car.
INSTRUCTION MANUAL
MODEL NAME LENGTH WIDTH HEIGHT
WHEELBASE WHEEL SIZE GEAR RATIO MOTOR &
BATTERY
BUGGY
TRUGGY
MONSTER
TRUCK
16 881
16 882
16 883
175mm260mm 175mm 105mm 63mm(Dia.)
25mm(Width) 1: 9.28 RC 380
Motor &
Li-ion
Battery
Pack (7.4V,
800mAH)
175mm
175mm
1: 11.44
265mm 205mm 110mm 70mm(Dia.)
40mm(Width)
270mm 215mm 135mm 80mm(Dia.)
45mm(Width)
Notification: This date is subject to change without the prior notice.
The series of cars are Ready to Run with battery pack of Li-ion ,800mAH, the charger and the adapter
of the charger which is needed for charging your li-ion battery pack.
The cars feature 3-in-1 unit (ESC/receiver/ 5 wire servo) and 2.4GHz radio system, which are called entry-
level hobby grade products and suitable for R/C beginners. Ball bearings and brass bushes are installed
throughout the whole vehicles.

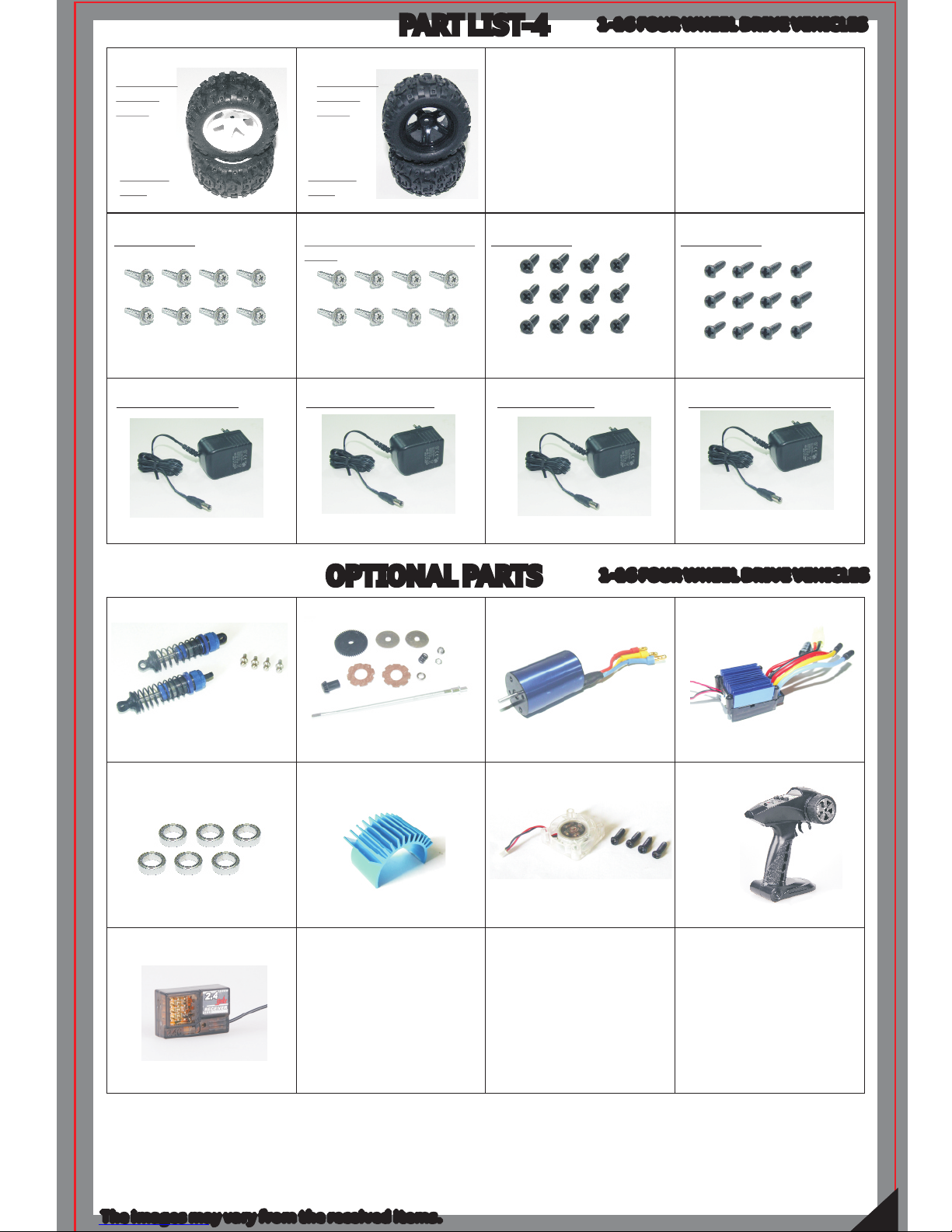

Many optional parts are available from factory and please refer to the part lists. If you perform a drive
train upgrade, replace the entire system ( such as motor, ESC, receiver , ball bearings and the like) so that
all components are properly matched. Any malfunction incurred by custom modification or incorrect
operation will void your warranty.
7.4V
OFF ROAD TRUGGY
ITEM NO.: 16882
1/16TH SCALE 4WD ELECTRIC POWERED BUGGY/TRUGGY/MONSTER TRUCK
OFF ROAD BUGGY
ITEM NO.: 16881
OFF ROAD MONSTER TRUCK
ITEM NO.: 16883
This product is not a toy. It is not intended for persons under 14 years of age, unless closely
supervised by an adult.
This manual is subject to change without prior notice.
1: 11.44

This user's manual is designed for use with your vehicles and contains the instructions you will
need to assemble, operate and maintain your vehicles.
We know you are anxious to start driving, but it is very important that you take time to read
the manual even if you are an experienced R/C driver.
Carefully read and follow all instructions in the manual. Failure to follow the instructions will
be considered abuse and/or neglect and may void the warranty.
Your vehicle is designed to run on uneven or rough terrain. However dust, sand, water and
carpet fibres can lodge in the working parts of your cars and can damage your vehicle if not
removed promptly. We do not warranty your vehicle from damage due to outside elements
including sand, dirt or water. The users are responsible for the maintenance and safe operation
of this vehicle.
This product is not a toy. It is not suitable for users under 14 years old unless they are supervised
by adults.
Never attempt to re-assemble any electronic components. These have been carefully calibrated
at the factory.
Only use manufactured parts to upgrade your car. If you perform a drive train upgrade, replace
the entire system (Such as motor, ESC/receiver unit and the like) so that all components are properly
matched. Any malfunction incurred by custom modification will void your warranty.
Before driving your vehicle, please read this manual completely and examine your vehicle and
radio control for any defects.
For better performance, some adjustment may be necessary.
This vehicle requires one battery pack ( included in the car or in the packaging). Make sure the vehicle's
batteries have a sufficient charge before driving or possible loss of control may result. The radio
controller requires three AA size batteries (not include in the packaging).
Always remove batteries from the vehicle and the radio controller when not in use.
Please operate your vehicle in a spacious area. Never operate your vehicle in crowded street.
This product is fully assembled at factory. We do not take any responsibility for damage and/or
accidents that occur as the result of custom modifications and/or incorrect operation.
GENERAL INFORMATION
1

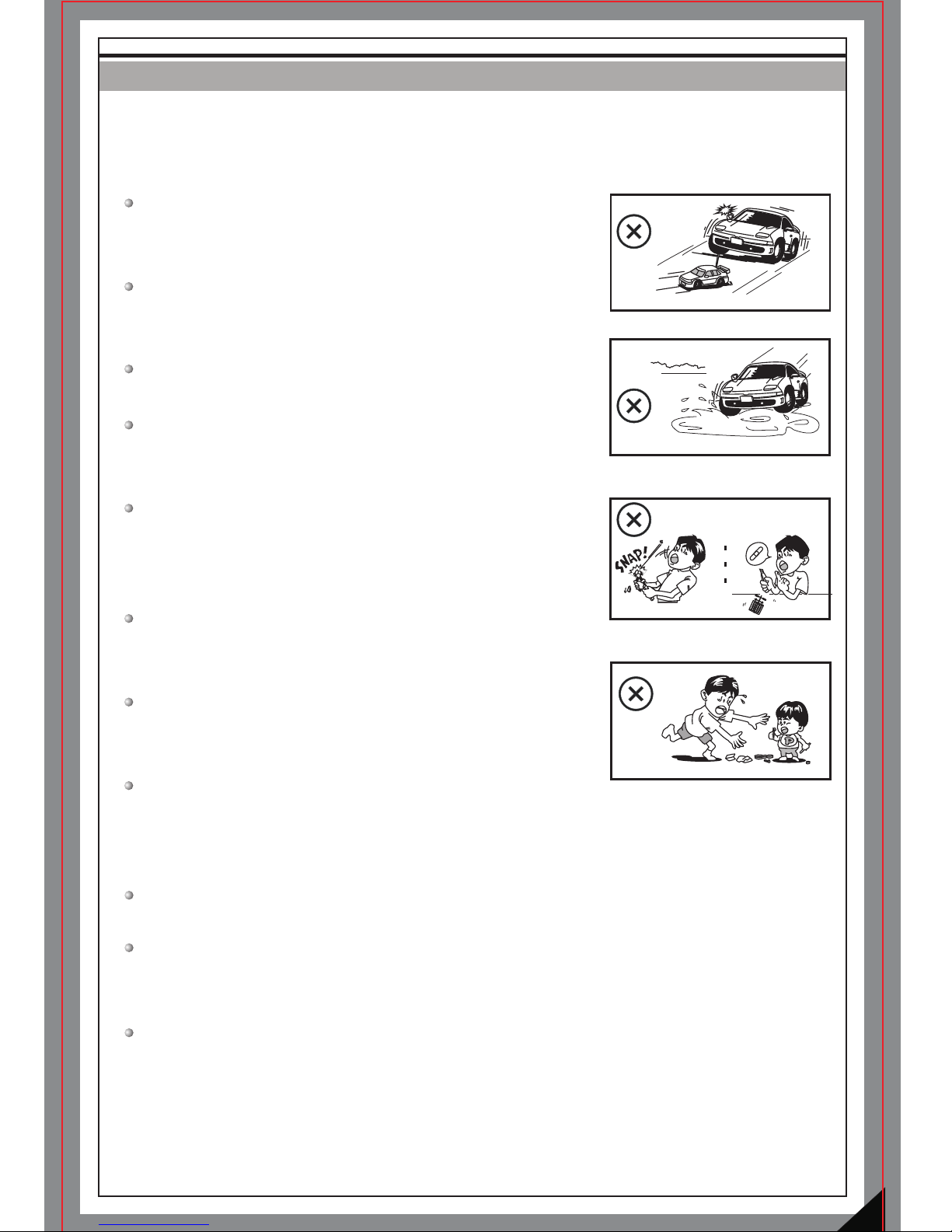

SAFETY INFORMATION
We want users to enjoy our RC vehicles and to operate them with care. Failure to operate
your vehicle in a safe and responsible manner may result in injury to yourself, others or damage
to property around you.
Read and understand all instructions carefully before use
and assembly/disassembly.
Do not run your vehicle on public roads or any area where you
may encounter pedestrian or vehicle traffic.
Do not operate in a congested area or in crowds.
Do not operate your vehicle with obstructed line of sight,
at night, or near water.
Your vehicle is radio controlled. Radio waves are subject to
interference. Radio interference can cause loss
of control of your vehicle.
Take care not to cut yourself while using tools to adjust or
upgrade your vehicle.
Since the model contains many small parts, keep out of reach
of children while assembling and/or disassembling.
When turning off your model, always turn off the receiver
(3-in-1 unit) first, before turning off the remote control. Always remove the
batteries from your vehicle and the remote control when not in use.
If your vehicle becomes stuck, release the throttle, then retrieve it by hand.
Do not continue to apply the throttle or you may damage the motor and/or the ESC/receiver
unit.
Turn off your vehicle and discontinue use if it runs erratically. Not do you run it again until the
issue has been found and resolved.
2

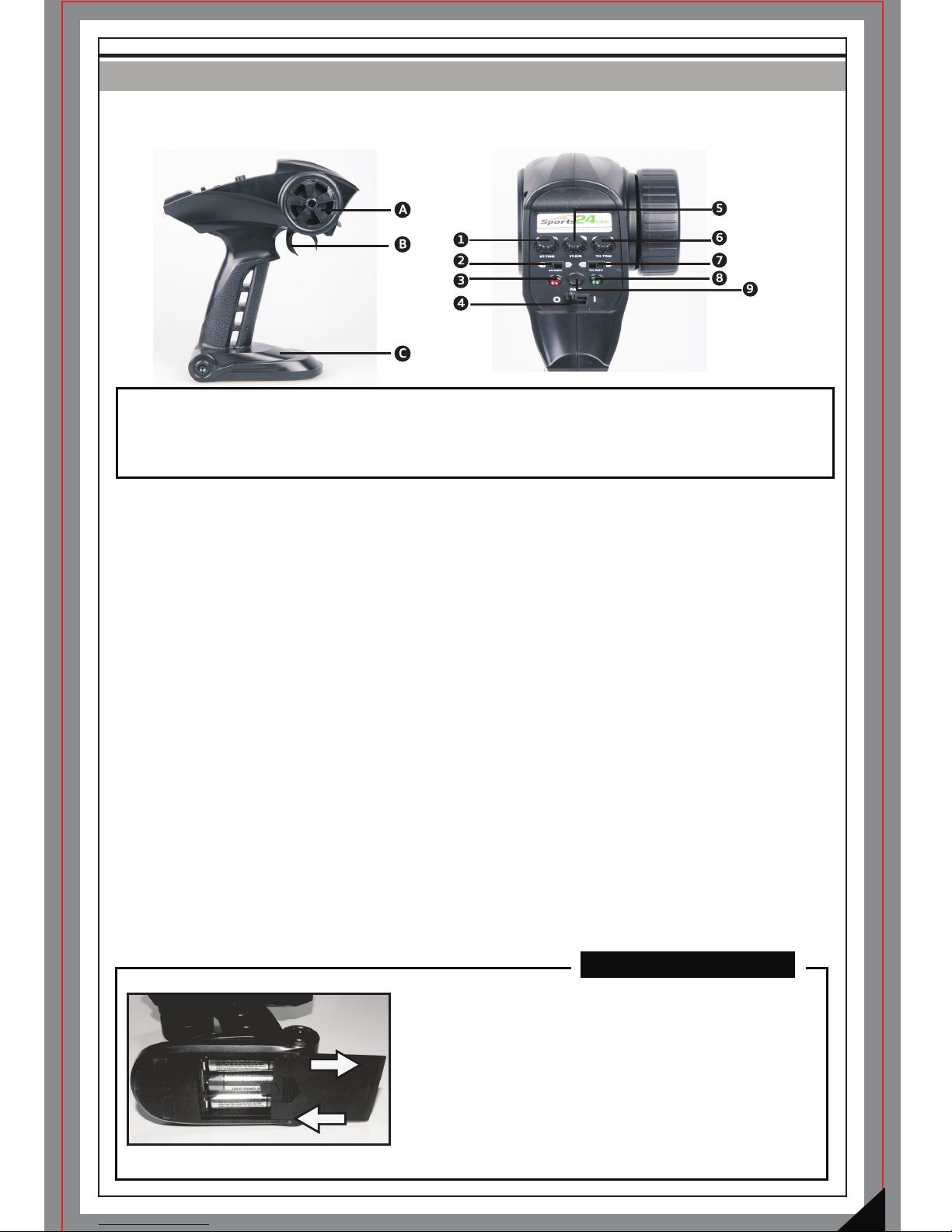

GETTING FAMILIARIZED WITH YOUR 2.4GHz RADIO SYSTEM
3
BATTERY INSTALLATION
1) Slide the battery cover as shown , and according to the
illustrations of polarities, install 3pcs of AA size batteries.
2) Replace the battery cover after batteries are installed.
-Use batteries of same type.
-Remove batteries from the case if not in use.
-Always check the battery power.
-Dispose of exhausted batteries properly.
NOTES:
Your car is equipped with the new 2.4GHz radio system .Please read and understand all
instructions below before operating.
,
A: Steering Wheel
B: Trigger
C: Battery Case
1: Steering Trim
2: Steering Reverse
3: Red Indicator
4: Power Switch
5: Steering Dual Rate
6: Throttle Trim
7: Throttle Reverse
8: Green Indicator
9: Bind(Pair) button
Steering Wheel: It proportionally operates the model s right and left steering control.
Battery Case: It requires 3pcs of AA size batteries.
Power Switch: It is used to turns the radio controller ON/OFF
Steering Dual Rate Dial: It allows you to change the amount of steering servo travel compared to the amount
of physical movement of the steering wheel.
Throttle /Steering Trims: They are used to adjust the center trim of the throttle/steering channel.
Steering Reverse: It allows you to electronically switch the direction of steering servo travel. For example,
if you move the steering wheel to the right and the steering servo moves to the left,flip the Steering Reverse
Switch to make the steering servo move to the left.
Throttle Reverse : It allows you to electronically switch the direction that the motor operates in relation to the
throttle trigger. For example, if you pull the throttle trigger to accelerate forward, but the model goes in reverse,
flip the Throttle Reverse Switch to make the model accelerate forward.
Bind(Pair) button: It is used to bind your 2.4GHz radio system.
Trigger: It controls the speed and braking ability of your car. Pull it to accelerate, release it to decelerate,and
push it to brake. Pushing it a second time activates the reverse feature.
Indicators: It shows battery power level.Green indicator flashing means battery power is not enough.
As long as bothred and green indicator goes flashing indicating that the radio controller runs out of battery
power, you must replace with fresh batteries immediately.

4
RUNNING YOUR CAR
1TURN ON THE RADIO CONTROLLER 2TURN ON THE RECEIVER ON YOUR CAR
Power Switch
CAUTION
Before using your car, make sure the radio controller is of enough battery power.
Low battery power will lead to the loss of control of your car.
Always turn on the remote controller firstly, and then the receiver.

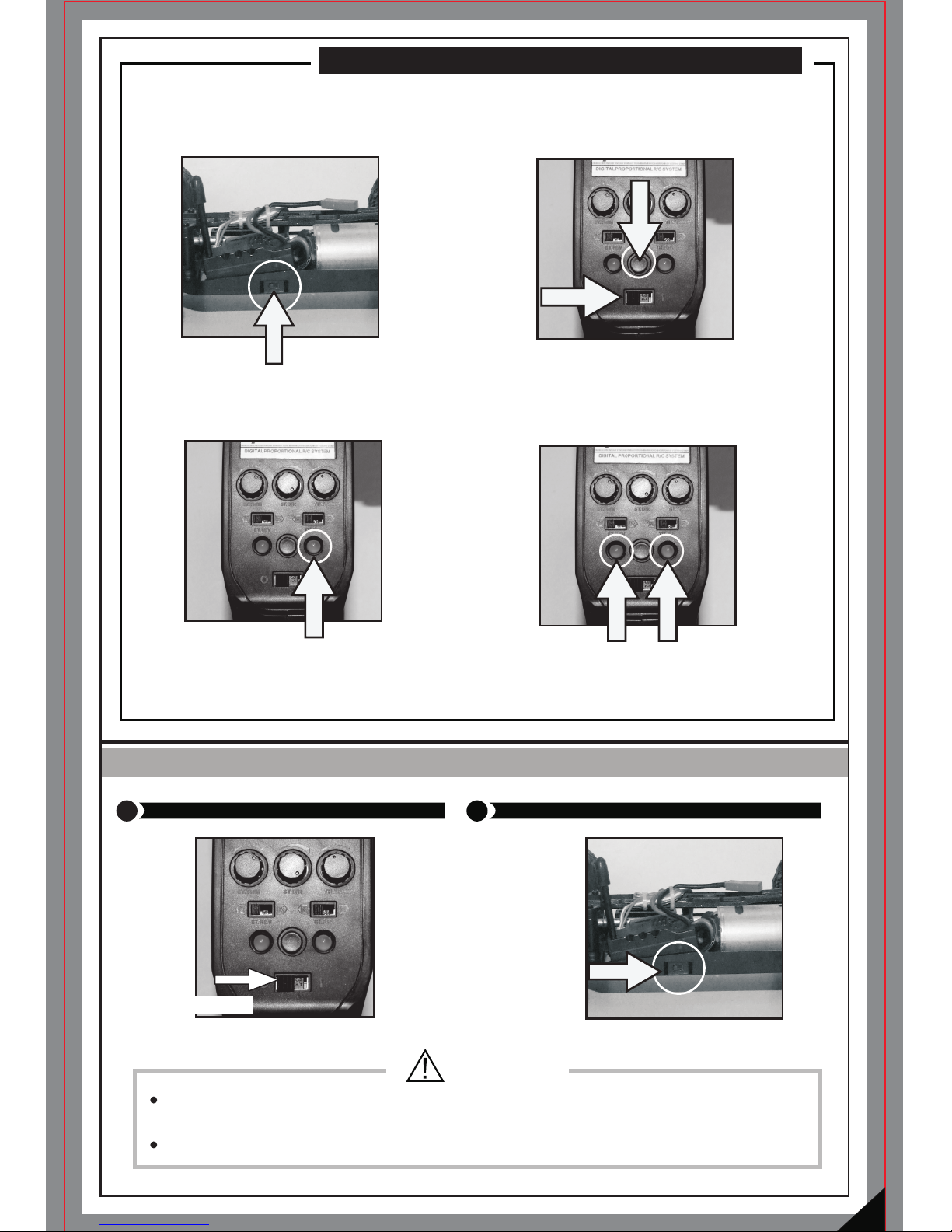

TO BIND THE RECEIVER TO THE RADIO CONTROLLER
1)Turn on the 3-in-1 unit power switch ,
which is located on the side of the car.
(Note: Receiver and ESC are combined inside
the 3-in-1 unit.)
2) Hold the Bind(Pair) key, switching on the
radio power.
This operation should be performed within
5 seconds after your receiver is turned on.
3) Green indicator goes flashing, meaning
that the binding process is being performed
in system.
4) Red and green indicators being steady on
means that your receiver is bound to your
radio controller. Binding process is
completed.
Before running , make sure that the radio controller is bound with the receiver, which have normally
been done at factory. If it is not the case, you are require to perform the binding procedure following
the instructions below.

5

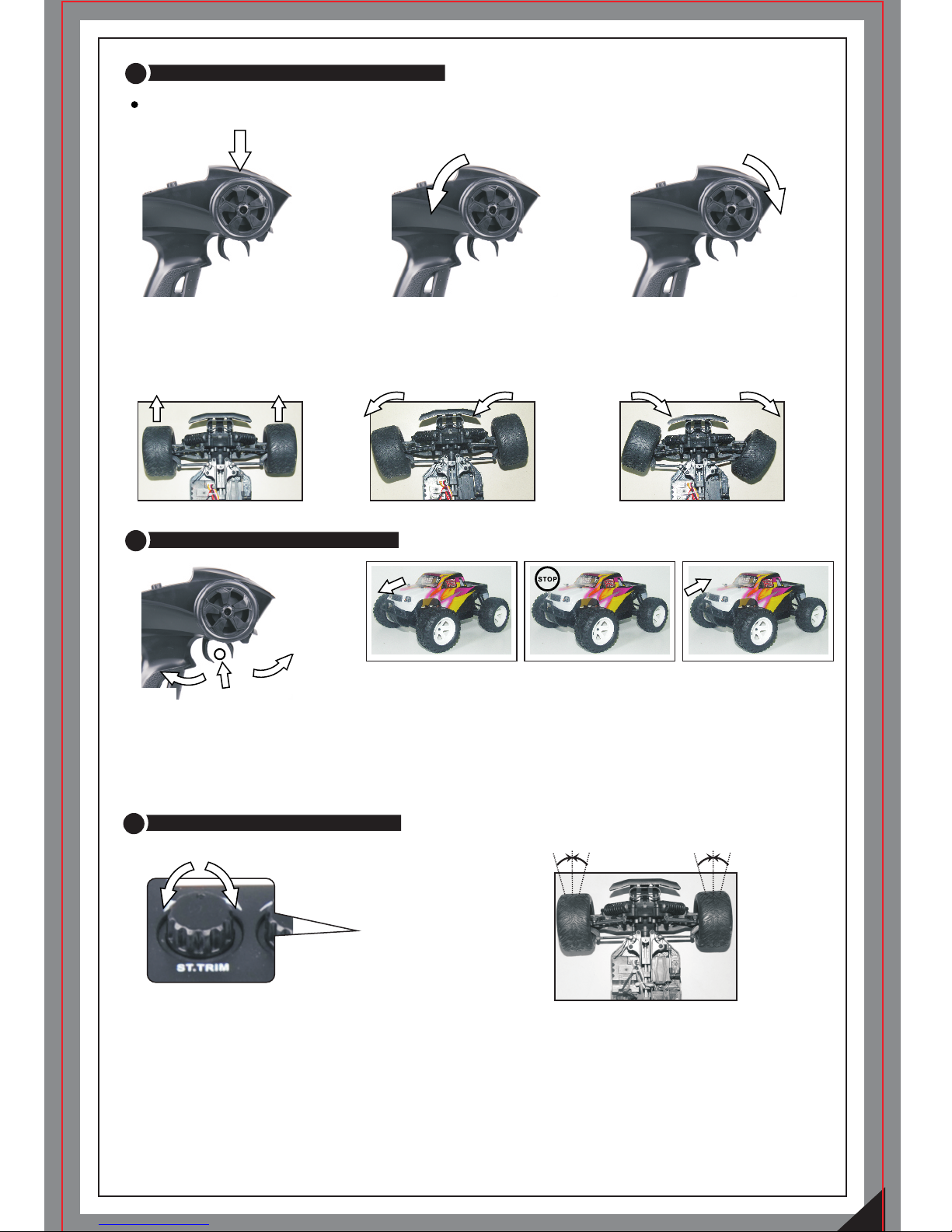

3CHECK STEERING PERFORMANCE
Ensure good steering performance.
4CHECK TRIGGER RESPONSE
1) To keep the car run straight
in line , do not move the
control wheel.(Keep it
at centre)
TURN LEFT TURN RIGHT
2) Turn it left to allow your
vehicle turn to left.
3) Turn it right to allow your
vehicle turn to right.
A. Pull the trigger back t
push it to brake.
B. To stop running your car, release the trigger to Neutral.
C. Pushing the trigger a second time activates the reverse feature.
o accelerate, release it to decelerate and
5TO TUNE THE STEERING TRIM
Gently pull the trigger to allow your car to run slowly. Meantime, tune the steering trim to allow the
front wheels to be aligned.
CENTRE
CENTRE
PULL IT
BUCK
PUSH IT
FORWARD A B C
STEERING TRIM

6
6TO TUNE THE STEERING DUAL RATE CONTROL DIAL
This dial adjusts the overall travel of the steering servo. Push the dial forward for maximum
steering. Pull the dial back to reduce the steering level.
- Set the Steering Dual Rate Control Dial to Minimum first. To set the desired steering level
increase it again whilst decelerating your vehicle.
Decrease
Increase
STEERING D/R
Once you become conformable driving the vehicle, perform driving practice on the tracks as shown
in the figure.
Keep practising until you feel comfortable with the steering, throttle and brake at low speeds. Once
you are feeling comfortable try operating on another track.
When you have mastered the basics you will be able to drive at higher speeds in a more controlled
fashion.
PRACTICE
RUNNING PRACTICE

STOPPING YOUR CAR
1TURN OFF THE RADIO CONTROLLER
Always switch off the receiver ,and then the radio controller.
2
TURN OFF THE RECEIVER ON YOUR CAR
CAUTION
3REMOVE BATTERIES
Do not forgot to remove batteries from your car and radio controller when not in use.
TURN OFF
Power Switch
7
CHARGING THE BATTERY PACK
To be connected
To be connected
To be connected
to the charging
socket.
Charger
(9V, 600mA)
Charger Adapter
Li-ion Battery
Pack
-Use only the specified charger (9V,600mA) to charge the Li-ion battery pack.
- The charger adapter is needed during charging, on which on the one side the charger is
connected and on the other side the battery pack is connected.
- Never charge the battery pack unattended.
- Always remove the battery pack from the car before charging.
- Always use the battery pack after it is fully charged.
Green Indicator
Red Indicator
-Charging time is normally around 2 hours and a half.
-The red indicator on the adapter lights up, which means
charging is being performed.
- As long as charging is complete, the green indicator lights up.

8
TROUBLESHOOTING
MAINTAINING YOUR CAR
Inspect your car for any obvious damage.
Check the gears for wear, debris or broken/slipping teeth.
Check the wheels and tighten the wheel screws properly.
Check for loose screws in the chassis.
Check the wiring for frayed or damaged wires or connectors.
Check the steering servo which will wear out over time and require replacement.
Check all batteries.
Keep the chassis clean and free of sand, dust and moisture.
Remove and clean the motor if necessary. (Never attempt to re-assemble the motor, you
will damage it and void the warranty).
Clean the car body with a soft lint-free cloth.
Remove all batteries if you are from the car when not in use.
After running your car, the following procedures should be performed regularly and will help to
maintain your car's performance.
A. The vehicle does
not work at all.
1. Check to see if transmitter and car are on.
2. Check to see if TX/RX are properly bound.
3. Adjust throttle trim on transmitter
4. Replace batteries.
B. The runs
slow.
vehicle
1. Replace or charge the battery pack and/or the radio batteries.
2. Make sure the is geared properly and the pinion
and spur gear are over tightened.
vehicle
3. Clean all bushings or ball bearings.
4. Check for stripped or dirty gears.
C. The throttle works,
but it can not steer.
1. Check if the servo feels jammed, try centering it by hand.
2. Check the whole steering system.
D. It steers, but throttle
is uncontrollable.
1. Adjust the throttle trim.
2. Replace or charge the battery pack and/or the radio batteries.
E. runs
noisily.
The vehicle
1. Check gear mesh between spur gear and pinion.
2. Check for stripped and/or dirty gears.
3. Clean and oil bushings or ball bearings.

9

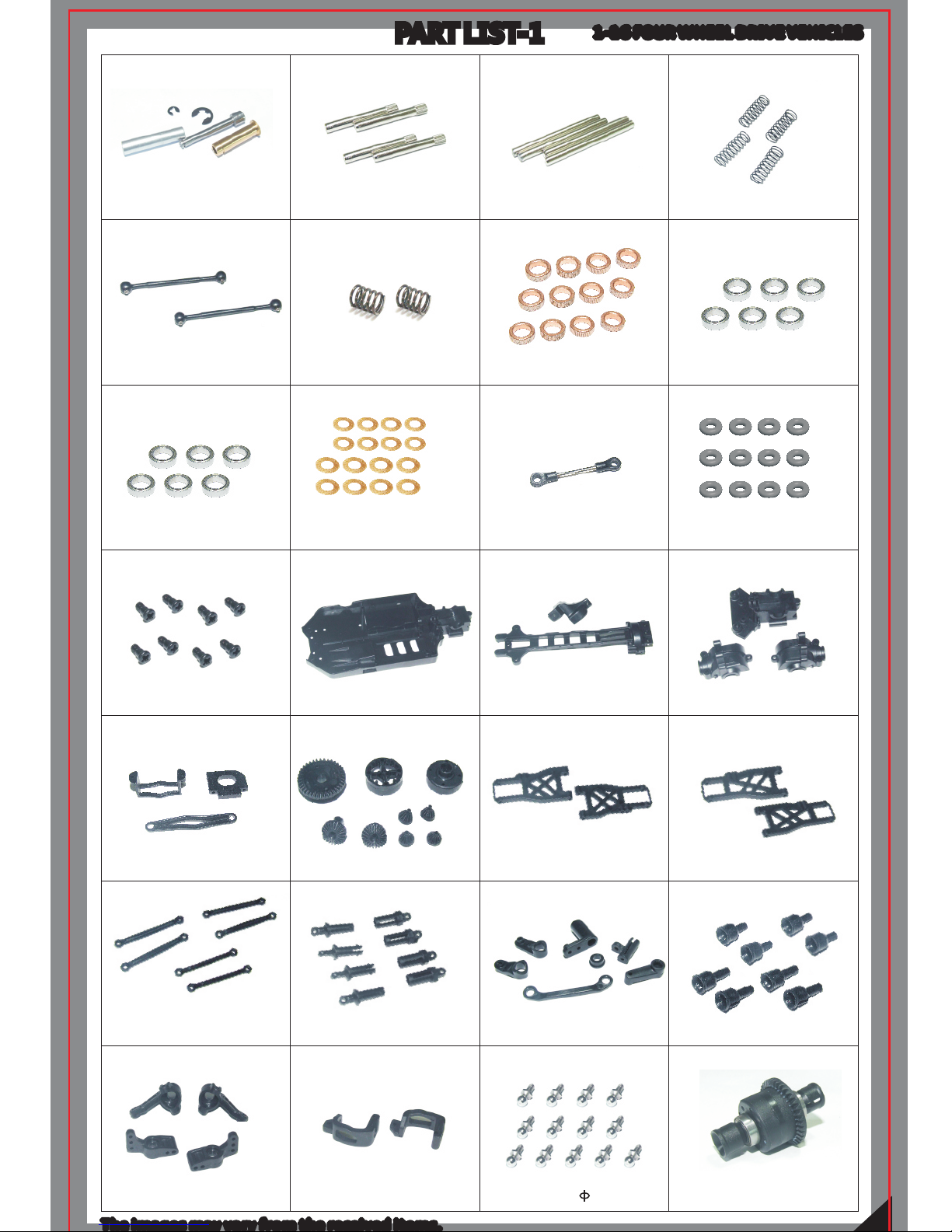

PART LIST-1 1-16 FOUR WHEEL DRIVE VEHICLES
ITEM NO.: 16810
Steering Bush+ Steering Post
+E-clip(2mm/4mm)
ITEM NO.: 16003
Suspension Hinge Pins-Outside
ITEM NO.:16004
Servo Linkage Set
4PCS
ITEM NO.: 16005
Shock Coils
ITEM NO.: 16006
Drive Shafts (Fr./Rr.)
ITEM NO.: 16007
Steering Load Spring
ITEM NO.: 16008
Brass Bushes ( 5*8*2.5mm)
12PCS2PCS2PCS
4PCS
ITEM NO.: 16811
Washers
ITEM NO.: 16012
6.3*12.5*0.2mm(16P)
ITEM NO.: 16013
ITEM NO.: 16014 ITEM NO.: 16015 ITEM NO.: 16016
Chassis
Upper Deck+ Motor Mount
Guard
Servo Guard+ Battery Cover+
Motor Mount
ITEM NO.: 16017
ITEM NO.: 16018 ITEM NO.: 16020
Front Upper Linkage Set (2P)
Rear Upper Linkage Set (2P)
Steering Linkage Set (2P) Shocks Assembly
4PCS Diff. Outdrive Cups (4P) +
Wheel Shafts 4P(Fr./Rr.)
Steering Knuckles (Left/Right)
+Rear Hub Carriers (Left/Right) Front Hub Carriers(Left/Right)
4PCS
Suspension Hinge Pins-Inside
Rear Lower Suspension Arm
(left/Right)
Diff. Gears + Diff. Case
ITEM NO.: 16022
ITEM NO.: 16023 ITEM NO.: 16024 ITEM NO.: 16026
ITEM NO.: 16027 ITEM NO.: 16028
ITEM NO.: 16025
Steering Hub Step Screws
12PCS
8PCS
The images may vary from the received items.
Steering Assembly + Antenna
Mount+Servo Arm +Gear Bush
Front Lower Suspension Arm
(left/Right)
ITEM NO.: 16021
Front Gear Box Assembly+
Rear Gear Box Cover
ITEM NO.: H011
Ball Bearings (5*8*2.5mm) 6P
ITEM NO.: H030
Ball Bearings (7*11*3mm) 6P
6PCS
6PCS
O-Ring (For Spur Gear)
ITEM NO.: 88021
13PCS
Ball Joint Set ( 3.8mm)
ITEM NO.: 16047
Diff. Assembly- Complete
(Fr./Rr.)
2PCS

10
PART LIST-2 1-16 FOUR WHEEL DRIVE VEHICLES
ITEM NO.: 16050ITEM NO.: 16048
Motor RC 380 (25000rmp)
ITEM NO.: 16049
3-in-1 Unit (7.4V, 25A)
ITEM NO.: 16051
Motor Pinion(13T)+ Set Screw
(3*3mm)
ITEM NO.: H021
ITEM NO.: S011 ITEM NO.: S013 ITEM NO.: S016 ITEM NO.:S020
ITEM NO.: S029 ITEM NO.: S061 ITEM NO.: S062
ITEM NO.: S100 ITEM NO.: S120 ITEM NO.: S138
ITEM NO.:S149
ITEM NO.:S091
ITEM NO.: S089
Countersunk Self Tapping
Screw 2*15mm
Countersunk Screw
2.5*8mm Set Screw M3*3mm
Countersunk Self Tapping
Screw 2.6*8mm
Washer Head Self Tapping
Screw 2.6*10mm
Countersunk Self Tapping
Screw 2.6*6mm
Countersunk
Screw 3*10mm
Washer Head Self Tapping
Screw 2.6*6mm
Washer Head
Screw 2.5*22mm
Washer Head
Screw 2.5*8mm Countersunk Self Tapping
Screw 2.6*10 mm
Flange Head Self Tapping
Screw 2.3*4mm
Flange Head Self Tapping
Screw 2*8mm
12PCS
The images may vary from the received items.
12PCS12PCS12PCS
12PCS12PCS12PCS12PCS
12PCS
12PCS12PCS12PCS
12PCS
ITEM NO.: 16057 ITEM NO.:16058
Motor Pinion(16T)+ Set Screw
(3*3mm)
Small Body Clips A/B Small Zip Ties Body Clip Cushions
ITEM NO.: P011 ITEM NO.:P100
12PCS8PCS12PCS
Li-ion Battery Pack
(7.4V, 800mAH)
ITEM NO.:16070
Charger Adaptor
5-Wire Servo ( 19g)
8PCS
Motor Mount Washers
(2.6*6*0.3mm)
TRUG GY / MO NS TE R TRUCK
ONLY
BUGGY ONLY
ITEM NO.:16073 ITEM NO.: E770
The pannel
and the
control
wheel
in color of
black
Receiver Antenna Pipe
ITEM NO.: P019
2PCS
ITEM NO.:16081
8PCS
Gear Box Washers
(8.2*10.6*0.3mm) 3-In-1 2.4GHz radio controller
(60M)
ITEM NO.: S153
Countersunk Screw
2.5*5mm
12PCS
Connector
changed
Connector
changed

11

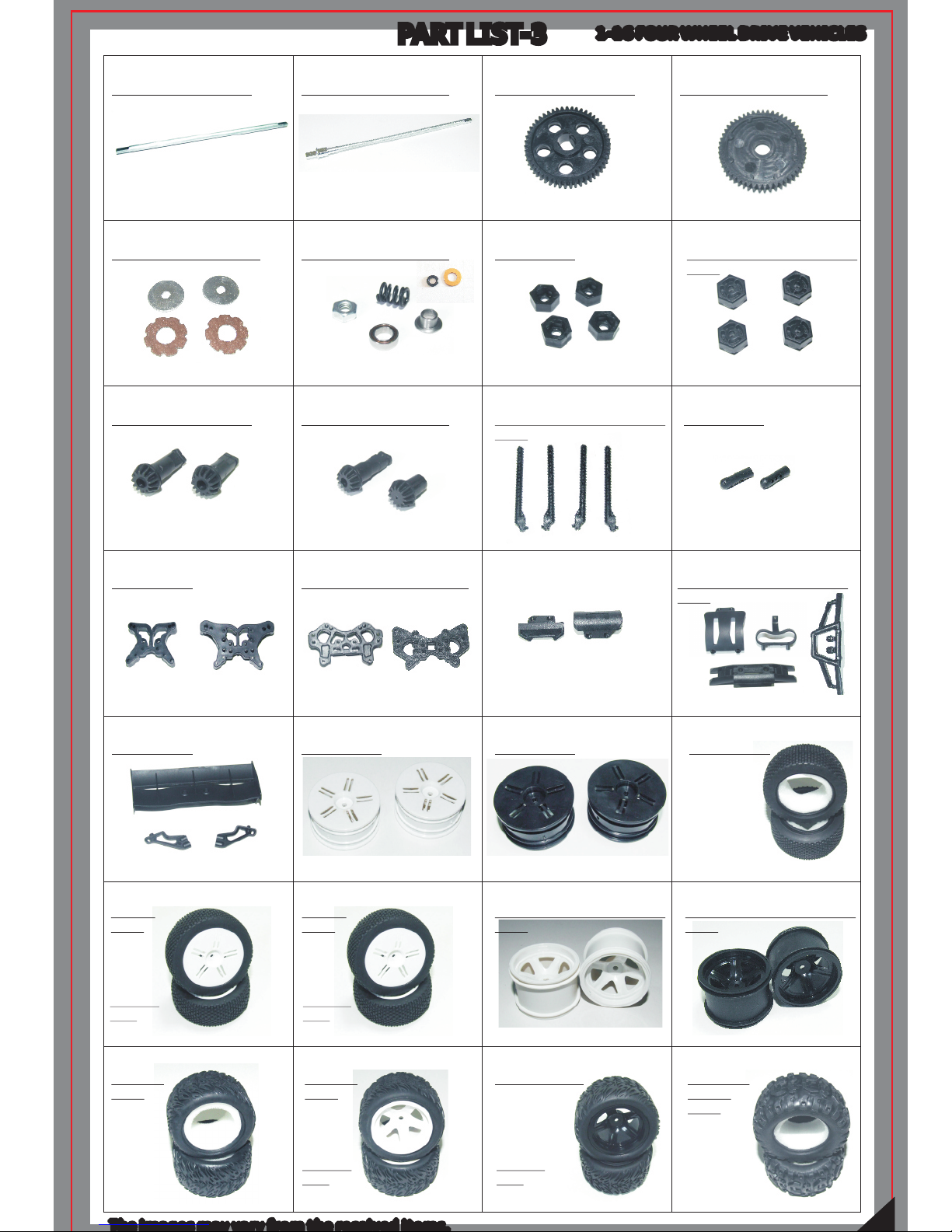

PART LIST-3 1-16 FOUR WHEEL DRIVE VEHICLES
The images may vary from the received items.
TRUG GY / M ON ST ER T RUCK
ONLY
Front Bumpers+Bumper Brace
ITEM NO.:16093 ITEM NO.:16094
MONSTER TRUC K ON LY
Slipper Clutch Pads/Disks
ITEM NO.: 16001
Centre Drive Shaft
ITEM NO.: 16019
Spur Gear
BUGGY /TRU GG Y ON LY BUGGY /TRU GG Y ON LY
ITEM NO.:16090 ITEM NO.: 16091
Centre Drive Shaft
(Needed for installing slipper
clutch) Slipper Spur Gear Unit
MONSTER TRUC K ON LY MONSTER TRUC K ON LY
ITEM NO.: 16029
Diff. Pinion Gears
2PCS
BUGGY /TRU GG Y ON LY
ITEM NO.: 16092
Diff. Pinion Gears
(Needed for installing slipper
clutch)
MONSTER TRUC K ON LY
ITEM NO.: 16030 ITEM NO.: 16031
2PCS
Body Posts (Fr./Rr.)
BUGGY ONLY
Body Posts (Fr./Rr.)
4PCS
TRUG GY / M ON ST ER T RUCK
ONLY
ITEM NO.:16032
Front Shock Tower+Rear Shock
Tower
BUGGY ONLY TRUG GY / MO NS TE R TRUCK
Front Shock Tower+Rear Shock
Tower
ITEM NO.: 16033 ITEM NO.: 16034
Front Bumper(Buggy)+
Rear Bumper(Buggy/Truggy
/Monster Truck)
ITEM NO.: 16038
BUGGY ONLY
Off Road Wing +Wing Stay
ITEM NO.: 16039W ITEM NO.:16039K
BUGGY ONLY BUGGY ONLY
White Wheel Rims (Fr./Rr.) Black Wheel Rims (Fr./Rr.)
ITEM NO.: 16040
BUGGY ONLY
Pin Tires +Sponge (Buggy)
ITEM NO.: 16041W ITEM NO.: 16041K ITEM NO.:16042W
BUGGY
ONLY
W/white
rims
BUGGY
ONLY
W/black
rims
Wheels Complete(Buggy) Wheels Complete(Buggy) White Wheel Rims (Fr./Rr.)
TRUG GY / M ON ST ER T RUCK
ONLY
ITEM NO.: 16042K
Black Wheel Rims (Fr./Rr.)
TRUG GY / M ON ST ER T RUCK
ONLY
ITEM NO.: 16043 ITEM NO.: 16044W ITEM NO.:16044K
Flame Tires +Sponge (Truggy) Wheels Complete(Truggy)Wheels Complete(Truggy)
W/white
rims
W/black
rims
TRUG GY
ONLY
TRUG GY
ONLY
TRUG GY O NLY
ITEM NO.: 16045
MONSTER
TRUC K
ONLY
TREAD TIRES+SPONGE (Truck)
ITEM NO.:16036
Wheel Hex.(Buggy)
ITEM NO.: 16037
BUGGY ONLY TRUG GY / M ON ST ER T RUCK
ONLY
ITEM NO.: 16035
Wheel Hex.(Truggy/Monster
Truck)
Front
Rear
Slipper Clutch Spring/Ball
Bearing/Locks + O-ring + Shim
MONSTER TRUC K ON LY

12
The images may vary from the received items.
OPTIONAL PARTS 1-16 FOUR WHEEL DRIVE VEHICLES
Alum.Capped Oil Filled Shocks.
+ Ball Joints (Fr./Rr.) Brushless Motor Brushless ESC
ITEM NO.: 16805
Motor Cooling Heat Sink
ITEM NO.: 16804
Ball Bearings (8*12*3.5mm) 6P
6PCS
ITEM NO.: 16806
Brushless ESC Cooling Fan +
Mounting Screws(4P)
ITEM NO.:16071
8PCS Wheel Nut Screws
(2.6*15mm)
8PCS
TRUG GY / M ON ST ER T RUCK
ONLY
BUGGY ONLY
ITEM NO.:S150
12PCS
Round Head Self Tapping
Screw 2.6*8mm
BUGGY ONLY
PART LIST-4 1-16 FOUR WHEEL DRIVE VEHICLES
ITEM NO.: S128
Countersunk Self Tapping
Screw 2.3*6mm
12PCS
BUGGY ONLY
ITEM NO.: E775
ITEM NO.:16072
ITEM NO.: E710
Independent 2.4GHz Receiver
2.4GHz radio controller (150M)
The pannel
and the
control
wheel
in color of
titanium
Slipper Clutch Assembly +
Modified rear diff.pinion gear +
Modified Centre Drive Shaft
ITEM NO.: 16800 ITEM NO.: 16801 ITEM NO.: 16802 ITEM NO.:16803
ITEM NO.: 16801= ITEM NO.: 16090 +ITEM NO.: 16091 +ITEM NO.: 16092+ITEM NO.: 16093+ITEM NO.: 16094
Warning: If you perform a drive train upgrade, replacethe entire system (Such as motor, ESC/receiver unit
and the like) so that all components are properly matched. Any malfunction incurred by custom modification
will void your warranty.
ITEM NO.: 16046KITEM NO.: 16046W
W/white
rims
W/black
rims
Wheels Complete(Truck) Wheels Complete(Truck)
ITEM NO.: 16052 ITEM NO.: 16053 ITEM NO.:16054 ITEM NO.: 16055
AUSTRALIA STANDARD
Charger (AUSTRALIA
STANDARD),9V, 600mA
AMERICA STAN DA RD U.K. STAN DARDEUROP E STANDA RD
Charger (AMERICA STANDARD),
9V, 600mA
Charger (U.K. STANDARD),
9V, 600mA
Charger (EU STANDARD),
9V, 600mA
MONSTER
TRUC K
ONLY
MONSTER
TRUC K
ONLY
Wheel Nut Screws
(2.6*12mm)

13
UNITS ASSEMBLY VIEW
SHOCK ASSEMBLY
16005
16024
16024
SERVO INSTALLATION
DIFF. ASSEMBLY (Fr./Rr.)
16018
16051
16025
16026
16020
16020
FINISHED
FINISHED
16020
16020
16020
16020
16026
88021
16804
16804
16811 （6.3*12.5*0.2mm)
16811 （6.3*12.5*0.2mm)
FINISHED
S149
16029
H030
S011
BUGGY/TRUGGY ONLY

14

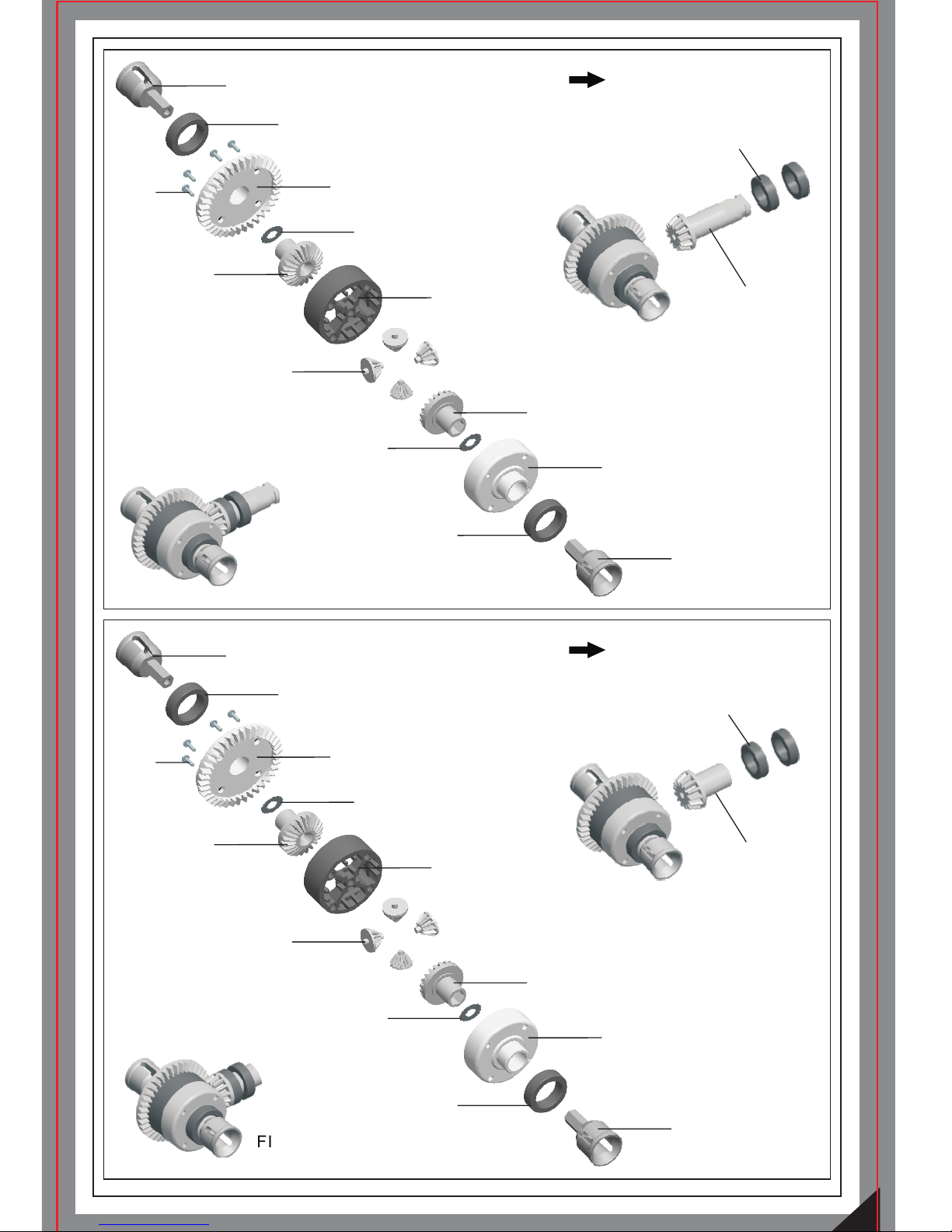

DIFF. ASSEMBLY (Front)
16026
16020
16020
16020
16020
16020
16020
16026
16804
16804
16811 （6.3*12.5*0.2mm)
16811 （6.3*12.5*0.2mm)
FINISHED
H030
S011
MONSTER TRUCK ONLY
DIFF. ASSEMBLY (Rear)
16026
16020
16020
16020
16020
16020
16020
16026
16804
16804
16811 （6.3*12.5*0.2mm)
16811 （6.3*12.5*0.2mm)
FINISHED
S011
MONSTER TRUCK ONLY
16092
H030
16092

15

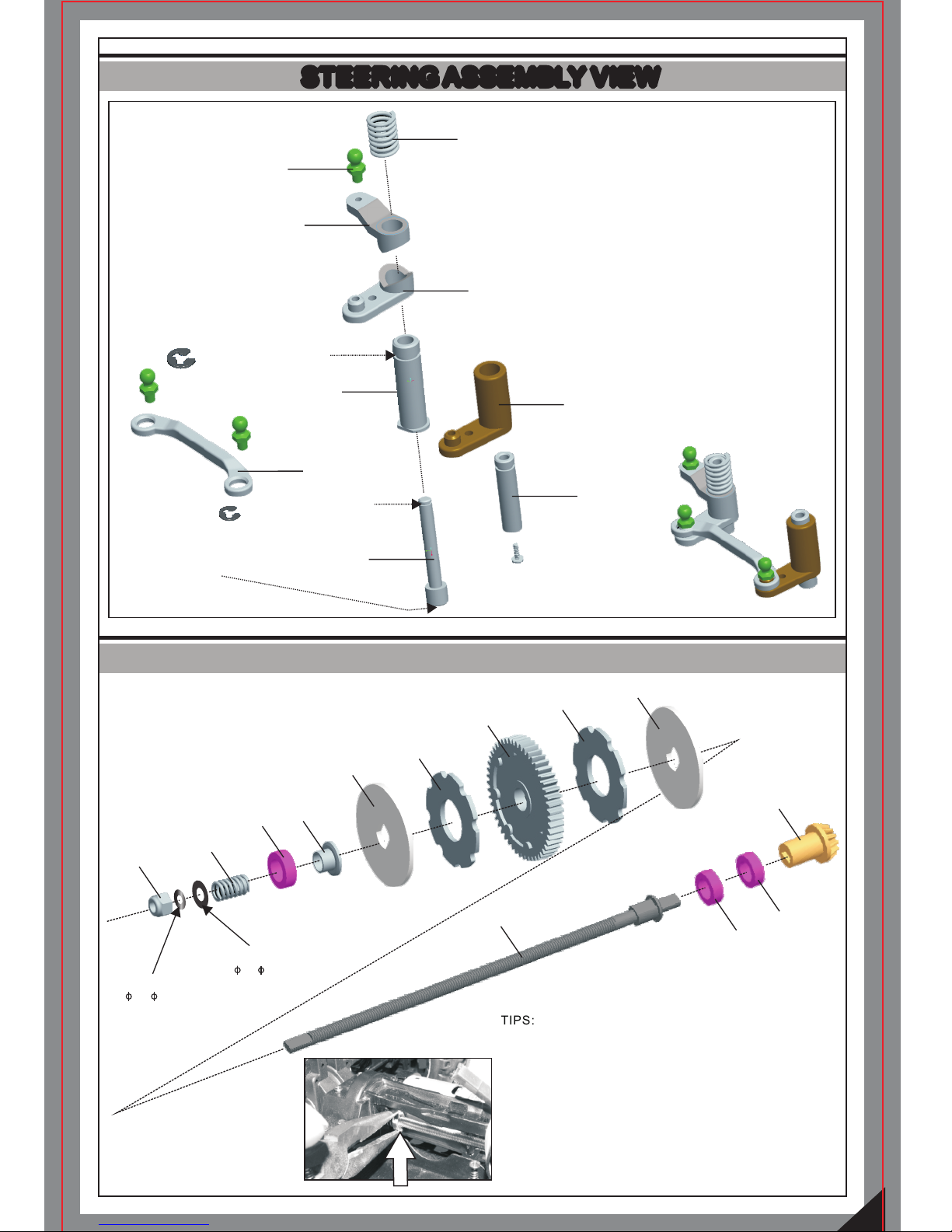

STEERING ASSEMBLY VIEW
MONSTER TRUCK ONLY
(It can be an optional part
for buggy or truggy)
Use needle-nose pliers to adjust the slipper clutch
set as shown in the picture. Place the car with its
four wheels landing on the ground.
1) Hold the nut by the pliers (as shown in the picture),
moving the car backwards gently by hand to loosen
the slipper clutch.
2) Hold the nut by the pliers (as shown in the picture),
moving the car forward gently by hand to tighten the
slipper clutch.
TIPS:
16007
88021
16025
16025
16025
16810
16025
16810
S013
16810
E-Clip(4mm) is applied
here after the kit is
assembled.
E-Clip(2mm) is applied
here after the kit is
assembled.
H030
H030
16092
16090
16093
16091
16093
16093
16093
16094
16094
16094
16094
16094 (O-ring)
5* 3*1
16094(Shim)
4* 8*0.5
locked with S153 to the chassis
from the bottom

16050
16049
16048
16015
16018
16058(Locke d wi th M3*3 Set Screw )
16018
16018
16019
16017
16025
16040
16039W(16039K)
16036
16027
16028
16023
88021
16006
16026
16017
16017
16012
16032
16032
16023
16023
16006
16023
88021
16028
16027
16036
16039W(16039K)
16040
16021
16021
16034
16003
16004
16004
16003
16003
16004
16004
16003
16022
16022
16034
16006
16006
16027
16026
16026
16026
16023
16036
16023
16027
16039W(16039K)
16039W(16039K)
16040
16040
16038
16038
16038
16001
16036
16031
16031
16025
16013
16071
16071
16071
16071
16008
16811
(6.3*12.5*0.2mm)
S062
S062
S062
S062
S062
S062
S062
S062
S020
S020
S020
S020
S013
S013
S013
S013
S013
S013
S150
S150
S150
S120
S120
S029
S091
S091
S128
S091
S091
S128
S100
S100
S089
S029
S029
S029
S029
S029
S120
S061 S013
S153
S061
S138
S138
S020
S100
S100

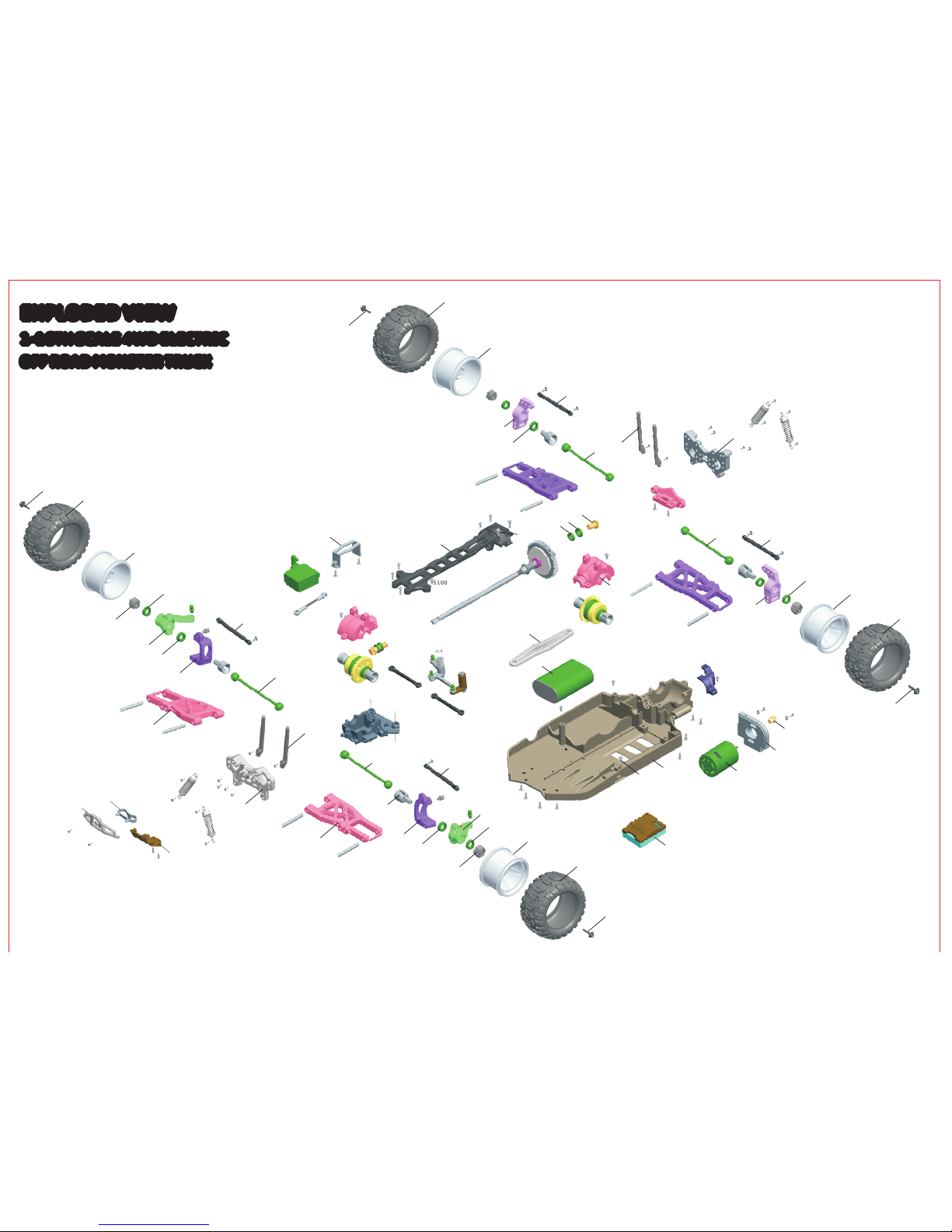

EXPLODED VIEW
OFF ROAD BUGGY
1-16TH SCALE 4WD ELECTRIC
88021
H030
16008
16008
16008
16008
16008
Loc ked
wit h S153
Loc ked
wit h S013

16050
16049
16048
16015
16018
16057(Locke d with M3*3 Set Screw)
16018
16018
16019
16017
16025
16037
16027
16023
88021
16006
16017
16017
16012
16023
16023
16006
16023
88021
16028
16027
16037
16021
16003
16004
16003
16004
16004
16003
16022
16022
16034
16006
16006
16027
16026
16026
16026
16023
16037
16023
16027
16043
16001
16037
16025
16013
16072
16072
16072
16072
16028
16026
16021
16004
16003
16008
16811
(6.3*12.5*0.2mm)
S062
S062
S062
S062
S062
S062
S062
S062
S020
S020
S020
S013
S013
S013
S013
S013
S013
S029
S091
S091
S091
S091
S100
S100
S089
S029
S029
S029
S029
S029
S120
S061 S013
S061
S138
S138
S020
S100
S100
16042W(16042K)
16043
16042W(16042K)
16042W(16042K)
16043
16043
16042W(16042K)
16033
16033
S029
S029
S029
16030
S138
S138
16030
S138
S138
S020
S020
16035
16035
16035
EXPLODED VIEW
OFF ROAD TRUGGY
1-16TH SCALE 4WD ELECTRIC
88021
H030
16008
16008
16028
16008
16008
S153
Loc ked
with S153
Loc ked
with S013

16050
16049
16048
16015
16018
16057(Locke d with M3*3 Set Screw)
16018
8
16018
16017
16025
16037
16027
16023
88021
16006
16017
16017
16012
16023
16023
16006
16023
88021
16028
16027
16037
16021
16003
16004
16003
16004
16004
16003
16022
16022
16034
16006
16006
16027
16026
16026
16026
16023
16037
16023
16027
16045
16037
H030
16072
16072
16072
16072
16028
16026
16021
16004
16003
16008
(or H011)
16 11
(6.3*12.5*0.2mm)
S062
S062
S062
S062
S062
S062
S062
S062
S020
S020
S020
S013
S013
S013
S013
S013
S013
S029
S091
S091
S091
S091
S100
S100
S089
S029
S029
S029
S029
S029
S120
S061 S013
S061
S138
S138
S020
S100
S100
16042W(16042K)
16045
16042W(16042K)
16042W(16042K)
16045
16045
16042W(16042K)
16033
16033
S029
S029
S029
16030
S138
S138
16030
S029
S029
S020
S020
16035
16035
16035
EXPLODED VIEW
OFF ROAD MONSTER TRUCK
1-16TH SCALE 4WD ELECTRIC
MONSTER TRUCK IS INSTALLED WITH SLIPPER CLUTCH.
88021
16008
16008
16008
16008
16008
H030
16092
S153
Loc ked
with S153
Loc ked
with S013

-This R/C vehicle is intended for persons over 14 years of age. Children under 14 years of age should
only operate this car under adult supervision.
-To avoid losing control of your car, do not operate near other electric remote controlled products.
-Please operate your vehicle in a spacious area. Never operate your vehicle in crowded street.
-This product is fully assembled at factory. We do not take any responsibility for damage and/or
accidents that occur as the result of custom modifications and/or incorrect operation.
Thank for purchasing our product.
This product is an authentic remote controlled vehicle (RC vehicle). It is not a toy.
Read and understand this instruction manual thoroughly before operating the vehicle.
If you are not familiar with RC vehicles, we recommend that seek out RC experts for reliable
advice.
WARNINGS
Please completely read and understand the entire manual before using, assembling and/or
disassembling your remote controlled car.
