Haier AS072AZNBA User manual

AS072AZNBA
AU072ABNCA
(HSU-07CG03/R1)
AS092AMNBA
AU092ABNCA
(HSU-09CG03/R1)
AS122AYNBA
AU122ABNCA
(HSU-12CG03/R1)
AS162ATNBA
AU162AFNBA
(HSU-16CG03/R1)
AS182ASNBA
AU182AFNDA
(HSU-18CG03/R1)
AS222AJNBA
AU222AHNBA
(HSU-22CG03/R1)
No.0010544375
Please read this operation manual before using the air conditioner.

Contents
Cautions
Parts and functions
Operation
Maintenance
Trouble shooting
1-2
3-5
6-13
14-16
17

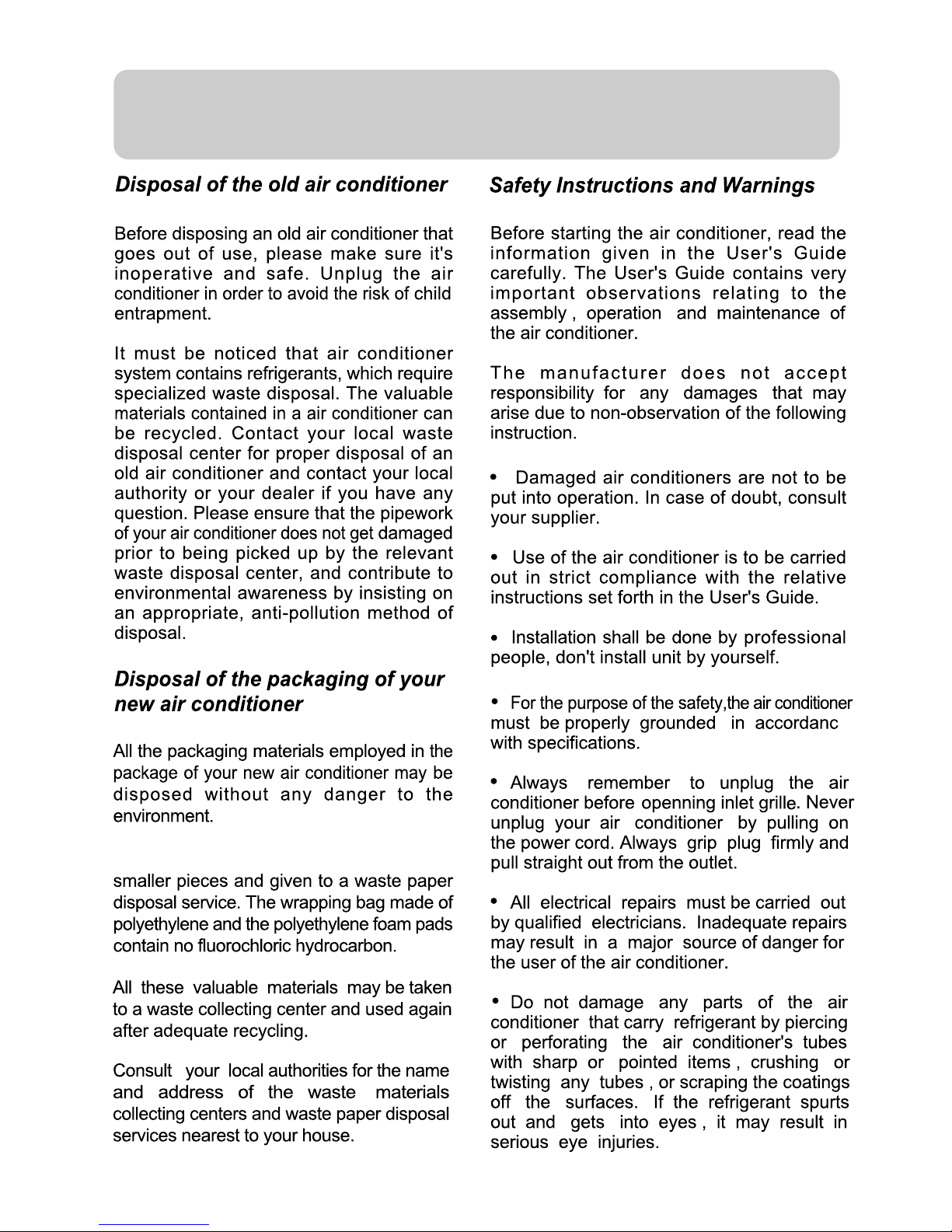

Cautions
1
The cardboard box may be broken or cut into

2
Series 07,09,12 16,18 22
3G2.5mm2+3x0.75mm24G1.5mm2
Type 3G1.5mm2+2x0.75mm2
20

Parts and Functions
Operation mode indicator
Lights up when Timer
operation is selected. Lights up during
compressor running.
Lights up when unit
starts.
Air filter
Vertical flap
Timer mode indicator
Inlet grille
Air filter
Inlet grille
Use remote controller to 
adjust up and down air flow.
(Don't adjust it manually.)
Vertical flap
Use remote controller to 
adjust up and down air flow.
(Don't adjust it manually.)
Indoor Unit
AS072AZNBA
(HSU-07CG03/R1) AS092AMNBA
(HSU-09CG03/R1) AS122AYNBA (HSU-12CG03/R1)
For models:
AS162ATNBA
(HSU-16CG03/R1) AS182ASNBA (HSU-18CG03/R1)
For models:
AS222AJNBA
(HSU-22CG03/R1)
For models:

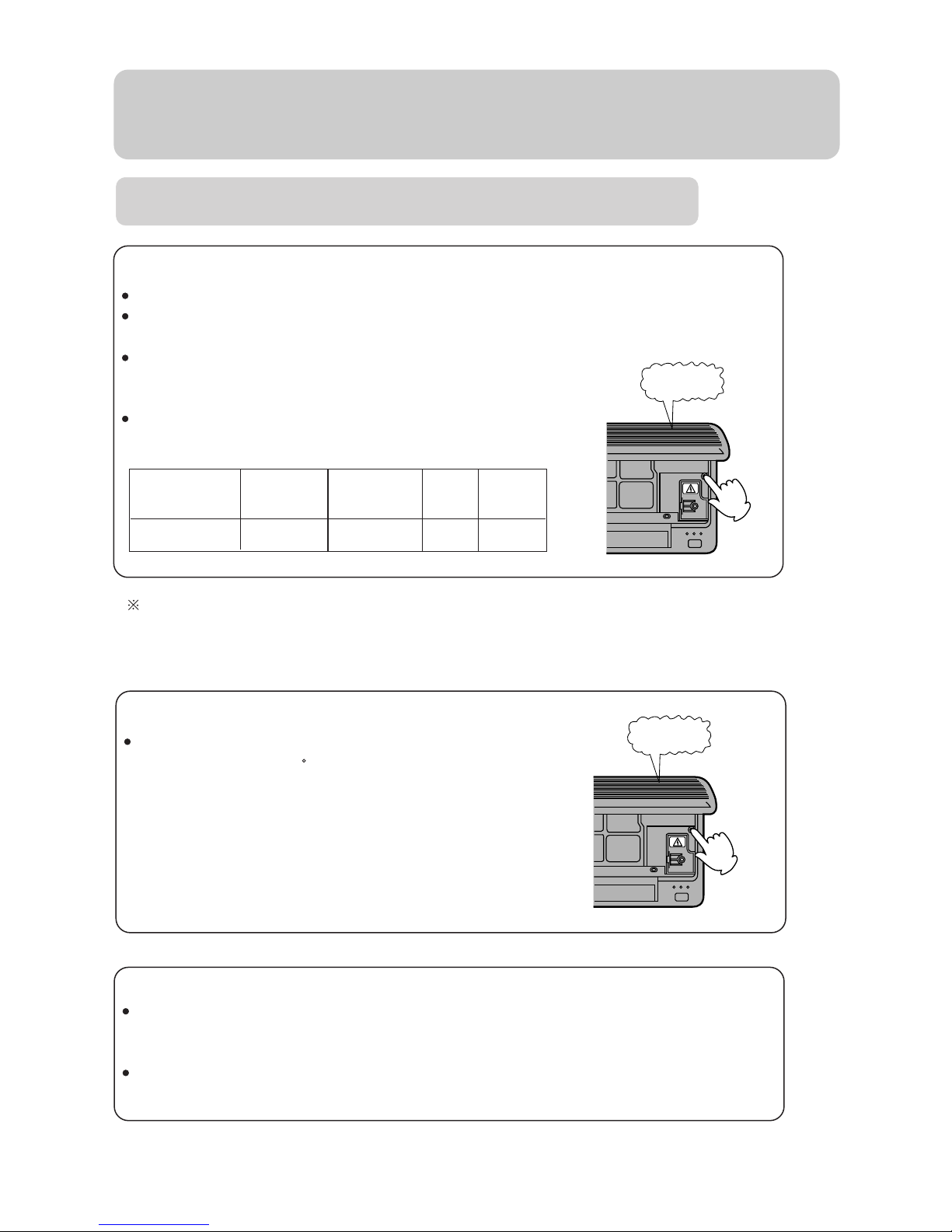

Used only for test running in cooling
when room temp. is below 16oC .
Don't use it in normal operation.
Test running switch(manual)
Emergency switch(manual)
Used when remote controller is lost or
defective. Unit will run temporarily.
Operation mode indicator
Lights up during compressor 
running.
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Power indicator
Lights up when Timer operation
is selected.
Remote signal receiver
A beeping sound is generated when
a signal from remote controller is
received.
Inlet grille
Air filter
Vertical flap
Lights up when unit starts.
Timer mode indicator
3
Signal Receiving Window
Running Indicator
Timer Mode Indicator
Power Indicator
Power indicator

Parts and Functions
5
Operation
1. Mode display
AUTO
COOL
DRY
FAN
2. SWING display
3. FAN SPEED display
4. HEALTH display
5. SLEEP display
6. LOCK display
7. TIMER ON display
8. AUXILIARY HEAT display
9. SWING
10. MODE
Used to select AUTO,COOL,DRY ,HEAT
and FAN
11. CLOCK
Used to select your desired temp.
12. TIMER
Used to select TIMER ON,TIMER OFF
13. RESET
Used to reset the controller back to
normal condition
14. CODE
Used to select code A or B with a press,A
or B will be displayed on LCD.please
select A without special explanation
15. CODE display
16. SIGNAL SENDING display
17. POWER/SOFT display
18. TEMP display.
19. CLOCK display
20. TIMER OFF display
21. TEMP
Used to select your desired temperature.
22. FAN
Used to select fan speed
23. POWER ON/OFF
Used for unit start or stop
24. SLEEP
Used to select sleep mode

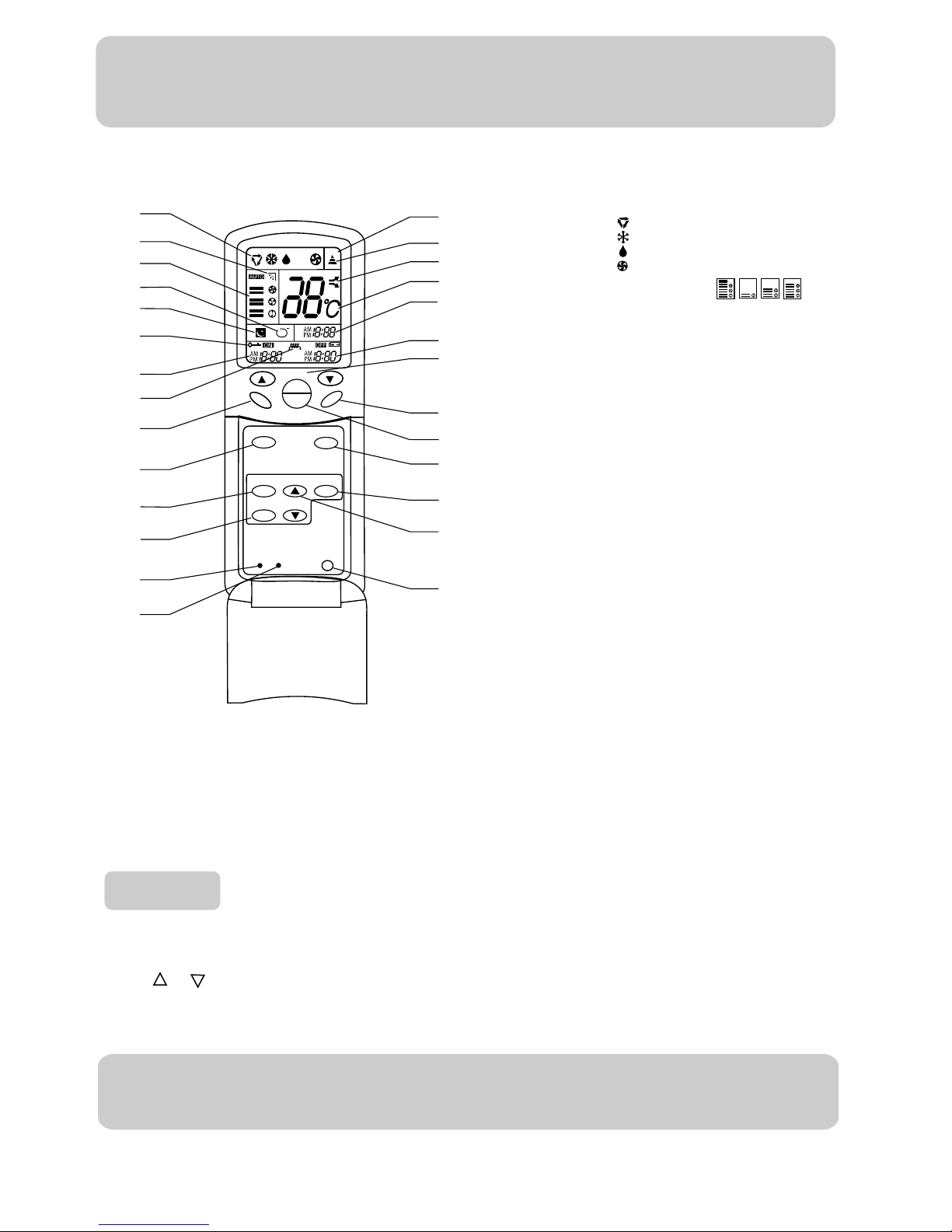

Buttons and display of the remote controller.
Clock set
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM " and "PM" stop flashing, while clock
starts working.
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
Hints
MED HI
AUTO
AUTO LO
27. LOCK
Used to lock buttons and LCD display
LOCK
RESET CODE
MODE SLEEP
CLOCK SET
TIMER
A
SWING FAN
B
i
on
TEMP
ON
OFF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
26. HOUR
Used to set clock and timer settings
25. SET
Used to confirm timer and clock settings
NOTE:(1)The following functions and related displays are not available :HEALTH display,AUXILIARY HEAT display,POWER/SOFT display.
(2)If the Air condition don't have the function,press code B can cause it not available.
(3)Cool only unit do not have functions and displays related with heating.

Operation
6

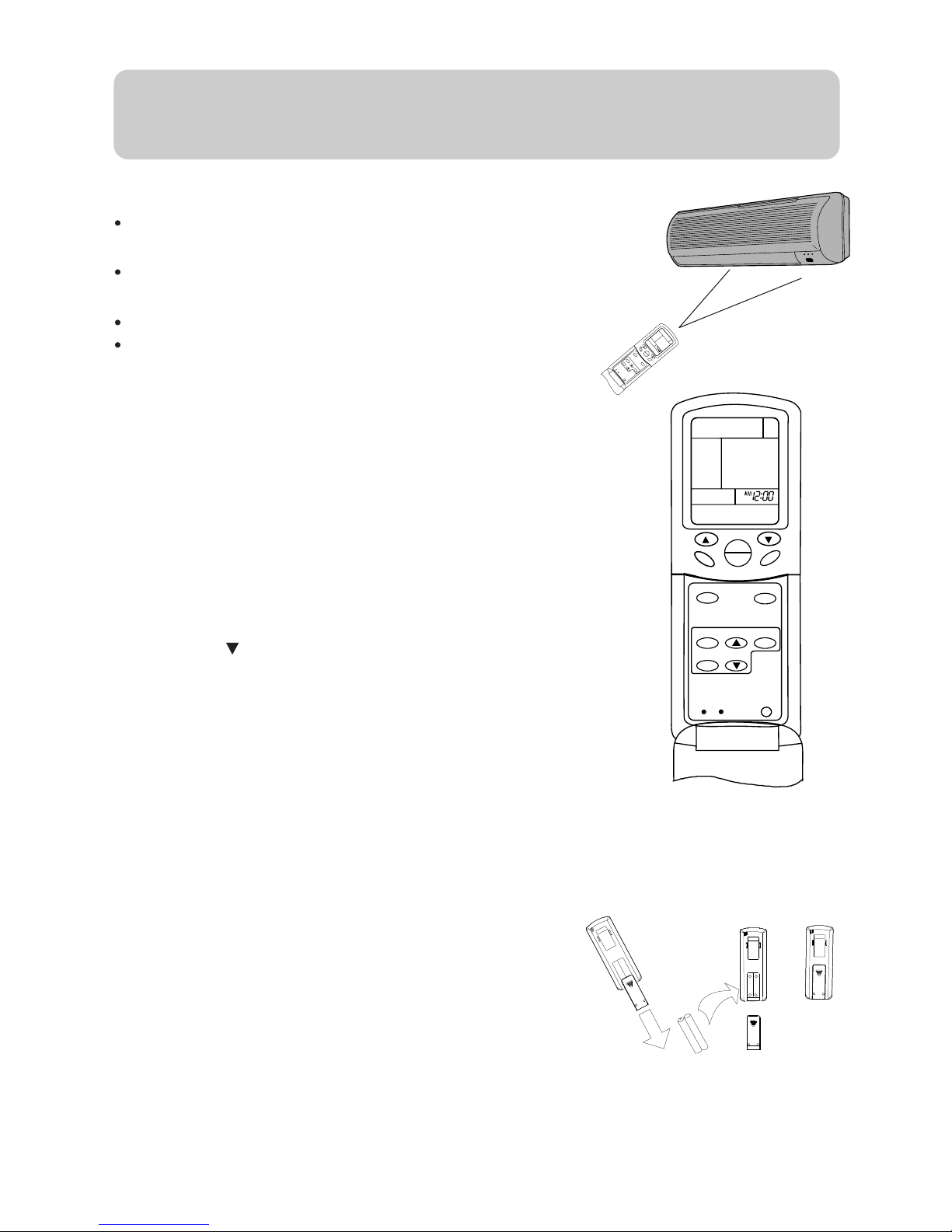

Remote controller's operation
When in use, put the signal transmission head directly to the
receiver hole on the indoor unit.
The distance between the signal transmission head and the
receiver hole should be within 7m without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over 
type fluorescent lamp or wireless telephone is installed in the 
room, the receiver is apt to be disturbed in receiving the signals 
so the distance to the indoor unit should be shorter.
Loading of the battery
Remove the battery cover :
Slightly press " " and push down the cover.
Load the battery :
Be sure that the loading is in line with the " + " / " - " pole request as
illustrated.
Put on the cover again
Confirmation indicator :
Note :
Hint :
Remove the batteries in case unit won't be in usage for a long period.
If there are any display after taking-out just need to press reset key.
Use two new same-typed batteries when loading.
If the remote controller can't run normally or doesn't work at all,
use a sharp pointed item to press the reset key.
In disorderation, reload the batteries or load the new batteries
after 6 mins.
Load the batteries as illustrated.
2 R-03 batteries, resetting key (cylinder)
LOCK
RESET CODE
MODE SLEEP
CLOCK SET
TIMER
A
SWING FAN
TEMP
ON
OFF
1.DO NOTMIX OLD WITH
NEW BATTERIESAND
DO NOTUSE BATTERIES
OF DIFFERENTTYPES
TOGETHER
2.INSERTCORRECTLY2
(TWO) R-03 BATTERIES
INTHE+-POLARITY
3.PLEASE REMOVETHE
BATTERIESWHEN THE
REMOTE CONTRLLER
DISORDER,AND RELOAD
NEWÕSAFTER SIX
MINUTES
REMOTE CONTROL UNIT
MODEL:YR-H05
1.DONOTMIXOLD WITH
NEWBATTERIES AND
DONOT USEBATTERIES
OFDIFFERENT TYPES
TOGETHER
2.INSERTCORRECTLY2
(TWO)R-03 BATTERIES
INTHE+-POLARITY
3.PLEASEREMOVE THE
BATTERIESWHEN THE
REMOTECONTRLLER
DISORDER,ANDRELOAD
NEWÕ
SAFTERSIX
MINUTES
REMOTECONTROLUNIT
MODEL:YR-H05
-+
-
+
1.DO NOT MIX OLD WITH
NEW BATTERIESAND
DO NOT USE BATTERIES
OF DIFFERENT TYPES
TOGETHER
2.INSER T CORRECTL Y2
(TWO) R-03 BATTERIES
IN THE + - POLARITY
3.PLEASE REMOVE THE
BATTERIESWHEN THE
REMOTE CONTRLLER
DISORDER,AND RELOAD
NEWÕS AFTER SIX
MINUTES
REMOTE CONTROL UNIT
MODEL:YR-H05
-
+
-
+
LOCK
RESET CODE
MODE SLEEP
CLOCK SET
TIMER
A
SWING FAN
TEMP
ON
OFF

LOCK
RESET CODE
MODE SLEEP
CLOCK SET
TIMER
A
FAN
TEMP
ON
OFF
1
2
43
7
SWING
9

Operation
8

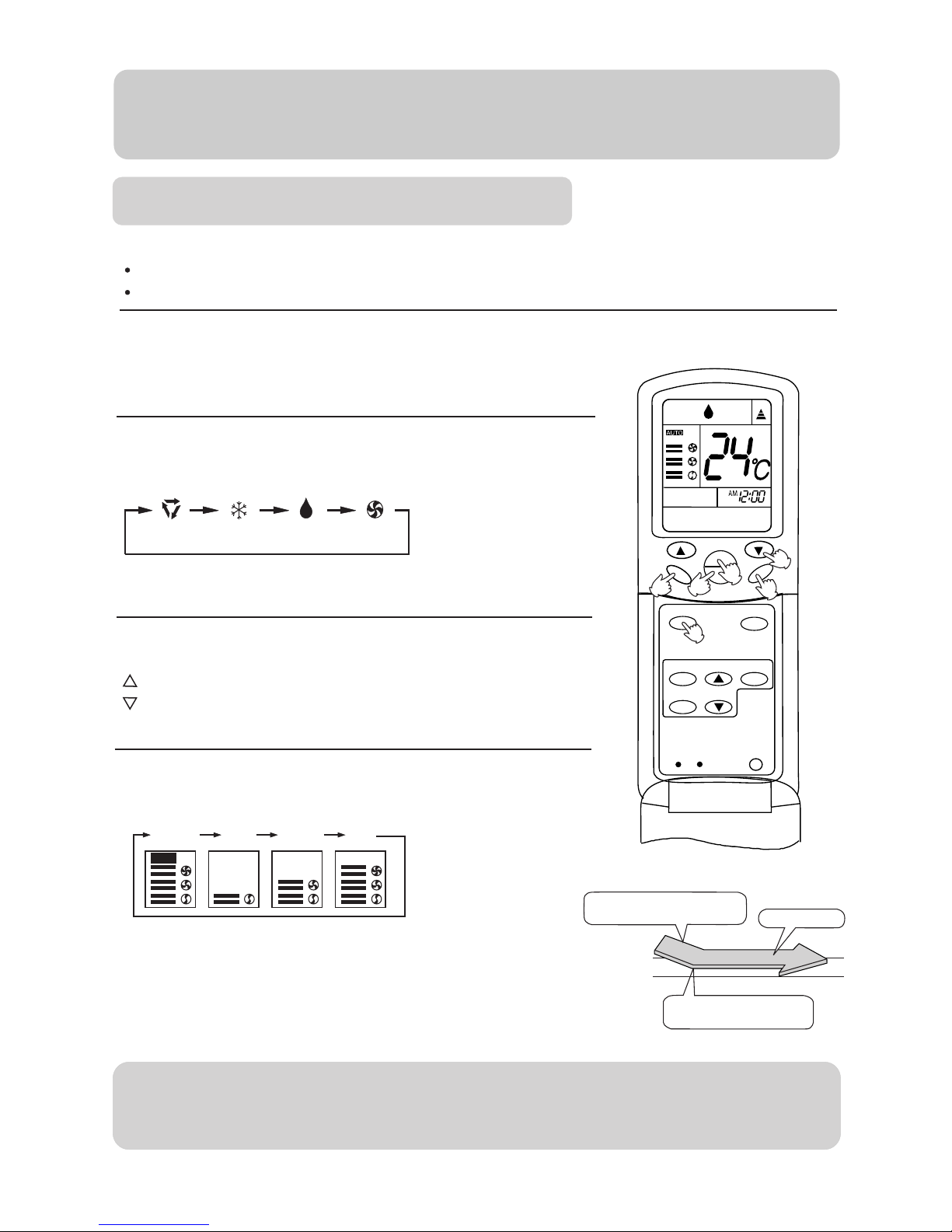

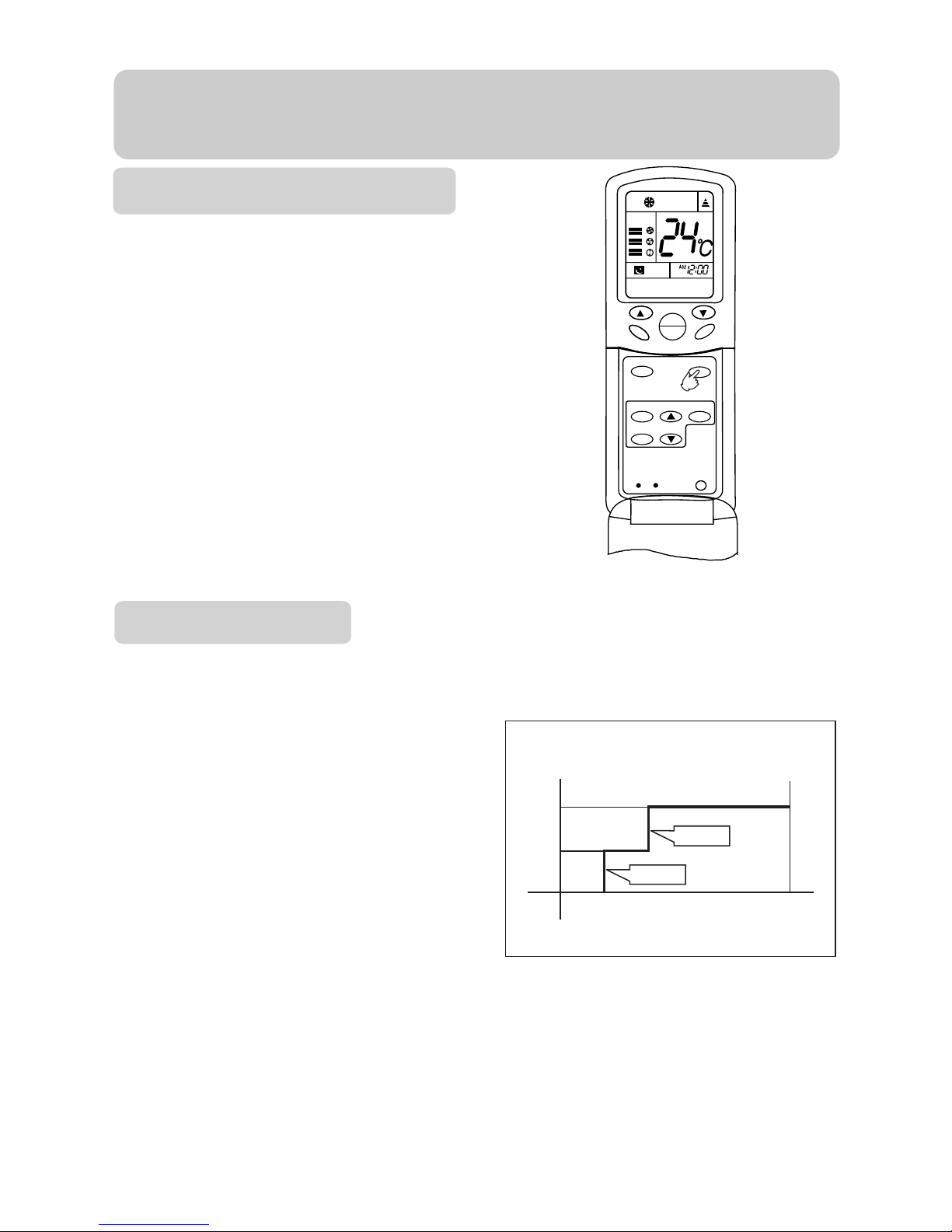

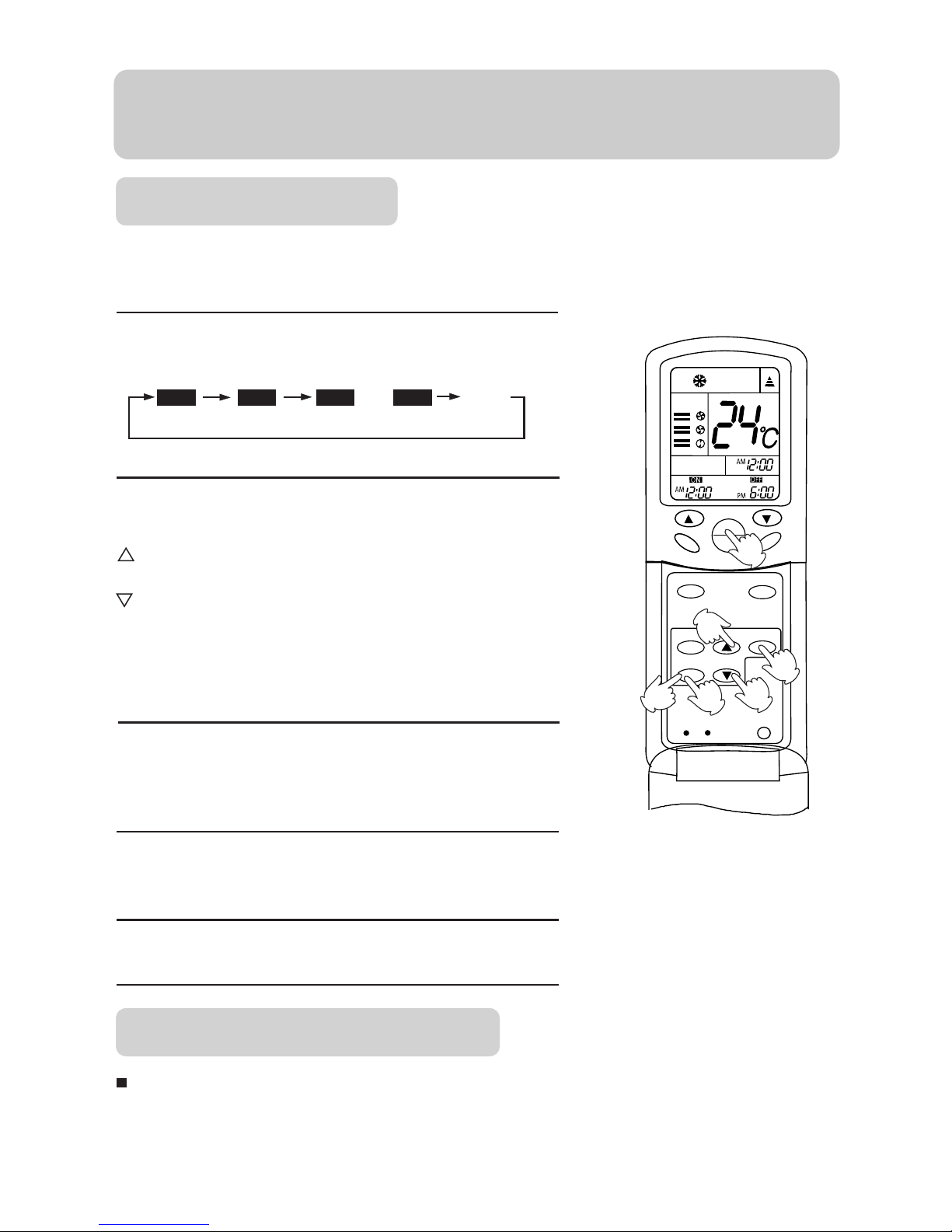

COOL and DRY operation
AUTO DRY FAN
COOL
AUTO
AUTO LO MED HI
(1) Unit start
(2) Select operation mode
(3) Select temp. setting
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
Press FAN button. For each press, fan speed changes
as follows:
Hints
(4) Fan speed selection
Unit will start running to reach the temp. setting on LCD.
Recommendations:
Use COOL in summer.
Use DRY in spring, autumn and in damp climate.
Press ON/OFF button, unit starts.
Previous operation status appears on display. (Not Timer setting)
Power indicator on indoor unit lights up.
Press TEMP. button.
Every time the button is pressed, temp. setting increases 1oC
Every time the button is pressed, temp. setting decreases 1oC
Unit runs at the speed displayed on LCD.
In DRY mode, when room temp. becomes 2oC higher than
temp. setting, unit will run intermittently at LO speed
regardless of FAN setting.
Remote controller can memorize each operation status. When starting it next time, 
just press ON/OFF button and unit will run in previous status.
COOL operation starts when room
temp. is higher than temp. setting.
Temp. setting
Temp. setting+2oC
Ultra-low air flow
On reaching temp. setting,unit
will run in mild DRY mode.
LOCK
RESET CODE
MODE SLEEP
CLOCK SET
TIMER
A
SWING FAN
TEMP
ON
OFF
3
1
2
564
