Haier HPAC99ER User manual

0 0 0 •
Whaf The World Comes Home To TM

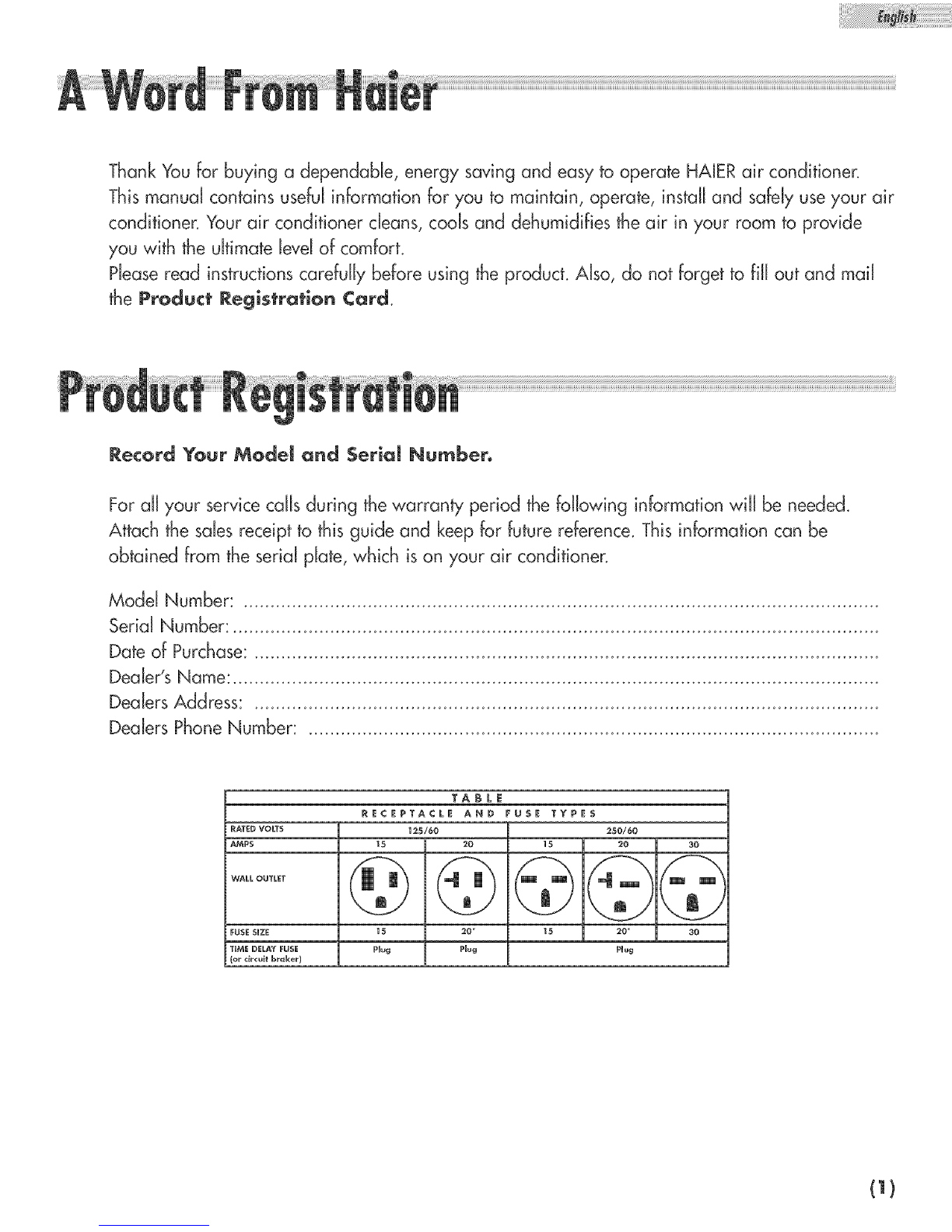

Thank You for buying a dependable, energy saving and easy to operate HALERair conditioner,
This manual contains useful information for you to maintain, operate, install and safely use your air
conditioner, Your air conditioner deans, cools and dehumidifies the air in your room to provide
you with the ultimate levd of comfort.
Pleaseread instructions carefully before using the product° Also, do not forget to fiHout and maiW
the Product Registration Car4
Record Your Model and Seriam Number.
For all your service calls during the warranty period the following information will be needed.
Attach the sales receipt to this guide and keep for future reference. This information can be
obtained from the serial plate, which ison your air conditioner,
TABLE
RECEPTACLE AND FUSE TYPES
RATEDVOLTS 1RS/6D R50/60
Ah_RS 15 20 1S 20 30
WALL OUTLET
FUSESUZE 15 R0 15 RD 30
TUNEDELAY FUSE Plug Plug Plug
(or dr_uR br_k*r)
(1)

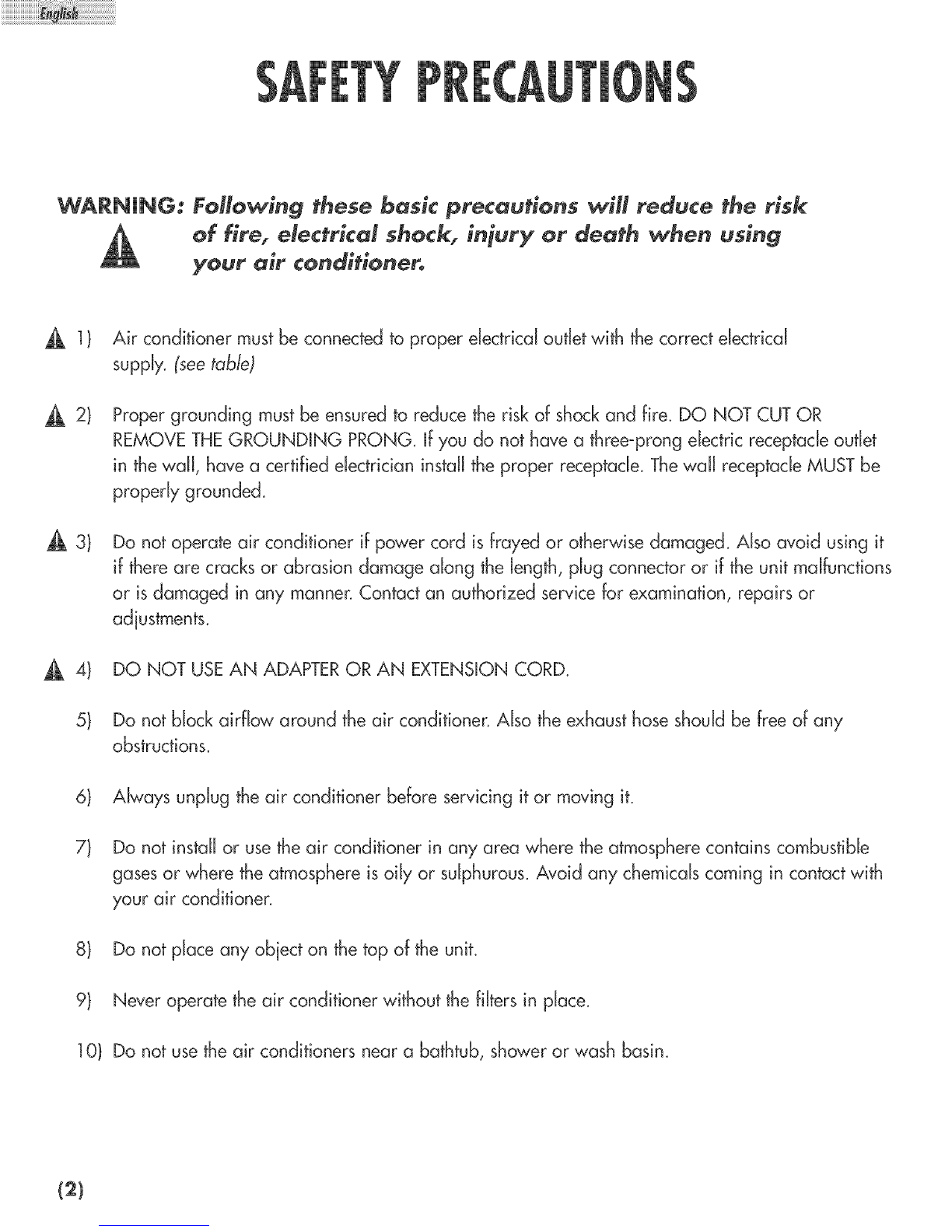

1)Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (seetable)
Proper grounding mustbe ensured to reduce the risk of shock and fire_ DO NOT CUT OR
REMOVETHEGROUNDING PRONG_if you do not have a three-prong electric receptacle outlet
in the wall, have a certified electrician install the proper receptade_Thewall receptacle MUST be
properly grounded_
Do not operate air conditioner if power cord is frayed or otherwise damaged_ Also avoid using it
if there are cracks or abrasion damage along the length, plug connector or if the unit malfunctions
or is damaged in any mannen Contact an authorized service for examination, repairs or
adjustments_
_l_ 4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD_
5) Do not block airflow around the air conditionen Also the exhaust hose should be free of any
obstructions_
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or usethe air conditioner in any area where the atmosphere contains combustible
gases or where the atmosphere is oily or sdphurous_ Avoid any chemicals coming in contact with
your air conditionen
8) Do not place any obiect on the top of the uniL
9) Never operate the air conditioner without the filters in place_
10) Do not use the air conditioners near a bathtub, shower or wash basin_
(2)

PAGE
(3)

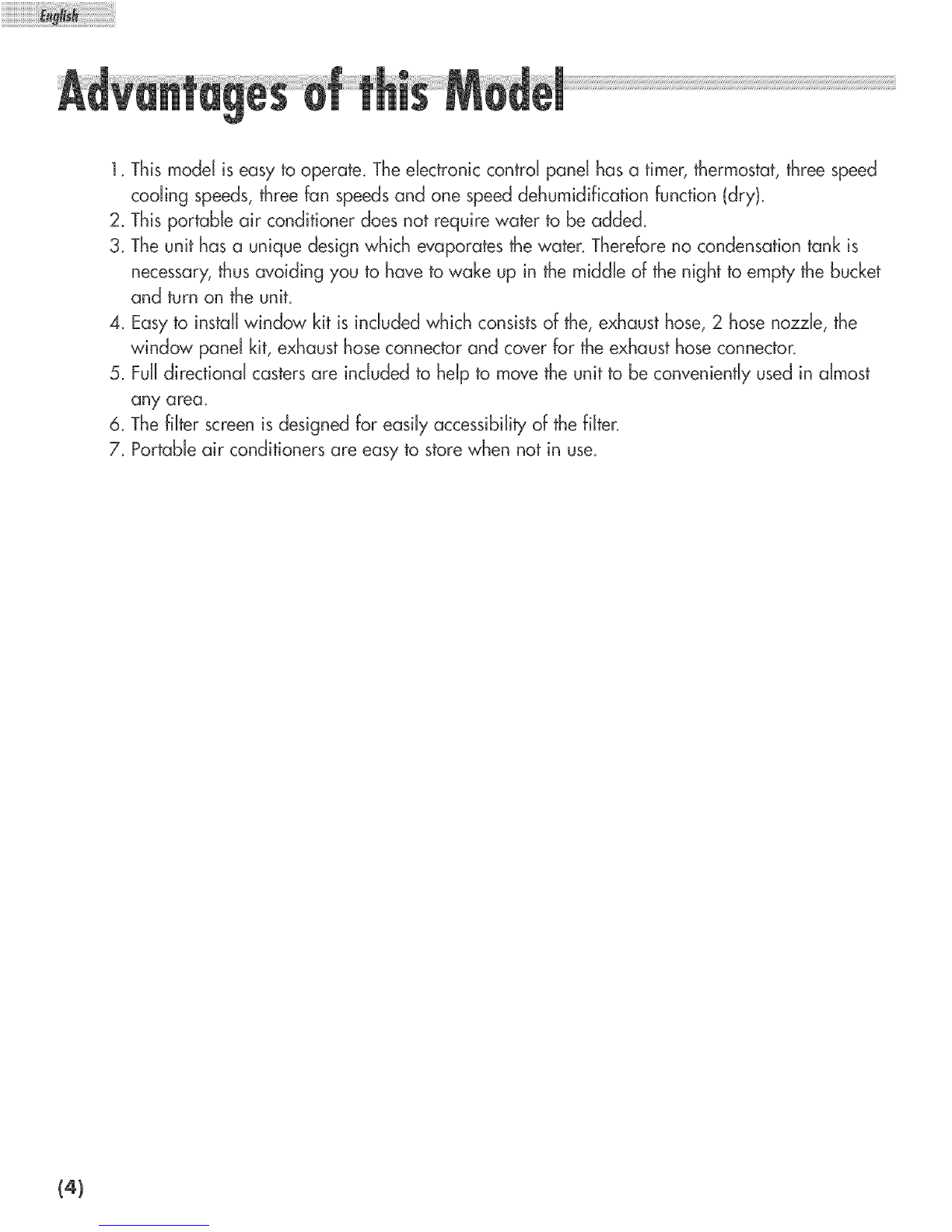

1. Thismode[ is easy to operate. Theelectronic control pane[ has a timer, thermostat, three speed
cooling speeds, three fan speeds and one speed dehumidification function (dry}.
2. Thisportable air conditioner does not require water to be added.
3. Theunit has a unique design which evaporates the water. Therefore no condensation tank is
necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket
and turn on the unit.
4. Easy to insta[[window kit is incJudedwhich consists of the, exhaust hose, 2 hose nozzle, the
window pane[ kit, exhaust hose connector and cover for the exhaust hoseconnector.
5. Fuji dkecfiona[ casters are included to help to move the unit to be convenient[,/used in almost
any area.
6. The filter screen is designed for easily accessibility of the filter.
7. Portable air conditioners are easy to store when not in use.
(4)

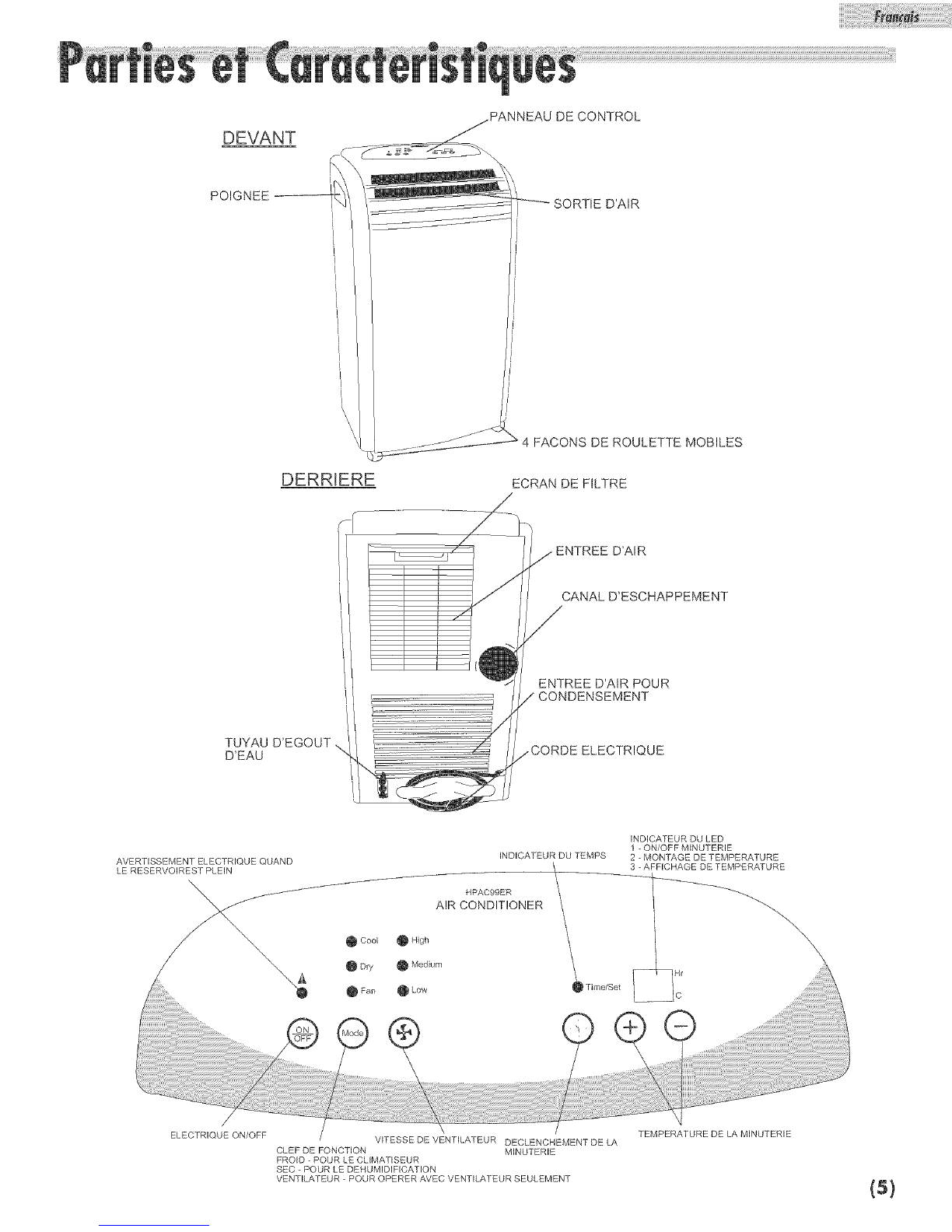

FRONT
CONTROL PANEL
HANDLE_ OUTLET
FOUR WAY MOVABLE CASTER
FILTER SCREEN
EXHAUST DUCT
WATER DRAIN PIPE,..,
AIR INTAKE FOR
/CONDENSOR
.ELECTRIC POWER CORD
TANK FULL WARNING LIGHT
TIME SET INDICATOR
HPAC99ER
AIR CONDITIONER
_ Time/Set
LED INDICATOR
1 - ON/OFF TIMER
2 TEMPERATURE SETTING
3 - DI ;PLAYS ROOM TEMPERATURE
\, \\
POWER ON AND OFF FAN SPEEDS
FUNCTION KEY
COOL - FOR AIR CONDITIONING
DRY - FOR DEHUMIDIFICATION
FAN - FOR FAN ONLY OPERATION
ON/OFF TIMER SET KEY TEMPERATURE SET KEY
(5)

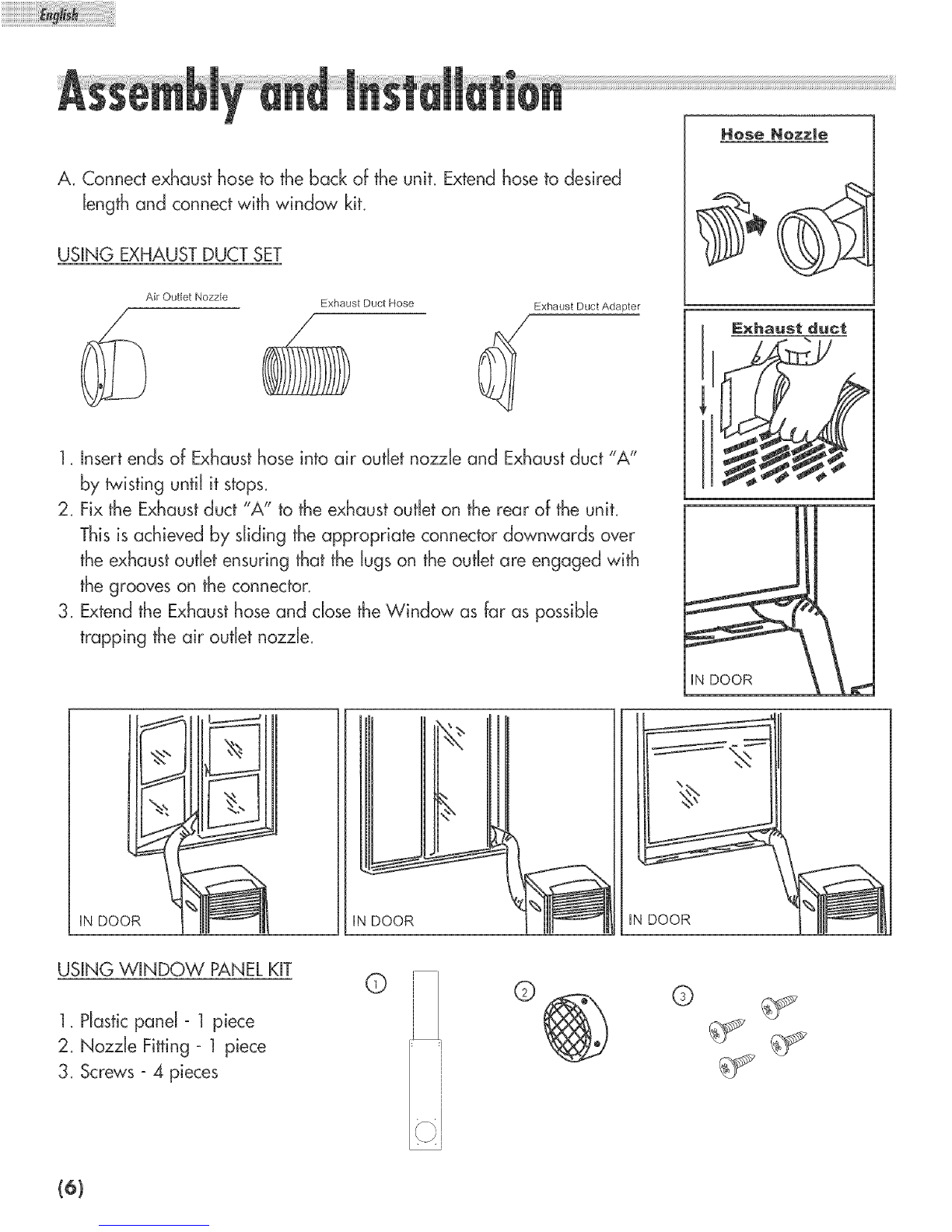

A. Connect exhaust hose to the back of the unit. Extend hose to desired
length and connect with window k+L
USING EXHAUST DUCT SET
Air Outlet Nozzle Exhaust Duct Hose Exhaust Duct Adapter
1, Insert ends of Exhaust hose into air outlet nozzle and Exhaustduct "A"
by twisting until it stops.
2. Fix the Exhaust duct "A" to the exhaust outlet on the rear of the unit.
This is achieved by sliding the appropriate connector downwards over
the exhaust outlet ensuring that the lugs on the outlet are engaged with
the grooves on the connector.
3. Extendthe Exhaust hose and close the Window as far as possible
trapping the air outlet nozzle.
Hose Nozzle
Exhaust duct
N DOOR
iN DOOR
\
IN DOOR
USING WINDOW PANEL KIT
1. Plastic panel - 1 piece
2. Nozzle Fitting - 1 piece
3. Screws - 4 pieces
©©@©
(61

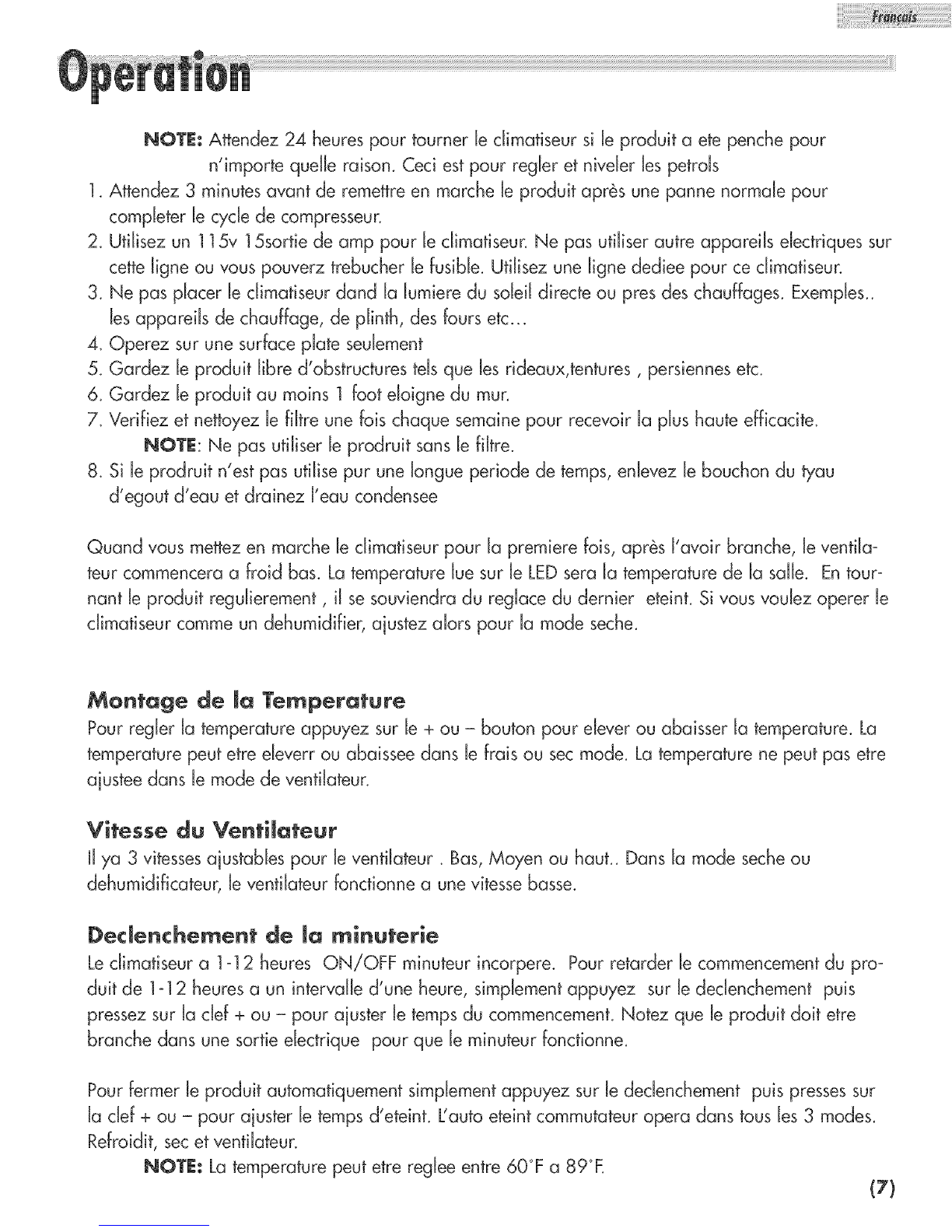

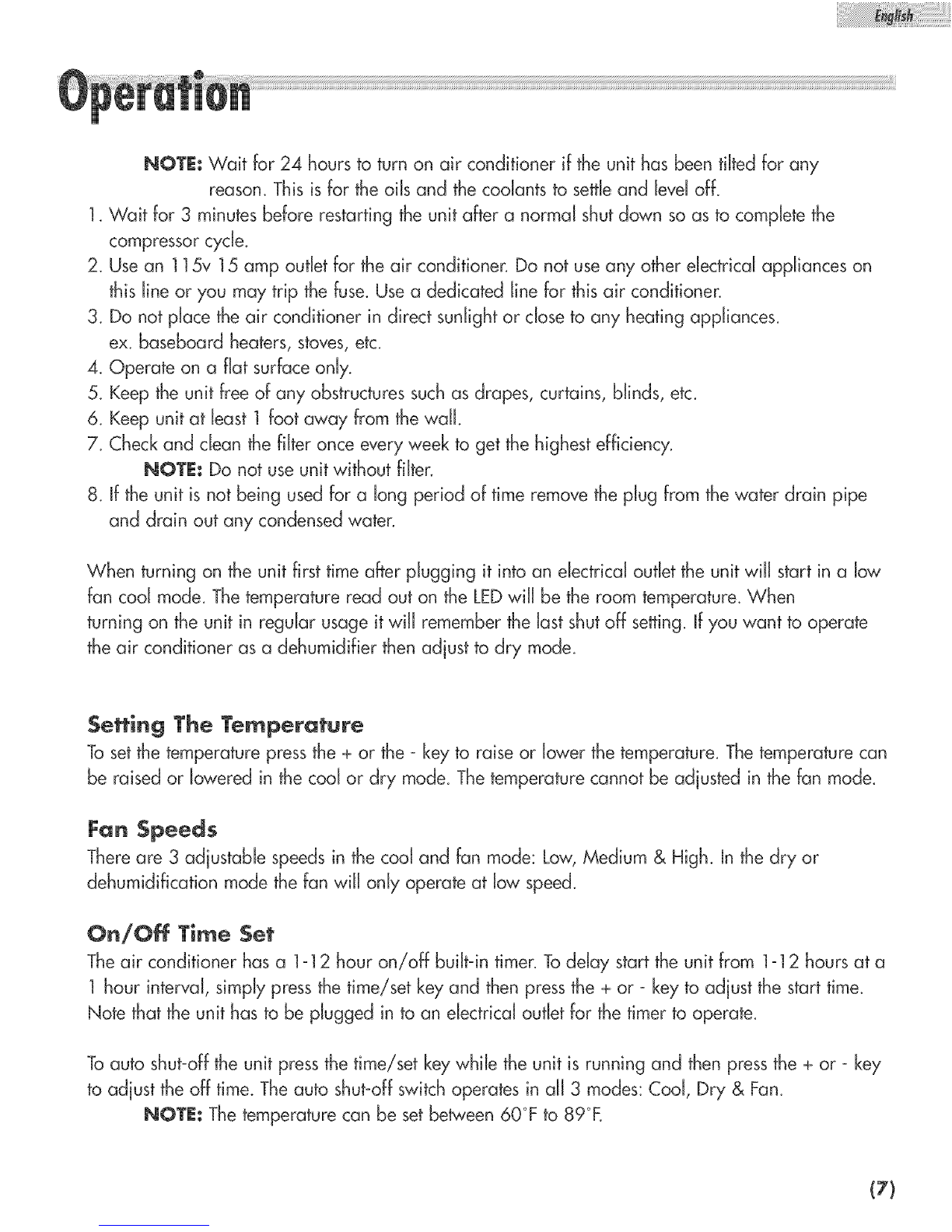

NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any
reason_This is for the oils and the coolants to settleand level off_
1_Wait for 3 minutes before restarting the unit after a normal shutdown so as to complete the
compressor cycle°
2. Use an ] ] 5v ]5amp outlet for the air conditioner. Do not use any other dectricd appliances on
this Jineor you may trip the fuse_Use a dedicated line for this air conditioner.
3_Do not place the air conditioner in direct sunlight or close to any heating appliances_
ex. baseboard heaters, stoves, etc_
4_Operate on a flat surface only_
5oKeep the unit free of any obstructures such as drapes, curtains, blinds, etc.
& Keep unit at least ] foot away from the walk
7_Check and clean the filter once every week to get the highest efficiency_
NOTE: Do not useunit without filter_
8. If the unit is not being used for a long period of time remove the plug from the water drain pipe
and drain out any condensed water.
When turning on the unit first time after plugging it into an electrical outlet the unit will start in a low
fan cool mode_Thetemperature read out on the LEDwill be the room temperature_ When
turning on the unit in regular usage it wiJl remember the last shut off setting_if you want to operate
the air conditioner as a dehumidifier then adiust to dry mode_
Setting The Temperature
Tosetthe temperature pressthe + or the - key to raise or lower the temperature. Thetemperature can
be raised or lowered in the cod or dry mode. The temperature cannot be adjustedin the fan mode.
Fan Speeds
Thereare 3 adjustable speeds in the cod and fan mode: Low,Medium & High. In the dry or
dehumidification mode the fan will only operate at low speed.
On/Off Time Set
Theair conditioner has a ] -12 hour on/off buibin timer. Todelay start the unit from ]-12 hours at a
1 hour interval, simply press the time/set key and then pressthe + or- key to adjust the start time_
Note that the unit has to be plugged in to an electrical outlet for the timer to operate,
Toauto shut-off the unit pressthe time/set key while the unit is running and then pressthe + or- key
to adiust the off time, Theauto shut-off switch operates in all 3 modes: Cool, Dry & Fan,
NOTE: Thetemperature can be set between 60°F to 89°E
(7)

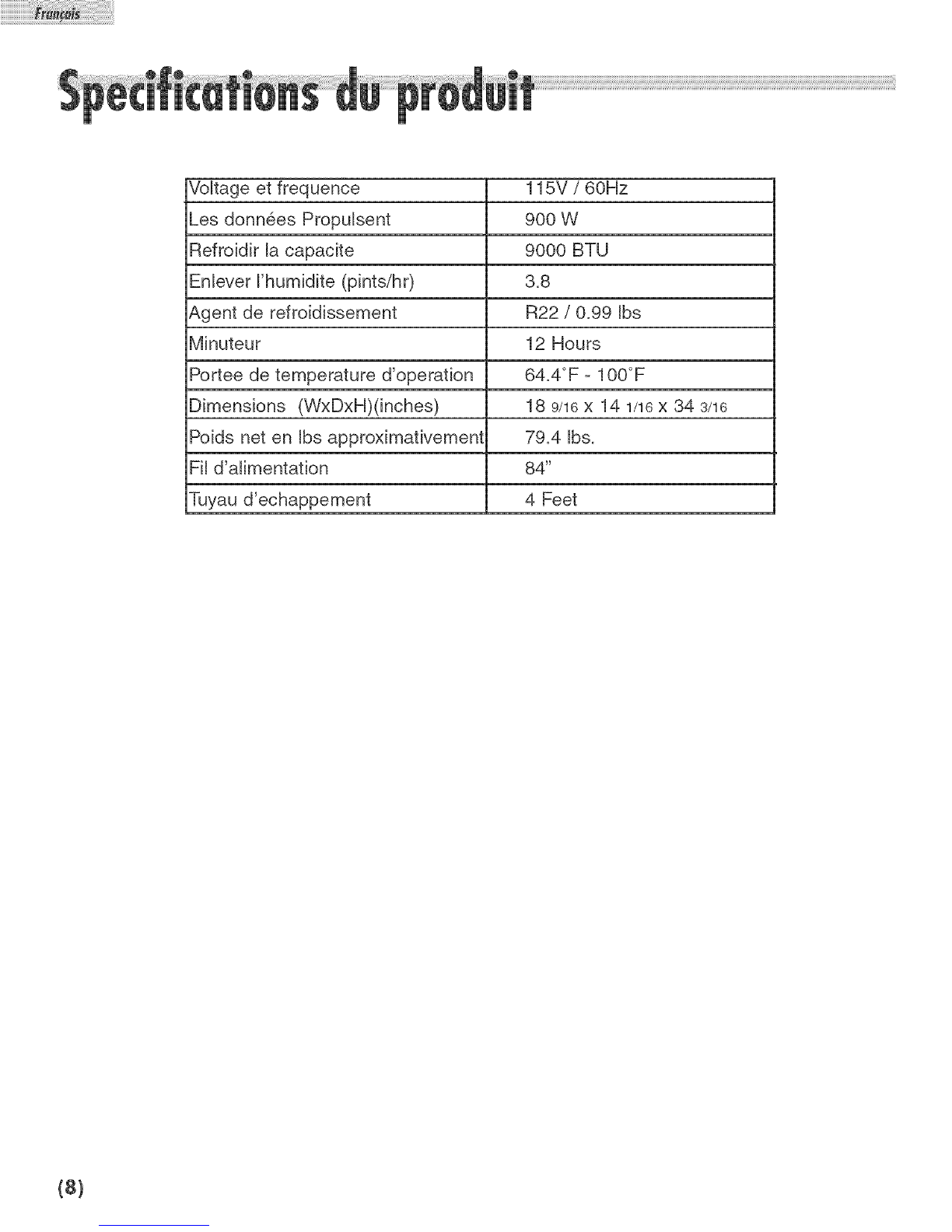

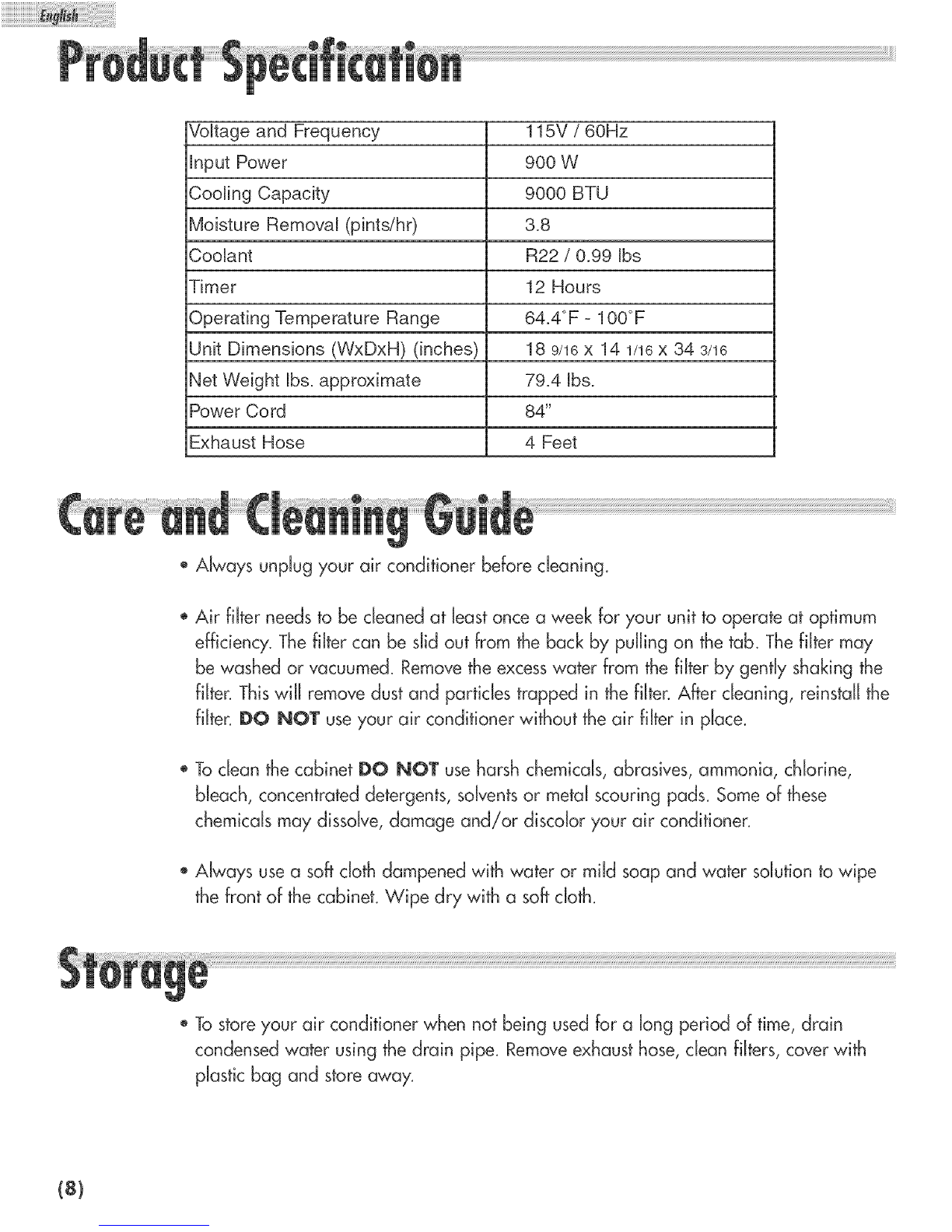

Voltage and Frequency 115V /60Hz
}nput Power 900 W
Cooling Capacity 9000 BTU
Moisture Removal (pintsihr) 3.8
Coo}ant R22 /0.99 }bs
Timer 12 Hours
Operating Temperature Range 64.4°F- 100°F
Unit Dimensions (WxDxH) (inches) 18 9/16x 14 1/16x 34 3/16
Net Weight Ibs. approximate 79.4 Ibs.
Power Cord 84"
Exhaust Hose 4 Feet
Always unplug your air conditioner before cleaning.
Air filter needsto be deaned at [east once a week for your unit to operate at optimum
efficiency. The filter can be slid out from the back by pulling on the tab. The filter may
be washed or vacuumed. Removethe excesswater from the filter by gently shaking the
filter. Thiswill remove dust and particles trapped in the filter. After cleaning, rdnsta[[ the
filter. DO NO]" use your air conditioner without the air filter in place.
Toclean the cabinet DO NOT use harsh chemicals, abrasives, ammonia, chlorine,
bleach, concentrated detergents, solventsor metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
Always usea soft cloth dampened with water or mild soap and water solution to wipe
the front of the cabinet. Wipe dry with a soft doth.
Tostore your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Removeexhaust hose, dean filters, cover with
plastic bag and store away.
(8)

Jf air conditioner does not operate:
Check if unit is plugged in_Theplug may have come [oose_
Check if the electrical wail receptade is of proper vo[tage_
Check if the circuit breaker needs to be resetor if the fuse needs to be replaced_
Check if the unit is in "Off" mode°
Thetank full warning light is on. Ca[[ for service.
Air conditioner working but room not cooling:
Room may have appliances that produce heat. Use an exhaust fan to remove excessheat.
Check exhaust hose for proper insta[[ation_
Redirect the airflow. Removeany obstacles.
A[[ doors and windows need to be dosed so coo[ air does
not escape the room_
Air filter may be blocked or may need deaning_
Unit BTUmay be too low for the required coding area_
On extreme hot & humid days air conditioners may take a littlelongerto cook
Drain the water drain pipe by removing the plug.
Unit may be in fan or dry mode. Putair conditioner in coo[ mode.
(9)
