Haier HPR09XC5 - 9,000 BTU Portable Air... User manual

PORTABLE AIR CONDITIONER
CLIMATISEUR PORTATIF
ACONDICIONADOR DE AIRE PORTATIL
Before operating this oven, please read these instructions completely.
Quality ■Innovation ■Style
User Manual
Model # HPR09XC5
Guide de l’Utilisateur
Modéle # HPR09XC5
Manual del Usuario
Para Modelo de # HPR09XC5

1
English
A Word From Haier
Thank You for buying a dependable, energy saving and easy to operate HAIER air conditioner. This
manual contains useful information for you to maintain, operate, install and safely use your air con-
ditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with
the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and mail
the Product Registration Card.
Product Registration
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number can
be obtained from the serial label, which is on your air conditioner. For all your service calls during
the warranty period the following information will be needed:
Model Number: ..........................................................................................................................
Serial Number:............................................................................................................................
Date of Purchase: ......................................................................................................................
Dealer’s Name: ..........................................................................................................................
Dealer’s Address:........................................................................................................................
Dealer’s Phone Number: ............................................................................................................
TABLE
RECEPTACLE AND FUSE TYPES
RATED VOLTS 125/60 250/60
AMPS 15 20 15 20 30
WALL OUTLET
FUSE SIZE 15 20*15 20* 30
TIME DELAY FUSE Plug Plug Plugm
(or circuit braker)

SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk
of fire, electrical shock, injury or death when using
your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT
OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric
receptacle outlet in the wall, have a certified electrician install the proper recepta-
cle. The wall receptacle MUST be properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also
avoid using it if there are cracks or abrasion damage along the length, plug connector
or if the unit malfunctions or is damaged in any manner. Contact an authorized service
for examination, repairs or
adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. Also the exhaust hose should be free
of any obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemi-
cals coming in contact with your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioners near a bathtub, shower or wash basin.
2
English

3
English
Important Instructions
• Please keep this manual in a safe place.
• Do not use liquid or a spray to clean this product. Use a damp cloth.
• Do not place the product in an insecure or elevated place as it may fall and cause damage or
injury.
• Never spill liquid on the control panel; it may cause electrical shock to the electronic parts inside
and disable them or cause them to function improperly.
• Never try to dismantle the product by yourself. Unsupervised dismantling and incorrect reassem-
bly of the inside of the back cover may damage the electrical circuit and affect its performance.
When
maintenance is required, please contact the local service center or local distributor.
• Do not swipe anything through the card slot except a credit card to avoid damage to the magnet-
ic head or deformation of the contact point. This will cause failure of the card-swiping function.
• When depositing anything in the safe, do not forcibly insert large objects or a large quantity of
objects. To do so may result in difficulty closing the safe door or damage to articles.
• Test the energy level of the battery regularly. In the event of a low battery, replace batteries
immediately.
Thank you for purchasing the SAFE HOUSE Security Safe.
Please read this manual carefully before operating and store it
carefully for future reference
Staple your receipt to your manual. You will need it to obtain
warranty service.
Model number
Serial number
Date of purchase

Table Of Contents
PAGE
A Word From Haier............................................................................................................................1
Product Registration ........................................................................................................................1
Safety Precautions ............................................................................................................................2
Advantages ......................................................................................................................................4
Parts and Features............................................................................................................................5
Assembly and Installation ................................................................................................................6
Operation ......................................................................................................................................7-8
Product Specification........................................................................................................................9
Care and Cleaning ............................................................................................................................9
Storage..............................................................................................................................................9
Trouble Shooting ............................................................................................................................10
Warranty Information ......................................................................................................................11
English
Advantages of this Model
1. This model is easy to operate. The electronic control panel has a timer, thermostat, three speed
cooling speeds, three fan speeds and one speed dehumidification function (dry).
2. This portable air conditioner does not require water to be added.
3. The unit has a unique design which evaporates the water. Therefore no condensation tank is
necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket
and turn on the unit.
4. Easy to install window kit is included, which consists of the exhaust hose, 2 hose adaptors, the
window panel kit and window panel adaptor.
5. Full directional casters are included to help remove the unit to be conveniently used in almost
any area.
6. The filter screen is designed for easy accessibility of the filter.
7. Portable air conditioners are easy to store when not in use.
4

5
English
Parts and Features
1. Air Outlet
2. Van Air Deflector
3. Front Panel
4. Control Panel
5. Side Panel
6. Caster
1. Screen Filter
2. Air Intake (Evaporator)
3. Air Outlet (Heat Exchange)
4. Air Intake (Condenser)
5. Power Supply Cord
6. Water Outlet Drain
1
4
6
5
3
2
1
2
3
4
6
5
1. Full-Tank Indicator
See the trouble shooting when the light is on.
2. Set-Up of Function Key
Cool: Lamp is on when in cooling mode.
Dehumidifier: Lamp is on when in dehumidification
mode.
Fan: Lamp is on when in fan mode.
3. Temperature & Timer set-up key
a) Time on or time off mode:
Timer setting (1-12 Hours)
b) Cooling or Dehumidification mode temperature set-
ting.
4. Power Key
On/Off
5. Fan Speed Key
HIGH MED LOW
6. On/Off Timer Key
In running mode: Auto Switch Off
In stand by mobde: Auto Switch On
123a 3b
65
4

6
English

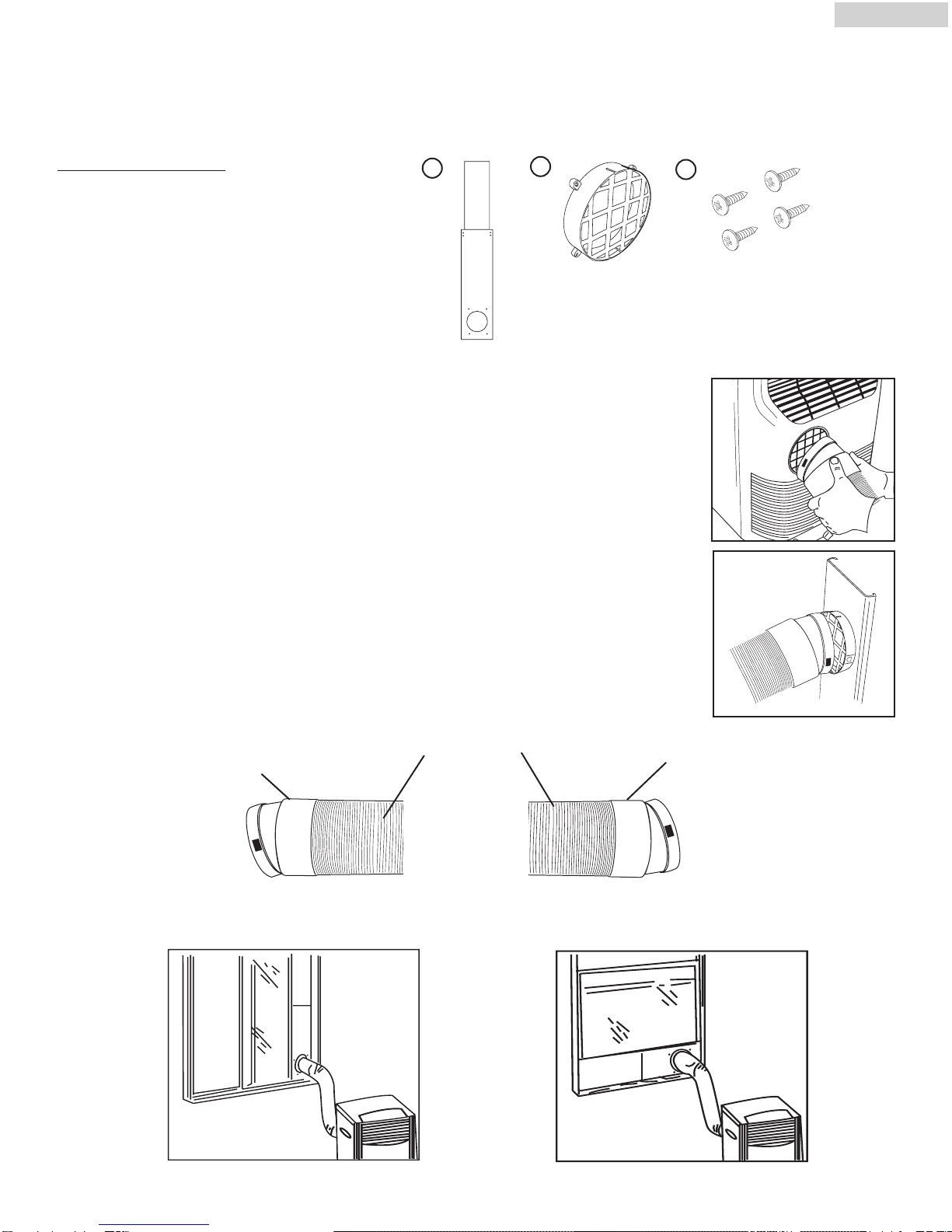

Assembly and Installation
1. Adjust the Plastic Panel to the width or height of your window and tighten
the 2 screws that are attached to the panel.
2. Push the round Window Panel Adapter through the rear of the Plastic
Panel.
Line up the holes and tighten the Adapter with 4 screws that are included
in
the kit. (Tighten screws from the front).
3. Install the Window Plastic Panel into the window. If necessary use duct
tape
to better secure the panel.
4. Connect exhaust hose to the unit by inserting the hose connector that is
attached to the hose into the exhaust. (See Illustration A)
5. Move the unit to the window, extend the hose and attach the other end of
the hose to the window. Align the tabs on the hose and window panel
adapters and fasten them together.
Accessories Include
1. Plastic panel - 2 pieces
2. Window Panel Adaptor - 1 piece
3. Screws - 4 pieces
4. Heat Exhaust hose connector-2
pieces
5. Heat Exhaust hose-1 piece
12
Exhuast Hose
Hose Connector Hose Connector
3
A
B

7
English
Operation
NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any
reason. This is for the oils and the coolants to settle and level off.
1. After a normal shut down wait for 3 minutes before restarting the unit so as to complete the
compressor cycle.
2. Use an 115v /15 amp outlet for the air conditioner. Do not use any other electrical appliances on
this line or you may trip the fuse. Use a dedicated line for this air conditioner.
3. Do not place the air conditioner in direct sunlight or close to any heating appliances
(eg. baseboard heaters, stoves, etc).
4. Operate on a flat surface only.
5. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.
6. Keep unit at least 1 foot away from the wall.
7. Check and clean the filter once every week for highest efficiency.
NOTE: Do not use unit without filter.
8. If the unit is not being used for a long period of time, remove the plug from the water drain pipe
and drain out any condensed water.
When turning on the unit for the first time after plugging it into an electrical outlet, the unit will start
in a low fan cool mode. The temperature reading out on the LED will be the current room tempera-
ture. When turning on the unit during regular usage, it will remember the last shut off setting. If you
want to operate the air conditioner as a dehumidifier, then adjust to dehumidify mode.
SETTING THE TEMPERATURE
To set the temperature, press the + or the - key to raise or lower the temperature. The temperature
can be raised or lowered in the cool or dry mode. The temperature cannot be adjusted in the fan
mode.
FAN SPEEDS
There are 3 adjustable speeds in the cool and fan mode: Low, Medium & High. In the dry or
dehumidification mode the fan will only operate at low speed.
ON/OFF TIME SET
The air conditioner has a 1-12 hour on/off built-in timer. To delay the start time for 1-12 hours at 1
hour intervals, simply press “Timer” key (or On/Off Timer Key) to adjust the start time. Note that the
unit has to be plugged in to an electrical outlet for the timer to operate.
To automatically shut-off the unit, press “Timer” key while the unit is running to adjust the shut-off
time. The auto shut-off switch operates in all 3 modes: Cool, Dry & Fan.
NOTE: The temperature can be set between 60˚F to 89˚F.

8
English
TIMER PROGRAMMING
1. Press the ( ) button on the remote or the “Timer Setting” button on the control panel to turn on
the Timer Function.
2. Press the ( ) or ( ) buttons on the remote or the ( ) or ( ) buttone on the control panel to
set the desired shut-off period.
3. The unit will shut off when the set time elapses.
DEHUMIDIFICATION OPERATION
Press the ( ) button on the remote or the “MODE” button on the control panel to sleect the dehu-
midifier mode. When the dehumidifier mode is on, the temperature buttons and the fan speed but-
tons do not function and the fan will operate on low speed. The dehumidifier indicator light will illu-
minate and stay solid while the unit is dehumidify, and the dehumidifier light will blink. Remember,
the exhaust hose does not need to be used in dehumidifier mode.

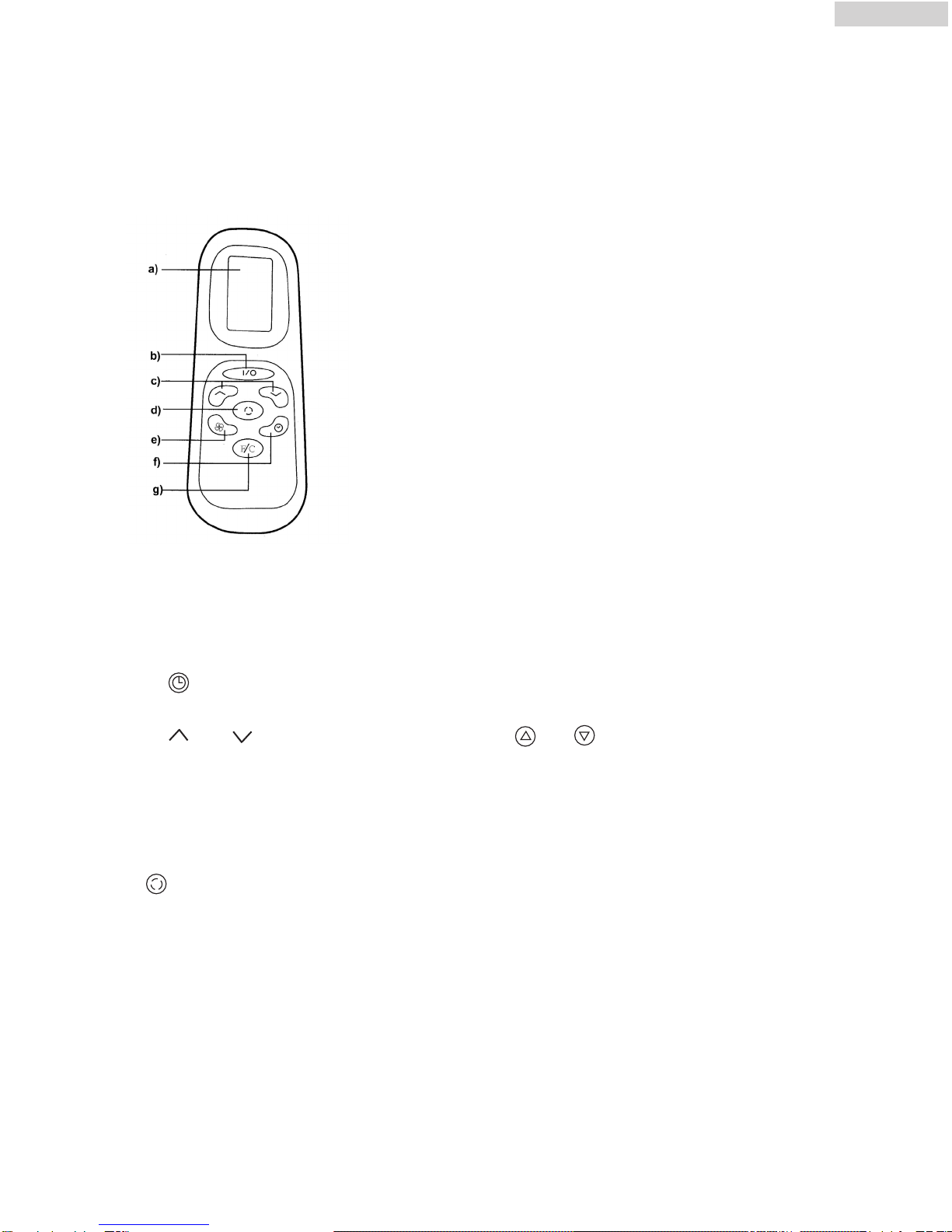

a) LCD Screen
b) Power On/Off Button
c) Timer and Thermostat Setting Buttons
d) Mode Button ( Select A/C, Fan or Dehumidifier)
e) A/C Fan Speed Button (High, Medium, or Low)
f) Timer On/Off Button
g) Fahrenheit/Celsius Selector
Remote Control Operations

9
English
Product Specification
Care and Cleaning Guide
• Always unplug your air conditioner before cleaning.
• Air filter needs to be cleaned at least once a week for your unit to operate at optimum effi-
ciency. Slide out the filter from the back by pulling on the tab. The filter may be washed or
vacuumed. Remove the excess water from the filter by gently shaking the filter. This will
remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT
use your air conditioner without the air filter in place.
• To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach,
concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
• Always use a soft cloth dampened with water or a mild soap and water solution to wipe
the front of the cabinet. Wipe dry with a soft cloth.
Storage
• To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover with
plastic bag and store away.
Voltage and Frequency 115V / 60Hz
Input Power 950 W
Cooling Capacity 9000 BTU
Moisture Removal (pints/day) 80
Coolant R22 / 1.12 lbs
Timer 12 Hours
Operating Temperature Range 61˚F - 100˚F
Unit Dimensions (WxDxH) (inches) 17 3/32 x 15 3/4 x 30 5/16
435mm x 400mm x 770mm
Net Weight lbs. approximate 65 lbs.
Power Cord 84 inches
Exhaust Hose 5 Feet

10
English
Trouble-Shooting
If air conditioner does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in “Off” mode.
• If the tank full warning light is on, call for service.
Air conditioner working but room not cooling:
• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation.
• Redirect the airflow. Remove any obstacles.
• All doors and windows need to be closed so that cool air does
not escape the room.
• Air filter may be blocked or may need cleaning.
• Unit BTU may be too low for the required cooling area.
• On extremely hot & humid days, air conditioners may take a little longer to cool.
• Drain the water drain pipe by removing the plug.
• Unit may be in fan or dry mode. Put air conditioner in cool mode.

English
11
Limited Warranty
This warranty covers all defects in
workmanship or materials for:
1. The mechanical and electrical parts (including
labor costs) contained in this Haier product, for
a period of 12 months, from the date of pur-
chase, (commercial or rental application, the
warranty is 90 days).
2. The sealed system and compressor contained
in this Haier product is for a period of 5 years,
from the date of purchase (excluding labor costs
after the initial 12 month period). In commercial
or rental use, the additional limited compressor
warranty is for 1 year and 9 months, (excluding
labor costs after the initial 90 days period).
You must keep and be able to provide your
original sales receipt as proof of the date of
purchase.
Who is covered?
The original retail purchaser of this Haier prod-
uct.
What will be done?
Haier will repair or replace, in your home, any
mechanical, electrical part or the compressor,
which proves defective in normal household,
use for a period of 12 months. Haier will repair
or replace (excluding labor costs) the sealed
system and compressor (parts only) for an addi-
tional 4 year
period.
How can you get service?
1. Contact your nearest Haier
authorized Service Depot. For the name of the
Service Depot nearest you,
contact Haier at [phone].
2. All service must be performed, by an author-
ized Haier Service Depot.
THIS WARRANTY COVERS UNITS WITHIN
THE CONTINENTAL
UNITED STATES, CANADA
AND PUERTO RICO AND
DOES NOT COVER:
• Damages from improper installation.
• Damages in shipping.
• Damages from misuse, abuse, accident, alter-
ation, lack of proper care and maintenance.
• Damages from service, by other than an
authorized dealer or service center.
• Labor, service, transportation and shipping
charges for the removal of defective parts and
installation of a replacement part, beyond the
initial 12 month period.
THIS LIMITED WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WAR-
RANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The remedy provided in this warranty is exclu-
sive and is granted in lieu of all other remedies.
This warranty does not cover incidental or con-
sequential
damages. Some states do not allow the exclu-
sion of incidental or consequential damages, so
this limitation may not apply to you. Some
states do not allow limitations on how long an
implied
warranty lasts, so this limitation may not apply
to you. This warranty gives you specific legal
rights, and you may also have other rights,
which vary from state to state.

Haier America
New York, NY 10018
Printed in China
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer Satisfaction
Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas retourner cet article au magasin
En cas de problème avec cet article, veuillez contacter le « Centre satisfaction client » de Haier
au 1-877-337-3639.
UNE PREUVE D’ACHAT DATÉE, LE NUMÉRO DU MODÈLE ET LE NUMÉRO DE SÉRIE SONT
OBLIGATOIRES POUR BÉNÉFICIER DE LA COUVERTURE OFFERTE PAR LA GARANTIE.
IMPORTANTE
No Devuelva Este Producto al Establecimiento Compra.
Si tiene problemas con este producto, por favor póngase en contacto con el "Centro Haier de
Atención al Cliente" en el 1-877-337-3639.
PARA EL SERVICIO DE GARANTÍA SE REQUIERE PRUEBA DE COMPRA, FECHADA, No. DE
MODELO Y No. DE SERIE
Made in China
Issue: November. 04 Part: AC-9999-47
