OPERATION MANUAL
No.0010544529
Please read this operation manual
before using the air conditioner.

For the purpose of the safety,the air conditioner
must be properly grounded in accordance
with specifications.
Always remember to unplug the air
conditioner before openning inlet grill. Never
unplug your air conditioner by pulling on
the power cord. Always grip plug firmly and
pull straight out from the outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by piercing
or performating the air conditioner's tubes
with sharp or pointed items , crushing or
twisting any tubes , or scraping the coatings
off the surfaces. If the refrigerant spurts
out and gets into eyes , it may result in
serious eye injuries.
Disposal of the old air conditioner
Before disposing an old air conditioner that
goes out of use, please make sure it's
inoperative and safe. Unplug the air
conditioner in order to avoid the risk of child
entrapment.
It must be noticed that air conditioner
system contains refrigerants, which require
specialized waste disposal. The valuable
materials contained in an air conditioner can
be recycled. Contact your local waste
disposal center for proper disposal of an
old air conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the pipework
of your air conditioner does not get damaged
prior to being picked up by the relevant
waste disposal center, and contribute to
environmental awareness by insisting on
an appropriate, anti-pollution method of
disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed in the
package of your new air conditioner may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut into
smaller pieces and given to a waste paper
disposal service. The wrapping bag made of
polyethylene and the polyethylene foam pads
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper disposal
services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the
information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly , operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the following
instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
Cautions

The machine is adaptive in following
situation
Cooling
Heating
Indoor
Indoor
Outdoor
Outdoor
Maximum: D.B/W.B 32°C / 23°C
Minimum: D.B/W.B 18°C / 14°C
Maximum: D.B/W.B 43°C / 26°C
Minimum: D.B 18°C
Maximum: D.B 27°C
Minimum: D.B 15°C
Maximum: D.B/W.B 24°C / 18°C
Minimum: D.B/W.B -7°C / -8°C
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
2. If the power supply cord is damaged, it
must be replaced by the manufacturer
or its service agent or a similar qualified
person.
3. If the fuse of indoor unit on PC board is
broken,please change it with the type of
T. 3.15A/ 250V. If the fuse of outdoor unit
is broken, change it with the type of
F.20A/250V.
4. The wiring method should be in line with
the local wiring standard.
5. After installation, the power plug should
be easily reached.
6. The waste battery should be disposed
properly.
7. The appliance is not intended for use by
young children or infirm persons without
supervision.
8. Young children should be supervised to
ensure that they do not play with the
applience.
10.Please employ the proper power plug,
which fit into the power supply cord.
11.The power plug and connecting cable
must have acquired the local attestation.
Cautions

Installation
WARNING
Please call Sales/Service Shop for the Installation.
Do not attempt to install the air conditioner by yourself because improper works may
cause electric shock, fire, water leakage.
CAUTION
Installation in a inadequate place may cause accidents. Do not install in the following place.
Connect the earth
cable.
PROHIBITION PROHIBITION
STRICT
ENFORCEMENT
earthing
Do not install in the
place where there
is any possibility
of inflammable
gas leakage around
the unit.
Do not get the unit
exposed to vapor
or oil steam.
Check proper
installation of the
drainage securely
Please read the following Safety Instructions carefully prior to use.
The instructions are classified into two levels, WARNING and CAUTION according to the
seriousness of possible risks and damages as follows. Compliance to the instructions are
strictly required for safety use.
Safety Instruction
Cautions

When abnormality such as burnt-small found, immediately
stop the operation button and contact sales shop.
Connect power supply cord to the
outlet completely. Use the voltage AC220~230V.
Take care not to damage the
power supply cord.
Do not use power supply cord in
a bundle.
Do not use power supply cord
extended or connected in halfway.
Do not insert objects into the air
inlet or outlet.
Do not try to repair or reconstruct
by yourself.
Do not channel the air flow directly
at people, especially at infants or
the aged.
Do not start or stop the operation
by disconnecting the power supply
cord and so on.
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION PROHIBITION
PROHIBITION
OFF STRICT
ENFORCEMENT
STRICT
ENFORCEMENT
Use an exclusive power source with a circuit breaker.
CAUTION
Do not use for the purpose of
storage of food, art work, precise
equipment, breeding , or cultivation.
Take fresh air occasionally
especially when gas appliance is
running at the same time.
Do not operate the switch with wet
hand.
Do not pour water onto the unit
for cleaning.
Check good condition of the
installation stand.
Do not install the unit near a fireplace
or other heating apparatus.
Do not place animals or plants in
the direct path of the air flow. Do not place any objects on or climb on the unit. Do not place flower vase or water
containers on the top of the unit.
PROHIBITIONPROHIBITION
PROHIBITIONPROHIBITION
PROHIBITION
PROHIBITION PROHIBITION
PROHIBITION
STRICT
ENFORCEMENT
WARNING
STRICT
ENFORCEMENT
RES
TI
MO SW FA
PO
ON
TE
Cautions

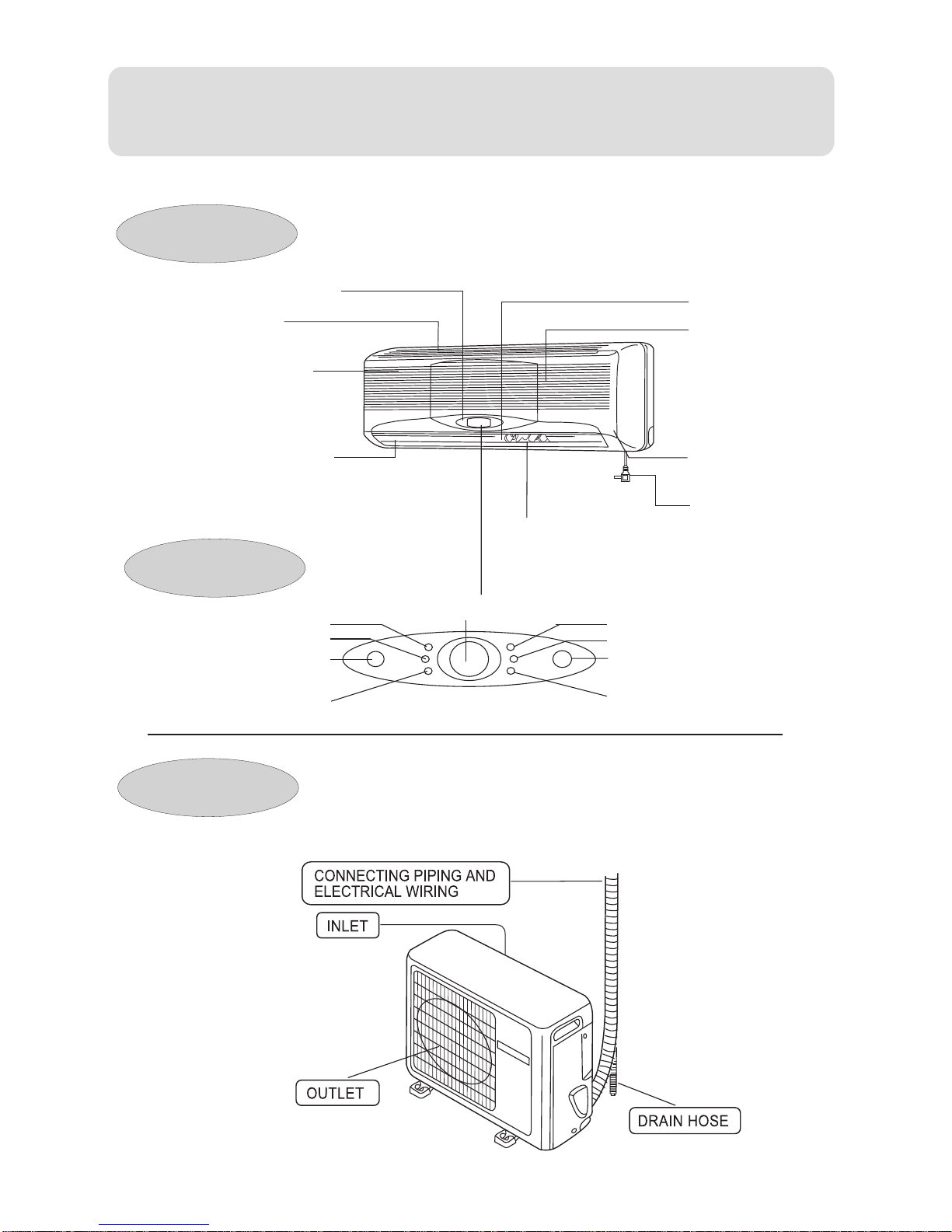

Parts and Functions
Indoor unit
Inlet grille Outlet
Signal receiving window
Horizontal louver
(Use remote controller to
adjust up and down air flow.
Don’t adjust it manually)
(adjust left and right air flow)
Vertical louver
Air filter
Power plug
Anion generator
(inside)
Outdoor unit
Human sensor
Timed operation indicator
Operation indicator
Light sensing receiver
Human sensing indicator Healthy operation indicator
Remote signal receiver
Power indicator
Sleep indicator
TIMER
RUN
HUMANSENSE
SLEEP
POWER
HEALTH
Control panel
Multi photic
catalyst air filter
(inside)

Parts and Functions

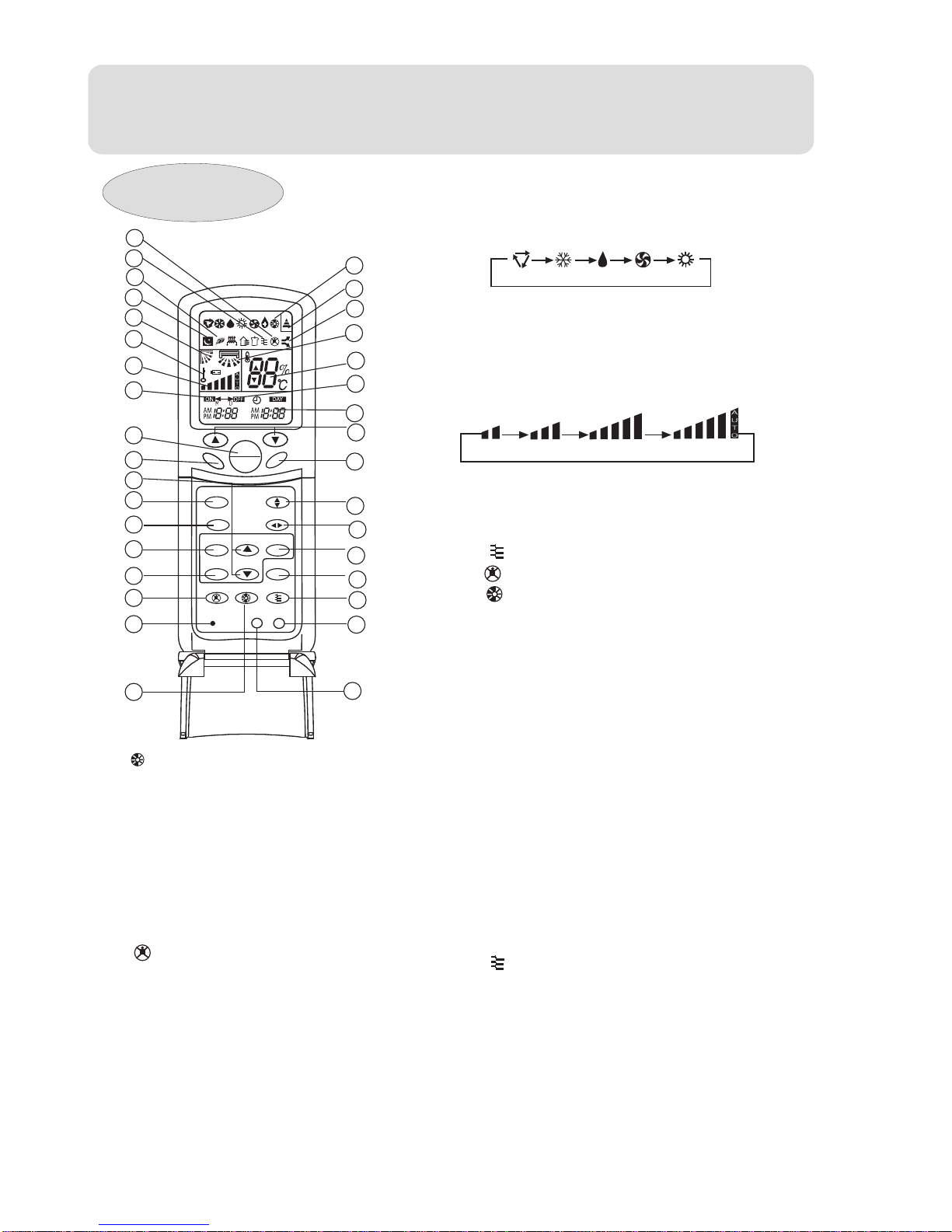

RemoteController
8.HOUR button
Used to set clock and timer setting
9.HEALTHY button
Used to set healthy operation.
10. ON/OFF button
Used for unit start and stop.
24. TIMER OFF display
13. LOCK diaplay
14. SWING UP/DOWN diaplay
15. SLEEP diaplay
16. HEALTHY diaplay
18. diaplay
20.SIGNAL SENDING diaplay
21.POWER/SOFT diaplay
22.Left/right air flow display
19. diaplay
23.TEMP display
Remote controller: to display the TEMP. setting
25. CLOCK display
26.TEMP button
Used to select your desired temperature
27.FAN button
Used to select fan speed: LO,MED, HI, AUTO
28.SWING UP/DOWN button
Used to select up or down air sending direction.
29.SWING LEFT/RIGHT button
Used to select left/right air flow.
30.SET button
Used to confirm timer and clock settings.
31.POWER/SOFT button
33.LOCK
Used to lock buttons and LCD display. If
pressed, the other buttons will be disabled and
the lock condition display appears.
Press it once again, lock will be canceled and
lock condition display disappears.
6.SLEEP button
Used to select sleep mode.
7.MODE button
AUTO COOL DRY FAN HEAT
34. LIGHT display
It is to set light sensing function, which enables
normal operation for strong indoor light (day) or
sleep running mode for weak indoor light (night).
12. FAN SPEED diaplay
AUTO
HI
MED
LOW
32. button
Used to select nature air
17. diaplay
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
1
23
27
4
3
2
25
22
7
5
6
12
15
8
13
14
26
10
11
9
20
24
28
29
30
31
32
34
21
17
18
19
RESET LIGHT
SLEEP SWING
16
33
2.RESET
When the remote controller appears
abnormal, use a sharp pointed article
to press this button to reset the
remote controller normal.

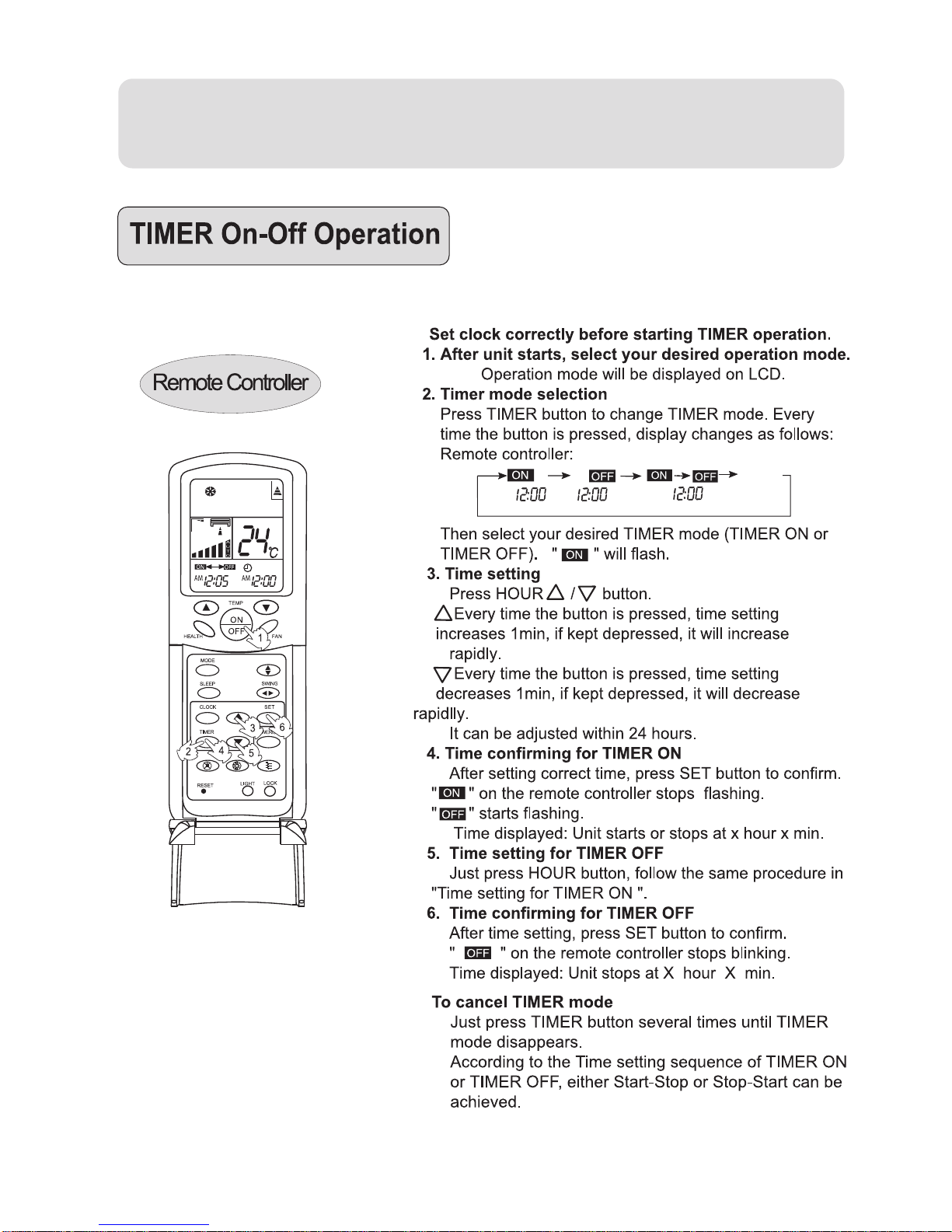

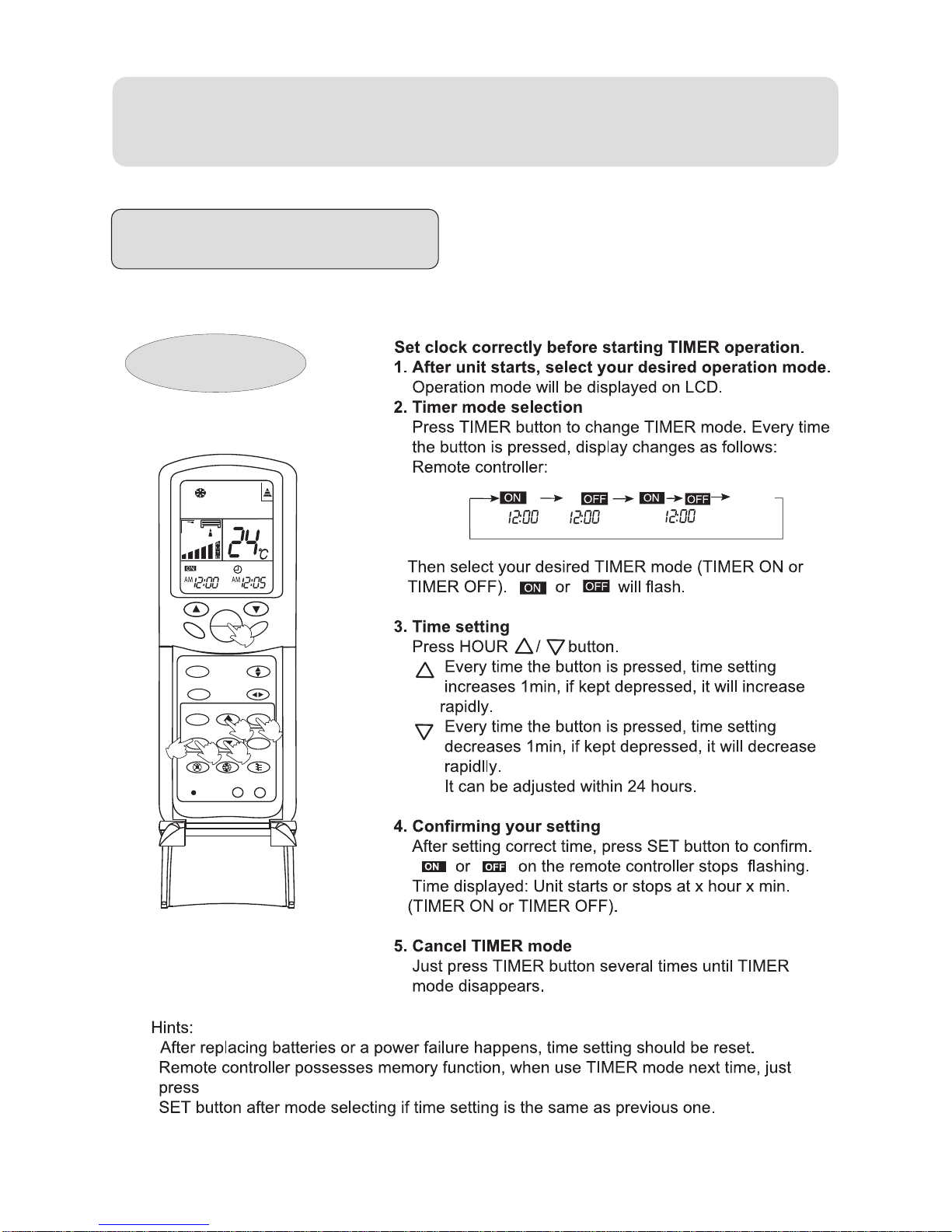

4.TIMER button
Used to select TIMER ON,
TIMER OFF,TIMER ON-OFF
5.CLOCK button
Used to set correct time.
1. button (light sensing)
It is to set light sensing function,
which enables normal operation for
strong indoor light (day) or sleep
running mode for weak indoor light
(night).
3. button
It is to set human sensing function,
which automatically gets standby if
detecting no human activity for
continuously 20 min, and automatically
starts running upon re-detecting
human activity.

Parts and Functions

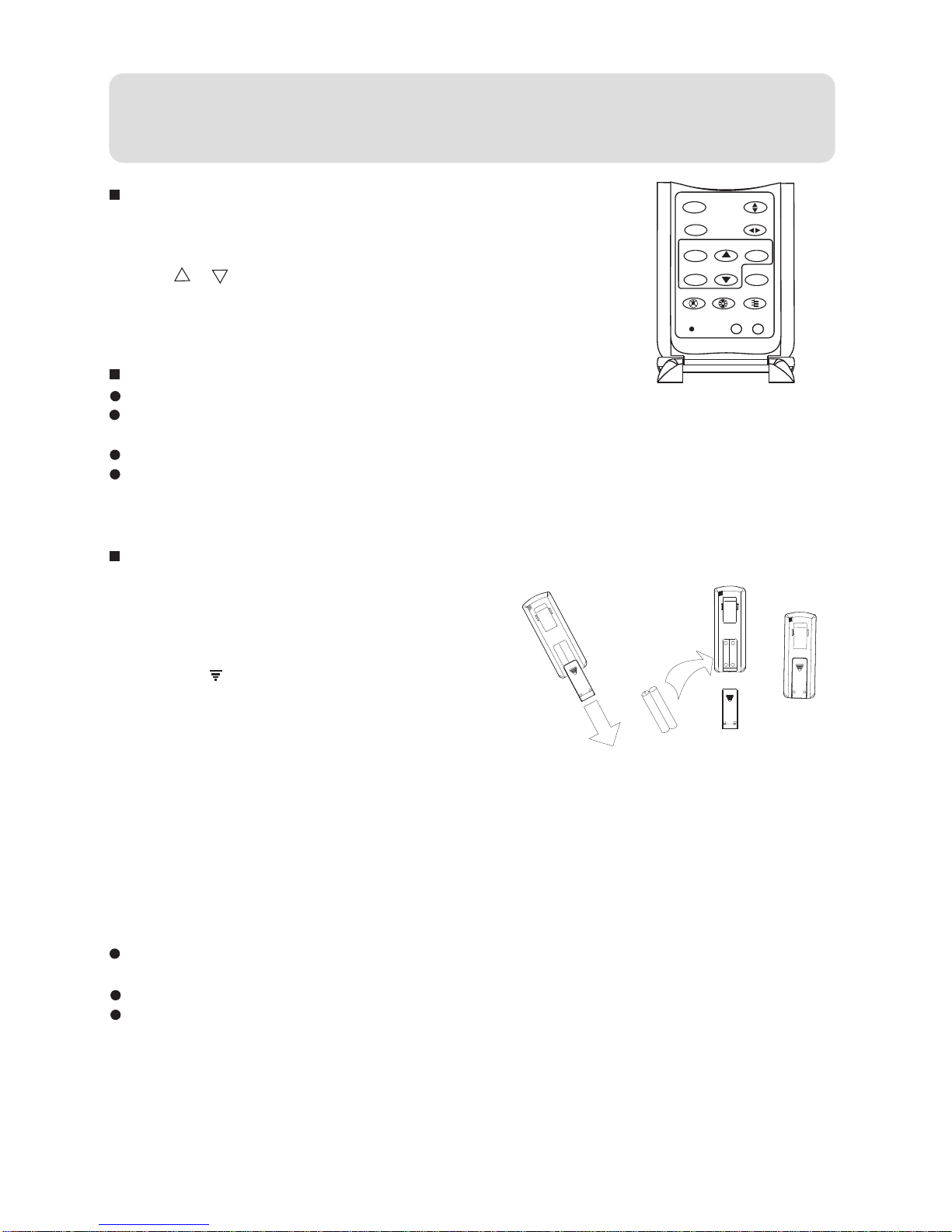

Clock Set
When unit is started for the first time and after replacing batteries in remote
controller, clock should be adjusted as follows:
1. Press CLOCK button,"AM" or "PM" flashes.
2. Press or to set correct time. Each press will increase or decrease 1
min. If the button is kept depressed, time will change quickly.
3. After time setting is confirmed, press SET, "AM" or "PM" stop flashing,
while clock starts working.
Remote controller's operation
When in use, put the signal transmission head directly to the receiver hole on the indoor unit.
The distance between the signal transmission head and the receiver hole should be within 7 m without
any obstacle as well.
Don't throw or knock the remoter controller.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless
telephone is installed in the room, the receiver is apt to be disturbed in receiving the signals, so the
distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated right.
2 R-03 (7#) batteries
Remove the battery cover:
Slightly press" " area and push down the cover
as illustrated.
Load the battery:
Be sure that the loading is in line with the "+" / "-" pole
request as illustrated on the bottom of the case.
Put on the cover again.
Confirmation indicator:
After pressing power ON/OFF, if no display, reload the batteries.
Note:
Full display or unclear display during operation indicates the batteries have been used up.
Please change batteries.
Used two new same-typed batteries when loading.
If the remote controller can't run normally during operation, please remove the batteries and
reload several minutes later.
Hint:
Remove the batteries in case unit won't be in usage for a long period. If there are any display afte r
taking-out, just need to press reset key.
1.DONOT MIX OLD WITH
NEW BATTERIESAND
DO NOT USE BATTERIES
OF DIFFERENT TYPES
TOGETHER
2.INSERT CORRECTLY 2
(TWO) R-03 BATTERIES
INTHE + - POLARITY
3.PLEASE REMOVE THE
BATTERIESWHEN THE
REMOTE CONTRLLER
DISORDER,AND RELOAD
NEW'S AFTER SIX
MINUTES
REMOTECONTROL UNIT
MODEL:YR-H05
1.DONOT MIX OLD WITH
NEW BATTERIESAND
DO NOT USE BATTERIES
OF DIFFERENT TYPES
TOGETHER
2.INSERT CORRECTLY 2
(TWO) R-03 BATTERIES
INTHE + - POLARITY
3.PLEASE REMOVE THE
BATTERIESWHEN THE
REMOTE CONTRLLER
DISORDER,AND RELOAD
NEW'S AFTER SIX
MINUTES
REMOTECONTROL UNIT
MODEL:YR-H05
-+
-
+
1.DONOT MIX OLD WITH
NEW BATTERIESAND
DO NOT USE BATTERIES
OF DIFFERENT TYPES
TOGETHER
2.INSERT CORRECTLY 2
(TWO) R-03 BATTERIES
INTHE + - POLARITY
3.PLEASE REMOVE THE
BATTERIESWHEN THE
REMOTE CONTRLLER
DISORDER,AND RELOAD
NEW'S AFTER SIX
MINUTES
REMOTECONTROL UNIT
MODEL:YR-H05
-
+
-
+
CLOCK
POWER/SOFT
TIMER
SET
LOCK
RESET LIGHT
MODE
SLEEP SWING

Operation
HEALTH Operation
1. Unit start
Press ON/OFF on the indoor unit,or press ON/OFF on
the remote controller, unit starts.
Previous operation status appears on LCD display ,
and set the operation mode.
2. Select operation mode
Press HEALTH button. For each press, is displayed
now the air copnditioner is operating the healthy function.
3. Unit stop
Press HEALTH button, the healthy function stops.
When the fan in the indoor unit does not work, the health lamp lights up, but
the anion generator does not release anion.
Note
BRIEF INTRODUCTION TO HEALTH OPERATION
The anion generator in the air conditioner can generate a lot of anion to
effectively balance the quantity of position and anion in the air and also to kill
bacteria and speed up the dust sediment in the room and finally clean the air
in the room.
RemoteController
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
21
3

Operation
AUTO Operation
1. Unit start
Press ON/OFF on the indoor unit,or press ON/OFF on
the remote controller, unit starts.
Previous operation status appears on LCD display ,
and set the operation mode.
2. Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Then Select AUTO operation
3. Unit stop
Press ON/OFF button, the unit stops.
About AUTO mode
In AUTO run mode, the air conditioner will
automatically select cooling or heating
operation mode according to room temperature.
AUTO COOL DRY FAN HEAT
RemoteController
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
2
1
3

Operation

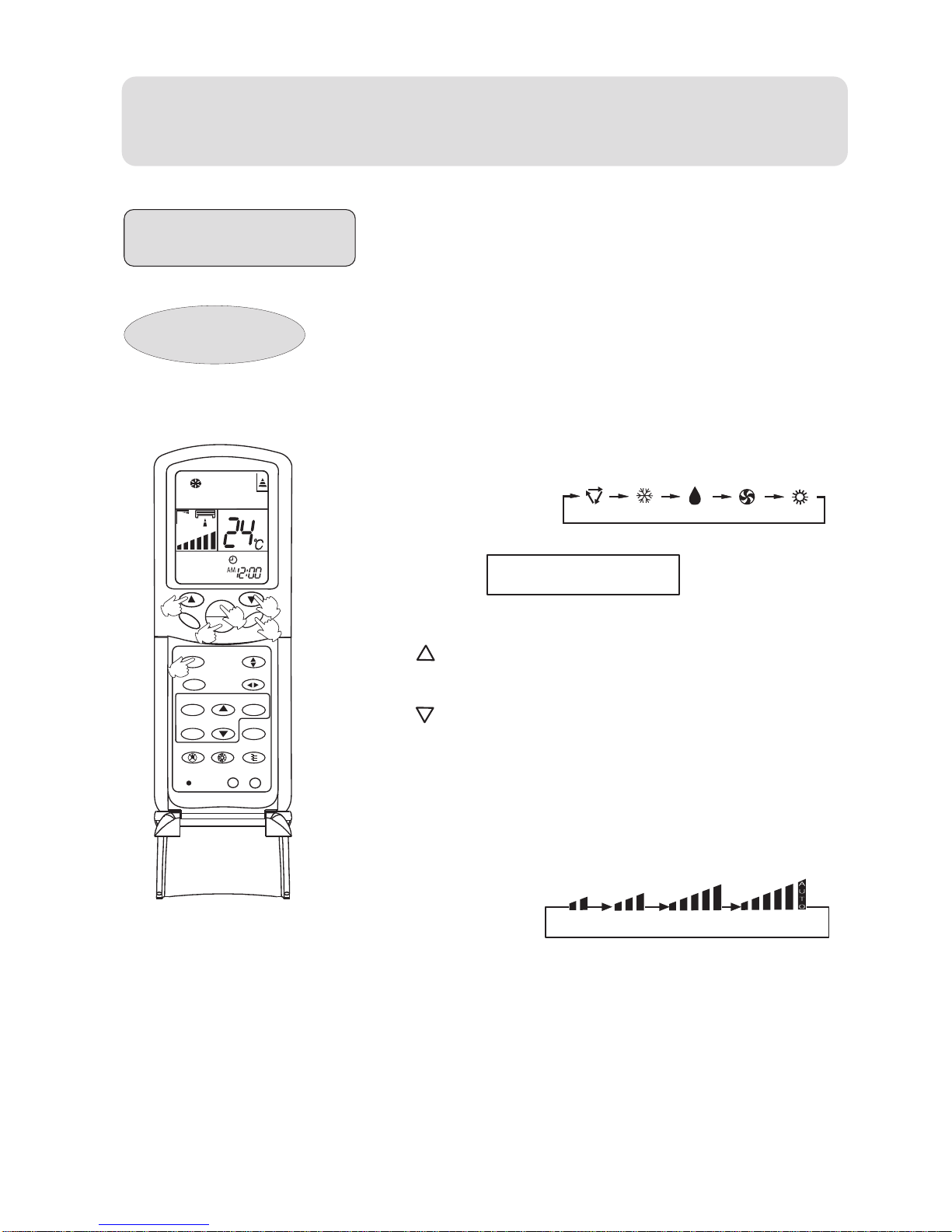

COOL Operation
1. Unit start
Press ON/OFF on the indoor unit,or press ON/OFF on the
remote controller, unit starts.
Previous operation status appears on LCD display.
2. Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Then Select COOL operation.
3. Select temp. setting
Press TEMP. button.
Every time the button is pressed, temp. setting
increases 1°C , if kept depressed, it will increase
rapidly.
Every time the button is pressed, temp. setting
decreases 1°C , if kept depressed, it will decrease
rapidly.
Select a desired temperature.
4. Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
When FAN is set to AUTO, the air conditioner
automatically adjusts the fan speed according to room
temperature.
5. Unit stop
Press ON/OFF button, the unit stops.
AUTO COOL DRY FAN HEAT
RemoteController
AUTO
HI
MED
LOW
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
3
3
2
1
54

Operation

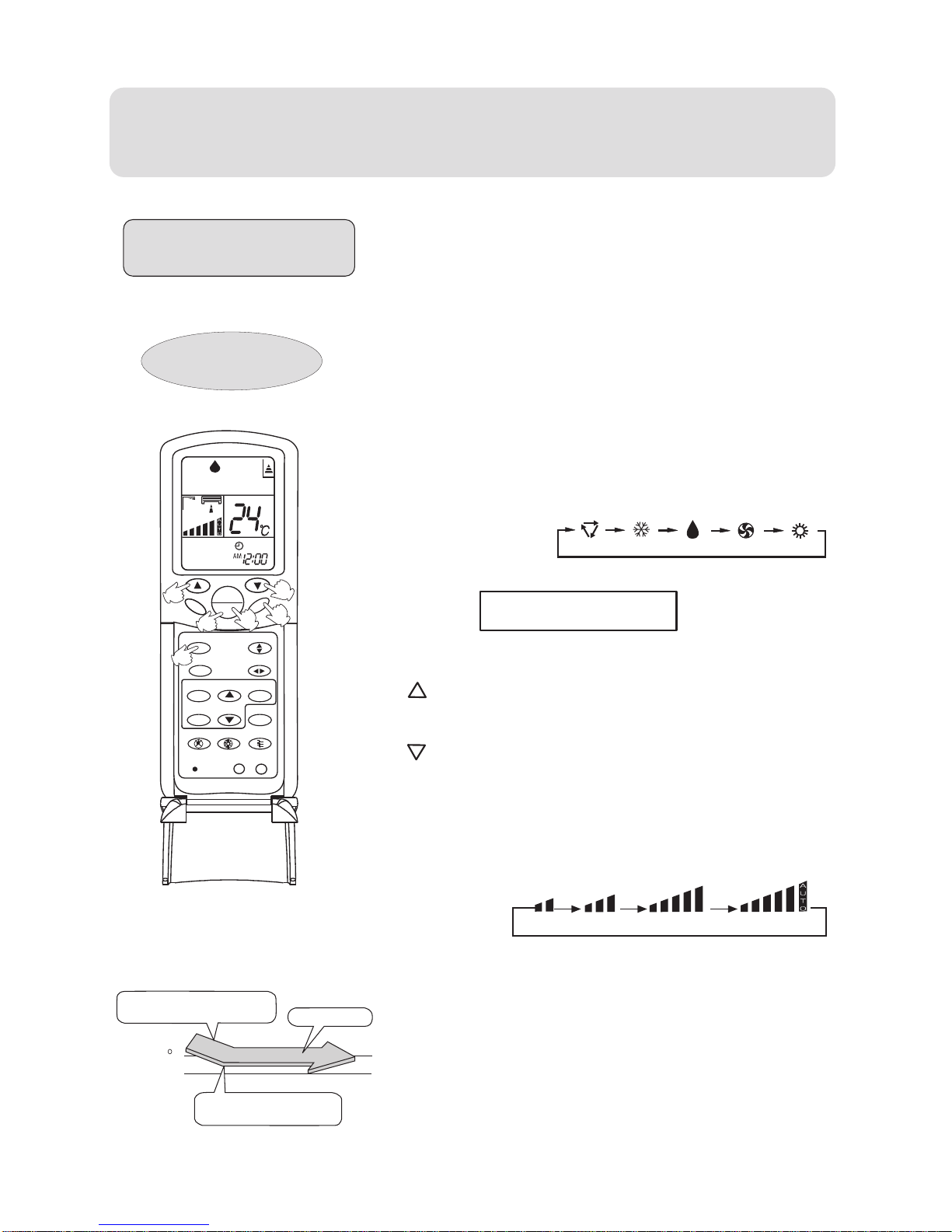

DRY Operation
COOL operation starts when room
temp. is higher than temp. setting. Ultra-low air flow
Temp. setting+2 C
Temp. setting
On reaching temp. setting +2°C,
unit will run in mild DRY mode.
RemoteController
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
FAN
OFF
ON
RESET LIGHT
SLEEP SWING
HEALTH
1
2
3
3
4
5
1. Unit start
Press ON/OFF button on the indoor unit or press
ON/OFF on the remote controller, unit starts.
Previous operation status appears on LCD display .
2. Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Conrol panel:
Then Select DRY operation.
3. Select temp. setting
Press TEMP. button.
Every time the button is pressed, temp. setting
increases 1°C , if kept depressed, it will increase
rapidly.
Every time the button is pressed, temp. setting
decreases 1°C , if kept depressed, it will decrease
rapidly.
Select a desired temperature.
4. Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
In DRY mode, when room temperature becomes 2°C
higher than temp. setting, unit will intermittently at LO
speed regardless of FAN setting.
5. Unit stop
Press ON/OFF button, the unit stops.
AUTO
HI
MED
LOW
AUTO COOL DRY FAN HEAT

Operation

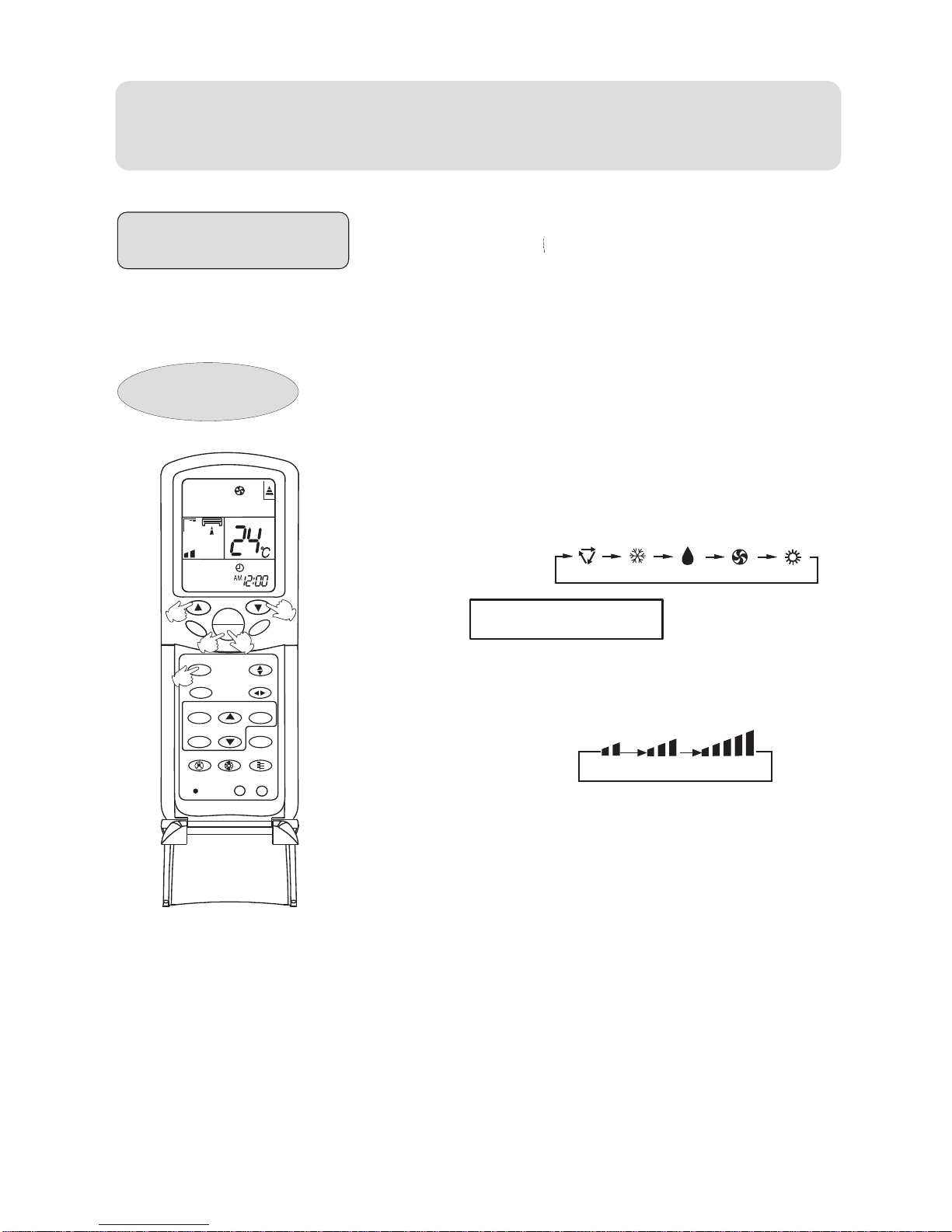

FAN Operation
RemoteController
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
FAN
OFF
ON
RESET LIGHT
SLEEP SWING
HEALTH
1
2
3
3
4
1. Unit start
Press ON/OFF button on the indoor unit or press ON/OFF
on the remote controller, unit starts.
Previous operation status appears on LCD display ( no
timer and sleep).
2. Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Then Select FAN operation.
3. Fan speed selection
Press FAN button. For each press, fan speed changes as
follows:
Remote controller:
4. Unit stop
Press ON/OFF button, the unit stops.
About FAN operation
In FAN operation mode, the unit will not operate in
COOL or HEAT mode but only in FAN mode. AUTO is
not available in FAN mode. And temp.setting is disabled.
In FAN mode,SLEEP operation is not available.
AUTO COOL DRY FAN HEAT
HI
MED
LOW

1. Unit start
Press ON/OFF button on the indoor unit or press ON/OFF
on the remote controller, unit starts.
Previous operation status appears on LCD display ( no
timer and sleep).
2. Select operation mode
Press MODE button. For each press, operation mode
changes as follows:
Remote controller:
Then Select HEAT operation.
3. Select temp. setting
Press TEMP. button.
Every time the button is pressed, temp. setting
increases 1°C , if kept depressed, it will increases
rapidly.
Every time the button is pressed, temp. setting
decreases 1°C , if kept depressed, it will decreases
rapidly.
Select a desired temperature.
Control panel displays the temperature setting and will
change into room temperature after 3 times flashing.
4. Fan speed selection
Press FAN button. For each press, fan speed changes
as follows:
Remote controller:
Control panel: see P18. The central blade keeps rotating.
The Unit will operate at the indicated fan speed.
In HEAT mode, warm air will blow out after a short period
of the time due to cold-draft prevention function.
5. Unit stop
Press ON/OFF button, the unit stops.
Operation
Regarding the ambient
temperature display during
the heating operation
In defrosting,the indoor temperature
value displayed may be reduced due
to the dropping of cooling air of the
evaporator of indoor unit under cooling
mode.It is normal phenomenon.
HEAT Operation
AUTO COOL DRY FAN HEAT
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
FAN
OFF
ON
RESET LIGHT
SLEEP SWING
HEALTH
RemoteController
AUTO
HI
MED
LOW
1
2
3
3
4

1. Status display of air sending direction
2. Up and down air flow direction
For each press of button, air flow direction on remote controller or
on the control panel displays as follows according to different operation modes:
CCOL/DRY/FAN:
remote controller:
HEAT:
remote conreoller:
AUTO:
remote controller:
The vertical flap will swing according to the above positions.
3. Left and right air flow direction
For each press of button, remote controller displays as follows:
remote controller:
The horizontal louvers will swing according to the above positions.
4. Note: When restart after remote turning off, the remote controller will automatically
memorize the previous set swing position.
Air Flow Direction Adjustment
pos. 1 pos.2 pos. 3 pos. 4 pos. 6
pos. 5 pos.4 pos.3 pos.2 pos.1 pos. 6
pos. 1 pos. 2 pos. 6
pos. 5
pos. 4
pos. 3
pos. 1 pos. 2 pos. 3 pos. 4 pos.5 pos. 6
pos. 8
pos. 7
[COOL/DRY/FAN
/AUTO(COOL)NONE]
Horizontal louvers
Pos. 1
Pos. 6
Pos. 5
Pos. 4
Pos.3
Pos. 2
Pos. 7
Pos. 8
Pos. 1
Pos. 2
Pos. 3
Pos. 6
Pos. 5
Pos. 4
Vertical flap
(Auto swing)
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING

Operation
SLEEP Operation
Before going to bed, you can simply press the
SLEEP button and unit will operate in SLEEP
mode and bring you a sound sleep.
Use of SLEEP function
After the unit starts, set the operation status,
then press SLEEP button before which the
clock must be adjusted and time being set.
Operation Mode
1. In COOL,DRY mode
3 hours after SLEEP mode starts, temp. will
become 1°C higher than temp. setting. After
another 3 hours, temp. rises by 1°C further.
The unit will run for further 2 hours then stops.
Temp. is higher than temp. setting so that room
temperature won't be too low for your sleep. 2. In HEAT mode
3 hours after SLEEP mode starts, temp.
will become 1°C lower than temp.
setting. After another 3 hours, temp.
decrease by 1°C further. The unit will
run for further 2 hours then stops. Temp.
is lower than temp. setting so that room
temperature won't be too high for your
sleep.
3. In AUTO mode
The unit operates in corresponding sleep
SLEEP mode adapted to the
automatically selected operation mode.
In COOL,DRY mode
SLEEP operation starts SLEEP operation stops
Approx. 2 hrs
3 hr
3 hr
Temp. setting Unit stop
Rises 1°C
Rises 1°C
4.In FAN mode
It has timing off function.
5. The sleep time can be adjusted within
the range of 1-8 hours.
Push the SLEEP button. The remote
controller will display “ ”, and display the
timing off and detail off time in the timing
off setting area.
Push the time adjusting button to adjust the
detail sleep time.
6. If the sleep time in cooling,
dehumidifying and heating run is less
than 8 hours
Within the set sleep time, the conditioner will
run as per the procedure described in 1 and
2. It will be switched off automatically when
the sleep time is expired.
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
In HEAT mode
Temp.setting Unit stop
SLEEP
operation starts SLEEP
operation stops
3 hr
3 hr
2 hr
Decreases 1°C
Decreases 1°C
RemoteController

Operation
Timer On/Off Operation
AM AM AM BLANK
TIMER ON TIMER OFF TIMER ON-OFF
RemoteController
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
1
2
3
5
4
3

Operation
AM AM AM BLANK
TIMER ON TIMER OFF TIMER ON-OFF

Operation
POWER/SOFT Operation
POWER Operation
When you need rapid heating or cooling, you can use this function.
Selecting of POWER operation
Press POWER/SOFT button. Every time the button is pressed,display
changes as follows:
Stop the display at " ".
In POWER operation status:
In HEAT or COOL mode, fan speed automatically runs in HI mode
for 15 min then returns to original status setting.
To cancel POWER operation
Press POWER/SOFT button twice, POWER/SOFT disappears.
SOFT Operation
You can use this function when silence is needed for rest or reading.
Selecting of SOFT operation
Press POWER/SOFT button. Every time the button is pressed, display
changes as follows:
Stop the display at " ".
In SOFT operation mode, fan speed automatically takes "LO".
To cancel SOFT operation
Press POWER/SOFT button once, HI/SOFT disappears.
Hints:
During POWER operation, in rapid HEAT or COOL mode, the room
will show inhomogeneous temperature distribution.
Long period SOFT operation will cause effect of not too cool
or not too warm.
SOFT BLANK
POWER
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
POWER SOFT BLANK

Operation
MODE
CLOCK
POWER/SOFT
TIMER
SET
LOCK
TEMP
HEALTH FAN
OFF
ON
RESET LIGHT
SLEEP SWING
