Haier HSU-09CW03 User manual

AS182ATNDA
AU182AFNBA
(HSU-18CW03/R1)
AS162ATNCA
AU162AFNAA
(HSU-16CW03/R1)
AS072AZBDA
AU072ABBAA
(HSU-07HW03/R1)
AS072AZNDA
AU072ABNAA
(HSU-07CW03/R1)

Contents
Cautions
Parts and functions
Operation

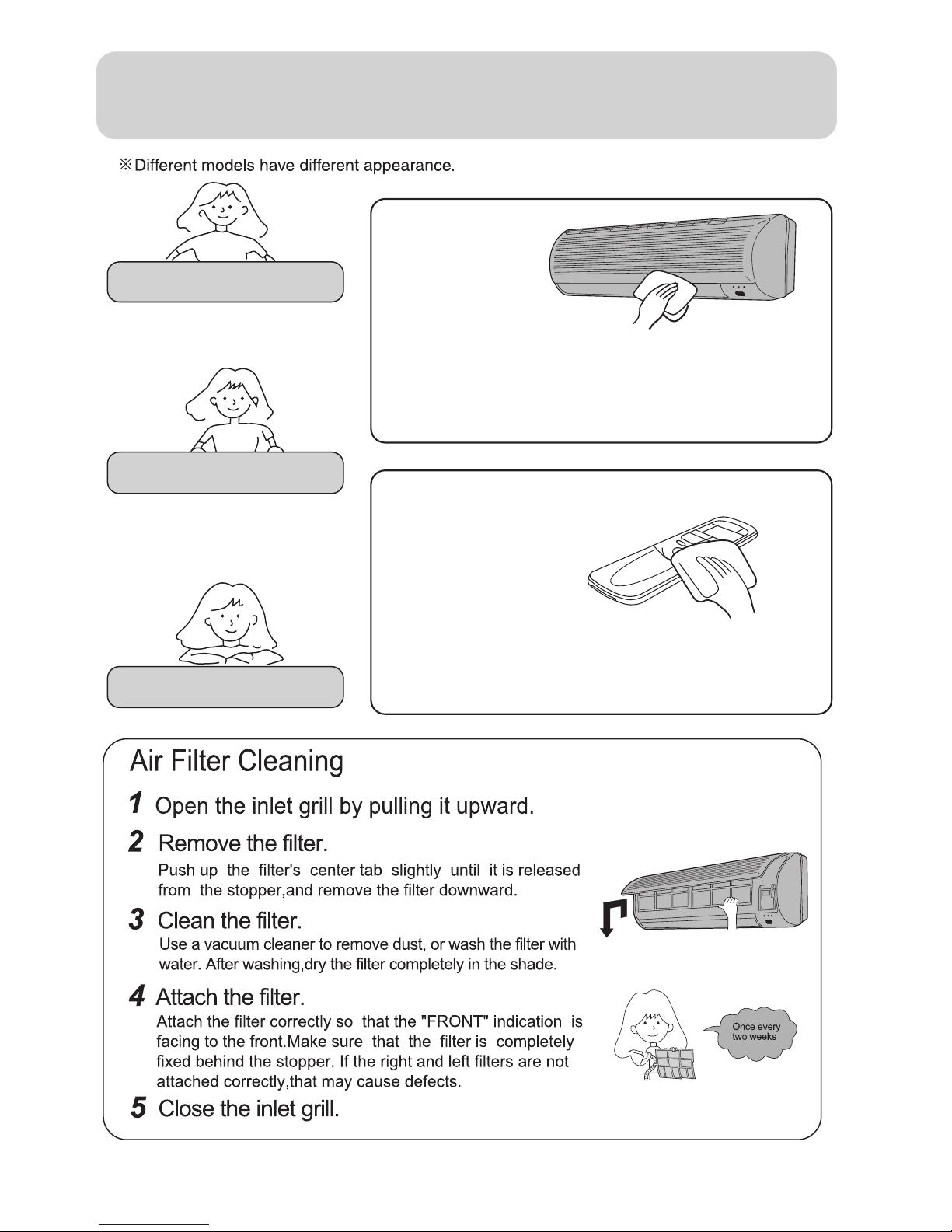

Maintenance
Trouble shooting
1-2
3-6
7-14
15-17
18

Cautions
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal. The
valuable materials contained in a air
conditioner can be recycled. Contact your
local waste disposal center for proper
disposal of an old air conditioner and
contact your local authority or your dealer
if you have any question. Please ensure
that the pipework of your air conditioner
does not get damaged prior to being
picked up by the relevant waste disposal
center, and contribute to environmental
awareness by insisting on an appropriate,
antipollution method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed in
the package of your new air conditioner
may be disposed without any danger to
the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene and
the polyethylene foam pads contain no
fluorochloric hydrocarbon.
All these valuable materials may be taken
to a waste collecting center and used
again after adequate recycling.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
For the purpose of safety, the air
conditioner must be properly grounded in
accordance with specifications.

Cautions
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.
All electrical repairs must be carried
out by qualified electricians. Inadequate
repairs may result in a major source of
danger for the user of the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or pointed
items, crushing or twistings off the
surfaces. If the refrigerant spurts out and
gets into eyes, it may result in serious
eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should children
be allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
10. The wiring diagram is attached in-
side the machine.
11. The appliance must be installed on
strong enough supporter.
Series
type
Series
type
07
3G1.5MM
16,18
3G2.0MM
07
3G1.5MM +2G0.75MM
2 2
2 2

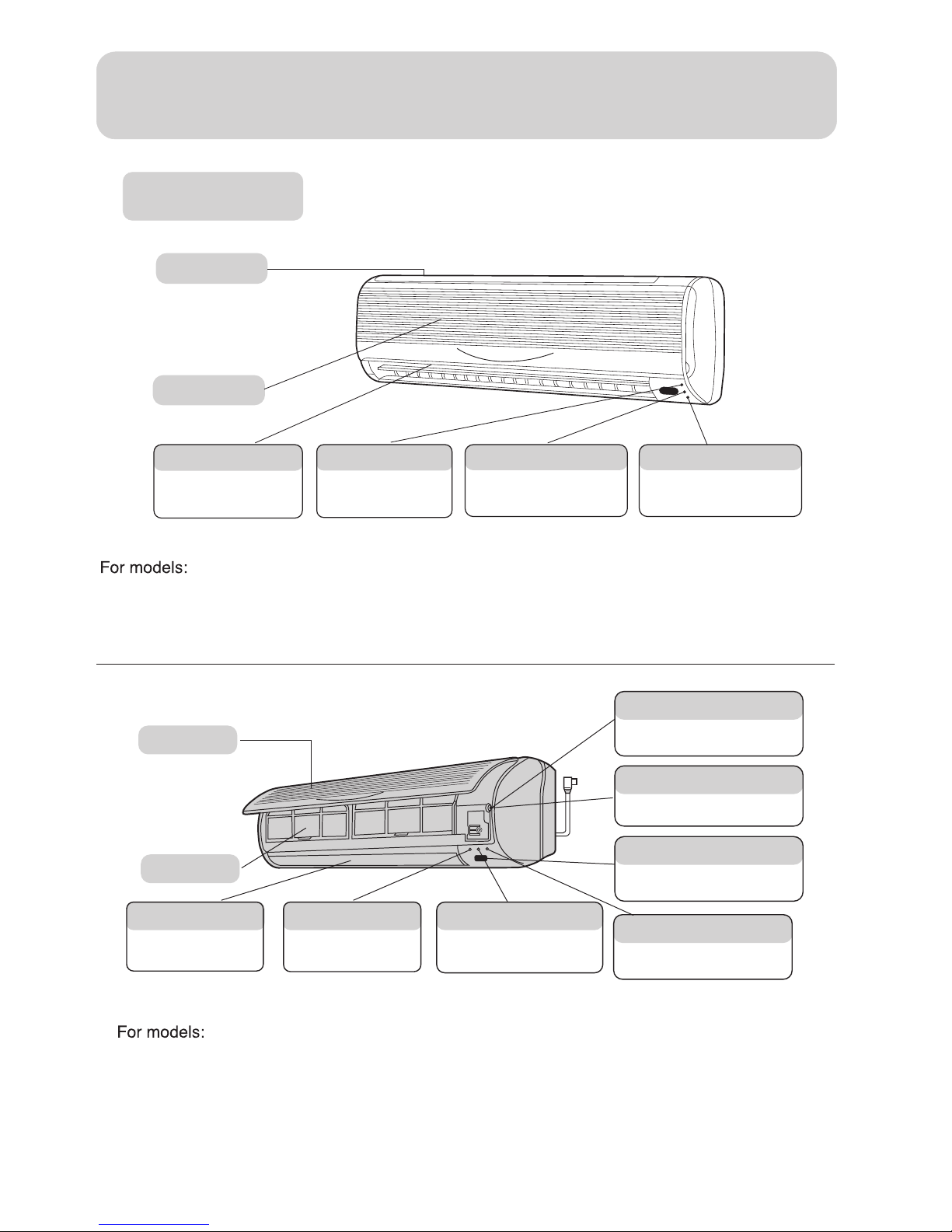

Parts and Functions
Indoor Unit
AS182ATNDA
AU182AFNBA
(HSU-18CW03/R1)
AS162ATNCA
AU162AFNAA
(HSU-16CW03/R1)
AS072AZBDA
AU072ABBAA
(HSU-07HW03/R1)
AS072AZNDA
AU072ABNAA
(HSU-07CW03/R1)
Power
Operation mode indicator
Lights up when Timer
operation is selected. Lights up during compressor
running.
Inlet grill
Air filter
Vertical flap
Use remote controller to 
adjust up and down air flow.
(Don't adjust it manually.)
Lights up when unit starts.
Timer mode indicator
Test running
Emergency
Operation mode
Use remote controller to 
adjust up and down air
flow.
Power
Lights up when Timer
operation
Remote signal
A beeping sound is generated when 
a signal from remote controller is 
received.
Inlet grill
Air filter
Vertical flap
Lights up when unit starts.
Timer mode indicator
Used only for test running in cooling 
when room temp. is below 16 .
Don't use it in normal operation.
Used when remote controller is lost or
defective. Unit will run temporarily.
Lights up during compressor 
running.

AU182AFNBA
(HSU-18CW03/R1) AU162AFNAA (HSU-16CW03/R1)
AU072ABBAA
(HSU-07HW03/R1) AU072ABNAA (HSU-07CW03/R1)
For models: For models:
14
Power Failure Resume (to be applied for a necessary situation):
Setting Method: When the remote controller is on (excluding timer mode and fan mode),
press the " SLEEP " button on the remote controller 10 times within 5
seconds, and after the buzzer rings 4 times, the air conditioner will enter
the state of power failure resume.
Cancel Method: Press the " SLEEP " button on the remote controller 10 times within 5
seconds, and after the buzzer rings 2 timer, the power failure compensation
mode will be cancelled.
Notes: When a power failure suddenly occurs during the air conditioner is working after
the power failure resume is set, if the air conditioner will not be used for a long time, please
cut off the power supply to prevent its operation from being resumed after the power is
supplied again, or press the " " button after the power comes again.
After the power failure compensation is set, if power failure suddenly occurs while the air
conditioner is working, it will resume the previous working state when the power is
again.
ON/OFF

ON OFF
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AUTO
AM
PM
AM
PM AM PM
Parts and Functions
Buttons and display of the remote
Power TEMP.
FA
Used to set auto
fan
Used to set correctUsed to set correct time
Used to select 
TIMER ON, TIMER
OFF,
Used to lock
buttons
Used to set clock
and
Used to select fan
speed:
Used to select
your
Operation
Used for unit start and
stop.
SWING
MODE
Used to select AUTO run,
COOL,DRY,HEAT and
FAN operation.
CLOCK
TIMER
LOCK RESET
Used to reset the controller
back to normal condition.
HOUR
SET
Used to confirm Timer
and Clock settings.
SLEEP
Used to select sleep 
mode.
Cautions:
On cooling only unit, heating mode is not available.
After replacing batteries, press ON/OFF, and display 
becomes as follows:
Operation mode: AUTO, Temp. :No
Timer mode: No, Fan speed: AUTO
Note:
The above information is the 
explanation of the displayed 
information, therefore varies 
with those displayed in actual 
operation.
CODE
Used to select code A or
B ,A or B will be displayed
on LCD. Please select A
without special explanation.

ON OFF
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AUTO
AM
PM
AM
PM AM PM
Parts and Functions
Buttons and display of the remote
Operation
Hints
AUT
AUT
DR
AUT
FAN
Clock
TEMP
FAN
HEA
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the 
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM " and "PM" stop flashing, while clock
starts working.
COOL
SWING
LO
MED
HI
SLEEP
TIMER ON
TIMER OFF
LOCK
CLOCK
SIGNAL SENDING
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.

Unit will run in selected mode.
Stop display at " " AUTO or " " FAN.

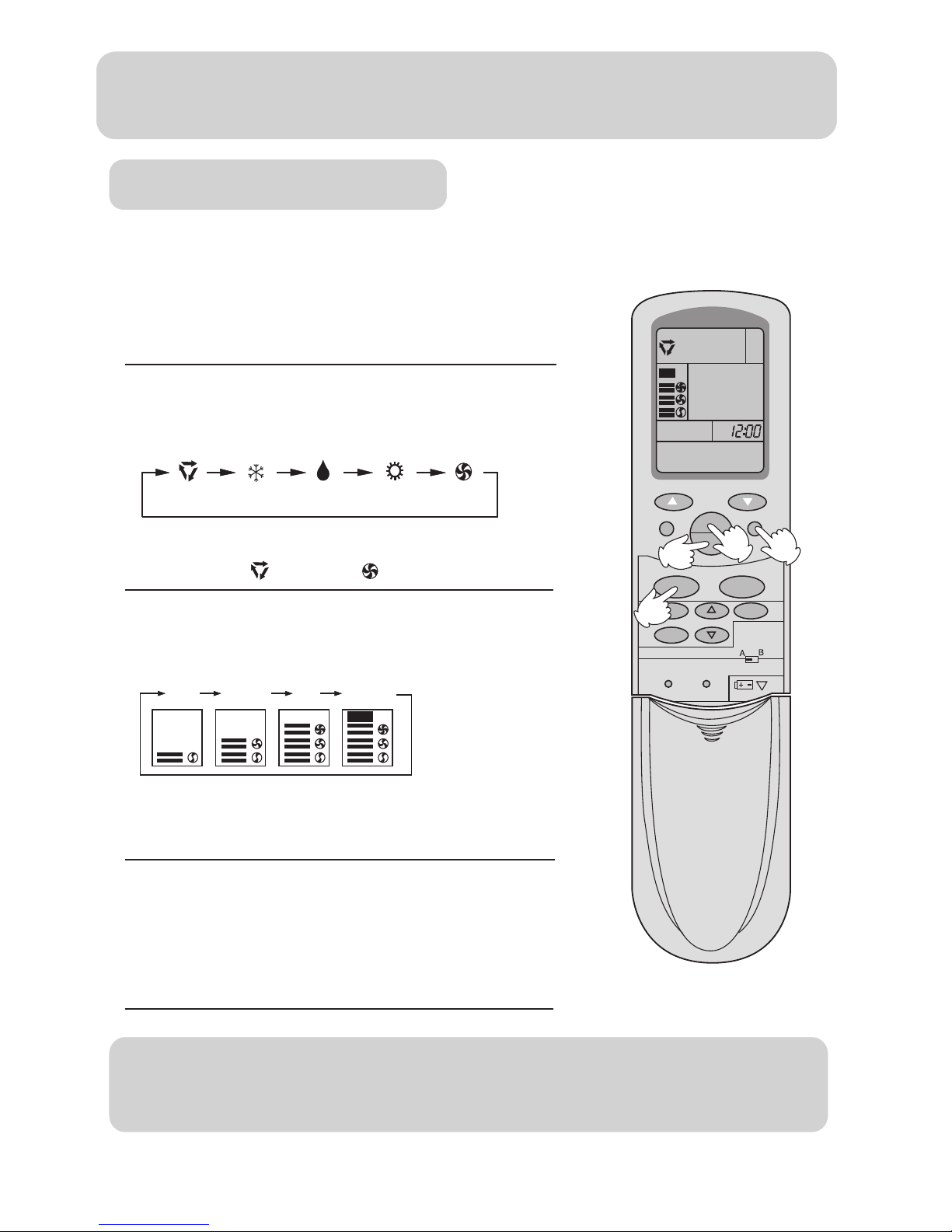

Operation
Enjoy yourself by just a gentle press.
(1) Unit start
(2) Select operation mode
(3) FAN
(4) Unit stop
AUT
AUT
AUT DR HEA FA
Press ON/OFF button, unit starts.
Previous operation status appears on
display.
(Not Timer setting)
Press MODE button. For each press,
operation
Press FAN button. For each press, fan speed
changes
Remote controller can memorize settings in each operation mode. To run it
next
time just select the operation mode and it will start with the previous setting.
Hints
Auto run, Fan operation
COOL
Unit will run at selected fan speed.
Note:AUTO is not available in FAN mode.
Adjust air flow direction if necessary, referring to page10.
LO MED HI
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closed automatically.
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AUTO
AM
13
4
2

Operation
AUT DR HEA FA
COOL
AUT
AUT
LO MED HI
(1) Unit start
(2) Select operation mode
(3) Select temp.setting
Press MODE button. For each press,
operation
Unit will run in operation mode displayed on
LCD.
Press FAN button. For each press, fan speed
changes
Hints
(4) Fan speed selection
Unit will start running to reach the temp. setting on
Recommendations:
COOL operation starts when room
temp. is higher than temp. setting.
Temp.
COOL, HEAT and DRY operation
Use COOL in summer.
Use HEAT in winter.
Use DRY in spring, autumn and in damp climate.
Press ON/OFF button, unit starts.
Previous operation status appears on display. (Not Timer setting)
Power indicator on indoor unit lights up.
Press TEMP. button
Every time the button is pressed, temp. setting increases 1oC
Every time the button is pressed, temp. setting decreases 1oC
Unit runs at the speed displayed on LCD.
In HEAT mode, warm air will blow out after a short period
of time due to cold-draft prevention function.
In DRY mode, when room temp. becomes 2oC higher than
temp. setting, unit will run intermittently at LO speed
regardless of FAN setting.
Remote controller can memorize each operation status. When starting it next time, 
just press ON/OFF button and unit will run in previous status.
On cooling only unit, heating mode is not available.
Ultra-low air flow
Temp. setting+2oC
On reaching temp. setting,unit 
will run in mild DRY mode.
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AUTO
AM
14
3
6
5
2

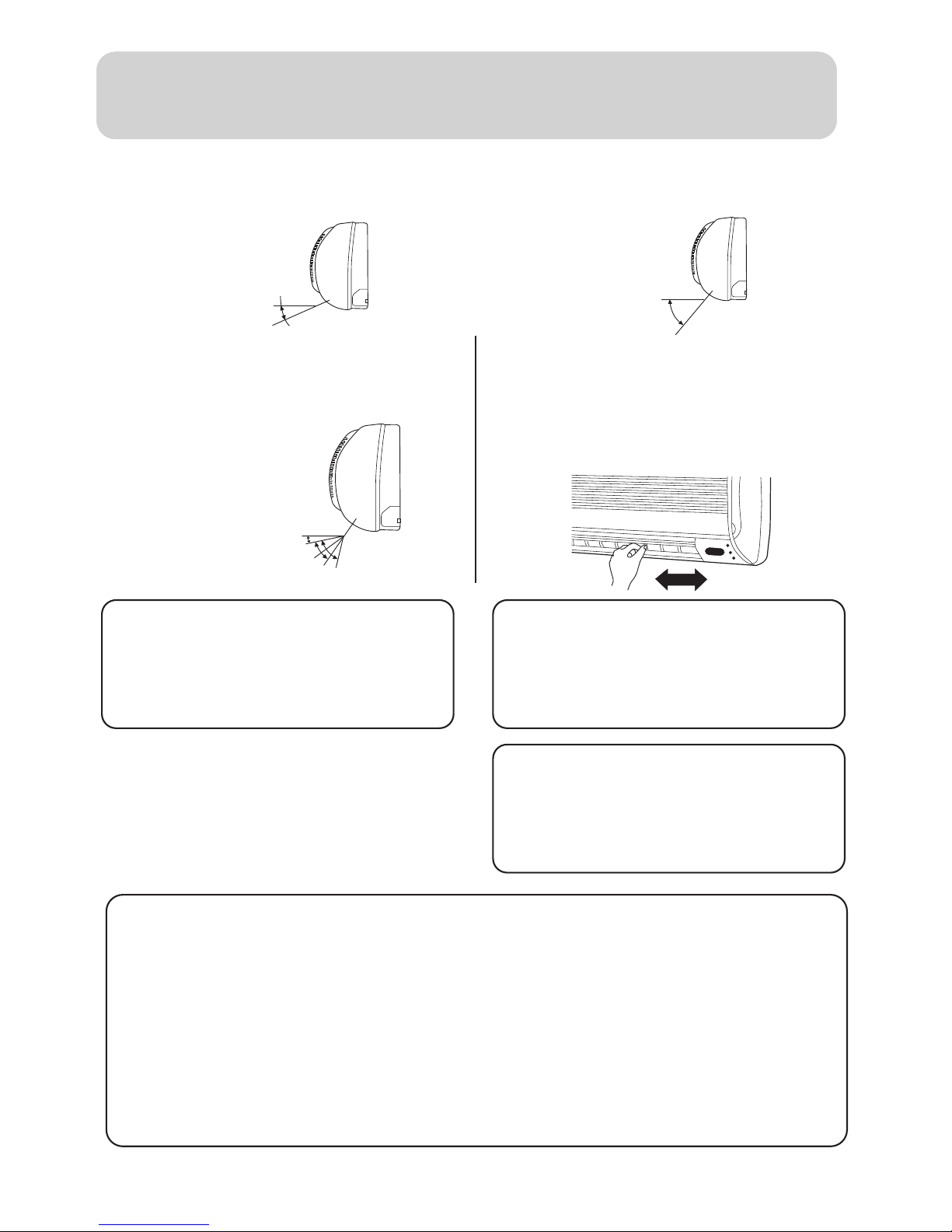

After operation mode is selected, vertical flap will open automatically according to the mode.
Referring to the Fig.
Operation
When humidity is high, condensate water 
might occur at air outlet if all horizontal 
louvers are adjusted to left or right.
Unit won't restart until 3 minutes have 
elapsed, due to system protection.
HEAT mode is not available on
cooling only unit.
(6) Unit stop
As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more 
helpful for a better air circulation.
As warm air flows upward in HEAT mode, adjusting air flow downward will be much more 
helpful for a better air circulation.
Be careful not to catch a cold when cold air blows downward.
It is harmful to your health in summer to go frequently in and out of places where temp. difference 
is above 7oC. Temp. difference of 3-5oC will remove your fatigue.
More than this, unit's load can be reduced and power consumption cut down as well. So, you'd 
(5) Air flow direction adjustment
Left and right air flow adjustment
(manual)
Move the horizontal blade by a knob on
air
conditioner to adjust left and right direction
Up and down (Use remote controller)
Press SWING button, vertical flap will move within 
the range shown in the Fig. Press SWING button
stop it at a fixed position.
Cautions:
Cautions:
Cautions:
It is advisable not to keep vertical flap at 
downward position for a long time in COOL 
or DRY mode, otherwise, condensate 
Press ON/OFF button.
Only time remains on LCD.
All indicators on indoor unit go out.
Vertical flap closes automatically.
Hints
About 10o
About 10o
COOL About 45o
HEAT About 60o
About 60o
COOL HEAT

Operation
TIMER operation
Hints
Set Clock correctly before starting Timer operation(referring to page 6)
You can let unit start or stop automatically at following times: Before you wake up in
the
TIMER ON/OFF
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as
Select your desired TIMER mode (TIMER ON or TIMER 
OFF) ON or OFF will flash.
(3)Timer setting
Press HOUR
(4)Confirming your setting
After setting correct time, press SET button to confirm, "ON" 
or "OFF" stops flashing.
Time displayed: Unit starts or stops at x hour x min. (TIMER
ON or TIMER OFF).
Timer mode indicator on indoor unit lights up.
To cancel TIMER mode
Just press TIMER button several times until TIMER mode
After replacing batteries or a power failure happens, Time setting should be reset.
Remote controller possesses memory function, when use TIMER mode next time,
just
ON OFF ON OFF blan
(1)After unit start, select your desire operation mode.
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
TIMER ON TIMER OFF TIMER ON-OFF
Every time the button is pressed, time increases 10 min. 
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10 min.
If button is kept depressed, time will change quickly. Time
will be shown on LCD. It can be adjusted within 24 hours.
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AM
1
ON
AM
234

Operation
TIMER ON-OFF
(1)After unit start, select your desired operation mode
Operation mode will be displayed on LCD.
Power indicator on indoor unit lights up.
(2) Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as follows:
Select TIMER ON-OFF. "ON" will
(3)Time setting for TIMER ON
Press HOUR
(5) Time setting for TIMER OFF
To cancel TIMER mode
ON OFF ON OFF blan
Time displayed: Unit starts at x hour x min.
After time setting, press TIMER button to
confirm.
(4) Time confirming for TIMER ON
Follow the same procedures in "Time setting for TIMER
(6)Time confirming for TIMER
Time displayed: Unit stops at X hour X
Just press TIMER button several times until TIMER mode
TIMER ON TIMER OFF TIMER ON-OFF
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly.
Time will be shown on LCD. 
It can be adjusted within 24 hours.
AM refer's to morning and PM to afternoon.
According to the Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or 
Stop-Start can be achieved.
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AM
1
ON
AM
OFF
AM
After time setting, press SET button to confirm, "OFF" stops flashing.
6
23
4
5

Operation
Emergency
Carry out this operation only when the remote controller is defective or lost.
When the emergency operation switch is pressed, a " Pi " sound starts once,
which
means the start of this operation.
In this operation, it is not possible to change the 
settings of temperature and air flow speed, it is 
also impossible to do an operation by the timer.
Designated 
temperatur Timer  mode Air flow
Operatio
n mode
26
o
C
23
o
C
Designated 
temperatur
AUT
AUT HEA
Test operation:
Removal of the restriction of emergency or test
Emergency operation and test operation
More than 23
o
C
Less than 23
o
C
Room 
temperature
COOL
If an air conditioner is a model for both cooling and heating.
Cooling when the room temperature at the start of operation is above 23oC.
Heating when the room temperature at the start of operation is less 23oC.
Use this switch in the test operation when the room 
temperature is less 16oC, do not use it in the normal 
operation.
Continue to press the test operation switch for more 
than 5 seconds. After you hear the "Pi" sound twice,
release your finger from the switch, the cooling 
operation starts with the air flow speed setting "Hi".
Press once more the emergency operation switch, or manipulate through the remote
controller, a "Pi" sound causes the restriction of emergency or test operation to be 
removed.
When the remote controller is manipulated for the removal, then the selected operation 
by the remote controller.

Operation
In COOL mode
In HEAT mode Approx. 6
Temp. Unit stop
Temp. Unit stop
Approx. 3
Note:
In AUTO mode, unit will run in SLEEP 
function according to operation mode.
In FAN mode, comfortable sleep is not 
available.
Fig.1
Fig.2
Comfortable SLEEP
Before going to bed at night, you can simply press
the SLEEP button and unit will bring you a sound 
sleep in selected mode.
One hour after SLEEP mode starts, temp. will 
become 1oC higher than temp. setting. After 
running for another 1 hour, temp. rises by 1oC 
further. Unit will run for 6 hours then stops 
automatically. Temp. is higher than temp. 
setting so that room temp. won't be too low 
for your sleep.(As shown in Fig.1)
One hour after SLEEP mode starts, temp. will 
become 2oC lower than temp. setting. After 
running for another 1 hour, temp. decreases 
by 2oC further. Unit will run for 3 hours at this 
temp. then increases another 1oC and stops
automatically 3 hours later. Temp. is lower 
than temp. setting so that room temp. won't 
be too high for your sleep.
(As shown in Fig .2)
1 hr
1 hr
1 hr
1 hr
3 hrs Rises 1
Decreases 2
Decreases 2
SLEEP mode stops
SLEEP mode starts
SLEEP operation stops
SLEEP operation starts
Rises 1
TEMP
SWING
MODE
CLOCK
SLEEP
SET
LOCK RESET
TIMER
FAN
OFF
ON
AM

Maintenance
Cut off power supply 
before cleaning wipe unit casing with soft cloth.
In case of heavy stain, clean it with neutral detergent.
squeeze water in the cloth, wipe off the detergent on
unit
Cleaning of unit casing
Cleaning of remote controller
Cleaning of air filter
Don't use water to wash unit casing, please use dry cloth.
Don't use glass cleanner or cloth soaked with chemicals.

Maintenance

Maintenance
Proper room
Closing of doors and windows 
during operation.
Effective use of the
Never fail to observe the
Do not block the inlet or
outlet.
Do not use for otherDo not pull power plug.
Once
every
Avoid time-
wasteful
Better use of air conditioner
Cleaning of the air filter.
Proper
temperature
Curtains or blinds
for windows
Do not sprinkle water over 
the unit.
Such as food preservation,
plant cultivation, or animal 
breeding.

Trouble Shooting
Before asking for service, check the following first.
Cause or check
Normal
Performanc
e
Smells are
Mist or steam are blown
Multiple
check
Is power plug inserted?
Is there a power failure?
Is fuse blown out?
Poor
Phenomenon
When unit is stopped, it won't restart
immediately until 3 minutes have elapsed 
to protect the system.
When the electric plug is pulled out and
reinserted, the protection circuit will work
for 3 minutes to protect the air conditioner.
Noise is heard.
The system does not restart
immediately.
During unit operation or at stop, a swishing 
or gurgling noise may be heard. At first 2-3 
minutes after unit start, this noise is more 
noticeable. (This noise is generated by 
refrigerant flowing in the system.)
During unit operation, a cracking noise may 
be heard. This noise is generated by the 
casing expanding or shrinking because of 
temperature changes.
Should there be a big noise from air flow in 
unit operation, air filter may be too dirty.
This is because the system circulates smells 
from the interior air such as the smell of 
furniture, cigarettes.
During COOL or DRY operation, indoor unit 
may blow out mist. This is due to the sudden
cooling of indoor air.
Does not work at all.
Is the air filter dirty? Normally it should be 
cleaned every 15 days.
Are there any obstacles before inlet and outlet?
Is temperature set correctly?
Are there some doors or windows left open?
Is there any direct sunlight through the 
window during the cooling operation?(Use
curtain)
Are there too much heat sources or too many
people in the room during cooling operation?
