Haier MVAH012MV2AA User manual

Pleasereadthismanualcarefullybeforeusing
Keepthisoperationmanualforfuturereference
Originalinstructions
MVAH009MV2AA
MVAH012MV2AA
MVAH018MV2AA
MVAH024MV2AA
MVAH030MV2AA
MVAH036MV2AA
MVAH042MV2AA
MVAH048MV2AA
Indoor Unit Operation & Installation Manual

Contents
If thesupplycord isdamaged, it must be replacedbythe manufacturer, itsserviceagent orsimilarlyqualified persons
in orderto avoid a hazard.
Thisequipment shouldnot be usedorservicedbypersonnelwho havenot beenproperly trained in itsoperationand
maintenance.
Children shouldbe supervised to ensure that theydonot playwith the appliance.
Theappliancesare not intended tobe operated bymeansof an externaltimerorseparate remote-controlsystem.
Keep the applianceanditscord outof reach of children lessthan 8years.
Warning
MRVseriesmultizoneairconditioningsystemscan operate multiple indoorunitsinheating orcooling. When in cooling,
onlyunitsset tocoolwillrun. Same logicappliesforheating..
Turn poweronfor12hourspriorto start-up toallow the crankcaseheateradequate time toprotect thecompressor.All
indoorunitsonthe same refrigeration system should usethe unifiedpowerswitchto
ensure that allindoorunitsare allpowered onduring system operation.
Yourairconditionermaybesubject toanychange owingto the improvement of Haierproducts.
Partsand Functions 1
Safety 2
5
Fault Checkup
6
InstallationProcedures
13
Electrical Wiring
19
Test Run&Fault Code
4
Maintenance
ProductFeatures
1.Function of centralcontrol(optionalfromourcompany);
2.Automaticdisplayoffault detection;
3.Theairconditionerisprovided withthe function focompensation forpowersupply.Duringoperation,whenthepowersupply
failsemergently andresumesagain,the airconditionerreturnsto theworkingconditionbefore powerfailure,if provided
withcompensation function.
4.Nowthisindoorunit onlyhaswired controllerfunction,theindoorunitthat hasremotecontrollerfunctionneed to set in
factoryespecially.
UserManual

1
indoorunit
airduct
soft connection
airoutlet port
airinlet port
Partsand Functions

2
Safety

3
Safety

4
Maintenance

5
FaultCheckup

(4)The dimensionof maintenance
Make sure that it iseasyto demount the electricalcontrol
box, fan, montor, filter.
6
Thismanualcannot completelyillustrate allthe propertiesof the productsyou bought. Please contact the localHaier
distribution centerif youhave anyquestion orrequest.
1. Beforeinstallation [Don tthrowawaytheattachedpartsrequiredfortheinstallation]
Determinethe route tomove the unit tothe installationsite;
Transport theunit in it'sboxtoprevent damage.
2. Selectthe installation site
(1)The installationsite shouldbe selectedaccording thefollowing
conditions,which shouldbe approvedbyusers.
where an idealairdistributioncan beensured;
where thereisno blockageinthe airpassage;
where thecondensed watercanbe drained out properly;
where thestructure canbearthe weight of the indoorunit;
where enoughspacecan beensuredformaintenance.
where thelengthsof the piping between indoorunitsand
outdoorunitsare within the allowable range (refertoInstallation
of OutdoorUnits)
where thedistanceof at least 3.28ft (1m)between indoor
units,outdoorunits,mainssupply,connecting wiresandtelevision
orradio should be kept astoavoid theimage disturbanceand
noisesof the above electricalappliances. (Evenif 3.28ft(1m)can
be ensured, noise might occurif there isstrongelectricwave.)
Additionally, equipments, television orothervaluablescant be
put underthe unit astoavoid thecondensed waterof theunit
from dropping intothe above articles, causing damaging.
(2)Height of Ceiling:
The ceiling shouldbe locatedat the place, where the
centralpositionof airoutlet port islessthan 9.84ft (3m)high
abovethe ground.
(3)Hoisting studsshouldbe usedduring installation.
Check if the location can beartheweight of the unit.
Reinforce it beforeinstallation if necessary.
barrier
checking
port
spaceneeded for installation (unit:in)
D
D
(in)
C
(in)
B
(in)
A
(in)
MVAH009-
018MV2AA
MVAH024-
030MV2AA
Size
Model
31
387/8
431/4
511/8
18 5/8
18 5/8
25
25
MVAH036-
048MV2AA 551/4673/420 7/829
Installation Procedures
RequiredTools forInstallation
Brazing torch
15%silverphosphorouscopperbrazing alloy
Wire stripper
Soap-and-watersolution orgasleakage detector
Torque wrench
17mm, 22mm, 26mm
Tubing cutter
Reaming tool
Flaring tool
Razorknife
Measuringtape
Level
Vacuumpump
Microngauge
Nitrogen
Mini-SplitAD-87Adapter(1/4*to5/16*)
Non-adhesiveTape
AdhesiveTape
Electricalwiring
checking
port
A
B
(locationofhangingbolt)
(dimensionsofinspectionholeonceiling)

7
Note:
When thesizesof themain unit dont matchthe holeon the ceiling, regulate the slot on thehanging bracket.
Adjust thelevelwith a levelmeteroraccordingto thefollowingways:
Adjusting the level
Makethe adjustment asshown inthefigure.
(2)If necessary, make ahole forinstallationandinspection on the ceiling. (used forthe situation with aceiling)
Forthe sizeof theinspection hole onthe ceiling,please refertothe above drawing.
Before installation, finishallthe preparationsforallpipingconnectedto indoorunits(refrigerant, waterdrainage)and
wiring (connectionline of theline control, connection linebetween indoorunitsandoutdoorunit)so that theycan be
connected with indoorunitsright afterinstallation.
Forthe inspection hole, theceilingmight be reinforced tokeep the evennessof the ceiling and avoidthe vibration of the
ceiling. Fordetails, please consult the construction contractor.
notchgrapping
notchplug plug
concrete
3/8"(M10) hangingbolts
(3)Installthe 3/8"(M10)hangingbolts
In orderto support the weight of the unit, usebarbboltsin the situation with a ceiling.
In the situation with thenew ceiling, useinlaid bolts, embeddedboltsorotherparts
provided onsite. Beforeproceedingthe installation, adjust thegap between the bolt
andthe ceiling.
3/8"nut hanging bolt
3/8"(M10)shim
3/8" washer
mainunit
(4)Installation of IndoorUnits
Fixthe indoorunitwith the hoisting stud.
If necessary,the machine can be hanged
on the beam withboltsinsteadof the
hoistingstud.
3. Preparationbefore Installation
(1)Unit height is11inches
top
H
C
0~0.8
StaticPressureRange
StaticPressureRange
unit: IWC
Installation Procedures
E
(in)
C
(in)
A
(in)
Size
Model
291/2
291/2
MVAH009-
018MV2AA
MVAH024-
030MV2AA
MVAH036-
048MV2AA 537/8
31
38 7/8
185/8
185/8
55 1/4207/8
H
(in)
273/8
273/8
313/8

8
washport
washport
mainunit
drainagehose
joint (purchasedat localshop)
sealingwasher [for insulation]
(accessory)
hardPVC tube(purchasedat localshop)
sealingwasher[forinsulation](accessory)
sealingwasher [for insulation](accessory)
threadclip
(accessory)
drainagehose
binding
393/8~78 6/8in
ProperPiping
hangingbolt
heatinsultor
gradient of1/100 or over
ImproperPiping
air outlet port
avoid lobing
avoidcurving
don'tputpipe
intowater
(a)Toprevent waterflowing back intoairconditionerwhen the unitstopsrunning,drainhose shoulddecline to the drainage
side with an inclination of above1/100. Drain hoseexpansion orwateraccumulation shouldbe prevented, orelseit will
causeabnormalnoise.
20 1/8
drain pipe 18 5/8
161/4
gaspipe liquidpipe
183/8
4. Drainpipes
MVAH009-030MV2AA
183/8
16
29 11/8
11/8
183/8
MVAH036-048MV2AA
unit:in
Installation Procedures
(b)Please use the accessory drain hose to connect indoorunit'swateroutlet andPVCpipe. Use snapringstotighten
themasshown in the following figure:

9
Before thetest, ensure the drain hose isclearand allconnectionsaretightlysealed.
Then perform the drainage test asfollows:
1. Add about 0.132gal(500ml)of waterinto the waterpanthrough waterinjection hole.
2. Switch onthe powerand operatethe unit incooling mode. Checkthat the wateroutlet drainswaternormally andthat
thereare noleakagesat the connections.Afterthe drainagetest iscomplete, replace thewaterinjectionhole plug.
3. Inthe condition of new house,test the drainage system before fitting upthe ceiling.
4. Evenif it isinstalledinthe seasonneeded to heating, the testing should also beperformed.
Testing Drainage System
ensurethebiggest height difference
(about37/8in)
gradient of 1/100orover
specialexhaust port
positioningwithbolt
supply
duct
air
air
6. Cautions inInstallationof AirReturnDuct& ExhaustDuct
It isrecommended touse ducting, which can be
anti-condensationandabsorb sound. (purchased at localshops)
Heat insulation shouldbe made forthe ducting.
Thespecialexhaustportshouldbe arranged at the placewheretheairisdistributedevenly.
An accesspanelshould be addedto theceiling below the indoorunit forserviceability.
Installation Procedures
(c)Please userigid PVC adhesive forconnection of otherpipesand ensure there
isno leakage.
(d)Drainhose mustbe wrappedwithinsulation sleeve and tightenedwitha strap to
prevent airleakagefrom producing condensate.
(e)When connectingthe drainhose, do notpullon itto avoid thepipe connections
from getting loose ordisconnected. Drain hoseshould notbe pulledout laterallyfor
morethan 8in(200mm)and should be supported every 31-39in(0.8-1.0m)to avoid bending.
(f)Theend of drain hoseshould bemorethan2in(50mm)awayfromthe groundorthe bottom of drainage tank. It should
not be put inwater.Todirectlydraincondensate into drainageditch, the drain hose must be U-shaped to avoidsmellfrom
enteringthrough thehose into room.
5. Installationof AirReturn& AirExhaustPipes
Forthechoiceandinstallationof airreturnport, airreturn pipe,airexhaustportandexhaustpipe,please consult service
personnelof Haiercompany.Calculatethe design chartandexteriorstaticpressure, andselectthe exhaustpipewith
appropriate length andshapes.
mainunit of air
conditioner
ceiling
suface
specialexhaust
port(purchased at
localshop)
exhaustpipe
(purchased
atlocal
shop) accesspanel
air return
pipe
(purchase
dat local
shop)specialairreturn
pipe(purchasedat
localshop) withair
cleaner
The length difference between pipesshouldbe limitedto be lessthan 2:1;
Make the piping asshort aspossible;
Keep the min. elbow quantity;
Windthe heat insulating materialaround theflange between the mainunitand theexhaust
pipe forheat insulation and sealing. Install the pipingbeforefittingup the ceiling.
At least6.6feet air duct isneeded at airinlet and airoutlet.
Flexibleconnection is needed between indoorunitsand airduct.
ESPshouldbe lower than0.8IWC.

Remarks:
Thisseriesofairconditionerscan be arranged in twoairreturn modes: 1. Airreturnfrom the back(Factorydefault); 2. Air
return fromthebottom (can beadjusted on site. Seethe following figures.)
Note:
The downwardairreturn mode willincreasenoise3-5dB(A). It isrecommended to installthe airconditionerin downward
return airmode 2if enough space isavailable.
7.Connection of returnairduct(settingback airreturnopening whenleavingfactory)
10
Installation Procedures
F
below airreturnopeningbackairreturn opening
G
(in)
F
(in)
MVAH009~018MV2AA
MVAH024-030MV2AA
Size
Model 26
29 1/8 77/8 77/8
MVAH036-048MV2AA 50 3/8 92/8
(1)Cutawaythecircularopeningon theside ofthereturn
end (2)Installround duct collar(obtained locally)
(3)Use foiltapeto prevent airleaks
8. Adding freshairintake duct
cut away
cut away
Duct collar

Note:
You can selectnot toconnect with the flange. Insteadof it, you can usethe round plasticairoutlet(purchased byuser)
9.Install outletflange
Installoutlet flangebasising theneeds, the outlet flangeisstandard component, boltsare laied in accessoriesbox.
11
10. Examples forBadInstallation
The unit isnot equipped with theairreturn pipe and the innerside of the suspending ceiling isused asthe blast pipe,
causingthe humidityincreasingdueto irregularairmass, strongwind orsunlight fromthe outside world.
There might be condensatedropping down at the outersideof the blast pipe. The humidityis high, evenif the innerside
of thesuspended ceiling isnt usedasa blast pipe in new concrete buildings.At thistime, the wholebodyshouldusethe
thermowoolforheat preservation (the thermo woolcanbe packedwitha steelwire).
It isoperatedunderthe conditionsbeyond the limits, leading tothe overload of the compressor.
Affected bythe capacityof the exhaust fan, andthe strongwind and wind direction in theouterflue, whenthe blowing
quantityof the airconditionerexceedsthe limits, the drained waterof the heat exchangerwilloverflow, causing water
leakage.
exhaust fan
example of bad installation
11. Static Pressure GradeSetting
ForMVAH036~048MV2AAunits, afterinstallation needto preliminaryestimatesexternalstaticpressure, according to the
externalstaticpressuresetting the unit'sstaticpressuregradebycontroller.
Note:Thedetailoperation methodsforsettingthe unit'sstaticpressure grade referto thecontrollermanual.
ceiling
Installation Procedures
The staticpressure range of each gradeasfollows:
Grade Grade/StaticPressureRange (IWC)
10~0.1
2 0.1~0.3
3 0.3~0.5
4 0.5~0.7
5 0.7~0.8

12
Piping Material
Heat InsulatingMaterial HardPVCtubeVP1in (innerbore) Vesicant polythene thickness: over1/4in
PipeLength &Height Difference
Please referto theattachedmanualof outdoorunits.
12. RefrigerantTube
Piping Materials&Heat Insulating Materials
As toprevent condensation,heatinsulating treatment
should be performed. The heat insulating treatment
forgasand liquidpiping shouldbe donerespectively.
Addthe refrigerant according to the installation instruction of outdoorunit. The additionof R410Arefrigerant mustbe
performed with adigitalscaleto ensurethe propercharge. Compressorfailure can be caused byoverorundercharging
the system.
Refrigerant RechargeAmount
wrench
Installation Procedures
TubingMaterial
Model
TubingSize Gaspipe
Liquidpipe 3/8
Tubing Materials&Specifications
5/8
Seamlesscopperpiperated forR410Arefrigerant
MVAH024~048MV2AA
1/4
1/2
MVAH009~018MV2AA
Proceedthe flare tube connecting operation
to connect alltherefrigerant tubes.
Connecting Proceduresof Refrigerant Tubing
Dualwrenchesmust be used inthe
connection of indoorunit tubing.
Mounting torque referstothe
right table
CuttingandEnlarging
Cutting orenlarging pipesshould be proceeded by
installation personnelaccording to the operating criterion
if the tube istoo long orflare opening isbroken.
Checkif there isanyleakage at the connecting part and
bonnet with hydrophone orsoapsuds.
Checkup forAirLeakage
Open allthe valvesof outdoorunits. [NB:oil balancingstop
valve must be shut up completelywhen connected one
main unit.]
Open AllValves
Vacuumizefrom the stop valveof outdoorunitswithvacuum
pump.Refrigerantsealedin indoormachineis not allowed
to use forvacuumization.
Vacuumizing
1. Connecting circularterminals:
Theconnecting method of circularterminalis shownin the
Fig. Take off the screw, connectit to the terminaltierafter
heading it through the ring at the end of the lead and then
tighten it.
2.Connecting straight terminals:
Theconnectionmethodsforthecircularterminals areshown
asfollows:loosen the screwbeforeputting the line terminal
into the terminaltier, tighten the screwand confirmit has
been clamped bypulling the line gently.
3.Pressing connecting line
Afterconnecting line iscompleted, pressthe connecting
line with clipswhich should presson the protective sleeve
of the connecting line.
Connecting
correct
pressing terminaltier
pressing clip
wrong
pressing
Connecting
circularterminals:

13

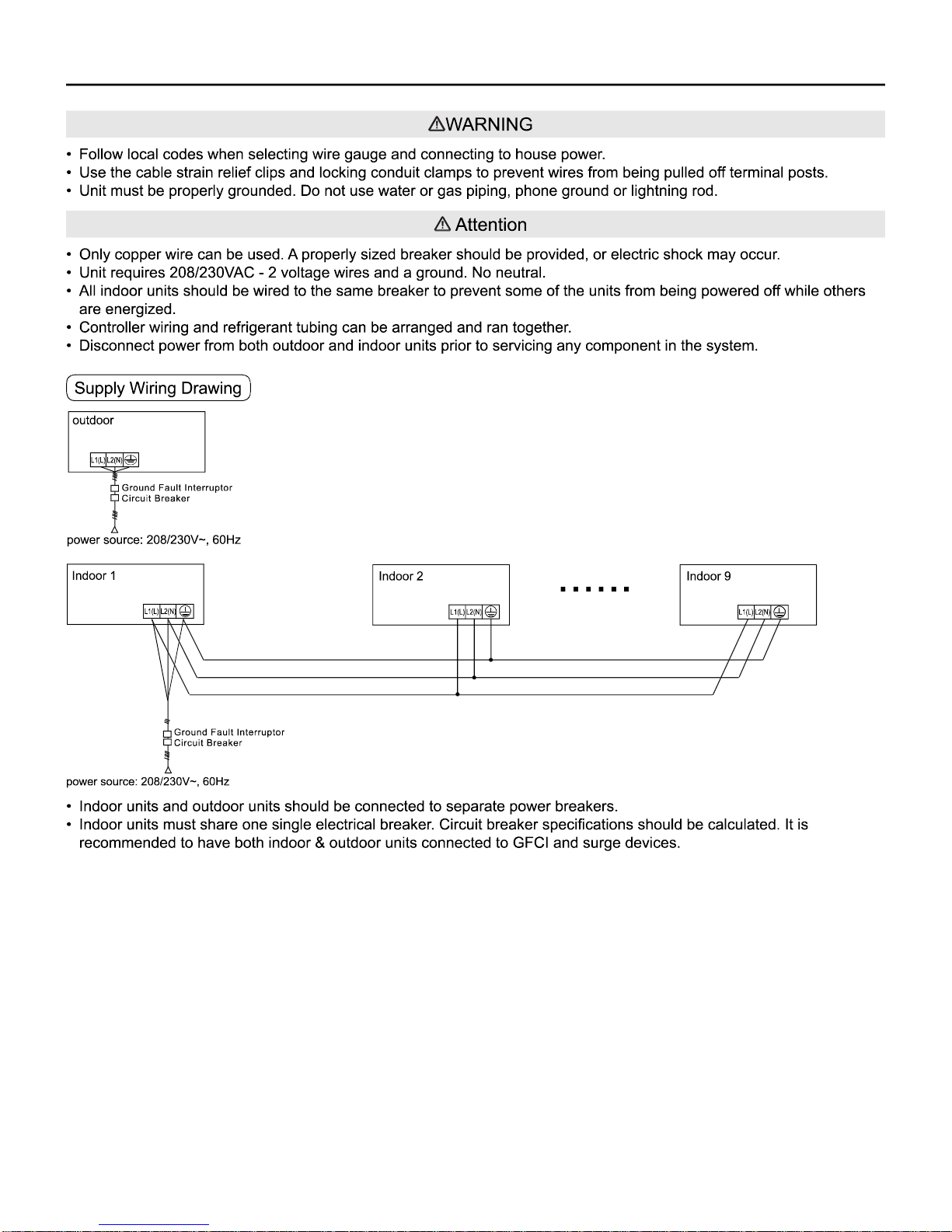

ElectricalWiring

14
ElectricalWiring

15
ElectricalWiring

16
ElectricalWiring

17
ElectricalWiring

18
Function switches
Note:ONindicatesshortcircuit;OFF indicatesdisconnection.
Remarks
BetewwnSW7and SW8,oneand
onlyone mustbe ONfor anygiven
period
Switch
status
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Code
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Functiondescription
Auxiliarywiredcontroller
Master wiredcontroller
Commonwiredcontroller
New fan-onlyhasrefrigerating,
heating, and airsupplyingmodes
Displayambient temperature
Donot displayambient temperature
26 lockdisabled
26 lockenabled
Collect ambient temperatureofwired
controler
Collect ambienttemperatureofPCB
Powerfailurememorydisabled
Powerfailurememor enabled
Temperaturesensor 4k7enabled
Temperaturesensor 4k7disabled
Temperaturesensor 5k1enabled
Temperaturesensor 5k1disabled
Defaultsetting
OFF
ON
OFF
ON
ON
OFF
ON
OFF
The difference between masterandslave wired controller
Code settingof wired controller
Topic Master controller Slavecontroller
Function ON/OFF,Mode,Fanspeed,Temp, Swing functiononly.All function
ElectricalWiring
