Haier GDZ22-2 User manual

Electric
Dryer
User Manual- Model #
GDZ22-2
HeavyDuty
Towels/Cotton
Cycles
MoreDry
LessDry
Dry
Cooldown
Cyclecompleted
Extendtrumble
Customer
GDZ22-2
Louder
Softer
Off
Cycle
Signal
BulkyItems
Casual
Delicate
On
Off
Wrinkle
Care
Timed
Cycles
MoreTime
LessTime
AutoDry
RackDRY
TimedDry
TimeRemaining(Min)
TimeOn(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
AirOnly(NoHeat)
High
Medium
Low
Normal

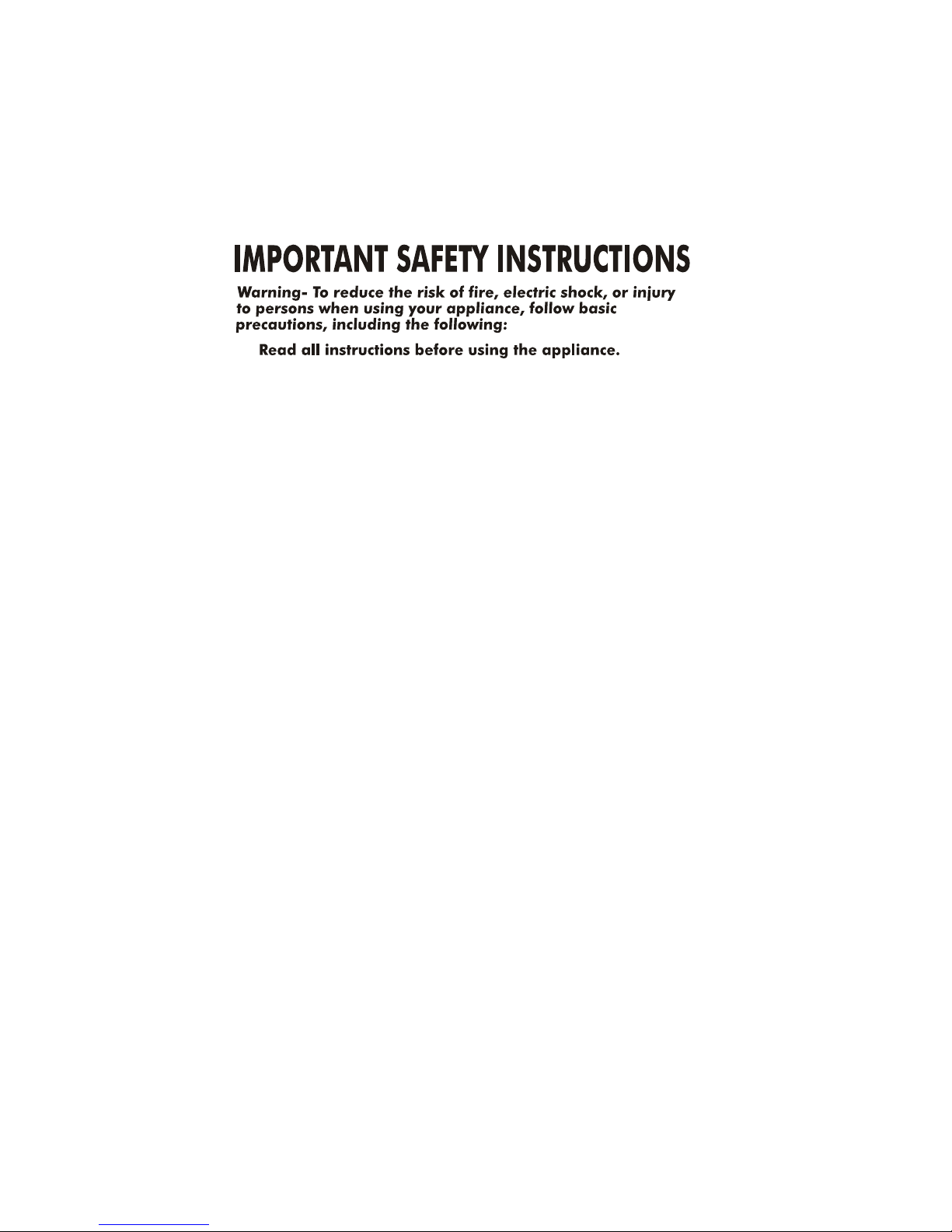

2. Do not dry articles that have been previously cleaned in,washed in,
soaked in,or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that
could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision
of children is necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the
door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water
And/or to the weather.
7. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-maintenance
instructions or in published user-repair instructions that you understand
and have skills to carry out.
8. Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
9. Do not use heat to dry articles containing foam rubber or similary
textured rubber-like materials.
10.Clean lint screen before or after each load.
11.Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
12.The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
13.Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire
14.If material has been used with any flammable liquids or solids it should
not be used in the dryer until all traces of the flammable liquids and its
fumes have been removed.
1.
1
15.The tumble dryer is not be used if industrial chemicals have been used
for cleaning.

16. This dryer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions
in the installation section.
17. Proper grounding must be ensured to reduce the risk of electric shock
and fire. Check with a qualified electrician or service personnel if you
are in doubt as to whether the dryer is properly grounded.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any
service. Disconnet power cord by grasping the plug,not the cord.
20. Replace worn power cords and/or loose plugs.
21. To reduce the risk of electric shock or fire, do not use extension cords or
adapters to connect dryer to electrical power source.
22. Exhaust air must not be discharged into a flue which is used for exhaust
ing fumes from appliances burning gas or other fuels.
23. There has to be adequate ventilation to avoid the back flow of gases into
the room from appliances burning other fuels including open fires, when
operating the tumble dryer.
As dry cleaning solvents, gasoline, vegetable and cooking oils are highly
hazardous materials, items soaked in or spotted with such should not be used in
the dryer, Items may still contain a substantial amount of the hazardous material
after being washed.When such items are exposed to heat they could ingnite. As
clothes are stacked and piled up in the dryer the heat cannot escape. Due to this,
items become hot enought to possibly ignite. Washing in hot water with extra
detergent would reduce but not eliminate the risk of fire.
2
24. The appliance must not be installed behind a lockable door, a sliding door
or a door with a hinge on the opposite side to that of the tumble dryer.
25. :Warning: Hot surface

3
Tables Of Contents
PAGE
Safety Instructions ............................................................................ 1
OPERATING INSTRUCTIONS ............................................................ 4
.......................................................... 4
Other Features................................................................................. 11
Normal Operating Sounds................................................................. 12
Tips................................................................................................. 12
Care and Cleaning Guide............................................................... 13
Troubleshooting .............................................................................. 14
INSTALLATION INSTRUCTIONS ....................................................... 15
Tools and Materials Required.............................................................. 15
Electrical Requirements...................................................................... 15
Unpacking Your Dryer........................................................................ 15

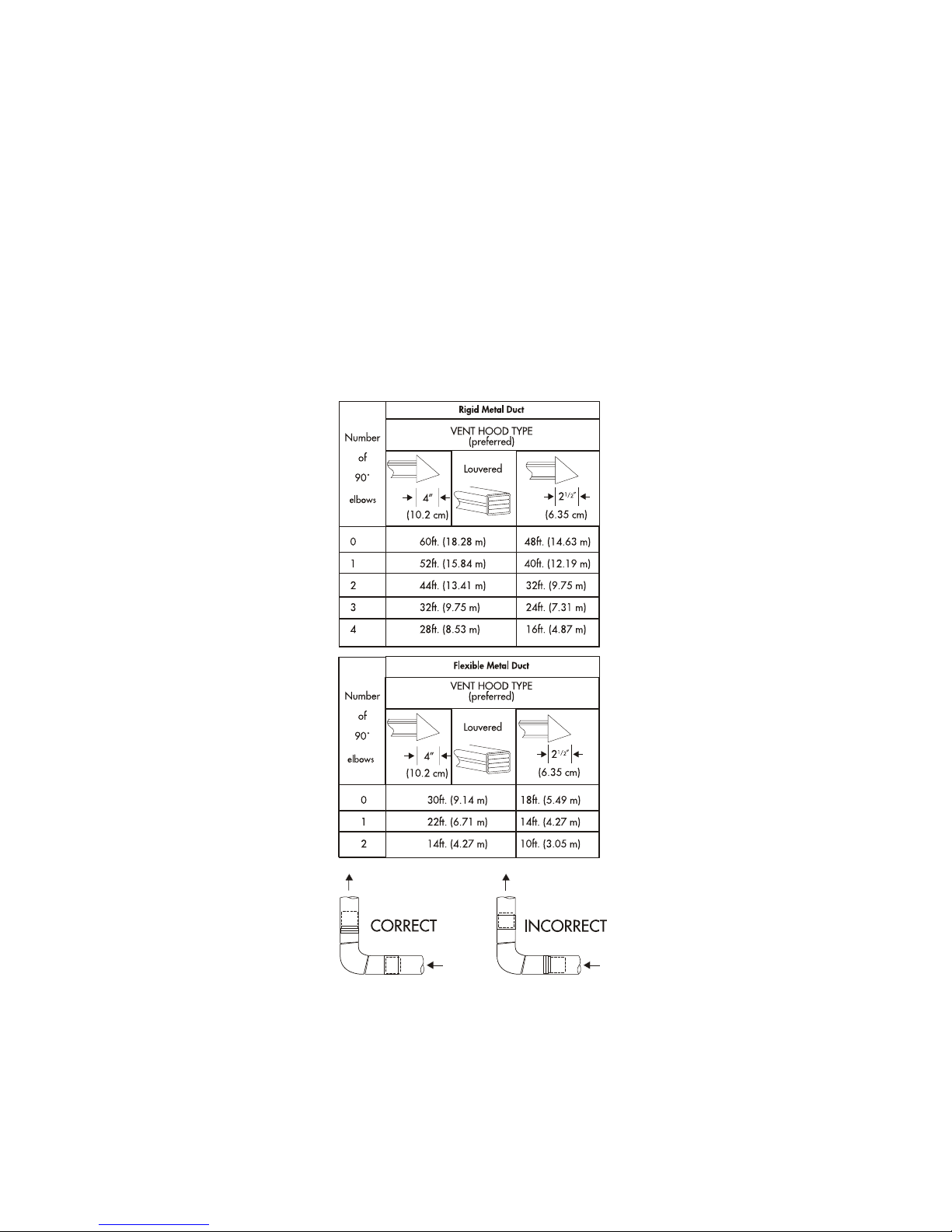

Exhaust System Connections .......................................................... 16
Requirements and Instructions............................................................ 16
Materials ............................................................................................17

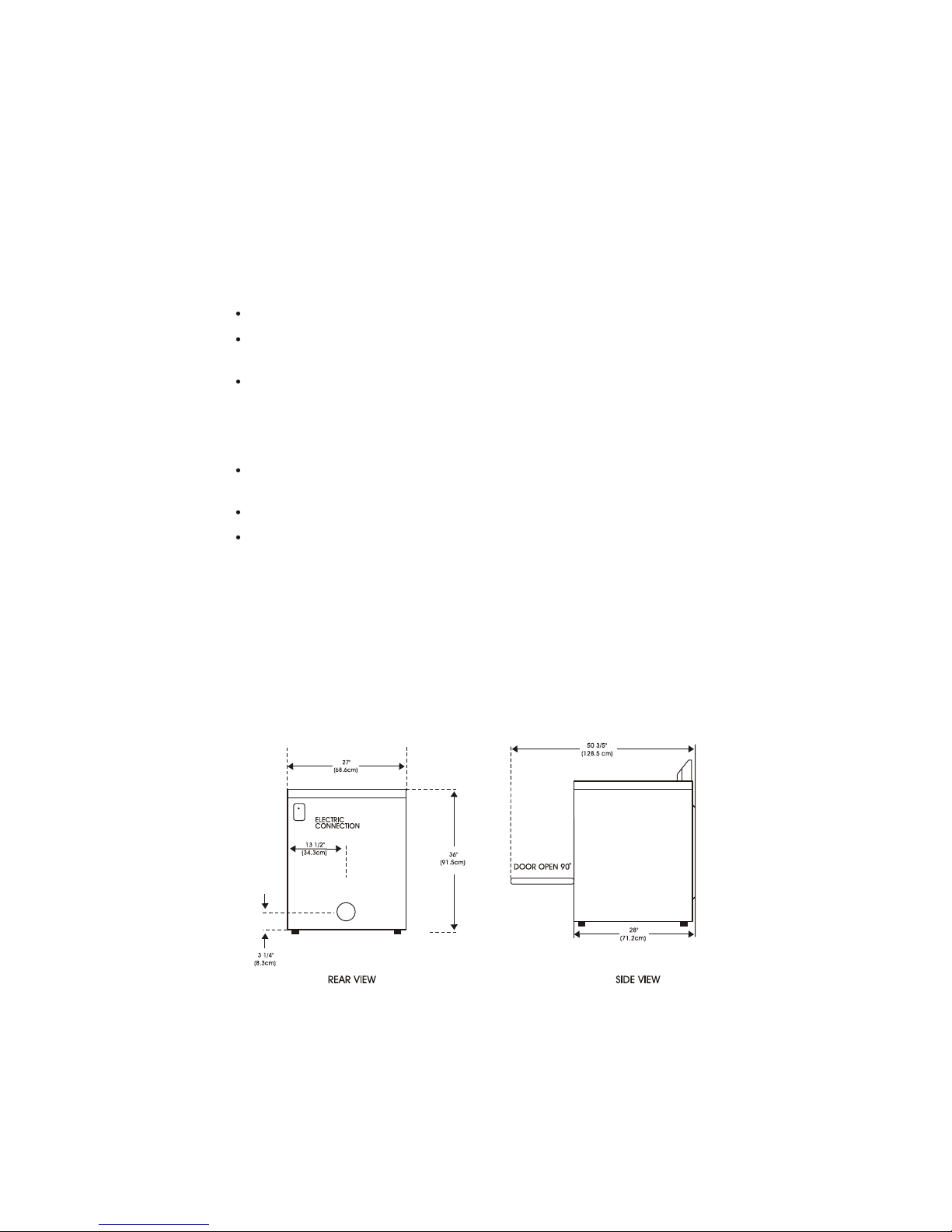

Location of Your Dryer........................................................................ 19
Installation in Mobile Home ............................................................... 20
Electrical Connections.................................................................... 21
Requirements and Instructions............................................................. 21
3-Wire Cord Connections................................................................... 22
Specification........................................................................................ 23

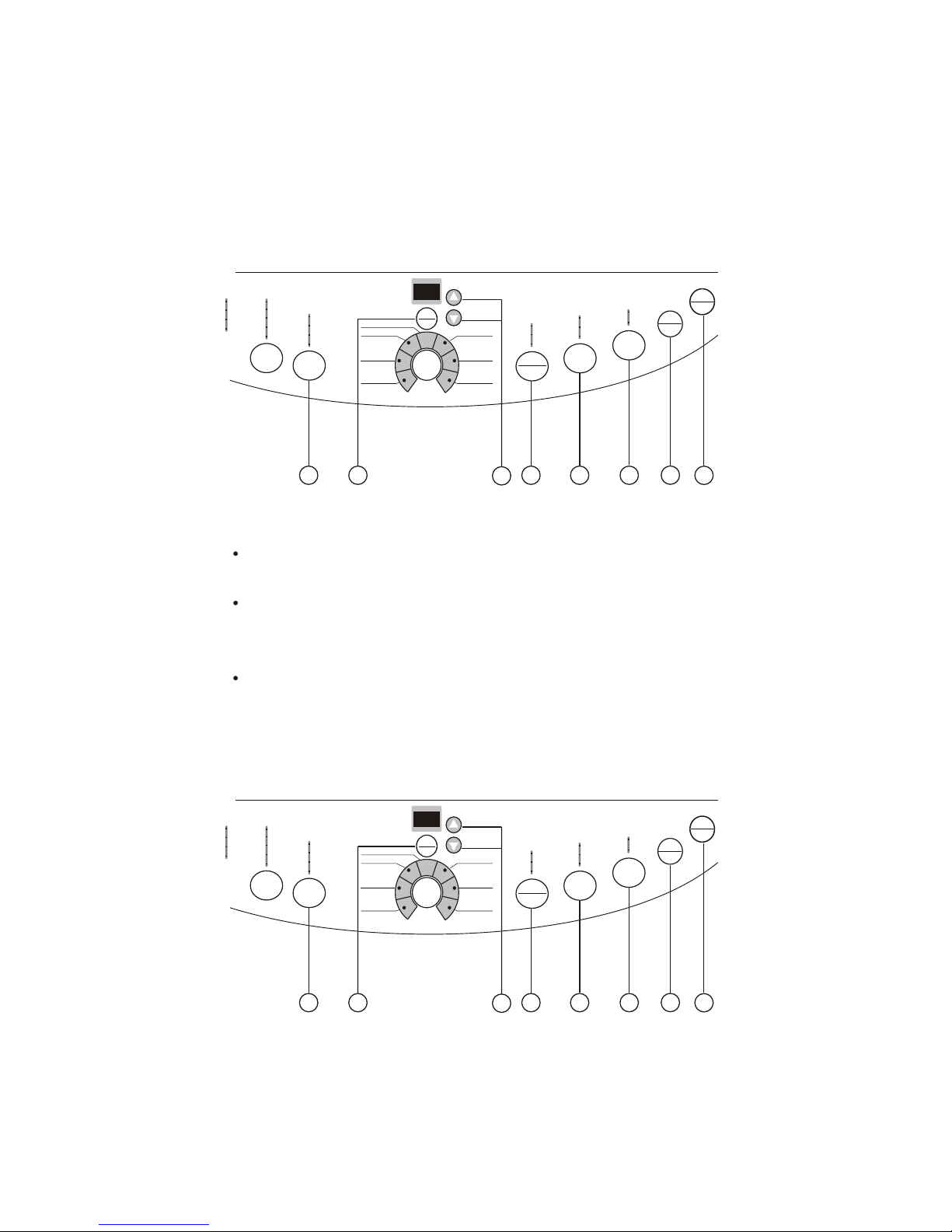

Understanding the Control Panel
Auto Dry cycle
Timed Dry cycle
Rack Dry cycle.................................................................................
.................................................................................
...................................................................................
10
10
7
...................................................................... 7
Load clothes into dryer
.................................................................. 6
Preparations before drying

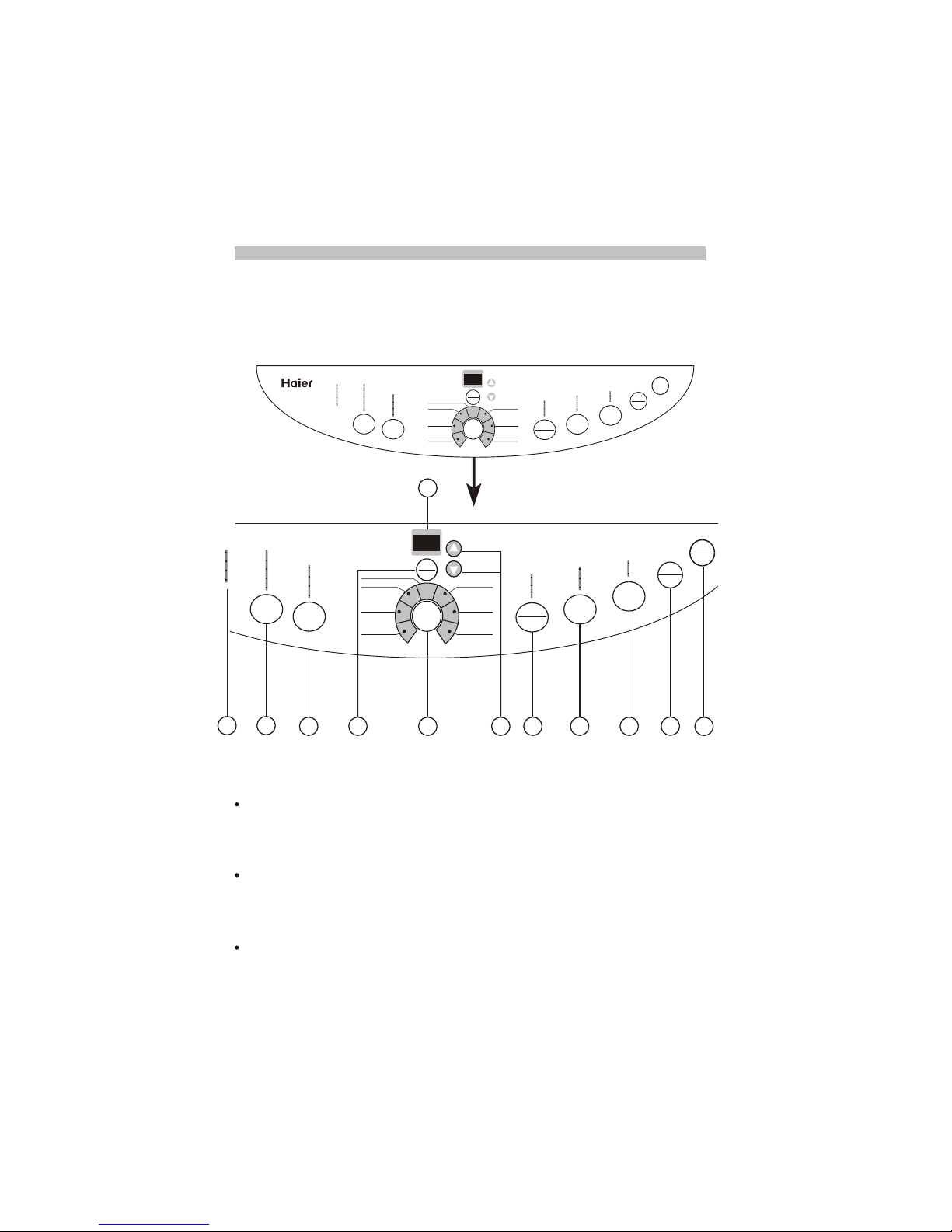

Understanding the Control Panel
OPERATING INSTRUCTIONS
1
2
9 37 6 5 4
10
Power On/Off Button: (1)
Start/Pause Button: (2)
Press the button once to operate the dryer. Press the button once again to turn
the dryer "OFF".
Press this button once to start the dry process. Press this button once again to
pause the activity during the dry cycle.
Heavy Duty
Cotton
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend tumble
Customer
Louder
Softer
Off
Cycle
Signal
Bulky Items
Casual
Delicate
On
Off
Wrinkle
Care
Timed
Cycles
More Time
Less Time
Auto Dry
Rack Dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend tumble
Customer
On
Off
Wrinkle
Care
More Time
Less Time
Auto Dry
Rack dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
8
Wrinkle Care Button: (3)
Used to select wrinkle-proof function. Automatically set as off after powering on.
This function is used together with delay start function.
Heavy Duty
Delicate
Casual
Bulky Items
Louder
Softer
Signal
Cycle
Off
Cycles
Timed
11
12
Cotton
GDZ22-2
4

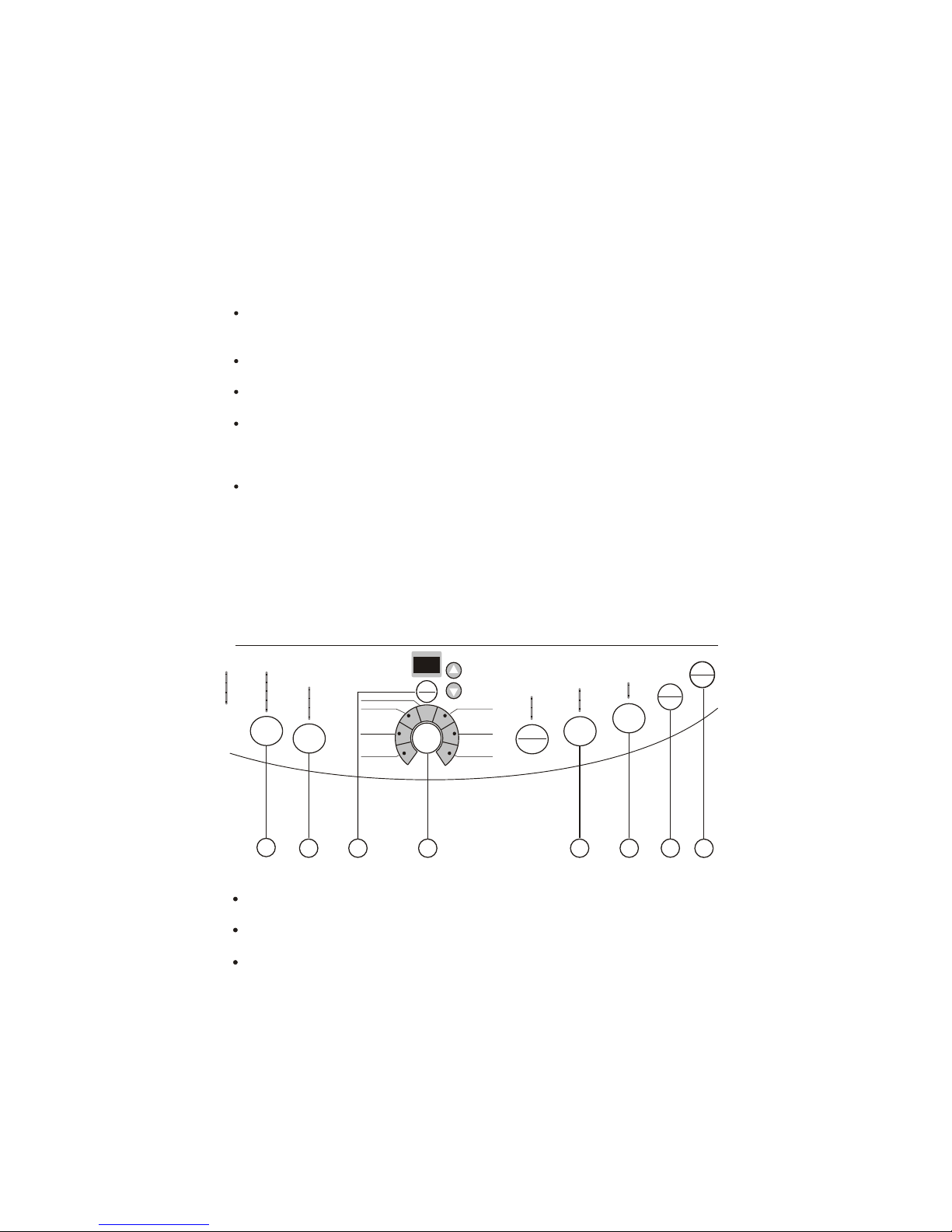

Timed/Cycles Button: (5)
Cycles Button: (7)
More Time & Less Time Button: (6)
"Cycle" button will let you select your desired dry cycles. For your convenience,
there are seven fabric care dry cycles programmed in this mode:Customer,
Normal, Heavy Duty, Cotton, Delicate, Casual and Bulky Items.
"Timed/Cycles" button will let you select your desired dry mode.
Auto Dry: automatically set "Dryness Level", "Temp", "Cycle Signal",
"Wrinkle Care" buttons status according to clothes loaded.
Timed Dry: you can set status of "Temp", "Cycle Signal" and "Wrinkle Care"
buttons and dry time with "More Time" and "Less Time" buttons by yourself.
Rack Dry: the program used to dry article like sport shoes.
Set time from 0 to 180 minute when Timed Dry Rack Dry cycle selected.or
Cycle Signal Button: (4)
Used to select buzzing volume or turn off the buzzer.
The drying program defined by user himself and stored.
Normal drying
Big clothes drying like jeans
Special drying for cotton clothes
Drying small quantity clothes
Drying underwear or clothes requiring smoothness
Drying bulky clothing
Customer
Normal
Heavy Duty
Cotton
Delicate
Casual
Bulky Items
Delay Start Button: (8)
Temp Button: (9)
This convenient feature lets you delay the start of the dry cycle between 3 to
24 hours. Press the "Delay Start" to choose the number of hours you want to
delay the start of the cycle.
If no delay, the delay start indicator is off and remaining time indicator is on.
The nixie display indicates remaining time of non-reserved program.
If setting "Delay Start" in standby status, the nixie display indicates 3 hr, which
will increase by 1 hr with each pressing (until 24 and return to 3). If keep
pressed for 1.5 s, nixie display indicated value will increase continuously.
Used to set drying temperature. There are 4 available drying temperatures:
High, Medium, Low, and Air only(no heat).
5
Dryness Level Button: (10)
Used to set drying time of auto-programs. If no auto-program is selected,
pressing the button is inactive and will get alarms.

Status lights: (11)
Status lights give notification of which part of the cycle the machine is in.
Understanding the Function Light Indicator:
The function "display light" indicates selected feature is "ON" or the
cycle is about to begin.
During the dry cycle, "flashing light" indicates current running program.
Rapidly flashing light indicates that the dryer is not operating properly.
Nixie display: (12)
Indicate remaining time (min) during cycle operation.
Indicate remaining reserved time (hr) during reservation.
6
Note: if door opened during cycle running, displays "E2" and alarms.
Group the clothes of the same kind (cotton, chemical fibres, woolen) to dry.
Dark and light colored clothes shall be separately dried. Fabrics prone to falling
lint and those prone to adhering lint shall be separately dried. Clothes prone to
falling lint shall be turned inside out before putting into the dryer.
Make sure buttons and ornaments on the clothes are high temperature resistant
and won't damage drum surface. Before loading, the clothes shall have their
zippers zipped up, buttons and hooks done up and belts tied so as to avoid
entanglement or other obstacles.
If possible, turn out the clothes pockets for uniform drying.
Check if clothes remain soiled. If yes, wash it away again, otherwise the soils after
drying may not be removed permanently.
Small articles shall be collected in a mesh bag before loading and drying, so as
to avoid entanglement and ensure easy to be taken out.
Make sure power socket is reliably grounded. The grounding terminal shall not be
connected to gas or tap water pipelines.
Make sure exhaust duct has been connected with extension pipe.
Preparations before drying
Notes: It applies to Auto Dry cycle and Timed Dry cycle. For Rack Dry cycle,
remove the lint filter and assemble the drying rack with its rear end slightly
downward inclined. The assembled status is as shown in the following figure:
Make sure lint filter is clean and then assemble it properly. If lint filter is not
in place, tumbling items could enter the exhaust system and cause damage
to the dryer.
Drum
Drying rack

Auto Dry cycle and Timed Dry cycle
Load clothes into dryer
The appropriate load shall be 1/3 ~ 1/2 of the drum volume. Avoid too much load,
for a certain space is needed to allow clothes free rotation for uniform and wrinkle-
proof drying.
When drying big articles, only 2-3 pieces shall be loaded at a time and
supplemented with middle and small articles.
For elaborate clothes or less load, two towels without lint falling may be added to
get better drying and wrinkle-proof effects.
Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness, electrostatic
charges accumulation and more lint.
This program is designed specially for articles like sport shoes. During drying
please make sure the clothes reliably stay on the rack with no risk of entangling
the agitation blade while drum is rotating.
Rack Dry cycle
Auto Dry cycle
1
8
4 72 5
3
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend tumble
Customer
On
Off
Wrinkle
Care
More Time
Less Time
Auto Dry
Rack dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
6
Heavy Duty
Cotton Delicate
Casual
Bulky Items
Louder
Softer
Signal
Cycle
Off
Cycles
Timed
Turn on the power switch, the computer board beeps once and the dryer transfers
from off status to the initial operating status (Normal program);
If no "Start/Pause" button is pressed in 5 min after powering on, it automatically
cuts off power and returns to off status;
It returns to off status immediately upon end of a cycle;
Whatever status the computer board is (start, pause, alarm etc.), Pressing
"Power On/Off" button will stop all operations and it enters off status.
1. Press "Power On/Off" button to power on
7
Note: If drying rack is not in place, rolling inner tub could collid with
drying rack and causes damage to the dryer and drying rack.

Various button initial status for "Normal program"
2. Press "Cycles" button to select a suitable full automatic cycle
The Normal program will be automatically selected after powering on. If other
full automatic program is desired, press "Auto-program Selection" button
until corresponding indicator turns on.
Cycle Signal
Wrinkle Care
Cycles
Nixie display
Temp
Dryness Level
Timed/Cycles
Softer
Off
Normal
Indicate current program remaining time
High
More Dry
Auto-program
Cycles
Customer
Normal
Heavy Duty
Cotton Delicate
Casual
Bulky Items
Initial status of various buttons when setting "Auto-program Selection".
Cycles
Wrinkle Care
Cycle Signal
Delay Start
Timed/ Cycles
Temp
Dryness Level
Notes: If "Customer" is selected, various buttons will indicate previous conditions
set by the user.
Normal Heavy Duty Cotton Delicate Casual Bulky Items
To be used together with reserve function, off if reserve is disabled
Softer
Indicate current selected program remaining time
Auto Dry
More Dry
"Customer" function is a program designed to facilitate user's operation. It can
memorize programs defined by user himself and display the previous program
upon next application of this function.
Use details are as follows:
After powering on, press "Cycles" until "Customer" status, then set "Cycles" to
Timed Dry or Rack Dry, and set status of other buttons. Press "Start/Pause" button
or after half a minute, the program defined by user himself will be stored and
will be directly displayed upon next use.
Notes: Pressing "Dryness Level" button will be inactive during use of "Customer"
function.
8
High High High Low Middle Middle

After powering on, the clothes dryer automatically sets dryness at "More Dr y",
which means the normal drying time. If other drying time is desired, press
"Dryness Level" button to select a shorter time.
3. Press "Dryness Level" button to select a suitable drying time
After switching on, the dryer sets corresponding temperature adapting to
different program selected. If other drying temperature is wanted, press
"Temp" button to enable such a selection.
4. Press "Temp" button to set a suitable drying temperature
5. Press "Cycle Signal" button, you will be reminded up upon
end of a cycle
After switching on, the dryer automatically sets buzzer at "Softer", while the
user may define three prompt sound conditions "Louder", "Softer" and "Off".
6. Press "Delay Start" button to select a suitable reserved drying
program
After powering on, the dryer delay start drying program automatically sets as disabled.
When you desire a drying cycle ends at a delay time, press "Delay Start" button to
set delay start drying program. After initial pressing, the nixie display indicates 3 hrs,
which will be increased until 24 hrs by an increment 1 hr with every pressing. Press
again will display drying time. Here if press again, it will repeat from 3 hrs. If keep
pressed for 1.5 s, nixie display will increase continuously.
When "Delay Start" is enabled, your selected program indicator turns off while
"Delay Start" indicator and remaining reservation time indication turn on. During
reserved period, pressing "Delay Start" button can indicate reserve status.
To change operating program or cancel delay, you should cut off the supply and
re-select.
7. Press "Wrinkle Care" button to select wrinkle-proof drying mode
Wrinkle Care automatically sets "Off" upon powering on. Press "Wrinkle Care"
button, it sets wrinkle Care drying mode.
Notes: "Wrinkle Care"function is provided to match "Delay Start" program. When
a"Delay Start" drying cycle ends, clothes remained in hot drum is prone to creasing.
"Wrinkle Care"function operates in tumbling clothes by intermittently rotating drum
to avoid clothes wrinkling.
8. Press "Start/Pause" button
If starting the machine, firstly close the front door and then press this button.
If pause is needed during machine operating, press this button. Pressing again will
resume operation.
9

Timed Dry cycle
1
8
4 72 6
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend tumble
Customer
On
Off
Wrinkle
Care
More Time
Less Time
Auto Dry
Rack dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
5
Heavy Duty
Cotton Delicate
Casual
Bulky Items
Louder
Softer
Signal
Cycle
Off
Cycles
Timed
3
2. Press "Timed/Cycles" button and select "Timed Dry" cycle
1. Press "Power On/Off" button to power on
After powering on, press "Timed/Cycle" button to select "Timed Dry" program.
3. Press "More Time" And "Less Time" buttons to set a suitable time
After setting "Timed/Cycle" to "Timed Dry" , you can press these two buttons to
increase or decrease drying time as you desires.
4-7. Press buttons "Temp", "Cycle Signal", "Delay Start", and "Wrinkle
Care" to define your desired program
Notes: For "Timed Dry" program, use of buttons "Temp", "Cycle Signal", "Delay
Start" and "Wrinkle Care" is the same as for auto-programs. "Dryness Level" is
here inactive, pressing of which will get alarms.
8. Press "Start/Pause" button
Rack Dry cycle
1
8
4 72 6
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend tumble
Customer
On
Off
Wrinkle
Care
More Time
Less Time
Auto Dry
Rack dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
5
Heavy Duty
Cotton Delicate
Casual
Bulky Items
Louder
Softer
Signal
Cycle
Off
Cycles
Timed
3
10

Other Features
2. Press "Timed/Cycles" button and select "Rack Dry" cycle
1. Press "Power On/Off" button to power on
After powering on, press "Timed/Cycle" button to select "Rack Dry" program.
3. Press "More Time" And "Less Time" buttons to set a suitable time
After setting "Timed/Cycle" to "Rack Dry" , you can press these two buttons to
increase or decrease drying time as you desires.
4-7. Press buttons "Temp", "Cycle Signal", "Delay Start", and "Wrinkle
Care" to define your desired program
Notes: For "Rack Dry" program, use of buttons "Temp", "Cycle Signal", "Delay
Start" and "Wrinkle Care" is the same as for auto-programs. "Dryness Level" is
here inactive, pressing of which will get alarms.
8. Press "Start/Pause" button
11
Your dryer also has the following features for your convenience:
Lint Filter:
All dryers come with a lint filter that needs to be cleaned before or after
every Use ( read Care and Cleaning Guide Section).
Leveling Legs:
Your dryer has four leveling legs which are located in the front and rear
corners of your dryer. After installingyour dryer in its final position,
you can level your dryer.
Leveling legs can be adjusted by turning them clockwise to raise your
dryer or by turning them counterclockwise to lower your dryer.

12
For bestdrying results, cleanthe lint filter before
Do not overload the dryer.
Balance the dryer load, evenly Throughout the dryer for the best results.
Drying time depends on many variables: load size, type of fabric and
moisture in it, heat and moisture in the room, electric voltage, length of
the venting duct, etc.
Always follow the fabric care instructions supplied by the garment man-
ufacturer.
and after every use.
Tips
Normal Operating Sounds
Tumbling sounds: This is normal as the heavy wet clothes in the dryer
are continuously being tossed around.
Air rushing noise: This happens as the dryer drum spins at very high
RPM and the air is rushing through the dryer drum.
The following sounds are normally heard during the operation of the dryer.

13
Care and Cleaning Guide
Lint filter needs to be cleaned before and after each use for your unit to
Operate at optimum efficiency. The filter can be slid out, by pulling on
The tab located on the inside of the dryer door. The filter may be
Washed or vacuumed. Remove the excess water from the filter by
Gently shaking the filter. This will remove dust and particles trapped in
The filter. Lint build-up in screen restricts airflow, which causes longer
Drying times. After cleaning, slide the filter back in place. DO NOT
USE YOUR DRYER WITHOUT THE LINT FILTER.
Do not use any type of spray cleaner when cleaning the interior .
Hazardous fumesor Electric shock could occur If dryer drum becomes
stained,clean the drum with a dampcloth.Removeany residue before
drying the next load.
Clean cabinet with mild soap and water. Do not use harsh or abrasive
cleaners,this could damage the dryer.
Clean the duct and the vent on a regular basis to avoid clogging which
could affect the efficiency of the dryer.
lint filter

14
Troubleshooting
Dryer does not operate:
Check if unit is plugged in. The plug may have come loose.
Check if the electrical wall socket is the correct voltage.
Check if the circuit breaker needs to be reset or if the fuse
needs to be replaced.
Check if the unit is in Off mode. Press Power On/Off button again.
Check if door is open or not in place. Open and close the door slightly
and make sure in place.
Dryer is working but not drying the clothes:
Unit may be over loaded. The dryer drum should only be half full.
Check exhause ducts and vent. Vent should be free of all obstructions.
Duct should be lint and dust free. Ducts should be cleaned regularly.
Dryer load needs to be resorted. Heavy clothes may need to
be separated from regular clothes.
Bulky clothes may require repositioning.
If clothes dry unevenly a higher dry setting may be required or
clothes in the dryer may need to be resorted.
Dryer making noise when drying:
Dryer may need to be leveled properly.
Read OPERATING INSTRUCTION-Normal Operating Sounds.
Static:
Caused by over drying. Adjust for shorter drying time.
Mixed with synthetic fabric. Sort and separate different fabrics.
Use a fabric softener.
Coins, loose change, buttons and other heavy objects could make noise.

15
INSTALLATION INSTRUCTIONS
Select a suitable location for the dryer on a hard even surface away from direct
sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc.
Any floor unevenness should be corrected with the leveling legs located on the
bottom of the dryer.
Phillips head and flathead screwdrivers
Channel-lock adjustable pliers
1/2 inch open end wrench
Spirit level
Measuring tape (12ft. Min.)
Duct tape
Rigid or flexible metal 4 inch (10.2 cm) duct
Vent hood
Power Supply:
3 wire, 220V Volt, 30 Amp, 50Hz, 1 Phase
Power Supply Cord Kit:(not supplied when sold)
The dryer MUST employ a 3-conductor power supply cord NEMA(245IEC66
450V/750V) rated at 220 Volt AC minimum, 30 Amp., with 3 open end
spade lug connectors with upturned ends or closed loop connectors and
marked for use with clothes dryers.
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed
materials before using the dryer.
Tools and Materials Required
Electrical Requirements
Unpacking Your Dryer

16
Exhaust System Connections
Requirements and Instructions
1. Do not use plastic flexible duct to exhaustthe dryer. Excessive lint can build up
inside system and create a fire hazard and restrict air flow. Restricted air
flow will increase dryer times. If your present system is made up of plastic duct or
metal foil duct, replace it with a rigid or flexible metal duct. Ensure present duct
is free of any lint prior to installing dryer duct.
2. If the dryer is not exhausted out doors, some fine lint will be expelled
into the laundry area. An accumulation of lint in any area of the home can
create a health and fire hazard. To reduce risk of fire, dryer MUST BE
EXHAUSTED OUTDOORS.
3. Do not allow combustible material (for example: clothing,
draperies/curtains, paper) to come in contact with venting system. The dryer
must not be exhausted into a chimney, a wall, a ceiling, or any concealed space
of a building which can accumulate lint, resulting in a fire hazard.
4. Exceeding the length of duct pipe or number of elbows allowed in
the "Maximum Length" charts can cause an accumulation of lint in
the exhaust system. Plugging the system could create a fire hazard,
as well as increase drying times.
5. Do not screen the exhaust ends of the vent system, nor use any screws
or rivets to assemble the exhaust system. Lint can become caught in the screen,
on the screws or rivets, clogging the duct work and creating a fire hazard as well
as increasing drying times. Use an approved vent hood to terminate the duct out-
doors, and seal all joints with duct tape. All male duct pipe fittings must be
installed downstream with the flow of air.
Explosion hazard:
Do not install the dryer where gasoline or other flammables are kept or stored.
If the dryer is installed in a garage, it must be minimum of 18 inches (45.7 cm)
above the floor. Failure to do so can result in death, explosion, fire or burns.
exhaust

17
Materials
Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible metal duct and
approved vent hood which has a swing-out damper cover open when the dryer is in
operation. When the dryer stops, the dampers automatically close to prevent drafts
and the entrance of insects and rodents. To avoid restricting the outlet, maintain a
minimum of 12 inches (30.5 cm) clearance between the vent hood and the ground
or any other obstruction. The vent flap should be able to move freely.
MAXIMUM EXHAUST LENGTH
INSTALL MALE FITTINGS IN THE CORRECT DIRECTION

18
After installation is completed, the following method must be used to
determine if the exhaust system is acceptable:
1. Connect an inclined or digital manometer between the dryer and the
point the exhaust system connects to the dryer.
2. Set the dryer cycle and temperature to cool down,
and start the dryer.
3. Read the measurement on the manometer.
4. The system back pressure must not be higher than 0.75 inches
of water column. If the system back pressure is less than 0.75
inches of water column, the system is acceptable. If the manometer
reading is higher than 0.75 inches of water column, the system is too
restrictive and the installation is unacceptable.
Although vertical orientation of the exhaust system is acceptable, certain
extenuating circumstances could affect the performance of the dryer:
1. Only the rigid metal duct work should be used.
2. Venting vertically through a roof may expose the exhaust system to
down drafts causing an increase in vent restriction.
3. Running the exhaust system through an area not insulated may cause
condensation and faster accumulation of lint.
4. Compression or crimping of the exhaust system will cause an increase
in vent restriction.
The exhaust system should be inspected and cleaned a minimum of every
18 months with normal usage. The more the dryer is used, the more often
you should check the exhaust system and vent hood for proper operation.

19
Do Not Install Your Dryer:
In an area exposed to dripping water or outside weather conditions.
In an area where it will come in contact with curtains, thick carpet,
or anything that will obstruct the flow of combustion and ventilation air.
On carpet. Floor must be solid with a maximum slope of 1inch (2.54 cm).
Installation in Recess or Closet:
A dryer installed in a bedroom, bathroom, recess or closet, must be
exhausted outdoors.
Your dryer needs the space around it for proper ventilation.
A minimum of 120 square inches (774.2 square cm) of opening,
equally divided at the top and bottom of the door, is required. Air
openings are required to be unobstructed when a door is installed. A
louvered door with equivalent air openings for the full length of the
door is acceptable.
Location of Your Dryer
DIMENSIONS
