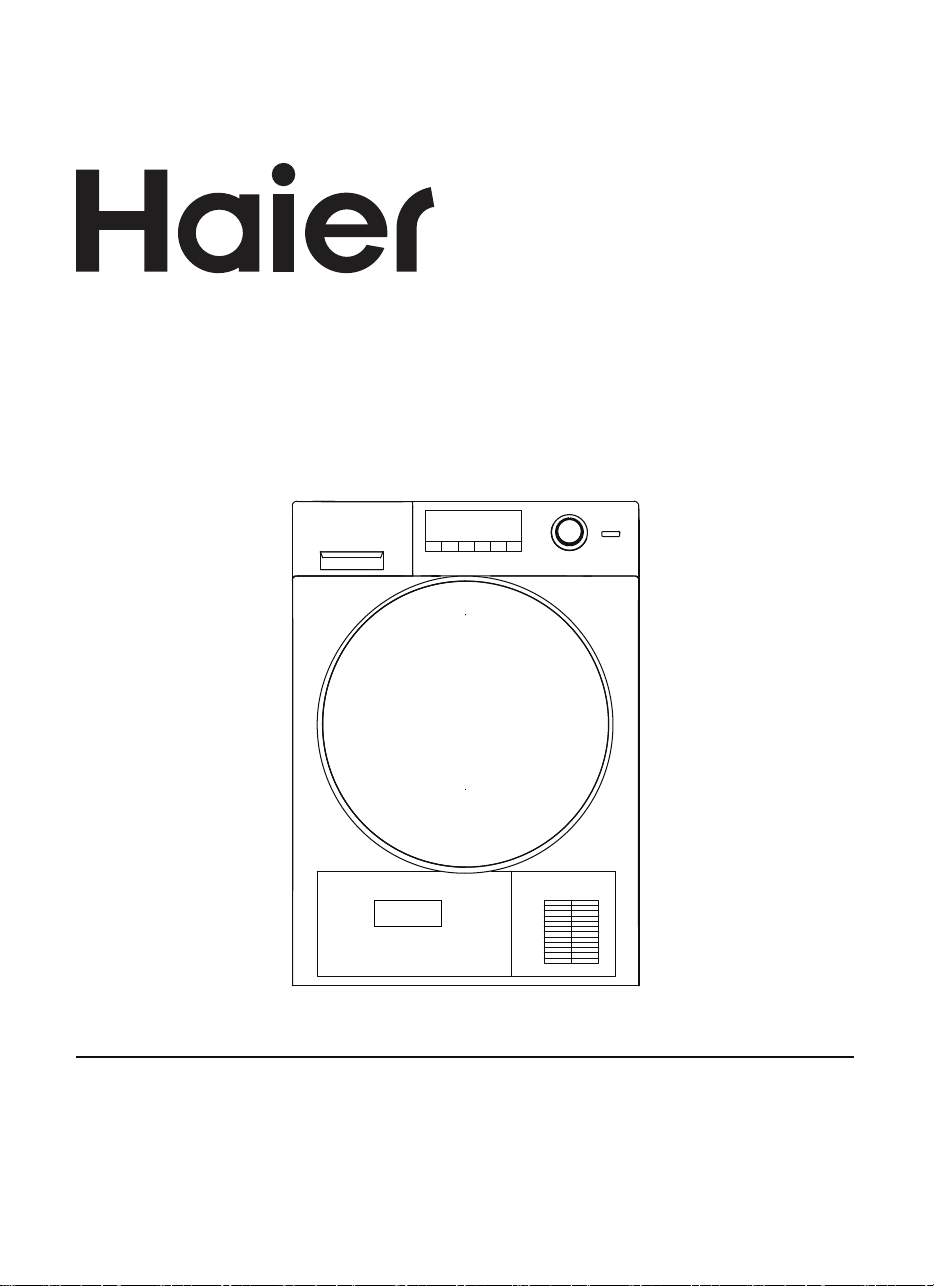

Haier HDHP80A1 User manual

USER MANUAL
HDHP80A1
HEAT PUMP DRYER

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your
old appliance for disposals at least free of charge.

CONTENTS
Introduction 2
Safety instruction 3
Installation instructions 5
Getting started quickly 11
Program modes 13
Preparing the dryer 14
Preparing the laundry 14
Loading the dryer 14

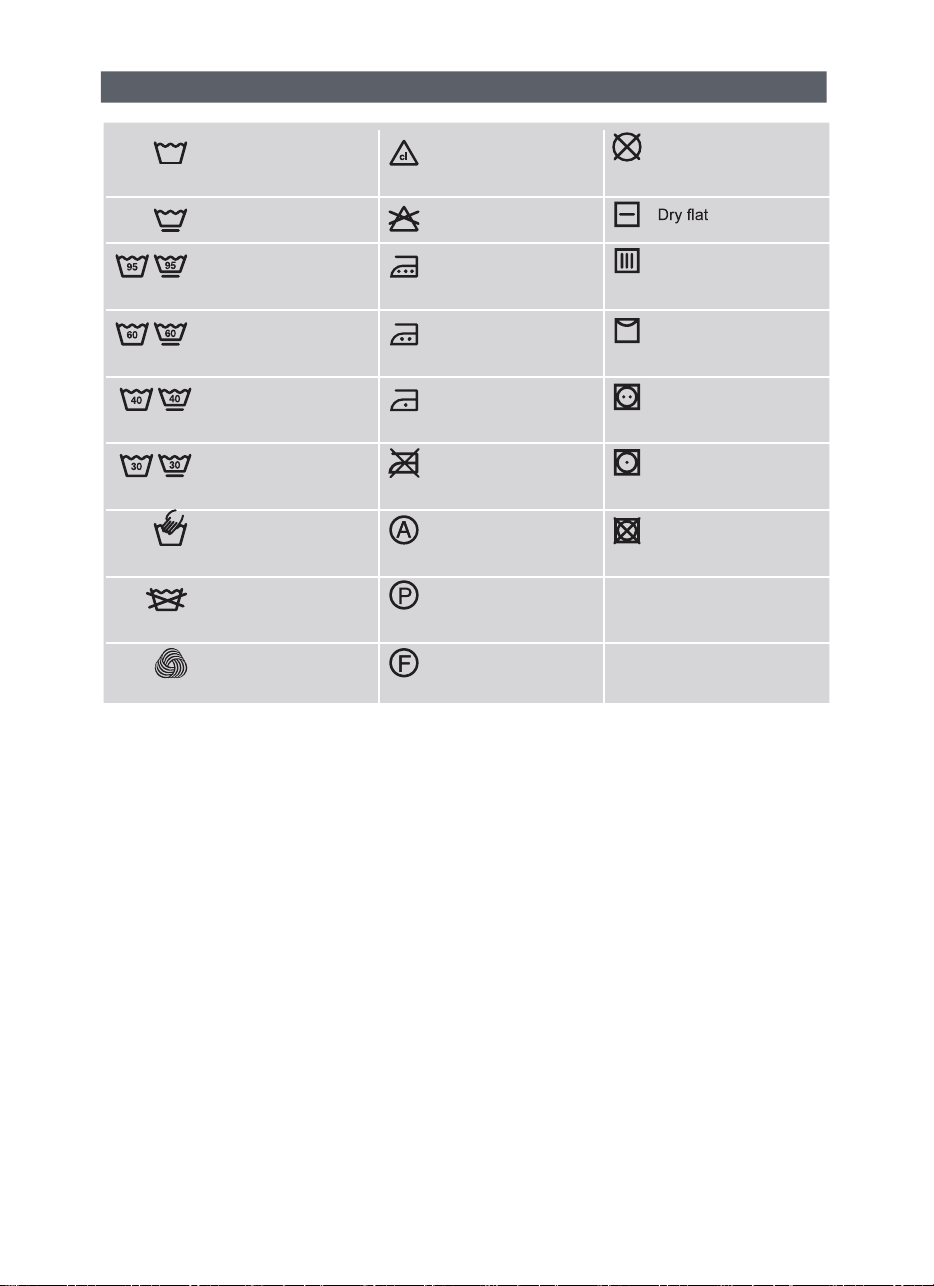

Care chart
15
Caring for your dryer 16
Error codes 19
Troubleshooting 20
Customer service 21
1

2

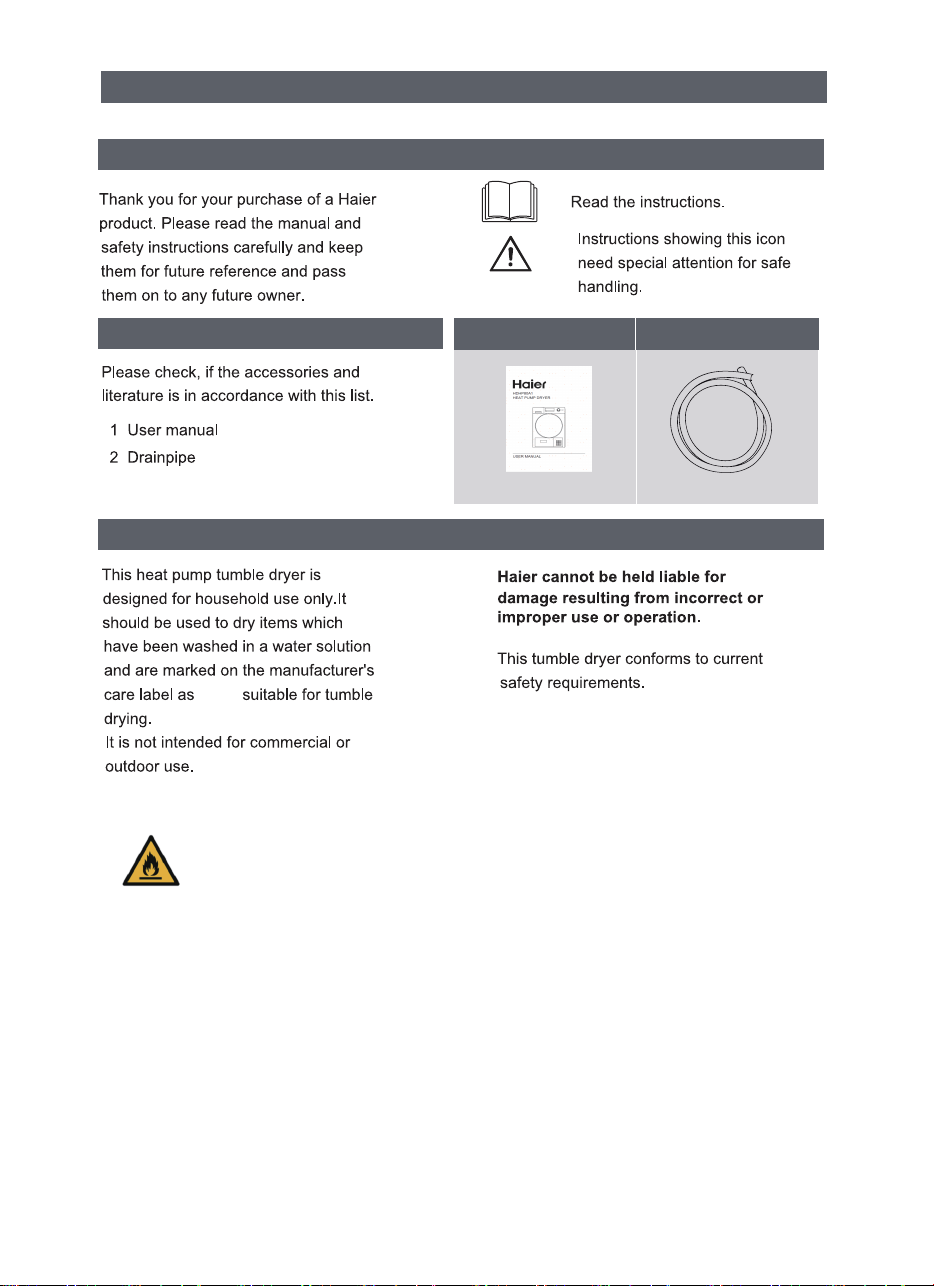

DEAR CUSTOMER
SCOPE OF DELIVERY 12
INTENDED USE
INTRODUCT ION
being
Warning; Risk of fire/ Flammable materials
This marking on product is a safety symbol. Failure to follow the warning outlined in these
user instructions can cause a fire hazard.

SAFETY INSTRUCTIONS
Children under 3 years of age must be kept away from the tumble dryer unless they are
constantly supervised.
The tumble dryer is not a toy! To prevent the risk of injury, do not allow children to play with it or
near it, or to play with the controls.
Before setting up the tumble dryer, check it for any externally visible damage.
Do not install or use a damaged tumble dryer.
Before connecting the tumble dryer, ensure that the connection data match the mains electricity
supply
The electrical safety of this tumble dryer can only be guaranteed when correctly earthed.
Do not connect the tumble dryer to the mains electricity supply by an extension lead.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
Faulty components must be replaced by original spare parts.
The tumble dryer must be isolated from the mains supply in the event of a fault and during
cleaning and maintenance.
Do not install the tumble dryer in a room where there is a risk of frost occurring. The ambient
temperature should be between 5 °C and 35 °C.
Do not install the tumble dryer behind a lockable door, a sliding door or a door with hinges on
the opposite side of the tumble dryer door as this limits the full opening of the tumble dryer
door.
Always keep the area around the tumble dryer free of dust and lint. Also make sure that the
area is dry and well ventilated.
The tumble dryer must not be used in a non-stationary location (e.g. a ship).
Do not make any alterations to the tumble dryer, unless authorised to do so by Haier.
In areas which may be subject to infestation by cockroaches or other vermin, pay particular
attention to keeping the tumble dryer and its surroundings in a clean condition at all times.
Do not dry unwashed items in the tumble dryer.
Do not load more than Nominal load.
acetone, alcohol,
benzine, petrol, kerosene, spot removers, turpentine, waxes, wax removers or other chemicals
should not be dried in the tumble dryer.
If it is unavoidable to dry items that contain vegetable oil, cooking oil, hair care or cosmetical
products, they should be washed using additional detergent and select a high temperature.
If in doubt, wash the items several times.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
If in any doubt, consult a qualified electrician.
3
silmilarly qualified person.
Items which contain residues of flammable substances such as cooking oil,
The appliance is not to be used by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction.
Lint must not to be allowed to accumulate around the tumble dryer, if applicable.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in
a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates
heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or
storing oil-affected items can prevent heat from escaping and so create a fire hazard.

Items which contain a large proportion of rubber, foam rubber (latex foam) or rubber like materials
such as shower caps, waterproof textiles, rubberised articles and items of clothing and pillows
with foam rubber filling should not be dried in the tumble dryer. Items which have been cleaned
using industrial chemicals such as professional drycleaning agents, should not be dried in the tumble
dryer.
Do not dry damaged items which contain padding or fillings (e.g. pillows,jackets),as the filling can
Remove all items such as lighters and matches from
pockets.
The end of a dryer cycle runs without heat (cool down cycle) to ensure that the items do not get
damaged and are at a handleable temperature.
Warning: Do not switch the tumble dryer off before the drying cycle is finished. Afterwards, the
laundry must be hung up or spread out to cool it down.
manufacturer's packaging.
Close the door once the laundry is removed to
prevent children, animals and objects getting into the drum.
Do not sit or lean on the door, as this can cause the tumble dryer to tilt.
Condensed water is not drinking water. It can cause health problems in both people and animals.
Notice
This appliance contains the fluorinated greenhouse gas HFC-134a (GWP:1430).
This gas is hermetically sealed.
4
get out with the risk of igniting in the dryer.
Fabric softeners and similar products
must be used as specified by the
The lint filters must be cleaned regularly.
The dryer must not be used without the lint filter in place or with damaged filters.
SAFETY INSTRUCTIONS

Please read and follow the ‘Safety instructions’ and ‘Installation instructions’ sections
Moving your appliance
If the dryer needs to be placed at an angle for moving, only tip towards the right hand side
leave it standing upright for at least one hour before turning on.
Accessories
Please check you received the following accessories with your Haier dryer. You will find them
11 x Drain hose
21 x Installation instructions and user guide
Unpacking
To ensure the best performance from your new dryer please follow the instructions below.
Removing the packaging
1Remove the outer packaging (including the polystyrene packer and plastic wrapping). All
2Tilt the machine backwards and ‘walk’ it off the base one foot at a time. Not doing so may
3Remove all packaging and accessories from inside the drum and ensure you remove protective
IMPORTANT!
1Ensure packaging materials are kept out of reach of children.
2Please help protect the environment and dispose of the packaging from around the dryer in an
Location
IMPORTANT!
1The dryer must be installed in a well-ventilated,
dust-free environment.
2The dryer must not be installed on any textured
floor coverings (eg carpet, rugs) to ensure that
openings at the base of the machine are not
obstructed.
3Do not install the dryer behind a lockable door,
sliding door, or behind a door where the hinge is
on the opposite side to that of the dryer in such a
way that the full opening of the door is inhibited.
Ensure the dryer door can always be opened fully.
Note: this dryer CANNOT BE INVERTED AND
MOUNTED ON THE WALL .
INSTALLATION INSTRUCTIONS
environmentally friendly manner.
covers from door and console.
cause damage to your floor and dryer.
packaging must be removed prior to use.
inside the drum:
(when viewed from the front). If the dryer has not been transported as described,
carefully before using your dryer!
5

INSTALLATION INSTRUCTIONS
Installation options
Your dryer can be installed one of two ways, either freestanding, or stacked on top of a
Haier front loading washer.
1Free standing
The dryer stands on the floor and can easily be moved into position.
2Stacking
Your dryer has been designed to be able to be stacked on top of a Haier front loading washer.
A stacking kit MUST BE USED between the products and fitted correctly to the washing machine and
1Move the machine into the desired position. Do not lift the dryer by the top panel.
2Have a minimum clearance on all sides of at least 20mm.
3Install the machine on a stable and level floor (if not stacking on top of a front loading washer).
1Do not install your dryer in such a way that the dryer door cannot be opened fully.
2Do not install the dryer outside, in a damp place, where there is a risk of freezing, where
it may be rained on, in direct sunlight or close to a source of heat.
3Do not place your machine on top of its power cable.
Levelling the machine
It is IMPORTANT to level the machine to ensure the machine runs efficiently with minimal
noise. The dryer should be levelled in as close to its final position as possible so it stands
balanced evenly on all four feet. Ensure the dryer does not rock in any direction.
The dryer comes with four adjustable feet,
wind all four feet up or down until the dryer is
correctly level. A spirit level can assist with this
process. The machine is considered level when
the bubble sits in the centre (ie within the two
lines or the circle), when the spirit level is placed
flat on top of your dryer, in the directions from:
1left to right,
2back to front and
3corner to corner.
Never unscrew the feet completely from their
housings.
Note: after levelling, the corners of the dryer cabinet should be clear of the floor and the
machine must not rock in any direction.
Levelling the feet
dryer, as per the stacking kit instructions.
6

INSTALLATION INSTRUCTIONS
Draining
The dryer is equipped with a condenser unit which accumulates water during the drying
cycle. This water is collected in the removable water tank located at the top left of the
dryer. The accumulated water must be emptied after each drying cycle. However you
can also set up your dryer to drain automatically using the drain hose provided.

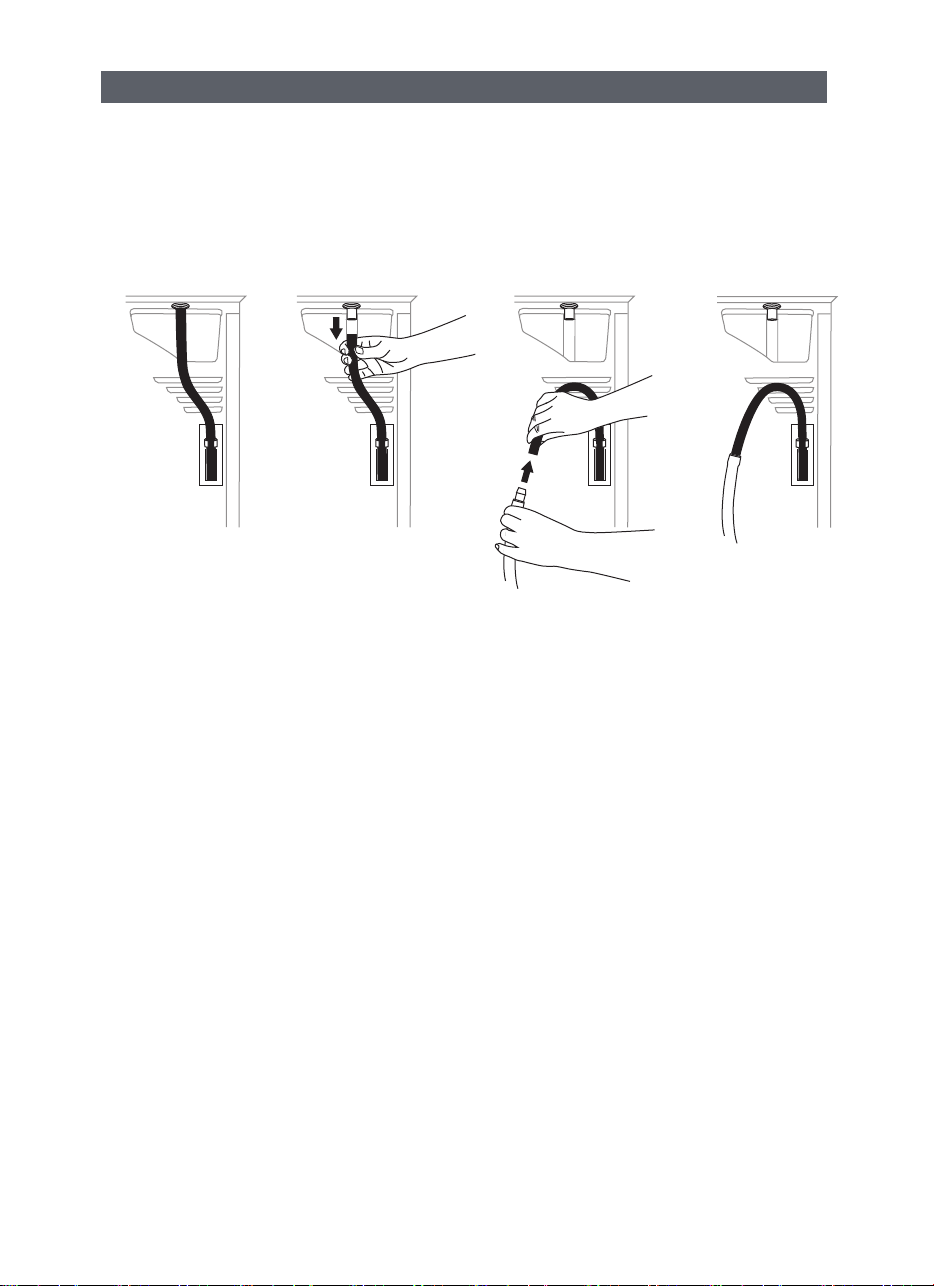

Connecting the drain hose:
1Remove the black hose from the connection at the back of the dryer ( A).
2Uncoil the drain hose (included with your dryer) and connect it to the black hose(B)
3Place the other end of the drain hose into a tub or standpipe.
IMPORTANT!
If you connect the drain hose onto your dryer and you do not secure the other end in
a drain, your dryer will drain water onto the floor. Ensure the drain hose is securely
fixed in place to an appropriate drain and is leak-free at the connection to the
machine. Check the connection and drain hose regularly.
●Maximum standpipe height is 1.0m from ground level.
●Regularly check that your standpipe or tub is free from lint and other obstructions,
which may affect drainage and cause flooding.
●The drain hose should be checked from time to time and replaced if any damage,
this may cause it to split.
●The extended length of the provided drain hose is 1.3m.
●In multi-storey apartments or any upper floor, the machine should be installed on a floor
equipped with a drain.
●Draining must comply with local by-laws.
A
B
eg wear, cuts, bulged, kinks, leaks, etc are found. Do not bend the drain hose sharply as
7

INSTALLATION INSTRUCTIONS
Electrical connection
1This appliance must be connected to a 220V - 240V, 50Hz, sinusoidal, 10A electrical supply
2Uncoil the power cord, remove and discard the plastic pin cover and plug into a
power socket.
3Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
●Check the power cord for damage and make sure it is not squashed or twisted when installing
●Always remove the power cord from the power socket by the plug, not by the cord.
IMPORTANT!
●Do not touch or operate the machine with wet hands or with bare-feet.
●A damaged power cord must be replaced by a Haier trained and supported service
order to avoid a
there is risk
●Do not operate this machine if it has been damaged during transport. Contact your Haier dealer
WARNING!
The appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by a utility.
or Haier trained and supported service technician.
of electric shock.
hazard. Thetechnician, its service agent or similarly qualified persons in
appliance must not be operated until it is repaired, as
the dryer.
8

INSTALLATION INSTRUCTIONS
Completing the installation
Installation test cycle
IMPORTANT!
Ensure the installation test cycle is completed before you dry any items in your dryer.
This is to check that your dryer is installed correctly and that it is functioning properly
prior to use.
1Turn your dryer on by pressing the ‘POWER’ button.
2Select the ‘Time Dry’ cycle for 30 minutes. Ensure the drum is empty and the door is
closed (you will hear it click shut).
3Touch the button. The drum will start rotating.
– Observe the machine for any problems.
– The dryer will beep and display any faults on the screen if there are any problems.
Refer to pages 19 and 20.
4At the completion of the cycle, open the door and check that there is warmth inside the
dryer. This indicates the dryer is operating normally.
IMPORTANT!
If there are any problems, you must address these before proceeding with normal use.
The dryer will automatically turn off at the end of the cycle if there are no problems.
Before you start, it is a good idea to go through the following checklist:
1Has the packaging been removed?
2Is the machine correctly levelled, and the cabinet corners clear of the floor and walls?
3Are the water tank, condenser filter and lint filter correctly in place?
4Has the power cord been connected to an appropriate power supply and the power
turned on?
5Have you performed the installation test cycle?
6If external draining is preferred, is the drain hose attached to the correct outlet and
hooked into a standpipe or tub?
9

INSTALLATION INSTRUCTIONS
Machine specifications
HDHP80A1
Capacity (kg)* 8
DIMENSIONS ( mm )
Width 595
Depth 650
Height** 845
Length of drain hose 1300
ELECTRICAL
Volts 220 – 240
HZ 50
Amps (maximum) 10
Heating Power (W) 560
*Capacity refers to the maximum dry weight of items the machine can dry at any one time.
Note: some cycles have a lower maximum capacity (see the ‘Drying cycles’ section).
** The exact height of your dryer is dependent on how far the feet are extended from the base of
the machine.
10

GETTING STARTED QUICKLY
1
2
Condenser
Display
4
5
6
3
Display
& Delay
The display shows the remaining time, the delay time and other
related information.
Note: The remaining time is a default value, this time will be
re-calculated depending on additional program settings and
the moisture content of the laundry.
Program knob Select one of the 16 programs using the knob.The indictor of the
respective program lights up. See Program Modes section of the
manual for further information.
Power button Press Power button to switch on/off the tumble dryer.
Start/Pause
button
Delay
Time
Touch Start/Pause to Start a drying cycle. Touch button again to
pause the drying cycle.
11
23
456
7
89
1
10
Delay function for delay start, touch the button to set time (in
30 mins intervals up to 12 hours). The appliance should be
finished in, afterwards touch start/pauser to start the delayed
operation.
Touch the Time to select the timer program. Touch the button
to add or substract the time. The shortest time is 10min and
the longest time is 180min.

7
8
9 Child-lock indicator
Anti-Crease
Dry level
12
GETTING STARTED QUICKLY
If you wish to minimise wrinking, touch the Anti-Crease. At the end
of the cycle, the drum will rotate periodically and cool air will be
circulated through the load to minimise wrinkling and creaseing.
This is particularly useful if you cannot remove the items
immediately after the cycle ends.
Touch the Dry Level to sent the final moisture
content of the laundry at the end of cycle.
Damp: Ready to iron Dry: Normal Extra: Extra dry
*
*
To active the Child-lock function after a cycle ha
s been started,
touch the Delay&Time for 3 sec. until the indicator icon oci
lights
up. To
deactive touch both buttons for 3 sec. again.
Note:When the cycle ends or the power supply
is interrupted, the function will not be cancalled
automactically.
--
i
“ ”
10 Iron Ready Remind users when ironing conditions are ready.

PROGRAM MODES
PROGRAM RECOMMENDED
LAUNDRY
MAX .
LOAD
Time
Dry
Auto
Dry
Cotton***
Towels
Duvet
Air Dry**
Time Dry
Warm 30
Warm 60
Mix
ShirtsShirts
Delicate For lingerie and nightclothes ect.
Synthetic items
Sportswear
Synthetic
Sports
Baby Care
UnderwearUnderwear
Baby Care/Clothing
Bedding Sheets, pilowcases and quilt
covers
Drying items for a specific
time period, without heat
Heavy fabrics, need
further drying
Suitable for all clothing
Mixture of cotton and
synthetic fibres
Duvet/Doona Products
Towels
Cotton
4Kg
8Kg
8Kg
3Kg
4Kg
4Kg
4Kg
4Kg
4Kg
4Kg
4Kg
4Kg
4Kg
4Kg
Suitable for all clothing
13
4Kg
* Dryness level is only an option on Auto Dry cycles. On Time Dry cycles, dryness will vary
depending on the load and its initial moisture content.
** All programs except Air Dry have reversing function.
*** Cotton cycle and Dry dryness level is the recommend cycle for Standard cotton items.
JeansJeans 3Kg
DEFAULT
DRYNESS
LEVEL*
n/a
n/a
Dry
n/a
n/a
n/a
Dry
Dry
Dry
Dry
Dry
Dry
Dry
Dry
Dry
Dry

PREPARING THE DRYER
1 Connect the tumble dryer to a power socket.
2 Make sure the water tank is empty and properly installed.
3 and properly installed.
4 clean and properly installed.Make sure that the condenser filter is
Make sure that the lint filter is clean
PREPARING THE LAUNDRY
1 Sort clothes according to fabric (cotton, synthetics ) . Only dry lanuary that has
2 Empty pockets of all sharp or flammable objects such as keys,
decorative objects such as brooches.
lighters and
Follow the instructions on the laundry label and dry only machine-dryable garments.
– Close zippers and hooks, make sure the buttons are sewn on tightly and place small
etc. in a wash bag.
– Unfold large pieces of fabric such as bed sheets, table cloth etc.
items such
as socks, bras
been spun.
matches. Remove
harder
LOADING THE DRYER
1 Place the laundry evenly in the drum making sure not to overload the dryer.
2 Switch on the tumble dryer by touching the Power button.
Fabric softeners or similar products should be used as specified in the
manufacturer’s instructions.
14

CARE CHART
Resistant material Bleachable in cold
water
Do not dry clean
Delicate fabric Do not bleach
Washable
at 95 °C
Iron at 200 °C Hang to dry
Washable
at 60 °C
Iron at 150 °C Dry on clothes
hanger
Washable
at 40 °C
Iron at 100 °C Tumble dry
(normal heat)
Washable
at 30 °C
Do not iron Tumble dry
(reduced heat)
Hand wash Dry cleaning
(any solvent)
Do not tumble dry
Dry clean only Dry cleaning
(pericloride)
Wool seal Dry cleaning
(aviation fuel)
15

CARING FOR YOUR DRYER
When you have finished using your dryer
●● Unplug the machine from the power socket.
●● Wipe around the door to remove any remaining condensation and foreign matter.
●● Clear the lint filter and empty the water tank (if not set up to automatically drain).
Cleaning your dryer
Before you start cleaning your dryer, ensure that it is disconnected from the power
Cleaning the control panel and outer surfaces of the dryer
Use a soft damp cloth to wipe all surfaces, then wipe dry. Avoid using chemical or
scouring cleaners, as these will damage the paint and plastic surfaces of your dryer.
Cleaning the inside of your dryer
It is important that you occasionally clean the inside of your dryer. If the drum has any
residual dirt or lint stuck to it, remove this and wipe it clean with a damp cloth. Do not
leave any metal objects in the drum, as these may cause rust.
Cleaning the lint filter
●●
clothes during the drying cycle are collected in the lint filter.
Lint is generally formed during wearing and washing. Fibres (ie lint) released from the
●● It is important to clean the lint filter after every load, as the lint produced in the drying
process can become a fire hazard if it is allowed to accumulate in or around your dryer.
●● The lint filter is located in the door opening (at the bottom).
●● There is a warning light that will flash at the beginning of every cycle to remind you to
clean the filter. The warning light will also flash on and off during the cycle if the filter
becomes blocked. The filter should be cleaned as soon as the ‘Lint Filter’ light starts
flashing. Lint becomes a fire hazard if left to build up, and will reduce the efficiency of
your dryer.
To clean the filter:
1Open the dryer door.
2Remove the lint filter by pulling it up and out of the
filter slot. Open it out and wipe the surfaces clean
with your hand.
3Close the lint filter and place it back in the opening.
Ensure the filter is fitted correctly back in place
before operating the dryer.
IMPORTANT!
If the lint filter becomes damaged, contact your
Haier trained and supported service technician
to arrange getting a new filter. Do not operate
your dryer with a damaged lint filter or without
the filter in place, as this will cause damage
to your dryer and is a fire hazard.
Lint filter
16

CARING FOR YOUR DRYER
Emptyingthe water collection tank
During the drying cycle steam condenses into water
and is collected in the water tank, located at the top
left of the dryer. It is important to empty the water
tank after every load.
A user warning will also be displayed on the screen
If the water tank becomes full during operation, the
dryer will pause and beep to alert you. Empty the tank
and touch to resume the cycle.
Note: you do not need to empty the water tank if
you have set up the drain hose to drain the water
automatically.

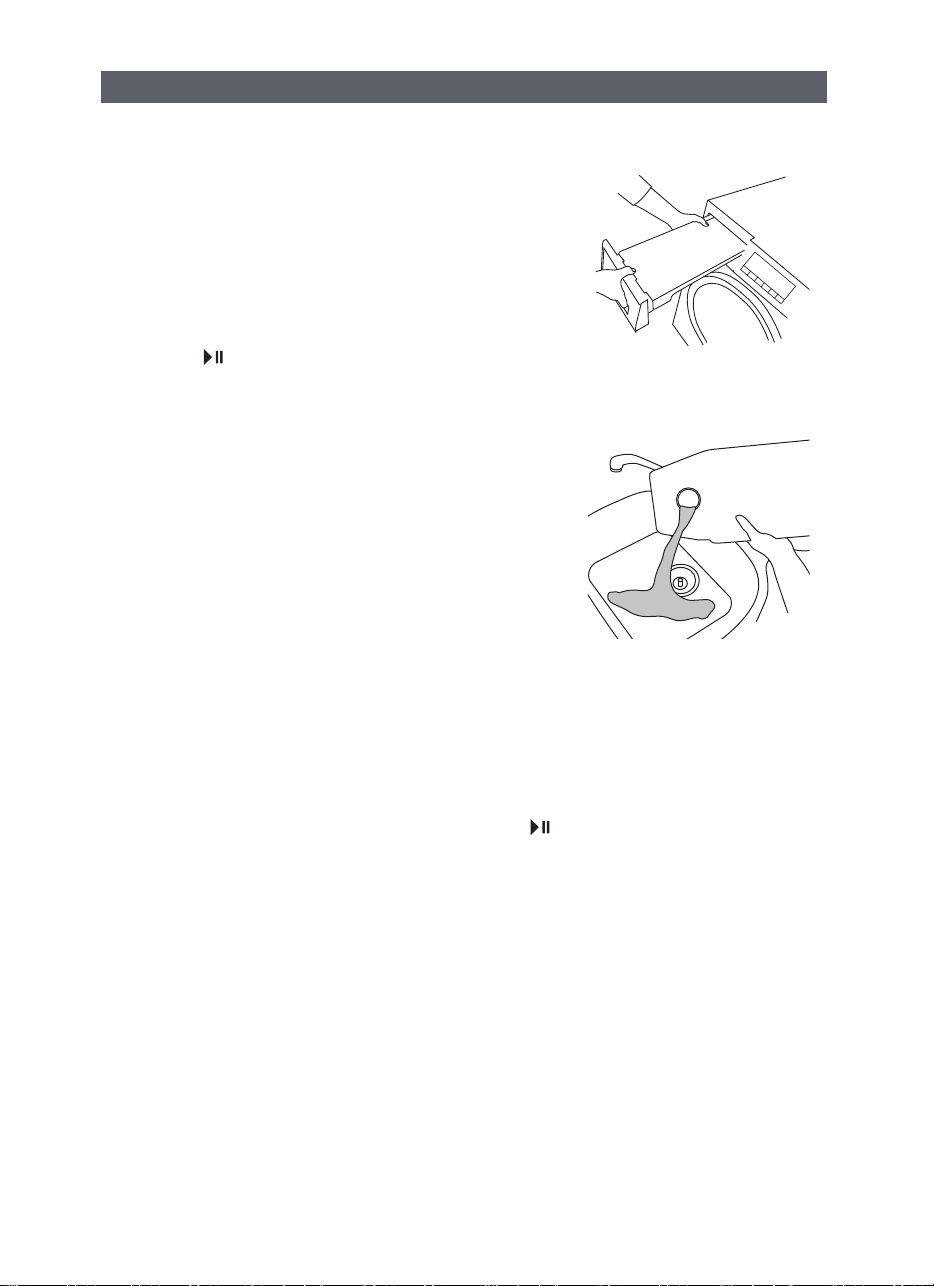

To emptythe water tank:
1Remove the water tank by holding onto the handle
and pulling outwards gently to remove it. Ensure
that you keep the tank level when it is being
removed to prevent the water collected from spilling.
2Pour the water down the sink or into a bucket, and
then put the tank back in place.
IMPORTANT!
●● Do not use the water collected in the water tank for drinking or food processing.
●● Never run the dryer without the water tank in place unless the drain hose has
●● If the water tank becomes full, the tumble dryer will pause drying and will sound
an alarm. You must empty the water tank before the dryer can continue drying.
Empty the tank, replace it in the housing then touch to resume the cycle.
Removing the
water collection tank
Tipping out the water
from the condensing tank
been installed
17

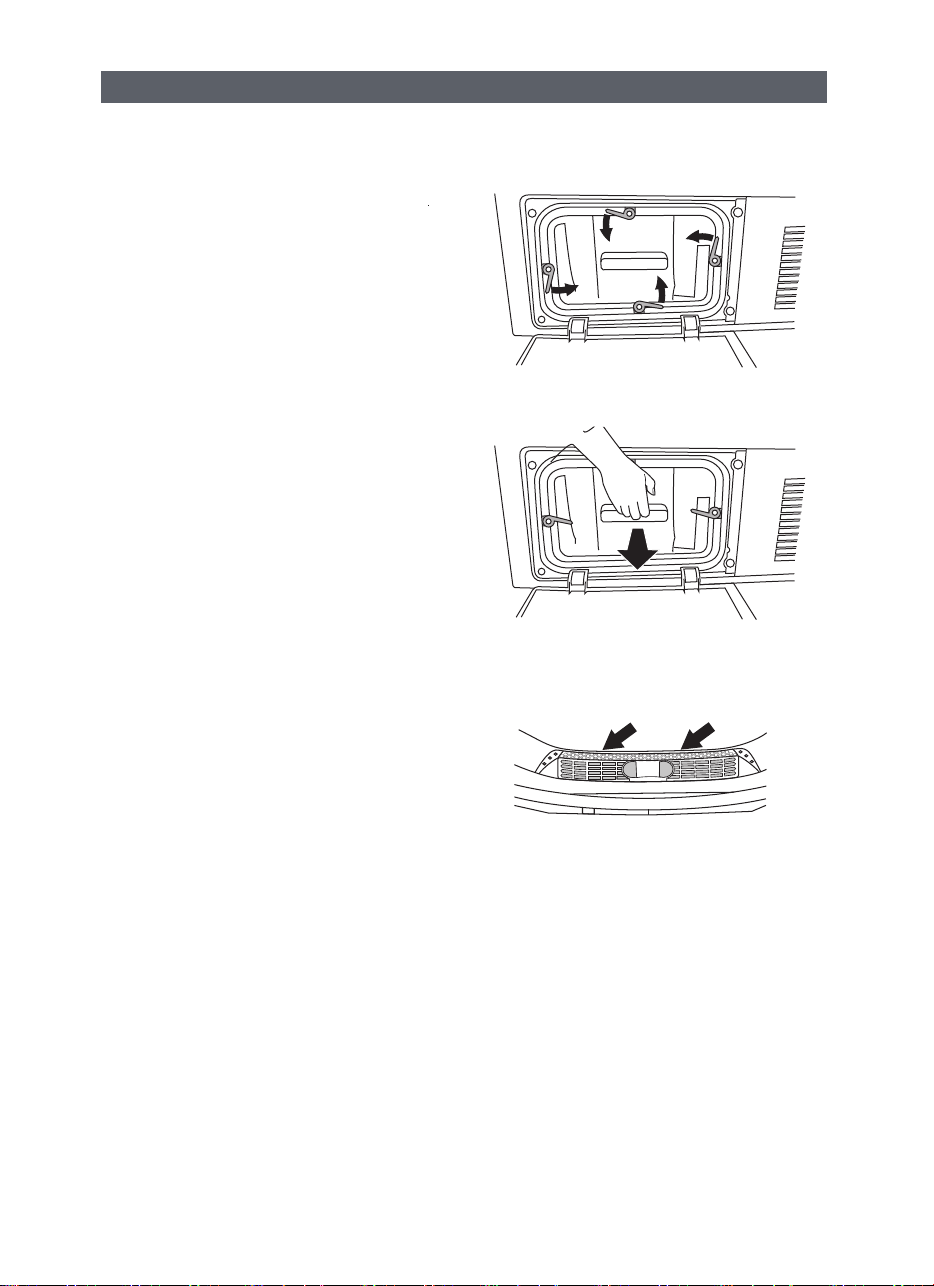

Cleaning the condenser filter
To clean the condenser filter:
1Switch off the power supply and remove
the power plug before cleaning the
condenser.
2Open the condenser filter cover.
3Turn the four condenser lock levers 90°
then pull out the condenser filter.
4Remove rear filter and wipe the surface
clean with your hand.
5Replace the condenser filter.
6Turn the four condenser filter lock levers
to lock the condenser filter back in place
again. Make sure that these locks are
engaged securely.
7Close the condenser filter cover.
Note: if the evaporator behind the
condenser filter is dirty, it can be cleaned
carefully with a vacuum cleaner using a
dusting brush or narrow crevice nozzle.
Cleaning the sensors
There are sensors in your dryer that
detect whether the laundry is dry
or not. These sensors need to be
cleaned periodically (we recommend
approximately four times a year).
To clean the sensors:
1Open the door of your machine.
2Allow the machine to cool if drying has
been carried out.
3Locate the metal sensors just behind the
lint filter.
4Wipe the sensors with a soft cloth,
dampened with vinegar. Dry the sensors
with a soft dry cloth.
CARING FOR YOUR DRYER
Turning the condenser
filter locking levers
Location of the sensors
Pulling out the condenser filter
18
