Front Load Dryer Model: HLF103Q
1. Specification list 1
2. Dimensional drawing 1
3. Circuit diagram 2
4. Names of parts 2
5. Usage of the operation knobs 3
6. Products brief and new features 5
7. Key point in installation
adjustment and disassembly 7
8. Analysis of the common breakdowns 11
1. Specification list 1
2. Dimensional drawing 1
3. Circuit diagram 2
4. Names of parts 2
5. Usage of the operation knobs 3
6. Products brief and new features 5
7. Key point in installation
adjustment and disassembly 7
8. Analysis of the common breakdowns 11
WD-8888-95

Model
About 58kg
L 686mm W 718mm H 1080mm
Programs
HLF103Q
120V/240V 60Hz
10kg(weight of standard dry cloth
Setting drying program according to the laundries automatically
the time for setting : 0 ~ 180 min
User's manual ,
product registration card
Rated voltage rated frequency
Rated dry capacity
Rated power consumption in drying
Rated input consumption of motor
Manual setting
Automatic
Accessories
Dimension
Weight(kg)
4800W
379W
1 Specification list
2 Dimensional drawing
686
718
1080

3 Circuit diagram
circuit diagram
4 Names of parts
control plate
front plate
front door
control panel
shutter
exhaust duct
back baffle
nameplate
cabinet
adjustable foot
thread-protected board I
thread-protected board II
fasten button
whisk leaf
barrel roll
lint filter
lock body

5 usage of the operation knobs
WARNING: to reduce the risk of fire, electric shock or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating this dryer.
Understanding the Control Panel
1
Off Button: (2)
Start/Pause Button: (1)
Press the button to turn the dryer OFF.
Press this button once to start the dry process. Press this button once again to
pause the activity during the dry cycle.
Heavy Duty
Towels/Cotton
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend trumble
Customer
Louder
Softer
Off
Cycle
Signal
Bulky Items
Casual
Delicate
On
Off
Wrinkle
Care
Timed
Cycles
More Time
Less Time
Auto Dry
Rack Dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
On/Off
Power
Pause
Start
Temp
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
11
Pause
Start
Signal
Extend Tumble
Extend Tumble
Cycle completed
Cycle completed
Cool down
Cool down
Dry
Estimated Time
Estimated Time
Delay Time
Delay Time
Temp
Off
Wrinkle
Saver
Off
Softer
Louder
More
Time
Super Capacity
Less
Time
Very
Very
Normal
Normal
Less
Damp
Damp
More
More
Sensor
Dry
Level
Timed Dry
Rack Dry
Timed-
Cycles
Auto-
Cycles
Pause
Start
Signal
Extend Tumble Time
Extend Tumble Time
Cycle completed
Cycle completed
Cool down
Cool down
Dry
Remaining Time
Remaining Time
Wrinkle Saver
Wrinkle Saver
Temp
Off
Normal
Custom
Wrinkle
Saver
Off
Soft
Loud
More
Time
Super Capacity
Less
Time
Very Dry
Very Dry
Normal
Normal
Less
Less
Damp Dry
Damp Dry
More
More
Sensor
Dry
Level
Heavy
Cotton
Bulky Items
Casual
Timed Dry
Rack Dry
Auto
Dry
Cycles
Touch Up
Medium
Low
HighHigh
Medium
Low
HighHigh
Medium
Low
HighHigh
Medium
Air Dry
Low
HighHigh
Delicate
Heavy Duty
Towels/Cotton
Cycles
More Dry
Less Dry
Dry
Cool down
Cycle completed
Extend trumble Customer
Louder
Softer
Off
Cycle
Signal
Bulky Items
Casual
Delicate
On
Off
Wrinkle
Care
Timed
Cycles
More Time
Less Time
Auto Dry
Rack Dry
Timed Dry
Time Remaining(Min)
Time On(Hour)
Delay
Start
Pause
Start
Tem p
Level
Dryness
Air Only(No Heat)
High
Medium
Low Normal
Pause
Start
Signal
Extend Tumble
Extend Tumble
Cycle completed
Cycle completed
Cool down
Cool down
Dry
Estimated Time
Estimated Time
Delay Time
Delay Time
Temp
Off
Wrinkle
Saver
Off
Softer
Louder
More
Time
Super Capacity
Less
Time
Very
Normal
Normal
Less
Less
Damp
Damp
More
More
Sensor
Dry
Level
Timed Dry
Rack Dry
Timed-
Cycles
Auto-
Cycles
Pause
Start
Signal
Extend Tumble Time
Extend Tumble Time
Cycle completed
Cycle completed
Cool down
Cool down
Dry
Remaining Time
Remaining Time
Wrinkle Saver
Temp
Off
Normal
Custom
Wrinkle
Saver
Off
Soft
Loud
More
Time
Super Capacity
Less
Time
Very Dry
Very Dry
Normal
Normal
Less
Less
Damp Dry
Damp Dry
More
Sensor
Dry
Level
Heavy
Cotton
Bulky Items
Casual
Timed Dry
Rack Dry
Auto
Dry
Cycles
Touch Up
Medium
Low
HighHigh
Medium
Low
HighHigh
Medium
Low
HighHigh
Medium
Air Dry
Low
HighHigh
Delicate
2
3
456789
12
Signal Button: (3)
Used to select buzzing volume or turn off the buzzer.
Temp Button: (4)
Used to set drying temperature. There are 4 available drying temperatures:
High, Medium, Low, and Air only(no heat).
Timed
Dry
Cycles
Times
Dry
Cycles
Sensor Dry Level Button: (5)
Used to set drying time of auto-programs. If no auto-program is selected,
pressing the button is inactive and will get alarms.

Timed-Dry Cycles Button: (8)
Auto-Dry Cycles Button: (9)
More Time & Less Time Button: (7)
"Auto-Dry cycles" button will let you select your desired dry cycles. For your
convenience, there are seven fabric care dry cycles programmed in
this mode:Normal, Heavy , Cotton,Bulky Items, Casual, Delicate ,Touch
Up and Customer.
"Timed-Dry Cycles" button will let you select your desired dry mode.
Timed Dry: you can set status of "Temp", "Signal" and dry time
with "More Time" and "Less Time" buttons by yourself.
Rack Dry: the program used to dry article like sport shoes.
Set time from 0 to 180 minute when Timed Dry or Rack Dry cycle selected.
Normal drying
Big clothes drying like jeans bath towels
Drying bulky clothing like sheets
Normal
Heavy
Cotton
Bulky Items
Casual
Delicate
Touch Up
Custom
Wrinkle Saver Button: (6)
This convenient feature lets you delay the start of the dry cycle between 3 to
24 hours. Press the "Wrinkle Saver" to choose the number of hours you want to
delay the start of the cycle.
If no delay, the wrinkle saver indicator is off and remaining time indicator is on.
The nixie display indicates remaining time of non-reserved program.
If setting "Wrinkle Saver" in standby status, the nixie display indicates 3 hr, which
will increase by 1 hr with each pressing (until 24 and return to 3). If keep
pressed for 1.5 s, nixie display indicated value will increase continuously.
The drying program defined by user himself and stored.
Special drying for cotton clothes
Drying small quantity clothes and delicates
Drying casual everyday clothes
Used to select wrinkle-remove function
Status lights: (10)
Status lights give notification of which part of the cycle the machine is in.
Function Light Indicator:
The function "display light" indicates selected feature is "ON" or the
cycle is about to begin.
During the dry cycle, "flashing light" indicates current running program.
Rapidly flashing light indicates that the dryer is not operating properly.
Digital display: (11)
Indicate remaining time (min) during cycle operation.
Indicate remaining reserved time (hr) during reservation.
Note: if door opened during cycle running, displays "E2" and alarms.

3) Power transmission system
During drying, Motor 1 transmits the driving power to Tumbler 5 through Belt 2 and Multi-wedge
belt 3. Then Tensioning wheel 4 tensions the belt under the action of tensioning spring. At the same time,
it also increases the transmission wrap angle of the pulley, and improves the transmission efficiency of
the belt. The motor rotates to one single direction during drying. The tumbler will also rotate to one
single direction. The motor is centrifugal type, and has acquired the UL certification, with strong
driving power and long operation life.
4) Air intake and exhaust system
The appliance collects air through shutter, and heats the air with electric heating thread. The air
exhaust system composed of volute impellers generates negative atmosphere pressure under the suction
force, and thus attracts the hot air into the tumbler to dry the laundries. The air intake and exhaust system
has high degree of tightness, and improves the thermal efficiency.
5) Heating system
The electric heating thread installed on the heating plate at the rear of the cabinet, is the heating
source of the appliance. The exchanging of cold and hot air is realized by it. The heating power of the
electric heating thread is about 4500W. It can raise the air temperature rapidly, and offer hot air continuously.
21
4
3
5
Rotation direction
2) Temperature sensor
The temperature sensor of this appliance has also acquired the UL certification. It acts as nerve
center during usage of the appliance. It is used to detect the dry degree or temperature, and can effectively
prevent the defects like the crimple of laundries owing to overheating.
6 Product Brief and New Features
1) Program control
As the control center of the appliance, the program controller directs the appliance to meet the
demand of the user like the brain of human body. This part has acquired the UL certification, with long
operation life and reliable performance.
Croduct briefs
P

6 Product Brief and New Features
Dry sensor: (feature only active in auto dry cycle)
End of cycle signal:
Lint filter:
Leveling legs:
Your dryer also has the following features for your convenience:
C
New features
N
This senses temperature in the drum. The dryer will automatically shut itself off.
Your dryer is equipped with an audible signal that alert you every time the dryer load is finished drying.
All dryer come with a lint filter that needs to be cleaned before or after every use .
Your dryer has four leveling legs which are located in the front and rear corners of your dryer. After properly placing
your dryer or by turning them counterclockwise to lower your dryer.
Leveling legs can be adjusted by turning them clockwise to raise your dryer or by turning them counterclockwise to
lower your dryer.
7) Drying Rack
This drying rack is designed specially for articles like sport shoes.During drying,please make sure
the clothes reliably stay on the rack with no risk of entangling the agitation blade while drum is rotating.
6) Lint filter
It is a kind of wearing part, made of filter screen frame and screen cloth by one-time plastic injection.
When taking off the lint filter, please do not squeeze the screen cloth by force to avoid damaging the
cloth. At the same time, please clean it in time after each usage.

Power supply:
Power supply cord kit:
3 wire , 120 volt , 30 amp, 60Hz, 1 phase
(Not supplied when sold in the united states) the dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type
SRDT rated at 120 Volt AC minium, 30 Amp, with 3 open end spade lug connectors with upturned ends or closed loop
connectors and marked for use with clothes dryer.
Use only 4 inch (10.2.cm) diameter (minimum) rigid or flexible
metal duct and approved vent hood which has a swing-out damper
hat open when the dryer is in operation . When the dryer stops, the
dampers automatically close to prevent drafts and the entrance of
insects and rodents . To avoid restricting the outlet, maintain a
minium of 12 inches ( 30.5 cm) clearance between the vent hood
and the ground or any other obstruction . The vent flap should be able to remove freely.
Select a suitable location for the dryer on a hard even surface away from direct sunlight or heat source
e.g. Radiators, baseboard heaters, cooking appliances etc . Any floor unevenness should be corrected
with leveling legs located on the bottom of the dryer.
1) remove all packaging material . This includes the foam base and all adhensive tape holding the dryer acessories
inside and outside.
2) inspect and remove any remains of packing, tape or printed material before using the dryer.
7 Key points in installation, adjustment and disassembly
C
C
C
C
C
Tools and materials required
Electrical requirements
Unpacking your dryer
Materials
Exhaust system connections
T
E
U
M
E
Measuring tape ( 12ft.min.)
Duct tape
Rigid or flexible metal 4 inch ( 10.2 cm) duct
Vent hood
Phillips head and flathead screwdrivers
Channel-lock adjustable pliers
1 2 inch open end wrench
Carpenter s level
CORRECT
INSTALL MALE FITTINGS IN CORRECT DIRECTION
INCORRECT
MAXIMUM LENGTH
of 4''(10.2cm)Dia.Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
Louvered
Number
of
90
turns
0
1
2
3
4
60ft. (18.28 m) 48ft.(14.63 m)
52ft. (15.84 m) 40ft.(12.19 m)
44ft. (13.41 m) 32ft.(9.75 m)
32ft. (9.75 m) 24ft.(7.31 m)
28ft. (8.53 m)
21/2''
4''
(6.35 cm)
(10.2 cm)
16ft.(4.87 m)
MAXIMUM LENGTH
of 4''(10.2cm)Dia.Flexible Metal Duct
VENT HOOD TYPE
Louvered
(Preferred)
Number
of
90
turns
0
1
2
3
30ft. (9.14 m) 18ft.(5.49 m)
22ft. (6.71 m)
14ft.(4.27 m)
14ft. (4.27 m) 10ft.(3.05 m)
21/2''
4''
(6.35 cm)
(10.2 cm)

After installation is completed, the following method must be used to determine if the exhaust system is acceptable:
Although vertical orientation of the exhaust system is acceptable, certain extenuating circumstances could affect the
performance of the dryer:
The exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. The more the
dryer is used, the more often you should check the exhaust system and vent hood for proper operation.
1. Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.
2. Set the dryer timer and temperature to air fluff (cool down) and start the dryer.
3. Read the measurement on the manometer.
4.The system back pressure MUST NOT be higher than 0.75 inches of water column. If the system back pressure is less
than 0.75 inches of water column, the system is acceptable. If the manometer reading is higher than 0.75 inches of water
column, the system is too restrictive and the installation is unacceptable.
1. Only the rigid metal duct work should be used.
2. Venting vertical through a roof may expose the exhaust system to down drafts causing an increase in vent restriction.
3. Running the exhaust system through an uninsulated area may cause condensation and faster accumulation of lint.
4. Compression or crimping of the exhaust system will cause an increase in vent restriction.
C
C
Location of your dryer
Rough-in dimensions
L
R
Do not install your dryer:
Installation in recess or closet:
In an area exposed to dripping water or outside water conditions.
Ia dryer installation in a bedroom, bathroom, recess or closet, must be exhausted outdoors.
In an area where it will come in contact with curtains drapes, or anything that will obstruct of combustion and
ventilation air.
Your dryer needs the space around it for proper ventilation.
On carpet, floor must be solid with a maximum slope of inch (2.54 cm).
A minimum of 120 square inches(774.2 square cm) of opening, equally divided at the top and bottom of the door, is
required. Air openings are required to be unobstructed when a door is installed. The full length of the door is acceptable.
REAR VIEW SIDE VIEW
DIMENSIONS
DOOR OPEN 90
28 1/4''
(71.8 cm)
50 3/5''
(128.5 cm)

C
Installation in mobile home
I
Dryer must be exhausted outside (outdoors, not beneath the mobile home) using metal ducting that will not support
combustion. Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred.
If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust system must
terminate outside the enclosure with the termination securely fastened to the mobile home structure.
Refer to previous pages for other important venting requirements.
Installation must conform to current Manufactured Home
Construction Safety Standard(which is a Federal
Regulation Title 24 CFR-Part 32-80) or when such standard
is not applicable, with American National Standard for
Mobile Homes.
Warning: the dryer is designed under
ANSI z 21.5.1 for home use only.
Warning: the following are specific requirements for proper and safe electrical installation of
your dryer. Failure to following these instructions in this manual for proper grounding.
DO DON'T
Correct Incorrect
DO DON'T
Correct Incorrect
Correct
DO DON'T
Incorrect
C
C
Requirements and instructions
Electrical connections
R
E

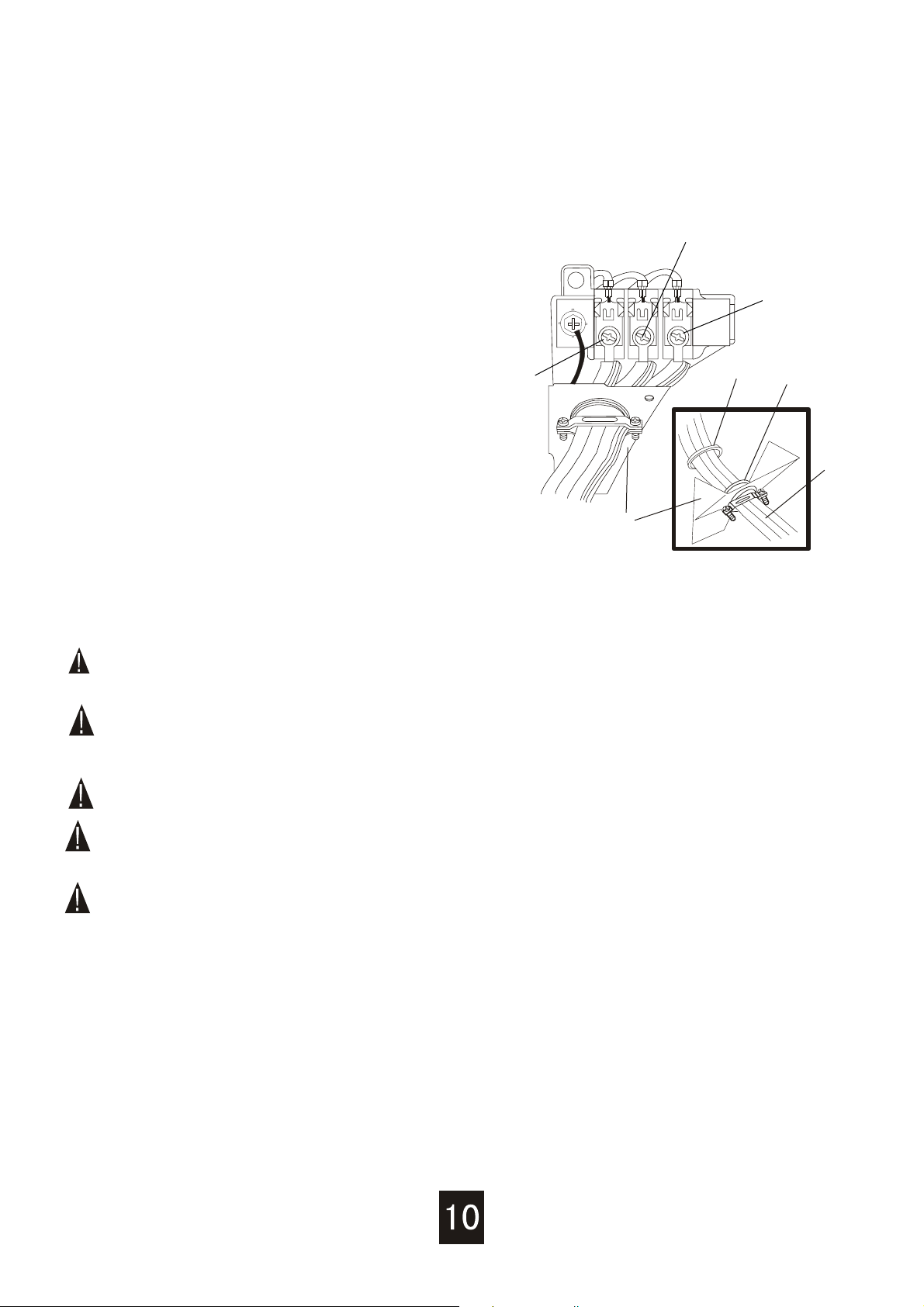

1. This appliance MUST be properly grounded. Electrical shock can result if the dryer is not properly grounded. Follow
the instructions in this manual for proper grounding.
3. A U.L. approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be
pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.
2. Do not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of
electrical current this dryer utilizes and can melt, creating electrical shock and/or fire hazard. Locate the dryer within
reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the
pre-installation requirements in this manual for the proper power cord to be purchased.
4. Do not use an aluminum wire receptacle with a copper wired power cord and plug (or vice versa). A chemical reaction
occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired
power cord with a copper wired receptacle.
