Haier HD90-A2979 User manual

GB
HD90-A2979
HD100-A2979
HD80-A3979
HD90-A3979
HD90-A3979S
HD90-A3S979
User manual
Heat-Pump-Dryer

Thank you EN
2
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
offi ce.
WARNING!
Risk of injury or suff ocation!
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.
WARNING!
The appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by a utility.
Legend
Warning! – Important safety information
General information and tips
Environmental information
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.

EN Content
3
Safety information .................................................................................................................................4
Intended use............................................................................................................................................7
Product description...............................................................................................................................8
Control panel........................................................................................................................................... 9
Programmes..........................................................................................................................................12
Consumption ........................................................................................................................................13
Suggestions and tips...........................................................................................................................14
Daily use..................................................................................................................................................16
Care and cleaning.................................................................................................................................20
Troubleshooting ...................................................................................................................................22
Installation..............................................................................................................................................24
Technical data .......................................................................................................................................26
Customer Service ................................................................................................................................30

EN
1-Safety information
4
WARNING!
Before fi rst use
▶Make sure there is no transport damage.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶Do make sure the room is dry and well ventilated. The ambient
temperature should be between 5 °C and 35 °C.
▶Do not cover any ventilation openings in the base by a carpet or
similar object.
▶Keep the area around the tumble dryer free of dust and lint.
▶Do make sure that there is only laundry inside the appliance and
no pets or children before you use it.
▶Only touch the mains plug with dry hands and do not touch or
use the appliance if you are barefoot or have wet or damp hands
or feet.
▶Only dry textiles washed in water.
▶Do make sure not to load more than nominal load.
▶Remove all items such as lighters and matches from pockets.
▶Use fabric softeners or similar products as specifi ed by the
manufacturer´s packaging.
▶Do not use ore store any flammable sprays or fl ammable gas in
close vicinity to the appliance.
▶Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶Hold the plug, not the cable, when unplugging the appliance.
▶Do not touch the rear wall and the drum during operation; they
are hot.

EN 1-Safety information
5
WARNING!
Daily use
▶Do not dry following items in the appliance:
▶Items which are unwashed.
▶Items which have been contaminated with inflammable sub-
stances such as cooking oil, acetone, alcohol, benzine, petrol,
kerosene, spot removers, turpentine, waxes, wax removers
or other chemicals. The fumes can cause a fi re or explosion.
These items must always be washed fi rst by hand in hot wa-
ter with an extra amount of detergent and then be dried in the
open air before drying in the appliance.
▶Items which contain padding or fillings (e.g. pillows, jackets), as
the filling can get out with the risk of igniting in the dryer.
▶Items which contain a large proportion of rubber, foam rubber
(latex foam) or rubber like materials such as shower caps, wa-
terproof textiles, rubberised articles and items of clothing and
pillows with foam rubber filling.
▶Do not drink the condensed water.
▶Do not use the appliance without the lint filter or condenser fi lter
in place or with damaged filter.
▶Notice that the last part of the drying cycle occurs without heat
(cool down cycle) to ensure remaining the garments at a temper-
ature which does not damage them.
▶Do not leave the appliance unattended during run time for some
time. If a long absence is intended, the drying cycle have to be
interrupted by switching off the unit and unplugging the mains.
▶Do not switch off the appliance except drying cycle is finished,
unless all items are quickly removed and spread out that the heat
can be released.
▶Switch off the appliance after each drying programme to save
electricity and for safety.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.

EN
1-Safety information
6
WARNING!
Maintenance / cleaning
▶Clean the lint filter and the condenser fi lter after each pro-
gramme (see CARE AND CLEANING).
▶Do not use water spray or steam to clean the appliance.
▶Do not use industrial chemicals to clean the appliance.
▶Replace a damaged supply cord only by the manufacturer, its ser-
vice agent or similarly qualifi ed persons in order to avoid a hazard.
▶Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶Ensure a location which allows opening the door fully. Do not in-
stall the tumble dryer behind a lockable door, a sliding door or a
door with hinges on the opposite side of the tumble dryer door
as this limits the full opening of the tumble dryer door.
▶Install the appliance in a well-ventilated, dry place.
▶Never install the appliance outdoors in a damp place, or in an area
which may be prone to water leaks such as under or near a sink
unit. In the event of a water leak cut power supply and allow the
machine to dry naturally.
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not expose the appliance to any frost, heat or direct sunlight
or in the near of heat sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶Do not use multi-plug adapters and extension cables.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶Use a separate earthed socket for the power supply which is easy
accessible after installation. The appliance must be earthed.
▶Only for UK: The appliance’s power cable is fi tted with 3-cord
(grounding) plug that fi ts a standard 3-cord (grounded) socket.
Never cut off or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.

EN 2-Intended use
7
Notice
The appliance contains the fl uorinated greenhouse gas HFC-134a (GWP:1430). This
gas is hermetically sealed.
Intended use
This appliance is intended for drying items which have been washed in a water solution and
are marked on the manufacturer‘s care label as being suitable for tumble drying.
It is designed exclusively for domestic use inside the house. It is not intended for commer-
cial or industrial use. Changes or modifi cations to the device are not allowed. Unintended
use may cause hazards and loss of of all warranty and liability claims.
Standards and directives
This product meets the requirements of all applicable EC directives with the correspond-
ing harmonised standards, which provide for CE marking.
Environmentally responsible use
▶Thorough drainage: Spin the laundry with the maximum spin speed.
▶Maximum load: Use the maximum fi lling amount according to the programme table,
but do not overload the dryer. To take advantage of the maximum load, the laundry
which should be dried „READY to STORE“, can be fi rst dried easily with „READY to
IRON“. At the programme end remove the laundry which should be ironed and dry the
remaining laundry then to end.
▶Loosen up the laundry: Shake out the laundry before putting them into the dryer.
▶Avoid excess drying: An excessive drying should be avoided. Select the right pro-
gramme and the appropriate dry level.
▶Softener unnecessary: Do not use softener when washing, because the laundry will
become fl uff y and soft in the dryer .
▶Cleaning of the lint fi lters: Clean the lint fi lters after each cycle.
▶Ventilation: Make sure the appliance is properly ventilated (see INSTALLATION).
▶Condensed water reuse: The collected condensed water can be used for the steam
iron. Before it should be poured through a fi ne sieve or coff ee fi lter paper. Smallest
parts will be retained by the fi lter.

EN

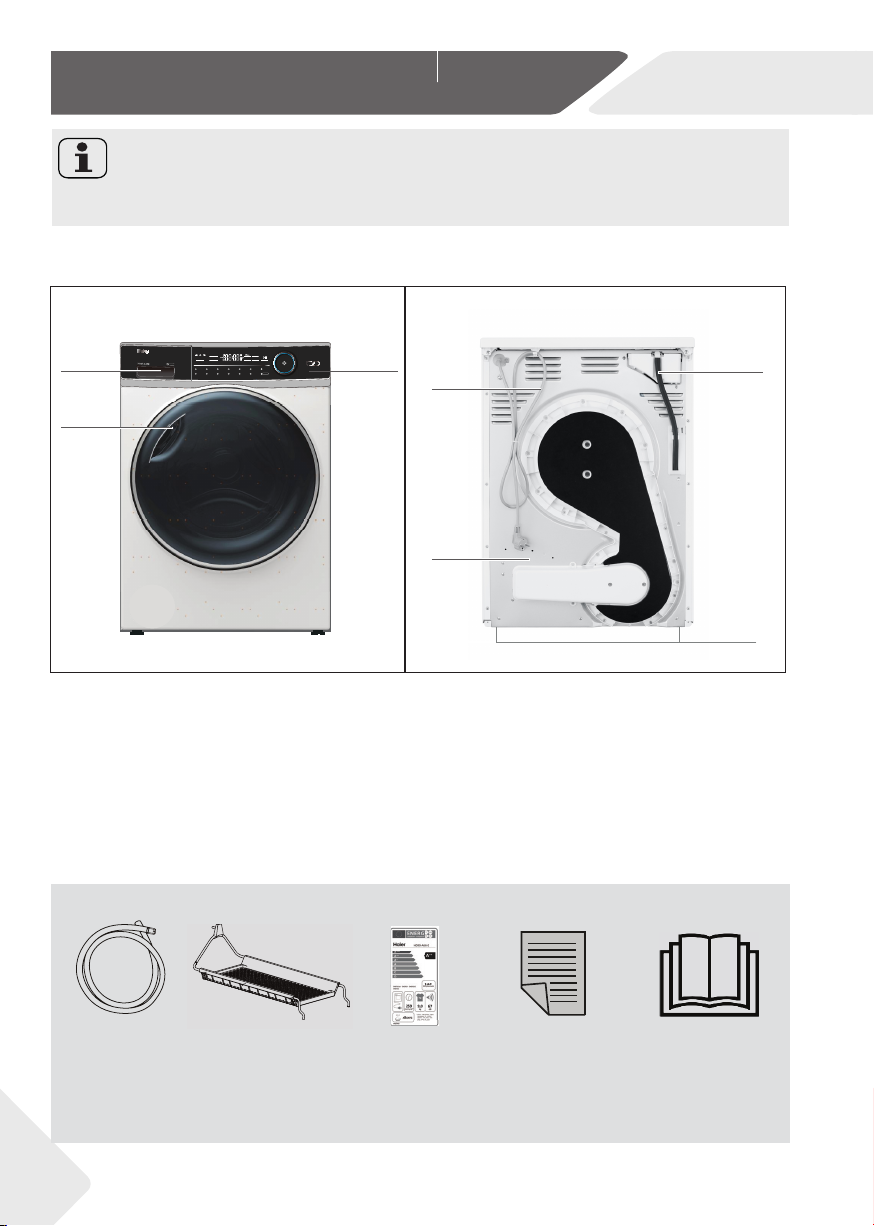

3-Product description
8
DryL evel
Delay
Wrinkle Free
Temp.
A
Childlock i-Refr es h
kg
9
+++
A
i-REFRESH
11English |
CONTROL PANEL
5Filters must be cleaned regularly.
See Lint Filter Cleaning or Condenser
Filter Cleaning section of the manual.
Clean filter
indicator
2Childlock indicator To activate the Child-lock function after a cycle
has been started, press the Childlock button
for 3 sec. until the indicator icon lights up.
To deactivate press the button for 3 sec. again.
Note: When the cycle ends or the power
supply is interrupted, the function will not be
cancelled automatically.
Note: After each cycle, indicator will flash to
remind cleaning the filters.
DryL evel
Delay
Wrinkle Fre e
Temp.
Babyca re Quick Dry
Mix
Cotton
Duvet
Synthetics T owel Warm Up
Shirt
Wool Time r
BulkyDelicate Sports
kg
9A
++
Childlock i-Refresh
kg
9
++
A
i-REFRESH
Delay function for delay start, press the button to
set time (in 1 intervals up to 12 hours).
The appliance shoule be finished in, afterwards
press to start the delayed operation.
1 Delay button
3Timer indicator When choose the timer program, It will lights up.
Signal indicator You can choose signal as you need. To active
the signal function after switching on the dryer,
press and Temp. for about 3 seconds
until the beep sounds.To deactivate press both
buttons for 3 seconds again until the beep sounds.
4
Note: This function should be set after you
have finished all the options, otherwise when
you turn the knob or press the button, the
function will be delected automatically.
1 3
2
4
5
6
7
3.1 Picture of appliance
Front (Fig. 3-1): Rear side (Fig. 3-2):
Note:
Due to technical changes and diff erent models, the illustrations in the following chap-
ters may diff er from your model.
3.3
1 Water tank
2 Tumble dryer door
3 Control panel
4 Power supply cord
5 Back plate
6 Drainage outlet
7 Adjustable feet
User manual
Warranty card
Drain hose Energy labelDrying rack
( Only for
HD100-A2979 /
HD90-A3S979
model)
3.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:3-3):
3-1 3-23-2
3-3

EN 4-Control panel
9
4.1 Delay button
Delay function for delay start, press the button to set time (in
1 intervals up to 12 hours).The appliance should be fi nished
in, afterwards press to start (Fig. 4-2) the delayed operation.
1 Delay button
2 Child-lock indicator
3 Delay indicator
4 Signal indicator
5 Clean fi lter indicator
6 Time button
7 Temp. button
8 Start/Pause button
9 Program knob
10 Power button
11 Dry level button
12 Childlock button
13 Empty tank indicator
14 Display
15 Door unlock indicator
16 Wrinkle Free button
17 i-Refresh
Dry Le vel
Delay
Wrinkle F ree
Temp.
Ba byc are Quick Dry
Mix
Cotton
Duvet
Synthetic s T owe l Wa rm Up
Shirt
Wool Timer
Bu lkyDelic a te Sp orts
kg
9A++
Childl oc k i-Re fr es h
kg
9++
A
i-REFRESH
13
2
14
910
1
11 12
6
16
7
58
17
15
34
4.2 Child lock indicator
To activate the Child-lock function after a cycle has been start-
ed, press the Childlock button (Fig. 4-3) for 3 sec. until the in-
dicator icon lights up. To deactivate press the button for 3 sec.
again.
4.3 Delay indicator
When choose the delay program (Fig. 4-4), It will lights up.
4.4 Signal indicator
You can choose signal as you need. To active the signal
function after switching on the dryer, press i-Refresh and
Temp. (Fig. 4-5) for about 3 seconds until the beep sounds.
To de-activate press both buttons for 3 seconds again
until the beep sounds.
Notice
This function should be set after you have fi nished all the options, otherwise when you
turn the knob or press the button, the function will be delected automatically.
Notice
When the cycle ends or the power supply is interrupted, the function will not be
cancelled automatically.
Wrinkle Free
Temp.
i-Re fres h
Temp.
+
Childlock
Delay
4-1
4-2
4-3
4-4
4-5

EN
4-Control panel
10
4.8 Start/Pause button
Press Start/Pause (Fig. 4-9) to Start a drying cycle. Press
button again to pause the drying cycle – indicator light is
fl ashing. Press button again to continue.
4.6 Time button
When select the Timer or Delay program, then the light
of is on. Press this button to add or substract the
time.
4.7 Temp. button
Press the button (Fig. 4-8) to set the drying tempera-
ture for some programs. The display is shown below:
High temperature.
Middle temperature.
Low temperature.
Cool air.
Notice
After each cycle, indicator will fl ash to remind cleaning the fi lters.
4.5 Clean fi lter indicator
Filters must be cleaned regularly. See Lint Filter Clean-
ing or Condenser Filter Cleaning section of the manual.
4.9 Program knob
Select one of the 14 programs using the knob (Fig.
4-10). The indictor of the respective program lights up.
See Program Modes section of the manual for further
information.
4.10 Power button
Press Power button (Fig. 4-11) to switch on/off the
tumble dryer.
4.11 Dry Level button
Press the button (Fig. 4-12) to set the fi nal moisture
content of the laundry at the end of cycle.
Extra dry
Ready to store
Ready to iron
Temp.
CONTROL PANEL
Dry Level
Delay
Wrinkle Free
Temp.
Babyc are Quic k Dry
Mix
Cotton
Duvet
Synthetics T owel Wa rm Up
Shirt
Wool Timer
B ulkyDelic a te Sp orts
kg
9A
++
Childl oc k i-Re fr es h
kg
9
++
A
i-REFRESH
4-6
4-7
4-8
4-9
4-11
4-10
Dry Level
4-12
