What The World Comes Home T6
ElectricDryer
User Manual- Model#

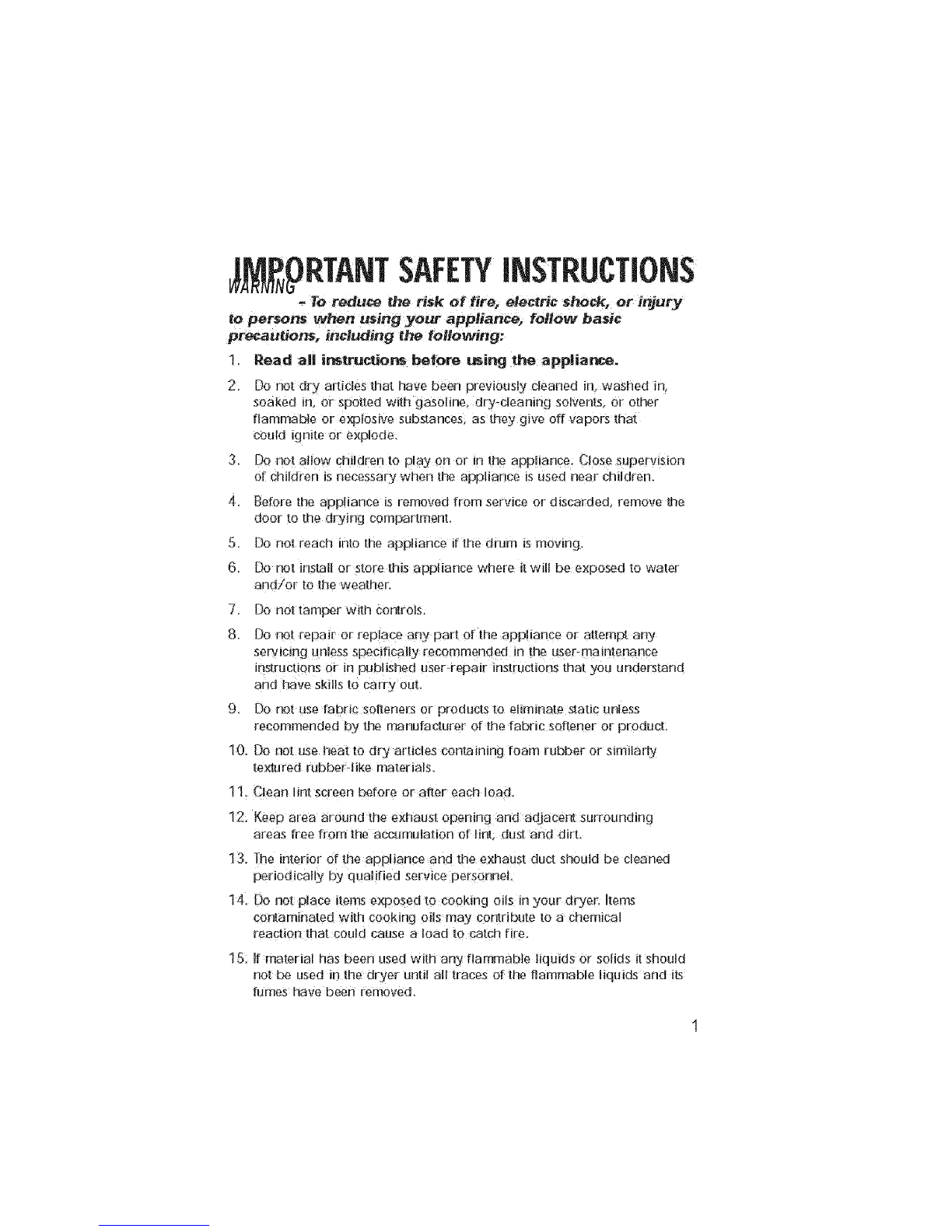

RTANTSAFETYiNSTRUCTiONS
-To r_u_ the risk of tire, electric shock, or injury
to persons when using your appfiance, fotlow basic
pr_au#ons, including the following:
I. Read all irtstructior_ before using the appliance+
2, Do not dry artictes that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents, or other
flammable or explosive substances, as they give off vapors that
could ignite or explode,
3. Do not allow children to playon or in the applmnce. Close supervision
of children is necessary when the appliance is used near children.
4. Before the appliance msremoved from service or discarded, remove the
door to the dry+rig compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water
and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any
sept,acing unless specmtlcatty recommended in the user-malntenance
+nstruchons or _n published user+repair _nstruchons that you understand
and have skills to cart30UL
9. Do not use fabric soReners at products to eliminate static unless
recommended b'_ the manufactmer of the fabric softener or product.
10. Do not use heat to dry articles conEain_ng roam rubber or mm+larly
textured rubber-like materials.
11. Clean lint screen befofe _r al_er each load.
12. Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lira+ dust and dirt.
13+ }-he interior of the appliance and the exhaust duct should be cleaned
periodically by quatlhed serwce personnel,
14, Do not place terns exposed to cooking oils in your dryer, Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
15. If material has been used with any flammable liquids or solids +tshould
not be used in the dryer until all traces of the flammable liquids and its
fumes have bee[] removed.

16.Thisdryermustbeproperlyinstalledinaccordance with the
installationinstructJor-sbefore itisused, See grounding instructions
in the installation section.
17. Proper grounding must be erlsured to reduce the risk of electric shock
and fire. Check with a qualified elecU ician or service personnel if you
are in doubt as to whether the dryer is properly grounded.
18. Use the dryer only for its intended purpose, drying clothes,
19. Always disconnect dryer from electrical supply before attempting any
service. Disconnect power cord bY grasping the plug, not eJle cord.
20. Replace worn power cords and/or loose plugs,
2! ]b reduce tile risk of elec_Jic shock or fire, do not use extension cords or
adapters to connect dryer to electrical power source.
SAVETHESEINSTRUCTIONS
For FutureUse
Risk el child entrapment. Before you throw away your old
dryer, take off the door so that children may
not easily get trapped ir_ide.
2
Thank you for using our Haler
product. This easy-to-use manual wilt
guide you in getting the best use of
your dryer.
Remember to record the model and
serial number, Tlley are on a label in
back of the dryer:
Model number
Serial number
Da_eof pumhase
Staple your receipt to your manual. You will r_ed it to obtain
warranty _rvic_.

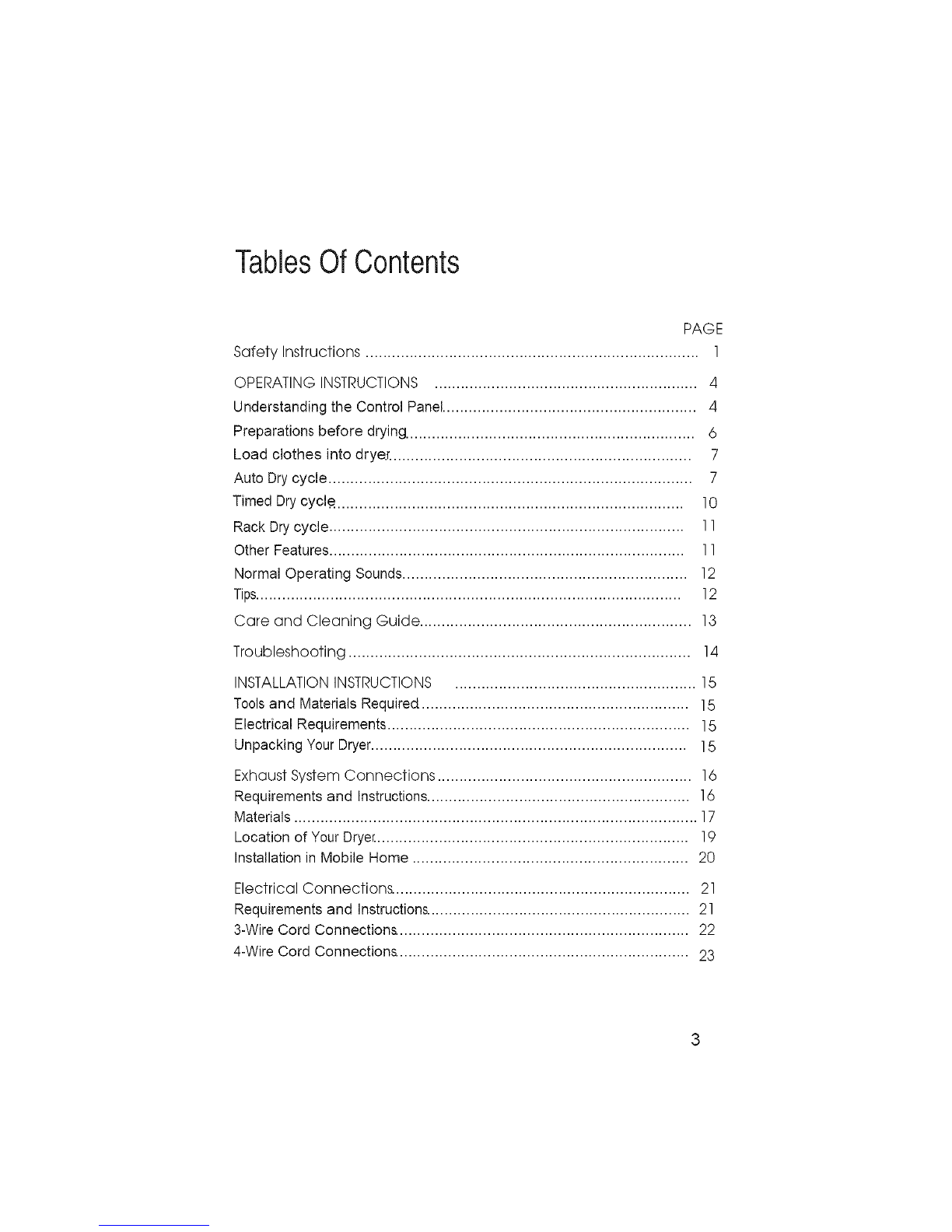

TablesOf Contents
PAGE
Safety Instructions ............................................................................ 1
OPERATING INSTRUCTIONS ............................................................ 4
Understanding the Control Panel.......................................................... 4
Preparations before drying.................................................................. 6
Load clothes into drye.r..................................................................... 7
Auto Drycycle ................................................................................... 7
Timed Dry cycl_ ............................................................................... 10
Rack Drycycle ................................................................................. ] ]
Other Features................................................................................. ] ]
Normal Operating Sounds................................................................. 12
Tips................................................................................................. ]2
Care and Cleaning Guide .............................................................. 13
Troubleshooting .............................................................................. 14
INSTALLATIONINSTRUCTIONS ....................................................... 15
Toolsand Materials Required ............................................................. 15
Electrical Requirements ..................................................................... ]5
Unpacking YourDryer........................................................................ ]5
Exhaust System Connections .......................................................... 16
Requirements and Instructions............................................................ ]6

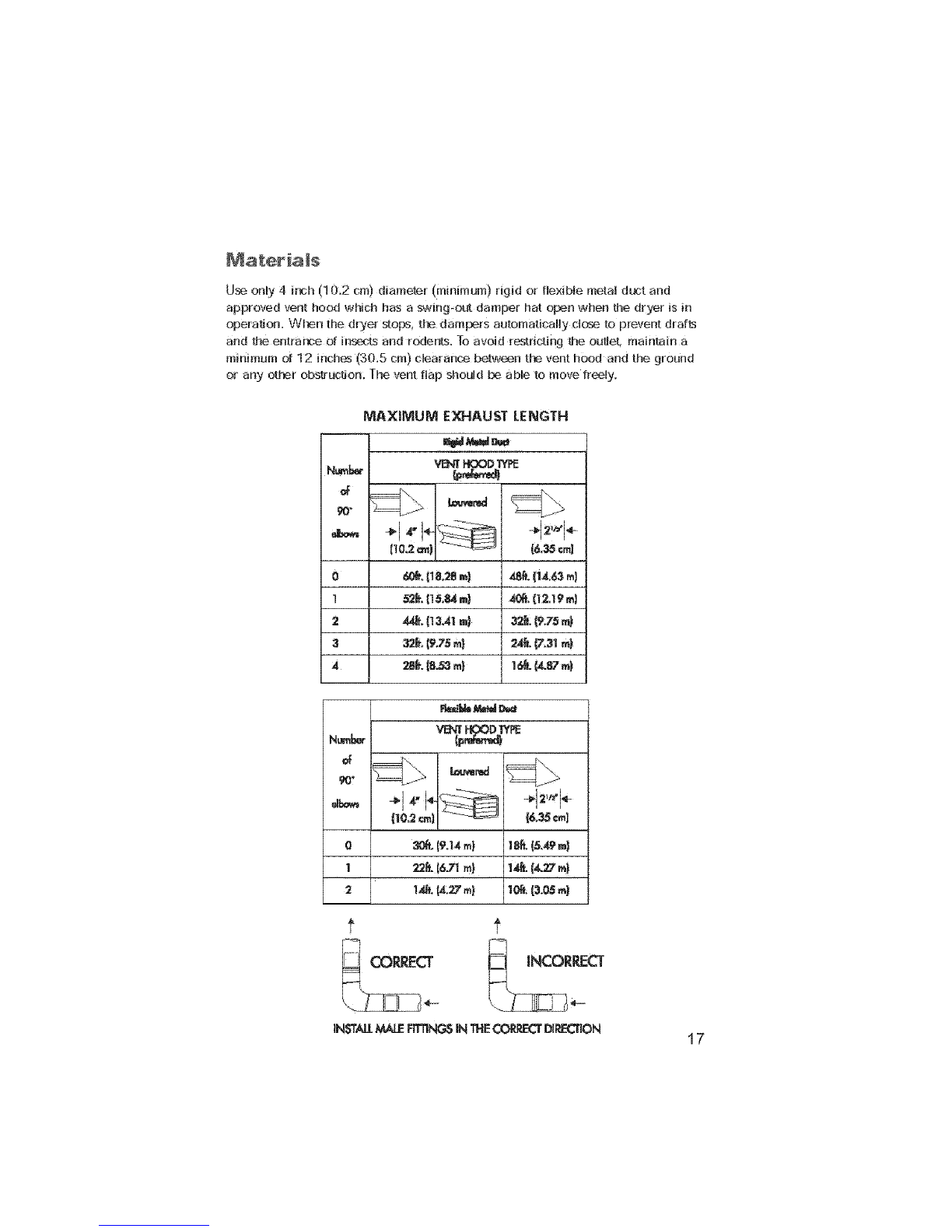

Materials ............................................................................................ ] 7
Location of YourDrye_....................................................................... ]9
Installation in Mobile Home ............................................................... 20
Electrical Connections. ................................................................... 21
Requirements and Instructions............................................................ 21
3-WireCord Connections .................................................................. 22
4-WireCord Connections .................................................................. 23

OPERATINGINSTRUCTIONS
Understanding the Control Panel
©
Start/Pause Button: (1)
* Pressthis button once to startthe dry process. Pressthisbutton once again to
pause the activity during the dry cycle.
Off Button: (2)
*Press the button to turn the dryer OFF.
Signal Button: (3)
* Used to select buzzing volume or turn off the buzzer.
Temp Button: (4)
Used to set drying temperature. There are 4 available drying temperatures:
High, Medium, Low,and Air Dry(no heat).

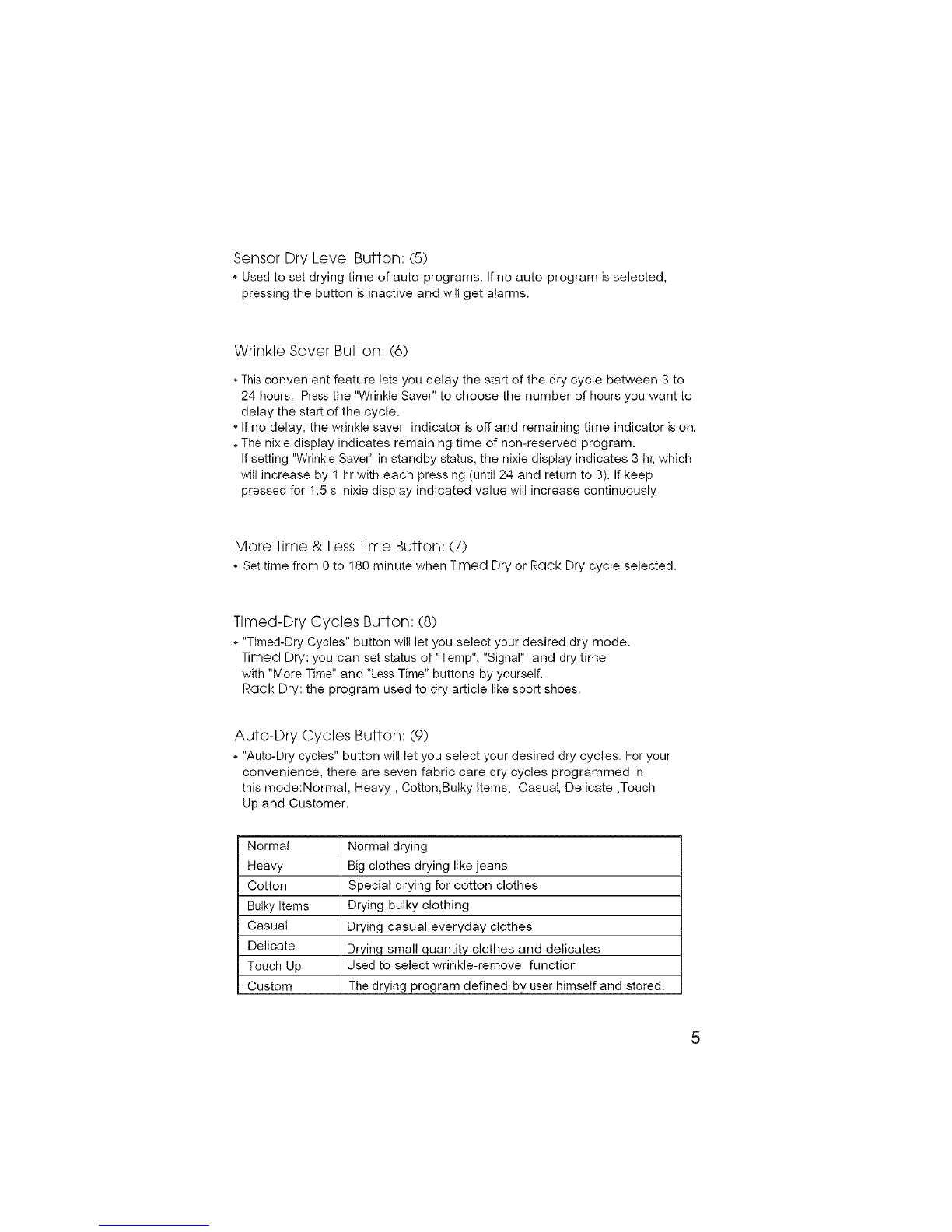

SensorDryLevelButton:(5)
Usedtosetdryingtimeofauto-programs.Ifnoauto-programisselected,
pressingthebuttonisinactiveandwillgetalarms.
Wrinkle Saver Button: (6)
This convenient feature lets you delay the start of the dry cycle between 3 to
24 hours. Press the "Wrinkle Saver" to choose the number of hours you want to
delay the start of the cycle.
* If no delay, the wrinkle saver indicator is off and remaining time indicator is on.
The nixie display indicates remaining time of non-reserved program.
If setting "Wrinkle Saver" in standby status, the nixie display indicates 3 hr, which
will increase by 1 hr with each pressing (until 24 and return to 3). If keep
pressed for 1.5 s, nixie display indicated value will increase continuously.
More Time & LessTime Button: (7)
Set time from 0 to 180 minute when Timed Dry or Rack Dry cycle selected.
Timed-Dry Cycles Button: (8)
* "Timed-Dry Cycles" button will let you select your desired dry mode.
Timed Dry: you can set status of "Temp", "Signal" and dry time
with "More Time" and "Less Time" buttons by yourself.
Rack Dry: the program used to dry article like sport shoes.
Auto-Dry Cycles Button: (9)
"Auto-Dry cycles" button will let you select your desired dry cycles. For your
convenience, there are seven fabric care dry cycles programmed in
this mode:Normal, Heavy, Cotton,Bulky Items, Casual, Delicate ,Touch
Up and Customer.
Normal Normal drying
Heavy Big clothes drying like jeans
Cotton Special drying for cotton clothes
Bulky Items Drying bulky clothing
Casual Drying casual everyday clothes
Delicate Drying small quantity clothes and delicates
Touch Up Used to select wrinkle-remove function
Custom The drying program defined by user himself and stored.

Status lights: (10)
Statuslights give notification of which part of the cycle the machine is in.
Digital display: (11)
*Indicate remaining time (rain) during cycle operation.
Indicate remaining reserved time (hr) during reservation.
Note: if door opened during cycle running, displays "E2" and alarms.
Function Light Indicator:
The function "display light" indicates selected feature is "ON" or the
cycle is about to begin.
*,During the dry cycle, "flashing light" indicates current running program.
,, Rapidly flashing light indicates that the dryer is not operating properly.
Preparations before drying
Group the clothes of the same kind (cotton, chemical fibres, woolen) to dry.
Dark and light colored clothes shall be separately dried. Fabrics prone to failing
lint and those prone to adhering lint shall be separately dried. Clothes prone to
failing lint shall be turned inside out before putting into the dryer.
Make sure buttons and ornaments on the clothes are high temperature resistant
and won't damage drum surface. Before loading, the clothes shall have their
zippers zipped up, buttons and hooks done up and belts tied so as to avoid
entanglement or other obstacles.
tf possible, turn out the clothes pockets for uniform drying.
Check if clothes remain soiled. If yes, wash it away again, otherwise the soils after
drying may not be removed permanently.
* Small articles shall be collected in a mesh bag before loading and drying, so as to
avoid entanglement and ensure easy to be taken out.
Make sure power socket is reliably grounded. The grounding terminal shall not be
connected to gas or tap water pipelines.
Make sure exhaust duct has been connected with extension pipe.
Make sure lint filter is clean and then assemble it properly. If lint filter is not
in place, tumbling items could enter the exhaust system and cause damage
to the dryer.
Notes: tt applies to Auto Dry cycle and Timed Dry cycle. For Rack Dry cycle,
remove the lint filter and assemble the drying rack with its rear end slightly
downward inclined. The assembled status is as shown in the following figure:
Drying rac__k
Drum J
Front door
6

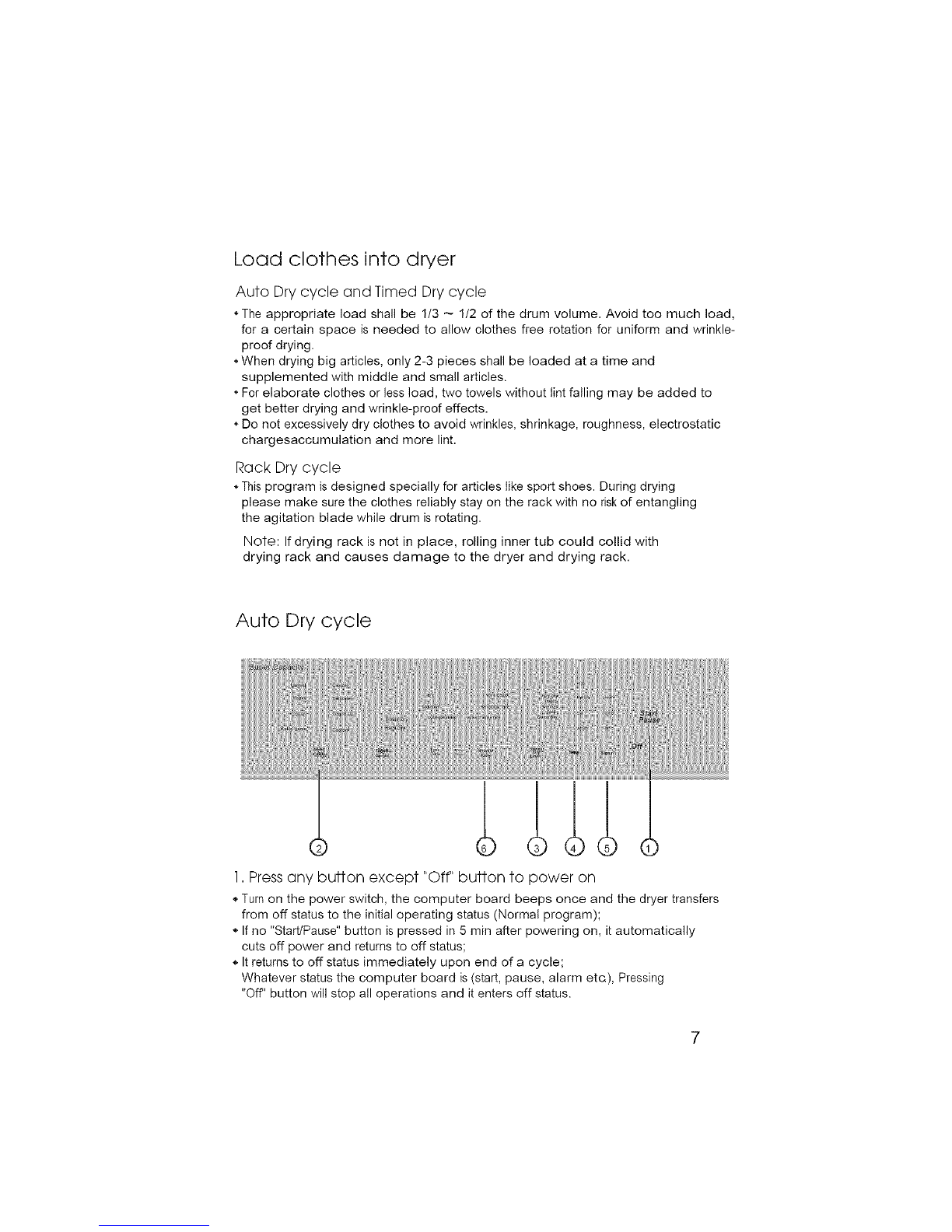

Load clothes into dryer
Auto Dry cycle and Timed Dry cycle
The appropriate load shall be 1/3 _ 1/2 of the drum volume. Avoid too much load,
for a certain space is needed to allow clothes free rotation for uniform and wrinkle-
proof drying.
When drying big articles, only 2-3 pieces shall be loaded at a time and
supplemented with middle and small articles.
For elaborate clothes or less load, two towels without tint falling may be added to
get better drying and wrinkle-proof effects.
* Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness, electrostatic
chargesaccumulation and more lint.
Rack Dry cycle
This program is designed specially for articles like sport shoes. During drying
please make sure the clothes reliably stay on the rack with no risk of entangling
the agitation blade while drum is rotating.
Note: If drying rack is not in place, rolling inner tub could collid with
drying rack and causes damage to the dryer and drying rack.
Auto Dry cycle
1. Press any button except "Off" button to power on
* Turn on the power switch, the computer board beeps once and the dryer transfers
from off status to the initial operating status (Normal program);
If no "Start/Pause" button is pressed in 5 min after powering on, it automatically
cuts off power and returns to off status;
* It returns to off status immediately upon end of a cycle;
Whatever status the computer board is (start, pause, alarm etc), Pressing
"Off' button will stop all operations and it enters off status.

oVariousbuttoninitialstatusfor"Normalprogram"
CycleSignal Softer
WrinkleCare Off
Cycles Normal
Nixiedisplay Indicatecurrentprogramremainingtime
Temp High
sensorDryLevel MoreDry
Timed/CyclesAuto-program
2. Press "Auto-Dry Cycles" button to select a suitable full automatic cycle
,,The Normal program will be automatically selected after powering on. If other
full automatic program isdesired, press"Auto-Dry Cycles" button
until corresponding indicator turnson.
iiiii_ iiiiiii
Normal Casual
Heavy Delicate
Cotton _ Touch Up
Bulky Items ; Custom
A._t;_ry
" TOselect your desired settings the "Custom" function should be chosen.
o It can memorize programs defined by user and display the previous program
upon next application of this function.
Use details are as follows:
After powering on, press "Auto-Dry Cycles" until"Custom" status, then set
"Timed-Dry Cycles" to Timed Dry or Rack Dry, and set status of other buttons.
Press "Start/Pause" button or after half a minute, the program defined by
user himself will be stored and will be directly displayed upon next use.
Notes: Pressing "Sensor Dry Level" button will be inactive during use of
"Custom" function.

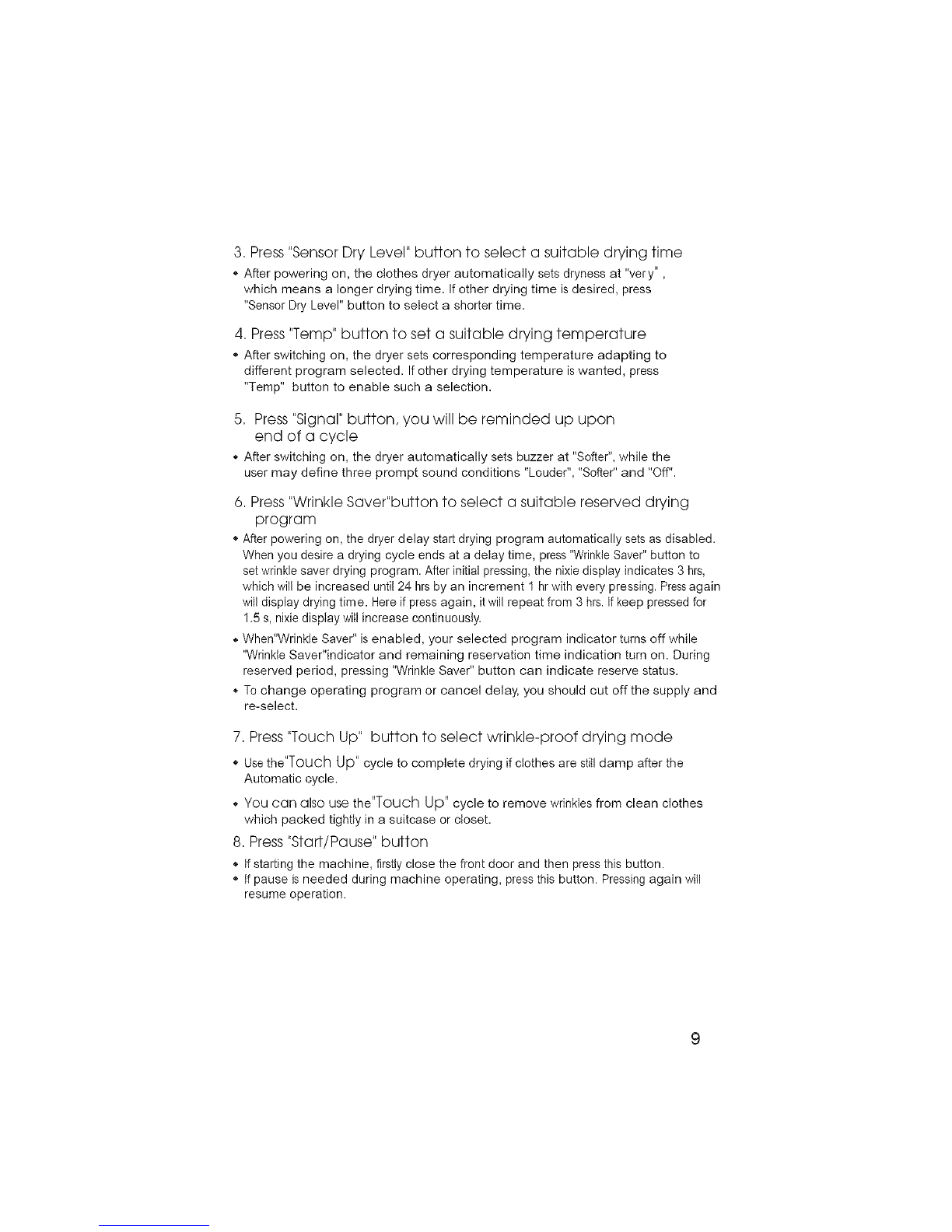

3. Press "Sensor Dry Level" button to select asuitable drying time
,, After powering on, the clothes dryer automatically sets drynessat "very",
which means a longer drying time. Ifother drying time isdesired, press
"SensorDryLevel" button to select a shorter time.
4, Press "Temp" button to set asuitable drying temperature
,, After switching on, the dryer sets corresponding temperature adapting to
different program selected. If other drying temperature is wanted, press
"Temp" button to enable such a selection.
5, Press "Signal" button, you will be reminded up upon
end of acycle
,, After switching on, the dryer automatically sets buzzer at "Softer", while the
user may define three prompt sound conditions "Louder", "Softer" and "Off".
6, Press"Wrinkle Saver"button to select asuitable reserved drying
program
After powering on, the dryer delay start drying program automatically sets as disabled.
When you desire a drying cycle ends at a delay time, press "Wrinkle Saver" button to
set wrinkle saver drying program. After initial pressing, the nixie display indicates 3 hrs,
which will be increased until 24 hrs by an increment 1 hr with every pressing. Pressagain
will display drying time. Here if press again, it will repeat from 3 hrs. if keep pressed for
1.5 s, nixie display will increase continuously.
• When"Wrinkle Saver" is enabled, your selected program indicator turns off while
"Wrinkle Saver"indicator and remaining reservation time indication turn on. During
reserved period, pressing "Wrinkle Saver" button can indicate reserve status.
To change operating program or cancel delay, you should cut off the supply and
re-select.
7, Press"Touch Up" button to select wrinkle-proof drying mode
Use the"Touch Up" cycle to complete drying if clothes are still damp after the
Automatic cycle.
* You can also use the"Touch Up" cycle to remove wrinkles from clean clothes
which packed tightly in a suitcase or closet.
8, Press"Start/Pause" button
If starting the machine, firstly close the front door and then press this button.
If pause is needed during machine operating, press this button. Pressing again will
resume operation.
