SAFETY PRECAUTIONS
Read all of the instructions before using this appliance. When
using this appliance, always exercise basic safety precautions,
including the following:
1) Use this appliance only for its intended purpose as described in this
use and care guide.
2) This beverage center must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installation section.
3) Never unplug your beverage center by pulling on the power cord.
Always grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
5) Unplug your beverage center before cleaning or before making any
repairs. Note: If for any reason this product requires service, we
strongly recommend that a certified technician performs the service.
6) If your old beverage center is not being used, we recommend that you
remove the doors and leave the shelves in place. This will reduce the
possibility of danger to children.
7) This beverage center should not be recessed or built-in an enclosed
cabinet. It is designed for freestanding installation only.
8) Do not operate your beverage center in the presence of explosive
fumes.
SAVE THESE INSTRUCTIONS
For Future Reference
1
English

2
Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your beverage center.
Remember to record the model and
serial number.They are on a label
in back of the beverage center.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
DANGER
Risk of child entrapment. Before you throw away your old
beverage center,take off the doors. Leave the shelves in place
so that children may not easily climb inside.
English

Table Of Contents
PAGE
Safety Precautions ..........................................................................1
Parts And Features..........................................................................4
Installing Your Beverage Center....................................................5
Unpacking Your Beverage Center ........................................................5
Leveling Your Beverage Center ............................................................5
Proper Air Circulation ..........................................................................5
Electrical Requirements ........................................................................6
Use of Extension Cords ........................................................................6
Install Limitations ................................................................................6
Door Alignmentt ..................................................................................7
Door Reversall ....................................................................................8
Beverage Center Features And Use ..................................................10
General Features ..............................................................................10
Beverage Center Interior Shelves ........................................................10
Light ................................................................................................11
Lock and Key ....................................................................................12
Normal Operating Sounds ................................................................12
Proper Beverage Center Care and Cleaning..............................13
Cleaning and Maintenance................................................................13
Power Interruptions ............................................................................14
Vacation and Moving Care ................................................................14
Troubleshooting ............................................................................15
Warranty Information ..................................................................16
English
3

Parts And Features

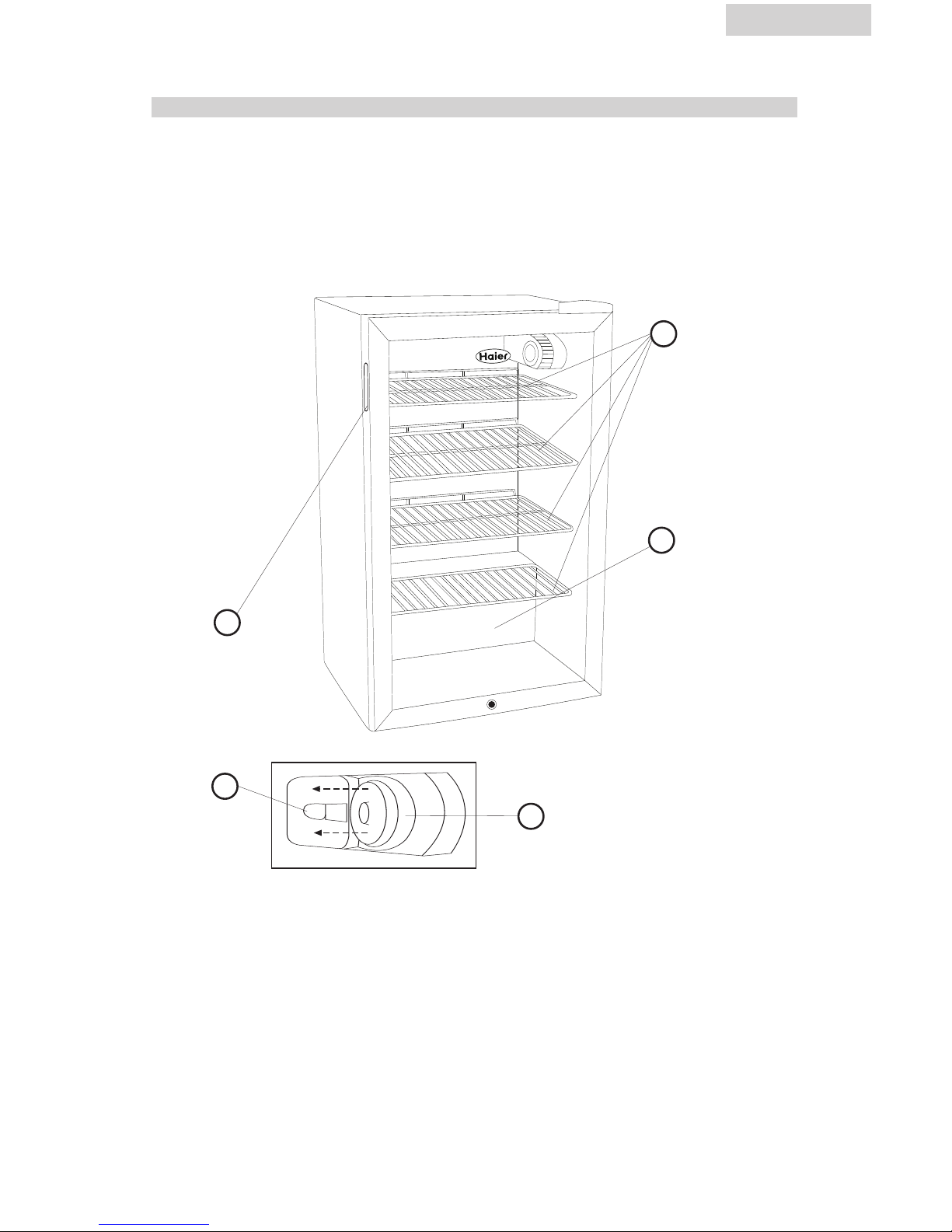

1. Full-Width Storage Shelf
2. See-through Glass Door
3. Recessed Handle
4. Interior Light
5. Temperature Control
English
4
1
2
3
4
6
5
4
5

1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the beverage center accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the beverage center.
• Your beverage center has leveling legs which are located at the
bottom of your beverage center. After properly placing your beverage
center in its final position, you can level your beverage center.
• Leveling legs can be adjusted by turning them clockwise to raise your
beverage center or by turning them counterclockwise to lower your
beverage center. The beverage center door will close easier when the
leveling legs are extended.
• Also, there is an adjustable support for the lower door hinge. (see
fig.4) After leveling the Beverage Center, adjust the hinge support, up
or down as needed until it rests on the surface on which that unit is
placed.
• Toassure your beverage center works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation and electrical connections.
• The following are recommended clearances around the beverage
center:
Sides……………3/4 "(19mm)
Top....................2" (50mm)
Back..................2" (50mm)
Installing Your Beverage Center
Unpacking Your Beverage Center
Proper Air Circulation
Leveling Your Beverage Center
5
English

English
Electrical Requirement
•Make sure there is a suitable power Outlet (115 volts, 15 amps
outlet) with proper grounding to power the beverage center.
• Avoid the use of three plug adapters or cutting off the third grounding
in order to accommodate a two plug outlet. This is a dangerous
practice since it provides no effective grounding for the beverage
center and may result in shock hazard.
• Avoid the use of an extension cord because of potential safety
hazards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating
of the extension cord must be equal to or greater than the electrical
rating of the appliance.
• Do not install your beverage center in any location not properly
insulated or heated e.g. garage etc. Your beverage center was not
designed to operate in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the beverage center on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected with the leveling legs located at the bottom.
Install Limitations
6
Use of Extension Cords

7
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a Phillips Head Screwdriver.
4. Adjust the door or put a spacer in between and then tighten the
screws.
5. Replace the top hinge cover.
Door Alignment (see fig. # 1)

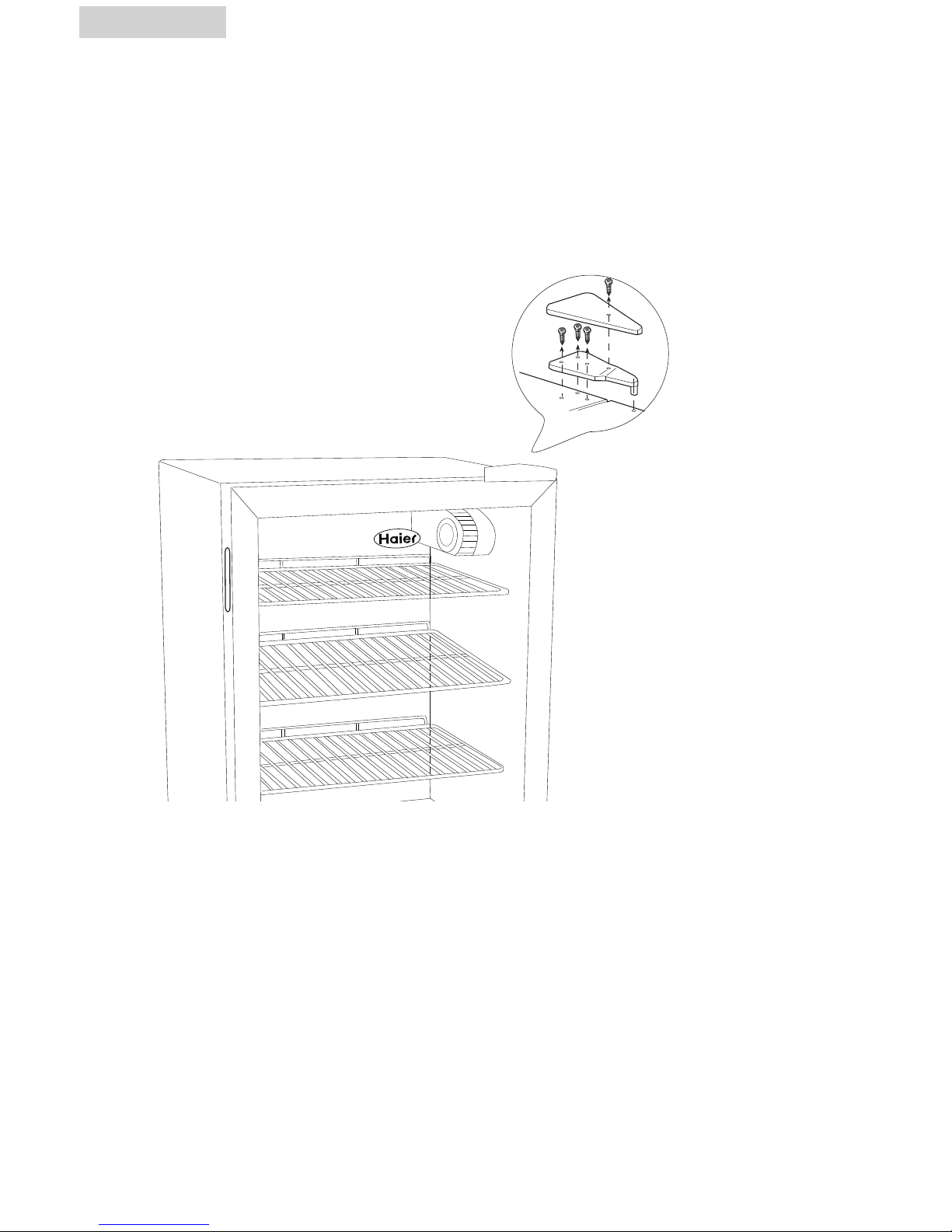

fig. # 1
English

English
8
Reversing the Door Hinge
1. Remove the top hinge cover screw and then remove the top hinge
cover. (see fig. # 1)
2. Using a Phillips Head Screwdriver, loosen and remove the screws
holding the top hinge in place. (see fig. # 1)
3. Remove the top hinge and carefully lift off the door.
4. Remove the screw hole plug from the opposite side and insert the
plug in the screw hole openings of the just removed screws.
(see fig. # 2)
5. Unscrew the door pin from the bracket of the lower hinge by turning
counter clockwise. Move the pin to the opposite hole and tighten.
(see fig. # 3) Tilt unit slightly towards back and remove the lower
hinge support. (see fig. # 4)
6. Loosen the screws holding the lower hinge bracket and remove the
hinge.(see fig. # 3)
7. Align the holes in the lower hinge bracket to the corresponding holes
in the opposite side of the cabinet. Insert and tighten the screws.(see
fig. # 3) Tilt unit slightly back to replace the lower hinge support.
Adjust up or down as needed until it is just touching the surface on
which that unit is placed. (see fig. # 4)
8. Align the bottom hole on the left side of the door with the pin of the
lower hinge and slide into place.
fig. # 2
screw hole plugs

9. Align the pin of the top hinge with top hole on the left
side of the door and push into place. Replace the screws in the
upper hinge bracket but do not tighten all the way. (see fig. # 1)
10. Make sure the door closes easily but forms a tight seal.
Adjust the door as needed. Once you are satisfied with the door
alignment, completely tighten the upper door hinge screws.
11. Replace the hinge cover, insert the screw and tighten completely.
(see fig. # 1)
12. If the door does not close properly, refer to the section titled “Door
Alignment”.
fig. # 3
English
9
door pin
lower hinge bracket
spacet
fig. # 4
lower hinge support
lower hinge

Beverage Center Features And Use
To remove or replace a full-width slide-out shelf:
(see fig. # 6)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back.
General Features
Adjustable temperature dial:
Your beverage center will automatically
maintain the temperature level you
select. The temperature control dial
has 7 settings plus off. 1 is the
warmest. 7 is the coldest. Turning the
dial to OFF stops cooling in the bever-
age center. At first, set the dial to 4
and allow 24 hours to pass before
adjusting the temperature to your
needs.
(Note: If the beverage center has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Beverage Center Interior Shelves
fig. # 6
English
10
6
5
4
located on interior of unit on right side
fig.#5

English
11
Light

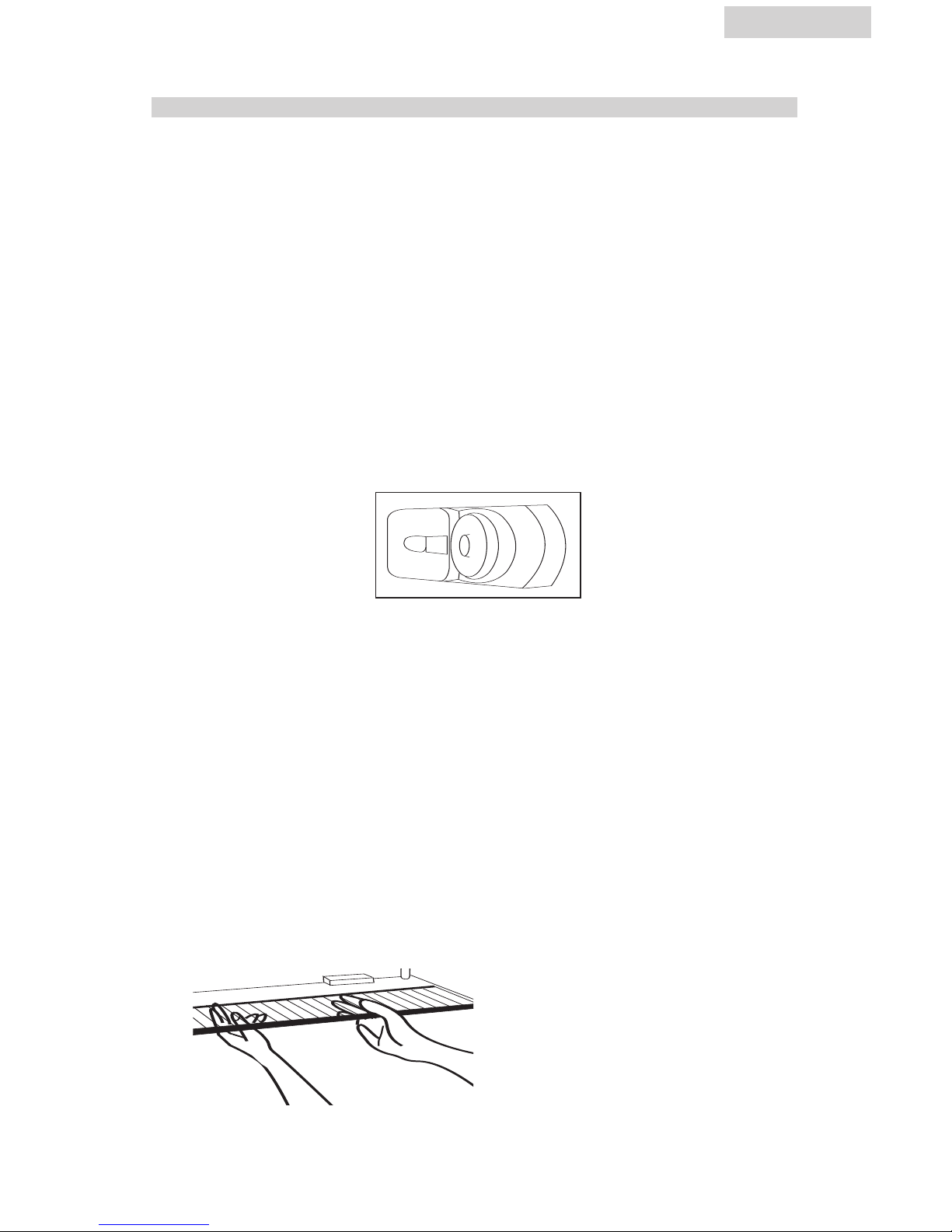

• Toreplace burnt-out bulbs, remove the temperature control knob by
pulling it out (see fig. # 8a). Carefully pull the plastic light cover to the
left and remove. Unscrew the bulb and replace it with a new one (use
bulbs of 15 watts or less). To replace cover, insert the back slots into
the casing (see fig. # 8b). Align the front and push the control knob
back in.
6
5
4
fig. # 8a
fig. # 8b
To use the interior flip shelf: (see fig. # 7)
1. Simply flip the shelf as shown in the diagram. This is designed to
give you extra storage for tall bottles.
fig. # 7

English
12
•Boiling water, gurgling sounds or slight vibrations that are the result
of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.
Normal Operating Sounds You May Hear
•Your beverage center is equipped with a lock and key (located at the
bottom center of the door) for optional security, should you choose.
Simply close the beverage center door, insert the key and turn. To
open, insert the key and turn in the opposite direction.
Lock and Ley

13
English
To avoid electric shock always unplug your
beverage center before cleaning. Ignoring this
warning may result in death or injury.
Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to avoid
personal injury or product damage.
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water.Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your beverage center.
•Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your beverage
center.
•Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of
gaskets will keep the gasket pliable and assure a
good seal.
• Every 12 months, using either a soft brissel brush or
vacuum cleaner, clean dust, which has accumulated
on the coil. This will aid in the efficient operation of
your unit.
Proper Beverage Center Care
and Cleaning
Cleaning and Maintenance
Door Gaskets:
Rear Condensor Coil:
General:
Caution:
Warning:

•Occasionally there may be power interruptions due to thunderstorms
or other causes. Remove the power cord from AC outlet when a
power outage occurs. When power has been restored, replug power
cord to AC outlet.
• For long vacations or absences, empty contents from beverage center,
move the temperature DIAL to the OFF position and clean the bever-
age center and door gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside.When moving always
move the beverage center vertically. Do not move with the unit lying
down. Possible damage to the sealed system could occur.
English
14
Power Interruptions
Vacation and Moving Care

15
English
Beverage Center Does Not Operate
•Check if thermostat control is not in the “OFF” position.
•Check if beverage center is plugged in.
• Check if there is power at the ac outlet, by checking the
circuit breaker.
Temperature appears too warm
•Frequent door openings.
• Allow time for recently added beverages to reach proper
temperature.
•Check gaskets for proper seal.
•Adjust temperature control to cooler setting.
Temperature is too cold
•If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Beverage Center runs too frequently
•This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
•Check gasket for proper seal.
•Check to see if doors are completely closed.
Moisture build up on interior or exterior
of the beverage center:
•This is normal during high humidity periods.
• Prolonged or frequent door openings.
•Check door gaskets for proper seal.
Beverage Center door does not shut properly:
•Level the beverage center.
•Re-align beverage center door.
• Check for blockages.
TroubleShooting

English
16
Limited Warranty
What is covered and for how long?
This warranty covers all defects in
workmanship or materials for a
period of:
12 months labor (carry in only)
12 months parts
5years sealed system
The warranty commences on the date the
item was purchased and the original
purchase receipt must be presented to
the authorized service center before
warranty repairs are rendered.
EXCEPTIONS: Commercial or Rental
Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts,
which serve as a functional, purpose
of this appliance for a period of 12
months. This includes all parts except
finish, and trim.
2. The components of the sealed system
e.g.hermetic compressor,condenser
and evaporator from manufacturing
defects for a period of 5 years from
the date of purchase. Any damages to
such components caused by
mechanical abuse or improper
handling or shipping will not be
covered.
What will be done?
1. Any mechanical or electrical part that
proves to be defective in normal usage
during the specified warranty period
will be repaired or replaced at Haier’s
discretion.
A&E factory service is the authorized ser-
vice provider for Haier. If it is determined
that repair is not appropriate or replace-
ment part is unavailable for repair,Haier
will exchange the product with a refur-
bished or new product the same or simi-
lar to the original at its discretion.
2. There will be no charge to the pur-
chaser for functional replacement
parts and labor on any covered items
during the initial 12- month period.
Beyond this period, only the compo-
nents of the sealed system are cov-
ered, labor is not provided and must
be paid for by the customer.
3. To have your product serviced, please
contact Haier customer service
1-877-337-3639.
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how
long an implied warranty lasts, so the
above limitations may not apply to you.
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haier America
New York, NY 10018

MESURES DE SÉCURITÉ
Lisez attentivement toutes les instructions avant d’utiliser cet
appareil. Lors de son utilisation, suivez toutes les mesures de
sécurité élémentaires, y compris les mesures suivantes:
1) N’utiliser cet appareil que conformément à ce manuel d'utilisation et
d'entretien.
2) Avant son utilisation, cet appareil doit être installé conformément aux
instructions d’installation. Voir les instructions relatives au branchement
dans la section sur l’installation.
3) Ne jamais débrancher votre minibar en tirant sur le câble d’alimenta-
tion. Toujours serrer fermement la fiche puis la retirer de la prise en la
maintenant bien droite.
4) Réparer ou remplacer immédiatement tous les câbles électriques usés
ou endommagés. Ne pas utiliser de cordon d’alimentation présentant
des craquelures ou des dommages dus à des frottements sur le câble
lui-même, sur la fiche ou sur le connecteur.
5) Débrancher le minibar avant de le nettoyer et avant toute réparation.
Remarque: si, pour une quelconque raison, vous devez faire réparer
cet appareil, nous vous conseillons vivement de faire appel à un techni-
cien agréé.
6) Si votre ancien minibar n’est plus utilisé, nous vous recommandons de
retirer les portes et de laisser les étagères en place. Cela réduira les
risques d’accident pour les enfants.
7) Ce minibar ne doit pas être renfermé ni encastré. Il est conçu pour être
utilisé sur pied.
8) Ne jamais utiliser le minibar en présence de gaz explosifs.
VEUILLEZ CONSERVER CES INSTRUCTIONS
afin de pouvoir les consulter en cas de besoin
1
Français

Merci d’utiliser un produit Haier.
Suivez ce manuel d’instruction sim-
ple d’utilisation pour obtenir le
maximum de votre minibar.
N’oubliez pas d’enregistrer les
numéros de modèle et de série. Ils
se trouvent sur une étiquette à l’ar-
rière de votre minibar.
Numéro de modèle
Numéro de série
Date d’achat
Veuillez agrafer votre facture avec votre manuel. Vous en aurez besoin
pour bénéficier de la garantie.
DANGER
Cet appareil présente un risque d'enfermement pour les
enfants. Avant de vous débarrasser de votre ancien minibar,
veuillez enlever les portes. Laissez les étagères en place afin
que les enfants ne puissent pas grimper à l’intérieur.
2
Français

Table des Matières
PAGE
Mesures de Sécurité ......................................................................1
Pièces et Caractéristiques ..............................................................4
Installation de votre Minibar ........................................................5
Déballage de votre minibar..................................................................5
Mise à niveau de votre minibar ............................................................5
Circulation de l’air ..............................................................................5
Spécifications électriques ......................................................................6
Utilisation de rallonges ........................................................................6
Restrictions à l’installation ....................................................................6
Alignement de la porte ........................................................................7
Inversion de la porte ............................................................................7
Caractéristiques et Utilisation du Minibar ......................................9
Caractéristiques générales....................................................................9
Étagères intérieures du minibar ............................................................9
Eclairage ..........................................................................................10
Serrure et Clé ....................................................................................11
Bruits de fonctionnement normaux......................................................11
Entretien et Nettoyage du Minibar ............................................12
Entretien et nettoyage ........................................................................12
Coupures de courant ........................................................................13
Conseils en cas d’absence et de déménagement ................................13
Diagnostic des Pannes ..................................................................14
Garantie ........................................................................................15
3
Français
