Haier HC17SG42RB User manual

Order NO.Ref1407S026V0
◎2014(HAIER ELECTRICALAPPLIANCES COR. LTD)
Allrightreserved.Unauthorizedcopyinganddistributionisaviolationoflaw.
Refrigerator
SERVICE MANUAL
MODEL: HC17SG42RB
HC27SG42RB
Haier Group
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
2
Issue 2014-8-1
Rev. Ref1407S026V0
Contents
Chapter 1 General Information .............................................................................................................3
1-1. General Guidelines........................................................................................................................3
1-2. Insurance Test...............................................................................................................................3
1-3. How to read this Service Manual...................................................................................................4
Chapter 2Product Feature ....................................................................................................................5
2-1. SPECIFICATIONS.........................................................................................................................5
2-2. External views ...............................................................................................................................6
Chapter 3 Disassembly.........................................................................................................................7
3-1. Thermostat disassembly................................................................................................................7
Chapter 4 System flow principle ...........................................................................................................9
4-1. Refrigeration flow chart..................................................................................................................9
Chapter 5 Circuit diagram...................................................................................................................10
5-1. Brief principle diagram.................................................................................................................10
Chapter 6 Trouble shooting ................................................................................................................11
6-1.Compressor parameter.................................................................................................................11
6-2. Normal phenomena.....................................................................................................................12
6-3. No cooling....................................................................................................................................14
6-4. Refrigerator compressor no start.................................................................................................15
6-5.Noisy.............................................................................................................................................17

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
3
Issue 2014-8-1
Rev. Ref1407S026V0
Chapter 1 General Information
1-1. General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have
been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices
such as insulation barriers, insulation papers shields are properly installed. After servicing, make the
following leakage current checks to prevent the customer from being exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention of Electro Static Discharge (ESD) to Electrostatic Sensitive
1-2. Insurance Test
1. Check if there is any leak of current.
2. Cut out the power supply before the repair to avoid an electrical shock hazard.
3. In the case of a live-line test, insulating gloves should be worn to avoid potential electrical shock.
4. Confirm the rated current, voltage and capacity before testing with any kinds of instruments.
5. Watch if the upper door is open when we check something at a lower position.
6. Take out every part in the cabinet before moving the machine, especially things like panels (e.g.
glass shelf).
7. Please wear intact cotton gloves when repair any parts of the evaporator, so that scratches by
the sharp fins can be avoided.
8. If there is a breakdown with the refrigeration system, please surrender the machine to the service
center, else the leaked refrigerant may pollute the atmosphere.
9. The refrigerator use AC of 115V with a frequency of 60Hz.
10. A big fluctuation of voltage may cause a start failure of the refrigerator, a burn-out of the control
panel and compressor, or an abnormal sound from the compressor in operation.
11. Take care not to damage the supply line. Don’t yank at the line; pull the plug out gently from the

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
4
Issue 2014-8-1
Rev. Ref1407S026V0
receptacle. Don’t press the line under the cabinet or step on it. Take care not to roll on or damage the
supply line when moves the machine from the wall.
12. In the case of leakage of inflammable gases like carbon monoxide, open the door and windows.
Don’t pull out or insert the plugs of the appliance.
13. Don’t touch the refrigeration surface of the freezing compartment when the refrigerator is in
operation, especially when our hand is wet, else we may be glued to the surface.
14. Pull out the plug of power supply during clearance or power outage. Wait at least five minutes to
resume the power supply in order to prevent damage to the compressor caused by continuous restart.
Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of products, which may
differ from the products in some way.
1-3. How to read this Service Manual
1-3-1. Using Icons
Icons are used to attract the attention to specific information. The meaning of each icon is described in the
table below:
Note:
A “note” provides information that is not indispensable.
Caution:
A “caution” is used when there is danger that the reader, through incorrect manipulation, may damage
equipment, loose data, get an unexpected result or has to restart (part of) a procedure.
Warning:
A “warning” is used when there is danger of personal injury.
Reference:
A “reference” guides to find additional information on a specific topic.

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
5
Issue 2014-8-1
Rev. Ref1407S026V0
Chapter 2Product Feature
2-1. SPECIFICATIONS
1 Model HC17SG42RB HC27SG42RB
Product description Refrigerator Refrigerator
2 Key features
Total net capacity L 52 76
Defrosting (H=manual A=automatic) H H
Kind of coolant R600A 20g R600A 22g
3 Technical data
Voltage / frequency V/Hz 115V/ 60Hz 115V/ 60Hz
Temperature range °C -2-5 -2-5
Input power W 85 85
4 Product net dimensions
Unitdimensions (H/W/D) mm 505×495×465 685×495×465
Net weight kg 15.5 18
Packingdimensions (H/W/D) mm 492×479×454 664×479×454
Gross weight kg 17 20
5 Service
User instruction (languages) English English

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
6
Issue 2014-8-1
Rev. Ref1407S026V0

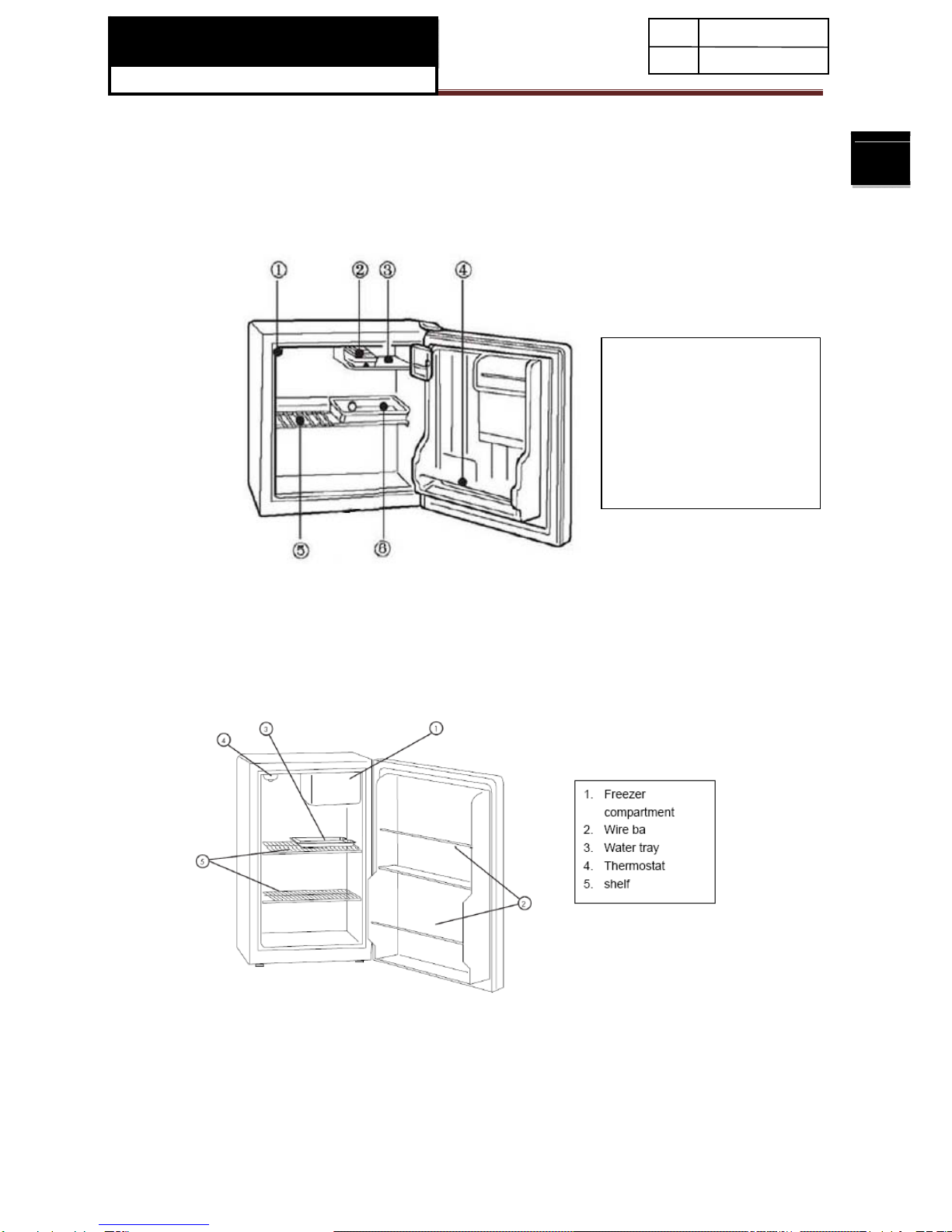

2-2. External views
HC17SG42RB
HC27SG42RB
1. Thermostat
2. Ice tray
3. Freezer compartment
4. Bottle rack
5. Shelf
6. Water tray

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
7
Issue 2014-8-1
Rev. Ref1407S026V0
Chapter 3 Disassembly

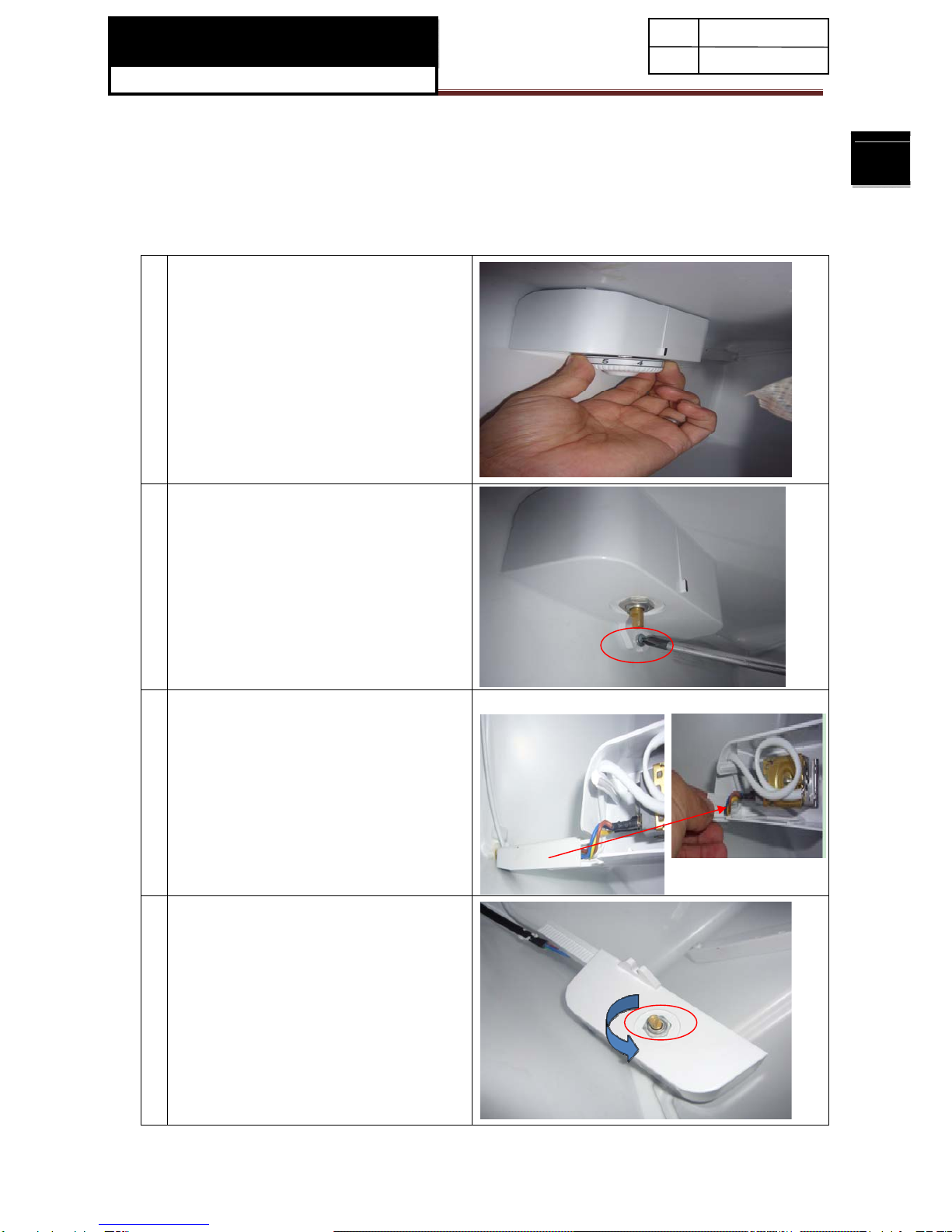

3-1. Thermostat disassembly
1 First take down the thermostat knob
2 Unscrew the screw like the picture
3 Take down the wire groove
4
Rotate the thermostat axes
counter-clockwise and take down the
thermostat

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
8
Issue 2014-8-1
Rev. Ref1407S026V0
5
Disconnect the thermostat terminal
according to the order of the picture.
And then remove the thermostat.
6 Install the thermostat according to the reverse order.

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
9
Issue 2014-8-1
Rev. Ref1407S026V0
Chapter 4 System flow principle
4-1. Refrigeration flow chart
1 Compressor
2Condenser
3Filter drier
4Capillary tube
5Evaporator

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
10
Issue 2014-8-1
Rev. Ref1407S026V0
Chapter 5 Circuit diagram
5-1. Brief principle diagram
HC17SG42RB:
A POWERPLUG B THERMOSTAT C OVERLOAD PROTECTOR
D COMPRESSOR E PTC
HC27SG42RB:
A POWERPLUG B THERMOSTAT C OVERLOAD PROTECTOR
D COMPRESSOR E PTC

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
11
Issue 2014-8-1
Rev. Ref1407S026V0
Chapter 6 Trouble shooting
6-1.Compressor parameter
Part Name Check Method and Criterion (Ambient temperature : Room temperature 25°C)
Compressor Model Main wiring Auxiliary wiring
L35C5L 11±10％Ω 7.75±10％Ω
Starter
Model QP2-4.7
Current(max) 10 A
Voltage(max) 180 V
Overload
protector
Model BT48-125A61D2
Open
temperature 125±5℃
Close
temperature 61±9℃

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
12
Issue 2014-8-1
Rev. Ref1407S026V0

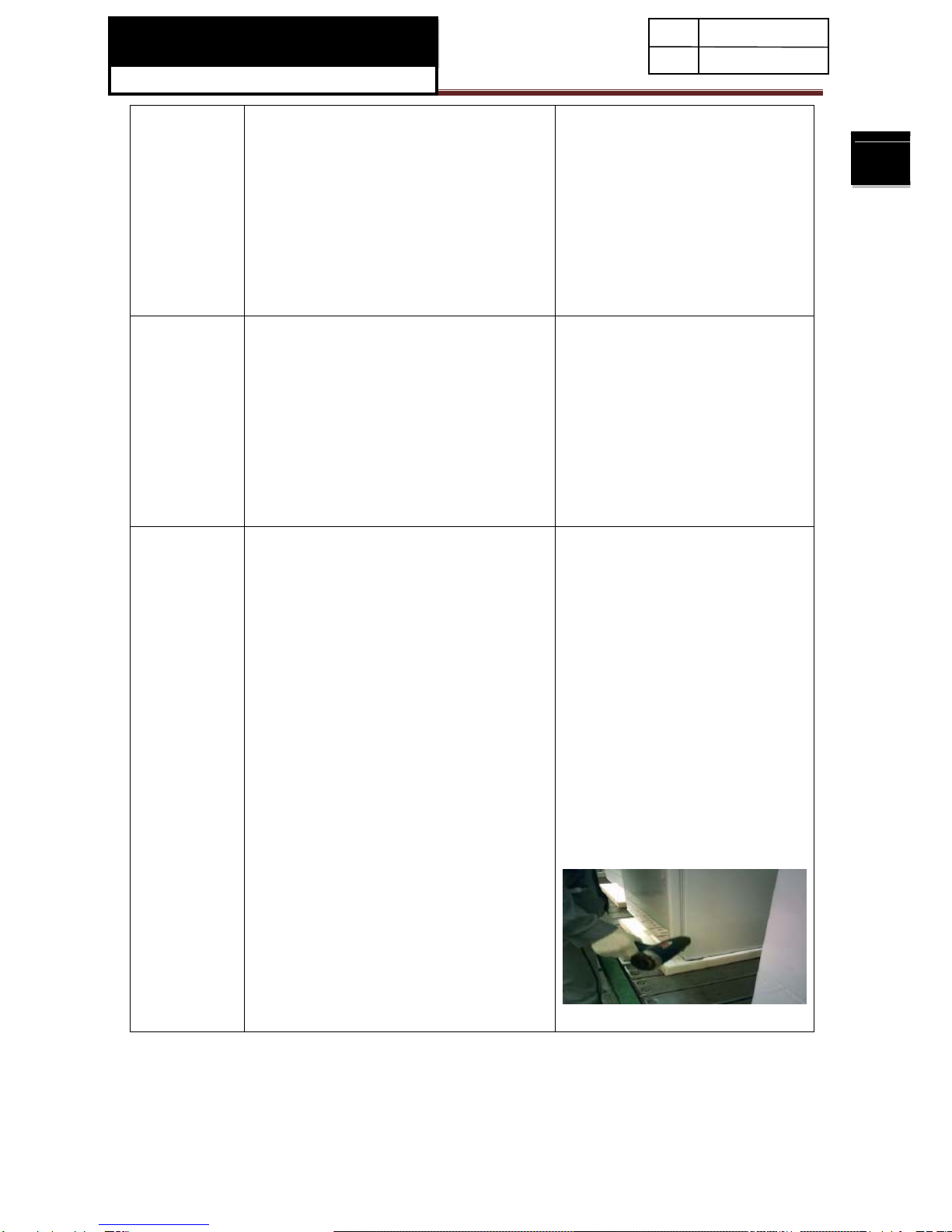

6-2. Normal phenomena
Problems Reasons Solving methods
Compressor
can not be
started
1. Cable broken. The contact of plug,
socket, and cable is broken.
2. The voltage is too low ,and lower than
the rated voltage115V
3. The knob of the thermostat is at “0”
position (When ambient temperature is
higher than “30” degree centigrade ,set the
knob to “1-2” position; When ambient
temperature is between “16-30” degree
centigrade ,set the knob to the “3-4”
position, and when it lower than “16”
degree centigrade ,set the knob to the
“4-5”position)
4. The thermostat is out of order
1. Check and contact normally, or
else, change damaged part.
2. Use until the voltage rise to the
rated voltage ,or attach the voltage
stabilizer
3 Set the knob of the thermostat to
the suitable position
4. Change the thermostat
Compressor
starts too
frequently
1.The distance between protection and the
heater is too close
2.The door gasket does not seal enough or
the cabinet’ heat insulation is not good
3.The setting of the thermostat knob is too
low
1. Adjust the overload adjustable
screw, and increase their
distance.
2. Check and repair the cabinet or
the door gasket.(check if the
door gasket flashed and repair
it )
3. Set the knob of the thermostat
to the suitable position
Compressor
runs without
stopping
1. The refrigerant leakage or insufficient
2. The refrigerant is superfluous
3. The condenser is dirty
4. The refrigerator insulation layer is
destroyed, and the door gasket’ sealing
is bad.
1. Check and find the leakage
point, let out the refrigerant,
then meld it and vacuumed and
fill the refrigerant again.
2. Let out the suitable refrigerant
3. Make sure the condense clean
4. the door gasket.(check if the
door gasket flashed and repair
it )

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
13
Issue 2014-8-1
Rev. Ref1407S026V0
There is noise
when the
compressor
running
1.The fridge body is not stable and in level.
2.When the compressor is running ,there is
friction in tube and fridge that lead to
syntony
3. Compressor fixed screw is too loose
4.The damping washer fixed too tight or
loose or ageing
1.Make the refrigerator stable
2.Move the tube and avoid the
friction (the distance between
tube and tube and side of
cabinet is more than 1cm)
3.Fasten the screw
4.Adjust the fixed angle or
change the damping washer
There is no
frost on
evaporator
1.The refrigerant leakage
2.There is ice block or dirty block in the
capillary or the system.
1.Check and find the leakage point,
let out the refrigerant, then meld it
and vacuumed and fill the
refrigerant again.
2.Clean the system with blowing
nitrogen, change the capillary and
vacuum and fill the refrigerant
again.
No frosting
1. The knob of thermostat is setted too
high
2. The door gasket flashed and lead to the
cold air out of the fridge
1. Change the thermostat (the
method as up saying)
2. Repair the door gasket (Use the
electric blower to move 3~5 times
come-and-go along with the
direction of door gasket, make the
door gasket and cabinet fit well.
Noting: The distance between the
blower air out and the door gasket
is more than 20cm. Do not touch
the door gasket with our hand .And
when blowing the door gasket, pat
the door slightly with our hand.)

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
14
Issue 2014-8-1
Rev. Ref1407S026V0
6-3. No cooling
NO
YES
YES
NO
YES
YES
YES
NO
YES
No cooling
Whether the refrigerator can start Test according to the process of the
refrigerator can not start
Cooling system or drier filter is blocked.
To evacuate and pour the cooling system and
recharge refrigerant again
Whether the temperature of fresh food
compartment do not descend and after a little
minute, it will stop running
Exchange the thermostat
Check whether the working current of
compressor is higher than 120% of
normal operating current If the noise of compressor is loud
Check whether the working current of
compressor is lower than 80% of normal
operating current
The working sound of compressor is small
If compressor can run naturally and temperature
raising of condenser is very low
If the temperature raising of condenser and
drier filter is very low
Both high-pressure pipe and low-pressure pipe
temperature are same as the ambient temperature
Refrigerant leak, check and
repair charge refrigerant again.
Compressor defect and change it
YES
YES
NO
YES

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
15
Issue 2014-8-1
Rev. Ref1407S026V0
6-4. Refrigerator compressor no start
Compressor no working
Check if the home power
is conduct Connect the power
NO
YES
Check if thermostat is set
at “0” YES Adjust thermostat setting position
NO
Check if the thermostat is
normal
Test if the thermostat is normal under power on status:
Method-1: Setting thermostat to coldest position (7 grade), observe if the machine can be
started. If compressor still not start, it means that the thermostat maybe failure.
YES
Check if the PTC starter is
normal?
Test if resistance of PTC starter, if it is ZERO or INFINITE, means the starter is out of
work. For PTC starter, when shake it, it should not have noise, if it has, means the
starter Magnetic Disk burned.
YES
Check if the overload
protector is normal?
1. Measure whether two ends of overload protector is through
using multimeter Ohm grade. Not through means protector is
defective.
2. Measure running current of compressor using clamp-type
tester. If overload protector act when current is normal, means
protector failure and should be replaced.
YES
Check if each connector of PTC
starter overload protector is in
good condition?
Check each connectors of the PTC starter and overload
protector, ensure each contact is in good condition, then
power on and retest the machine.
NOT NORMAL Compressor
accessories
failure
Compressor
accessories
failure
NOT NORMAL

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
16
Issue 2014-8-1
Rev. Ref1407S026V0
YES
Check if the compressor is
normal ?
YES
Check if the starting current of
compressor excess too much?
Test the resistance parameter of the compressor; if it
is ZERO, inner winding is short circuit. If it is
infinite, inner winding is break circuit
If all technical parameter of compressor and
compressor accessories (PTC starter, overload
protector, run capacitor) are normal after above test,
but compressor still can not be started, and overload
protector action, the actual starting current excess
too much. This phenomenon usually caused by
compressor inner mechanical failure (cylinder-block
or axis-hung problem).

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
17
Issue 2014-8-1
Rev. Ref1407S026V0
6-5.Noisy
Compressor-self nois
Noisy
Whether has exterior
influence factor?
Whether the sound is normal?
No
i
se
type
Com
p
ressor noise
Is there collision between
compressor/pipe/compressor
su
pp
ort bracket/drain
p
i
p
es?
Whether the compressor
fixing clips or bolts are loose
Whether the damper block of
compressor is disabled or no
flexibilit
y
?
Whether terminal box is
fixed ti
g
htl
y
?
Compressor-self noise
Relay sound
Compressor
starter noise
Replace
starter
Cooling system noise
Wind blow
sound
Rumble
sound
Refrigerant
eruption
sound
Is the
rumble
sound big?
Whether the
pipeline
does
resonate?
The
capillary
tube is not
smooth or
has burr.
Is the freezing
evaporator is
fixed tightly?
Refilling
Add shock damper glue
or fix the evaporator
tightly.
Adjust distance
to more than
5mm
Adjust and fix bolts
or fixing clip
Replace rubber
damper cushion
Adjust and fix
Adjust pipeline, or add shock
dam
p
er
g
lue
Adjust appliance and
explain to user
Explain to user
Exterior factor and solution measure ：
1. The adjustable foot is not level.--Explained the ground
is uneven, user can use spanner adjust refrigerator food,
locates the refrigerator in the horizontal position
2. The refrigerator and other goods bump or near to the
wall--The user may move the goods which bumps or
adjust the distance between refrigerator and wall
(10-20cm)
YES
YES
NO
NO
NO
NO
NO
YES
YES
YES
YES
NO
YES YES
YES
NO
NO
YES
YES
YES

.
SERVICE
MANUAL
Model: HC17SG42RB/HC27SG42RB
18
Issue 2014-8-1
Rev. Ref1407S026V0
Sincere forever
Haier Group
Haier Industrial Park, No.1, Haier Road
266101, Qingdao, China
http://www.haier.com
