Haier HSBS582AW User manual

Inspired living
Refrigerator/Freezer Combi
User's Guide
Thank you very much for choosing to purchase a Haier-brand refrigerator.
This User's Guide will help you properly install and operate your newly acquired
appliance.
For future reference, please write down the model and serial number in the spaces
provided below.
You can retrieve that information from the product label attached to the inside of
the refrigerator.
Model number:
Serial number:
Date of purchase:
*=blank WW HS SS
HRF-660S
HSBS582AS
HRF-663DTA2*
HRF-663DTB2*
HRF-663DSA2*
HRF-663DSB2*
HRF-660SAA
HSBS582AW

Before operation
Notes on the refrigerator compartment
Notes on the freezer compartment
Defrosting Cleaning Inoperation
Troubleshooting & Customer Service
Components ....................................................................................1
Precautions...................................................................................2-4
Preparations..................................................................................5-6
Door removal................................................................................7-8
Setting up the Refrigerator/Freezer Combi .....................................9
Start-up..........................................................................................10
Digital display operation ..........................................................11-13
Refrigerator compartment........................................................14-16
Notes on refrigeration ...................................................................17
Tips on refrigeration ......................................................................18
Freezer compartment.....................................................................19
Notes on freezing ..........................................................................20
Defrosting......................................................................................21
Cleaning ........................................................................................21
Inoperation ...............................................................................22-23
Troubleshooting .......................................................................24-25
Customer service ......................................................................26-27
Contents
Before start-up, be sure to read the User's Guide.
Keep the User's Guide in a safe place.

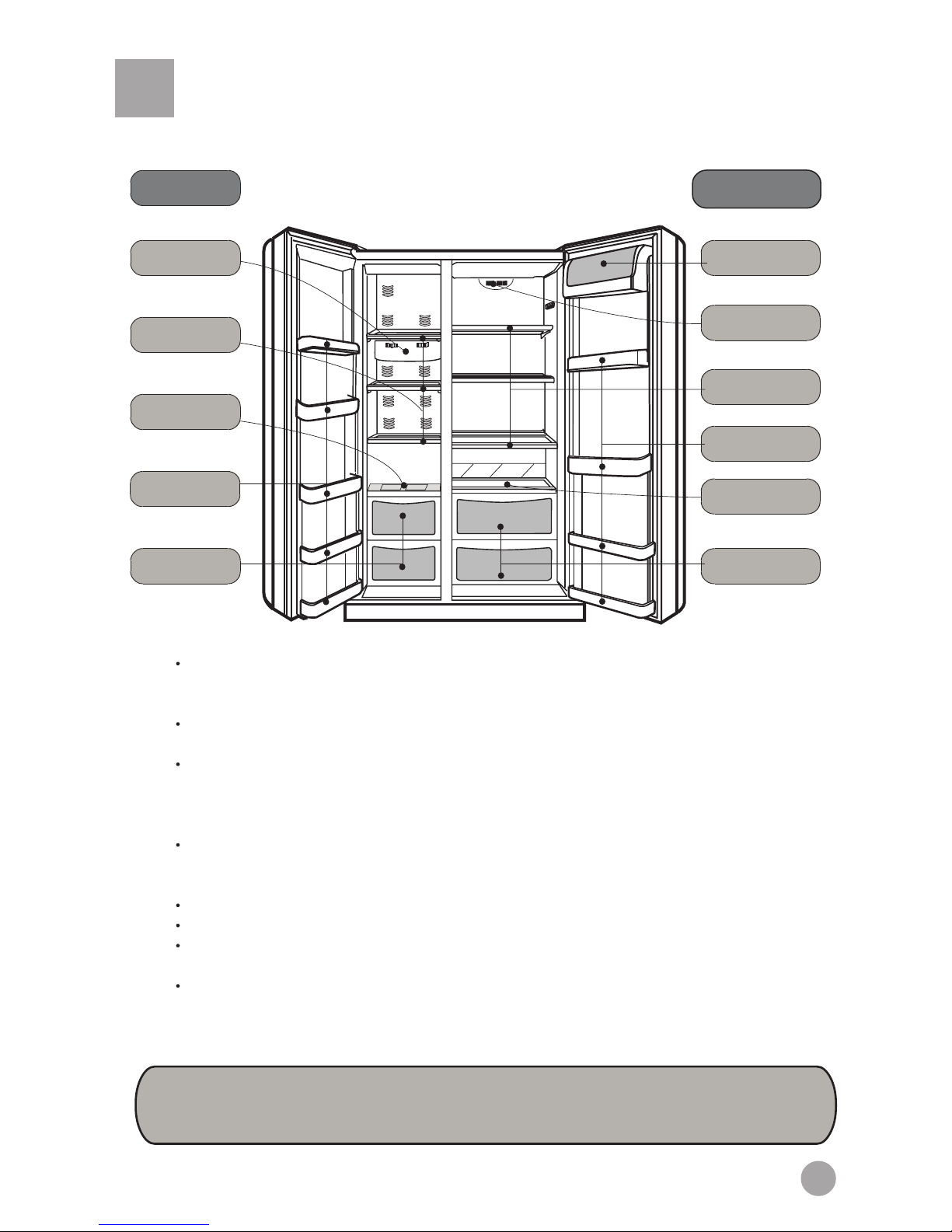

Components
Freezer
Light
Shelves
Bottle rack
Freezer drawers
Refrigerator
compartment
Veggie drawer cover
Note
The power plug must remain accessible after setting up the appliance.
Should the refrigerant circuit have been damaged, keep away all sources of fire or sparks and
thoroughly air the room.
Do not use any mechanical or artificial devices or any tools other than those recommended by the
maker in order to accelerate the defrosting process.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Check the appliance for damages sustained during transportation. Do not connect the appliance if
it is damaged. In case of damage, contact your supplier.
Make sure that no part of the refrigerant circuit is damaged when transporting and setting up the
appliance.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
To prevent damage to the appliance, its ventilation openings must not be covered or blocked.
Do not operate any electrical devices inside the food storage area, unless instructed to do so by
the maker.
Our company continually thrives towards improving all models and versions. For that
reason, we hope that you can accept our right to change their appearance, equipment or
operation.
Shelves
Bottle cover
Light
Bottle rack
Veggie drawer
1
Ice tray

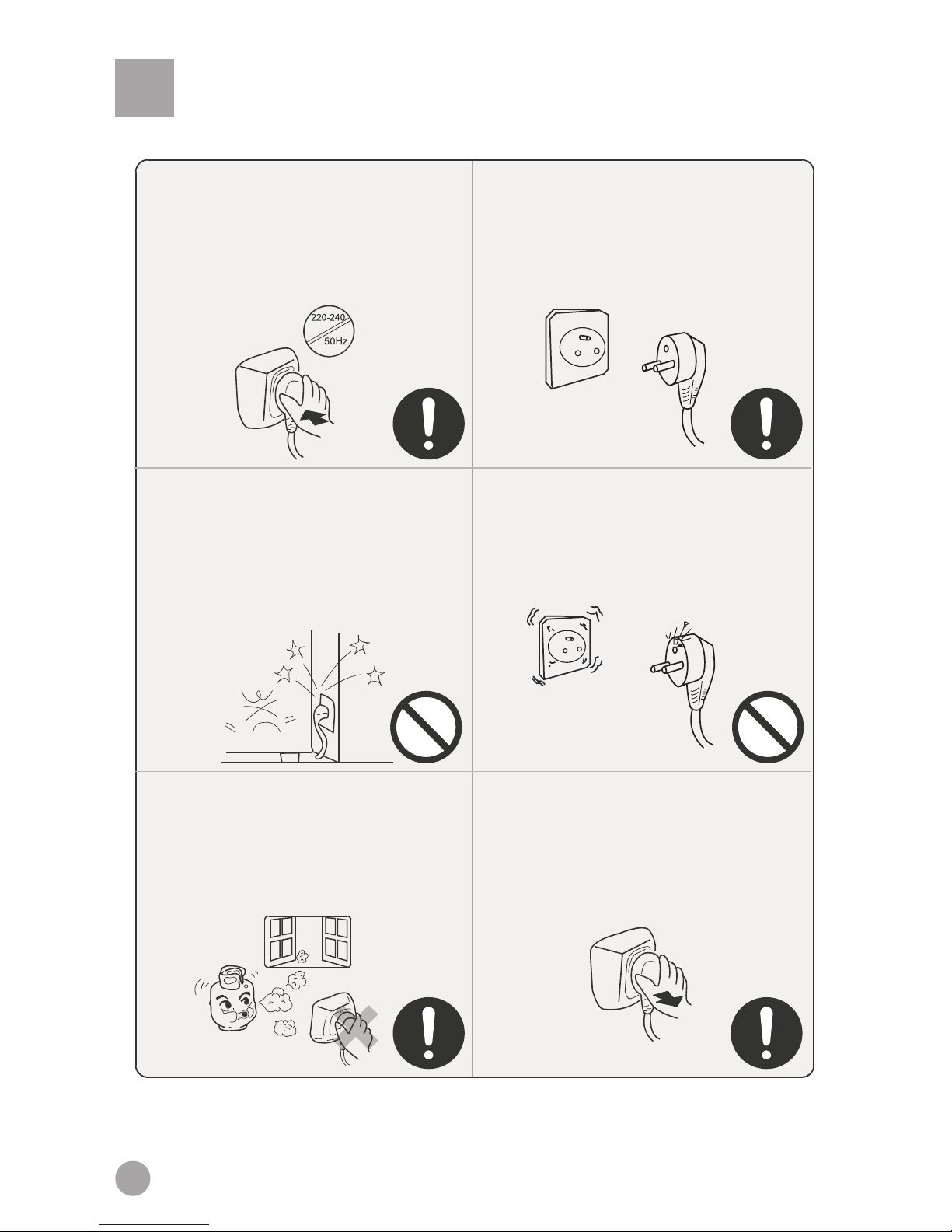

Precautions
This appliance requires a 220-240V/50Hz power
supply.
If the voltage is outside of the 187-242V range,
malfunctions and damages of the controls,
thermostat or compressor may result, unless a
regulator of at least 750W was installed.
A dedicated grounded outlet is required. The
appliance is equipped with a standard
shockproof plug, whose grounding should not be
disabled. The power plug of the appliance
should always be accessible.
Do not damage the power cord.
*Never pull the plug out by the cord; always
grab and pull the plug
*Do not place the power cord under the
appliance or walk on it.
*Be sure not to damage the power cord when
moving the appliance away from the wall.
If the power cord is damaged or the plug cracked
or worn, the power cord must be replaced with a
matching one, available from the maker or their
customer service. The power cord may only be
replaced by the maker, their customer service or
an equally qualified person.
In the case of a gas or other flammable leak:
*Close the valve.
*Open the doors and windows.
*Do not pull out or insert the power cord of the
appliance.
Pull out the power plug:
*Before cleaning or repair
*When replacing a burned-out bulb
2

Precautions
Never place flammable, explosive or corrosive
materials in the refrigerator.
This appliance is intended strictly for storing
and freezing foods. It is not suitable for storing
such things as vaccines, bacteria or chemical
samples, which have demanding temperature
requirements.
Do not store fuel and other flammable products
near this appliance.
Do not put microwave ovens, voltage
regulators or power strips on this appliance. Do
not operate electrical devices and such inside
the refrigerator (except if instructed to do so by
the maker).
To avoid injuries, do not let children climb on
or hang from the appliance door.
Once the appliance has been started up, do not
touch the inside of the freezer compartment
with wet hands, otherwise they may get stuck
on the surface.
3

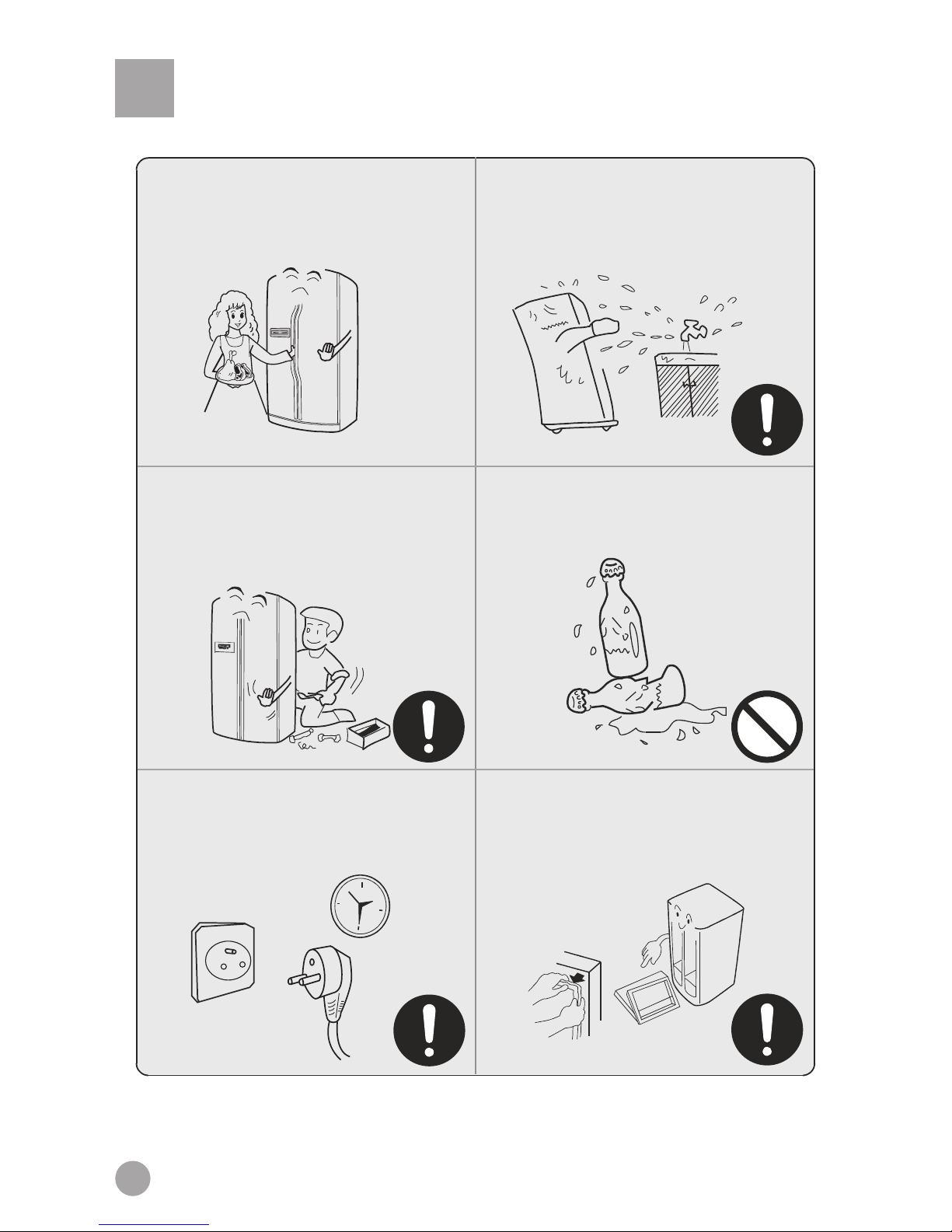

Precautions
To avoid injury, keep fingers away from the
door crack when opening or closing the doors.
Keep children away from the appliance doors
being opened and closed.
Do not pour water onto the appliance or set it up
in wet areas.
Refrigerators may only be repaired or altered by
professionals. Improper repair may cause
considerable damage. Please contact your dealer
or our customer service should your appliance
require repair or modification.
Keep bottles and tins out of the freezer. They
could burst when the content freezes.
Pull out the power plug in the case of a power
outage, repair or cleaning.
When disposing of the appliance, remove the
door or door seal and shelves to prevent playing
children from locking themselves in and putting
their lives at risk.
4

Preparations
5
Unpacking
Remove the entire packing material,
including the foam underlay and pieces of
tape used to hold accessories in place.
Separating and counting the
included accessories.
Check the items in the box against the
packing list.
In case of a mismatch, please contact
your supplier.
Setting up the appliance in a suitable
area.
(Details under “Setting up”.)
Attaching the toe moulding
Open the refrigerator and freezer
doors, remove the moulding from
the refrigerator compartment, and
then affix it as shown in the
illustration.
Cleaning interior
It is recommended to clean the interior before
starting up the appliance. (Details under
“Cleaning”.)

Preparations
6
Standing still
After cleaning, let the appliance stand still for at
least six hours before turning it on to start it up.

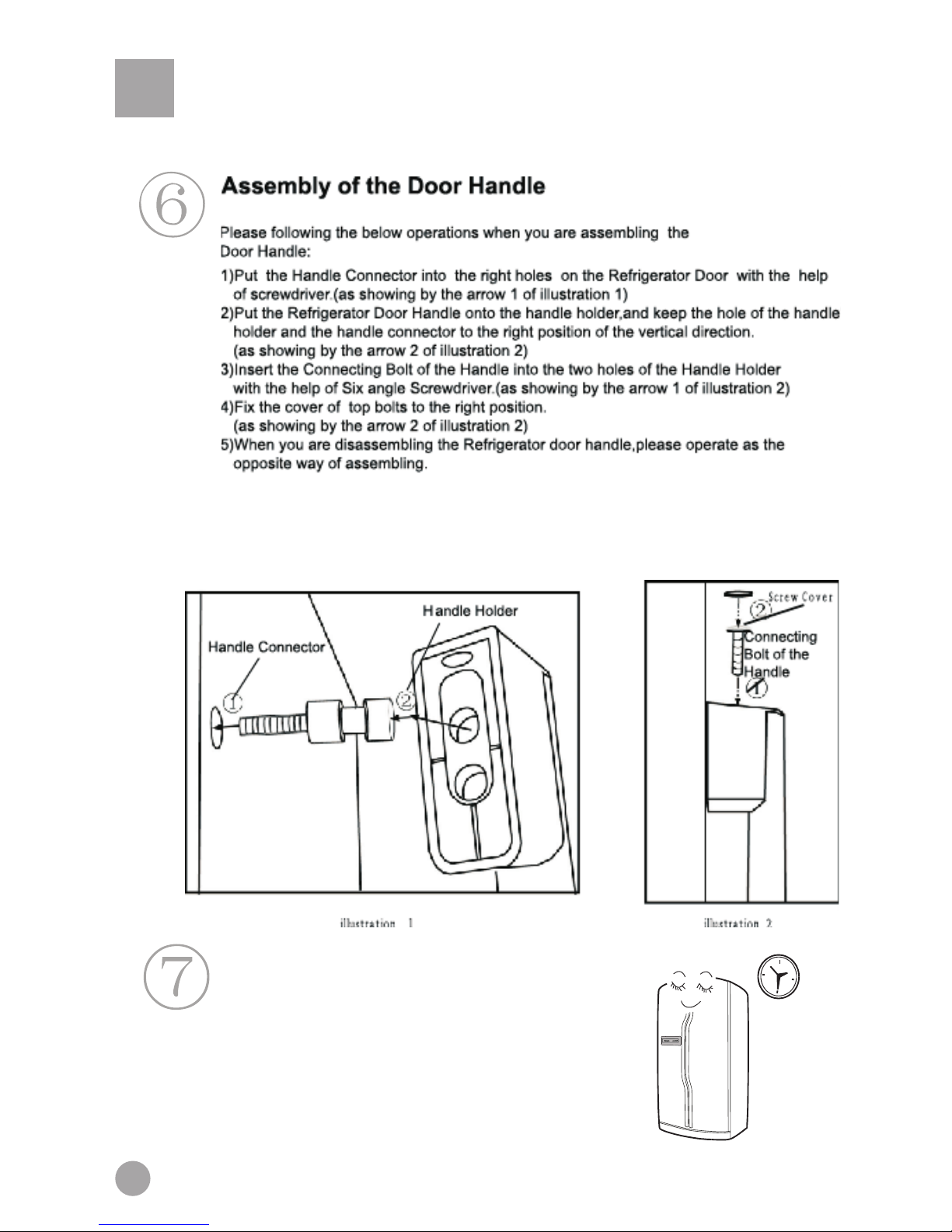

Attention:
Please do not disassemble the door handle. Any modifications must be done by a
qualified technician.

Door removal
Removing the door
If your house door is too narrow, remove the refrigerator door and carry the
refrigerator in narrow side first.
Remove the toe moulding.
Toe moulding
Remove the freezer compartment door.
1) Unscrew the hinge covers. Disconnect
all wires except for the grounding wire.
2) Remove the screws from the upper
hinge following the direction as indicated
by Arrow (1). Then remove the upper
hinge following the direction as indicated
by Arrow (2).
3) Lift the freezer compartment door to
remove it.
Hinge cover
Wires
Upper
(hinge)
Grounding wire
Upper hinge
Screw
Lower
hinge
7

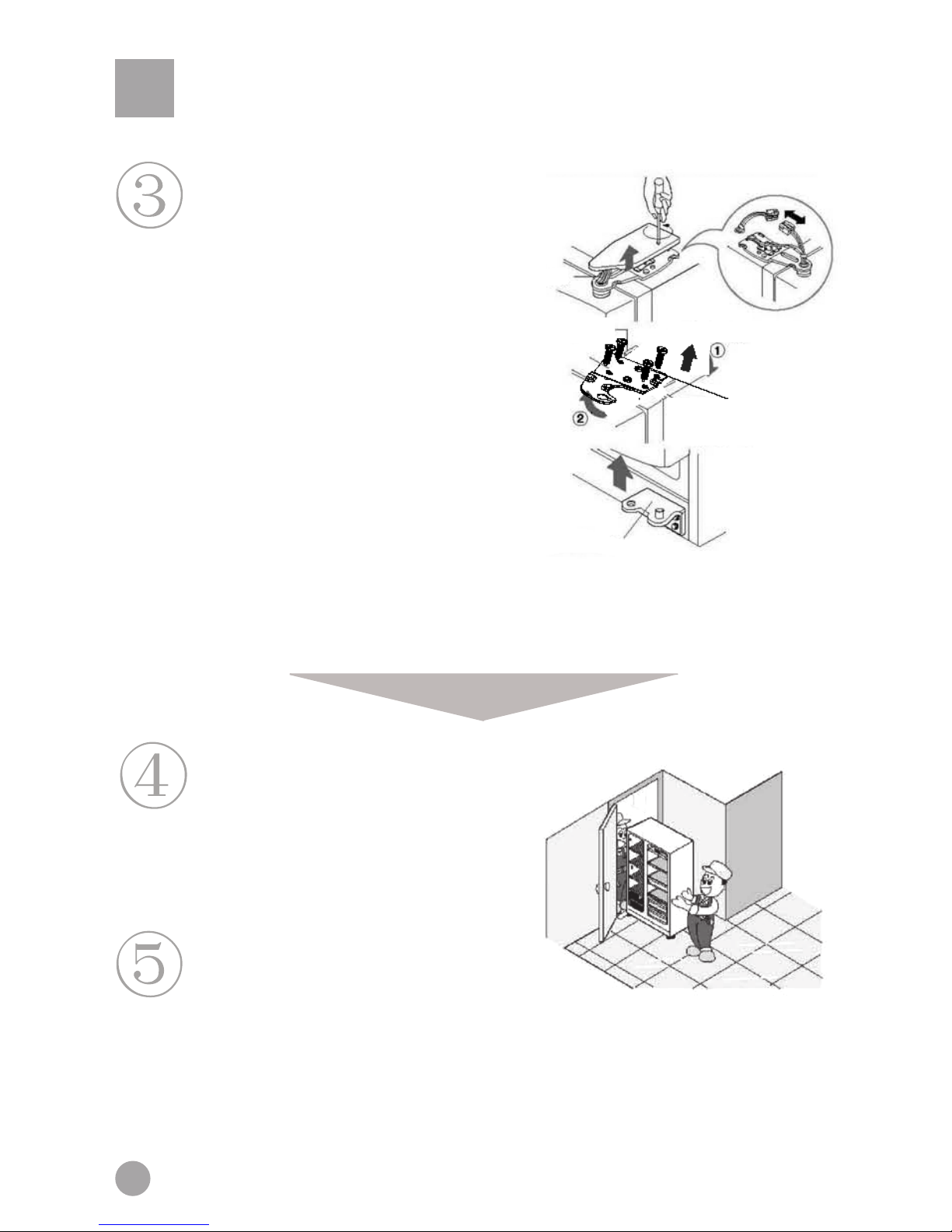

Door removal
Remove the refrigerator
compartment door.
1)Loosen the hinge cover bolts, and then
remove the cover.
3)Lift the refrigerator compartment door to
remove it.
2) Remove the screws from the upper hinge
following the direction as indicated by
Arrow (1). Then remove the upper hinge
following the direction as indicated by
Arrow (2).
Wires
Upper hinge
Screw
Lower hinge
Slide the refrigerator through the
door opening.
Slide the refrigerator through the door
opening as shown in the illustration.
Reinstall the door.
Bring the doors in the house, and then
reinstall them by reversing the removal steps.
8

Setting up the Refrigerator/Freezer Combi
Be sure to choose a flat and level setup location.
Use sturdy and fireproof supports to correct an
unevenness in the floor. Turning an appliance
foot clockwise raises the appliance, turning it
anticlockwise lowers the appliance.
Door adjustment
If the freezer compartment door is lower than
that of the refrigerator compartment, insert the
wrench in the groove of the left screw and turn it
in the direction of the arrow until both doors are
the same height. Height difference
Height
difference
Wrench Left screw
Protect the setup location against direct sunlight
or heat sources.
If the freezer compartment door is lower than
that of the refrigerator compartment, insert the
wrench in the groove of the left screw and turn it
in the direction of the arrow until both doors are
the same height.
Height difference
Height
difference
Wrench
Right bolt
Avoid a damp setup location. Remove water
and dirt with a soft rag.
Be sure to leave at least 10 cm of space around
the appliance. When installing the appliance in
an enclosed area, leave at least 25 cm of space
on the sides and 5 cm on the top and back.
Spacing
9

Start-up
Power connection
After connecting it to the power, the appliance is automatically set to the
Intelligent mode.
This appliance has a memory function which, in the event of a power failure,
automatically stores the operating mode that was last used and restores it when
the power is turned on again.
Operating modes
Recommendation:
The Intelligent mode allows the appliance to
achieve optimal cooling temperatures, regardless
of ambient temperature variations.
Choose one of the following two operating modes.
(1)Intelligent mode: If there are no special requirements, it is recommended to choose the
Intelligent operating mode. Press the Intelligent key once; the indicator lights up and the
appliance is started automatically. (Details in the “Features” section.)
(2)Manual mode: Make manual temperature settings using the temperature adjustment keys.
Loading foods
Operate the refrigerator empty for a while. Start
loading the refrigerator with foods only after it has
sufficiently cooled down.
Please note that changes in the temperature settings come into effect slowly.
This depends on variations of the ambient temperature, how frequently the
door is opened and the amount of foods loaded.
10

FUZZY Quick. FRZ FRZ. Temp REF. Temp
FUZZY Quick. FRZ FRZ. Temp REF. Temp

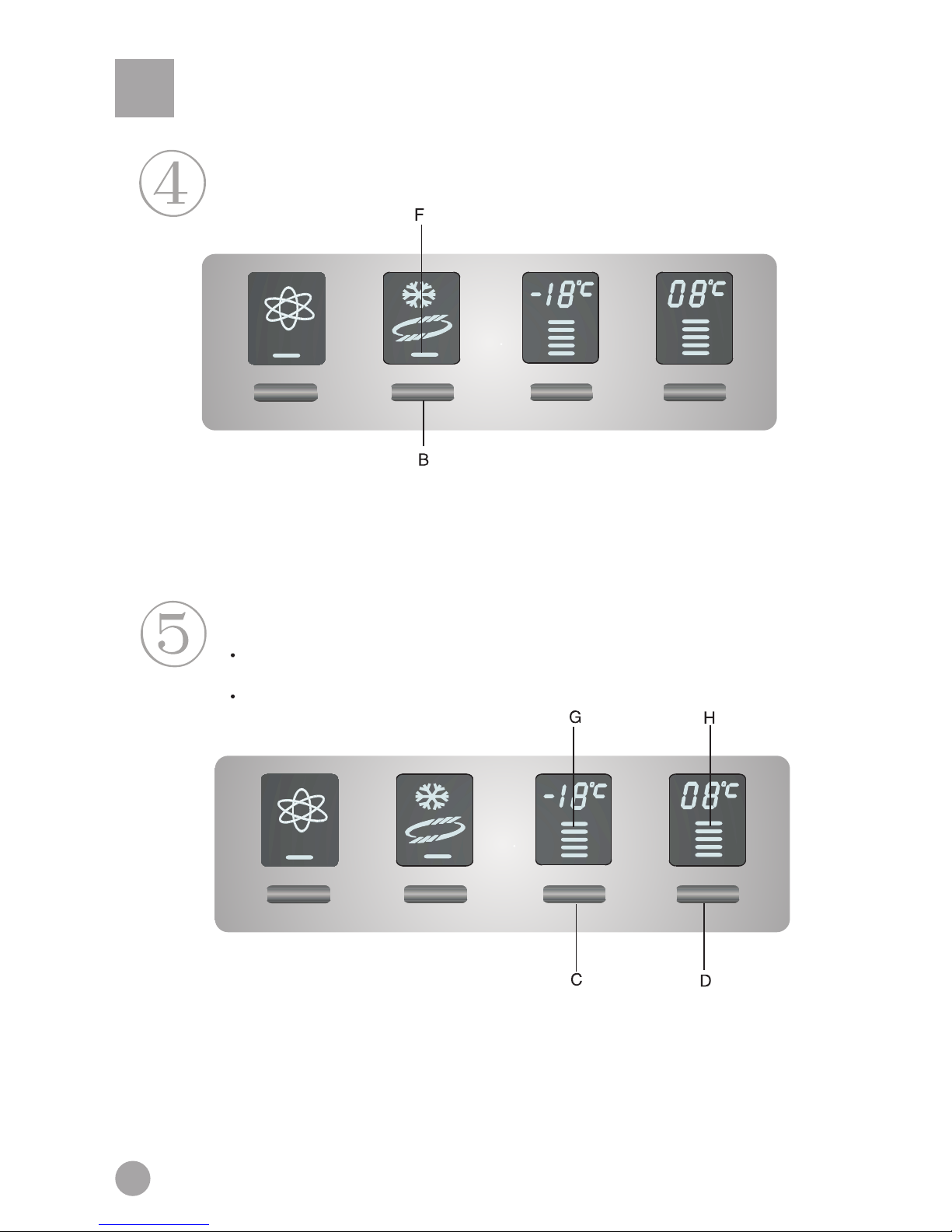

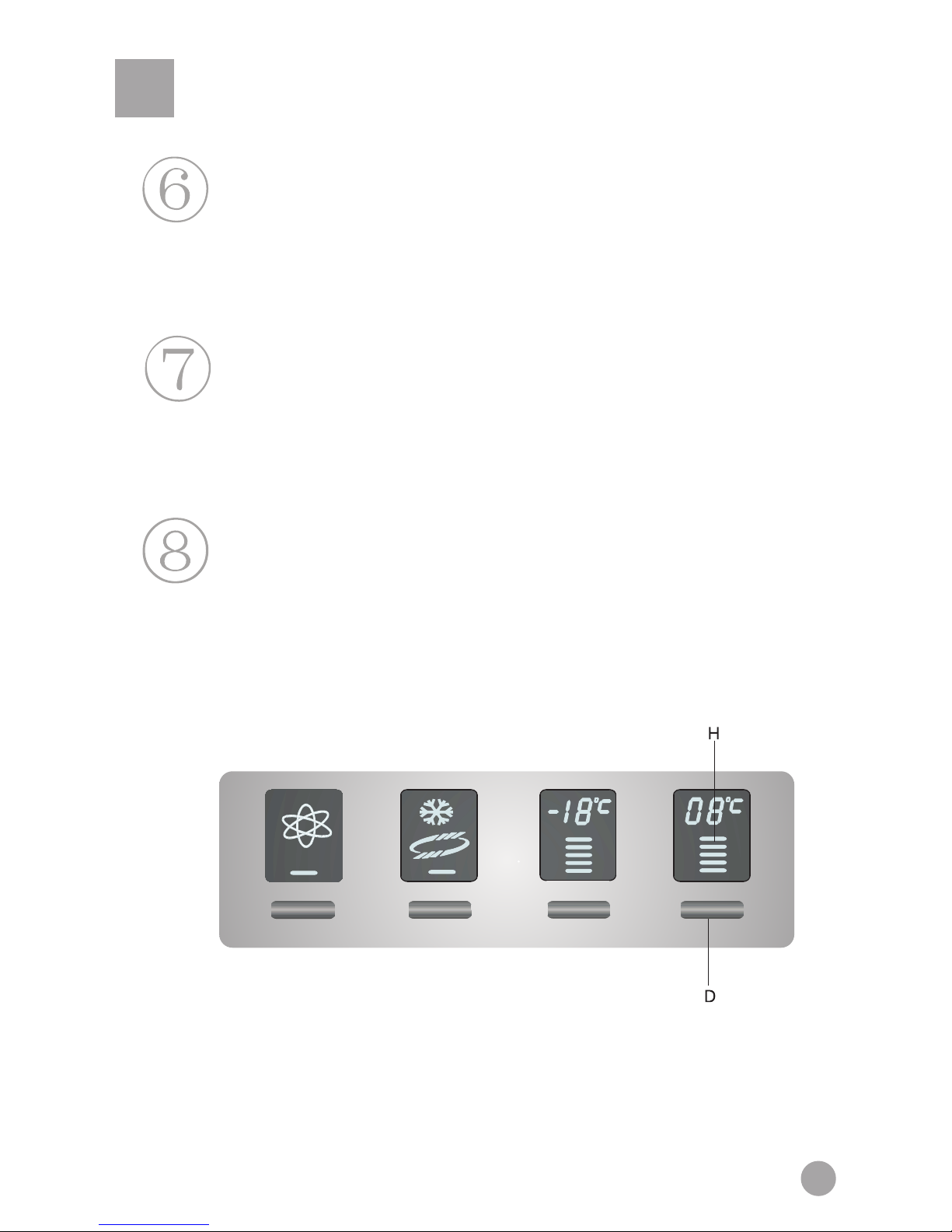

Digital display operation
Control panel
E.Intelligent mode indicator
F.Superfrost indicator
G.Freezer temperature display
H.Refrigerator temperature display
A.Intelligent mode key
B.Superfrost key
C.Freezer temperature adjustment key
D.Refrigerator temperature adjustment key
Intelligent mode
In the Intelligent operating mode, the temperature inside the appliance is adjusted
automatically according to variations of the ambient temperature. Press key A once, upon
which indicator E lights up and Intelligent mode is entered. Press key A once again, upon
which indicator E goes off and Intelligent mode is cancelled.
Malfunction indicator
In the event of major or minor control malfunctions, the freezer and refrigerator
temperatures are not displayed. Contact customer support if necessary.
11

FUZZY Quick. FRZ FRZ. Temp REF. Temp
FUZZY Quick. FRZ FRZ. Temp REF. Temp
Superfrost
It has been scientifically proven that a Superfrost type device is necessary to freeze foods
quickly and thoroughly. Press key B, upon which indicator F lights up and the Superfrost
action is turned on. Press the key again to turn off the Superfrost action, upon which
indicator F goes off. (In Intelligent mode, it is not necessary to turn on Superfrost.)
Temperature adjustments
At start-up, the Intelligent operating mode is selected. Press the Intelligent
mode key to cancel the Intelligent operating mode.
Temperature adjustment (requires the Intelligent mode to be cancelled)
Refrigerator temperature adjustment: Press key D, upon which indicator H starts blinking.
Each time key D is pressed, the temperature setting is increased by one of level from 1 to 5
(3 °C). If you keep pressing key D, the cycle starts over again from level 1 (7°C).
Freezer temperature adjustment: Press key C, upon which indicator G starts blinking. Each
time key C is pressed, the temperature setting is increased by one level from 1 to 5 (-22 °C).
If you keep pressing key C, the cycle starts over again from level 1 (-15°C).
Digital display operation
12

FUZZY Quick. FRZ FRZ. Temp REF. Temp
Open-door buzzer warning
A buzzer sounds intermittently when the door is left open permanently or is not
closed properly.
Display control
30 minutes after the last key operation the display is turned off. The display is re-
activated as soon as a key is pressed or an appliance door is opened.
Activating/Deactivating the refrigerator
The refrigerator is deactivated by holding key D (refrigerator temperature
adjustment) firmly pressed for three seconds. Indicator H (temperature and level)
goes off, but the light in the refrigerator compartment remains operational. The
refrigerator is re-activated by holding key D firmly pressed again for three
seconds. The refrigerator is re-activated and indicator H is turned on.
Digital display operation
13

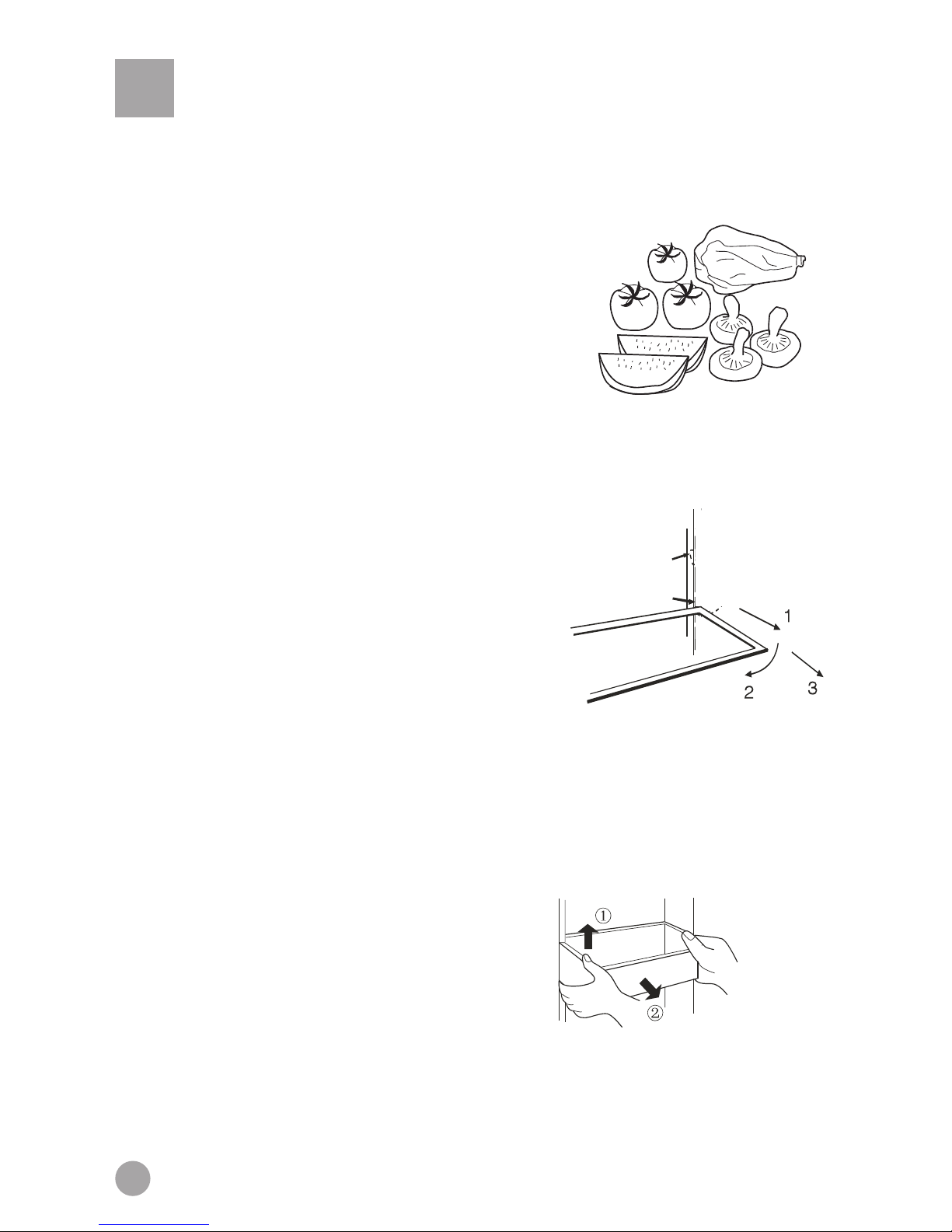

Refrigerator compartment
Using the refrigerator compartment for short-
term food storage
The average refrigerator temperature of 0 °C-10 °C is not
low enough for long-term storage of foods; it is suitable
only for short-term food storage.
Adjusting the height of glass shelves
The shelves are height-adjustable to accommodate
various item sizes.
The shelves can be taken out for height adjustment and
cleaning. To clean a shelf, pull it in direction 1, and
then tilt it in direction 2 until it is in a vertical position.
Finally, remove the shelf in direction 3. To remove a
shelf, the appliance door must be open 90º.
Adjusting and cleaning bottle rack
Hold both sides of the bottle rack and pull it out in
directions (1) and (2).
Frozen foods (such as ice cream) should not be
placed in the bottle rack but rather inside the freezer
compartment to avoid that they spoil as a result of
being exposed to the temperature changes from
opening and closing the door.
After cleaning, re-place the bottle rack or adjust its
position.
Caution:
14

Refrigerator compartment

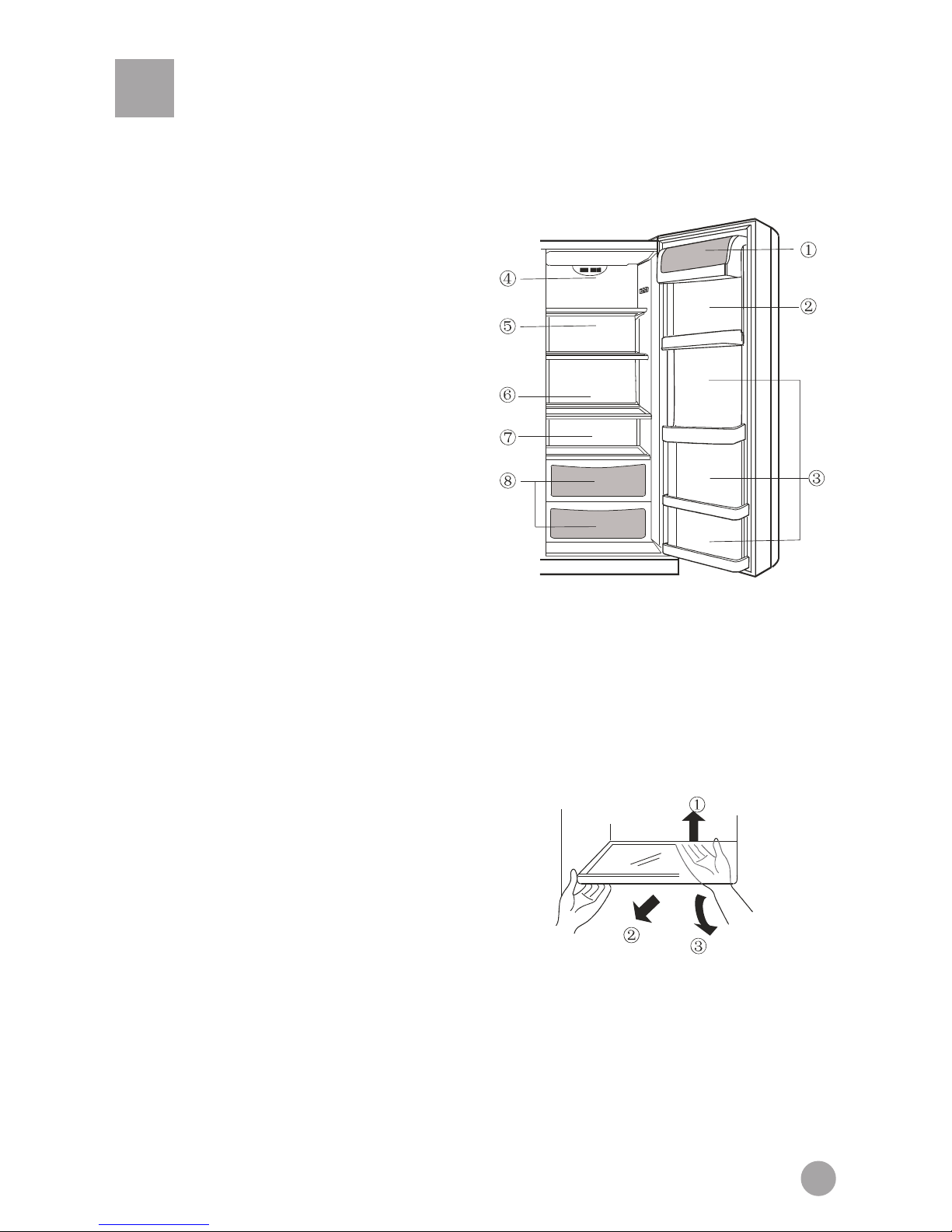

Stocking example
Foods should be grouped according to
the various temperature ranges in the
refrigerator compartment.
(1) Eggs, butter, cheese
(2) Tinned drinks and foods, seasonings
(3) Drinks, bottles
(4) Preserves
(5) Meats
(6) Flours, preserves, milk
(7) Processed meats, sausage
(8) Fruits, vegetables, lettuce
Removing the veggie drawer cover
First, lift the rear of the shelf in direction (1), and
then pull the shelf out in direction (2). Finally, tilt
the shelf in direction (3) and remove the veggie
drawer once the door is open 90º.
15

Refrigerator compartment
Using the veggie drawer
The appliance is equipped with a veggie drawer
suitable for keeping fruits and vegetables. The
humidity level in the veggie drawer is adjustable.
Reducing or closing the opening increases the
humidity inside the veggie drawer, which is
desirable for keeping cucumbers, grapes, kiwi,
plums, etc.
Increasing the opening reduces the humidity
inside the veggie drawer, which is suitable for
keeping strawberries, mandarins, beans, garlic,
water melon, plums, tomatoes, etc.
Make sure that the front of the veggie drawer
cover is located on the inside of the veggie drawer.
Remove the veggie drawer before removing its
cover.
Installation is reversed.
Replacing the bulb at the top of refrigerator
compartment
Bulb specifications: 220-240 V / 25 W
Socket: E27 (Do not use a replacement bulb of more
than 25 W.)
Replacing the bulb
Install the bulb.
Unplug the power cord.
Remove the screws under the cover.
Lift the cover in direction (1), and then pull it out in
direction (2).
16

Notes on refrigeration
Let warm foods and drinks cool down to room
temperature before putting them in the
refrigerator compartment.
Wash and dry off fresh foods before storing
them.
Pack the food into portions suitable for your
household. Place the foods that will be
consumed the soonest towards the front so as
not to leave the appliance door open longer
than necessary.
Pack and seal foods before storing them. This
prevents drying and odour dissipation.
Do not overstock the refrigerator.
Be sure to leave space between foods and between the foods and the interior compartment walls.
17

Tips on refrigeration
Remove the leaves of root vegetables to
prevent them from absorbing the nutrients. Thawing frozen foods inside the refrigerator
helps conserve energy.
Items not requiring refrigeration: Onions,
peppers, garlic, ginger.
Items not suitable for refrigeration: Gourds,
melons, bananas, pineapple. Refrigeration
promotes their decomposition. Do refrigerate
unripe fruits.
Caution: Do not use the egg tray as an ice cube tray and never place it in the freezer or
Superfrost area to prevent it from cracking.
18
