Haier HLC1700AXW User manual

Haier
User Manual
Guide de I'Utilisateur
Manual del Usuario Modelo
HLC1700AXW
Combination Front-Load
Washer and Ventiess Dryer
Laveuse-se heuse ombinee a hargement
frontal sans onduit d'eva uation
Combina ion de iavadora de arga
frontal y se adora sin veotiia idn
Designed for
High-Effi ien y,
use HE detergent.
Con^ue pour
haute effi a ite,
utiliser un
detergent HE.
Disenada pan un
alta efi ien ia, use
detergente HE
(Aita efi ien ia).

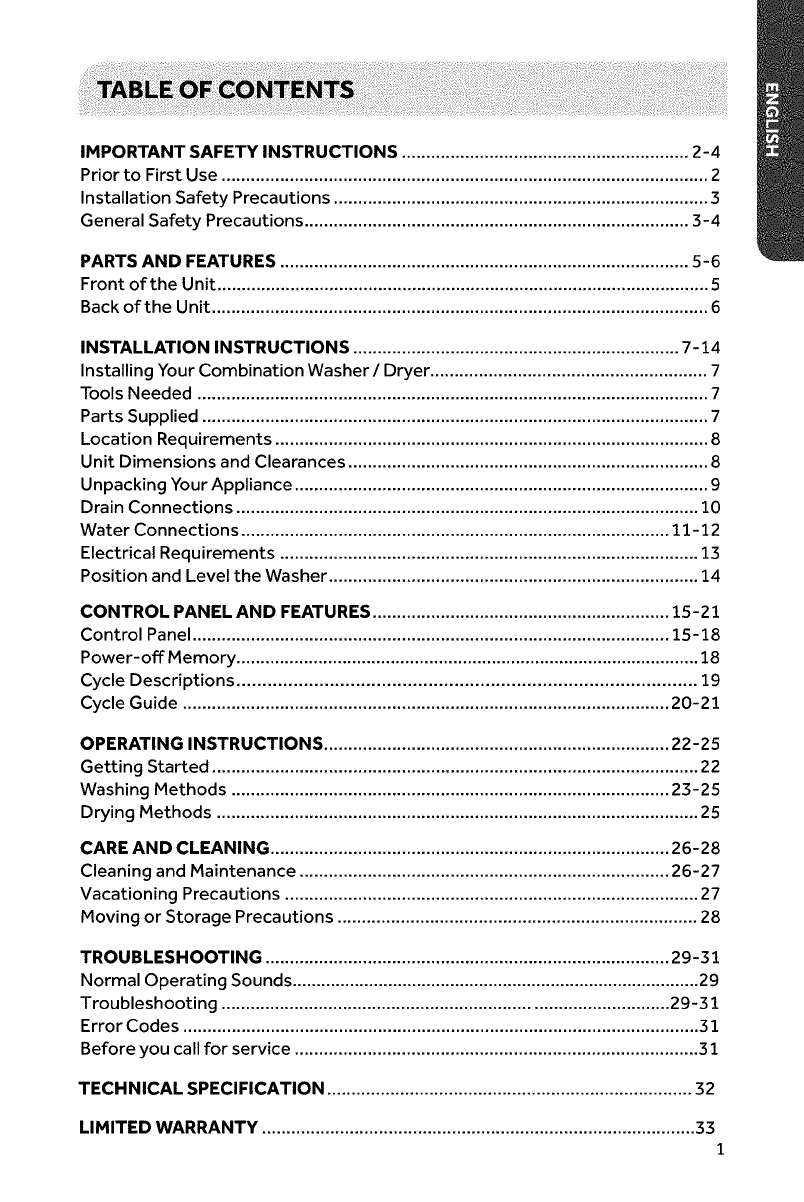

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ............................................................. 2-4
Prior to First Use ....................................................................................................... 2
Installation Safety Precautions ............................................................................... 3
General Safety Precautions .................................................................................. 3-4
PARTS AND FEATURES ....................................................................................... 5-
Front of the Unit ........................................................................................................ 5
Back of the Unit ..........................................................................................................
INSTALLATION INSTRUCTIONS ..................................................................... 7-14
Installing Your Combination Washer / Dryer ........................................................... 7
Tools Needed ............................................................................................................. 7
Parts Supplied ............................................................................................................ 7
Location Requirements ............................................................................................ 8
Unit Dimensions and Clearances ............................................................................ 8
Unpacking Your Appliance ........................................................................................ 9
Drain Connections .................................................................................................. 10
Water Connections ........................................................................................... 11-12
Electrical Requirements ......................................................................................... 13
Position and Level the Washer ............................................................................... 14
CONTROL PANEL AND FEATURES ............................................................... 15-21
Control Panel ..................................................................................................... 15-18
Power-off Memory .................................................................................................. 18
Cycle Descriptions .................................................................................................. 19
Cycle Guide ....................................................................................................... 20-21
OPERATING INSTRUCTIONS ......................................................................... 22-25
Getting Started .......................................................................................................22
Washing Methods ............................................................................................. 23-25
Drying Methods ...................................................................................................... 25
CARE AND CLEANING ..................................................................................... 2 -28
Cleaning and Maintenance ............................................................................... 2 -27
Vacationing Precautions ........................................................................................ 27
Moving or Storage Precautions .............................................................................28
TROUBLESHOOTING ...................................................................................... 29-31
Normal Operating Sounds ...................................................................................... 29
Troubleshooting ............................................................................................... 29-31
Error Codes ............................................................................................................. 31
Before you call for service ..................................................................................... 31
TECHNICAL SPECIFICATION .............................................................................. 32
LIMITED WARRANTY ............................................................................................ 33
1
ENGLIS

IMPORTANT SAFETY
INSTRUCTIONS
PRIOR TO FIRST USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill
or hurt you and others.
All safety messages will follow the safety alert symbol and either
the word' DANGER'or' WARNING '. These words mean.
A DANGER
An imminently hazardous situation.
You an be killed or seriously
injured if you don't immediately
follow instru tions.
A WARNING
A potentially hazardous situation
whi h, if not avoided, ould result in
death or serious bodily injury.
A CAUTION
A potentially hazardous situation
whi h, if not avoided, may result in
moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions
are not followed.
A WARNING
To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, follow basic precautions, including the following.
• Read all instructions before using the appliance.
• Use this appliance only for its intended purpose as described in
this use and care guide.
• Do not use this appliance for commercial clothes washing.
2

• Under certain conditions, hydrogen gas may be produced in a hot
water system that has not been used for 2 weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a washing machine, turn
on all hot water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas.
As the gas is flammable, do not smoke or use an open flame
during this time.
INSTALLATION SAFETY PRECAUTIONS
A DANGER
Suffocation Hazard
Risk of child entrapment. Before you throw away your old appliance, take
off the door so that children may not easily get trapped inside.
• Do not allow children to play on or in the appliance. Close supervision
of children is necessary when the appliance is used near children.
• This appliance must be properly installed in accordance with the
installation instructions before it is used.
• Do not operate your appliance when parts are missing or broken.
• Do not install or store this appliance where it will be exposed to
the weather.
• Do not operate this appliance unless all enclosure panels are
properly in place.
• This appliance must be connected to proper electrical outlet with
the correct electrical supply.
• Proper grounding must be ensured to reduce the risk of shock and
fire. DO NOT CUT OR REMOVE THE GROUNDING PLUG. If you
do not have a three-prong electric receptacle outlet in the wall,
have a qualified electrician install the proper receptacle. The wall
receptacle MUST be properly grounded.
GENERAL SAFETY PRECAUTIONS
• Use only detergents or softeners recommended for use in this
appliance and keep them out of the reach of children.
3
ENGLIS

• Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric softener
or product.
• Never unplug your appliance by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
• Replace immediately worn power cords, loose plugs/power outlets.
• Unplug your appliance before cleaning or before making any repairs.
• Before the appliance is removed from service or discarded,
remove the door to the washing/drying compartments.
• Do not operate your appliance in the presence of explosive fumes.
• Do not place items exposed to cooking oils in your appliance.
Items contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
• Do not add gasoline, dry-cleaning solvents, or other flammable
or explosive substances to the wash water. These substances give
off vapors that could ignite or explode
• Do not wash/dry articles that have been previously cleaned in,
washed/dried in, soaked in, or spotted with gasoline, dry cleaning
solvents, or other flammable or explosive substances, as they
give off vapours that could ignite or explode.
• Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
• Do not tamper with controls.
• Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-repair
instructions, which you understand and have the skill to cany
out.
Note, if for any reason this product requires service, we
strongly recommend that a qualified technician perform the
service.
• Do not reach into the appliance if the tub or agitator is moving.
• Do not reach into the appliance if the drum is moving.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
RECORD KEEPING
Thank you for purchasing this Haier
product. This user manual will help you
get the best performance from your Model number
new washer.
For
future reference, record the model
and serial number located behind ----- ; ---------------------------------------------------
the door, and the date of purchase. Serial number
Staple your proof of purchase to this
manual to aid in obtaining warranty --------------------------------------------------------
service if needed. Date of purchase
4

PARTS AND FEATURES
FRONT OF THE UNIT
Control Panel with LED Screen
5
ENGLISH

ENGLISH
BACK OF THE UNIT
Transportation Bolts (4)

INSTALLATION INSTRUCTIONS
INSTALLING
YOUR COMBINATION WASHER / DRYER
We recommend that your new washer/dryer be installed by a qualified appliance
technician. If you feel that you have the skills to install the washer/dryer, please
read the installation instructions carefully before installing.
A WARNING
If, after completing these step, you are unsure that the washer/dryer is properly
installed, contact a qualified appliance technician.
A WARNING
Fire Hazard
Install the clothes dryer according to the manufacturer's instructions
and local codes to reduce the risk of fire.
To reduce the risk of severe injury or death, follow all installation instructions.
SAVE THESE INSTRUCTIONS
IMPORTANT. If your washer was Just delivered and the outside temperature
was below freezing, do not operate until the washer warms up to room
temperature.
TOOLS NEEDED
You will need to have the following tools to help you in the installation of
your washer.
• Scissors
• Tape Measure
• Standard Screwdriver
• Gloves
PARTS SUPPLIED
Water Hoses (2)
(Flat washers are pre 
installed)
• Pliers
• Level
• Wrench
Drain Hose
(Support Bracket) Wrench (Used to tighten
locknuts and remove
transportation bolts)
7
ENGLIS

LOCATION REQUIREMENTS
• The washer must be installed on a solid floor to minimize vibration during the spin cycle.
• The floor should be level with maximum slope of 1' {25mm) under entire washer.
• A suitable location is protected from direct sunlight and heat sources such as
radiators, baseboard heaters, cooking appliances, etc.
• Do not install on carpeting.
• The location must have a grounded electrical outlet located within 4ft. (1.2m) of
the power cord on the back of the washer.
• Hot and cold water faucets must be present within 3ft. (0.9m) of the hot and cold
connections on the washer.
• A water heater must supply hot water with a temperature of at least 120°F (49°C).
• The water pressure should be between 20-100 psi (138- 90 kPa).
•
This appliance must be operated at room temperature.
• Do not install or operate this appliance in an area where the ambient temperature
can fall below freezing.
UNIT DIMENSIONS AND CLEARANCES
23-7/1 '
.•< ---------------------------- ►,
33-9/32
40-23/32'
22-15/32'
M ------------------------- ►.
Minimum Instailation Clearan es / Detergent Minimum
Alcove Closet
Front
n/a
1' (25mm)
Sides and Rear
1' {25mm) 1' {25mm)
Top of Control
1' {25mm) 1' (25mm)
Front ventilation openings are required for closet installations.
24 square inches-3inches from bottom. 48 square inches-3 inch from top.
Louvered door with equivalent openings is acceptable.
8

UNPACKING YOUR APPLIANCE
Remove all packing materials, including the foam base and all adhesive tape holding
the washer accessories inside and outside.
NOTE. Small amounts of water may be found inside the packaging and inside the
washer. This is normal and is the result of water tests performed at the factory.
A WARNING
Suffo ation Hazard
To avoid danger of suffocation, keep plastic bag and other packing materials
away from babies and children. Do not use this bag in cribs, carriages and
playpens. The plastic bag could block nose and mouth and prevent breathing.
This bag is not a toy.
REMOVE TRANSPORTATION BOLTS
NOTE. The transportation bolts must be removed before using the washing
machine.
Four transportation bolts are installed by the factory to
prevent damage to the wash system that can occur from shock during
transportation.
Remove boits
on the rear side
and take out
plastic spacers
and rubber
grommets
from inner side
of the machine.
J 1
3. Replace back
cover by inserting
3
it in the two gaps
at the top of the
o\
opening and
\
replace the four
screws that hold
it in place.
J.
Fill
shipping bolt
holes with plastic
hole
plugs.
NOTE. Save all transportation parts for future use. All parts should be
reinstalled before transporting the washing machine.
9
ENGLIS

DRAIN CONNECTIONS
• The height of the standpipe drain or sink rim for the drain hose should be between
2' ' and 3'3' from the bottom of the washer.
• Use the supplied Drain Hose Support Bracket to loop the drain hose down into the
wall,
standpipe or laundry tub.
Wall Standpipe Laundry tub
• The standpipe drain requires a minimum diameter standpipe of 2' (50 mm). The minimum
carry-away capacity can be no less than 17 gal. ( 4 L) per minute.
• The drain hose shakes as water is being pumped out of the washer, ('lake sure that
the end of the drain hose is secured to the drain or sink. The support bracket has a
mounting hole to assist you in doing this.
• Take care to ensure all hose connections are tight.
IMPORTANT. The end of the drain hose cannot be immersed in water
for the combination washer / dryer to work properly.
10

WATER CONNECTIONS
IMPORTANT. Use the new water hoses supplied with the washer. Old hoses should
not be used.
1. Check that a flat washer is present and firmly in place in each end of the water
inlet hoses. Flat washers are pre-installed at the factory.
NOTE. Do not insert additional washers into the water hoses.
Pre-installed
Flat Washer
2. Connect the elbow coupling end of the water hoses to the inlet valves on the
washer. Then, connect the straight coupling end to the proper faucet.
NOTE. The washer's inlet valves have metric threads. The elbow coupling end of
the supplied water hoses have matching metric threads.
3. Connect the cold water faucet to the valve on the washer marked ' C and the hot
water faucet to the valve marked ' H' .
NOTE. Take care not to cross connect the hoses.
4. Check for hose connection leaks by fully opening the faucets. You may have to
use pliers to tighten connections.
NOTE. Do not over tighten hoses, this could cause damage to the washing
machine's valves.
11
ENGLIS

IMPORTANT. This machine dries clothes with condensing drying technology.
The ondenser relies on old water to fun tion, if hot or warm water is
supplied to the ' C valve, the dryer will not work and damage can occur to
components of the washing machine.
Y ADAPTER CONNECTION
If you have a single faucet connection, you can purchase a ' Y Adapter' from a
hardware
store to connect the washer as shown below.
NOTE. Make sure that only cold water is turned on while using the dryer function.
■Drain Hose
Support
Bracket
12

ELECTRICAL REQUIREMENTS
Ele tri al Sho k Hazard
Risk of injury or death from electric shock.
The washer must be connected to a properly grounded 120 Volt, 0 Hz.,
AC only, 15 Amp, fused electrical supply. A time-delay fuse
or circuit breaker is recommended.
• If the electric supply provided does not meet the above requirements, contact a
licensed electrician.
Ele tri al Sho k Hazard
Risk of injury or death from electric shock.
This appliance must be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing
an escape route for the electrical current.
• The washer is equipped with a power cord that has a 3 prong plug. Do not cut or
remove the grounding prong from the power cord.
• The power cord must be plugged into a mating, 3 prong outlet, grounded in
accordance with local codes and ordinances. If a mating outlet is not available,
contacted a licensed electrician to have one installed.
• Do not use a 3 prong plug adapter.
• If you are not sure if your outlet is properly grounded, contact a licensed
electrician.
• Do not use an extension cord.
13

POSITION AND LEVEL THE WASHER
IMPORTANT. Because the drum of this washer spins at very high speeds, up to
1,200 RPM, the washing machine must rest firmly on a solid surface
to minimize vibration, noise, and unwanted movement. This washer is
equipped with four adjustable feet to compensate for an uneven floor.
1. Move the washer into location and position it where it will be used.
2. Level the washer from side to side and front to back. Make sure that all four feet
are firmly In contact with the floor and the washer rests solidly in position.
3. Leveling feet can be adjusted by turning them clockwise to extend (raise the
washer) or counterclockwise to retract (lower the washer).
4. When the washer is level, use a wrench to securely tighten all four locknuts
against the bottom of the washer cabinet.
Locknut -
4
IMPORTANT. Do not replace height adjustable feet with casters.
14

CONTROL PANEL AND FEATURES
CONTROL PANEL
Door Lock Indicator
Child Lock Indicator
LED Screen
sX])) Cycle signal Indicator
^ Delay Indicator
Cycle
Selector
Start/Pause Button
Wash Temp Button
Power ON/OF Button
Options Button
Spin Speed Button Dry Level Button
Soil Level Button
15
ENGLISH

POWER ON/OFF BUTTON ®
Press once to turn the washer / dryer ON. Press again to turn the washer / dryer OFF.
If the washer / dryer is left on for more than 2 minutes without any buttons
being touched, the power automatically turns off.
START/PAUSE BUTTON ► ii
Press this button to start a cycle. Once started, only the selected cycle and
settings will be displayed on the LED screen. Pressing the button a second time
will pause the operating cycle and the time display will blink. During a pause,
settings and options can be modified and selected, however the original cycle
cannot be changed. If you don not press the Start/Pause button to start
a cycle again, the operating cycle and the time display will blink all the time.
Pressing the button again will resume the active cycle. If the ' Drying Level' option
has been selected, the washer will automatically begin drying after completing
a wash cycle.
NOTE. An operating cycle can be cancelled at any time by pressing Power
ON/OFF button.
CYCLE SELECTOR
The knob can be turned in either direction to choose a wash or dry cycle.
The selected cycle will blink on the LED screen. Each cycle has preset water
temperature,soil level,spin speed,dry level ,and options.In certain
cycles the setting can be manually programmed to suit your needs.
WASH TEMP BUTTON
Use this button to select wash/rinse water temperatures. Available selections vary
for each cycle. The desired setting will blink during the selection process.
SPIN SPEED BUTTON
Use this button to select a spin speed. Available selections vary for each cycle. The
desired setting will blink during the selection process.
SOIL LEVEL BUTTON
Soil level (wash time) is preset for each cycle.As you press this button,the cycle time
will increase or decrease in the Time Remaining display.
NOTE. Lower soil level settings will help reduce tangling and wrinkling.
DRYLEVEL BUTTON
Use this button to select a dry level. Available selections vary for each cycle. The
desired setting will blink during the selection process.
1

IMPORTANT. Do not attempt to dry a full wash load.
A half load is the maximum for all dry cycles.
Half Load
OPTIONS BUTTONS
The options buttons allow you to select additonal cycle options and will blink when
selected. Not all options are available with all cycles. Available options will grow
orange, current selections will blink.
You
can decrease or increase the drying time for Timed Dry Only cycle by pressing
options buttons.
By pressing the ' V' button, you can select.
VA VA VA VA
By pressing the ' A ' button, you can select.
DELAY MODE 0
Press and hold ' Soil Level' and ' Dry Level ’ button at the same time in order to
get into ' Delay' mode. The Delay icon will be turned on .The time can be
adjusted by pressing ' V ’ and 'A' up to ' 24 hr' . A press and hold of the
' V or ' A' button will cause the display to count continuously between 1
hour and 24 hours (by one hour increments) and the OFF position.
Another way to cancel the delay is to press and hold ' Soil Level' and
' Dry Level' button at the same time.
After displaying ' OFF' , display will quickly go back to the normal wash time.
After selecting this option, you have to press the ' Start/Pause' button to activate
a delayed start. Once started, only the selected cycle and settings will be displayed
in a steady state, the clock icon will blink, and the time display will count down in 1
minute increments.
NOTE. An activated delay start can be cancelled at any time by pressing POWER
ON/OFF button.
NOTE. Double check the Soil Level and Dry Level settings after activating
or canceling the Delay Mode. The cycle settings could have changed by not pressing
both buttons at the same time.
17
ENGLIS

LED SCREEN
The LED screen displays available cycles, settings, estimated cycle time, icons
for active options, lock indicators, and an operating status(SOAK, WASH, RINSE,
SPIN,DRY).
Use the buttons along the bottom of the display to adjust settings. See ' CYCLE
GUIDE' for available settings on each cycle.Not all settings are available with all
cycles.
DOOR LOCK INDICATOR
The washer / dryer door will automatically lock during operation. A lock icon will
appear
on the LED screen when the door is locked.
NOTE. If a wash operation is paused, the door will unlock within 2 seconds.
If a dry operation is paused, the door will unlock after the inside temperature cools
to a safe temperature. The cooling time can take several minutes.
CHILD LOCK INDICATOR O
After starting the washer, press the ' Wash Temp' and ' Spin Speed' buttons at the
same
time for 2 seconds to activate the Child Lock feature. A child icon will appear
on the LED screen. This feature is intended to prevent accidental changes to the
operating machine. To cancel, press the 'Wash Temp' and 'Spin Speed' buttons
again for 2 seconds. The child icon will disappear from the LED screen.
NOTE. This feature does not lock out the POWER ON/OFF button.
CYCLE SIGNAL INDICATOR C^))
This signal is helpful when you are removing items from hte washer as soon as it stops,
press
the Spin Speed and Soil Level buttons for 2 seconds to activate the cycle
signal feature. A signal icon will appear on the LED screen. To cancel, press the
Spin Speed and Soil Level buttons again at the same time. The signal icon will disappear
from the LED screen.
POWER-OFF MEMORY
This machine has a power-off memory feature. In case of power failure or if the
power is interrupted during an operating cycle, the settings will be saved, and
operation will resume after pressing the POWER ON /OFF button when the
power is restored.
18
