Haier HWM60-10 User manual

Full Automatic Washing Machine
HWM60-10
User's manual
This manual is for
Please read this manual
carefully before using.
Retain it for future reference. 0030807260

Contents
Names of the parts................................................1
Safety precautions ...............................................2
Installation and adjustment ..................................4
Install the water inlet hose....................................6
Preparation before washing ................................7
Put in the laundries ..............................................8
Put in the detergent ..............................................9

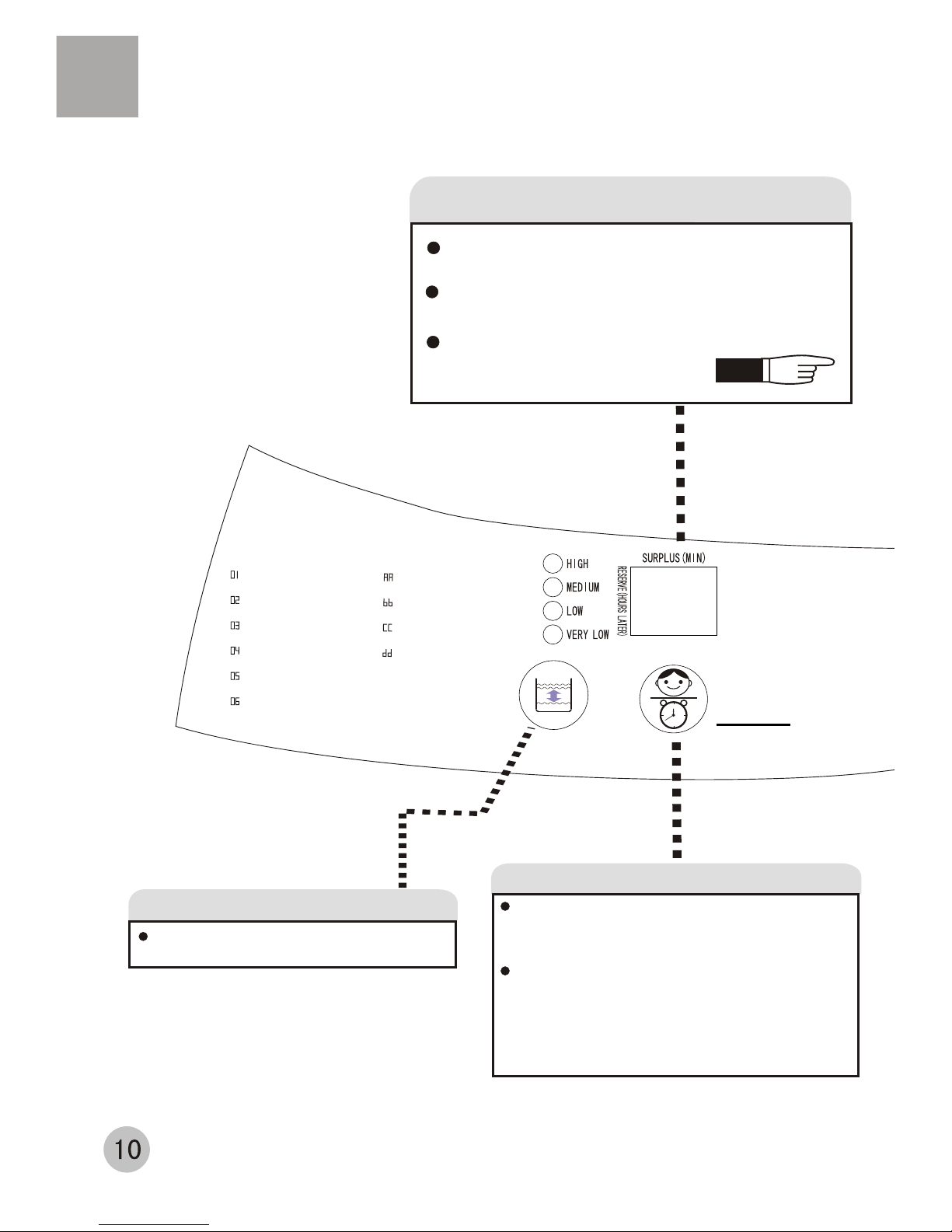

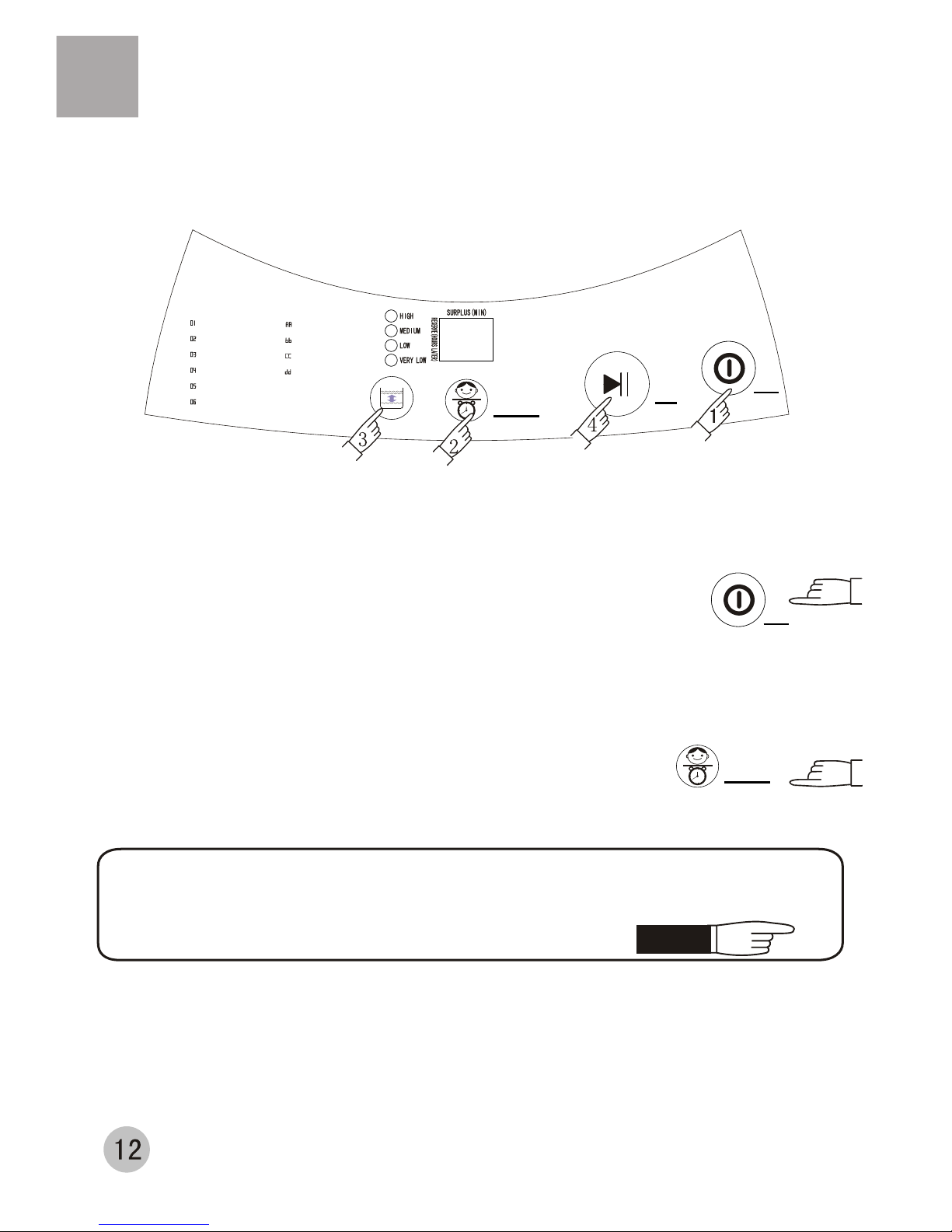

Use the operation buttons ...................................10
Close the top lid ...................................................14

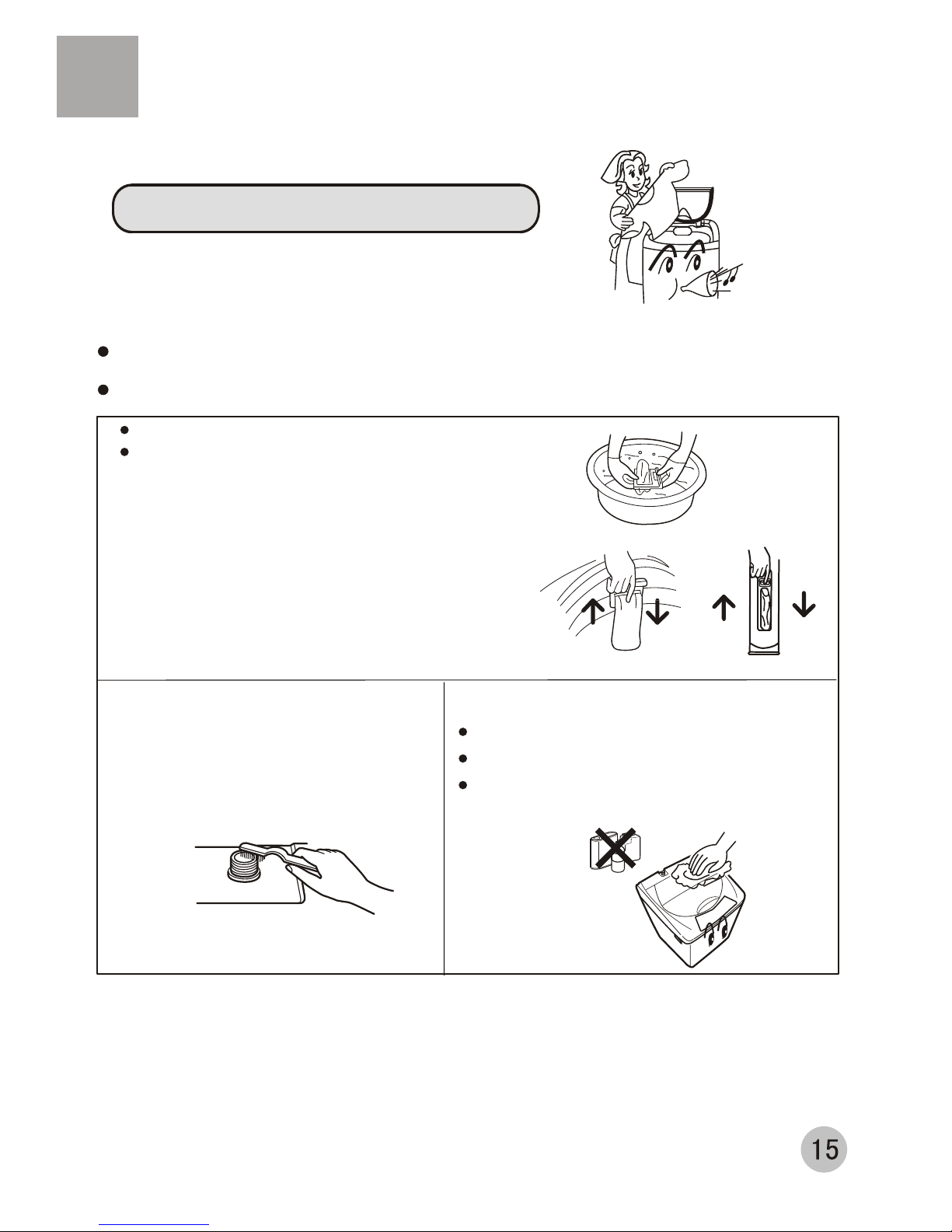

Finish washing .....................................................15
Disposal after washing .........................................15
Trouble shooting Answer to question................16
Packing list ...........................................................17
Specifications...........................................back cover

Meaning and description of the symbols
Before Using
Before Using

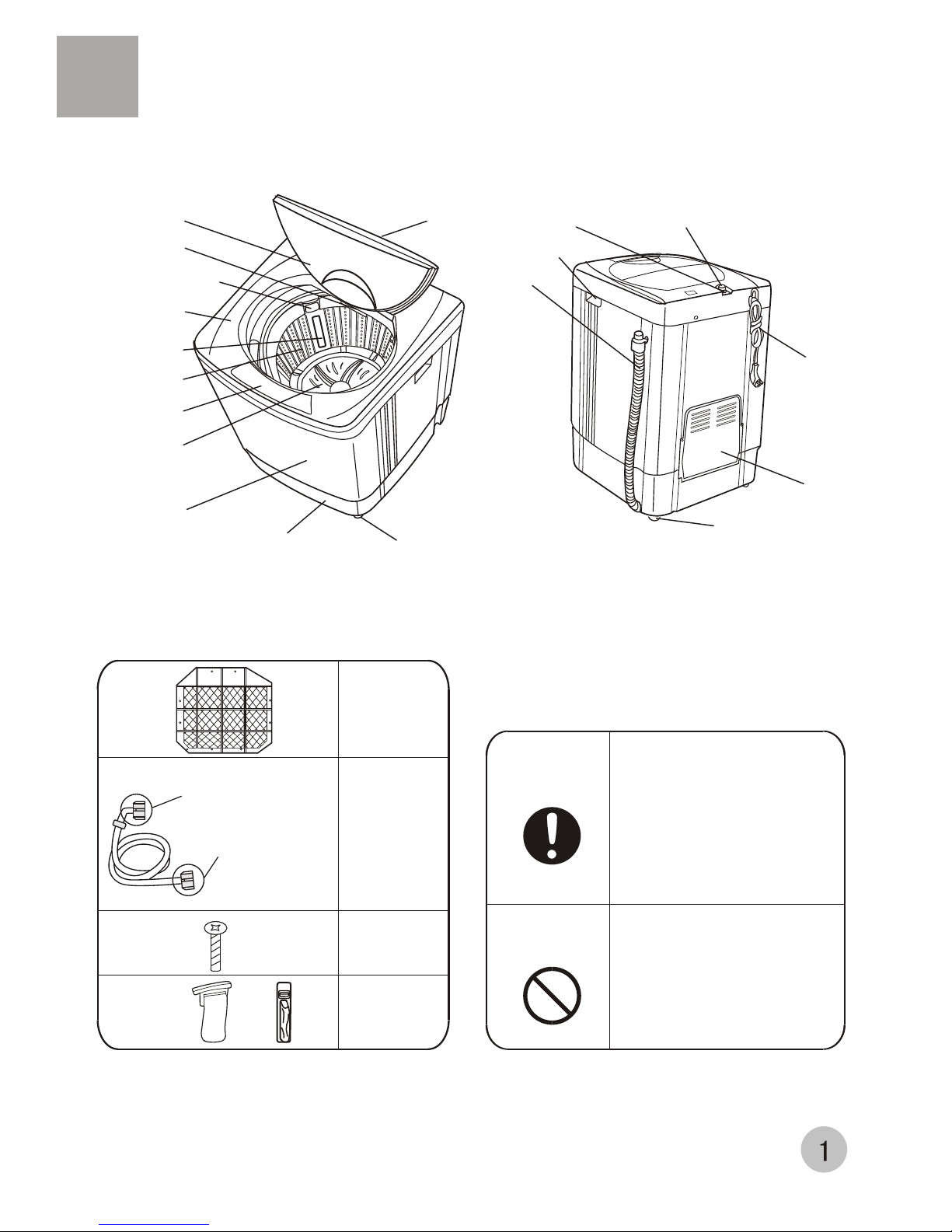

Names of the parts
Warning sign
Forbidden sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Accessories
Bottom plate
(one)
water inlet hose
(one)
ST4X16
tapping screws
(eight)
Lint filter
(two)
Adjustable foot
fixed foot (3)
back cover
Cabinet
base frame
Drain hose
Control panel
film
Control panel
Filter cover
Power line
Pulsator
Inner tub
Detergent box
Lint filter
Top lid B
Cabinet handle
water valve
Top lidA Sop mat
(Installed by user)
The end connecting
to the washing machine
The end connection
to the water inlet
hose

Before Using
Before Using
Safety precautions
Please plug the plug on special 220V AC
receptacle.Please guarantee that the
earthing wire is ear-thed reliably.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins-
ert or pull out the power plug.
In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.
Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use the plug any more.
Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations in spinning.
Do not use water hotter above 50 C .
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do Not put wet laundries on the control panel.
soft items
The ventilation holes
at the bottom
Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.
Keep the pin of the power plug clean,if the power plug is polluted with dust,
please wipe with dry cloth carefully.
earth

Do not decompose, repair or alter the
machine by yourself.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
The handicapped or children without
care shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the heater.
Before Using
Before Using
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Do not let the children
climb the washing machine.
Petrol
Thinner
.
To prevent your laundries and washing
machine from damage,be sure to take
out all of the foreign materials from your
pocket,such as coins,buttons,sand or
hairpins etc.
Before washing,please check if the water
tap is open ,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming was-
hing powder
To prevent the lint in the tub from blocking
the cascade outlet and influencing the
cascade effect, please keep the lint filter
in good condition, and install it to proper
position during washing.

The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:
Adjust the adjustable foot:
Adjust the installation position
Before Using
Before Using

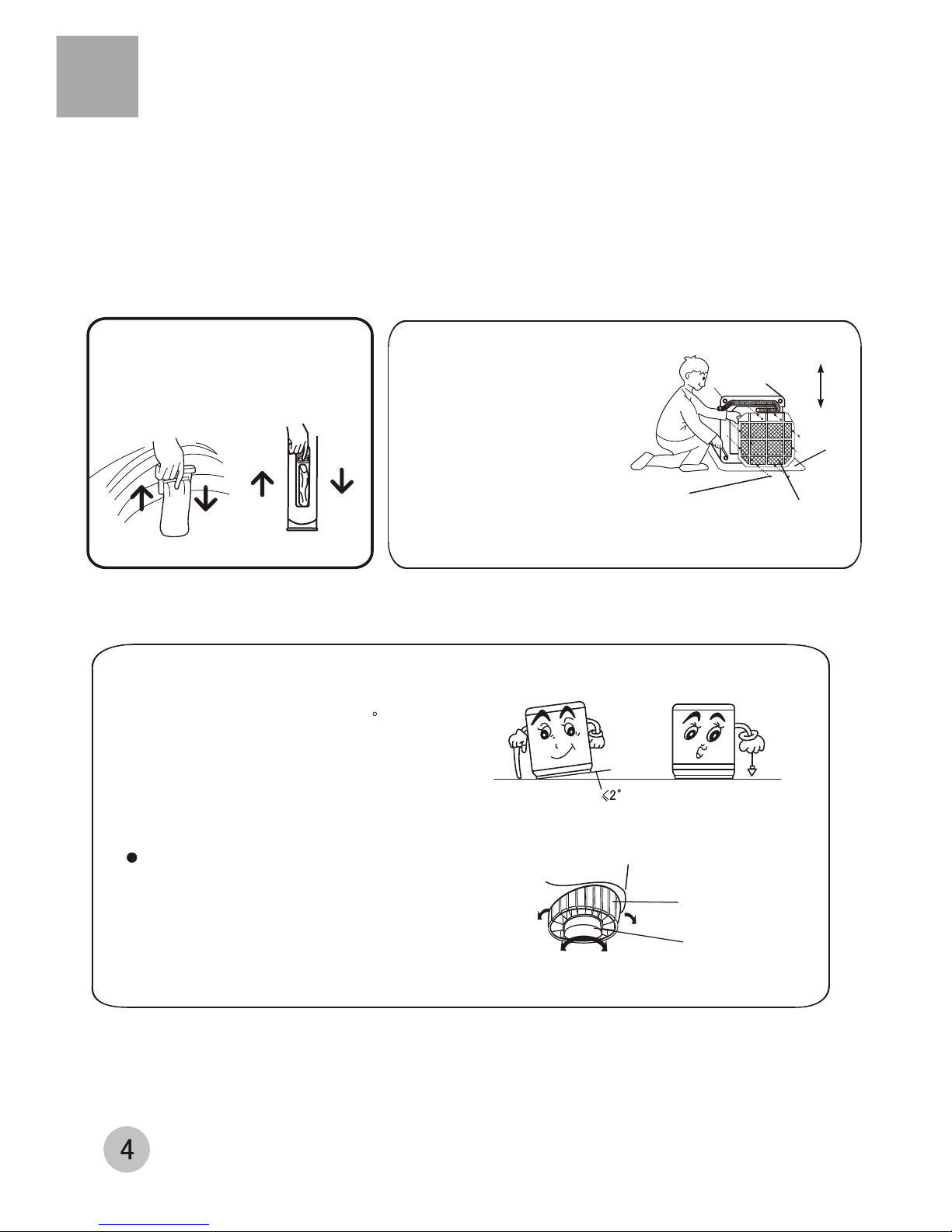

Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
1.Press downward to assmble.
2.Pull upward to detach.
1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist
the foot.
2.Fasten the nut after adjustment.
Loosen Fasten
High Low
adjustable nut
adjustable foot
Install the bottom plate
After you open the package,
please lean the washing
machine gently down on soft
items ( like the towel cloth,
blanket, etc. ). Install the
bottom plate to the bottom of
the machine with the eight
screws by a cross screwdriver,
then lift the machine up gently.
See to the figure:
Back
Front
Bottom plate
Screw
Soft items
Put down Put up
Put down Put up
Install the lint filter

1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
1.Lean the machinedown gently withthe
front surface facingthe ground. Loosen
the eight screwsby a crossscrewdriver.
3.Extend the drain hose from the left side.
Push the drain hose into the groove with
hands.
4.Install the bottom plate (as per indicated
before), then lift the machine up gently.
2.Pull out the drain hose from the groove at the
right side.
Back
Front
Bottom plate
Soft item
Use groove at
this side after
direction changing
Page 4
Push the drain hose
into the groove with
hands at this point
How to change the direction of the drain hose
Usage of the drain hose
The drain hoseshall drain smoothly
5.If the extrahose is toolong,
cut it eitherat Aor at Bpoint.
Before Using
Before Using

Install the water inlet hose
1. Insert a new flat washer into each end of the inlet hoses. Firmly put the
washers in the coupling.
2. Connect the water inlet hoses to the water faucet.
Use the new hose sets supplied with the washer.
Any other old hose sets should not be used.
You may have to use pliers to tighten the coupling.
Do not over tighten because you may cause
damage to the valve.
Note:
3. Connect the other ends to their respective cold and hot water inlet valve
located at the rear of the washer
Check the connection between the water inlet
hose and the water tap
1.Close the water tap.
2. Pull off the water inlet hose from the water tap
and washer
Take down the water inlet hose
Install the water inlet hose
4.Fasten the nut. Swing it gently to confirm if it's suitable.
Water absorption cushion
Nut of the water inlet hose
Jointer of the water inlet valve
1.Swaying the hose gently to confirm if it is
fastened stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if the connection
between the water inlet hose and the water tap,
and the connection between the water inlet hose
and washer are firm, so as to prevent dropping
from improve Installation position.
Before Using
Before Using

Confirm if
there's special
requirment for
the laundries.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.
Preparation before washing
1.Connect the water inlet hose and open
the water tap .
2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
3.Put down the drain hose.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
Using process
Using process
1 Preparation before washing
Pay attention to followings before washing the laundries
A. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn itover before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.

Reference weight of the laundries:
working suit up,down
jeans about 800g
shirt jacket
single bed sheet
Socks
underpants
undershirt
pajamas
blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
Using process
Using process
2 Put in the laundries
cotton,about 1120g
blending coat
(about 800g)
The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
One time washing quantity shall be lower
than the rated capacity. The largest capacity
of this machine is 5.0kg.
The thickness, size, type of the cloth will
influence the actual washing capacity. It is
suitable for one time washing to put in
reasonable amount of laundries and the
laundries can be turned round in washing.
Do not select "High" water level for
laundries small than 0.5kg, so as to avoid
splashing of water.

How to usethe whitener
Standard usage quantity of the detergent and water
quantity
How to use the washing
powder
Using process
Using process

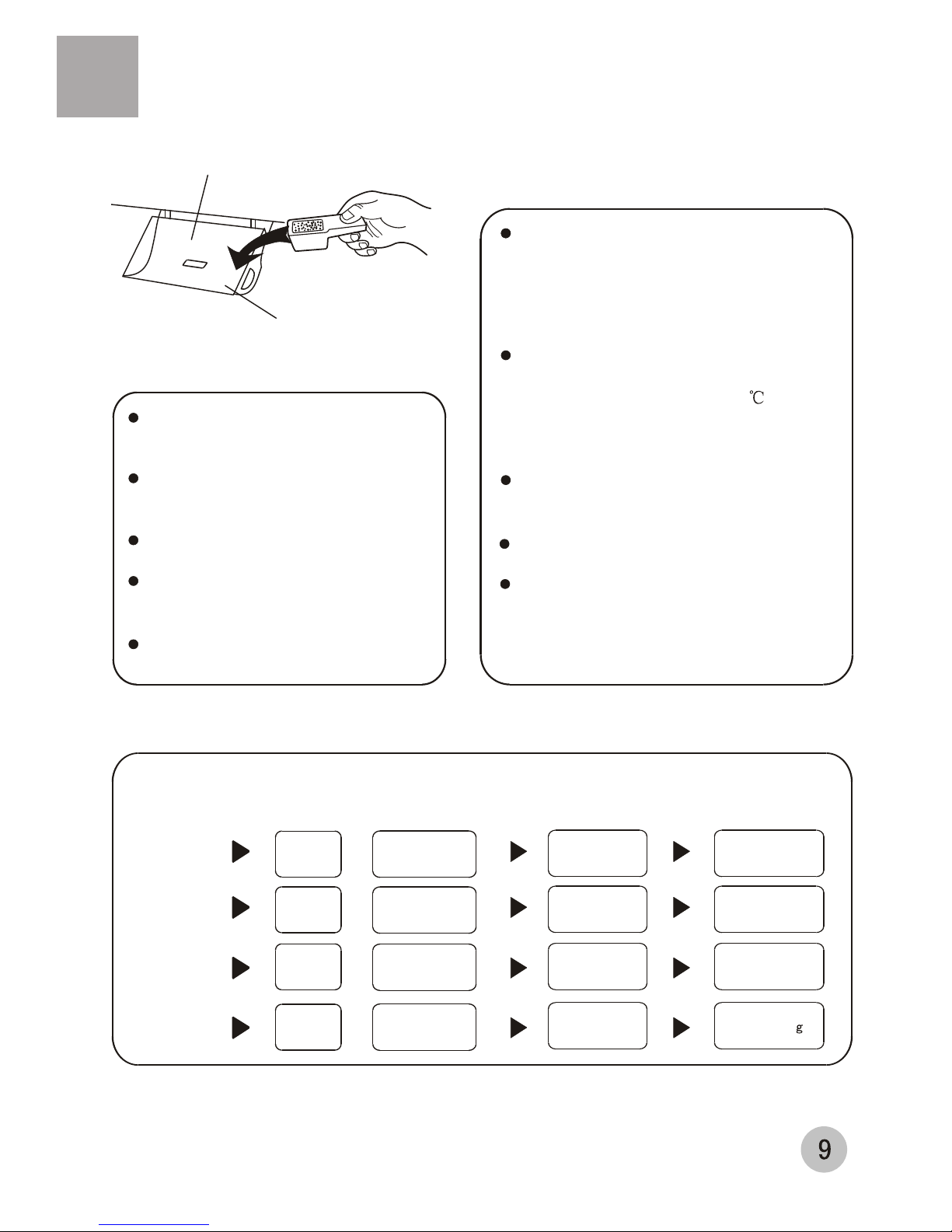

3 Put in the detergent
2.0~3.5
Above 3.5
1.0~2.0
Below 1.0
About 37L About 49g About 36g
About 48L About 64g About 40g
About 30L About 40g About 25g
About 20L About 27g About 17
Laundries
quantity(kg)
Water level Water quantity Common powder
(Add 40g in each
30L water)
Concentrated
powder
(Add 25g in each
30L water)
VERY LOW
LOW
MEDIUM
HIGH
Inlet for concentratedwashing
powder and detergent
Detergent box
Direct dissolved in the machine
1.Fill water to "Low" water level.
2.Add the power. Run for 30 seconds
to dissolve it completely.
3.Put in the laundries. Select
suitable water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 and a
container.
2.Add the powder while stirring to
fully dissolve it.
Put in the prorer quantities detergent
according to the water level and the
laundries quantities .
It is suggested not to use high
sudsing detergent.
Washing powder with poor quality or
long time storage maybe caked.
Please pay attention to cleaning the
detergent box in time.
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on
laundries with color or pattern as
they are prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before use.

a.
Using process
Using process
4 Use the operation buttons
Description of the function of the buttons
PROGRAM
RESERVATION
WATER LEVEL
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
JEANS
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
To indicate remaining min. During
program running.
To indicate remaining reserved
time (hrs) during reservation period.
To indicate fault symbols for abnormal
conditions (see page 16)
SURPLUS(MIN)
Page 16
The user selects a suitable water level
depending on the load.
" WATER LEVEL"button
"PROGRAM/ " button
RESERVATION
you can select one or several of
, , inse and Spin
Press
programs
.
"PROGRAM/RESERVATION " button
StandardJe ansG entle,Quick,R
you can select
of peservtion.
Press
over 2 seconds, the program
the N tube displays the
reserved hrs to the wash cycle end. The
indicator flashes to indicate in-reservation.
"PROGRAM/RESERVATION " button
ixie

Remarks: After pressing "Power On/Off" to connect power supply, if the washing machine
lasts idle more than 10 min, it would automatically shut off the supply.
Using process
Using process
POWER
ON/OFF
START
PAUSE
After the poweris switched on, press it to
start the machine
During working, pushit to pauseworking.
During pause, pushthis button torestart
and continue operation.
"START/PAUSE"button
Press "Power On/Off"button to connect
power supply.
After power isconnected, pressing this
button will cutoff the supply.
"POWER ON/OFF"button

Page 10
Using process
Using process
b. Operating procedure and
explanations for the buttons
1 Press the "Power On/Off" button to switch on
the power supply
2 Press the button of "Program/Reservation" to select
a suitable full-automatic program
POWER
ON/OFF
START
PAUSE
PROGRAM
RESERVATION
WATER LEVEL
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
JEANS
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
POWER
ON/OFF
POWER
ON/OFF
POWER
ON/OFF
START
PAUSE
PROGRAM
RESERVATION
PROGRAM
RESERVATION
PROGRAM
RESERVATION
WATER LEVEL
SOAK
WASH
RINSE
SPIN
PROCEDURE STATUSPROGRAM STATUS
JEANS
GENTLE
QUICK WASH
WASH
SPIN
STANDARD
After switching on, the "Standard" program will be the default. If other full-automatic
program is desired, you can press the button "Program" to get the corresponding
indicator on. Refer to the "Button of 'program'"paragraph on page 10.
Example: Use the "Quick" program for slightly soiled articles.

Even there's nowater in thetub, the
spinning will startafter a certainperiod.
Do not usesoak process for woolen laundries.
Wash the laundries that areprone to lose
colors separately fromother laundries.
The pulsator willnot rotate unless the
water is filledto selected water level.
Selection method of the procedure programs
Attention
Using process
Using process
Times of pushing
the"Program
select"button
0
1
2
3
4
5
Applicable procedure
When the common
laundries need only
washing
When the laundriesneed
only spinning after
manual washing
(first drain thenspin)
If the laundriesare very
dirty, or the sleeveand
collar are dirty, first soak
then wash
Standard
Corresponding
program
JEANS
GENTLE
QUICK WASH
WASH
SPIN
Wash(bb) Rinse(cc)
Spin(dd)
Soak(AA) Wash(bb)
Rinse(cc) Spin(dd)
Wash(bb) Rinse(cc)
Spin(dd)
Wash(bb) Rinse(cc)
Spin(dd)
Wash(bb)
Spin(dd)
Total Time
About 39~44
About 64~91
About 34
About 10
About 13~18
About 9
Time list of each program (minute)
When the laundriesis
lightly soiled thatneeds
to be washedquickly.
When the laundries
needs to bewashed
carefully such aswoolen
textiles or underwear.
When the common
laundries need washing
rinse and spin
Selected procedure
program
Standard
Program
Gentle
Jeans
Quick
Wash
(min)
About 6 About 39~44
About 6
About 34
About 10
About 6
About 6
Rinse
(min)
Spin
(min) Total time(min)
Rinse once, about 2
Rinse twice, about 2
Rinse twice, each abut 3
Rinse twice,each about 3
Soak
(min)
/
About
25~45
/
/
About11~16About11~16
About10~16
About6
About3
Wash
Spin /
/About11~16
/
About 2
/About 13~18
About 9
//
/
About 64~91
If you push the "Process selector" button for 6 times, it will resume the original
mode, and itwill circulate like that.

Totaltime: including the normal water inlet time, drain time, excluding the poweroff time. The
total washing timemay be influenced by the water inlet pressure and water level.
Spin time: thetime from intermittent running to finishing.
The Jeans programcould combine the process of soak during which the washing
machine firstly soakfor about 25~45 min after water filling and then begins to wash.
Using process
Using process

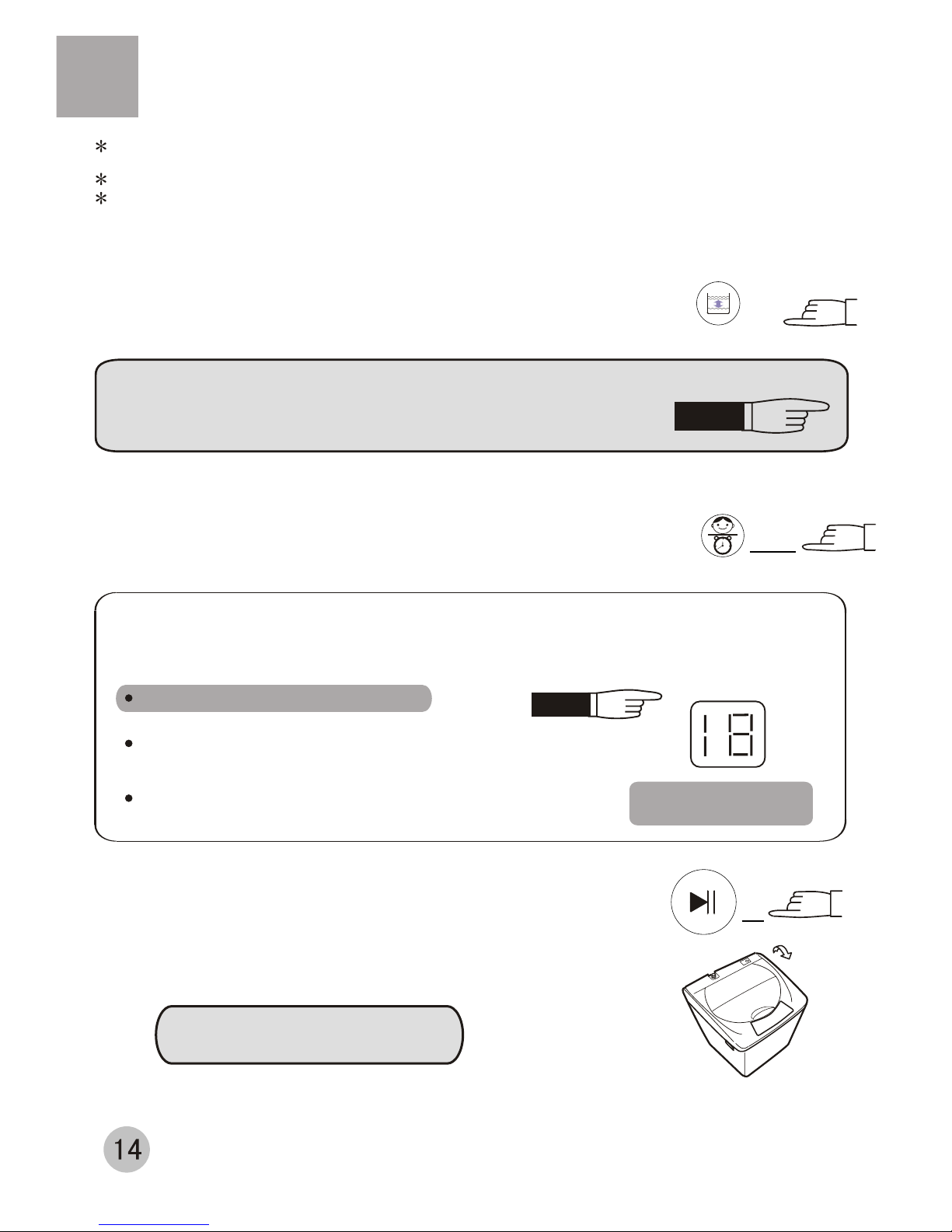

5 Press the "start/pause" button
5 Close the top lid
After switching onthe power, press the button "Water level"to select a water level according
to the load.
Page 10
Page 10
3 Press the "water level" button to select suitable
water level
When "Reservation"becomes active, thenixie tube
displays the timeto the end of the reserved wash cycle, and
the indicator turnson.
Tochange the running program or cancel the reservation,
you should cutoff the supplyand reselect.
Confirm the reserveprogram
4 Push the "Reservation" button to select
suitable reserve program
WATER LEVEL
PROGRAM
RESERVATION
PROGRAM
RESERVATION
START
PAUSE
START
PAUSE
When the machine spin working, if the
top cover is opened, the washing
machine will stop running and alarm.
After switching on, the washing machine reserved wash program will be automatically set
inactive. If you desire a wash cycle to end at a reserved time, you can press the "Reservation"
button to set a reserved wash program. Refer to "The button of Reservation" on page 10.
The washing willfinish
about 18 hourslater

Using process
Using process
Disposal after washing
When washing, lint filter must be used
After using, please clean it in time.
Lint filter:
1.Pull upward to detach
2.Clean the lint
Put it in water and clean while it is still wet.
(See to Figure 1).
3.Press downward to assemble.
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
7
After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time (about 1 hour),
then close the top lid.
4.Hang up the power cord and drain hose.
3.Be sure to pull off the power plug before maintenance.
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
Clean
Figure 1
Figure 2
Put down Put up
The filter screen of the water inlet
valve is likely to be blocked by
foreign materials and influence the
water inlet. Please clean it with
brush every two months.
If the cabinetis dirty, wipe it with wet cloth
Do not flushit directly with water.
Wipe it withneutral detergent.
Do not wipeit with thinner, petrol, alcohol
etc.
Thinner
Alcohol
Petrol
The washing machinecuts off thepower supply
automatically when washcycle ends.
After Finishing wash
alarm automatically
6 Finish washing
Put down Put up

If there's breakdown,please pull off the power plug before checking
Phenomena The reason How to settle
The top lidis not closed
Is the drainhose put down?
Is the drainhose blocked by
foreign material?
Are the laundriesput slantingly?
Is the machineslanting?
The water tapis not open
The water inletvalve is blocked
The water pressureis too low
and the current is too small
Is there powerfailure?
Is the powerplug loose?
The machine does
not act
Close the top lid
Put down thedrain hose. Open
and close thetop lid once.
Clean the foreignmaterial.
Open and closethe top lid once.
Re-order the laundries.Close
the top lid.
Level the machinein right
position. Open andclose the
top lid once.
Open the watertap. Push the
"Start/Pause" button.
Clean the waterinlet valve.
Push the "Start/Pause"button.
Wait for the normal water
pressure before use.
Use it whenthe power is on.
Insert the powerplug tightly.
Trouble shooting Answer to question
Does the waterlevel arrive at the
set water level?
Affusion to theset water level.
Is the powerplug loose? Insert the powerplug tightly.
Is the toplid closed? Close the top lid
Are the laundriesput orderly? Put the laundries orderly.
Not spin
Not wash
Buzzing upon reservationstarts,
Nixie tube indicates"E0"
Safety switch actuates,not
spin, (after self-correction
twice), nixie tubedisplays
"E3", buzzing
No or slowwater filling (not
reaching the levelin 15 min),
nixie tube indicates"E4",
buzzing
No or slowdrain, nixie tube
indicates "E1" , buzzing.
The top coverleaves open Close the top lid
Running pauses during spin,
nixie tube indicates "E2"
buzzing
No water filling
Is the power plug loose?
If the water faucet is turned on?
If Power On/Off and
Start/Pause are pressed?
Insert the plugfirmly
Turn on the water faucet
Press Power On/Off and
Start/Pause
There's abnormal sound
inside the machine.
Is there metal material inside
the washing machine?
Are the laundries slanting in
spinning?
Is the machine slanting?
Level the machine properly.
Fasten the buttons and zipper
Reorder the laundries. Close the
top lid.
The machine doesnot act.
(the indicators areoff.)
Is there powerfailure?
Is the powerplug loose?
Use it whenthe power is on.
Insert the powerplug tightly.

Packing list
It is the water remained in the factory inspection of
performance.
Common phenomena
Phenomena Explanation
Balance the laundries to avoid slanting.
The program is setting the drain time. Some time is
needed before it starts spinning.
To prevent splash during water filling.
The spinning is intermittent when it starts.
While water filling in wash and rinse, the
pulsator pauses rotation
There may be some water flowing out of
the drain hose in the first use of the machine.
Push the" / " button to
select "Spin", but it doesn't work.
PROGRAM RESERVATION
User's manual
Name
Components of thewater
inlet hose
Bottom plate
Tapping screws ST4x16
One
One
One
Eight
One
Quantity
Automatic washing machine
(Between the upper cushion of the washing machine
package and the upper seal of the package carton)
Lint filter
Two

Rated washing / spinning capacity(kg)
Water level/Water quantity (about)
5.0
0.03-0.78
Model HWM60-10
Specification
Specification
Lowest/20L Low/30L Mid/37L High/48L
Water inlet pressure(MPa)
