Haier HWM110-0626S User manual

a
User's manu l
This manual is for
HWM110-0626S
Please read this manual
carefully before using.
Retain it for future reference.
Twin-tub Washing Machine
0030807109F

Contents
Names of the parts - - - - - - - - - - - - - - - - - 1
Safety precautions - - - - - - - - - - - - - - - - - 2
Installation and adjustment - - - - - - - - - - - 4
Preparation before washing - - - - - - - - - - -6
The musts in washing - - - - - - - - - - - - - - - 7
Usage of the detergent - - - - - - - - - - - - - 7
Washing sequence - - - - - - - - - - - - - - - - 8
Disposal after washing - - - - - - - - - - - - - - -11
Trouble-Shooting *Answer to question - - - 12
Packing list*Specification- - - - - - - - - - - - -14

1

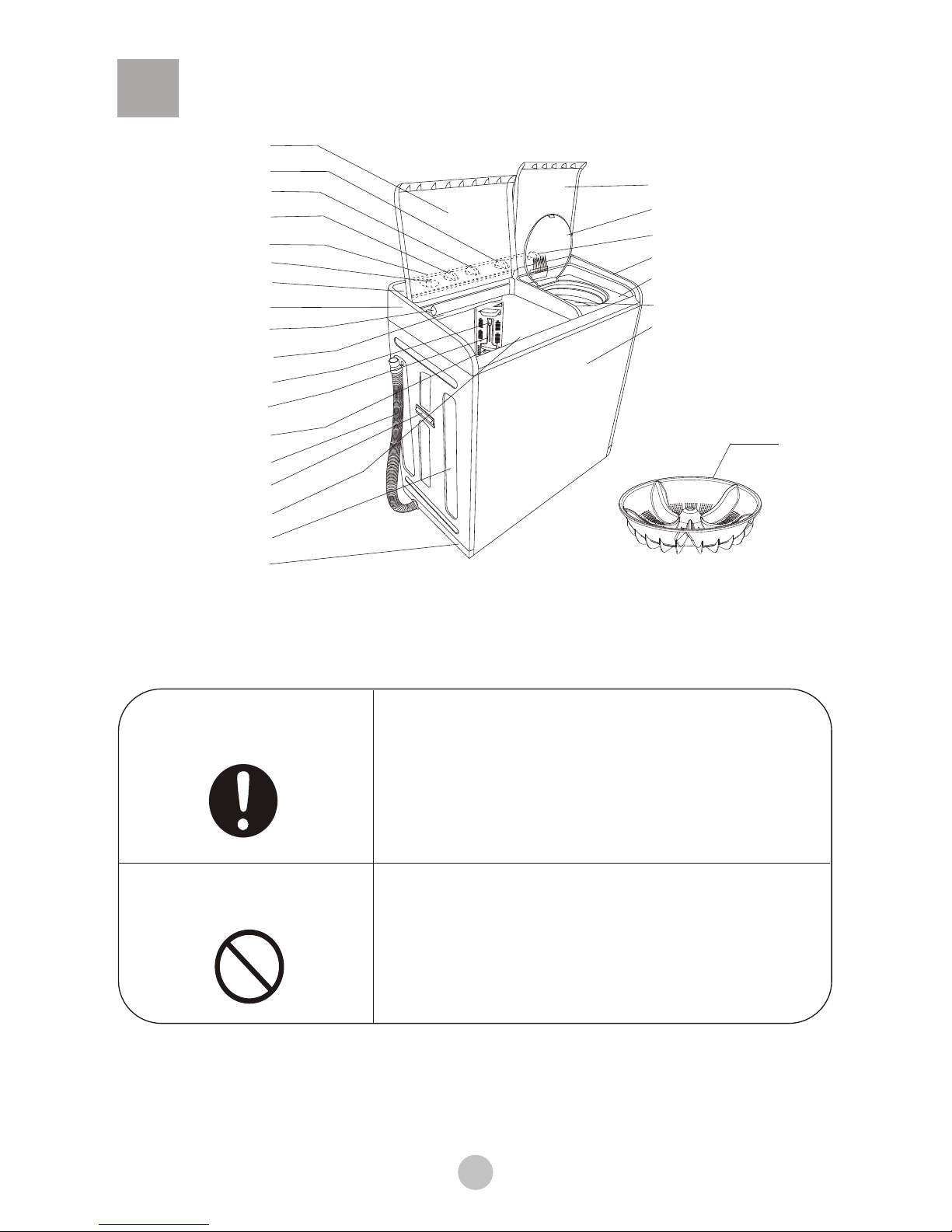

Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol are related
to the safety of the product and the personal
safety of the users. Please operate in strict
conformity to the contents, otherwise it may
cause damage of the machine or injure the
personal safety of the user.
Contents marked with that symbol are actions
forbidden to perform. Performing of those
actions may result in damage of the machine
or injure the personal safety of the user.
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
Control panel seat
Outer cover of the spin tub
Inner cover of the spin tub
Spin timer
Spin tub frame
Spin tub
Front door
Control panel
Bypass channel
Overflow filter
Water level adjust lever
Water filling control handle
Drain hose
Cabinet handle
Wash tub
Base frame
Lint filter
Cabinet
Plate support(right)
Wash timer
Water-filling entrance
Plate support (left)
Drain selector
Wash tub cover
Pulsator
Wash selector

2

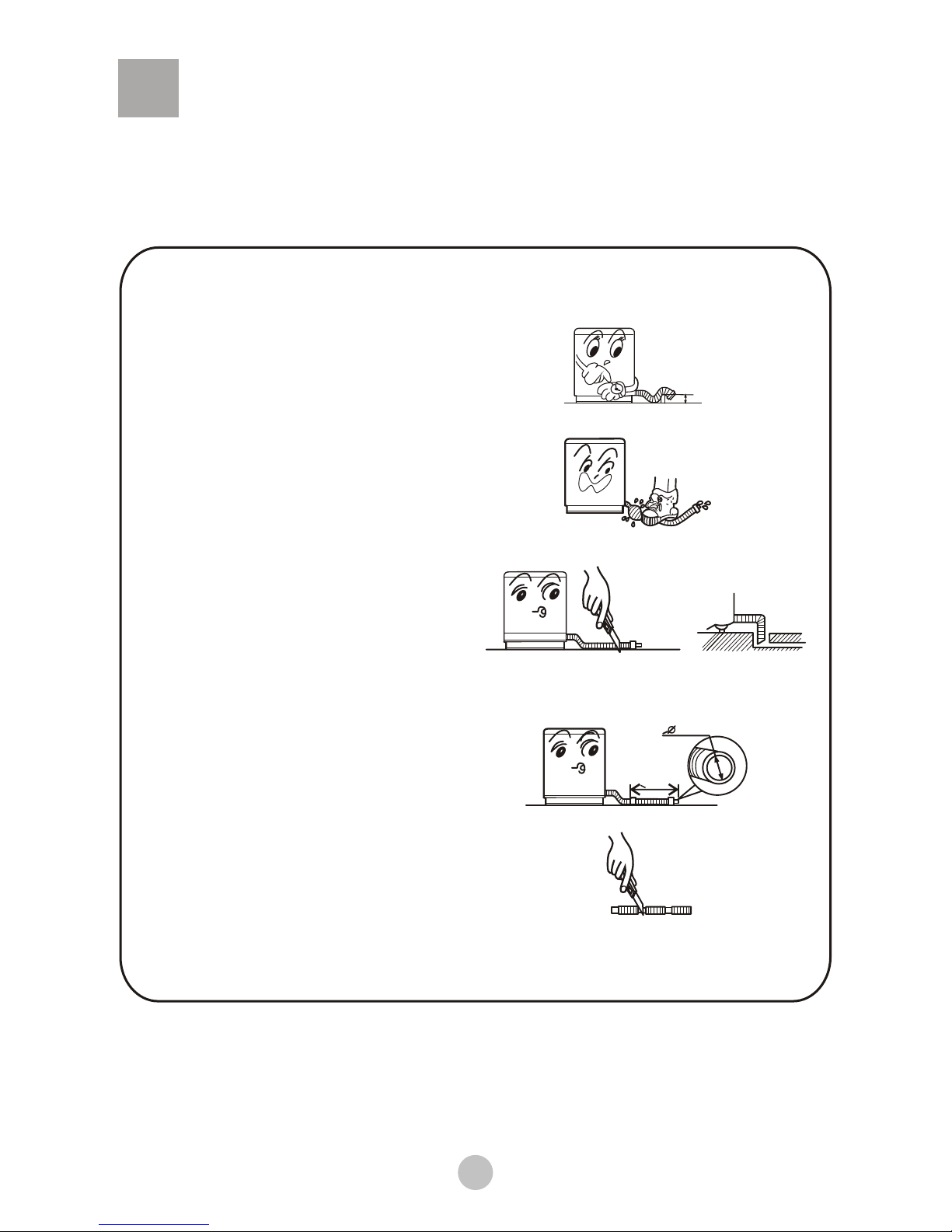

Please insert the power cord into
special receptacle with rated vol-
tage.Be sure to use single-phase
three pins receptacle.The earthing
terminal of the receptacle must be
earthed reliably.If possible,please
adopt electric leakage protector.
When the machine is normally
using, please put the power plug
at the location easily to be insert-
ed and extracted by hand. Be sure
to pull the plug off when there's
power failure, or the machine is
being moved, cleaned or when it
is idle.
Do not put the machine at damp
place like the bathroom . Never
wash it with water. Do not place
wet laundries on the control panel.
Do not wash water-proof laundries
like the raincoat, bike covers etc.
to avoid abnormal vibrations.
Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.
Ventilation hole at
the bottom of the
washing machine
If the supply cord is damaged,it must be replaced
by the manufacturer or its service
agent or a similarly qualified person
in order to avoid a hazard.
Do not use water hotter than 50 C .
For washing machine with ventilation
openings in the base, that a carpet
must not obstruct the openings.
50 C
Safety precautions

Safety precautions
3
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.
Do not put any hot or heavy items
( such as the kettle with hot water )
on the washing machine.
Do not decompose, repair or alter the
machine by yourself.
Handicapped or children without care
shall not use the machine.
Keep the machine away from direct
sunlight and heat source like the
heater.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Petrol
h nn
Tier
To protect your laundries and wash-
ing ma chine, please take out all of the
coins, buttons, sand, hairpin and
other foreign ma terials before washing.
Please check if the con ne ction of the
wat er inl et pi pe is proper.
It is sug ge sted to us e foa mless was hing
powde r.

Installation and adjustment
4
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Usage of the drain hose
If the extra hose is too long, cut it either
at point A or B.
<10cm
BA
> 30mm
<1.5m
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall be
less than 10cm , or the drainage will
not be smooth enough and cause
incomplete drainage.
2.Do not tramp or press the drain hose.
3.If the drain hose is too long, cut it at mid point.
To make smooth drainage, cut the front end of
the hose slantingly.
4.If extra drain hose is needed , please make
separate purchase. The inner diameter of the
extra hose shall not less than 30mm, and the
length shall not exceed 1.5m.

5
Install the water inlet hose; Select the water level
1
2
3
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Dismantle the drain hose fixing clamp and take
the hose out of the fixing groove.
(See to Figure 2).
Extend the drain hose from the side of spin tub
Figure 1
Back
Front
Soft item
Figure 2
Extend to the
spin tub side
Fig ure 3
Embed the drain hose into the groove along the side
of the spin tub in the order of 1 ~ 3 , heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Insert the water inlet hose into the water-filling
entrance on the control panel To
dismantle the water inlet pipe, just push the
control handle as indicated in the figure and
pull it out
（
）
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Water inlet
hose
Water-filling
entrance
Water level
indicator
Maximum
Medium
Minimum
Max
Med
Min
Use the new water inlet hose provided
with the machine to connect to the
water faucet.Old hose sets should
not be reused.
How to change the direction of the drain hoses

6
Preparation before washing
1.Connect the water inlet hose.
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3.Put down the drain hose .
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Preparation before washing
Pay attention to following before washing the laundries
Check if
the laundries
has special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
a. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like
mud or dust. For the parts with heavy soil, please apply detergent on
them in advance, which can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn
it over before putting in.
f. Do not put those laundries polluted by chemicals into the washing
machine directly.

The musts in washing
7
The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that can
be washed or spinned in one time. Laundries
quantity in one washing cycle shall be lower
than the rated capacity.
The thickness ,size , type of the cloth will influ-
ence the actual washing capacity. It is suit-
able to put in reasonable amount of laundries
and the laundries can be turned round in wash-
ing for one time washing.
Do not select " Maximum " water level for
laundries less than 1.0kg, so as to avoid
splashing of water.
How to use the whitener
Fill water to decided level. Dilute
the whitener with container.
Pour it slowly into the washing tub.
Avoid using whitener on laun-
dries with color or pattern as they
are prone to lose color.
The whitener shall not touch
the laundries directly.
Direct dissolved in the machine:
1.Fill small quantity of water.
2.Add the powder . Run for 30
seconds to dissolve it completely.
3.Put it in the laundries. Select suitable
water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 C and a
container.
2.Add the powder while stirring to fully
dissolve it.
The powder is more prone to pollute the
laundries than the detergent. Therefore
please use it with proper quantity.
Dosage of different washing powder is
different. Please refer to the instruction
of the washing powder for the detail
dosage.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before using.
How to use the washing powder
Usage of the detergent

Washing sequence
8
（Not set the switch to
DRAIN during washing）
Wash timer
(To set to below 2 minutes,
first set to 6 minutes then
turn it back.).
Drain selector Spin timer
(To set to below 1 minute,
first set to 2 minutes then
turn it back. it can increase
the service life of the timer).
WATER INLET SELECTOR
WASH SPIN
1.Water-filling selector
1 Set the water inlet selector at the "WASH" side.
(Figure 1)
2 Set the water level adjusting lever to needed line.
2. Fill the water and add the dissolved washing
powder to make the water level reach the preset
position. (Figure 2)
Run washing program for some time to stir and
dissolve the powder completely.
3.Put in the laundries. If the water quantity is
insufficient, please add water.
4.Select the current.
Select the strength of the current according to
the laundries. (Figure 3)
5.Select the washing time
Select the washing time according to the laundries.
(Figure 4)
6.After washing, set the "DRAIN SELECTOR"
at "DRAIN". (Figure 5).
Wash
Figure 1
Figure 2
Figure 3
2
Wash selector
(Strong current,
Standard current)
Figure 5
Figure 4

9

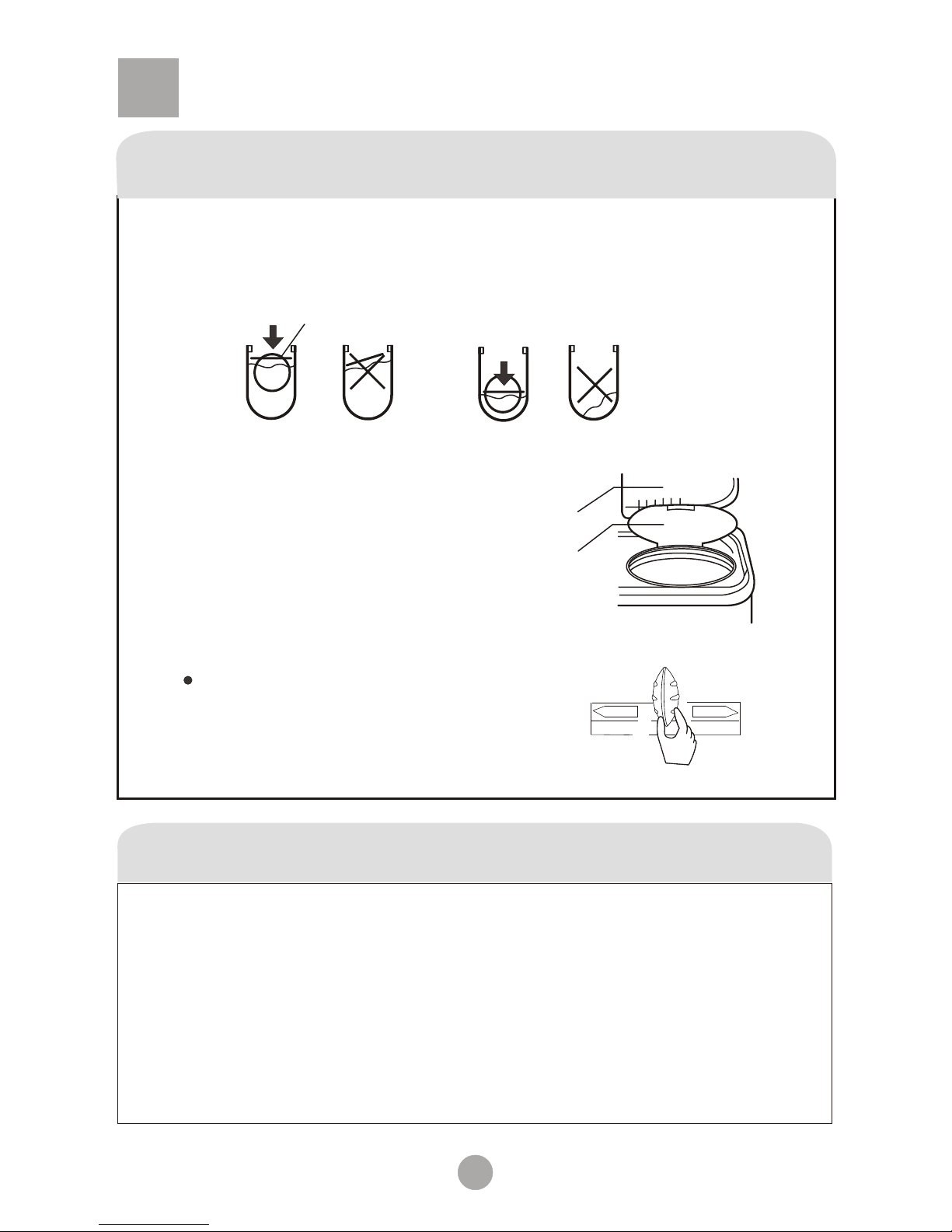

Midway spinning
Push
Push
Proper Proper
Outer cover of
the spin tub
Inner cover of
the spin tub
The laundries
are slanting
Gland
No gland
1.Put the laundries into the spin tub evenly and smoothly.
2.Spin
(1) Put the gland in properly.
Please put in the gland properly even if the laundries quantity is small.
(2) Close the inner and outer cover of the spin tub.
(3) Spin for 1-2 minutes.
3.Run the foam-removing spinning.
（1）
（2）
Set the inlet selector handle on spin side and
fill water for about 1 min.
Close the spin tub outer cover and spin
for about 1 - 2 min.
In case water flows out from wash tub side
due to too much inflow, please turn down
the water tap a bit.
WATER INLET SELECTOR
WASH SPIN
Rinsing
Rinse with water-filling
1.Put the laundries
Put the laundries into the wash tub. Select suitable current according
to the laundries.
2.Adjust the water level
Set the water level with water level adjusting lever according to the
laundries quantity. Then fill suitable water continuously.
3.Rinse
Adjust the wash timer to 5-7 minutes to do rinsing.

10
Rinse with stored water
1. Put the laundries into the wash tub. Select suitable current according to
the laundries.
2. Fill water to preset water level.
3. Rinse
Adjust the wash timer to 2-3 minutes to do rinsing.
When the laundries quantity is few, please use "Standard" current.
If you use "Strong" current, it may splash.
Rinsing
(Repeat the midway spinning and rinsing with stored water
for 2-3 times)
Spinning
1.Put the laundries into the spin tub evenly and smoothly.
2.Press the gland in the tub properly. Close the inner and
outer cover of the spin tub.
3.Spin
Select suitable spin time according to the laundries, and do spinning.
During spinning, if there is abnormal sound, it is generally owing to
slanting placement of the laundries. Please stop the machine and
reorder the laundries.
In spinning, it will pause the work if you open the outer cover of the
spin tub. Close it to resume the spinning.
To do spinning and draining and rinse
with water-filling together, please first
do spinning for around 1 minute, then
do draining or rinse with water-filling .
Otherwise the spinning will stop owing
to too much water stored in the spin tub.

11

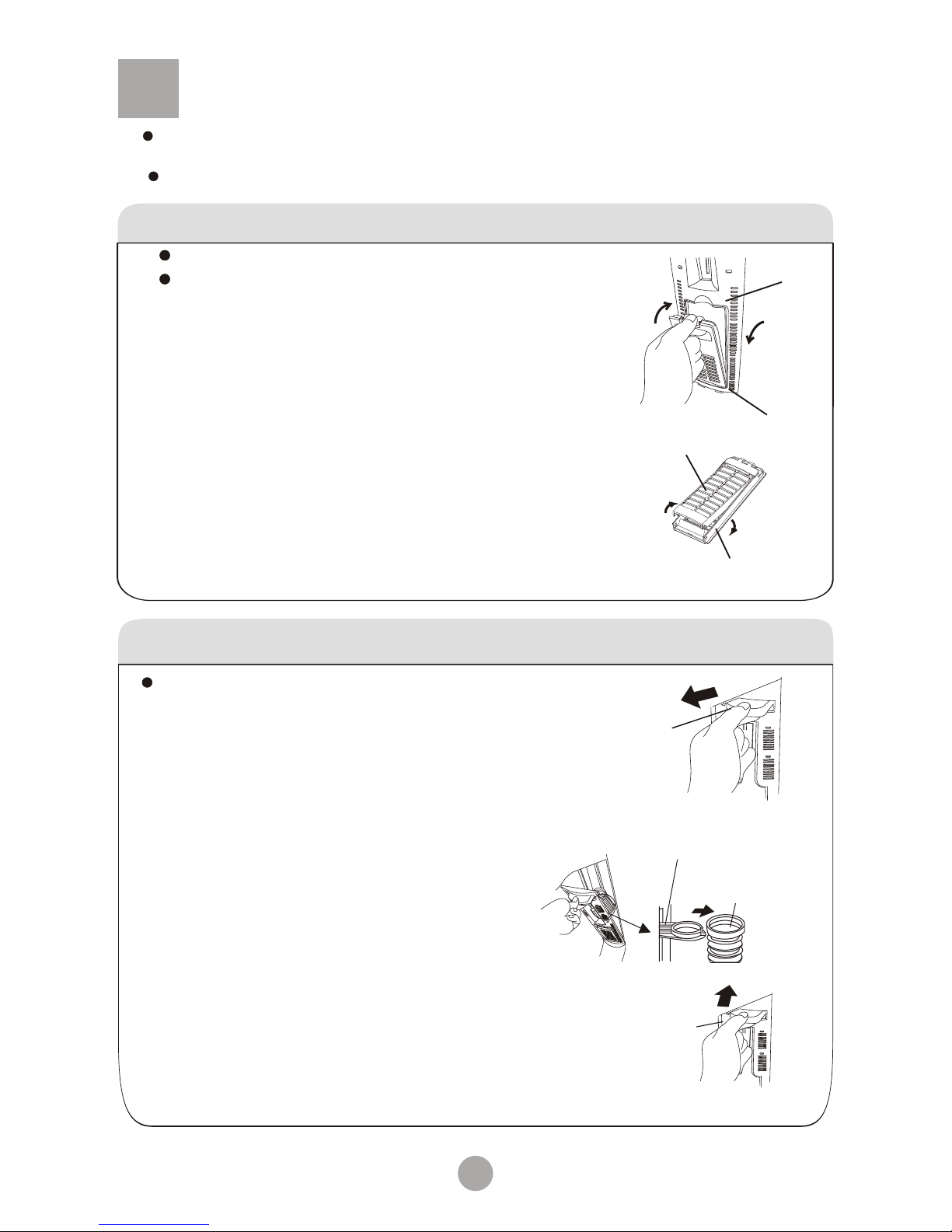

Disposal after washing
After using, please clean the lint and foreign materials of the lint filter and
overflow filter in time. Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
The lint filter must be used during washing.
It must be cleaned in time after each using.
Cleaning the lint filter
Figure 1
Lint filter rear cover
Lint filter front cover
Disassemble
Install
Figure 2
Down
Dismantle
Install
Up
Lint filter:
1.Push down the spring piece of the top lint filter to
make the claws out of the filter cover, and then
pull out the lint filter to get it down.（figure1）
2.Pull the back of the lint filter, and then you can get
down it off the front cover of the lint filter.（figure2）
3.Sweep the rubbish in the lint filter.
4.Put the back of the lint filter into the front cover .
5.Put the lint filter into filter cover, and make it tight .
6.Make sure the lint filter well installed, or it can
influence your use.
2. Take off the corrugation pipe.
Dismantle the upper part of the corrugation
pipe inside the overflow filter ( as indicated in
Figure 2).
3. Cleaning the overflow filter
Clean the lint around the filter and flush
with tap water.
4. Install the overflow filter.
(1).Install the corrugation pipe.
(2).Insert the mounting plate at the bottom of the
filter into the valve cover.
(3).Hang up the hook at the left upper side.
(4).Push the upper part in (as indicated in Figure 3).
Elastic fixing
claw
Too much lint on the overflow filter will influence
the normal usage of the machine. Please
clean it every two months.
1、Take off the overflow filter.
As indicated in the figure, nip the elastic fixing
claw and pull it to the direction of the arrow to
take it off.
Cleaning the overflow filter
Figure 1
(Figure 1)
Figure 2
Figure 3
Hook
Water level
adjusting lever
Corrugation
pipe

12

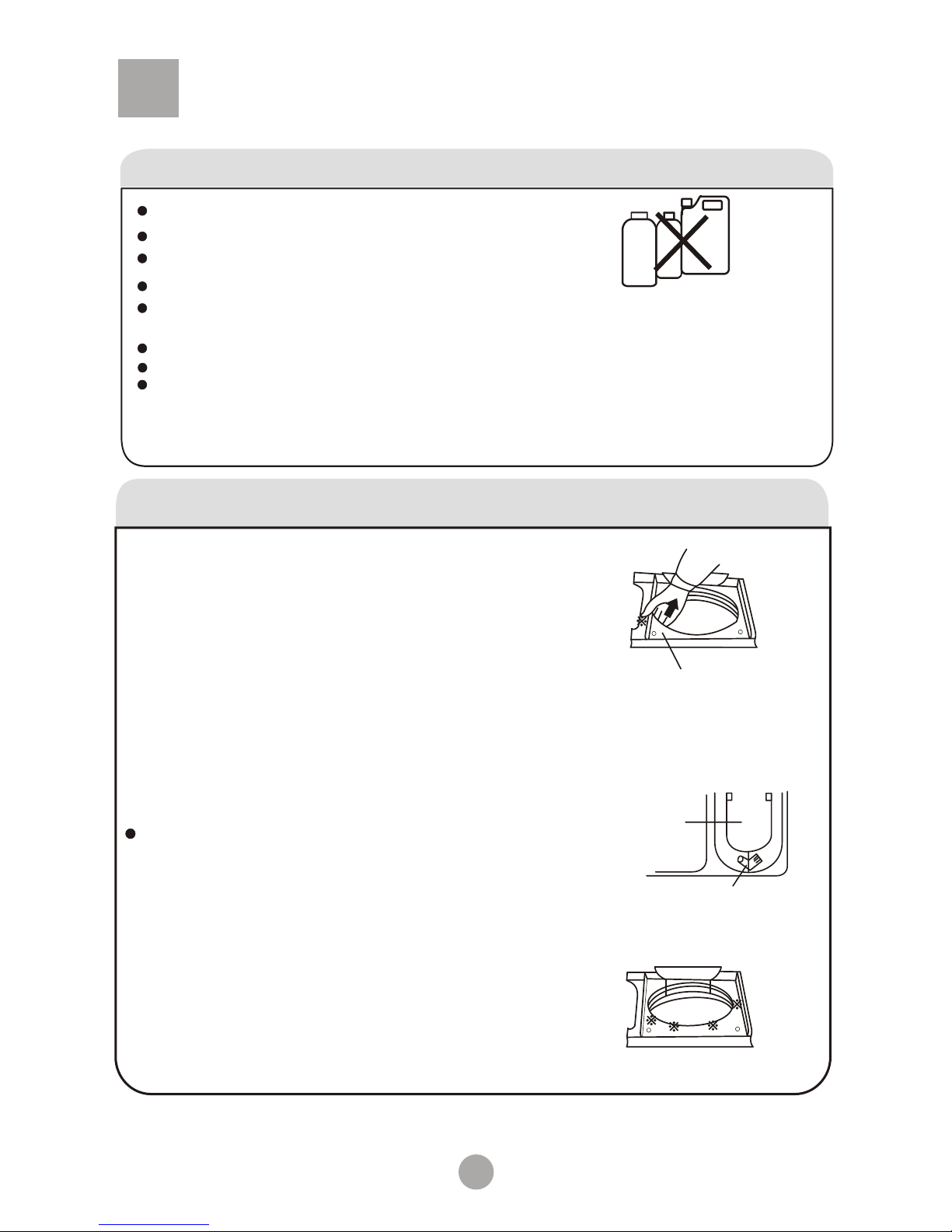

After washing, dismount the water inlet hose.
Do not store water in the tub for long period. Discharge the water
immediately after each using.
Pull off the power plug and hang up thepower cord.
Hang up the drain hose.
Wipe off the water drops on the surface and inside the tub with clean
soft cloth. Open the cover of the wash tub and the inner/outer cover
of the spin tub for some time (about one hour), then close them.
Wipe the complete unit with soft cloth twisted dry.
Wipe with neutral detergent if too dirty.
Do not wash it directly by water.
Thinner
Alcohol
Petrol
Disposal of the complete unit
If the laundries fall to the outer side of the spin tub
Please check carefully. The laundries may fall to the
lower part of the outer side of the spin tub ( Figure 2).
If the laundries fall to the outer side of the spin tub,
during spinning the draining will get blocked and the
rotation speed of the spin tub is reduced.）
If the laundries fall to the outer side of the spin tub, Please
take it out quickly.
Spin tub frame
Figure 1
Figure 2
Laundries
Spin tub
1.Dismantle
First take two plugs out, then dismantle the two
screws which fixed the Spin tub frame. As
indicated in the figure, push the point marked
with "※" to pull the spin tub frame to oblique
upwards to dismantle it.
2.Install
After install the back edge of the spin tub frame to
proper position, push the four points marked with
"※" by force to reset it, fix it with screws, then
fixed the two plugs at the position.
Figure 3
（Figure 3）
Trouble-Shooting Answer to question

13
Trouble-Shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The
following phenomena are not breakdowns sometimes. Please confirm
again before sending it to repair. If there are real breakdowns, please
come to the special maintenance department or after-sale service
department of our company. Do not repair it by yourself.
Phenomena The reason
The machine does
not act.
Is there power failure?
Is the power plug loose?
Is the pulsator twisted by foreign materials?
Is the drain hose put down?
Is the drain hose blocked by foreign material?
Are there laundries falling to the outer side of
the spin tub?
Are there hair pin, coins or metal items brought
inside the tub?
Is the machine slanting?
Is the gland pressed evenly?
Are there laundries falling to the outer side of
the spin tub?
Are the laundries in spin tub too much?
It is the water remained in the factory inspection
of performance.
There may be some
water flowing out of
the drain hose in the
first use of the
machine.
There's abnormal
sound and violent
vibration during
spinning
There's abnormal
sound during washing
The draining does
not work

14
Specification
Water level／Water quantity（estimated）(L)
Maximum/71 Medium/60 Minimum/49
Injection pressure(MPa) 0.02~0.2
Spinning capacity(kg) 6.0
Washing capacity(kg) 11.0
Water inlet hose
Gland
Packing list
Twin-tub washing machine
Name Quantity
User's manual One piece
One piece
One piece
One set
