Haier HLP24E User manual

Top-Load Compact Clothes Washer
Laveuse à chargement par le haut
Lavadora de ropa con carga superior
User Manual
Guide de l’utilisateur
Manual del usuario
HLP24E
Designed for
use HE detergent.
Conçue pour
utiliser un
détergent HE.
Diseñada para un
detergente HE

1
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .................................................................2
Installation Safety Precautions..................................................................................... 2
General Safety Precautions .......................................................................................... 3
PARTS AND FEATURES .......................................................................................4
INSTALLATION INSTRUCTIONS.......................................................................... 5
Tools Needed ................................................................................................................. 5
Parts Supplied................................................................................................................ 5
Location Requirements................................................................................................. 5
Drain System Requirements .........................................................................................6
Electrical Requirements ................................................................................................ 7
STEP BY STEP INSTRUCTIONS............................................................................ 8
Step 1 - Unpack the Washer..........................................................................................8
Step 2 - Connect and Secure the Drain Hose .............................................................. 9
Step 3 - Connect the Water Hoses............................................................................... 9
Step 4 - Level the Washer ...........................................................................................11
Step 5 - Complete Installation ....................................................................................11
CONTROL PANEL AND FEATURES .................................................................... 12
OPERATING INSTRUCTIONS............................................................................. 15
Step 1 - Prepare and Sort Laundry..............................................................................15
Step 2 - Add Fabric Care Products..............................................................................16
Step 3 - Load the Washer ............................................................................................17
Step 4 - Start the Washer ............................................................................................17
CARE AND CLEANING GUIDE............................................................................ 18
Cleaning and Maintenance..........................................................................................18
Vacationing Precautions .............................................................................................18
Moving or Storage Preparation...................................................................................18
TROUBLESHOOTING........................................................................................ 20
LIMITED WARRANTY ........................................................................................ 22
RECORD KEEPING
Thank you for purchasing this Haier
product. This user manual will help you
get the best performance from your
new washer.
For future reference, record the model
and serial number located on back of
the washer, and the date of purchase.
Staple your proof of purchase to this
manual to aid in obtaining warranty
service if needed.
___________________________________
Model number
___________________________________
Serial number
___________________________________
Date of purchase

2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using
your appliance, follow the basic precautions, including the following:
rRead all of the instructions before using this appliance.
rUse this appliance only for its intended purpose as described in this user
manual.
rDo not use the washer for commercial clothes washing.
rUnder certain conditions, hydrogen gas may be produced in a hot-water
system that has not been used for 2 weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not been used for such a
period, before using a washing machine, turn on all hot-water faucets
DQGOHWWKHZDWHUǍRZIURPHDFKIRUVHYHUDOPLQXWHV7KLVZLOOUHOHDVH
DQ\DFFXPXODWHGK\GURJHQJDV$VWKHJDVLVǍDPPDEOHGRQRWVPRNH
RUXVHDQRSHQǍDPHGXULQJWKLVWLPH
INSTALLATION SAFETY PRECAUTIONS
DANGER
Before you throw away your old appliance, remove the door or lid so
that children cannot hide or get trapped inside your old appliance.
rThis appliance must be properly installed and located in accordance with
the installation instructions before it is used.
rDo not store or install this appliance where it will be exposed to
temperatures below freezing or exposed to weather, which can cause
damage to the appliance.
rThe appliance must be properly grounded to conform with all electrical
codes and ordinances. See “Electrical Requirements” section.

3
GENERAL SAFETY PRECAUTIONS
rKeep the area around your appliance free from combustible materials
such as lint, paper, rags or chemicals.
rClose supervision is necessary if this appliance is used by or near
children. Do not allow children to play on, with, or inside this appliance.
rDo not place articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry-cleaning solvents or other
ǍDPPDEOHRUH[SORVLYHVXEVWDQFHVLQWKHZDVKZDWHU7KHVHVXEVWDQFHV
JLYHRNjYDSRUVWKDWFRXOGLJQLWHRUH[SORGH
r 'RQRWDGGJDVROLQHGU\FOHDQLQJVROYHQWVRURWKHUǍDPPDEOHRU
H[SORVLYHVXEVWDQFHVWRWKHZDVKZDWHU7KHVHVXEVWDQFHVJLYHRNj
vapors that could ignite or explode.
rDo not reach into the appliance if the wash basket, tub or agitator is
moving.
rDo not tamper with the controls.
rNever unplug your washer by pulling on the power cord. Always grasp
WKHSOXJnjUPO\DQGSXOOVWUDLJKWRXWIURPWKHRXWOHW
rTo minimize the possibility of electric shock, unplug this appliance from
the power supply before attempting any maintenance or cleaning.
NOTE: 7XUQLQJWKHF\FOHVHOHFWRUNQREWRWKHţ2NjŤSRVLWLRQGRHV127
disconnect the appliance from the power supply.
rDo not attempt to service, repair or replace any part of the appliance
XQOHVVVSHFLnjFDOO\UHFRPPHQGHGLQWKLVXVHUPDQXDORULQSXEOLVKHG
repair instructions that you understand and have the skills to carry out.
rBefore discarding or removing from service, remove the washer door or
lid.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

4

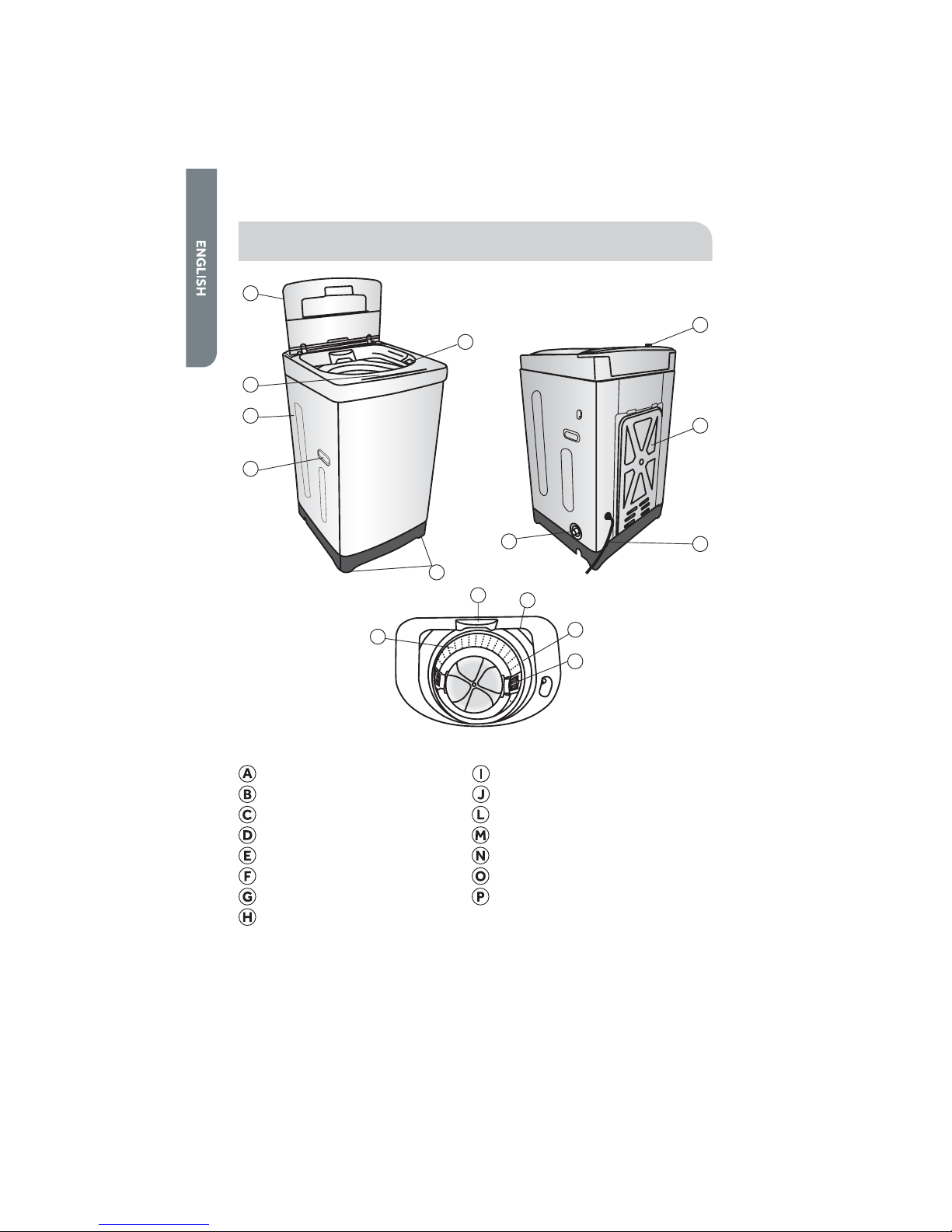

PARTS AND FEATURES
A
B
C
D
E
F
G
MN
O
P
I
J
H
L
Top Lid
Control Panel
Cabinet
Cabinet Handle
Leveling Feet (2)
Liquid Beach Dispenser
Drain Port
Power Cord (120 Volt/ 60 Hz)
Access Panel
Cold Water Inlet Value
Wash Basket
Powdered Detergent Dispenser
Outer Tub Cover
Balance Ring
Lint Filter

5
INSTALLATION INSTRUCTIONS
TOOLS NEEDED
ŢPliers
ŢWrench
ŢFlat-blade Screwdriver
ŢMeasuring Tape
ŢCarpenter’s Level

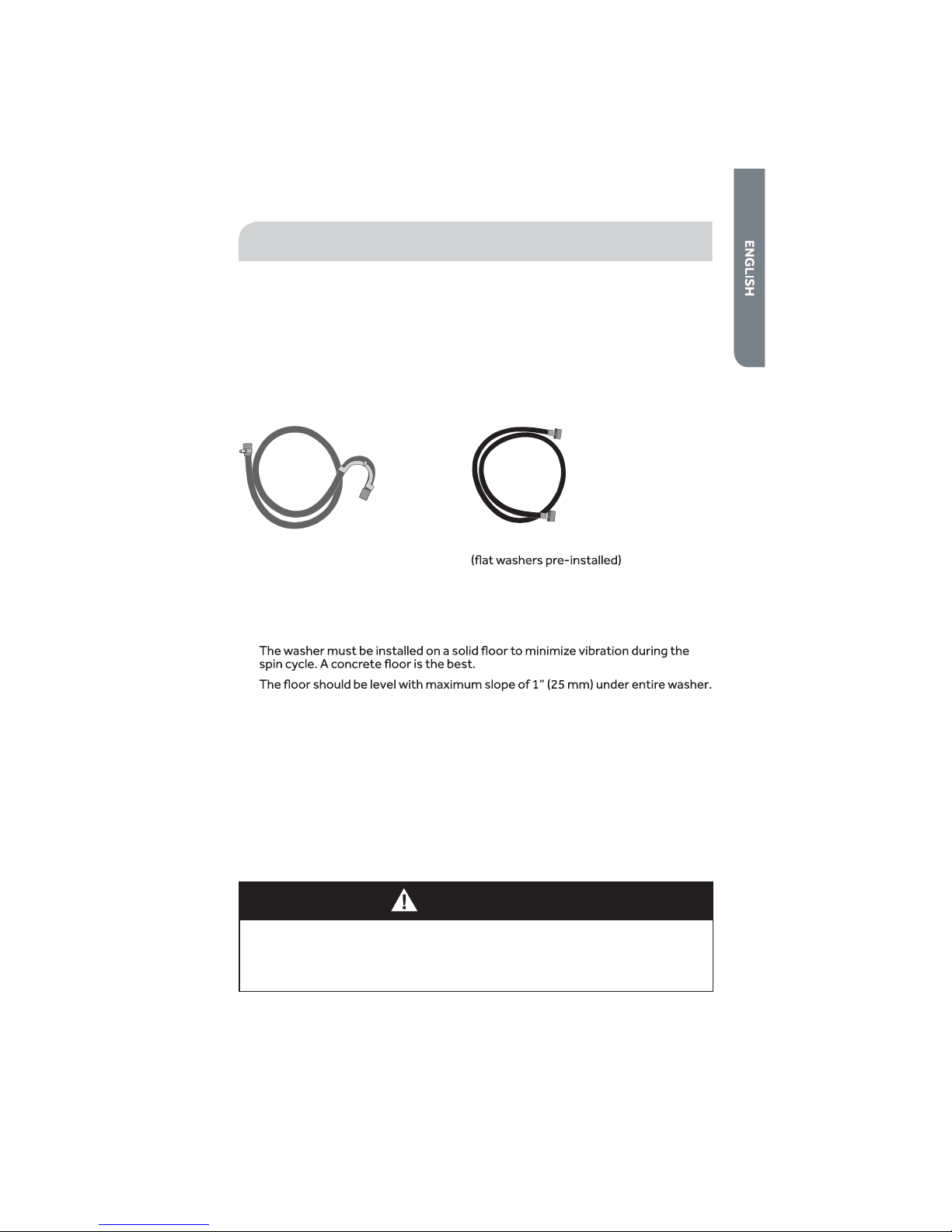

PARTS SUPPLIED
ŢDrain Hose Clamp
ŢDrain Hose Hook
ŢDrain Hose
ŢWater Hoses (1)
ŢUser Manual
LOCATION REQUIREMENTS
Ţ
Ţ
ŢA suitable location is protected from direct sunlight and heat sources such as
radiators, baseboard heaters, or cooking appliances.
ŢDo not install on carpeting.
ŢThe location must have a grounded electrical outlet located within 4 ft. (1.2 m) of
power cord on the back of the washer.
ŢHot and cold water faucets must be present within 3 ft. (0.9 m) of the hot and
cold connections on the washer.
ŢA water heater must supply hot water with a temperature of at least 120°F
(49°C).
ŢThe water pressure should be between 20 and 100 psi (138 and 690 kPa).
WARNING
Do not install or operate the washer where it will be exposed to
temperatures below 32°F (0°C). Water remaining in the washer will
freeze and cause damage to the washer.

6
WASHER DIMENSIONS
tƁű"
(55.0 cm)
{ŧŰŵ"
(56.0 cm)
37ƅ"
(95.6 cm)
DRAIN SYSTEM REQUIREMENTS
WALL OR FLOOR STANDPIPE
The height of the standpipe must be between 39” (99 cm) and 60” (153 cm) from the
bottom of the washer. The minimum diameter of the standpipe must be 2” ( 5 cm).
Wall Floor
39"– 60"
)

7
LAUNDRY TUB
The laundry tub must have a minimum
capacity of 20 gal. (76 L). The height of the
laundry tub must be at least 39” (99 cm)
and no more than 48” (122 cm).
39"– 48"
(99 cm – 122cm)
ELECTRICAL REQUIREMENTS
WARNING
The washer must be connected to a properly grounded 120 volt, 60 Hz.,
AC only, 15- or 20-amp, fused electrical supply. A time-delay fuse or
circuit breaker is recommended.
rIf the electric supply provided does not meet the above requirements, contact a
licensed electrician.
WARNING
Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the appliance is properly
grounded.
rThis appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current.
rThis appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
rDo not use a 3 prong plug adapter.
rDo not use an extension cord.

8
STEP BY STEP INSTRUCTIONS
INSTALLING YOUR WASHER
:HUHFRPPHQGWKDW\RXUQHZZDVKHUEHLQVWDOOHGE\DTXDOLnjHGDSSOLDQFH
technician. If you feel that you have the skills to install the washer, please read the
installation instructions carefully before installing.
CAUTION: If, after completing these steps, you are unsure that the washer is
SURSHUO\LQVWDOOHGFRQWDFWDTXDOLnjHGDSSOLDQFHWHFKQLFLDQ
WARNING
If your washer was just delivered and the outside temperature was
below freezing, do not operate until the washer warms up to room
temperature.
STEP 1 - UNPACK THE WASHER
1. Remove all packing materials. This includes the foam base and all adhesive tape
holding the washer accessories inside and outside.
2. Open the top lid to remove the wash basket brace. Pull to remove.
NOTE: Save the wash basket brace to use when moving the washer in the future.
3. Inspect and remove any remains of packing, tape or printed materials before
using the washer.
WARNING
To avoid danger of suffocation, keep plastic bag and other packing
material away from babies and children. Do not use this bag in cribs,
carriages and playpens. The plastic bag could block nose and mouth
and prevent breathing. This bag is not a toy.

9
STEP 2 - CONNECT AND SECURE THE DRAIN HOSE
1. Enlarge the opening by squeezing the
ends of the drain hose clamp together.
Slide the clamp over the end of the drain
KRVHDQGRQWRWKHǍH[LEOHVHFWLRQRIWKH
hose.
2. Fit the end of the drain hose over the
plastic drain port extending from the
washer.
3. Squeeze the ends of the clamp to enlarge
the opening and slide the clamp over the
connection of the drain hose and drain
port. Release the clamp to tighten.
4. Put the drain hose hook end in a drain pipe or laundry tub.
5. Secure the drain hose in place by fastening it to a water hose, the standpipe, or a
leg on the laundry tub. See “Drain System Requirements” for illustrations.
STEP 3 - CONNECT THE WATER HOSES
IMPORTANT: Only use new hoses when installing the washer.
NOTE: Periodically inspect hoses for cracks, cuts, leaks or wear. Replace with new
hoses every 5 years.
NOTE: Hot water needs to be set at a temperature of at least 120ºF - 140ºF. (49ºC-
60ºC) for the soap to dissolve and to avoid soap residue remaining on clothes.
1. &KHFNWKDWDǍDWZDVKHULVSUHVHQWDQGnjUPO\LQSODFHLQHDFKHQGRIWKHZDWHU
inlet hoses. Flat washers are pre-installed at the factory.
A
Washer

10
2. The hose couplers are color coded to assist you in making the proper
connections. You may want to use gray for cold and red for hot. Thread the inlet
hoses onto the water faucets by hand until snug. Then using pliers, tighten an
additional two-thirds turn.
IMPORTANT: To avoid damage to the hose couplings, do not overtighten.
NOTE: To avoid damage to the faucets do not use plumber’s tape or sealants on
the valve threads.
3. Thread the other end of the inlet hoses by hand onto the inlet valves marked
“H” (hot) and “C” (cold) on the back of the washer until snug. Then using pliers,
tighten an additional two-thirds turn.
IMPORTANT: To avoid damage to the hose couplings, do not overtighten.
NOTE: To avoid damage to the washer inlet valves, do not use plumber’s tape or
sealants on the valve threads.
4. Turn on the hot and cold water faucets and check for leaks. If there is any leaking,
check steps 1 through 3 again.

11
STEP 4 - LEVEL THE WASHER
IMPORTANT: Proper leveling of the washer will help reduce noise and vibration.
1. 3ODFHZDVKHULQLWVnjQDOORFDWLRQ&KHFNWKDWWKHZDWHUDQGGUDLQOLQHVDUHQRW
VWUDLQHGRUSLQFKHG0DNHVXUHWKDWDOOIRXUIHHWDUHnjUPO\LQFRQWDFWZLWKWKH
ǍRRUDQGWKDWWKHZDVKHUUHVWVVROLGO\LQSRVLWLRQ
2. Using a carpenter’s level, check to make sure the washer is level from side to
side and from front to back.
3. If the washer is not level, adjust the leveling feet. Turn clockwise to extend (raise
the washer) or counterclockwise to retract (lower the washer).
Raise Lower
STEP 5 - COMPLETE INSTALLATION
1. Plug the washer into a grounded 3 prong outlet.
2. Check that water faucets are turned on.
3. Dispose of/recycle all packaging materials.
4. Run a normal wash cycle using detergent to test and
clean the washer. See the ”Operating Instructions”
section.

12
CONTROL PANEL AND FEATURES
CONTROL PANEL
WASH CYCLE BUTTON
ŢUse this button to select the desired cycle for your wash load.
ŢThe standard default settings of each cycle will be displayed; the default
settings can be changed by using the Setting buttons - Wash Temp, Soil
Level, and Water Level.
ŢThere are 8 cycles to choose from:
Heavy Duty - Use this cycle for heavily soiled durable garments. This cycle
can also be used for towels, sports gear, children’s clothes, etc.
Whites - Use this hot water cycle for white and light colored clothing that is
susceptible to transfer of dye.
Perm Press - Use this cycle for light to normally soiled garments.
Normal - Use this cycle for normally soiled cottons and mixed fabric loads.
Delicate - Use this cycle to wash lightly soiled garments and delicate clothes
that need gentle washing.
Quick - Use this cycle to wash small, lightly soiled loads that are needed in a
hurry.
Rinse & Spin - Use this cycle for removing excess detergent and refreshing
clean garments.
Spin Only - Use this cycle to extract water from sink washed or clean wet
garments.
Super
Large
Medium
Small
Delicate
Heavy Duty
Quick
Normal
ｃ
Ｄ
Ｅ

13
DELAY START BUTTON
ŢPress this button to delay the start of your wash cycle between 1 - 24 hours
in one hour increments.
ŢUse this button to select a delayed start of the washer. The number of hours
will be shown in the Estimated Time Remaining Display. Each press of the
Delay Wash Button will increase the time by 1 hour.
ŢOne button press after 24 will cancel the delay wash feature. You can also
Power Button.
ŢThe Start/Pause Button must be selected to begin the countdown.
CYCLE STATUS INDICATORS
ŢThe Cycle Status lights indicate the stages of the selected cycle.
START/PAUSE BUTTON
ŢPress this button to start a selected cycle or to pause an operating cycle.
NOTE: After starting the wash cycle, you must pause the operating cycle to
change the Wash Temp, Soil Level and Water Level settings.
POWER BUTTON
ŢPress the power button to turn on the washer.
NOTE: If the washer is turned on, but START is not pressed, the power will

14
CYCLE GUIDE
NOTE: To protect your wash load, all options and settings are not available for all
cycles. The shaded boxes indicate the default settings for each cycle.
CYCLE FABRIC
TYPE
WASH
PROCESS
EST
TIME
WASH
TEMP
SOIL
LEVEL
WATER
LEVEL
EXTRA
RINSE
Heavy
Duty
Heavily
soiled,
durable
colorfast
fabrics
12 Min Soak
25 Min Wash
Rinse
Spin
1:08
Warm Normal Medium
Ţ
Hot
Cold
Heavy
Light
Super
Large
Small
Normal
Cottons,
linens and
mixed
garments
16 Min Wash
Spray Rinse
Spin
:40
Warm Normal Medium
Ţ
Hot
Cold
Heavy
Light
Super
Large
Small
Delicate
Lingerie,
sheer
fabrics
with lace
trim
10 Min Wash
Rinse
Spin
:37
Warm Normal Medium
Ţ
Cold Heavy
Light
Super
Large
Small
Quick
Cottons,
linens and
mixed
garments
9 Min Wash
Rinse
Spin
:31
Warm Normal Medium
Ţ
Hot
Cold
Heavy
Light
Super
Large
Small
Rinse &
Spin
Unsoiled
garments
Rinse
Spin :29 Cold
only n/a
Medium
Ţ
Super
Large
Small
Spin
Only
Clean
soaking
wet
garments
Spin :06 n/a n/a n/a

15
OPERATING INSTRUCTIONS
STEP 1 - PREPARE AND SORT LAUNDRY
PREPARE LAUNDRY
rCheck garment labels for manufacturer’s washing instructions.
rEmpty pockets and turn them inside out.
r 7XUQGRZQFXNjVDQGUHPRYHDQ\OLQWRUGLUW
rTie strings and sashes so they don’t tangle.
rClose zippers, snaps and hooks to avoid snagging.
rRemove pins or other sharp objects from clothes to prevent scratching of the
wash basket.
rPretreat all stains and heavily soiled areas.
rTurn synthetic and wool knits inside out to avoid pilling.
SORT LAUNDRY
rSort laundry by the type of wash cycle required (water temperature and wash
action).
rSeparate light colors from dark colors and colorfast items from non-colorfast
items.
rSeparate heavy duty fabrics from light weight fabrics.
r 6HSDUDWHIDEULFVWKDWDWWUDFWOLQWIURPIDEULFVWKDWJLYHRNjOLQW
rSeparate bulky items such as blankets or pillows.

16
STEP 2 - ADD FABRIC CARE PRODUCTS
ADD DETERGENT
r 8VHRQO\+LJK(ǎFLHQF\GHWHUJHQW+(GHWHUJHQWVDUHVSHFLnjFDOO\
formulated with ingredients to avoid problems caused by too
many soap suds. Excess suds will prevent the complete rinsing of
detergent residue from clothes.
rIf you select the Quick cycle, it is recommended that you use a liquid laundry
detergent to achieve optimum results. Powdered detergent may not dissolve
fast enough to clean well in this cycle.
rDetermine the amount of detergent. Follow the detergent use instructions on
the container.
NOTE: The proper amount of detergent depends on the size of the load, the soil
level of the clothes, and the softness of the water being supplied to the washer.
Liquid Detergent
1. Fill washer with a small amount of water and add liquid detergent.
NOTE: For best results, add the detergent to the wash basket before loading
with laundry.
2. Run washer for 30 seconds to dissolve detergent completely.
Powdered Detergent
1. Pour measured powdered detergent
directly into the detergent dispenser.
$''%/($&+,)'(6,5('
rPour measured liquid chlorine bleach into the
liquid chlorine bleach dispenser.
NOTE: Use only liquid bleach in this dispenser.
IMPORTANT: Be careful not to spill undiluted
bleach onto the washer cabinet or your
clothes. Since it is a strong chemical, it may
GDPDJHFORWKHVRUWKHnjQLVKRIWKHZDVKHU
rFollow manufacturer’s directions on garment
label for recommended use of liquid or
powder bleach.

17
STEP 3 - LOAD THE WASHER
1. Load garments loosely and evenly around the wash basket.
2. Do not place clothes directly over the center of the pulsator.
3. Close the washer lid.
NOTES:
r 'RQRWRYHUORDGRUVWXNjLWHPVLQWRWKHZDVKEDVNHW2YHUORDGLQJPD\UHGXFH
ZDVKHǎFLHQF\FDXVHH[FHVVZHDUDQGSRVVLEO\FDXVHFUHDVLQJRUZULQNOLQJRI
the load.
rThe washer will not pulsate or spin with the lid open.
STEP 4 - START THE WASHER
1. Press the POWER button to turn the washer on.
2. Select a wash cycle.
3. Modify the default settings and options if desired.
4. Press the START/PAUSE button to start the wash cycle.

18
CARE AND CLEANING GUIDE
WARNING
Always unplug your washer to avoid electric shock before cleaning.
Ignoring this warning may result in death or injury.
Before using cleaning products, always read and follow manufacturer’s
instructions and warnings to avoid personal injury or product damage.
CLEANING AND MAINTENANCE
GENERAL CARE
rOnly use a damp or sudsy cloth for cleaning the control panel.
rIf you spill liquid/powdered softener, bleach or detergent on the cabinet, wipe
WKHFDELQHWLPPHGLDWHO\WRDYRLGGDPDJHWRWKHnjQLVK
rDo not use abrasive cleansers, harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, or solvents to clean the washer. These chemicals may
dissolve, damage, or discolor the washer.
rAfter washing clothes, leave the lid open so that moisture inside the machine
can evaporate and to prevent the growth of mold or mildew.
DETERGENT DISPENSER
1. Pull the dispenser drawer out to the stop and lift up slightly to remove.
2. Rinse the dispenser with warm water and dry it thoroughly with a soft cloth.
3. Insert the drawer at a slightly downward angle and push it back into place.
LINT FILTER
1. 3XVKGRZQRQWKHWDEDWWKHWRSRIWKHnjOWHUWRUHOHDVH
WKHnjOWHUIURPWKHZDVKEDVNHW
2. 7XUQWKHnjOWHURYHUVRWKHEDFNVLGHRIWKHnjOWHULVIDFLQJ
upward.
3. :KLOHKROGLQJWKHnjOWHUnjUPO\ZLWKRQHKDQGOLIWXSRQ
WKHERWWRPRIWKHnjOWHUWRVHSDUDWHWKHIURQWRIWKHnjOWHU
IURPWKHEDFNVR\RXFDQDFFHVVWKHnjOWHUVFUHHQ
4. &OHDQWKHnjOWHUVFUHHQDQGUHSODFHWKHEDFNRIWKHnjOWHU
5. 6OLGHWKHnjOWHULQWRWKHZDVKEDVNHWDQGnjUPO\SUHVVLWLQWRSODFH
IMPORTANT:%RWKOLQWnjOWHUVPXVWEHLQSODFHGXULQJWKHZDVKF\FOHV&OHDQWKHOLQW
screens after each wash load.
