Haier XQJ100-96A User manual

Top Load
Clothes Washer
User Manual-
Guide de l’Utilisateur-
Manual del Usuario-
Model #
Modèle
Para Modelo de
XQJ100-96A
Lavadora Automática
Para las Ropas
de Cargado Tapa
Lave-Linge
Automatique
à Dessus Frontal
Pour des Vêtements
XQJ100-96A manual 10/22/01 11:30 AM Page 1

IMPORTANT SAFETY INSTRUCTIONS
Warning – To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described
in this use and care guide.
3. Use only detergents or softeners recommended for use in a clothes
washer and keep them out of the reach of children.
4. This washer must be properly installed in accordance with the
installation instructions before it is used.
5. Never unplug your washer by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
6. Replace immediately worn power cords, loose plugs/power outlets.
7. Unplug your washer before cleaning or before making any repairs.
8. If your old washer is not being used, we recommend that you
remove the door. This will reduce the possibility of danger to children.
9. Do not operate your washer in the presence of explosive fumes.
10. Do not use washer to wash clothes soaked, spotted or washed in
gasoline, dry cleaning solvents or any other explosive or flammable
substances that could ignite and explode.
11. Clothes or rags used to clean flammable or explosive materials should
not be washed in the washer till all traces of this material has been
removed, to avoid an accident.
12. Do not add or mix any flammable or explosive substances to the wash.
13. Do not try to remove clothes while the tub or the agitator is moving. Let it
come to a complete stop before use.
14. Washer loading door must be closed when agitator and tub is spinning.
15. Do not operate your washer when parts are missing or parts are broken.
16. Do not use the washer for commercial clothes washing.
17. Do not operate washer unless all enclosure panels are properly in place.
18. Do not tamper with controls.
19. To reduce risk of injury do not allow children to play in or on the washer.
20. Washer must be connected to proper electrical outlet with the correct
electrical supply.
1
English
XQJ100-96A manual 10/22/01 11:30 AM Page 2

2
21. Proper grounding must be ensured to reduce the risk of shock and fire.
DO NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not
have a three-prong electric receptacle outlet in the wall, have a certified
electrician install the proper receptacle. The wall receptacle MUST be
properly grounded.
22. Hydrogen gas may be produced if the water heater has not been used in
more then 2 weeks. This could be explosive and can explode under
certain circumstances. If this is the case, before using the washer turn on
all the hot faucets and let the hot water run for a few minutes. This will let
the trapped hydrogen escape. During this process do not turn on an
electric appliance, smoke, light a match/lighter or use a flame to avoid
an accident, as hydrogen gas is flammable and can explode.
SAVE THESE INSTRUCTIONS
For Future Use
English
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your washer.
Remember to record the model and
serial number. They are on a label in
back of the washer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
DANGER
Risk of child entrapment. Before you throw away your old
washer, take off the door so that children may
not easily get trapped inside.
XQJ100-96A manual 10/22/01 11:30 AM Page 3

Table Of Contents
PAGE
SAFETY INSTRUCTIONS....................................................................1
OPERATING INSTRUCTIONS............................................................4
Parts and Features..................................................................................4
Operations ............................................................................................5
Normal Operating Sounds....................................................................10
Lint Filter..............................................................................................11
Safety Lid Switch..................................................................................11
Care and Cleaning Guide ............................................................11
Cleaning and Maintenance ..................................................................12
Moving and Vacationing ......................................................................13
Storage of Your Washer ......................................................................13
Troubleshooting..............................................................................14
INSTALLATION INSTRUCTIONS ....................................................16
Tools and Materials Required................................................................16
Unpacking Your Washer ......................................................................17
Leveling Your Washer ..........................................................................17
Steps for Installation ............................................................................18
Electrical Connections....................................................................20
Grounding Instructions..........................................................................20
Power Interruptions ..............................................................................20
Warranty ........................................................................................21
3
English
XQJ100-96A manual 10/22/01 11:30 AM Page 4

4
English
Control Panel
8 CYCLES - HEAVY DUTY - 2 SPEED
SUPER CAPACITY
TEMPERATURE WASH
RINSE
COLD
COLD
WARM
WARM
HOT
COLD
WARM
COLD
LOAD SIZE
PULL TO START
PUSH TO STOP
REGULARPERM PRESS
DELICATESHAND WASHABLE
HEA VY 15

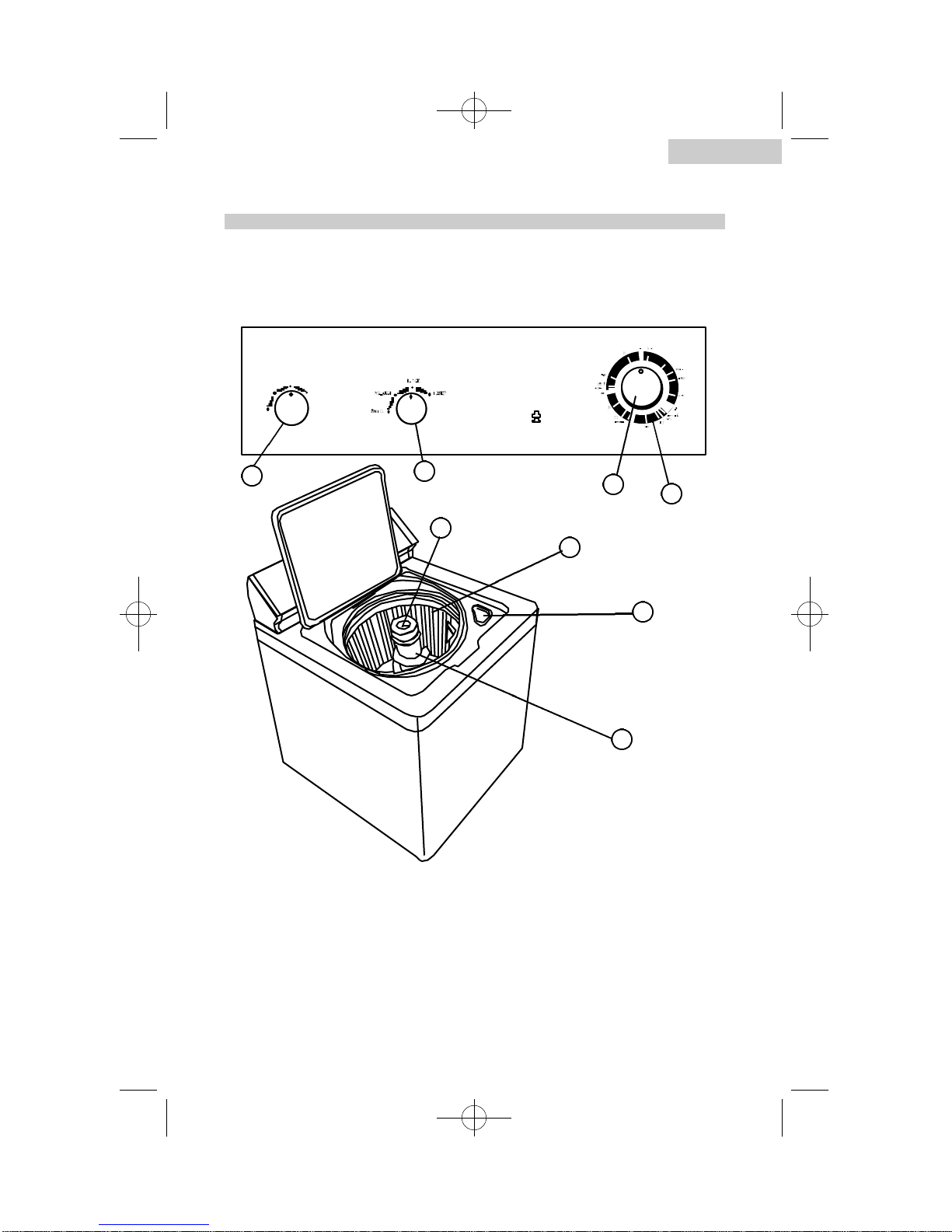

1. Temperature Control Knob
2. Load Size Knob
3. Start/Stop Knob
4. Wash Cycle/Wash Time Knob
5. Liquid Fabric Softener Dispenser
6. Inner Wash Tub
7. Liquid Bleach Dispenser
8. Agitator
5
1
6
7
8
234
OPERATING INSTRUCTIONS
Parts and Features
XQJ100-96A manual 10/22/01 11:30 AM Page 5

5
English
Operations

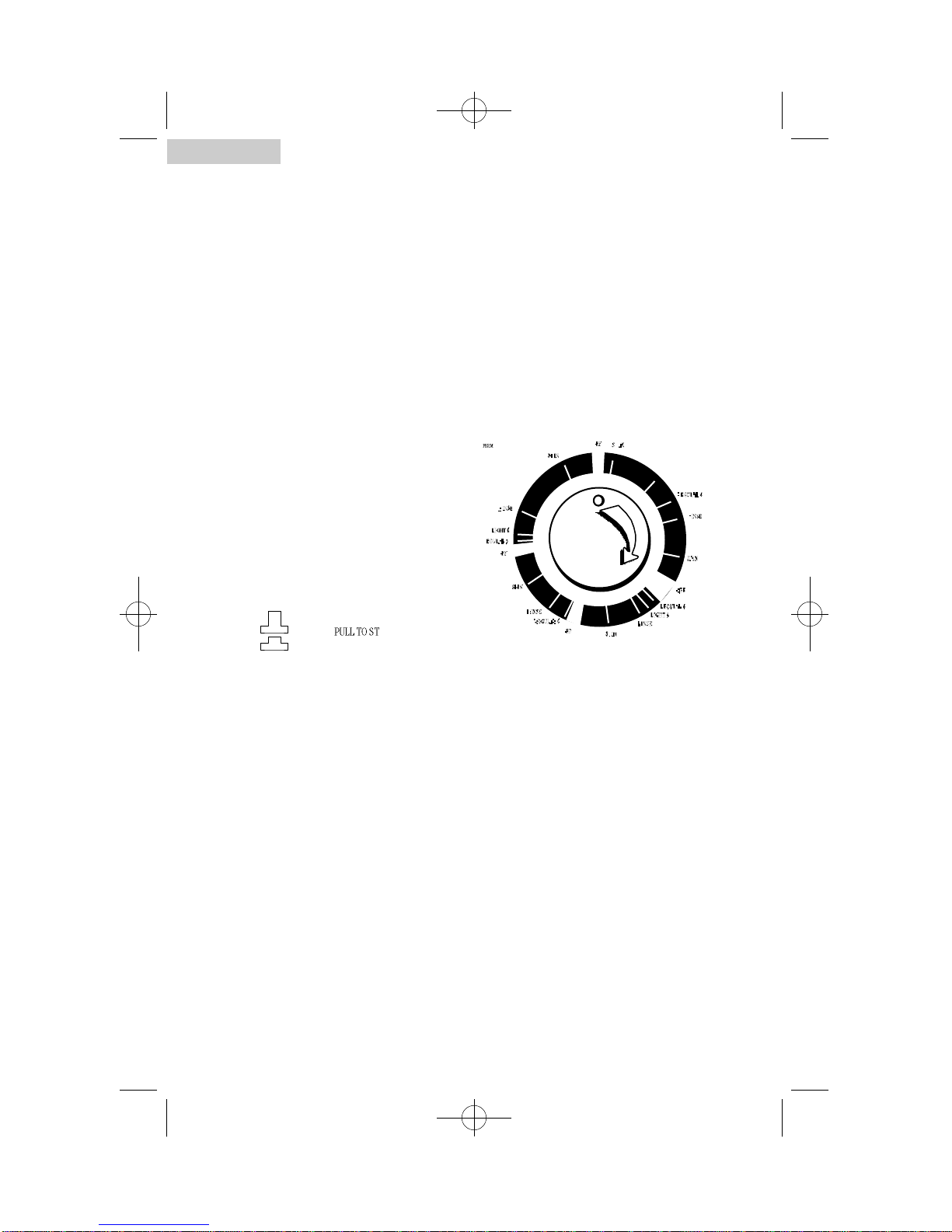

Wash Cycle/Wash Time:
•Select the appropriate cycle based on the fabric type and select the
appropriate wash time based on the soil level. For your convenience,
the washer has REGULAR, DELICATE, HAND-WASHABLE, and
PERMANENT PRESS cycles.
Note: Turn the knob CLOCK WISE to your desired setting.
Once the cycle is selected, then PULL OUT the knob to set it.
This will turn the washer "ON". To turn the washer off,
move the knob to "OFF" position.
Soak Cycle: This is used for heavily soiled or stained clothes. Here the tub fills
with water than pauses to soak the clothes. The cycle is completed
when water is extracted by spinning of the drum. This cycle is
approximately 16 minutes.
Regular Cycle: This is used for work & play, household linens and heavy to lightly
soiled cottons clothes. With regular wash speed, the agitator moves
faster. This cycle is approximately 15 minutes for heavy wash and 6
minutes for regular wash.
Delicate Cycle: This is used for special care fabric, lingerie with normal soil clothes
and delicate items. With delicate wash speed, the agitator moves
slower. This cycle is approximately 6 minutes for regular wash and
3 minutes for light wash.
XQJ100-96A manual 10/22/01 11:30 AM Page 6

6
English
Hand-Washable Cycle: This is used for lingerie, labeled "Hand-Washable"
with light soil clothes. With hand-washable wash speed, the
agitator moves very gently. This cycle is
approximately 6 minutes.
Permanent Press Cycle: This cycle is used for knits, permanent press and
wrinkle-free clothes. With permanent press wash speed,
the agitator moves faster. This cycle is approximately
9 minutes for regular wash and 6 minutes for light wash.
Load Size/Water Level:
•Depending on the size of your load that you want to wash, you can
select the appropriate water level settings: Small, Medium or Large.
XQJ100-96A manual 10/22/01 11:30 AM Page 7

7
English
Reset Mode:
•If you need additional water, turn the knob to the RESET position.
Hold it until you have the amount of water you need. Once done,
return to your original load size setting.
Warning: If you hold the RESET knob for an extended periods while the washer is
running then it will cause washer to overflow.
Loading the Washer:
• Load each item loosely.
•Separate the white and colored clothes. Separate heavy clothes from
light clothes.
•Carefully check all pockets and cuffs for small items.
They can easily slide in to the tub and may damage the tub.
• Pre-treat all stains and heavily soiled areas for best results.
• Do not overload your washer.
•When loading wet items, keep water level high enough so items
can float easily in the water.
• Avoid wrapping large items such as bed sheets around the agitator.
•Close the door properly after loading the clothes. If you keep the lid
up, the agitation will not start.
XQJ100-96A manual 10/22/01 11:30 AM Page 8

8
English
Proper Use of Detergent:
•It is good washing practice to add the detergent to the water
before you add the clothes so that the detergent can work
effectively on your clothes.
Note: You can use less or more detergent depending on the size of the load, water
type in your living area, whether it is soft or hard and whether the clothes
are heavily soiled or lightly soiled.

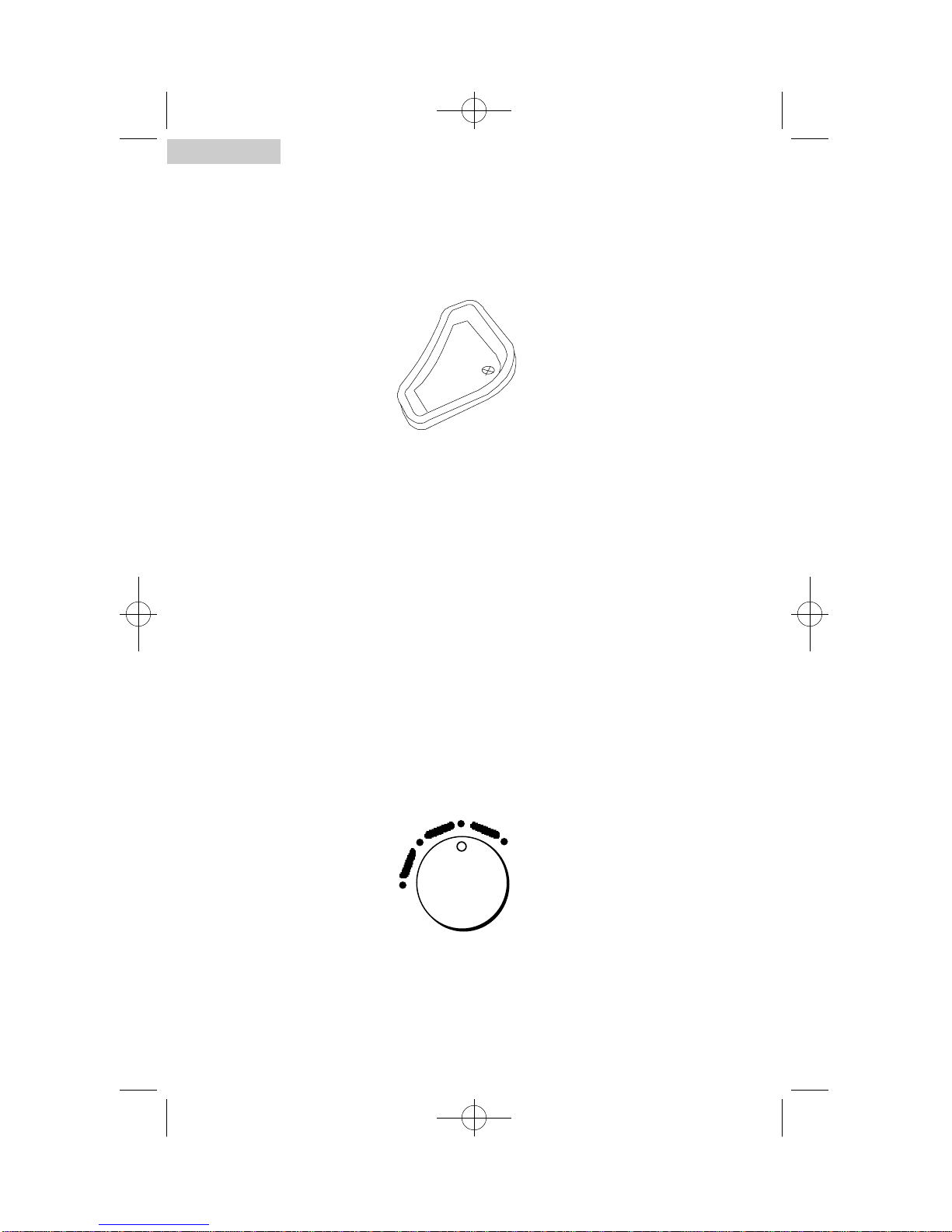

Fabric Softener Dispenser:
•The fabric softener dispenser is located on the top of the agitator.
Dispenser will automatically release liquid fabric softener
at proper time during rinse cycle.
Steps to use the dispenser:
1. Pour in liquid fabric softener into dispenser as recommended
by the manufacturer.
2. Add water up to its fill level, but do not exceed the level.
Warning: •Never pour fabric softener directly onto clothes because it will stain
your clothes or you may get spots on your clothes.
•Do not stop washer during its first spin or dispenser will automatically
release the softener in to the wash load.
•Do not use powder form of softener into dispenser otherwise it will
clog up the dispenser. This dispenser is only designed for liquid form.
fabric softener dispenser
XQJ100-96A manual 10/22/01 11:30 AM Page 9

9
English
Bleach Dispenser:
• Bleach dispenser is located on front corner under the loading door.
•Pour in recommended amount of bleach into dispenser
during the first wash fill.
Note: Use only liquid bleach in dispenser. You can use powdered bleach by
directly adding it to wash tub.
Warning: •Be careful not to spill undiluted bleach on the washer cabinet or your
clothes. As it is a strong chemical, it may damage some of your
clothes or the finish of the washer if not properly diluted.
•Use the manufacturer’s chart, on product container for recommended
use of liquid or powder bleach.
Temperature Control:
WASH/RINSE Temperature
TEMPERATURE
WASH
RINSE
COLD
COLD
WARM
WARM
HOT
COLD
WARM
COLD
XQJ100-96A manual 10/22/01 11:30 AM Page 10

•Depending on what types of clothes you are washing, select the
desired temperature setting. See the garment for proper temperature
that is recommended by garment manufacturers. You can wash and
rinse from five temperature combinations:
Note: Hot water needs to be at a temperature of at least 120˚F – 140˚F.
(49˚C- 60˚C) for the soap to dissolve and to avoid soap residue
remains on clothes.
Normal Operating Sounds
The following sounds are normally heard during the
operation of the washer:
• Tumbling sounds: This is normal as the heavy wet clothes in the Washer
are continuously being tossed around.
•Air rushing noise: This happens when the Washer tub spins at
very high RPM.
• Wash and Rinse cycles going on and off will also make clicking sounds.
10
English
WASH/RINSE
Hot/Cold
Warm/Warm
Warm/Cold
Cold/Cold
TYPES OF FABRICS
Sturdy whites & colored fabrics such as
work & play clothes, soiled fabrics
Delicate & colored fabric
Soiled, permanent press, silks, woolens,
nylon & acrylic
Non-colors Fabrics, lingerie with light or
normal soil clothes & special care fabrics
XQJ100-96A manual 10/22/01 11:30 AM Page 11

11
English
Lint Filter
•A self-cleaning lint filter works throughout the wash cycle to
constantly remove lint and other residue from the water. It is located
between the outer and inner tub. As water passes from the outer tub to
the inner tub, water is forced through the bottom of the lint filter.
The filter catches lint and holds it until the spin cycle begins.
During the spin cycle, due to automatic centrifugal force of the
machine it removes the lint by pulling it off the bottom of the filter
and washing it down the drain.
Note: It does not require any maintenance or special cleaning.
Safety Lid Switch
•If for any reason you open the lid in the middle of the wash cycle, the
washer will not spin and will shut off automatically. Once the lid is
closed, the washer will start back on.
XQJ100-96A manual 10/22/01 11:30 AM Page 12

Warning: Always unplug your washer to avoid electric shock before cleaning.
Ignoring this warning may result in death or injury. Before using
cleaning products, always read and follow manufacturer’s instructions
and warnings to avoid personal injury or product damage.
Cleaning and Maintenance
• Use only damp or sudsy cloth for cleaning control panel.
• To avoid any kind of damage to cabinet finish, wipe washer cabinet as
needed. If you spill liquid/powdered softener, bleach or detergent on the
cabinet, wipe cabinet immediately because it can damage the finish.
•Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach,
concentrated detergent, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your washer.
•Remove pins or other sharp objects from clothes to prevent scratching
interior parts.
•Leave lid open after you are done washing to allow inside of washer to
dry and prevent bad orders.
Care and Cleaning Guide
12
English
XQJ100-96A manual 10/22/01 11:30 AM Page 13

Moving & Vacationing
•Turn off water supply faucets and disconnect hoses. Drain water from all hoses.
This will prevent from damaging due to water leakage if the hoses accidentally get
ruptured or they become loose.
• Disconnect electrical plug.
• Dry inner wash tub. If moving washer, disconnect drain hose.
• Turn the leveling legs clockwise all the way in.
•Reinstall both shipping and drum braces to prevent inner and outer tubs from
shaking when washer is moving to another location.
• Move and store your washer in upright position only.
• To prevent mold or mildew, leave lid open so moisture inside
machine can evaporate.
Storage of Your Washer in Cold Environment
• The Washer must be stored at room temperature.
•If you just got delivery of a washer when outside temperature is below freezing,
do not operate until washer has warmed to room temperature.
• Do not install or operate your washer where room temperature is below freezing.
13
English
XQJ100-96A manual 10/22/01 11:30 AM Page 14

14
English
Washer does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is of proper voltage.
•Check if the circuit breaker needs to be reset or if the fuse
needs to be replaced.
• Check if the unit is in “Off” mode.
•Check if the washer is overloaded: load may need to be
re-balanced and clothes may need to be redistributed.
• Check if the lid is open. You may have to close the lid properly.
•Check if the control knob is set properly. You may have to
adjust the control knob.
•The washer pauses in some cycles. This is normal in delicate or
hand-washable cycle, which has short soak period where your clothes
are being soaked for very short period of time. You will not hear washer
operation for a short period of time. When the soak time is over,
it will start automatically.
Problems with water:
•Not enough water coming out: Water faucet may need to be turned on
fully. Water hoses may be tangled up or wrinkled up. Straighten up
hoses. Check water level selection, it may need to be readjusted.
• Water Temperature is incorrect: Check your water heater temperature.
Hot water needs to be at a temperature at least 120˚F. -140˚F
(49˚C – 60˚C.). Check to make sure the inlet hoses are properly
connected. (e.g. hot to hot & cold to cold)
• Water leaks: This is due to not properly installing drain hose or fill
hoses. Your home drain may be clogged or having constant
water pressure. You may need to tighten hoses, check the
plumbing or call a plumber.
• Water pumped out before the cycle is completed: It happens if you open
the lid in the middle of cycle.
• Water will not drain: This is due to not installing your drain hose
properly. You may need to connect the drain hose properly. Check the
position of the drain hose. In order to drain properly, make sure that top
of drain outlet is less than 4 ft. (1.2 m) above the floor.
Troubleshooting
XQJ100-96A manual 10/22/01 11:30 AM Page 15

English
15
Washer is making noise:
• Washer may need to be reinstalled. (Check washer installation section)
• Washer load may need to be re-balanced, as the load may be uneven.
•Coins, loose change, buttons or other heavy objects could make noise
(read Operating Guide – Normal Operating Sounds).
• Squealing Sound: Due to overloaded wash tub.
• Vibration Noise: Due to not leveling washer properly on the floor and
uneven distribution of clothes in the tub.
Problems with clothes:
•Clothes are too wrinkled: this is due to improper sorting, overloading
and washing in too hot water repeatedly. Avoid overloading and resort
your load. Do not mix heavy clothes such as work clothes with light
clothes such as blouses, light shirts and delicate items. You may need to
wash in warm or cold water.
•Have soap residue: detergent may not be dissolving in water. Check
water temperature or you need to add detergent as wash tub is being
filled with water before you load your clothes to avoid soap
residue on clothes.
•Spots or stains on your clothes: this is due to incorrect use of fabric
softener. You may need to read proper instructions on the container
and follow proper directions for using the softener.
•Clothes are grayed or yellowed: this is due to not pouring enough
detergent for large loads. You may have to add more detergent
to the load.
•Clothes are ripped & have holes/excessive wear & tear: this is due to
sharp objects such as pins and belt buckles left in pockets. You will need
to remove small loose sharp objects. Fasten belts, zippers, metal snaps
etc. Check if you are using undiluted bleach. Never add undiluted
bleach to wash.
XQJ100-96A manual 10/22/01 11:30 AM Page 16

16
English
INSTALLATIONINSTRUCTIONS
Tools and Materials Required
You will need to have following tools to help
you in the installation of your Washer:
• Scissors
• Phillips Screwdriver
• Standard Screwdriver
• Pliers
• Wrench
• Tape Measure
• Gloves
• Level
Accessories Supplied Quantity
1. Hot & Cold water inlet hoses 2
2. Drain Hose Hook 1
3. Drain Hose Clamp 1
4. Outer Drain Hose Component 1
5. Flat Water Inlet Hose Washers 4
123
45
XQJ100-96A manual 10/22/01 11:30 AM Page 17

Unpacking Your Washer
•Remove all packing materials. This includes the foam base and all
adhesive tape holding the washer accessories inside and outside.
• To remove the cardboard shipping brace from the washer, step on the
cardboard base and tilt the washer back, until the security shipping
screw is free from the base. Slide out the cardboard base and lower the
washer in place. Open the top lid to remove the styrofoam drum brace.
Pull to remove.
Note: Save both the shipping and drum brace. Reinstall when moving the washer.
•Inspect and remove any remains of packing, tape or printed
materials before using the washer.
Leveling Your Washer
• Your washer has 4 leveling legs; which are located on the four bottom
corners. After properly placing your washer in its final position, you can
level your washer.

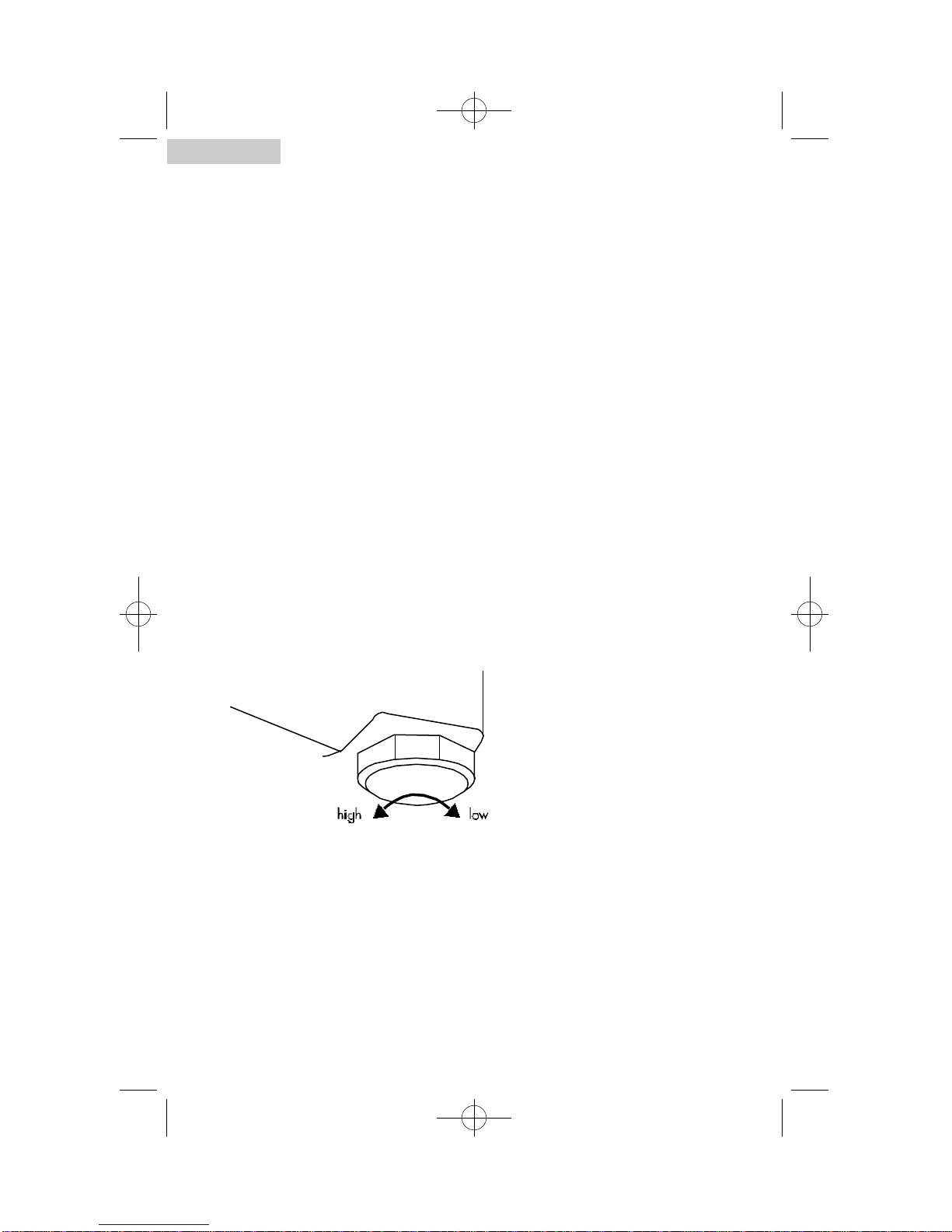

•Leveling legs can be adjusted by turning them counterclockwise to raise
your washer or turning them counter clockwise to lower your washer.
17
English
XQJ100-96A manual 10/22/01 11:30 AM Page 18

18
English
Steps for Installation
•Select a suitable location for the washer on a hard even surface away from direct
sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc.
Any floor unevenness should be corrected with the leveling legs located on the
bottom corners of the washer. The washer must be placed at room temperature.
You must not place washer where the temperature is at below freezing.
Installing Your Washer:
Read install instructions carefully before installation.
Caution: If, after completing these steps, you are unsure that unit is properly
installed, contact a qualified installer. To ensure that your Washer is
properly installed it is recommended that it be installed by a
certified installer.
1. Insert a new flat washer into each end of the inlet hoses. Firmly put the
washers in the coupling.
Note: You may have to use pliers to tighten the coupling. Do not over tighten
because you may cause damage to the valve.
2. Connect the hot and cold water inlet hoses to the hot and cold
water faucet.
XQJ100-96A manual 10/22/01 11:30 AM Page 19

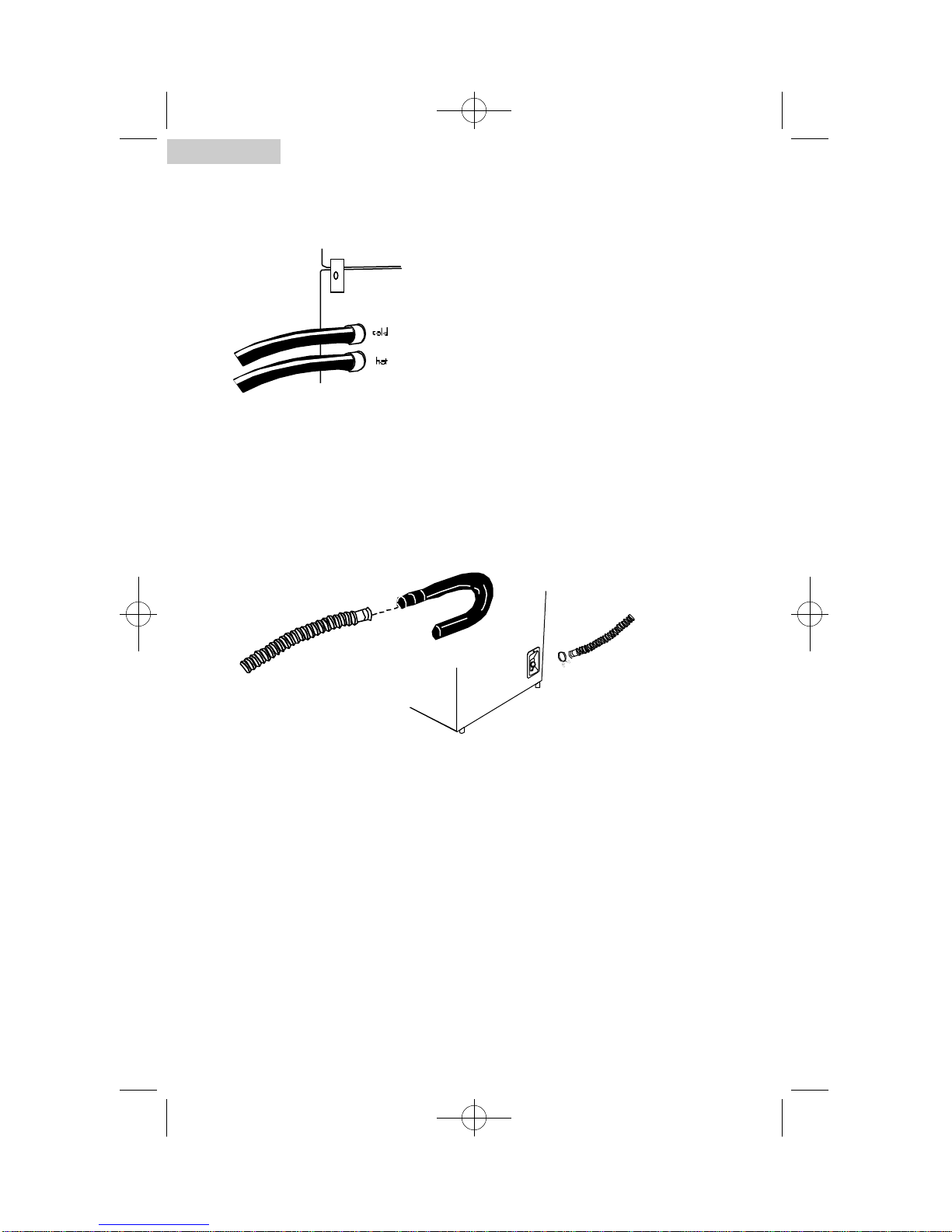

3. Connect the other end to their respective washer inlet located at the
rear of the washer.
Note: Hot water needs to be at a temperature of at least 120˚F – 140˚F.
(49˚C- 60˚C) for the soap to dissolve and to avoid soap residue
remaining on clothes.
4. Install the drain hose hook to the outer drain hose tube. Using the drain
hose clamp, attach the drain hose to the unit as shown below.
5. Plug in the Washer to a regular 115 volt / 60 Hz, 15 amp outlet.
19
English
XQJ100-96A manual 10/22/01 11:30 AM Page 20
