Haier XQB60-C User manual

XQB60-C
User's Manual
Automatic Washing Machine
Please read this manual carefully before using.
Retain it for future reference
Please check if the power receptacle has good earthing
condition before using to guarantee your safety.
The manufacturer will not bear the responsibility for
those risks occurred from not obeying this manual.
Specifications the back cover
Picking list
Contents
Before using
Using process
Trouble shooting *
Answers to questions
16
7
8
9
10
14
14
15
Preparation before washing
Put in the laundries
Add the detergent and softener
Use the operation buttons
Close the top lid
Finish washing
Disposal after washing
nd
Names of the parts The 2 cover
Safety precautions
Installation and adjustment
Install the water inlet hose 5
1
3
17

Names of the parts
Before using
Before using
Before using
Before using
Meaning and description of the symbols
Accessories
Contents marked with
that symbol are related
to the safety of the
product and the personal
safety of the users. Failure
to comply with the
instruction could cause
damage of the machine
or injure the personal
safety of the user.
Warning
mark
Top lid
Control panel
Lint filter(Installed by user)
Control panel film
Pulsator
Cabinet
Base frame
Adjustable foot
seam
Adjustable foot
Inner drain hose
Power line
Inner tub
Cabinet handle
Back cover
Water level Switch
Control panel film
Water valve
Bottom plate
(1 piece)
The end connecting to
the washing machine
The end connecting to
the water inlet hose jointer
Jointer connecting
the water inlet hose
to the water faucet
Water inlet hose
(2 pieces)
Water inlet
hose jointer
(2 pieces)
Tapping screw
ST4x 16
(1 pieces)
Drain hose
(1 pieces)
Hose clamp
(1 pieces)
Lint filter
(1 piece)
Contents marked with
that symbol are actions
forbidden to perform.
Failure to comply with
the instruction could
result in damage of the
machine or injure the
personal safety of the user.
Forbidding
mark

Safety precautions Before using
Before using
Before using
Before using
In normal usage of the washing machine,
the power plug shall be ready to be pulled
or plugged with hand. Be sure to pull the
plug off and close the water faucet in
following cases: power failure, delivering
the machine, setting the machine idle or
cleaning the machine. Do not plug
or pull the power plug with wet hand.
In case the washing machine is installed on
ground with carpet, be careful not to block the
ventilation hole with carpet.
Do not let the machine share one receptacle with other
electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use it any
more.
Do not set the machine at damp place
like the bathroom. Never wash it with water.
Do not put wet laundries on the control
panel coating.
Do not use water with temperature
higher than 50 inside the tub.
Do not wash water-proof laundries like
the raincoat, bikecovers, down textiles etc.
to avoid abnormal vibrations in spinning and
damaging the laundries.
Do not bend, stretch, twist, bind the power cord by force,
or reform it. Do not press or clamp it with heavy items. If the
power cord and power plug are bad, or the receptacle is loose,
be sure to have it replaced by the technicians of our special shop
or our agent, or the after-sale service department for the sake
of avoiding any risk. Keep the prong of the power plug clean.
If dust is found on the power plug, please wipe it off with dry cloth.
Earth
The ventilation
holes at the
bottom
Please insert the power cord into special
receptacle with rated voltage.Be sure to
use single-phase three pins receptacle.
The earthing terminal must be earthed
reliably.If possible,please adopt electric
leakage protector.

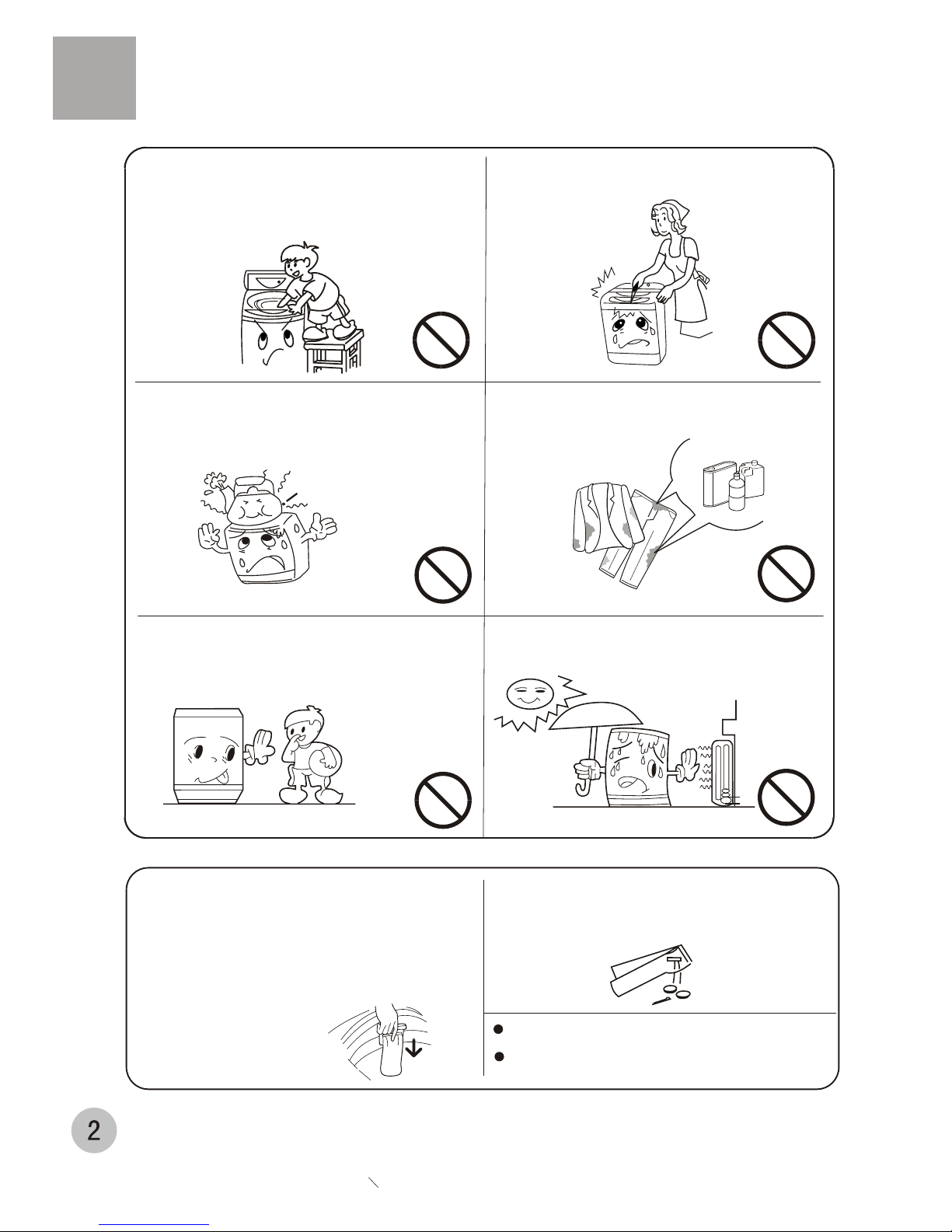

Do not put hand into the rotating tub. It is
dangerous even if the rotation speed is slow.
Take special care of the children. Keep
children away from the washing machine
to avoid them climbing on it.
Do not decompose, repair or alter
the machine by yourself.
Do not put any hot or heavy items
(such as the kettle with hot water) on the
washing machine.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.).
Keep the machine away from direct
sunlight and heat source like the heater.
The handicapped or children shall not
use the machine without care.
Safety precautions Before using
Before using
Before using
Before using
Please check if the water faucet is open, and if
the connection of the water inlet pipe is proper.
It is suggested to use foamless washing powder.
To prevent the lint in the tub from blocking
the cascade outlet and influencing the
cascade effect, please keep the lint filter
in good condition, and install it to proper
position during washing. If the lint filter is
lost or damaged, please contact the local
after-sale service department of our
company.
Toprotect your laundries and washing
machine, please take out all of the coins,
buttons, sand, hairpin and other foreign
materials before washing.

Adjust the installation position
3
Please install and adjust the machine according to the requirement of the manual, which is very
important for you to operate the machine safely and properly.
Safety precautions Before using
Before using
Before using
Before using
The largest allowable slope of the shank base
of the machine is 2 . The slanting or rough
ground will result in unstable running or
stoppage of the machine. Please adjust it with
following methods:
Adjust the adjustable leg:
1.To twist the adjustable leg, please first lift up the
leg side slightly, loosen the adjustable nut, and
then twist the leg.
2.After adjustment, fasten the nut.
Loosen Fasten
High Low
Adjustable nut
Adjustable leg
Insert the bottomof the lintfilter
( marked with down side ) into
the filter frame,then push the
upper part ofthe filter in( marked
with up side ).(See to Figure)
Install the lint filter
Install the bottom plate
After opening the package, please lean the
washing machine gently down on soft items
(like towel cloth, blanket, etc.). Install the
bottom plate to the bottom of the machine
with one screw by a cross screwdriver,
then lift the machine up gently. See to the
figure:

Before using
Before using
Before using
Before using

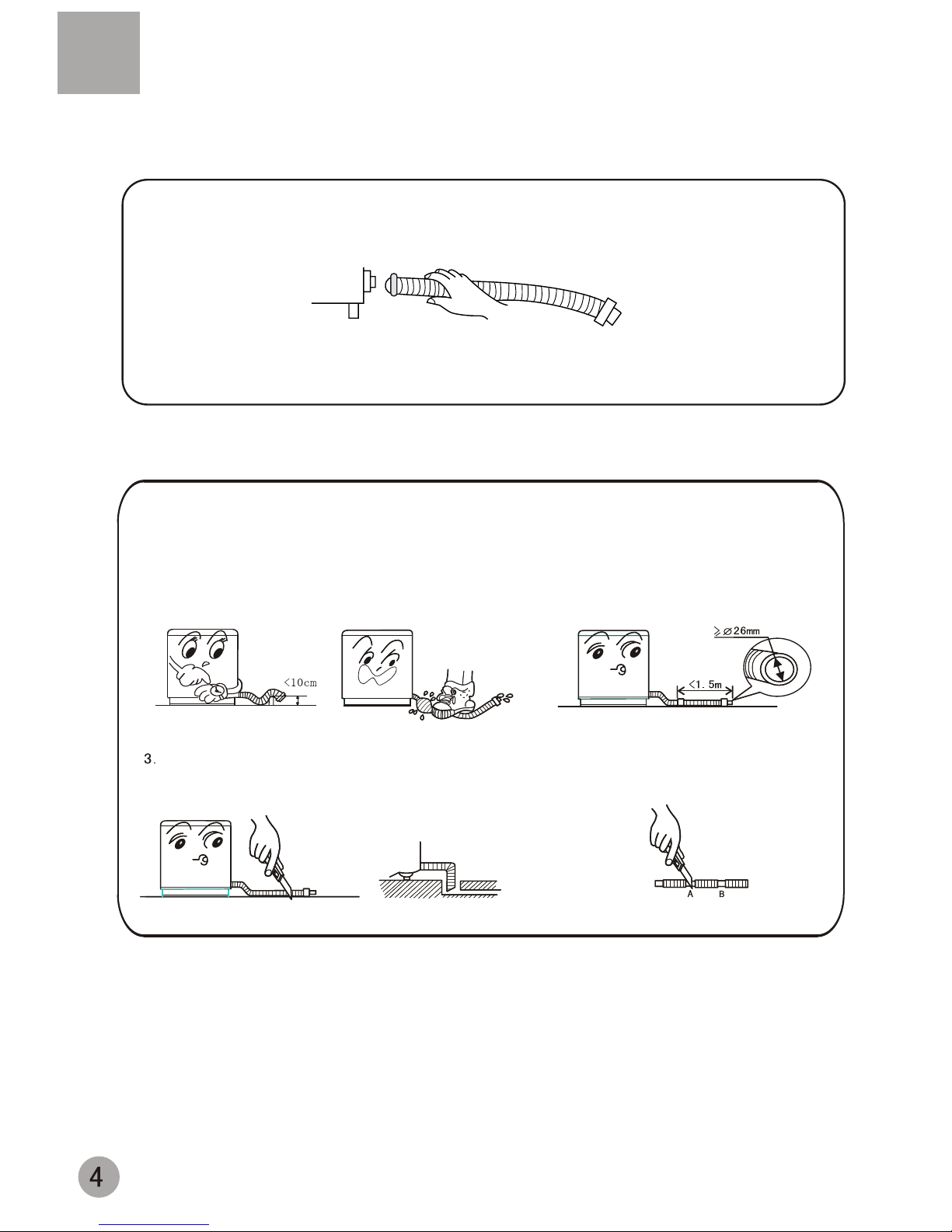

1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not ramp or press the drain hose.
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
If the extra hose is too long, cut it
either at A or at B point.
Usage of the drain hose
The drain hose shall drain smoothly
Install the outer drain hose
Connect the outer drain hose to the inner drain hose by using the drain hose clamp clip them.
Remarks: The direction of thedrain hose canbe changed byprofessional person.

Install the water inlet pipe
Connection between the water inlet hose jointer and the water faucet
5
Water faucet, suitable water faucet, not suitable
It is required that the front end shall be longer than 10mm.
The outlet end surface of the faucet shall be flat and smooth. If not, please file it smooth to avoid leakage.
2 Loosen the four screws of the water inlet hose jointer till the water faucet can be accessed. Then set the water inlet hose
jointer on the faucet. See to Figure 2. If the faucet is too large and the jointer cannot be set on, please loosen the four
screws and take out the bush inside the jointer. See to Figure 3.
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the
water inlet hose component. See to Figure 1.
3 Fasten the four screws of the water inlet hose jointer evenly. See to Figure 4.
About 4mm after twisting
Remark: .Before installation, the threading is 4mm above the upper surface of the nut.
After installation, the threading is 2mm above the upper surface of the nut..
About above 2mm after twisting
Water inlet hose jointer
Screw knife
Screw
Bushing
Nameplate
Screw nut
Water inlet hose Figure 1
Figure 4
Figure 2
Figure 5
Figure 3
Figure 6
Slider
Lock level
Before Using
Before Using
Install the water inlet hose
4 Take off the nameplate. Twist the fastening nut as per the indication of the figure
to seal up the exit end face of the faucet. See to Figure 5.
Connection between the water inlet hose and the washing machine
1 Do nottake off the water absorptioncushion. Please check
if the cushionis dropped ordamaged each timebefore using.
If it happensso, please dulycontact our after-sale service
department.
2 Set thenut of thewater inlet hoseon the waterinlet valve jointer.
3 Fasten thenut. Swing itgently to confirmif it's fastenedwell.
Water absorptioncushion.
Water inlet
hose nut
Water inletvalve jointer

6
Dismount the water inlet hose
Connection between the water inlet hose jointer and the water inlet hose
Check the connection between the water inlet hose jointer and the
water faucet
1.Swing the hosegently to checkif it isfastened stably.
2.After installation, openthe faucet tocheck if itleaks water.
3.Do not bendthe hose byforce.
4.Each time beforeusing, please checkif the connection
between the waterinlet hose jointerand the waterfaucet,
and the installation of the waterinlet hoseis firm,so as
to avoid droppingowing to improperinstallation.
1 Push down the slider. Plug the water inlet hose into the jointer.
2 Hang the lock lever onto the jointer. Release
the slider till a click sound is heard.
Lock level
Slider
The water inlet
hose jointer
Slider
Locking level
1 Close the water faucet.
2 Press the lock lever and push down the slider. Then pull off the
water inlet hose. If the machine is used more than once every
week, the water inlet hose jointer can remain on the faucet to
avoid damaging the fastening screws.
Before Using
Before Using

Using process
Using process

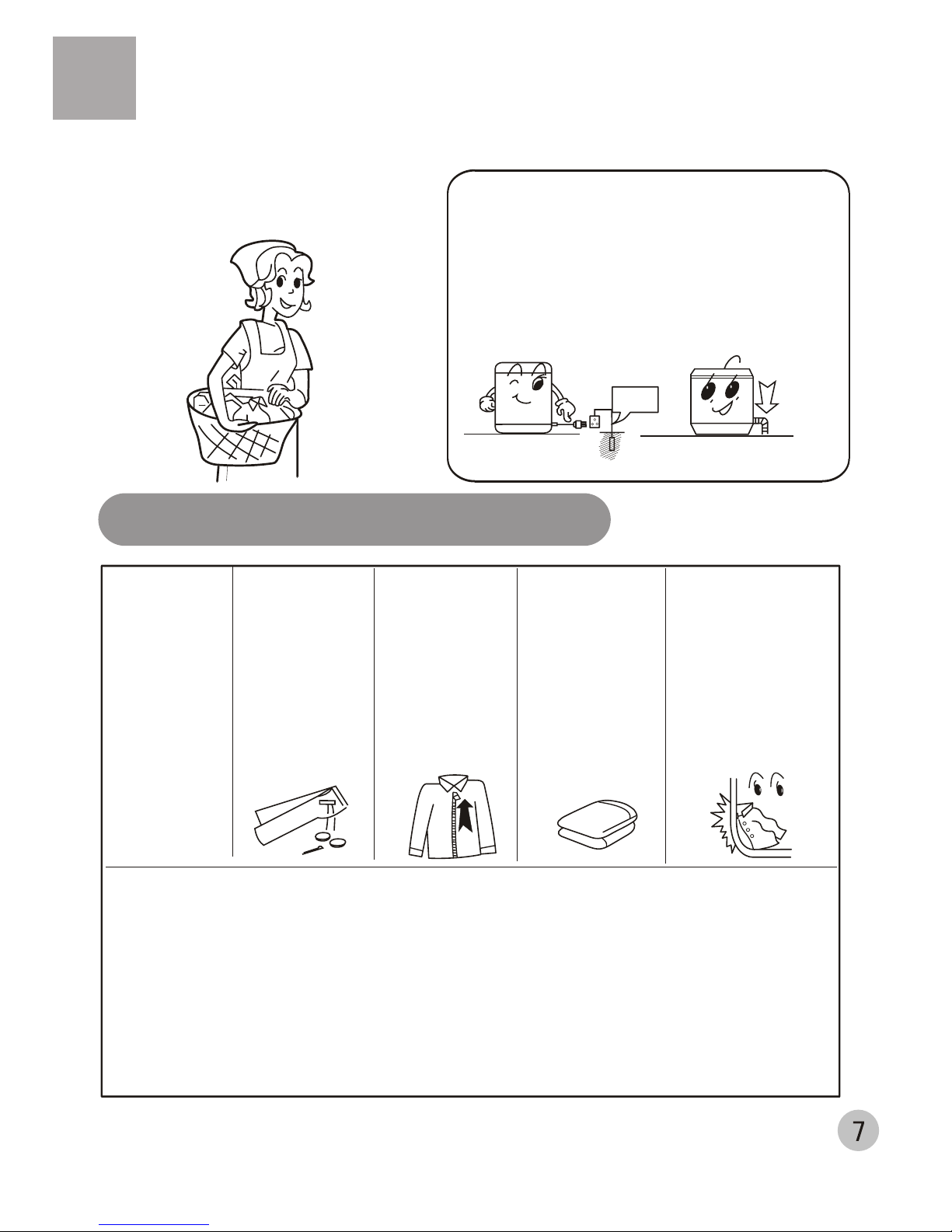

1Preparation before washing
Pay attention to the followings before washing
Preparation before washing
1 Connect the water inlet hose. Open the water faucet.
2 Confirm that the washing machine is earthed reliably.
Then plug the power plug into the receptacle. The
earthing terminal shall not link to gas pipeline and
faucet water pipeline.
3 Put down the drain hose.
Check if
the laundries
have special
requirement
on washing
Clear the
pocket. Take
out the coins,
sand, hairpins
etc.
Tie the long
strips; fasten
the buttons;
close zippers.
When the pulsator
is running ,the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
The quantity of
the laundries
shall not be too
large. Stretch
and loosen the
laundries before
putting them in
the tub.
A. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put the laundries difficult to absorb water into water with hand.
d. For the laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For the laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put the laundries polluted by chemicals into the washing machine directly.
Earth

8

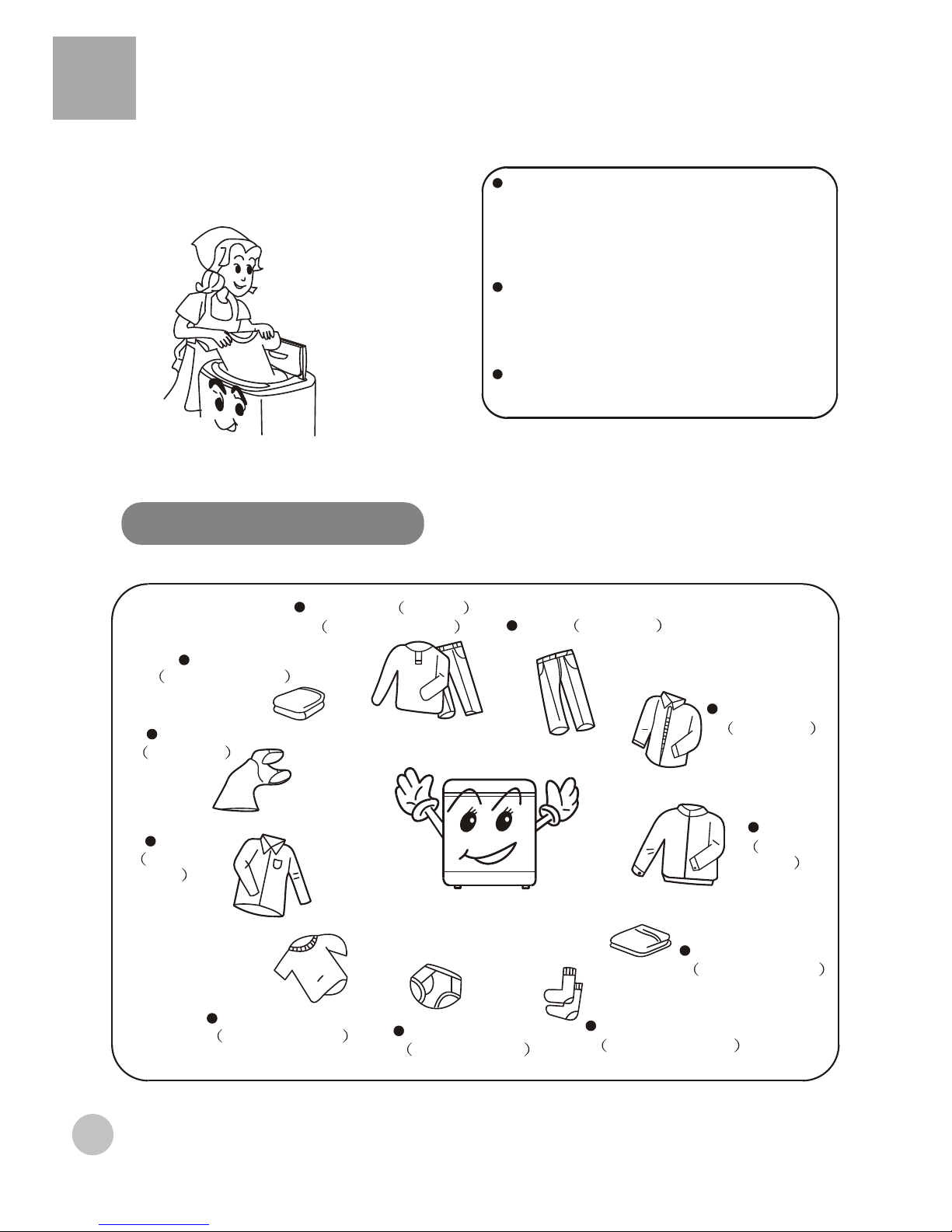

Reference weight of the laundries:
Working suit up,down
Jeans about 800g
The capacity of washing and spinning refer to the
largest weight of the standard laundries under dry
condition that can be washed or spinned in one
cycle. Washingquantity for one cycle shall be
less than the rated capacity.The largest capacity of
this machine is 6.0kg.
The thickness, size and type of the cloth will
influence the actual washing capacity. It is
feasible to put in suitable amount of laundries and
the laundries can be tumbled normally in washing
for one cycle.
Please do not select high water level for laundries
less than 2.0kg to avoid splashing.
blending coat
about 800g
Shirt Jacket
Single bed sheet
Socking
Underpants
Undershirt
Pajamas
Blanket
cotton,about 900g
cotton,about
300g
cotton,about
800g
cotton,about 600g
blending,about 50g
cotton,about 70g
cotton,about 180g
about 200g
Using process
Using process
2 Put in the laundries
cotton,about 1120g

How to use the whitener
Standard dosage of the detergent and water quantity
Laundries
quantity
(kg)
Water
level
Water
quantity
Common powder,
How to use the washing powder
Fill water to decided level. Dilute the
whitener with container. Pour it slowly into
the washing tub.
Do not use whitener on laundries with
color or print as they are not colorfast.
The whitener shall not touch the laundries
directly.
Refer to the user's manual for the usage
and dosage of the whitener.
As to whitener in powder, please dissolve
it before using.
Not applicable for fuzzy program and reserve
washing
Directly dissolved in the machine:
1.Fill in small quantity of water.
2.Add the washing powder. Run for 30 seconds
to dissolve it completely.
3.Put in the laundries. Select suitable water level.
The instant dissolving of the washing powder:
1.Prepare warm water of 30 and a container.
2.Add the powder into the container while
stirring to fully dissolve it.
The powder is more likely to pollute the laundries
than the detergent. Therefore please use it with
suitable quantity.
It is suggested not to use high sudsing detergent.
Washing powderwith poor quality or long time
storage may be caked. Please pay attention to
cleaning the detergent box in time.
Concentrated powder,
Add 40g in each 30L water Add 25g in each 30L water
3 Add the detergent and softener
Using process
Using process
Using process
Using process
Below 2.0
About 50L About 67g About 42g
About 42L About 56g About 35g
About 34L About 45g About 28g
9
Low
Middle
High

a Description of the function of the operation buttons
Mode and meaning of the indicator
Flash: indicating the running mode
On: indicating the mode about to run
Flash rapidly: indicating abnormal situation
4 Use the operation buttons
Using process
Using process
Using process
Using process
Push it to select one or more programs from WASH
RINSE and SPIN
SELECT button

Using process
Using process
Using process
Using process
After the poweris switched on,push it tostart
the machine
During working, pushit to pauseworking.
During pause, pushit to resumeworking.
START/PAUSE button
Normal Common washing
Speedy Quick washing of laundries with light soil
Gentle Washing the woolen textiles or underwear
Jeans Washing the large and heavy stained laundries
PROGRAM button
The following fourprograms are availablefor your
option
Program
Remarks: Push theOn/Off button to switch onthe power.
If the washingmachine is idle for 10 minutes,it will auto-
matically switch off the power.
POWER
ON OFF
High
Middle
Low
WATER LEVEL
WATER LEVEL
Push the On/Off button toswitch on thepower.
When the poweris on, pushit again toswitch
off the power.
POWER switch button
Select or adjustwater level
Reset

Using process
Using process
Using process
Using process
Even there's no water in the tub, a certain period
is required before spin starting.
Separate the laundries that are not colorfast from
other laundries in washing.
Attention
b Steps of using the operation buttons and description of each step.
POWER
ON OFF
High
Middle
Low
WATER LEVEL
1.Push the POWER button to switch on the power.
Reset

Using process
Using process
Using process
Using process
2.Select suitable automatic program.
After switching onthe power,the machine willset standard programautomatically.To select otherautomatic program,
push the suitablebutton till therelative indicator ison.
Refer to thePROGRAM button onPage 11 for theselection.
For instance: Pushthe SPEEDY program for quickwashing of laundrieswith light soil.
Table of Each Program
Program
Normal
Speedy
Gentle
Jeans
Wash
(minute) Rinse (minute)
Rinse twice (2 minutes every time)
About 12
About 3
About 3
About 12
Spray once (1.5 minutes )
Rinse twice (2 minutes every time)
Spray twice (2 minutes every time)
Spin
(minute)
About 5
About 3
About 2/3
About 3
About 45
About 22
About 30
About 45
Total time (minute)
* Total time: including the normal water inlet time and drain time.
* Spin time: the time from intermittent running to finishing
* The washing finishing time may be influenced by the water inlet pressure.
3.Push the PROCESS SELECTORbutton to select suitable procedure.
After switching onthe power,the washing machinewill set toWASH, RINSE, SPIN procedure automatically.
It is thecommon procedure. Pushthe PROCESS SELECTOR button toselect one ormore procedures from
WASH, RINSEand SPIN. Referto PROCEDURE SELECTIONMETHOD to makeselection.

Using process
Using process
Using process
Using process
Procedure selection method
Times of pushing the
SELECT button
Selected procedure Applicable circumstance Contents (the lightedindicators
indicate the programsabout to run)
WASH, RINSE,SPIN When the commonlaundries need
washing, rinsing and spinning.
WASH RINSE SPIN
WASH RINSE SPIN
WASH RINSE SPIN
WASH RINSE SPIN
WASH RINSE SPIN
WASH
(the washing liquid
remains in thetub) Repeat using thewashing liquid
WASH -RINSE
(the rinsing liquid
remains in thetub)
When prevent thelaundries from
corrugating, and thelaundries do
not need spinning
RINSE - SPIN
Spin
(spin after drain)
When the laundriesneed rinsing
and spinning aftermanual washing
When the laundriesneed only
spinning after manualwashing
(first drain thenspin)
Push the SELECT button for 5 times, and it will resume the initial mode. It will circulate in that sequence.
4.Switch the WATER LEVEL button to select suitable water level
5.Push the START/PAUSE button
5 Close the top lid. 6 The washing is finished.
It beeps toindicate the
finishing of washing
The power will be switched off automatically after the finishing of the washing.
If you open the top lid, the machine will stop working before spinning.
According to the capacity of the laundries, choose the three water levels High Middle Low
After the water inlet as per the preset water level, in case additional water quantity is required, please first set
the button to the Reset when the automatic inlet reaches the water level, you can turn to the needed water
level.

7 Disposal After Washing
If the cabinetis dirty, wipe itwith wet softcloth
Do not washwith water directly.
Wipe with neutraldetergent.
Do not wipewith thinner,petrol, alcohol, etc.
1.After washing, close the water faucet. (If desired, dismount the water inlet hose).
2.Do not store water in the washing machine for a long period. Drain the water completely
after each using.
3.Be sure to pull off the power plug before maintenance.
4.Hang up the power cord and drain hose.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid
for some time (about 1 hour), then close the top lid.
The filter screenis likely tobe blocked byforeign
materials and influencewater inlet. Pleaseclean it
with brush frequently.
Using process
Using process
Using process
Figure 1
Figure 3
Figure 2
The lint filtermust be used during washing.
It must becleaned in time after each using.
1.Takeoff the lint filter
Put hand atthe indicated positon.
Push down totake it off. (See to
Figure 1)
2.Clean the lint
Put it inwater and cleanwhile it is
still wet. (Seeto Figure 2)
3.Install the lintfilter
After cleaning,insert the bottom
of the lintfilter ( marked with
down side ) into thefilter frame,
then push theupper part ofthe
filter in (marked with up side ).
(See to Figure3)
Cleaning the lintfilter

There may be some waterflowing out ofthe drain
hose in thefirst use ofthe machine.
It is thewater remained inthe machine duringthe
ex-factory performance inspection.
Phenomenon Reason How to solve
The water faucetleaks water
There's abnormal soundinside
the machine
The machine
does not act.
The safety switch acts, and the spinning
cannot work. The wash, spin, jeans and
speedy s lamps are flashing.
Common phenomena
Phenomena Explanation
The spinning is intermittent whenit starts.
The pulsator pauses during water filling in washing and rinsing.
It is tobalance the laundriesto avoid slanting.
The program is setting thedrain time.A certain
period is neededbefore it startsspinning.
It is toavoid splashing duringwater filling.
Trouble-shootingAnswers to questions
Trouble-shootingAnswers to questions
Trouble-shootingAnswers to questions
Trouble-shootingAnswers to questions
The top lidis opened.
Is the drainhose blocked?
Are the laundriesput slantingly?
Is the machineslanting?
Is the machineslanting?
Are there anyforeign materials?
Are the laundriesput slantingly in
spinning?
Is there powerfailure?
Is the powerplug inserted tightly?
Is the waterlevel reached preset
position?
Is the screwof the waterinlet hose
jointer loose?
Is the screwof the waterinlet hose
jointer twisted awry?
Close the toplid.
Clean the foreignmaterial. Push
the start buttonagain.
Reorder the laundries.Close the toplid.
Set the washingmachine horizontally and
then open andclose the toplid once.
Adjust the machineto be even
Remove the foreignmaterials.
Reorder the laundriesand close the top lid.
Fasten the screwof the jointerproperly.
Please use itwhen there's powersupply.
Insert the powerplug tightly.
Fill water tothe preset position.
Push the SPINbutton, but itdoesn't act.
(If there's breakdown, please pull off the power plug before checking) The following phenomena are not breakdowns
sometimes. Please confirm again before sending it to repair. If there are real breakdowns, please come to the special
maintenance department or after-sale service department of our company. Do not repair it by yourself.
Not wash
Not spin Is the powerplug inserted tightly?
Is the toplid closed reliably?
Are the laundriesset flat?
Insert the powerplug tightly.
Close the toplid.
Set the laundriesflat.
No water inlet.
Is the power plug plugged tightly?
Is the water faucet opened?
Are the POWER ON/OFF and
START/PAUSE buttons pushed down?
Plug the powerplug tightly.
Open the waterfaucet.
Push the powerON/OFF button and
START/PAUSE button.
The wash, rinse spin and gentle s lamps are
flashing. The machine does not spin.
The wash, rinse, spin and jeans s lamps are flashing.
The drainage cannot work, or is too slow.

Packing list
Name
User's manual
Lint filter
Water inlethose component
Bottom plate
Tapping screw
Quantity
Inside the document bag
Inside the document bag
Storage position
Inside the inner tub
Between the upper cushion of the
washing machine package and the upper
seal of the package carton
1 piece
1 piece
1 piece
1 pieces
1 set
Inside the document bag
Fuzzy logic automatic
washing machine
Outer drain hose 1 pieces Inside the inner tub
Inside the inner tub
Drain hose clamp 1 pieces
1 piece

Model
Rated voltage frequency
Max water consumption
Rated washing power
Rated spinning power
Weight
Dimensions (mm)
XQB60-C
220-240V ~ 50Hz
6.0kg
415W
315W
About 33kg
L 540 W 540 H 875
Water level/Water
quantity (about)
Water inlet pressure
Specifications
Specifications
Rated washing / spinning capacity
50L/High, 42L/Middle, 34L/Low
About 150L (the highest water level, normal program)
0.03MPa-0.78MPa
