Haier FCD-JTHA40-III, FCD-JTHA50-III,... User manual

Haier Garden, QianwangangRoad, Economic DevelopmentZone,Qingdao, P. R. China
Group
Qingdao Economic andTechnological Development District
Haier Water Heater Co., Ltd.
Please read this manual before usage
Retain it for future reference
Little Sea-ox
Haier Household Electric Water Heater User' Manual
FCD JTHA40- E
FCD JTHA50- E
FCD JTHA60- E

Contents
Before usage
Installlation
FAQ
Features
Installation
FAQ
Parameters
Dimensions
Packing list
Electric circuit diagram
5
See to thephysical product for the appearance, color or pattern.
Packing List
Expansion
hook
(pcs)
User's
manual
(copy)
Electric
water
heater
(set)
Safety
valve
(pcs)
Expansion
bolt
(pcs)
Drain hose
(ply)
Quantity
Name
Safety precautions
Setting environment
Attentions in instruction
Attentions in operation
Operation instructions
Cleaning and maintenance
Mark of
Haier Safe Water Heaters
This mark is the designation for Pre-Safe Expert of Haier
Water Heater Company, which indicates use of the company's
patented technology inside the product. It ensures you a safe
bath while monitoring whether your house ground wire is live or
not all thetime. If this mark is lighted on, it indicatesyour house
ground wire has come live (poor grounding and live). In this
case, please immediately stop use and unplug from the power
supply, and remember not to touch any electric appliance shell
in your house. At the same time, immediately contact after-
sales service and your property management company for
professional repair untilthe mark goes off.
Pre-Safe Expert will become the electric safeguard for your
family.
Pre-safe Expert

2
Before Usage
Dear users,
Thanks for choosing Haier water heater product.
Haier products have good quality and excellent performance. Tofacilitate you to use
the product, pleaseread the manual and operate accordingly. Please retain it for future
reference.
The international star service of Haier Group will always accompany you.No matter
what kind ofproblems you meet in usage, please contact with thelocal after -sales
service agent. We are at your service allthe time. Thanks again forchoosing Haier
Product.
The water heater you purchased may not full comply with themanual due to the
improvement of product.We apologize for the inconvenience occurred therefrom.
Features
!1 Safety:
High-quality heat proofstainless steel electric heating element, overtemperature
protection; overpressure protectionof tank; safe and reliable.
Safe Care patented design together with the functionof monitoring anddisplaying
of live groundwire has becomea real safeguard for family safety.
2 Durability:
The shell adopts dusting anticorrosion treatment, handsome anddurable enamel
tank, with reliablequality and long operation life.
3 Convenience:
Adjustable heating temperature.Adjustable water temperature.
Adjusting range: water inlet Temperature 75 .
4 Multiple usage:
Enclosed structure, capable of supplying waterto multiple placeslike toilet, kitchen
etc. Suitable forfamily, enterprises, service trades like beauty care on hot water supply
(not drinkable).
5 Nice molding, horizontaltype wall-mounting design, saving space.
The water heater you purchased is the improved model of the series
product. Please operate according to the user's manual.
This water heater shall only be repaired and maintained by qualified
servicemen. Improper maintenance may cause severe injury or damage.
Before opening orrepairing water heater, please do pull out the power plug.
External Cleaning: Disconnect power supply before cleaning. Gently wipe with wet
cloth dipped with a little of mild detergent. Do not use gasoline or other solvents.
Finally dry with dry cloth. Keep water heater dry. Do not use cleansers containing
grinding agent (e.g. toothpaste), acids, chemical solvents (e.g. alcohol) or polishers to
clean.
Statement:
Note:Before asking for service, please refer to troubleshooting section to resolve easy
problems.
Cleaning and Maintenance
Internal Cleaning: To ensure high working efficiency, heating elements andtank liner of
water heater shall be cleaned once in three years. Take care not to damage protection
layer on heating elements and tank liner inner surface. According to different local
water qualities and use habits, magnesium rod shall be periodically replaced. If
maintenance is needed,please contact local service station.
Problems
No outlet water
Heating lamp lighted
Heating lamp not
lighted
Outlet
water
is cold
Heating lamp keep lighted
for long
Outlet water flow and
temperature is not steady
Possible Causes to be Confirmed
If water supply is stopped or water
pressure is too low
If use point is blocked or if hot water
valve is open
If heating element is damaged
If power is connected
If thermostat is out of work
Water hasn't reached temperature setting
If thermostat is out of work
If city water pressure is steady
Corrective Measures
Check
Check and clean
Contact service station
Connect power
Contact service station
Continue heating
Contact service station
Check
FAQ

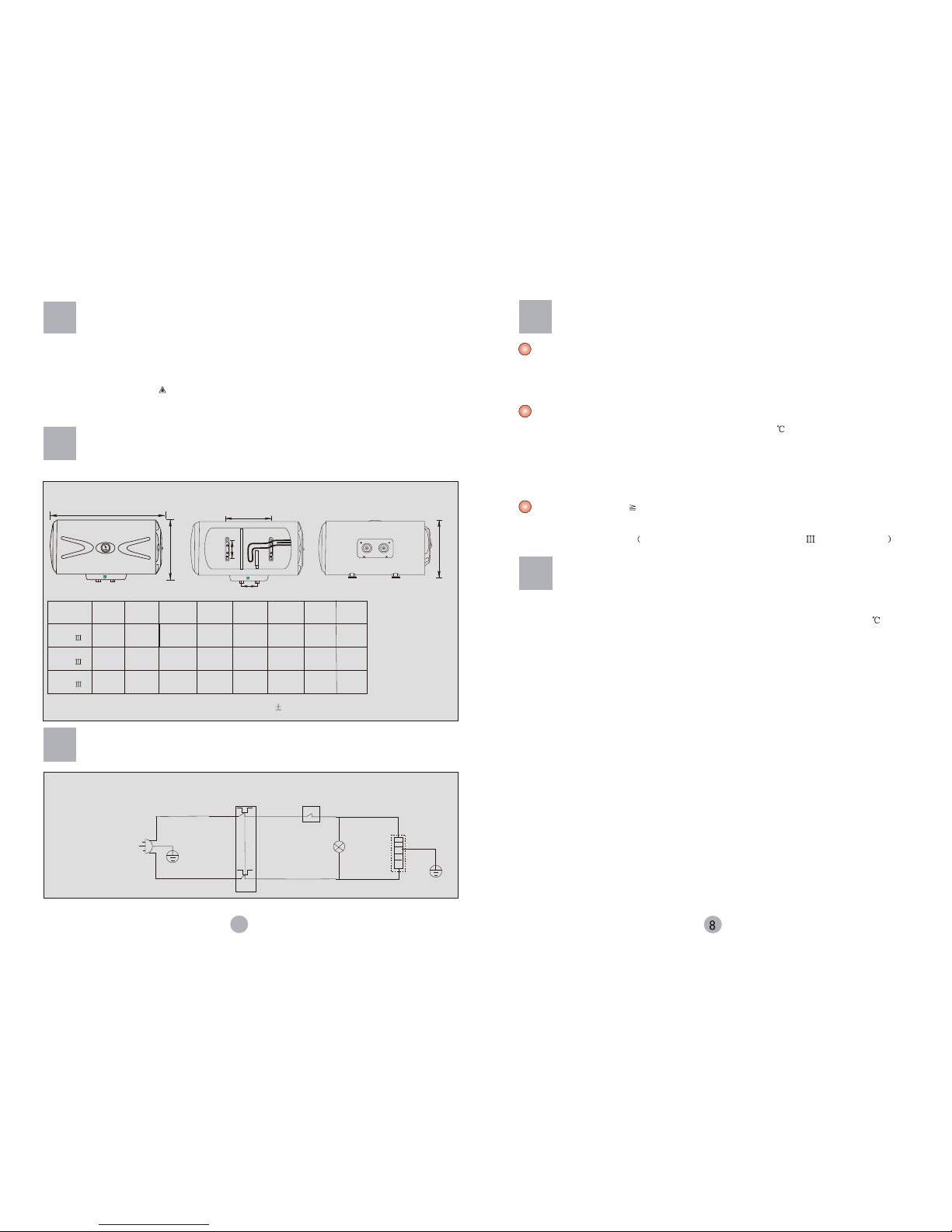

Dimensions
3
Electric Circuit Diagram
(Figure 1)
Front view Cutaway view Bottom view
Model Volume Net
weight
a1 b1 c1 d1 e1
A Hot water outlet
B Cold water inlet
C Heating element
D Enamel tank
E Wall-mounting
bracket
f1
a1
b1
e1
D
E
E
C
C1
d1
f1
FCD-
JTHA60- (E) 335 mm
100 mm
444 mm 390 mm 802 mm
22.8kg
60L 197mm
50L 702 mm 444 mm 390 mm
100 mm 235 mm
20kg 197 mm
FCD-
JTHA50- (E)
220mm
100mm
391mm 365mm
673mm
18.5kg
40L 197mm
FCD-
JTHA40- (E)
AB
Remarks:the permitted errorlimit of aboveparameters is 10%.
L
NE
BT
HL
EH
E
MT
L:Brown wire
N:Blue wire
MT:High temperature limiter
BT:Thermostat
HL:Heating indicator
EH:Heating element
E:Yellow/green wire
Parameters
Rated voltage: 220V~,50Hz Dimension: (See toFigure 1)
Power: 1500W Weight: (See to Figure 1)
Rated pressure: 0.65/ 0.75MPa Volume: (See toFigure 1)
Waterproof grade: IPX 4 ( ) Tap water pressure:no less than 0.05MPa
For the first use after installation, due to there's no water within the tank, first the city
water inlet valve and mixing valve must be opened. Close the mixing valve when water
flows out continuously from the showerhead or other outlets (the tank is full). Check
connections are freeof water leakage, and insert the power plug.
Turn the knob to set your desired water heating temperature, which can be stepless
changed between cold water inlet temperature and 75 . In heatingmode, heating lamp
is lighted on. Normally the knob shall be positioned at highest temperature. This
machine has a thermostat function, which automatically switches off the water heater
when temperature reaches the setting value, and switch on again when water
temperature decreases tocertain value.
City water pressure 0.75 MPa will cause much water flowing out from safety valve
pressure relief vent. This is due to too high water pressure. Please ask after-sales
service for correction. The rated pressureof FCD-JTHA40- (E) is 0.65 MPa
Operation Instructions
To avoid causing machine troubles, do not connect power before tank is full of water.
Adjust a suitable temperature before use, for water temperature above 50 may burn
your skin.
This product is closed water heater, which can supply hot water through pipe
connection to several points like bathroom (bathtub, washbasin, showerhead) and
kitchen.
Heating adjustment can be made flexibly all year round adapting to climate changes. In
long-term out-of-use or maintenance, you can close city water pipe valve, open mixing
valve to hot water range, and move up safety valve handle to drain the tank. To avoid
injury, before next use, it is suggested to first open hot water valve before switching on
the water heater, exhausting gas possibly retained in the pipeline. In this case, no
smoke or fire is permitted near the open valve. Carefully check and confirm all partsare
in good condition.
Provided hot water quantity can meet use demand, temperature setting shall be
possibly low. It can minimize heat dissipation, high-temperature corrosion and
sedimentation, ensuring alonger service life.
Regularly ask servicemen to make safety inspection, remove sediment on heating
elements, and check consumption of anode bar. Too much consumed anode bar shall
be replaced.
1.
2.
3.
4.
5.
6.
Attentions in Operation

Attentions in Installation
Installation
Connect to drain hose
During installation, adequate space must be reserved for future maintenance and
repair. If the water heater is installed within decoration boards, the right board
shall be removableto facilitate removing the plastic cover during maintenance.
City water inletpressure shall not be less than 0.05 Mpa.
Electric water heater shall be installed indoors with ambient temperature above
0 . The pipes shall be collectively laid. Hot water outlet shall not be too far from
use points. In case farer than 8 m, hot water pipe shall have a thermal insulation to
minimize heat loss.
The mounting wall shall be firm and reliable to support twice the weight of water
heater full of water. Non-load bearing walls or air brick walls must have
corresponding protective measures like additional support, wall-through screws or
back boards.
Electric water heater shall be located in a place easy for use, maintenance and
with a floor drainer. In case the tank or pipes leak, nearby or lower facilities shall
not be damaged. The installation location shall avoid being above toilet bowl,
bathtub, washbasin or doorframe, where will cause a suppressedor unsafe feeling
to users.
Power socket for water heater shall be in a dry place free of water splash. (splash-
proof box ispreferred)
Do not confuse inlet and outlet water pipes. Safety valve shall be installed at
designated position withno random modification.
4
Safety Precautions
220V
50Hz
Haier
C
²»ÐУ¡
²»ÐÐ
Á¢
¼´ÓÃ
ÓÚÏ´Ô¡
²»
¿ÉÒÔ
²»
¿É
ÒÔ
Á¢
¼´
ÓÃÓÚ
Ï´
Ô¡
In case the power cord of the water heater is
damaged, be sure to have it replaced by after service
technicians with special cord offered by the
manufacturer.
Check if the ammeter and the diameter of the wires are in
accordance with the rated current of the water heater. If
necessary please have it checked by experienced
electrician.
The water heater adopts power supply of 220V~ ,50Hz.
Be sure to use independent receptacle and earth it reliably.
The receptacle shall comply with the stipulation of
national standard.
The product adopts the patent "Safe Care" technology of our company. As long as adopting civil power supply,
even if the earthing wire is electrified by mistake, the "Safe Care" technology still can block the dangerous
electricity, and ensure your personal safety. But if you find perceptible current, please pull off the power plug
and contact local after service departmentfor maintenance. Do not disassemble by yourself.
Description of the Symbols
Never do that
Be sure to act as per instructions
Set the receptacle of the water heater at dry
position away from water spraying. Do not insert
and pull the power plug with wet hands.
In winter of cold area, if the heater is idle for a long
period, please pull the handle of safety valve to discharge
the water. Otherwise it may freeze inside the water heater
and cause damages.
After installation, be sure to fill the heater completely with
water before switching on the power in the first usage.
Children must take bath under the supervision of adult.
In opening and closing the water valve, do not point
the shower head to human body. Otherwise it may
hurt by the spraying hot water.
The water may drip from the discharge pipe of the
pressure relied device and that this pipe must be
installed in a continuously downward direction and
in a frost-free environment. Check safety valve
once a month as follow: move the small handle of
safety valve, if there's water flowing out, safety
valve is normal; if there's no water flow, please
contact local after-salesservice station.
The pressure relief device is to be operated
regularly to remove lime deposits and to verify that
it is notblocked.

5
Setting Environment
²»Òª°²×°ÓÚÎÞ·¨ÅÅË®µÄµØ·½
Description of the Symbols
Do not set it atplace where is too cold and
may freeze.
Do not set at outdoor places.
Do not use as floorstanding appliance.
Please mount it tofirm and reliable wall.
Do not install toplaces without sewer.
In case connecting water heater with water drain
hose, connect the drain hose to the inlet of the
sewer to avoid polluting by splashing.
The original pipeline of the water heater is an organic part of "Safe Care". Do not remove it by yourself.
Otherwise we will not take responsibility for the injure and loss caused by the safety trouble occurred
therefrom.
Never do that
Be sure to act as per instructions
6
Installation
Connection and useof safety valve:
The safety valveshould be connected to the cold water inlet pipe. Please check
carefully if thedirection is correct after installation. The correct direction of installation
is that thearrowhead on the safety valve should point to the water heater.
Please connect the drain hose to the safety valve. Connect one end of the hose to the
safety valve vent and the other end to the sewage drain. The hose can be cut short or
extended as necessary. The hose shall be installed as inclined downward.(see to
Figure 4)
(Figure 3) for reference in installation only
Cold water inlet
Mixing valve
Hot water
outlet valve
Cold water
outlet valve Shower head
Hot
water
outlet
Safety valve
Installation must be made by installers of or designated by our company after-service
department. The water heatershall bewall-mounted.
Before installation, make sure water heater rear wires are fit firmly. Determine an
installation location. Make four holes 12mm, 65 mm deep in the wall with an impact
drill according to installating dimension. Insert fixexpansion hooks and expansion bolts
in corresponding wall holes. Lift the water heater. Insert wall rack onto the hooks and
bolts. Fit flat washers, rear wires and nuts in turn onto the bolts (see Figure 2). Tighten
the nuts and check them firm. Install accessories such as safety valve, drain hose as
shown in Figure3. Use sealing compound to prevent water leakage.
(Figure 2)
To facilitate installation and removal, it is suggested a G 1/2" movable nut is fitted at
appropriate locations on inlet and outlet pipes respectively. Find water supply location.
Connect inlet pipe,outlet pipe and city water pipe respectively to theuse point.
The hot waterpipe shall not be too long to reduce theheat losses.
Please reserve somespace in installation for the future maintenance.
