Haier HP150M5 Specification sheet

Heat pump Water Heater
Operation and Installation Manual
Model
HP150M5
Please read this manual carefully prior to
your use of this water heater.
The appearance of the water heater given
in this manual is for reference only.
English
ELECTRICITE
C
E
R
T
I
F
I
É
P
A
R
L
C
I
E

Contents
1. Safety instructions ...............................................................................................................3
2. Instructions on transportation and storage........................................................................6
3. Functionings & principles .....................................................................................................6
4. Technical parameters ...........................................................................................................7
5. Description of parts and components ................................................................................8
6. Installation introduction .....................................................................................................11
7. Operation and functions .....................................................................................................24
8.Checking and maintenance..................................................................................................27
9.Faults and protection ..........................................................................................................28
10.Product Fiche .....................................................................................................................29
Dear users of Haier,
Thank you for choosing Haier products.
Please read this manual carefully and follow the operation and safety instruction to ensure
best installation and utilization of the product.
Product safety statement:
1.This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
understand the hazards involved.
2. Children shall be closely supervised to make sure they stay
away from this product.
3.The method of installing safety valve please refer to Page 16.
4.The water may drip from the discharge pipe of the pressure
relief device and this pipe must be left open to the
atmosphere.
5.The water heater is to be drained according to the
instructions specified on page 27.

Safety instructions (to be followed at any time)
Failure to respect these instructions may lead to serious malfunctions of the
device and to risks for the user
Instructions with this warning mark shall be strictly followed during operation.
They relate to product and body safety of users.
Information provided with this banning mark relates to activities that are
definitely forbidden. Otherwise the machine may be damaged or users may
risk personal danger.
The water heater shall be
installed in strict accordance
with local wiring regulations,
and equipped with power
supply with a ground line.
Please ensure an effective
ground connection.
It is recommended that the
water heater shall be installed
inside.
The water heater shall not be
installed at places where
water drainage is unavailable
or impossible.
While bathing, children must
be under guidance of an adult
person.
This water storage tank must
be equipped with a safety
valve. Its installation position
shall not be changed. To
guarantee safe operation, it
shall not be blocked at any
time.
Ground line and zero line of the
power supply shall not be
connected together. The
ground line shall not be
connected to pipeline
conveying gas or water,
lightning arresters or
telephone lines.
Interpretation of marks and symbols
English

The outlet water temperature
of a water heater is typically
higher than the temperature
indicated on the display. Hot
water shall not be pointed at
the human body immediately
after opening the hot water
valve to avoid injury caused by
hot water.
Hands or other items shall not
be put into the air grille to
avoid injury or damage to the
water heater.
Means for disconnection from
the main supply having a
contact separation in all poles
that provide full
disconnection under
overvoltage category III
conditions must be
incorporated in the fixed
wiring in accordance with the
wiring rules.
If the power cord is damaged,
it shall be replaced by
qualified professionals to
avoid hazards.
Install the water heater in
strict accordance with the
installation instruction
specified on page 11-23.
Maintenance shall be carried
out according to the
instructions specified on
page 27.
Safety instructions (to be followed at any time)
The water heater is intended to be permanently
connected to the water mains and not connected by a
hose-set.
Do not install the water heater in the position where
exposed to gas, vapours or dust.
The inlet water pressure is between 0.1-0.5MPa. The
inlet water temperature is suggested between 10-30°C.

Rotate the safety valve handle
once a month. The valve
works well if there is water
flowing out, otherwise check
for blocking and replace the
safety valve if necessary.
The appliance contains fluorinated greenhouse gases.
Chemical name of the gas: R134a/ 0,45Kg
Fluorinated greenhouse gases are contained in
hermetically sealed equipment.
Global Warming Potential(GWP) : 1430
Water heaters shall be
equipped with a dedicated
power line and residual
current circuit breakers. The
action current shall not
exceed 30 mA;
Safety instructions (to be followed at any time)
The water drain pipe shall be in connection with the
atmosphere, it shall not be blocked; the water drain pipe
connected to a safety valve shall be installed in a frostless
environment with an continuous downwards inclination.
5
English
In accordance with safety rules, a safety valve(8bar,G1/2F)
must be installed on the tank. For France, we recommend
hydraulic safety units fitted with a membrane with the NF
marking. The rated pressure of the safety valve shall not
exceed 0.8MPa.

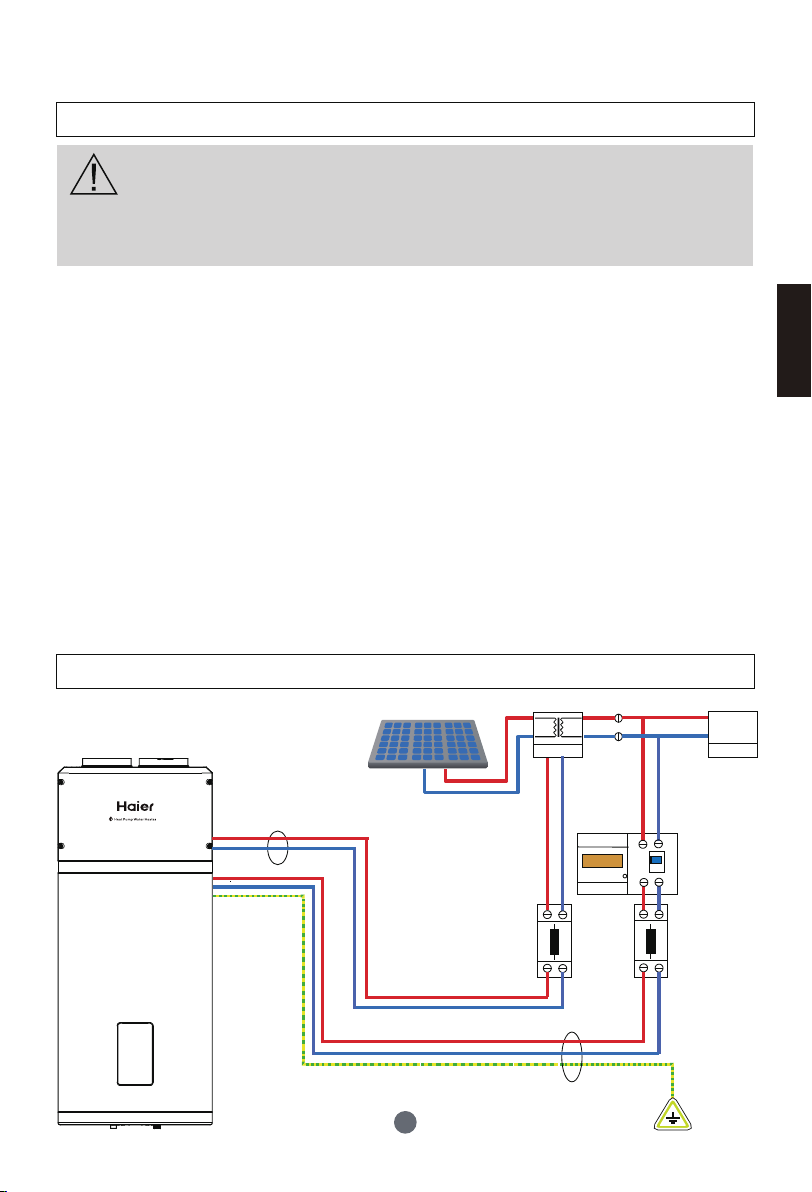

If needed, please refer to the wiring diagram on page 23.
The method of connection about the appliance to the
electrical supply refer to page 21.
5

Instructions on transportation and storage
Functionings & principles

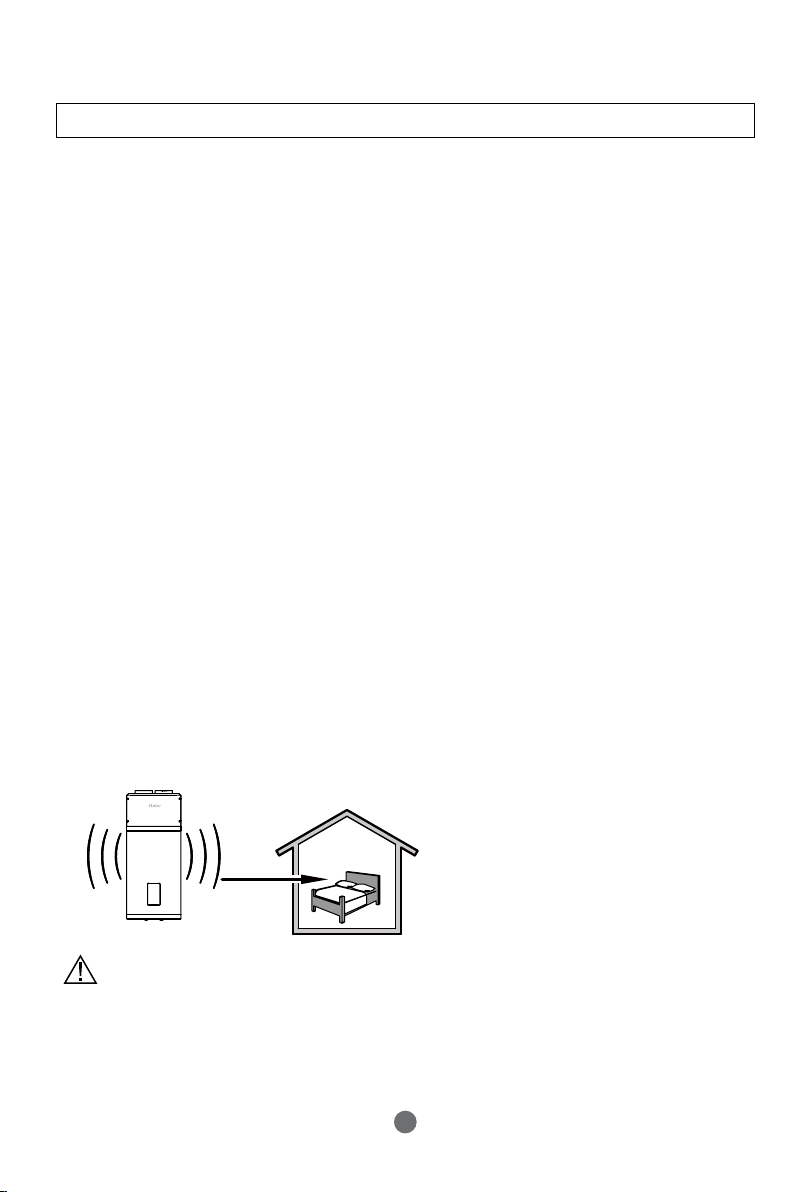

1. During transportation or storage, the heat pump water heater shall be packed in the
undamaged package to avoid damage to appearance and performance of the product;
2. During transportation or storage, the heat pump water heater shall be in the upright
position;
3. Under special conditions, this product may be laid down for a short time/distance as
per indication on the side of the package case. The heat pump water heater, after being
laid down for a certain time, shall be kept at upright position for more than 4 hours before
starting up.
The machine shall be kept in the upright position at any time for the best
performance !
A low-pressure liquid refrigerant is vaporized in the heat pump's evaporator and passed
into the compressor. As the pressure of the refrigerant increases, so does its
temperature. The heated refrigerant runs through a condenser coil within the storage
tank, transferring heat to the water stored there. As the refrigerant delivers its heat to the
water, it cools and condenses, and then passes through an expansion valve where the
pressure is reduced and the cycle starts over.
6

7
Technical parameters
Model HP150M5
Tank volume 150L
Rated voltage/ frequency 220V~240V/50Hz
Tank rated pressure 0.8MPa
Corrosion protection Magnesium rod
Water proof grade IPX4
Type of extraction Ambient / Exterior
COP@7 ℃/ EN16147 2.99
COP@14 ℃/ EN16147 3.58
Tapping cycle L
Power input by electric backup 1200W
Rated power input by heat pump 240 W
Maximum power input by heat pump 350W
Maximum power input 1550W
Standby power input/ Pes 20W
Max volume of usable hot water at 40℃
setting at 55℃195.9L
Heating up time (7℃)10h29
Heating up time (14℃) 8h28
Default temperature setting 55
℃
Temperature setting range- with heater 35℃-75℃
Maximum length of air duct
160mm
Max working pressure of refrigerant 0.8/2.8MPa
Refrigerant type / weight R134a/0.46kg
Sound power level 50dB
(A)
Ambient temperature for use of product -7~45℃
Operating temperature of heat pump -7~45℃
Water inlet and outlet connection G1/2"M
Safety valve connection G1/2"M
Drain & Water intlet connection G1/2"M
Product Dimensions 492*537*1680mm
Packing dimension without pallet 587*587*1764mm
Tank
Performances
Dimension and connections
English
Diameter of air duct connection
5m
Net/Gross weight 67/89kg
Packing dimension without pallet 587*587*1894mm
The COP values obtained with external air temperature of 7°C and 14°C, inlet water temperature
of 10°C and set temperature of 54°C (according to EN 16147).
* The COP and noise level data was tested in Haier lab.

Description of parts and components
Accessories
Part
name
Heat pump
water heater Safety
valve
Drainage pipe for
condensate water
Support
plate
Quantity 1111
Inlet for cold
water/drain
outlet
Hot
water
outlet

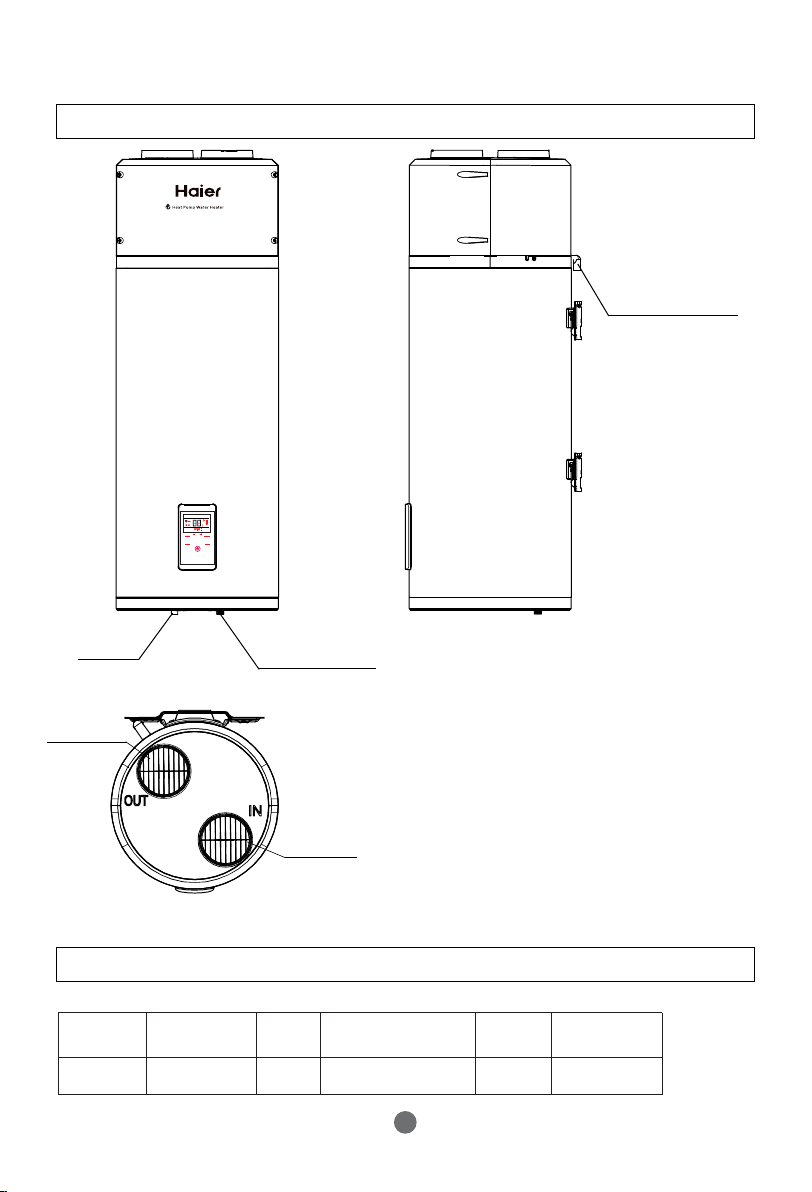

Heat pump structure
8
Condensate outlet
Air outlet
Air inlet
Instruction
manual
1
HW
SET
ACT
START
STOP

1

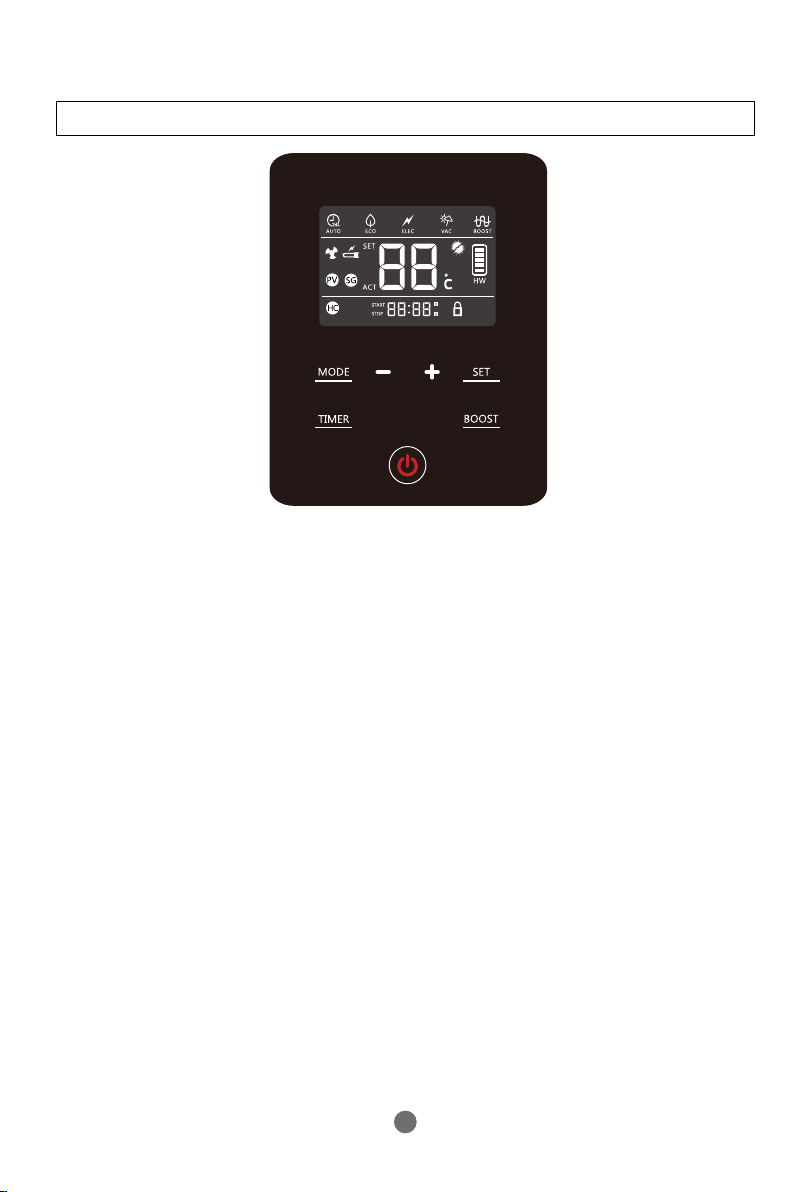

2
HP HC
TIMER
MODE SET
BOOST

Description of parts and components
Exploded view
9
2
1
4
3
6
5
17
12 15
14
8
7
13
11
10
18
9
16
English
Air grille
Air channel - front
10
Fan
11
12
Top cover
13
14
15
16
Evaporator
Motor
Air channel - back
17 Back cover
18 Support plate
S/N Description
1
Electric heater
2
Electric cover
3
Cover for display
4
Display panel
5
Front cover
6
Control box
7Compressor
8
9
Four-way valve
S/N Description
Electronic expansion
valve

Installation introduction
Installation precaution

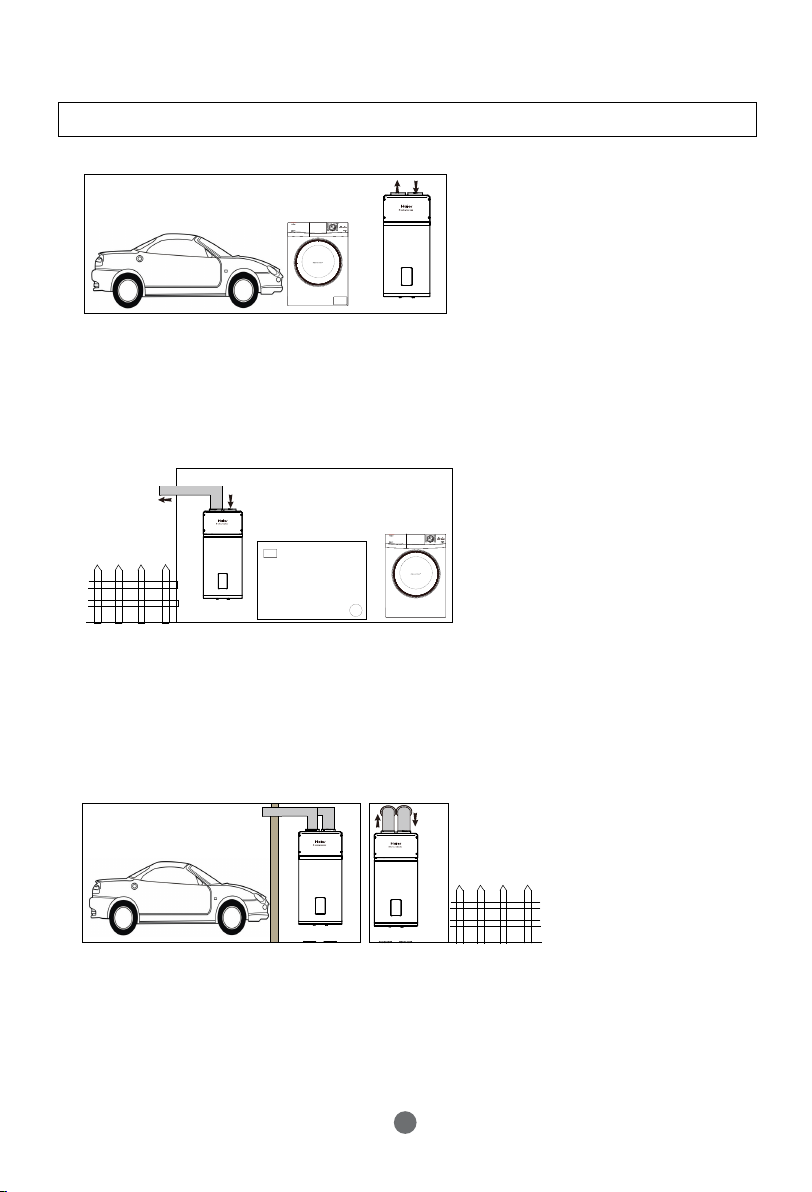

Keep an adequate distance between the working heat pump and the resting room.
- Do not install the water heater in the position where exposed to gas, vapours or dust.
- Install the appliance on a flat, solid surface.The surface can support the machine weight
and the condensate water can be drained freely.
- Noise due to operating and air flow do not bother neighbors.
- Make sure there is sufficient space left for installation and maintenance.
- There is no strong electromagnetic interference around that may affect control
functions.
- There is no sulfur gas or mineral oil existing at the installation place, which may cause
corrosion of the machine and the fittings.
- The water pipe for the water heater used at temperatures below 0°C shall not freeze.
- It shall not be set in rooms where a heating system is used so that heating supply to the
room will not be affected.
- It shall not be set inside a totally-enclosed space.
- The air taken in must in no event be dusty.
- Install the appliance in a dry, frost-free room.
- Temperature of the ambient air or of the air taken in by the heat pump for optimum
running: from 2 to 35°C.
10

English
Installation introduction
Installation dimensions
Model
HP150M5
AB
140492
C
1680
D
534
E
Unit:mm
11
159 470
F
C
A
B
D
E
F

Installation introduction
Installation dimensions
12
Installation angle refer to the following
diagrams：
＞300mm
＞830mm
90°< <91°
α
159mm
Note: These two expansion bolts can support
250kg weight at least . Please use the expansion
bolts adapted to your wall material.
After the installation is completed, it is necessary
to use a level ruler to check whether the support
is maintained in a horizontal state.
470mm

English
Installation introduction
Air connection
- Remove air grille first.
- Install diameter 160mm duct.
- Pressure drops from duct must be lower than or equal to the static pressure of
the fan.
- If the pressure drops out of range, the performance of the appliance will be
impaired.
The sum of the maximum length of the air duct is 5m.
13
click

Garage or laundry room (without ducts):
-Unheated room.
-Enables recovery of the free energy released by your vehicle’s engine when
switched off after use or by household appliances in operation.
-Enables recovery of the free energy released by your vehicle’s engine when
switched off after use or by household appliances in operation.
-Referring installer menu (P26), adjust the fan speed.
Laundry room (with one duct):
-Unheated room.
Habitable room or outside air (with two ducts):
-Can obtain free heat from the garage.
-If the outside air temperature is too low,connection to the outside air may lead to
overconsumption of electricity.
-Referring installer menu (P26), adjust the fan speed.
-Avoid refreshing heated room.
14
Installation introduction
Advised positions

Installation introduction
Installation caution
When making the connections, you should respect the standards and
local directives.
- Before making the connection, rinse the water inlet pipes, in order not to
introduce metal or other particles into the tank.
- Select copper pipes for pipeline connection.
- The inlet water pressure is between 0.1~0.5MPa. If lower than 0.1 MPa, a
booster pump shall be added at the water inlet; if higher than 0.5 MPa, a
pressure relief valve shall be added at the water inlet.
- The inlet water temperature is suggested between 10-30°C.
- Outdoor water pipeline and valves should be proper insulated.
- In accordance with safety rules, a safety valve(8bar,G1/2F) must be
installed on the tank.For France, we recommend hydraulic safety units fitted
with a membrane with the NF marking.
Integrate the safety valve in the cold water circuit.Install the safety valve close
to the tank in a place which is easy to access.
No isolating devices should be located between the safety valve or unit and the
tank.
The rated pressure of the safety valve shall not exceed 0.8MPa.
-Never block the outlet of the safety valve or its drain line for any reason.
- The diameter of the safety unit and its connection must be atleast equal to the
diameter of the domestic cold water inlet.
- If the mains pressure exceeds 80% of safety valve, a pressure reducer must be
installed upstream of the appliance.
If the air inlet and outlet of the product are not installed with air ducts,
the air inlet and outlet of the product shall be protected to prevent water
inflow, and the waterproof measures shall reach IPX4 level.
15
English
- NOTE: Don’t install and use the product outdoors.

Installation introduction
Pipeline installation diagram
Note:
Installation A
Installation B(for France only)
- Pressure relief valve, thermostatic valve, stop valve, check valve ,T&P valve and French
combination valve are not included in the accessories, please select proper fittings in
local market;
- Valves with NF/CE certification are recommended ;
Thermostatic
valve
Water outlet of
safety valve
Check valve
Outlet of
condensate
water
Hot water
outlet
Cold water inlet
Water outlet
Stop
valve
Pressure
relief valve
Check
valve
230V
50Hz
Connected to water inlet
of the water tank
Check
valve Stop valve
Safety valve
Sewage drainage
outlet
Thermostatic
valve
Water outlet of
safety valve
Check
valve
Pressure relief valve Combination valve
Outlet of
condensate
water
Hot water
outlet
Cold water inlet
Water outlet
230V
50Hz
2CM
16
Drain valve

English
Installation introduction
Electrical connections precautions
- Water heaters shall be equipped with a dedicated power line and residual
current circuit breakers. The action current shall not exceed 30 mA;
- The ground line and the null line of the power supply shall be separated
entirely. Connecting the null line to the ground line is not allowed.
- Parameter of the power line: 3×1.5mm² or more.
- If a power cable is damaged, it shall be replaced by qualified professionals to
avoid risks.
- In the case of places and walls where water may be splashed to, installation
height of a power socket shall not be less than 1.8 m, and it shall be ensured
that water would not be splashed on these places. The socket shall be
installed out of children’s reach.
- The phase line, zero line and ground line inside a power socket used in your
home shall be wired correctly without any wrong positioning or false
connection, and internal short circuit shall be avoided. Wrong wiring may
cause fire accidents.
WARNING
- Only qualified professionals may carry out electrical connections,
always with the power off.
- The earthing shall comply with local standards.
17
Connection to a PV system
17
123kwh 1
0
F2 = 16A
DC AC
Control cable for automatic
connection/disconnection
of the power supply
(2*0.75 mm², black cable)
Power cable
(3*1.5 mm²)
F1 = 2A
Available power
(mini threshold = 700 w)
Inverter State Grid
Photovoltaic panels

Installation introduction
Off-peak power signal wire connection
18
Power cable (3*1.5mm2 )
Off-peak power signal wire
(2*0.75mm2,Black wire)
16A
Auto
1
0
123kwh 1
0

English
19
Wiring diagram
Commissioning
Installers shall use checking list for trial operation of water heaters as per the user manual
and make in .
√□
Electrical wires are fixed securely?
Water drain pipes are connected correctly?
Ground wires are connected securely?
Supply voltage conforms to relevant electric codes?
The control panel works well?
All noises are normal?
The water tank has been connected with dedicated pressure relief valve (TP valve) and
check valve?
Materials for hot/cold water pipes conform to requirements of use of hot/cold water?
After the water system is completed, the water tank is filled with water? Is there water
drained out of the water outlet of the hot water pipeline?
After the water pipe of the water system is filled, check the whole water pipeline. There
is no leakage?
After the water system is filled with water, is there water flowing out after pressure is
relieved via the automatic safe pressure relief valve?
After the water system is filled with water and after leakage check, all outdoor water
pipelines are applied with heat insulation treatment?
The drain valve, drain pipe and pressure relief valve drain pipe of the water tank have
been connected to the sewage system and the drainage can be carried out well?
Installation introduction
R
SC
K3
CT1
Blue
MAIN BOARD
FAN
tt
tt
K4
K5
L
(Ｌ)
(
N )
L
︳
IN N
︳
IN
CN9
IN
CN19
CN16
N
Leakage
protection coil
GND
Compressor
capacitor
White
Compressor
Electric heating
element
Blue Blue
White
Black
Brown
Blue
Over-temperature
thermostart
Four-way valve
White
Discharge temperature
sensor
Defrost temperature
sensor
Ambient temperature
sensor
Suction temperature
sensor
t t
Water tank temperature
sensor
Power cord
Display panel
CN1
EXV
Electronic expansion valve
CN5 CN2
High pressure switch
CN11
CN21 CN15 CN13 CN17 CN20 CN22
Terminal block
Current
transformer
CN24
Off-peak power switching signal
CN27
CN28

20
Operation and functions
Display
Functions & Protections
Electrical leakage protection
The control system of this machine features an electricity leakage protection function.
Automatic defrosting function
Overload protection
Anti-freezing function
The heat pump starts heating to avoid freezing of the water tank if the temperature in
the water tank is too low.
The default temperature setting is 55°C.
A.
C.
D.
E.
F.
When restarting the machine immediately after shutdown, the system goes into the
protection mode and starts after approximately 3 minutes, which is considered to be
normal.
The defrosting mode is automatically activated if the outdoor temperature is too low
and after the compressor already runs continuously for a certain period.
The working load of the compressor will be heavy if temperature is high in summer. In
order to meet hot water requirements of users and to lengthen service life of the
compressor, this product automatically adjusts the fan speed to ensure reliable
operation of the compressor.
3-minutes protection
When starting the machine after electricity input, the system will start after
approximately 3 minutes ,which is considered to be normal.
B.
