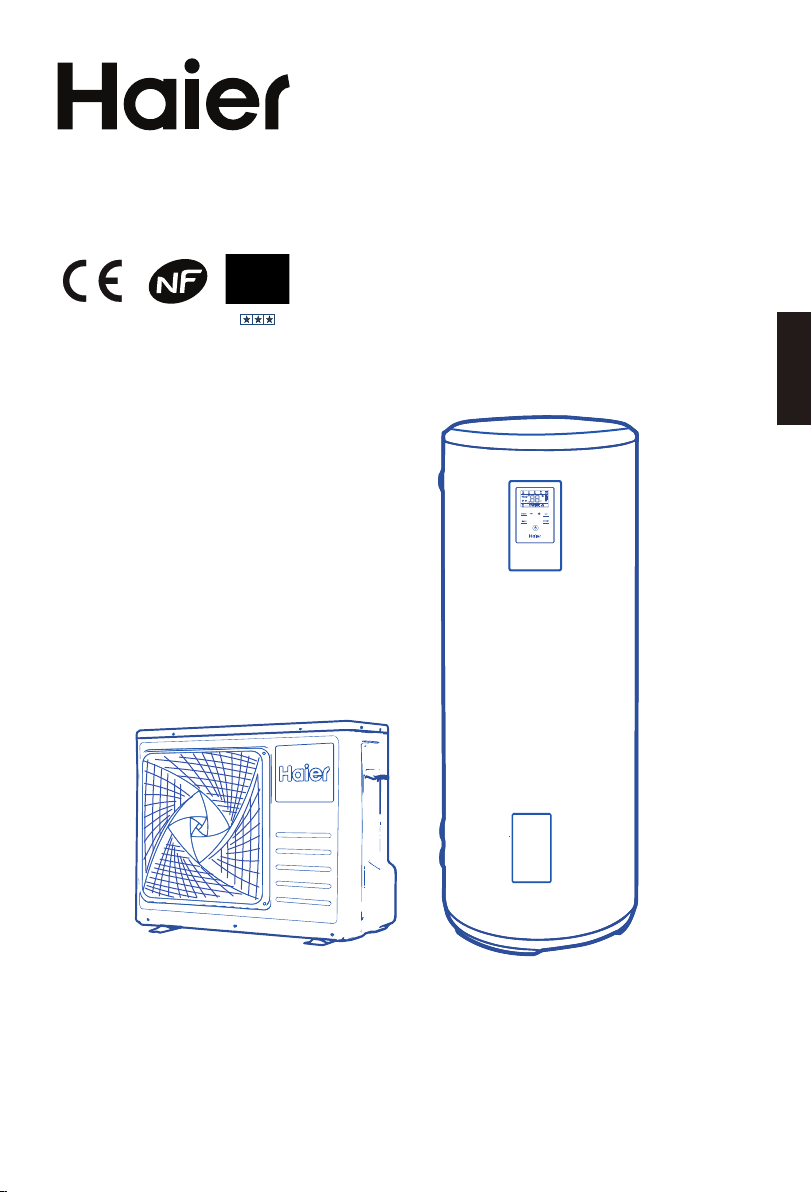

Haier HP200S1 Specification sheet

Heat pump Water Heater
Operation and Installation Manual
Model
HP200S1
HP300S1
Please read this manual carefully prior to
your use of this water heater.
The appearance of the water heater given
in this manual is for reference only.
English
ELECTRICITE
C
E
R
T
I
F
I
É
P
A
R
L
C
I
E
ELECTRICITE PERFORMANCE

Contents
1. Safety instructions ..................................................................................................................3
2. Instructions on transportation and storage...................................................................6
3. Functionings & principles .....................................................................................................6
4. Technical parameters .............................................................................................................7
5. Description of parts and components .............................................................................8
6. Installation introduction .... ................................................................................................11
7. Operation and functions ....................................................................................................24
8.Checking and maintenance ................................................................................................28
9.Faults and protection ............................................................................................................29
10.Product Fiche .........................................................................................................................30
Dear users of Haier,
Thank you for choosing Haier products.
Please read this manual carefully and follow the operation and safety instruction to ensure
best installation and utilization of the product.
Product safety statement:
1.The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction. Children being supervised not
to play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
2. Children shall be closely supervised to make sure they stay
away from this product.
3.The method of installing safety valve please refer to Page 19.
4.The water may drip from the discharge pipe of the pressure
relief device and this pipe must be left open to the
atmosphere.
5.The water heater is to be drained according to the
instructions specified on page 28.
English
11.Warranty certificate ............................................................................................................. 31

Safety instructions (to be followed at any time)
Failure to respect these instructions may lead to serious malfunctions of the
device and to risks for the user
Instructions with this warning mark shall be strictly followed during operation.
They relate to product and body safety of users.
Information provided with this banning mark relates to activities that are
definitely forbidden. Otherwise the machine may be damaged or users may
risk personal danger.
The water heater shall be
installed in strict accordance
with local wiring regulations,
and equipped with power
supply with a ground line.
Please ensure an effective
ground connection.
It is recommended that the
water heater shall be installed
inside.
The water heater shall not be
installed at places where
water drainage is unavailable
or impossible.
While bathing, children must
be under guidance of an adult
person.
This water storage tank must
be equipped with a safety
valve. Its installation position
shall not be changed. To
guarantee safe operation, it
shall not be blocked at any
time.
Ground line and zero line of the
power supply shall not be
connected together. The
ground line shall not be
connected to pipeline
conveying gas or water,
lightning arresters or
telephone lines.
Interpretation of marks and symbols
English

The outlet water temperature
of a water heater is typically
higher than the temperature
indicated on the display. Hot
water shall not be pointed at
the human body immediately
after opening the hot water
valve to avoid injury caused by
hot water.
Hands or other items shall not
be put into the air grille to
avoid injury or damage to the
water heater.
Means for disconnection from
the main supply having a
contact separation in all poles
that provide full
disconnection under
overvoltage category III
conditions must be
incorporated in the fixed
wiring in accordance with the
wiring rules.
If the power cord is damaged,
it shall be replaced by
qualified professionals to
avoid hazards.
Install the water heater in
strict accordance with the
installation instruction
specified on page 11-23.
Maintenance shall be carried
out according to the
instructions specified on
page 28.
Safety instructions (to be followed at any time)
English

Rotate the safety valve handle
once a month.The valve works
well if there is water flowing
out, otherwise check for
blocking and replace the safety
valve if necessary.
Refrigerant: R134a; When handling product, you should
- No smoking
- Prevent the accumulation of electrostatic charges
- Work in a well ventilated place.
- Avoid contact with the skin and eyes
- Do not inhale the vapours
- Evacuate the hazardous area
- Stop the leakage
Water heaters shall be
equipped with a dedicated
power line and residual
current circuit breakers. The
action current shall not exceed
30 mA;
Safety instructions (to be followed at any time)
The water drain pipe shall be in connection with the
atmosphere, it shall not be blocked; the water drain pipe
connected to a safety valve shall be installed in a frostless
environment with an continuous downwards inclination.
5
English
The appliance contains fluorinated greenhouse gases.
Chemical name of the gas: R134a
Fluorinated greenhouse gases are contained in hermetically
sealed equipment.
An electrical switchgear has a tested leakage rate of less
than 0.1 % per year as set out in the technical specification
of the manufacturer.
The quantity expressed in weight and in CO2 of fluorinated
greenhouse gases for which the appliance is designed, and
the global warming potential of those gases. (R134a, GWP
1430)

Instructions on transportation and storage
Functionings & principles
1. During transportation or storage, the heat pump water heater shall be packed in the
undamaged package to avoid damage to appearance and performance of the product;
2. During transportation or storage, the heat pump water heater shall be in the upright
position;
The external unit shall be kept in the upright position at any time for the best
performance !
A low-pressure liquid refrigerant is vaporized in the heat pump's evaporator and passed into
the compressor. As the pressure of the refrigerant increases,so does its temperature.The
heated refrigerant runs through a condenser coil within the storage tank,transferring heat
to the water stored there.As the refrigerant delivers its heat to the water, it cools and
condenses,and then passes through an expansion valve where the pressure is reduced and
the cycle starts over.
6
English

Technical parameters
Model (system)HP200S1 HP300S1
Tank volume 195L 293L
Rated voltage/ frequency 230V/50Hz 230V/50Hz
Tank rated pressure 0.85MPa 0.85MPa
Corrosion protection Magnesium rod(x2) Magnesium rod(x2)
Water proof grade IPX4 IPX4
Water inlet and outlet connection G3/4"F G3/4"F
Safety valve connection G3/4"F G3/4"F
Drain & Water intlet connection G3/4"F G3/4"F
Product dimension（tank unit）
544*512*1765 mm 632*600*1795 mm
Packing dimension（tank unit） 676*636*1927 mm 737*696*1958 mm
Packing dimension （external unit） 960*425*735 mm 960*425*735 mm
Net/Gross weight（tank unit）77/89kg 98/112kg
* Tested by LCIE France according to CDC LCIE N° 103-15/B:2011 +A1:2013 and EN16147:2011.
Model (tank unit)
Dimension and connections
7
English
Product dimension（external unit）
Net/Gross weight（external unit）
899*352*681 mm 899*352*681 mm
41/44kg 44/48kg
Model (external unit)
TS200HE-S1 TS300HE-S1
UE1.0-S1 UE1.5-S1
Power input by electric backup 2150W 2150W
Rated power input by heat pump 665W 885W
Maximum power input by heat pump 1000W 1350W
Maximum power input 3150W 3500W
Type of extraction Exterior Exterior
Coefficient of performance (COP) * 3.09 3.20
Tapping cycle L XL
Max volume of usable hot water at 40
℃
setting at 55 ℃
245.1L 382.6L
Performance certified at 7 ° C air (CDC LCIE 103-15 / B)
Standby power input/ Pes 28W 29W
Heating up time 4h03 4h45
Reference temperature /Tref 53.86
℃ 53.91 ℃
Assembled System
Default temperature setting 55
℃
55 ℃
Temperature setting range- with heater 35 ℃ -75 ℃ 35 ℃ -75 ℃
20m 20m
Max working pressure of refrigerant 0.8/2.8MPa 0.8/2.8MPa
Refrigerant type / weight R134a/1.3kg R134a/1.5kg
Sound power level 64dB 64dB
Ambient temperature for use of product -7~45
℃ -7~45 ℃
Operating temperature of heat pump -7~45 ℃ -7~45 ℃
Maximum length of refrigerant pipe

Description of parts and components
Safety
valve
Refrigerant
outlet
Cold water
inlet
Hot water
outlet
Heat pump structure
HP200S1/HP300S1
8
BOOST
HW
SET
ACT
START
STOP
VAC
ERROR
ECO ECO+
AUTO

1
2
HP HC
!
TIMER
SET
BOOST
MODE
Drain outlet
Refrigerant
inlet
Electrical cover
-up
Electrical cover
Air grille
Electrical cover
-down
English

Description of parts and components
English

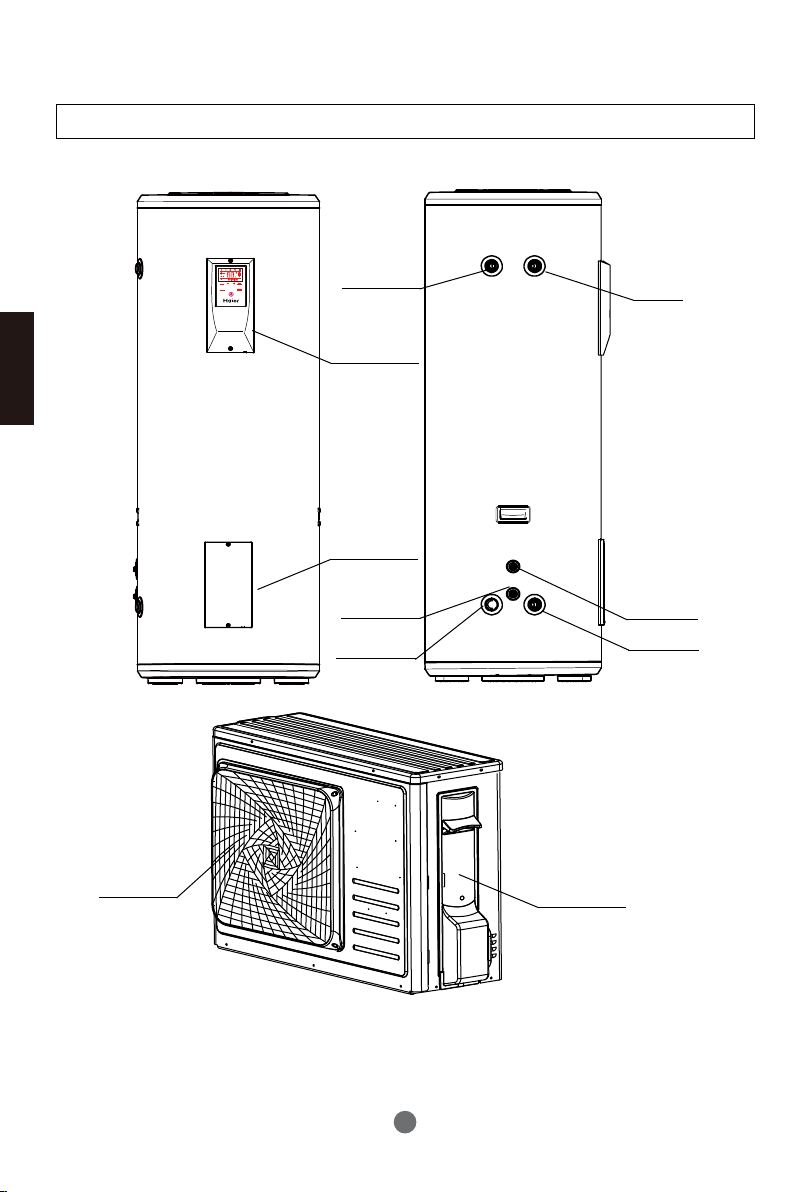

Exploded view（tank unit）
9
Accessories（tank unit）
Part
name Tank The strap
of tank
Fiber
washer
Instruction
manual
Expansion
bolts
Quantity 12
41
1
1
2
Plastic cover
3
Electrical cover - down
4
Display panel
5Electrical cover - up
6
Anode Rod
7
8
Heating element
9
10
Bottom Cover
11
Top cover
Tank case
Handle
S/N Description
Interconnection cable (3*1.5mm2)
Anode Rod
Flange
2
3
5
6
1
4
8
9
10
11
12
7
12
Tank temperature sensor
Display panel signal wire

Description of parts and components

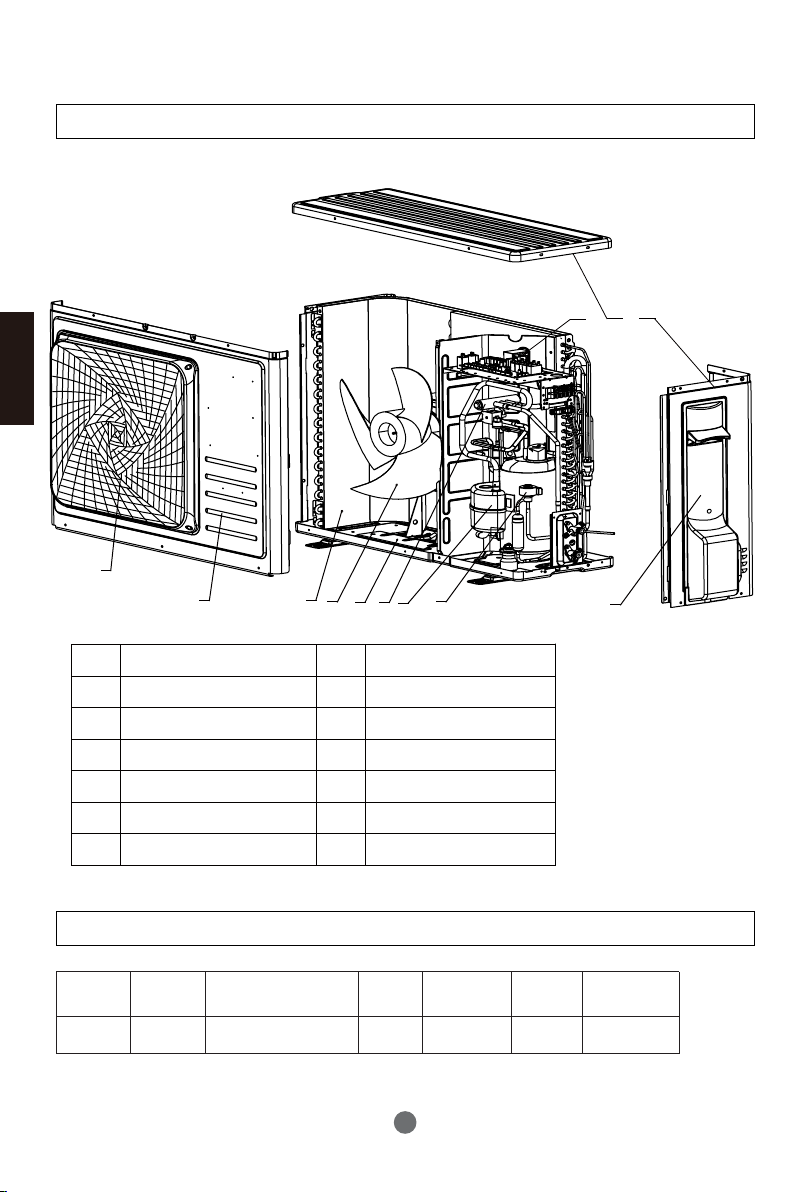

Exploded view（external unit）
10
1 Air grille
2 Front cover
3 Evaporator
4Fan
5 Bottom Cover
6 Four-way valve
S/N Description
3
457
68
910 11
12
7
Electrical cover
8Expansion valve
9 Controller panel
10 Top Cover
11 Right Cover
12
Compressor
S/N Description
Accessories（external unit）
Part
name External
unit Elbow
Drain pipe for
condensate water
Protective
ring
Expansion
bolts
Quantity 14
12
1
Rubber
pad
4
1
2
English

Installation introduction
Installation precaution

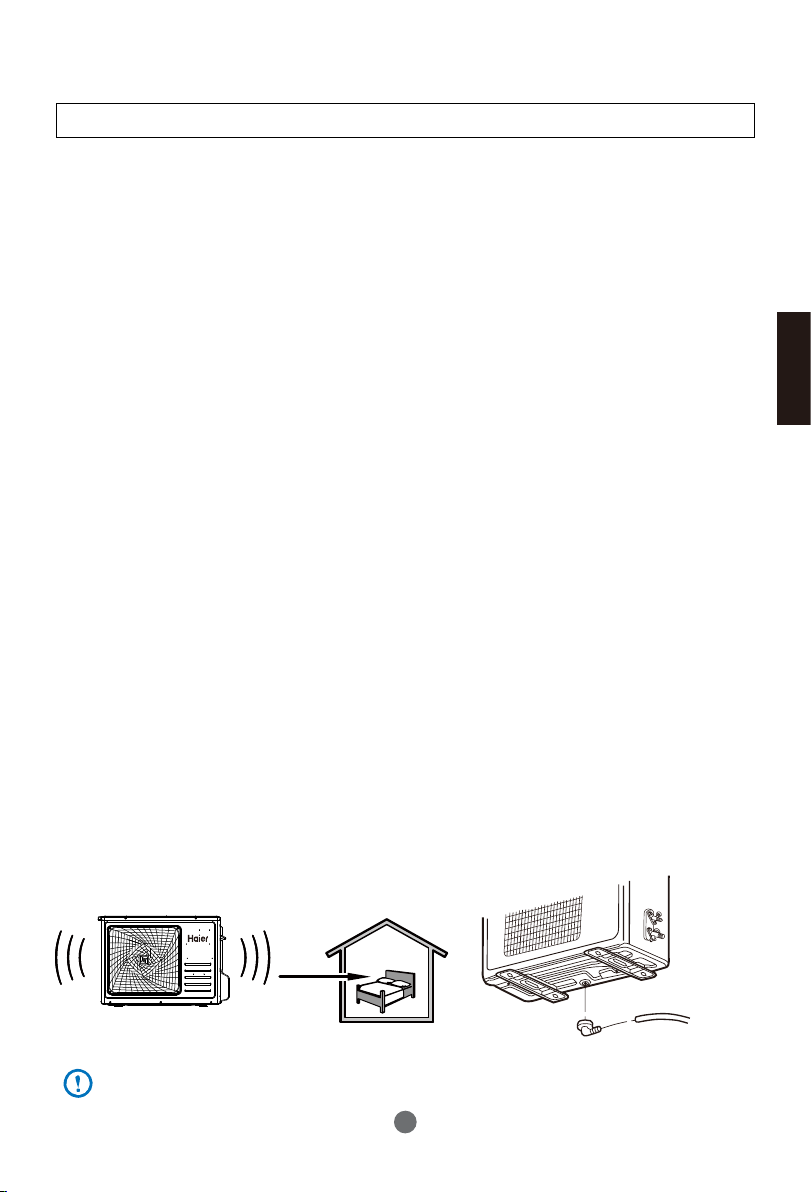

Keep an adequate distance between the working heat pump and the resting places.
- Do not install the water heater in the position where exposed to gas, vapours or dust.
- Install the tank unit and external unit on a flat, solid surface.The surface can support the
machine weight and the condensate water can be drained freely.
- Noise due to operating and air flow do not bother neighbors.
- Make sure there is sufficient space left for installation and maintenance.
- There is no strong electromagnetic interference around that may affect control
functions.
- There is no sulfur gas or mineral oil existing at the installation place, which may cause
corrosion of the machine and the fittings.
- The water pipe for the water heater used at temperatures below 0°C shall not freeze.
- It shall not be set in rooms where a heating system is used so that heating supply to the
room will not be affected.
- It shall not be set inside a totally-enclosed space.
- The air taken in must in no event be dusty.
- Install the internal unit in a dry, frost-free room.
- Temperature of the ambient air or of the air taken in by the heat pump for optimum
running: from 10 to 35°C.
- Discharge of condensate：The condensate or water, which is formed in the outdoor unit
during heating operation, must be eliminated, freely or through the drain. Fix the drain
connection into the hole which is located on the bottom of the unit and connect the
plastic tube with the connector. Ensure that the condensate water runs out in a suitable
drain and make sure the discharge is made without hindrance.
English
11
Drain pipe
Elbow

Installation introduction
Installation dimensions
Model
HP200S1
HP300S1
AB
272
281
542
630
C
311
D
411
420
320
E
Unit:mm
12
A
BCD
E
F
G
H
1519 1795
F G H
899 681
899 681
1765
1530
English

Installation introduction
Installation dimensions(external unit
English
13
50mm
500mm
Air inlet
300mm
600mm
300mm
1500mm
Air outlet
500mm
H
2/3H
The strap of tank
Installation dimensions(tank unit
Expansion bolts

Installation introduction
Tools for the connection of refrigerant lines
a) Group manometer suitable for use with R134a,with charge and vacuum tubes;
b) Vacuum pump;
c) Torque wrenches for nominal diameter of 1/4“and 3/8”sizes on both sides to
respond to the measures of the pipe unions;
d) Flaring clamp ø nominal 1/4“and 3/8”, equipped with a terminal receiving
opening so that the projection of the copper tube can be adjusted from 0 to 0.5 mm
in the working folder ;
e) Pipe cutter;
f) Pipe reamer;
g) Leak Detector for R134a,a leak detector is used exclusively for HFC refrigerants.
It must have a high detection sensitivity.
14
Preparing of the refrigerating pipes
WARNING! Before carrying out any installation check the following:
a) Use only copper tubes for air conditioners type (copper tubing for the refrigeration
and the conditioning) or copper pipes with proper insulation (at least 6 mm thick),
suitable for use with R134a;
b) Never use piping with a thickness less than 0.8 mm;
c) Provide a path of the pipes as short and simple as possible (maximum length 20 m
with 10 m of fall). Do not provide a path that may obstruct the access to the cap and
the removal of flange.
d) Protect the pipes and cables to avoid damage;
WARNING! The refrigerant lines,and fittings for connection must be insulated to
avoid dangerous burns,loss of performance and product malfunction. Ensure the
insulating sheath of the tubes through fastening clamps to prevent it from moving.
English

English
a) Shape the pipes according to the path;
b) Remove the threaded brass flare nuts(A) on the tank unit and store them
(check that no impurities are left);
c) Cut the pipe to the fixed length, with a pipe cutter, avoiding any deformation;
d) Remove burrs with pipe reamer avoiding to get impurities inside (keep down
the tube);
e) Insert the threaded brass flare nuts(A) on the pipes in the correct direction;
f) Insert the tube into the flaring tool and make the flange at the end of the
connecting pipe, as indicated in the table.
After confirming that there are no wrinkles or tears on the flare, connect the
pipes using two spanners,being careful not to damage the pipes.If the force is
insufficient, then there will be leaks. Although the force is excessive,there may
be losses because it is easy to damage the flange.The safest method is to
tighten the connection by using a spanner and a torque wrench.
15
Installation introduction
Connecting the tank unit
Pipe(not supplied)
Inlet refrigerant pipe
Outlet refrigerant pipe
Specification
φ6.35 mm (1/4”)
φ9.5 mm (3/8”)
Thickness
0.8mm
0.8mm
Tightening torque [Nm]
15~20
29~34
A

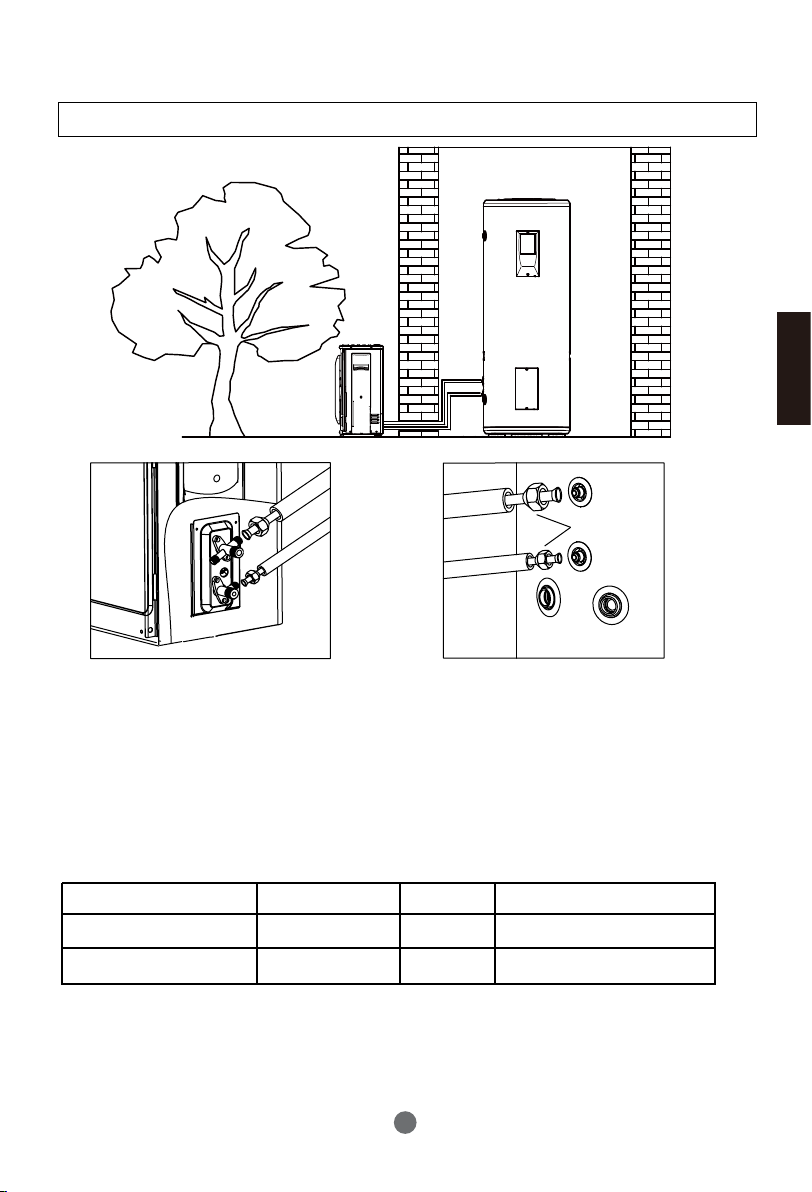

Installation introduction
Connecting the external unit
When making the connections, you should respect the standards and
local directives.
Remove the flare nuts from 2 and 3 way valves, Insert the flare nuts on the pipes,
screw the flare nuts to connect the external unit with the same method described
for the tank unit.
Always protect hoses and cables to prevent their being damaged, as once
damaged can cause gas leaks(personal injury from frostbite).
16

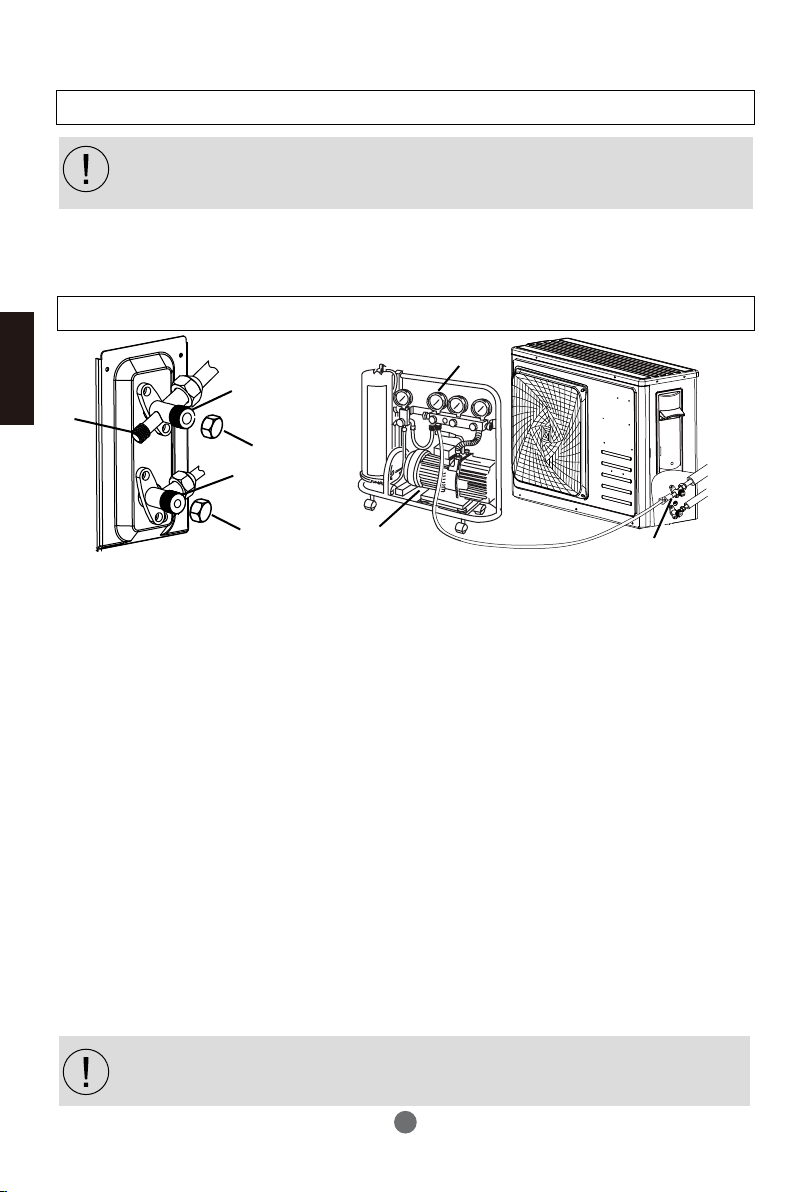

Making the vacuum
Bleeding from the circuit should take place with a vacuum pump and pressure
gauge assembly suitable for R134a.
Make sure the vacuum pump is full of oil up to the level indicated by the oil gauge.
a) loose the caps of the taps of the 2 and 3 way valves, and of the service valve;
verify that the two valves on the outdoor unit are closed (D);
b) connect the vacuum pump (B) to the service valve (C) by the attack of low
pressure gauge (A);
c) After opened the valves of the vacuum pump (B), start it and let it run. Create a
vacuum for about 20 / 25 minutes;
d) verify that the low pressure gauge (A) indicates a pressure of 1 bar-(or -76 cm Hg);
e) close the valves of the pump and shut off (B). Verify that the gauge needle does
not move for about 5 minutes.
If the needle moves, there are air leaks in the system, then you must check all the
tightening and execution of flare at this point repeat the procedure from step c;
f)Disconnect the vacuum pump, (if you want to add refrigerant gas see the next
paragraph);
g) completely open the taps on 2 and 3 way valves (D);
h) Screw in the cap on the service outlet and valves (E);
i)after having tightened the plugs, make sure there are no gas leaks with the
appropriate detector.
C
D
D
E
E
A
BC
English

Installation introduction
Charge of the refrigerant gas
English
17
The product can be installed with refrigerant connection between internal and external
unit up to 20 m. The declared performances are referred to refrigerant connection pipes
of 5 m; different types of installation may lead to different values of performance.
In case you are adding R134a gas in the circuit, will be needed:
- R134a refrigerant tank. In this case it is necessary a charge attack 1/2 UNF 20 threads
per inch and corresponding seal;
- Electronic scale for refrigerant charging with sensitivity 10g.
- Connection pipes over 10 m need to increase the refrigerant(30g / m)．
During installation:
a) Carry out the procedure of passage “a”to the passage “f”;
b) Connect the manometer on the low pressure service valve, and connect the
refrigerant cylinder to the center tap of the the manometer. Open the container of the
refrigerant then open the main valve cap pressure gauge and adjust the needle valve until
you hear the coolant leak, and release the pin and close the valve of the the pipe;
c) Keep under control the weight of the refrigerant tank through the electronic scale;
d) Open the ball valve and to flow the refrigerant gradually;
e) After reaching the mass of gas to be loaded close the tap;
f) Remove the manometer and charging hose from the valve;
g) Fully open taps 2 and 3 way valves (D), turn the product in heat pump mode with the
detector and check for leaks of refrigerant;
h) Remove the container from the manifold and replace all the plugs (E).
Already installed:
a) Connect the manometer on the low pressure service valve, and connect the
refrigerant cylinder to the center tap of the the manometer. Open the container of the
refrigerant then open the main valve cap pressure gauge and adjust the needle valve until
you hear the coolant leak, and release the pin and close the valve of the the pipe;
b) Keep under control the weight of the refrigerant tank through the electronic scale;
c) Open the ball valve and to flow the refrigerant gradually;
d) After reaching the mass of gas to be loaded close the tap;
e) Remove the manometer and charging hose from the valve;
f) with the detector and check for leaks of refrigerant;
g) Remove the container from the manifold and replace all the plugs (E).
h) Once finished the time for the “Charge”, verify proper product functioning.

Installation introduction
Installation caution
When making the connections, you should respect the standards and
local directives.
- Select copper pipes for pipeline connection.
- The inlet water pressure is between 0.1~0.6MPa. If lower than 0.1 MPa, a
booster pump shall be added at the water inlet;if higher than 0.6 MPa,a
pressure relief valve shall be added at the water inlet.
- The inlet water temperature is suggested between 10-30°C.
- Outdoor water pipeline and valves should be proper insulated.
- In accordance with safety rules,a safety valve(8.5bar,99°C,G3/4M) must be
installed on the tank.For France,we recommend hydraulic safety units fitted
with a membrane with the NF marking.
Integrate the safety valve in the cold water circuit.Install the safety valve close
to the tank in a place which is easy to access.
No isolating devices should be located between the safety valve or unit and the
tank.
- Never block the outlet of the safety valve or its drain line for any reason.
- The diameter of the safety unit and its connection must be atleast equal to the
diameter of the domestic cold water inlet.
- If the mains pressure exceeds 80% of safety valve,a pressure reducer must be
installed upstream of the appliance.
Do not connect the cold water inlet and
hot water outlet directly to the copper
pipes in order to avoid iron/copper
galvanic couples (risk of corrosion).
The cold water inlet and hot water
outlet must be fitted with a dielectric
connection (not supplied).
18
dielectric
connection
(not supplied)
copper pipes(not supplied)
English

19
Installation introduction

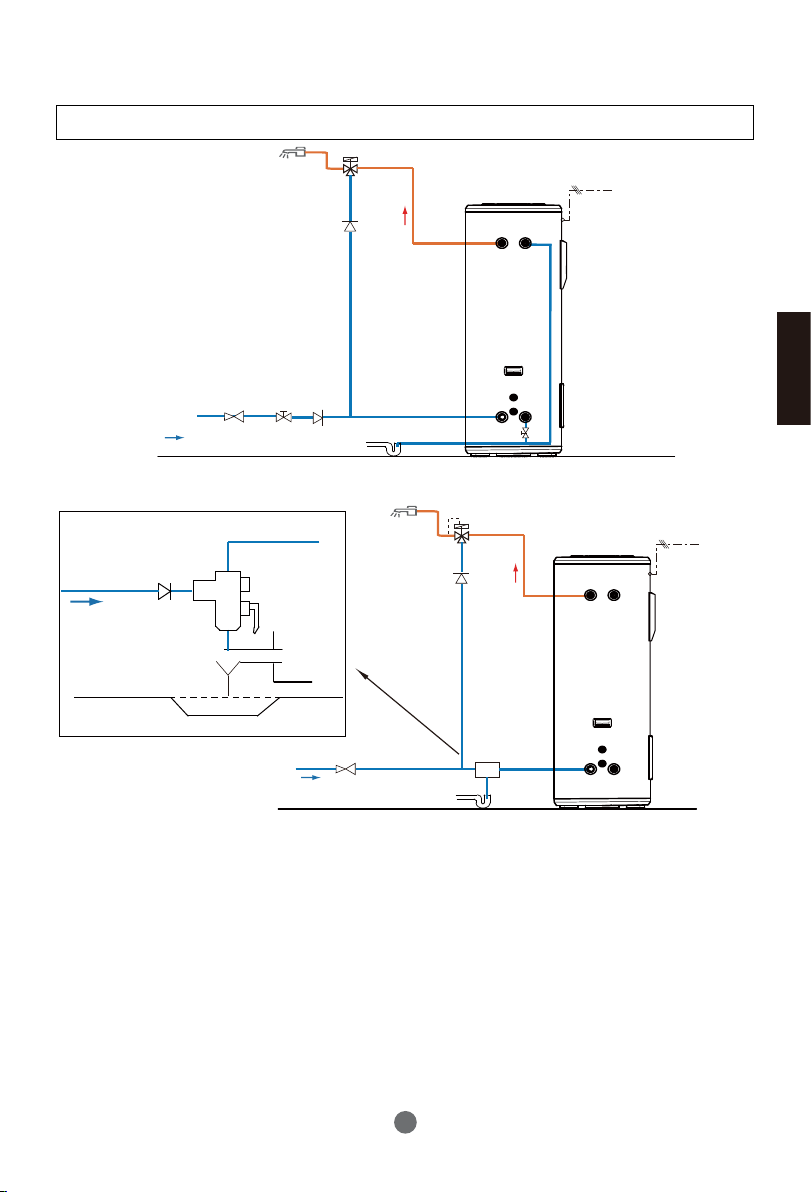

Pipeline installation diagram
Note:
Installation A
- Pressure relief valve,thermostatic valve, stop valve, check valve ,T&P valve and French
combination valve are not included in the accessories, please select proper fittings in
local market;
- Valves with NF/CE certification are recommended ;
- In accordance with safety rules, a safety valve(8.5bar,99°C,G3/4M) must be installed on
the tank. For France, we recommend hydraulic safety units fitted with a membrane with
the NF marking.
- The inlet water pressure is between 0.1~0.6MPa. If lower than 0.1 MPa, a booster pump
shall be added at the water inlet; if higher than 0.6 MPa, a pressure relief valve shall be
added at the water inlet.
- The inlet water temperature is suggested between 10-30°C.
Thermostatic valve
Water outlet of
safety valve
Check valve
Hot water
outlet
Cold water inlet
Water outlet
Stop
valve
Pressure
relief valve
Check
valve
230V
50Hz
Drain valve
Installation B(for France only)
Connected to cold water inlet
of the water tank
Check valve Stop valve
Safety valve
Sewage drainage
outlet
Thermostatic valve
Check
valve
Pressure relief valve
Hot water
outlet
Cold water inlet
Water outlet
230V
50Hz
2CM
Combination valve
Cold water inlet Plug
Plug
English

Installation introduction
20
English
Electrical connections precautions
- Water heaters shall be equipped with a dedicated power line and residual
current circuit breakers.The action current shall not exceed 30 mA;
- The earth wire and the neutral wire of the power supply shall be separated
entirely. Connecting the neutral wire to the earth wire is not allowed.
- Parameter of the alimentation cable:3×2.5mm² or more.
- If a power cable is damaged, it shall be replaced by qualified professionals to
avoid risks.
- In the case of places and walls where water may be splashed to, installation
height of a power socket shall not be less than 1.8 m, and it shall be ensured
that water would not be splashed on these places.The socket shall be
installed out of children’s reach.
- The live wire, neutral wire and earth wire inside a power socket used in your
home shall be wired correctly without any wrong positioning or false
connection, and internal short circuit shall be avoided.Wrong wiring may
cause fire accidents.
Attention!
Through poor conditions of the electrical MAINS, shortly voltage drops can
appear when starting the EQUIPMENT.This can influence other equipment (eg.
blinking of a lamp). If the MAINS-IMPEDANCE Zmax < 0.304 OHM(HP200S1)
Zmax < 0.289 OHM(HP300S1) , such disturbances are not expected.(In case of
need,you may contact your local supply authority for further information).
WARNING
- Only qualified professionals may carry out electrical connections,
always with the power off.
- The earthing shall comply with local standards.
-The heat pump water heater requires a single phase 16A(HP200S1)/20A(HP300S1)
supply requiring a licensed electrician for connecting.
