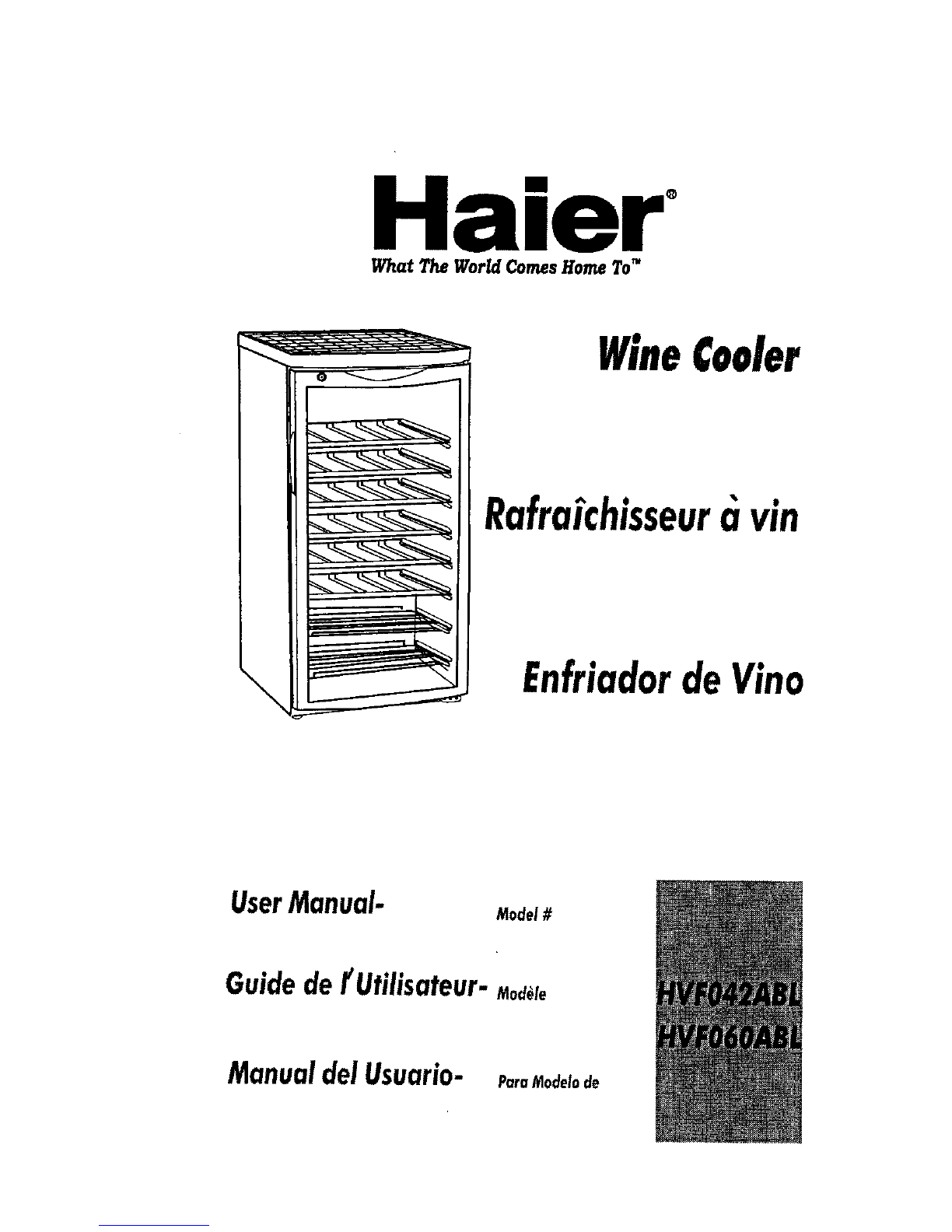

Haier HVF042ABL User manual

Haler °
What The World Comes Home ToTM
WineCooler
Rafra'ichisseur_vin
EnfriadordeVino
UserManual. _odel#
GuidederUtilisateur-ModUle
ManualdelUsuario- Paro_o_e_o_e

SAFETYPRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use thisappliance only for its intended purpose as described in thisuse
and care guide.
2) This wine cooler must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your wine coolerby pulling on the power cord. Always
grasp the plug firmly and pull straightout from the outlet.
41Repair or repine immediately, al_electric service cords that have become
frayed or otherwise damaged. Do not usea cord that showscracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your wine cooler before cleaning or before making any repairs.
Note: If for any reason thisproduct requires service, we strongly
recommend that acertified technicianperforms the service.
6) If your old wine cooler is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
7) Thiswine cooler shouldnot be recessedor bulbin an enclosed cabinet. It
is designed for Freestanding installation only.
8) Do not operate your wine cooler in the presence of explosive fumes.
9) Do not store foods in wine cooler as interior temperature may not be cool
enough to prevent spoilage.
10) Use of an extension cord is not recomnended.

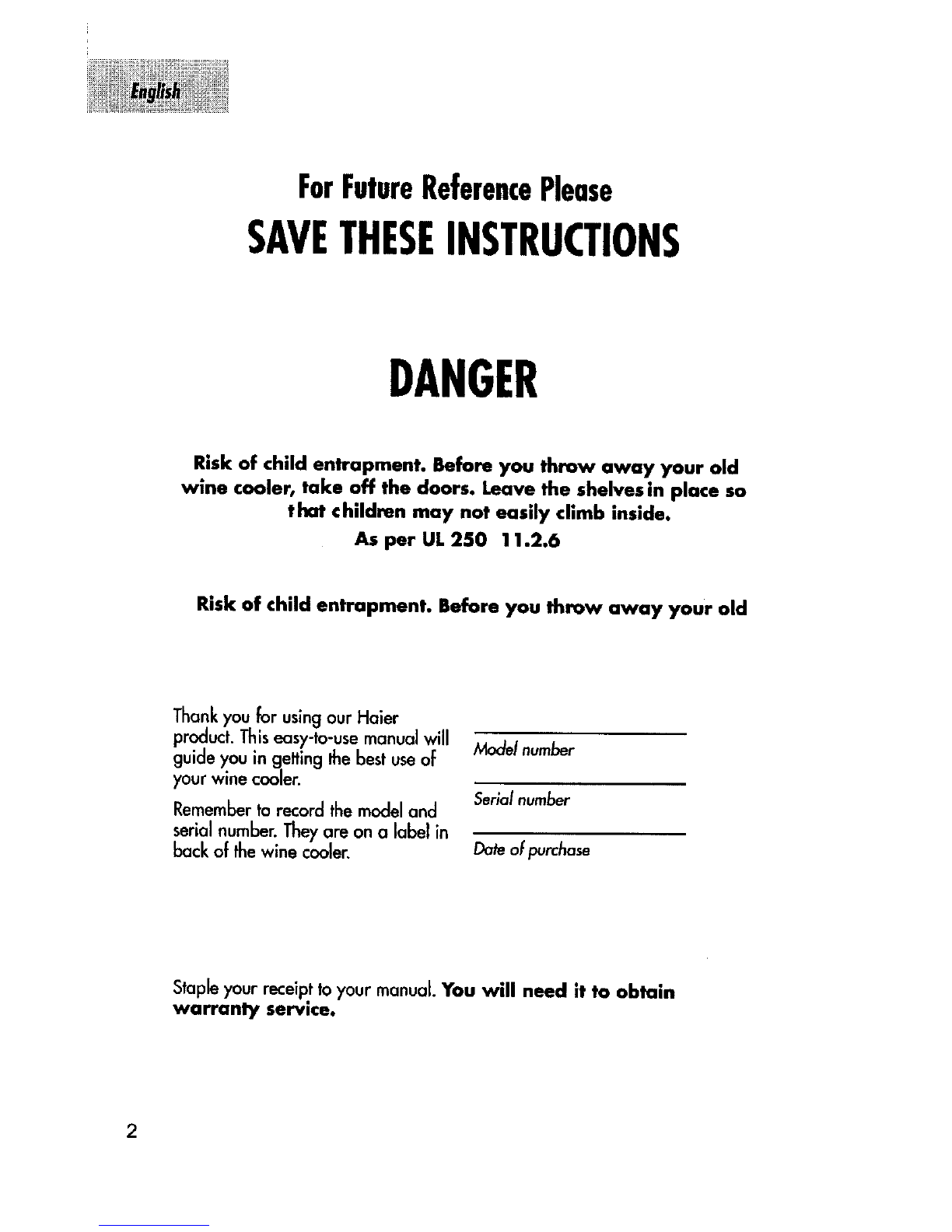

ForFutureReferencePlease
SAVETHESEINSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
wine cooler, take off the doors. Leave the shelves in place so
that children may not easily climb inside.
As per UL 250 1 !.2.6
Risk of child entrapment. Before you throw away your old
Thankyou for usingour Haier
product.Thiseasy-to-usemanualwill
guide you in getting thebestuseof
your wine cooler.
Rememberto record the modelond
serialnumber.Theyare on a labelin
backof the wine cooler.
Model number
Serial number
Date of purchase
Stapleyour receipttoyour manuakYou will need it to obtain
warranty service.
2

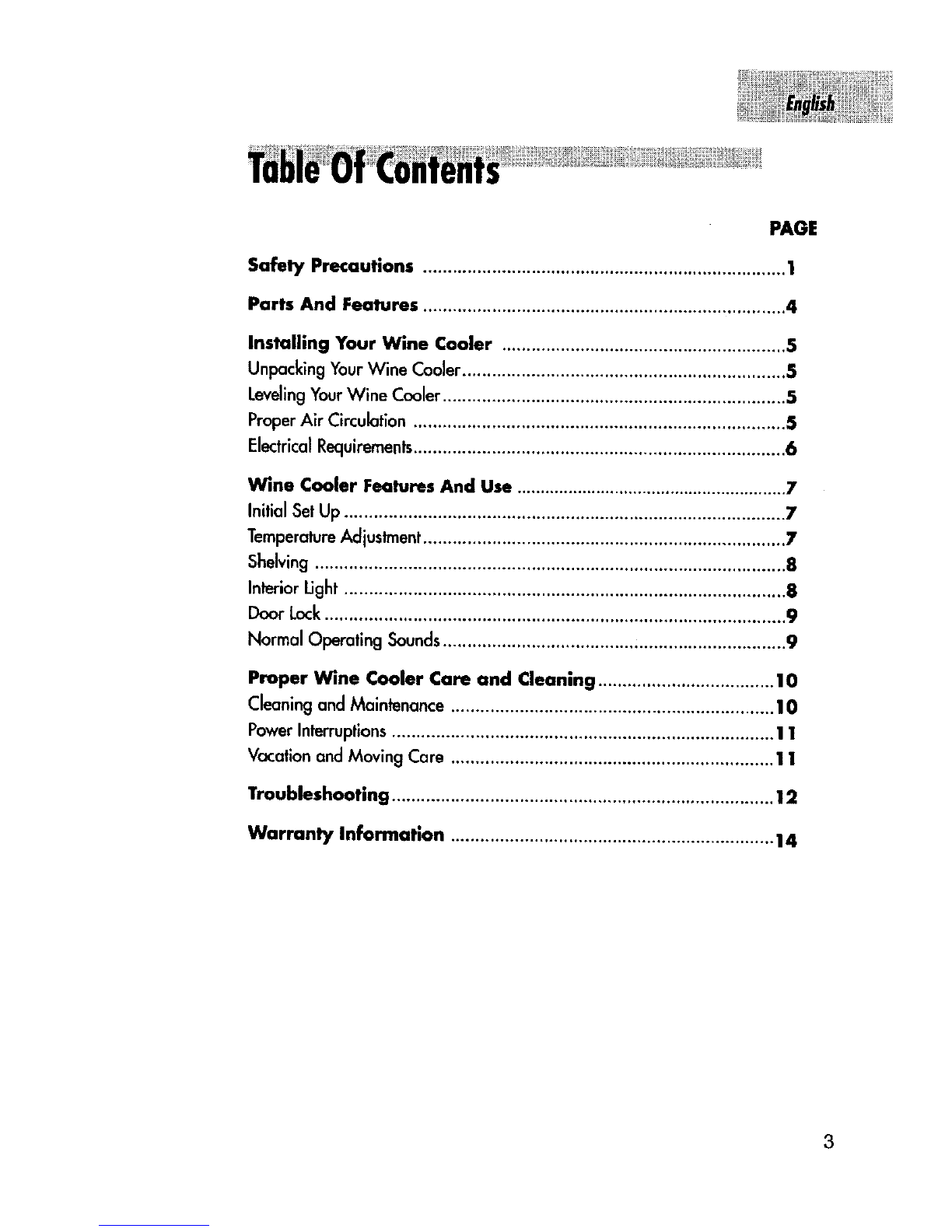

PAGE
Safety Precautions .......................................................................... 1
Parts And Features .......................................................................... 4
Installing Your Wine Cooler .......................................................... 5
UnpackingYourWine Cooler .................................................................. 5
LevelingYourWine Cooler...................................................................... 5
ProperAir Circulation ............................................................................ 5
Electrical Requirements............................................................................ 6
Wine Cooler Features And Use .......................................................... 7
Initial SetUp .......................................................................................... 7
TemperatureAdjustment .......................................................................... 7
Shelving ................................................................................................ 8
Interior Light .......................................................................................... 8
Door Lock.............................................................................................. 9
Normal Operating Sounds ...................................................................... 9
Proper Wine Cooler Care and Cleaning .................................... 10
Cleaning and Maintenance .................................................................. ! 0
PowerInterruptions.............................................................................. ! 1
Vacation and Moving Care .................................................................. 1 1
Troubleshooting .............................................................................. 12
Warranty Information .................................................................. 14
3

\
®
®
1. White Wine Bulton (-)
2, Red Wine Button (+)
3, Interior Light Button(set)
4. LED TemperatureDisplay
5. Door Lock
6. Door Handle
7. Chrome Plated Slide-Out Shelves
(quantitieswill vary as per model)
8. Adjustable Leveling Legs (not shownJ
4

InstallingYourWineCooler
Unpacking Your Wine Cooler
1. Remove all packaging material. This includesthe foam base and all
adhesive tape holding thewine cooler accessoriesinside and outside.
Slide out and remove plastic or foam guard used to secure the
compressor from shipping damage due ta vibration and shack.
2. Inspectand remove any remainsof packing, tape or printed
materials before powering on the wine cooler.
Leveling Your Wine Cooler
Yourwine cooler has four levelinglegs which are located in the
front and rear comers of your wine coder. After properly placing your
wine cooler in itsfinal position,you can level your wine cooler.
Levelinglegs can be adjusted by turning them clockwise to raise your
wine cooler or by turning them counterclockwise to lower
your wine cooler. The wine cooler door will close easier when the
leveling legs are extended.
Proper Air Circulation
•Toassureyour winecoolerworksat themaximumefficiencyit
wasdesignedfor,you shouldinstallit ina locationwhere there
isproperair circulation, plumbingand electricalconnections.
• Thefollowing are recommended clearances around the winecooler:
Sides............... 2 "(50ram)
Top.................... 2" (50mm)
Back.................. 2" (50mm)
•Do not over fill your wine coolerfor proper internal air circulation.

Electrical Requirement
• Make sure there is a suitable power Outlet (I 15 volts, 15 amps outlet)
with proper grounding to power the wine cooler.
•Avoidthe useof three pbg adaptersor cutting offthe thirdgroundingin
order to accommodatea _woplugoul_et.Thisisa dangerouspractice
sinceitprovidesno effectivegroundingforthewinecoolerand may
resultin shockhazard,
Install Limitations
•Do not install your wine cooler in any location not properly insulatedor
heated e.g. garage etc. Your wine cooler was not designed to operate
in temperature settingsbelow 55" Fahrenheit.
• Select a suitable location for the wine cooler on ahard even
surface away from direct sunlightor heat sourcee.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
shouldbe corrected with the levering bgs located on the front and rear
bottom corners of the wine cooler.
• Yourwine cooler isdesigned for flee-standing installationonly. It isnot
designed for built-in application.

Initial Setup
Once you have plugged the unit into an electrical outlet,
letthe unit run for at least30 minutes to acclimate itself before
making any adjustments.During this lime the Red Wine light may stay on.
Temperature Adjustments: seeFig.#1
The wine cooler is preset from the factory to automatically
accommodate temperature requirements for red or white wines.
If you store mostly white wines, pressthe 'White Wine" button and the
wine cooler will maintain an average temperature between
45" to 50" F.Pushingthe "Red Wine" buttonwill yield an
average temperature between 55" to 60" F.
The wine cooler can be set to any temperature you desire to
accommodate your wine storagerequirements. To setthe temperature,
press both the "White Wine" and "RedWine" buttons simultaneously
and hold for approximately 3 seconds. Now you are in temperature set
mode. Decrease the temperature by pushing the "White Wine" button
and increasethe temperature by pressingthe nRedWine" button.
Pressingthe appropriate button 3 timeswill adjustthe temperature 3
degrees, press4timesequals 4degrees, 5 timesequals 5degrees, and
so on. Once you have selectedthe temperature you desire, pushthe
'Light/Set" button. Now thewine cooler is programmed and the LED
readout will return to current internal temperature reading.
fig.# I
I I
WSh Rod Ligl_
oF
7

There will be a 3 degree variance +/- between the temperature you
selectand the temperature indicated on the LEDreadout.
Thisoccursbecause the wine cooler activatesand deactivates
trying to maintain your desired temperature. There is often a
1O"variance between thetop and bottom shelvesof thewine cooler.
Therefore, if you hove set the wine cooler for 50" and hove a
mix of red and white wines, you may want to put thewhite wine
on the bottom shelfwhere the temperature will be 45" F,and place the
wine on the top shelfwhere the temperature will be 55" F.
Shelving
Theshelvesare chrome platedforappearance and easycleaning.
Toaccommodatedifferentsizedbottlestheshelvesslideout
and con be movedup or down intoanyof the tracksmolded
intothe coolercabinet. Largerbottlesor Magnumscan bemoreeasily
accommodatedat thecrass shelvesat the bottomof thecooler.
Youwill noticethatthe shelvesare designedsothe bottlesdo
notline-up directlyoveroneanother.Thisallowsfreeair
movementand providesmorespace.
Interior Light
• Tocomplementthelookofyourwinecollection,a softlighthasbeen
built intothe winecooler.Simplypushthe "Light/Set"buttonand the
lightcomeson, pushagain for off. Formaximumenergyefficiency,
leavelightoffwhennotviewingyourcollection.
8

Door Lock
"For safelyand security,your wine cooler isequipped with a door lock.
Toeliminate the risk of accidental child entrapment, the lockwas
designed so that the door will not lock until the key is removed
(consistentwith UL requirements).
Normal Operating Sounds You May Hear
• Boilingwater, gurgling soundsor slightvibrations that are the resultof
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycleson and off.
9

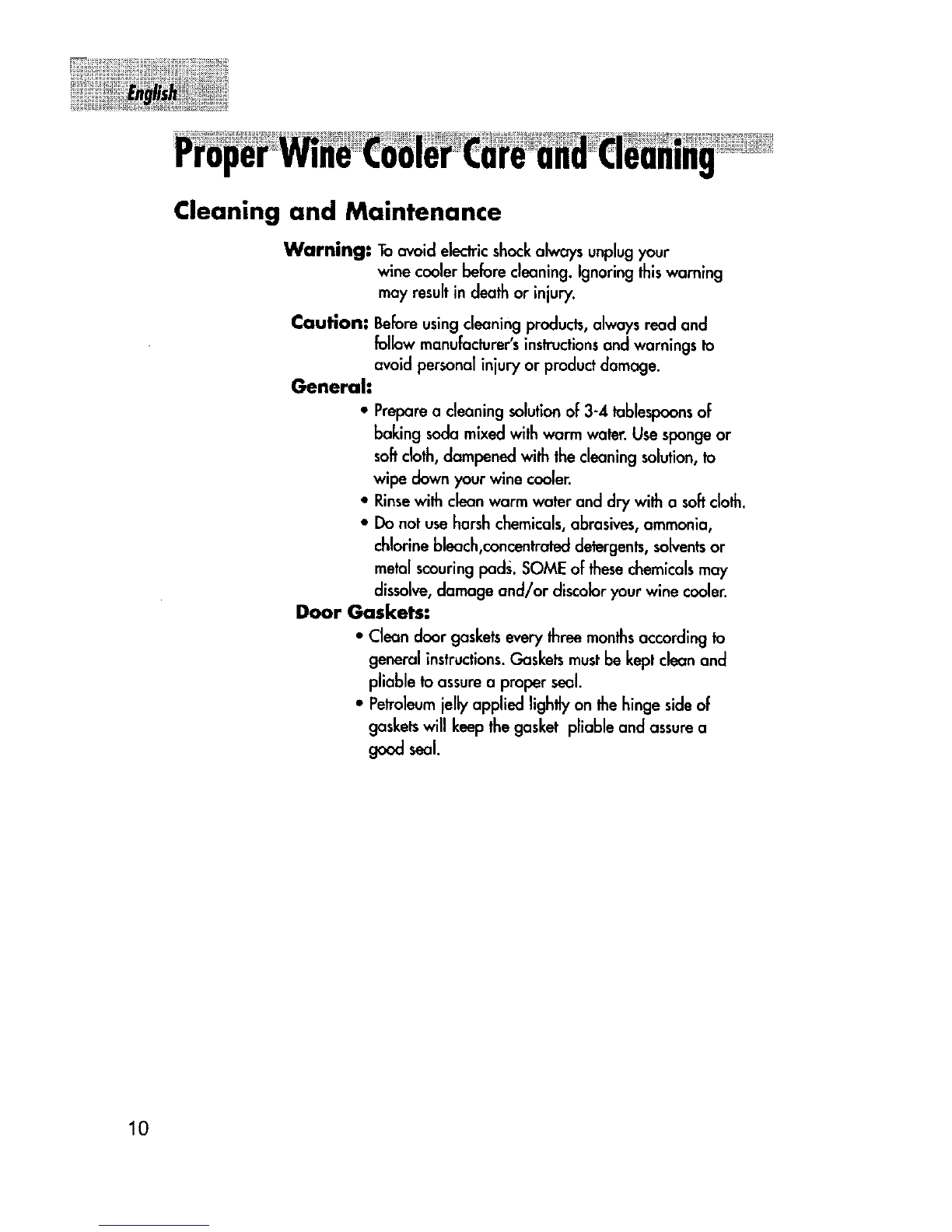

Cleaning and Maintenance
Warning: To avoid electricshockalways unplug your
wine cooler before cleaning. Ignoring thiswarning
may resultin death or injury.
Caution: Beforeusing cleaning products, always read and
follow manufacturer'sinstructionsand warnings to
avoid personal injury or productdamage.
General:
•Prepare acleaning solution of 3-4 tablespoonsof
baking soda mixed with warm water. Use sponge or
softcloth, dampened with the cleaning solution,to
wipe down your wine cooler.
•Rinsewith clean warm water and dry with a softcloth.
•Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrateddetergents, solventsor
metal scouring pads. SOME of these chemicals may
dissolve,damage and/or discolor your wine cooler.
Door Gaskets:
• Clean door gasketsevery three monthsaccording to
general instructions.Gaskets mustbe kept clean and
pliable to assure a proper seal.
•Petroleumjelly applied lightly on the hinge side of
gasketswill keep the gasket pliable and assure a
goodseal.
10

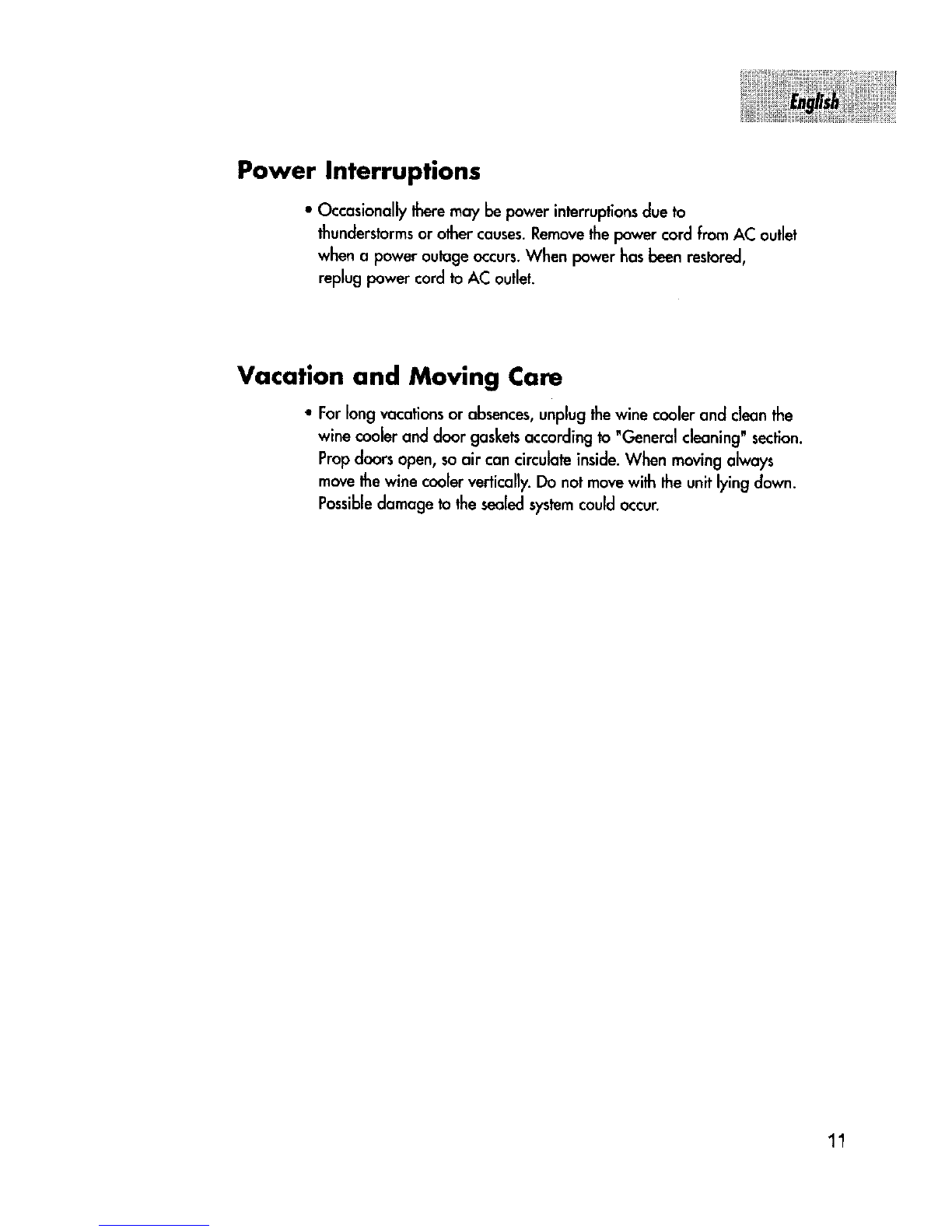

Power Interruptions
•Occasionally there may be power interruptionsclue to
thunderstormsor other causes. Remove thepower cord from AC outlet
when a power outage occurs.V/hen power has been restored,
replug power cord to AC outlet.
Vacation and Moving Care
•For long vacations or absences, unplug the wine cooler and clean the
wine cooler and door gasketsaccording to "General cleaning" section.
Prop doors open, soair can circulate inside.When moving always
move the wine cooler vertically. Do not move with the unit lying down.
Possibledamage to the sealed systemcould occur.
11

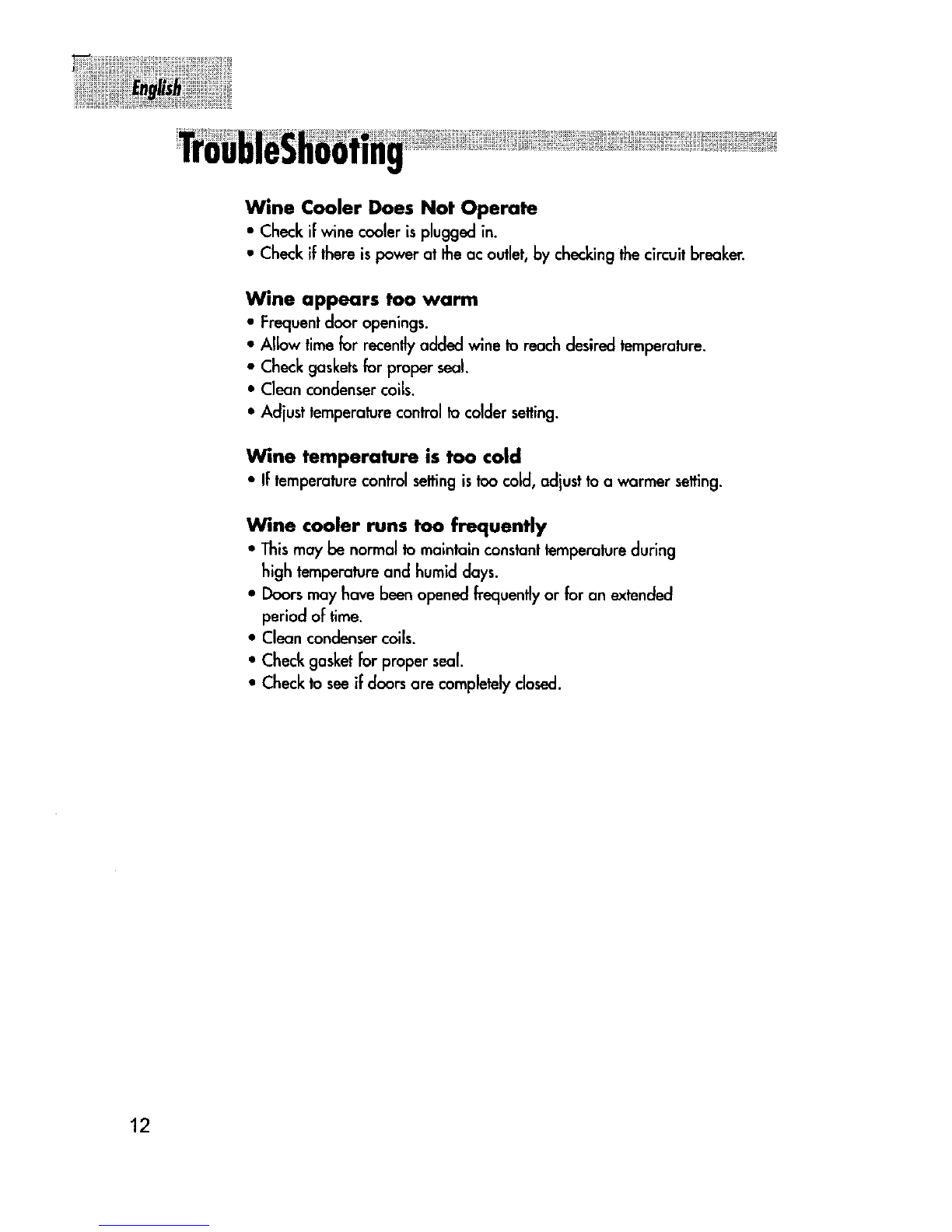

Wine Cooler Does Not Operate
•Check ifwinecooler ispluggedin.
• Checkif there ispowerat theacoutlet,by checkingthecircuit breaker.
Wine appears too warm
•Frequentdooropenings.
•Allow timefor recenltyaddedwine to reachdesiredtemperature.
•Checkgasketsforproper seal.
•Cleancondensercoils.
•Adjust temperaturecontrolto colder setting.
Wine temperature is too cold
• Iftemperaturecontrol settingistoocold, adjustto a warmersetting.
Wine cooler runs too frequently
•Thismay be normalIo maintainconstanttemperatureduring
high temperatureand humiddays.
•Doors may have beenopenedfrequentlyor foran extended
periodof time.
• Clean condensercoils.
•Checkgasketfor properseal.
• Checkto seeif doors are completelyclosed.
12

Moisture build up on interior or exterior
of the wine cooler:
•Thisis normalduring high humidity periods.
•Prolongedor frequentdooropenings.
•Checkdoor gasketsforproper seal.
Wine Cooler door does not shut properly:
•Levelthewine cooler.
•Checkforblockagese.g. winebottles,shelves.
13

14

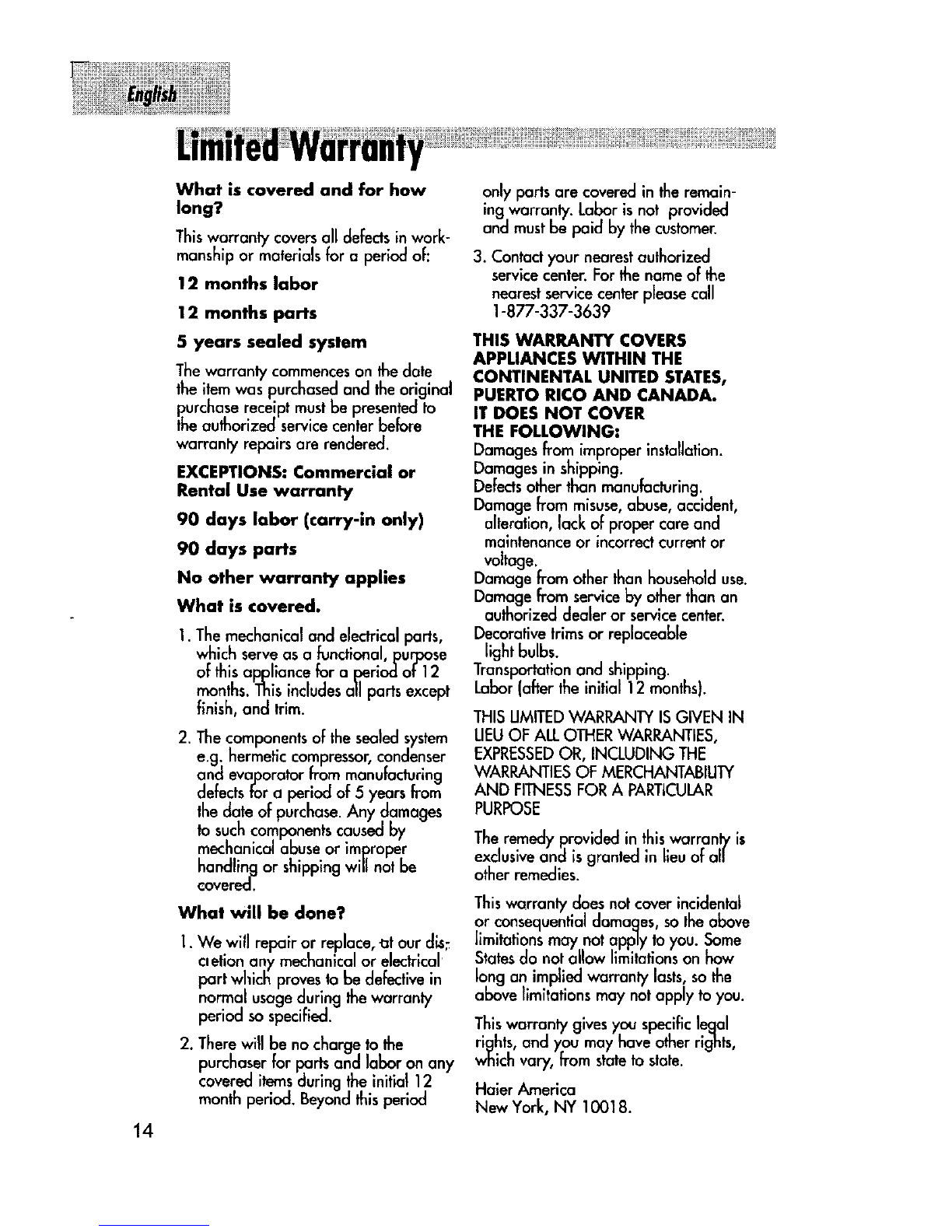

What is covered and for how
long?
Thiswarranty coversall defectsin work-
manship or materialsfor a period of:
12 months labor
12 months parts
5 years sealed system
Thewarrantycommenceson thedate
theitem was purchasedand theoriginal
purchasereceiptmustbe presentedto
theauthorized servicecenterbefore
warranty repairs are rendered.
EXCEPTIONS: Commercial or
Rental Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1.Themechanical and electricalparts,
which serveas a functional, purpose
of thisappliance for a period of 12
months.Thisincludesall parts except
finish, and trim.
2. Thecomponentsof the sealedsystem
e.g. hermeticcompressor,condenser
and evaporator from manufacturing
defectsfor a period of 5 years from
thedate of purchase.Any damages
to suchcomponentscausedby
mechanical abuseor improper
handling or shippingwill not be
coverea
What will be done?
1.We will repair or replace,at our dL_:
aetion any mechanicalor electrical
part which provesto be def_tive in
normal usageduring the warranty
period sospecified.
2. Therewill be no charge to the
purchaser for partsand labor on any
covered itemsduring the initial 12
month period. Beyondthis period
only parts are covered in theremain-
ing warranty. Labor is not provided
and mustbe paid by thecustomer.
3. Contactyour nearestauthorized
servicecenter.Forthe nameof the
nearestservicecenterpleasecall
1-877-337-3639
THIS WARRANTY COVERS
APPUANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper instollotion.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident
ateration, ack oFproper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS UMITED WARRANTY IS GIVEN IN
UEU OF ALL OTHER WARRANTIES,
EXPRESSEDOR, INCLUDING THE
WARRANTIES OF MERCHANTABIUTY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lleu of all
other remedies.
Thiswarranty does notcover incidental
or consequentialdamacqes,so the above
limitotionsmay notapply toyou. Some
Statesdo not allow limitationson how
long an implied warranty lasts,sothe
above limitations maynot apply to you.
Thiswarranty givesyou specificlegal
rights, and you may haveother rights,
which vary, from stateto state.
Haier America
New York, NY 10018.

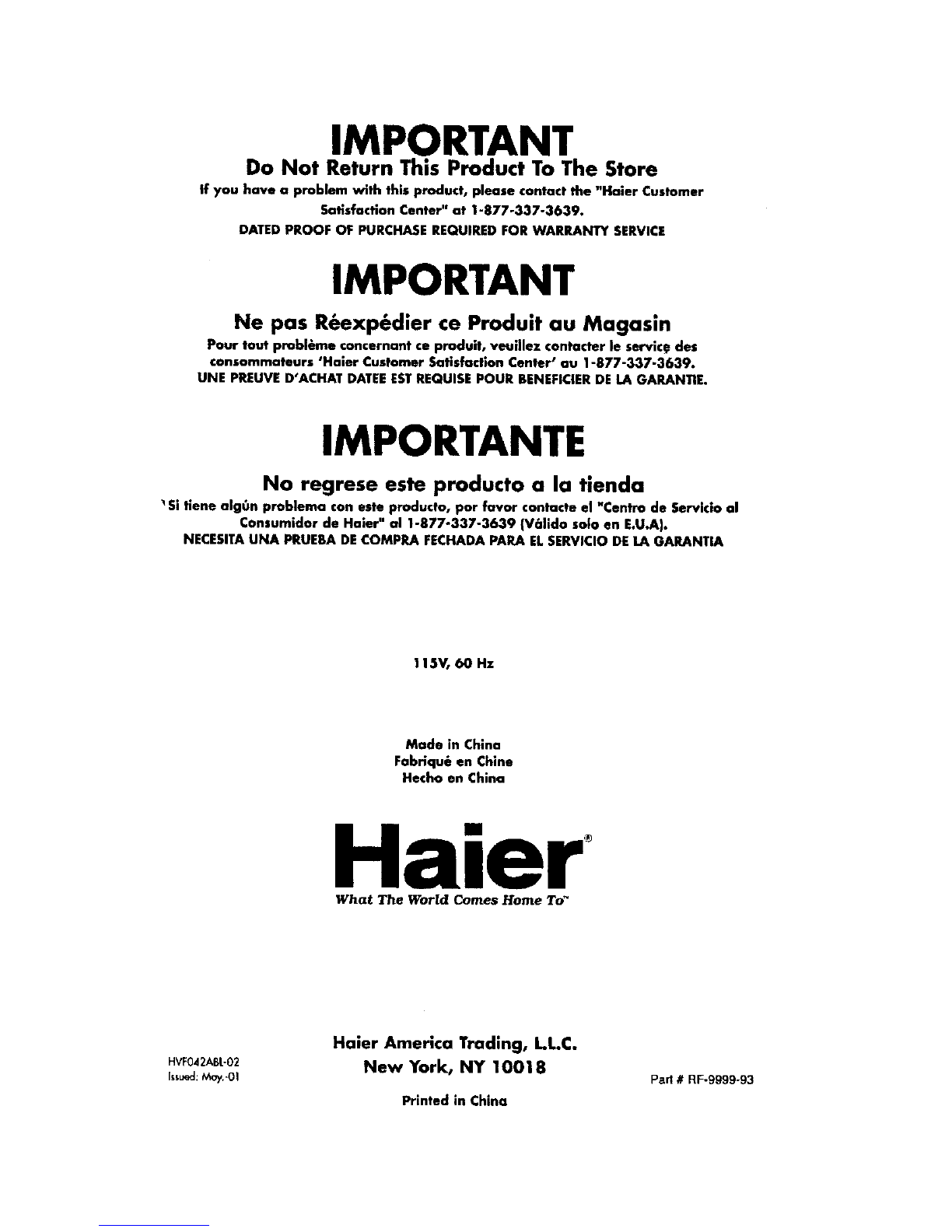

IMPORTANT
Do Not Return This Product To The Store
if you have a problem with this product, please contact the "Haler Customer
Satisfaction Center" at 1477-337-3639.
DATEDPROOF OF PURCHASEREQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas R_exp@dier ce Produit au Magasin
Pour tout probl_me concernant ce produit, veuillez contucter le servic_ des
cansommateurs 'Haler Customer Satisfaction Center' au 1-877-337-3639.
UNE PREUVE D'ACHAT DATEEESTREQUISE POUR BENEFICIERDELA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algOn problema con este praducta, par favor cantacte el "Centro de Servicia al
Consumidor de Haler" al 1-877-337-3639 (V;,lido solo en E.U.A).
NECESITAUNA PRUEBA DECOMPRA FECHADA PAPA ELSERVICIO DE LA GARANTIA
115V, 60 Hz
Made in China
Fabrlqu6 en Chine
Hecho en China
Haler
What The World Comes Home To"
Haler America Trading, LL.C.
HVF042A61.-02 New York, NY 1001 8
[sLued:t'/_,.-OI Parl #RF-9999-93
Printed in China
