HAKO Hakomatic B45 CL DTC User manual

Instruction Manual
Hakomatic B45 CL DTC (7700)

2
Preface
Dear Customer,
We are certain that the excellent quali-
ties of the vehicle will justify the faith
you have shown in us through your
purchase.
Please read the Chapter "Safety Infor-
mation" prior to starting the vehicle to
ensure it is operated and used safely.
Your safety, and that of others, basical-
ly lies in your ability to control and ope-
rate the vehicle. Before using the
equipment for the first time, read this
original manual thoroughly, act accor-
ding to the information contained and
keep it in a safe place for future refe-
rence or subsequent owners. The ope-
rating manual contains all the most
important information regarding opera-
tion, maintenance and service. Throug-
hout this operating manual, sections
which concern safety are indicated by
corresponding warning symbols.
Should you have any questions in re-
spect of the vehicle or operating manu-
al, your authorized Hako dealer is
available to provide help at any time.
We would like to point out, explicitly,
that you cannot base any legal claims
on the information contained in this ma-
nual. Please note that only original spa-
re parts should be used for any
necessary maintenance and repair
work. Only original spare parts can gua-
rantee long, reliable operation of your
machine. Subject to modification as re-
quired by technical advancement.
Valid as of: July 2012
Hako GmbH
D-23843 Bad Oldesloe
Hamburger Straße 209-239
Telephone [phone]
Proper use
The machine is a vacuum scrubbing
machine for wet cleaning of hard-sur-
facedfloors.Usingthemachine beyond
thisscope of applicationwillbedeemed
improperuse;Themanufacturercannot
be held liable for consequential dama-
ges; the user alone bears the risk.
The term of proper use also includes
operation,maintenanceandrepairwork
to be performed in compliance with the
manufacturer's specifications.
The Hakomatic B45 CL DTC may only
be operated, serviced and repaired by
personnel who are familiar with the
work involved and are aware of the
risks. The applicable accident preven-
tion laws must be observed and any
generally accepted health and safety di-
rectives must be maintained.
Based on the conception, design and
construction of the model introduced
onto the market by us, the machine
complies with the applicable basic safe-
ty and health requirements stipulated in
the EC directives (refer to the Declara-
tion of Conformity). The EC Declaration
of Conformity is no longer considered
valid in the event of modifications to the
machine not authorized by us. The
Introduction

3
manufacturer is not deemed liable for
any damage resulting from unauthor-
ized modifications to the machine.
Information on the warranty
As a fundamental rule, the regulations
in the purchase agreement apply. The-
re are no rights to claims for compensa-
tion under the terms of warranty when
the damage is a result of failure to ob-
serve the stipulations concerning ser-
vice and maintenance. Maintenance
work must be completed by an authori-
zed Hako service center and confirmed
in the “maintenance logbook”; this ser-
ves as proof of rights to claims under
the terms of warranty.
The following are excluded from the
termsofwarranty:normalwearand tear
and damage caused by overuse, defec-
tive fuses, improper handling or unau-
thorized modifications. Claims under
the terms of warranty are also annulled
whendamageoccursto themachineas
the result of the use of parts and acces-
soriesnotexplicitly approvedbyusorto
failure to observe maintenance proce-
dures.
Handover of the machine
Inspect the vehicle immediately on deli-
very for signs of transport damage. Re-
placement will be made when confir-
mation is provided immediately by the
freight carrier with regard to the dama-
ge and the damage report is sent to our
authorized sales partner together with
the consignment note.
Disposing of the machine
Render the machineinoperable.It must
not represent a source of risks to child-
ren.
Dispose of the machine in accordance
with the applicable local regulations.
For further information on disposal and
recycling, contact the authorized Hako
dealer where you purchased the machi-
ne.
Introduction

4
Table of Content
Preface. . . . . . . . . . . . . . . . . . 2
Proper use . . . . . . . . . . . . . . . 2
Information on the warranty . . 3
Handover of the machine. . . . 3
Disposing of the machine. . . . 3
1 Safety information . . . . . . . . 6
1.1 Safety and Warning Symbols. 6
1.2 General Provisions. . . . . . . . . 7
1.3 Operating information. . . . . . . 7
1.4 Maintenance information . . . . 8
1.5 Particular risks . . . . . . . . . . . . 9
1.6 Information for Protection of
Environment. . . . . . . . . . . . . 10

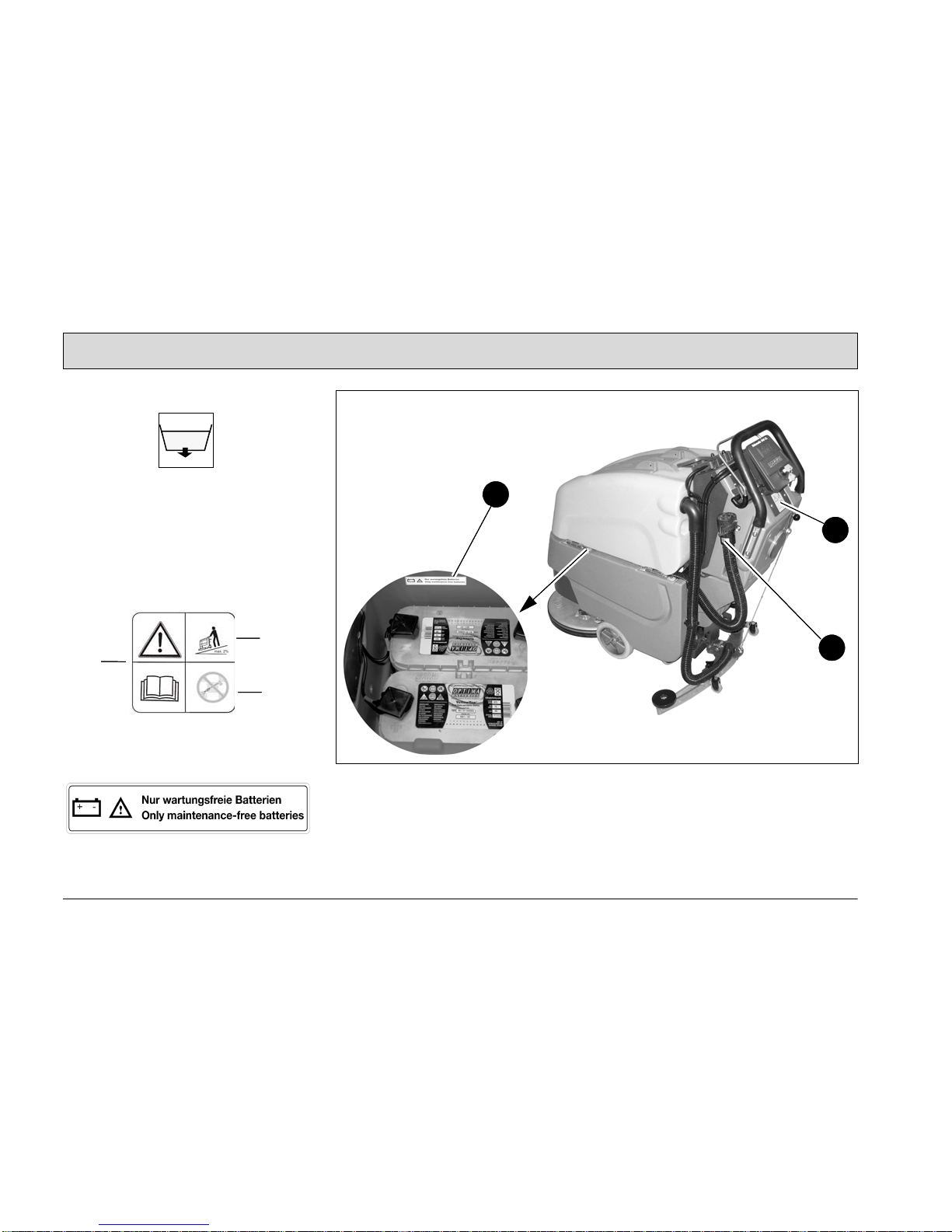

1.7 Labels on the machine. . . . . 11
2 First Operation . . . . . . . . . . 13
2.1 Instruction. . . . . . . . . . . . . . . 13
2.2 Initial charging procedure. . . 13
2.3 Before Putting into Operation13
2.4 Switching the machine on . . 13
2.5 Operation . . . . . . . . . . . . . . . 14
2.5.1 Useful tips . . . . . . . . . . . . . . 14
2.5.2 Error code table . . . . . . . . . . 15
2.6 Stopping and switching off the
machine . . . . . . . . . . . . . . . . 16
2.7 After completing work. . . . . . 16
2.8 Transportation and lashing
points . . . . . . . . . . . . . . . . . . 17
3 Operation . . . . . . . . . . . . . . 18
3.1 Method of operation. . . . . . . 18
3.1.1 Brush head. . . . . . . . . . . . . . 18
3.1.2 Solution tank . . . . . . . . . . . . 18
3.1.3 Squeegee. . . . . . . . . . . . . . . 19
3.1.4 Recovery tank . . . . . . . . . . . 19
3.1.5 Traction drive . . . . . . . . . . . . 19
3.1.6 Batteries and charger. . . . . . 20
3.1.7 Options. . . . . . . . . . . . . . . . . 20
3.2 Operating and indicator
elements. . . . . . . . . . . . . . . . 21
3.2.1 Operating elements on the
machine . . . . . . . . . . . . . . . . 26
4 Technical Data . . . . . . . . . . 28
5 Maintenance and Service . 30
5.1 Hako system maintenance. . 30
5.2 Maintenance Document. . . . 31
5.3 Maintenance Schedule. . . . . 32
5.4 Battery system . . . . . . . . . . . 36
5.4.1 About Quick Charge
Technology. . . . . . . . . . . . . . 37
5.4.2 Charging batteries . . . . . . . . 38
5.4.3 Total discharge signal transdu-
cer (TSG) . . . . . . . . . . . . . . . 38
5.4.4 Charge status indicator . . . . 39
5.4.5 Replacing the batteries . . . . 39
5.4.6 Servicing the driving
batteries . . . . . . . . . . . . . . . . 39
5.4.7 Disposing of batteries. . . . . . 39
5.5 Solution tank . . . . . . . . . . . . 40
5.5.1 Filling the solution tank. . . . . 41
5.5.2 Emptying the solution tank. . 41
5.5.3 Cleaning the fresh water filter41
5.6 Soiled Water tank. . . . . . . . . 42
5.6.1 Empty Soiled Water Tank . . 43
5.6.2 Clean Soiled Water Tank. . . 43
5.6.3 Clean Suction Filter . . . . . . . 43
5.6.4 Checking the Draining valve
seal. . . . . . . . . . . . . . . . . . . . 43
5.6.5 Checking the Tank lid seal. . 43

5
Table of Content
5.7 Brush head. . . . . . . . . . . . . . 44
5.7.1 Changing the brushes . . . . . 45
5.7.2 Changing the deflector roller 45
5.7.3 Changing the sealing strip . . 45
5.8 Squeegee. . . . . . . . . . . . . . . 46
5.8.1 Cleaning the squeegee . . . . 46
5.8.2 Changing the sealing strips . 46
5.8.3 Adjusting the sealing strips. . 47
EC-Declaration of Conformity .......49

6
Safety information
1Safety information
1.1 Safety and Warning Symbols
All paragraphs in this manual referring
to your personal safety, the safety of
your machine and the environment pro-
tection are attributed one of the follo-
wing warning symbols:
Symbol Hazardous for ... Description
Safety Provisions persons and goods Safety Provisions in dangerous situation caused by
misuse inaccurate adherence of instructions or
prescribed work routine.
CAUTION the machine important information on handling the machine in
order to maintain operability.
Ecological hazard the environment due to use of substances representing an inherent
danger to health of environment

7
Safety information
1.2 General Provisions
• Apart from the provisions contained
in this instruction manual, the gene-
ral safety provisions and the acci-
dent prevention regulations as
imposed by law have to be complied
with.
• Before taking your machine into ope-
ration, carefully read the instruction
manual as well as other separate in-
structions for accessories or at-
tached implements and comply with
all points mentioned there during
work.
• Persons being trained by qualified
Hako technicians only are authori-
sed to operate, service and repair
the machine.
• You are advised to thoroughly study
the safety instructions since precise
knowledge only helps avoiding er-
rors during operation of the machine
and thus guarantee faultless usage
of the machine.
• The operating instructions have to
be at hand at the place of use of the
machine, and therefore have to be
kept readily available at the machi-
ne.
• When selling or letting the machine
for rent, hand out these documents
to the new owner/operator and have
the transfer certified!
• The warning and instruction plates
attached to the machine contain va-
luable advice about safe operation.
Immediately replace incomplete or il-
legible labels.
• As far as safety standards are con-
cerned, spare have to equal genuine
spare parts!
1.3 Operating information
• Before starting the machine up for
the first time, the battery to be used
must be fully charged, properly, by
implementing the initial battery char-
ge routine. Please pay attention to
the operating manual provided with
the charging unit as well as the ma-
nual from the battery manufacturer.
Hako assumes no liability for dama-
ge to the battery caused by a fault
when the battery is charged for the
first time.
• Check the operational safety of the
machine each time before starting it
up! Clear any faults immediately!
• Before starting work, the operator
must be fully familiar with all adjust-
ment, operating and control ele-
ments as well as their respective
function! It is too late to do this when
the machine is actually in operation!
• Always wear heavy duty, non-slip
footwear when working with the ma-
chine.
• The machine may only be driven on
and the equipment used on those
surfaces which have been approved
by the contractor or person appoin-
ted by him.

8
Safety information
• When using the machine, it is essen-
tial to pay attention to third parties,
especially children.
• Start driving immediately after swit-
ching on the brush head drive other-
wise imprints of the brush could be
produced on the floor.
• Onlyusecleaningagentssuitablefor
the vendor (non-foaming) and obser-
ve all the use, disposal and warning
information provided by the cleaning
agent manufacturer.
• Only open empty recovery tanks.
• The machine is not suitable for clea-
ring up hazardous, inflammable or
explosive fluids, dust or substances.
• It is forbidden to use the machine in
potentially explosive atmospheres.
• To prevent unauthorized use of the
machine, remove the key from the
key switch.
• When transporting the machine, the
squeegee and brush head must be
raised. The way of driving must be
adapted to the local conditions.
• Themachinehasbeenconceivedfor
use on level surfaces with a maxi-
mum gradient of 2%.
1.4 Maintenance information
• Operating personnel must complete
the necessary daily and weekly
maintenance work. All other mainte-
nance work must be completed at
your nearest Hako service center.
• The maintenance work and mainte-
nance intervals prescribed in the
operating manual must be adhered
to.
• Suitable tools must be used for clea-
ning and maintenance work.
• Themachine must beinspected by a
recognized technical expert in re-
spect of operational safety, within
the terms of the applicable accident
prevention laws, at reasonable inter-
vals (we recommend at least once a
year) and following modification or
repairs.
• Spare parts must comply with the mi-
nimum technical requirements stipu-
lated by the manufacturer! This is
ensured by the use of original spare
parts.
• Before cleaning and servicing the
machine or replacing parts, switch
off the machine and remove the key.
• Always disconnect the battery termi-
nal before starting any work on the
electrical installation.
• When working in the area of the rai-
sed recovery tank, it must be hinged
open fully to prevent it being knok-
ked shut or further open and down
unintentionally.
• It is not permitted to clean the machi-
ne with a pressure washer or steam
blaster.
• It is not permitted to use aggressive
and corrosive cleaning agents.
• Allow the machine to dry after being
cleaned, e.g. over the weekend.
• Only start the machine up when all
the safety equipment has been in-
stalled and brought to its protecting
position.

9
Safety information
1.5 Particular risks
Electronics
• Inthecaseofdefectsintheelectrical
installation, switch the vehicle off im-
mediately and clear the fault.
• Work on the electrical equipment
may only be carried out by electrici-
ans who have received the necessa-
ry training and in accordance with
the electrical engineering regulati-
ons.
• The vehicle's electrical equipment
must be inspected/checked at regu-
lar intervals. Defects, such as loose
connections and cable damage,
must be rectified immediately.
• Only use original fuses with the spe-
cified amperage.
Batteries
• Observe the information in the ope-
rating manual provided by the batte-
ry manufacturer.
• Before charging the batteries, read
and take heed of the safety informa-
tion regarding the charging area/
charging station.
• The Quick Charge Technology tem-
porarily provokes extremely high
battery currents. Check that the
charge cables and battery connec-
tors are properly and firmly attached
at all times - risk of fire! Always have
a licensed Hako workshop remove
any defects.
• Batteries may only be handled and
replaced by qualified service person-
nel.
• Operate the equipment on mainte-
nance-free high-performance batte-
ries (AGM batteries) approved by
Hako only.
• Due to a change in the centre of gra-
vity,onlybatteriesapprovedbyHako
may be installed at the intended po-
sition.
• Never lay any metallic objects or
tools on batteries - risk of short cir-
cuit!
• Ensure sufficient ventilation in the
charging area when charging the
batteries – risk of explosion!
• For further safety information, see
supplementary sheet 88-60-2556 -
Notes on driving batteries.

10
Safety information
1.6 Information for Protection of
Environment
• Forsafeuseofsubstancesinheriting
a danger to health and environment
specific knowledge is required.
• Observe the legal directives and lo-
cal regulations for disposal of deter-
gents, see Water Management Act.
•Used batteries with the recycling
symbol contain reusable commodi-
ties. The heavy metals contained si-
multaneously represent a serious
risktohealthandtothe environment.
Never open batteries or damage
them.Nevertouch,inhale orswallow
any material inside batteries. Health
hazard! Never allow batteries to pol-
lute the environment. Risk of conta-
minating the ground and water! In
accordance with the symbol with the
crossedoutbin,thesebatteriesmust
not be disposed of in domestic wa-
ste.The return and recycling of old
batteries must be agreed on with
your authorized Hako dealer in ac-
cordance with the Battery Law § 6
and § 8 (BattG).

11
Safety information
1.7 Labels on the machine
Missing or illegible labels must
be replaced immediately.
The following safety and warning labels
are attached to the machine where
easily legible.
Company logo (Fig. 1/1)
Rating plate (Fig. 1/2a)
Explosive gases (Fig. 1/2b)
Yellow point (maintenance parts) (Fig.
1/3)
Fig.1
1
3
2
3

12
Safety information
Waste water draining hose (Fig. 2/1)
A = Read and observe the operating
manual (Fig. 2/2)
B = Maximum permissible gradient 2%
(Fig. 2/2)
C = Do not clean the machine with a
pressure washer (Fig. 2/2)
Only maintenance-free batteries
(Fig. 2/3) Fig.2
AB
C
2
1
3

13
First Operation
2First Operation
2.1 Instruction
Instruction is required before first ope-
ration. First instruction into handling of
the machine must be held by a qualified
person sent by your local PowerBoss
contract dealer. Your PowerBoss dea-
ler will be informed by the manufacturer
upon delivery of the vehicle and will
contact you to make a date for instruc-
tion.
2.2 Initial charging procedure
Before first operation of the
machine, fully charge the
battery with an initial charging
procedure and comply with the
operating instructions of the
chargeraswellaswiththoseof
the battery manufacturer. Po-
werBoss cannot be held liable
for damages resulting from an
insufficient initial charge.
2.3 Before Putting into Operation
Complete the following inspections be-
fore taking the machine into operation:
1. Check the area around the machine
for signs of leakage. Hoses, lines
and tanks must be free from any lea-
kage or damage.
2. Install brushes and squeegee, see
maintenance chapter.
3. Install batteries and connect battery
plug, see maintenance chapter.
4. Check battery charge and proceed
tore-chargingofbatteriesifrequired.
Generally proceed to initial charging
before first operation of the machine.
5. Empty recovery tank and clean it if
required, see maintenance chapter.
6. Re-fillsolutiontank and addcleaning
agent according to the manufactu-
rer's recommendations.
Use only cleaning agents sui-
table for automatic machines
(low-foaming) and comply with
the instructions for use, dispo-
sal and with the warning infor-
mation specified by the clea-
ning agent's manufacturer.
2.4 Switching the machine on
Before switching the machine
on, please read the safety in-
formation in Chapter 1.
Switch the machine on by actuating the
switch (Fig. 3/1) from position (0) to po-
sition (1).
Fig.3
1

14
First Operation
2.5 Operation
1. Switch the machine on using the key
switch. All the units are in Standby
2. Lower the squeegee using the
squeegee lever. The suction turbine
is switched on.
3. Lower the brush head using the foot
pedal.
4. Pull the bar on the bail system. The
brush head drive is switched on.
5. Set the solution quantity using the
button on the operating panel.
6. Set the driving direction and speed
using the bar on the bail system.
7. To alter the cleaning intensity of the
cleaningprocess,use thebuttons on
the operating panel to change the
solution quantity and switch the solu-
tion supply on and off.
Start driving immediately after
switching on the brush head
drive otherwise imprints of the
brush could be produced on
the floor. Raise the brush head
when driving over thresholds.
2.5.1 Useful tips
Before beginning wet cleaning, sweep
the floor. This not only improves the
cleaning effect but also reduces the ma-
chine's liability to wear.
The floor should be treated twice in the
case of particularly dirty floors or to re-
move wax (thorough cleaning). During
the first cleaning process, the floor is
scrubbed with a cleaning agent dosage
appropriate to the degree of soiling,
whereby the squeegee is raised.
The cleaning agent is left to act on the
floor for approx. 5 to 10 minutes accor-
ding to the manufacturer's instructions,
then scrub the floor again and, after
that, treat it with the squeegee lowered.
Pay attention to the correct do-
sage of the cleaning agent.
The correct dosage helps to re-
duce costs and protect the en-
vironment. The development
of excessive foam impairs the
machine's function. It indicates
there is too much cleaning
agent or the wrong one has
been selected for the cleaning
process being completed.
Unused component parts of a
cleaning agent which endupin
the waste water lead to the de-
velopment of foam. Informati-
on on dosage is provided on
the cleaning agent container.
Use the manufacturer's infor-
mation as an initial basis. Prac-
tical experience will ensure
that you quickly find out which
is the right Hako cleaning
agentandtheoptimumdosage
to suit your needs.

15
First Operation
2.5.2 Error code table
In addition to the Service indicator
(wrench), a four-digit service code ap-
pears in the indicator field. The dots in
theservicecodeflash.Clear thefaultor
note down the service code and inform
your authorized Hako dealer.
Error Cause Remedy
1.2.5.2. Brush motor overload Let the brush motor cool down
1.2.6.1. Brush is blocked Remove foreign bodies
1.2.6.5. Brush semiconductor Allow the machine to cool down
or inform Hako service
1.2.6.6. Brush is not installed Install the brush
1.4.2.1. Suction turbine semiconductor Allow the machine to cool down
or inform Hako service
3.2.1.1. Invalid TSG setting Inform Hako service
4.6.1.2. Internal SE error Inform Hako service

16
First Operation
2.6 Stopping and switching off
the machine
1. Release the bar on the bail system:
- The traction drive, brush drive and
solution supply are switched off.
2. Raise the brush head.
3. Raise the squeegee.
- The suction turbine continues to
run approx. 10 seconds.
4. Switch off the machine with the key
switch.
5. The machine must be protected and
secured against being started up ac-
cidentally and uncontrolled move-
ments.
2.7 After completing work
1. Driveto an appropriatemaintenance
area.
2. Stop the machine and switch it off.
3. Empty the recovery tank and flush it.
Observe the applicable laws
and local regulations when dis-
posing of cleaning agents.
4. Check the solution filter.
5. Check the sealing strips and suction
hose.
6. Check the electrical equipment,
functions and settings.
7. Clean the machine.
8. Charge the batteries.
If the machine is to be shutdown for a
longer period, the solution tank must be
emptied.
It is not permitted to clean the
machine with a pressure was-
her or steam blaster.

17
First Operation
2.8 Transportation and lashing
points
Whenrunning the machinetothesiteof
use, the squeegee and brush head
must be raised.
When the machine is to be transported
on another vehicle or trailer, it must be
secured against rolling away. Lash the
machine down securely. To do this, it
must be secured at the front (on both si-
des) and rear at the hold points (Fig. 4/
1).
Fig.4 Hakomatic B45 CL
DTC
2.9
1
1

18
Operation
3Operation
3.1 Method of operation
General information
The Hakomatic B45 CL DTC is a scrub-
ber dryer for the wet cleaning of hard
floors.
3.1.1 Brush head
Thebrushin the brush head (Fig.5/1)is
driven by an electric motor. The brush
head is lowered by means of the brush
pedal. The floor is cleaned by the rotary
brush and cleaning agent. The brush
can be removed for maintenance pur-
poses by pressing a button.
3.1.2 Solution tank
The solution tank (Fig. 5/2) is filled
through a detachable filling neck. The
Hakomatic B45 CL DTC solution tank
has a volume of approx. 45 liters. The
fill level can be seen through a transpa-
rent hose. The cleaning agent quantity
can be regulated.
Fig.5
2
1

19
Operation
3.1.3 Squeegee
The squeegee (Fig. 6/1), which is
hooked in and can move, is lowered by
means of a hand lever and adapts per-
fectly to the floor through the sealing
strips. The suction turbine vacuums up
the waste water from the floor.
3.1.4 Recovery tank
The waste water which is vacuumed up
is fed from the squeegee to the recove-
ry tank (Fig. 6/2) via a suction hose. A
hand-held suction hose is available as
an option to clean and vacuum up solu-
tion from inaccessible areas.
3.1.5 Traction drive
The Hakomatic B45 CL DTC is provi-
ded with a continuously adjustable trac-
tiondrive.Thedrivingspeedanddriving
directionarecontrolledbytheelectronic
drive control.
Fig.6
2
1

20
Operation
3.1.6 Batteries and charger
The machine is equipped with special
maintenance-free AGM batteries (Fig.
7/1). As a result of the special charging
technology implemented, only use the
special quick-charger (Fig. 7/2) ap-
proved by Hako. Observe the instruc-
tion manual of the quick-charger.
For information on driving batteries, re-
fer to supplementary sheet 88-60-2556
About Quick Charge Technolo-
gy, refer to section 5.4.1
3.1.7 Options
• Hand-held suction tool incl. cleaning
tools (7036.40)
• Mop holder and tool net for cleaning
tools (7725)
• Dosing system (7056.02)
• Float unit (7743)
• Tool connector (7724)
•Floor scrubbing unit (7009)
Accessories such as brushes,
rollers, pads, drive plates with
centerlock and suction lips,
refer to our spare parts catalog
in Internet under
www.hako.com Fig.7
1
2
