Halfords High 3 User manual

8

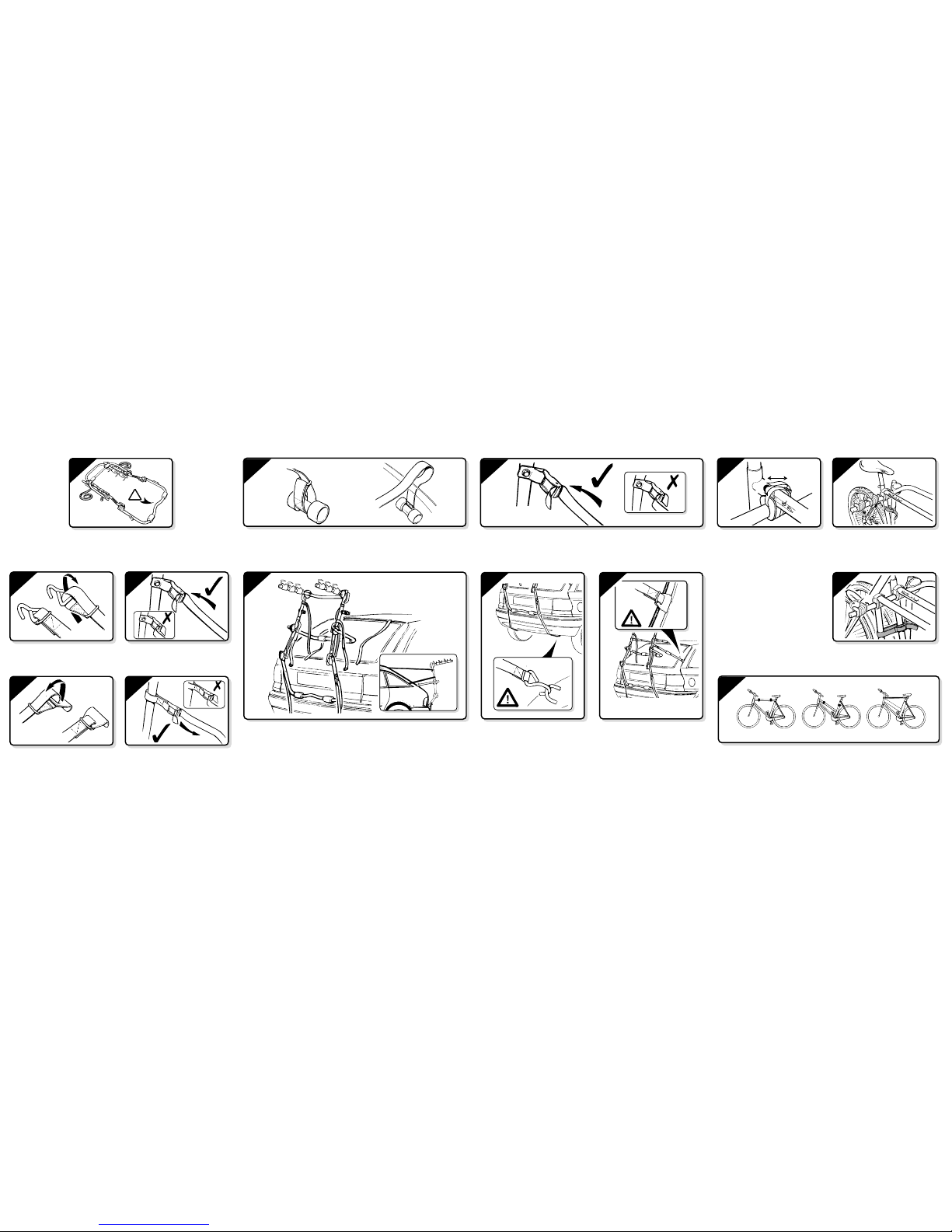

Lower strap assembly
Select 2 x 95cm straps and assemble the chassis hooks
as illustrated.
Warning: Ensure that the straps are fully tightened on the
chassis hooks.
Side strap assembly
Select 2 x 95cm straps and assemble panel hooks
as illustrated.
Note: Ensure that the straps are fully tightened on the
panel hooks.
Feed the strap through the lower set of cambuckles.
WARNING: ENSURE THAT THE STRAPS ARE INSERTED
THROUGH THE CAMBUCKLES IN THE CORRECT DIRECTION.
2
4
3
Feed the strap through the middle set of cambuckles.
WARNING: ENSURE THAT THE STRAPS ARE INSERTED
THROUGH THE CAMBUCKLES IN THE CORRECT DIRECTION.
5
1
Release the bottom 2 adjuster levers and position the
carrier as illustrated with the bend at the centre of the
bottom support tube pointing downwards towards the floor.
There are indicator marks on the ratchet adjusters. Using
these as a guide, lift the bottom support tube counting 5
teeth spacing, then lock in position.
The quick release action should be firm for both opening
and closing. The tension may be set by releasing the
handle and turning clockwise.
Note: It is important that indicator marks on the ratchet
adjusters are in the same positions on both sides.
!
Feed the strap through the top set of cambuckles.
WARNING: ENSURE THAT THE STRAPS ARE INSERTED
THROUGH THE CAMBUCKLES IN THE CORRECT DIRECTION.
Position the lower strap chassis hooks to an appropriate
location under the car for example; towing eye, steel
chassis section or bumper support.
Note: It is vital that you use a strong metal location to secure
these chassis hooks. Ensure the webbing straps do not touch
the vehicle exhaust.
9
Position the side panel hooks on the edges of the
tailgate/boot. Tighten all straps alternately. Check that the
carrier sits firmly in position and there is a minimum
5cm (2 inches) clearance between main carrier frame and
your vehicle. To increase the clearance you may have
to adjust the angles of the support tubes.
Tuck any excess strap into the plastic strap tidies.
Position your cycle(s) into the saddle area of the frame
locator. Pass the webbing strap over the frame of the cycle
and thread through the metal loop. Pull the strap back
tightly and press the hook and loop fastener to secure.
Note: there must be a minimum 45mm of overlap (See
Diagram). The straps supplied with this product are suitable
for cycle frames up to 40mm in diameter. For larger frames,
longer straps are available as an accessory. Please contact
your nearest Halfords store.
Stand back from your vehicle and check that the lights and
number plate are not obscured. To gain additional clear-
ance, the cycle support arm ratchet adjuster can be moved
to the upper holes on the carrier main frame. If however,
after making this adjustment the lights or
number plate are still obscured, to comply with road and
traffic regulations, a lighting board must be used.
IMPORTANT: Using the fitted RED webbing straps, secure the
first cycle to the carrier main frame. Failure to use these straps
will result in the cycles falling off the carrier.
11 12
45mm
minimum
When carrying a second or third cycle, feed the RED straps
around all cycles, and fully tighten. Failure to use these
straps will result in the cycles falling off the carrier.
To reduce obstruction from the handle bars alternate the
direction of each cycle during loading.
IMPORTANT:
● Re-tighten all cycle carrier-webbing straps after loading the cycle(s).
● Do not open your boot/tailgate with the panel hooks in position.
● For ease of storage the cycle carrier may be folded flat by
loosening all six ratchet adjusters.
● When re-assembling the carrier to your vehicle, it is important to fully
tighten the ratchet adjusters on the lower support tube first.
13
6
Top edge fittings
Select 2 x 160cm straps and assemble dumbells
as illustrated.
Open the tailgate, and from inside your vehicle thread the
straps over the top edge leaving the dumbells hanging free.
Carefully close the tailgate then gently pull the straps until
the dumbells sit firmly against the interior trim.
Top edge fittings Attachment of the upper
straps to the vehicle.
7
Offer the carrier to the vehicle with the lower tube RESTING
on the upper area of the bumper. If necessary adjust the
upper arm to sit against the tailgate of your vehicle or the
upper surface of the boot lid.
The carrier main frame should be leaning towards your
vehicle with reasonable clearance, typically approx.
8cm (3 inches). This will reduce as the straps are tightened.
Ensure the cycle support arms point slightly upwards. Fully
tighten quick release adjusters.
10
The cycle frame locators can be adjusted to best suit the angle
of ladies’ and children's etc, cycle frames. A false cross bar
is available, for the easy mounting of full suspension and
low cross bar cycle frames.
14
ABOVE
HORIZONTAL

High 3 Bike Carrier
Fitting Instructions
Please follow instructions carefully to ensure the safety of yourself and other road users.
The initial assembly and fitting of this carrier will take approximately 15 minutes.
Before you begin:
●Due to the construction of boot lids we recommend only two cycles be carried on
saloon cars with this carrier.
●Make sure all parts are included in the package.
●Ensure that the vehicle boot lid/rear bumper are free from dirt and grime.
x2 x2 x2
x2
x4
Chassis hook
Kit Contents
Main frame
160cm
95cm
Panel hook
Dumbells
Special Fitting Instructions
For use when fitting rear cycle carriers
to the Renault Laguna 5dr. Hatch
Due to the rubber moulding running around
the edge of the rear window, mounting of the
top straps along the top edge of the rear
window can cause deformation and eventually
damage to the moulding.
To eliminate this we advise mounting the
carrier top straps as detailed in this
special instruction.
Feed the top straps through the tailgate
hinges as shown (one strap each side),
leaving the glass anchor tube hanging freely
inside (Fig 15). Carefully close hatch and then
pull free ends of straps trapping anchor tubes
against the interior trim. (Fig 16).
Attach both straps to cycle carrier and refer to
the cycle carrier instructions for all
remaining fitting instructions.
Note: The manufacturer operates a policy of continuous
development, and reserves the right to alter specifications
without notice.
In the event of fitting difficulties, telephone our
helpline on 01525 850800.
15 16
Halfords Ltd. Washford Redditch B98 ODE
Made in the UK
●Avoid any vehicle bodywork of insufficient
strength, trim and items such as aerofoils or
spoilers.
●IMPORTANT! Carrier straps must always be
re-tightened after cycles have been mounted to
the carrier. Straps should be checked routinely
for signs of wear and abrasion, and any worn
straps must be replaced immediately.
●After driving for a few miles STOP and check
that all straps are secure and tight. If
necessary, tighten the straps and tidy away any
loose ends. This must be repeated at suitable
intervals depending on the nature of the road.
●Do not exceed 45kg maximum load (3 adult
cycles) or 30kg maximum load (2 adult cycles)
when the carrier is used on a booted saloon.
●To ensure full compliance with the road
traffic regulations, the use of lighting board/
number plate is required if your vehicle’s
existing lighting/number plates are obscured
by the use of the carrier.
●Drive with care, the handling characteristics
of your vehicle will be affected when carrying
cycles, (e.g. cornering, braking, side winds etc).
●Retain these instructions for future
reference, ensure that any other users of the
cycle carrier are familiar with their contents.
●The carrier may obstruct the rear window
wiper of your vehicle. DO NOT operate the
wiper with the carrier fitted.
●When positioning cycles on the carrier
ensure that they do not project beyond the
profile of the vehicle and that no part of any
cycle can touch the paintwork.
●The use of rear mounted cycle carriers may
be restricted in certain countries outside the
UK. Always check with the relevant national
tourist authorities prior to commencing
your journey.
●Use cloth or foam padding to prevent
abrasion damage occurring between the frames
of your cycles, or from contact between the
cycles and the cycle carrier. Halfords foam pad
cycle protectors are available.
●Care must be taken when positioning and
loading the cycle carrier to avoid placing cycle
tyres near the exhaust, and to ensure that a
satisfactory ground clearance is maintained
between the cycles and the road. Extra care
should be taken when negotiating rough road
surfaces, humps and ferry ramps.
●All lengths are approximate.
Special Recommendations
See rear of these instructions for non suitable vehicle fitments
It is recommended that conventional rear mount carriers are not fitted to the following vehicles.
Sports cars Due to insufficient strength of lightweight or composite panels,
and unsuitable body curvature.
Cabriolets Due to fixing points being impeded by hood mechanisms,
and reduced space on rear of vehicle.
Split tailgate Due to insufficient strength of hinges, and difficulty to fit carriers correctly.
S ide opening Due to insufficient strength of hinges, and difficulty to fit carriers correctly.
tailgate
In most cases an alternative carrying solution can be recommended, such as a roof or tow ball
mounted carriers. The table below lists some examples of non-recommended fits with some
alternative solutions for carrying cycles (correct at time of printing).
Audi A2
Audi A4
Audi TT
BMW 3 Series (E36)
Citroen AX
Fiat Coupe
Ford Probe
Ford Puma
Jaguar XK8/XKR
Mazda MX-3
Mazda MX-6
Mercedes C-class (W202)
Austin/Rover Mini
Land Rover Discovery
Land Rover Freelander
Range Rover
Rover 400
Vauxhall Tigra
VW Beetle T1 (Old)
VW Beetle (New)
Volvo 480
00-
01-
99-
91-98
92-
95-
94-
97-
96-
91-
92-
93-01
62-00
89-
98-
70-
95-
94-
52-
99-
92-
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount
Roof mount
Roof mount
Roof mount or tow ball mount
Roof mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Fitment guide
NON-RECOMMENDED FITS
NON-RECOMMENDED FITS
VEHICLE YEAR SOLUTION
