User’s Manual
SP-HD-2B
2-Channel HDMI 2.0 Splitter
With Analog and Optical Audio Output
Supports 4Kx2K UHD Video
UMA1289 Rev NC
Order toll
-
free in the U.S.
800
-
959
-
6439
FREE technical support: 714-641-6607 or [email protected]
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
CUSTOMER
SUPPORT
INFORMATION

SP
-
HD
-
2B
2
© Copyright 2020 Hall Research, LLC
.
Table of Contents
1.0 Introduction ................................................................................. 3
Features ................................................................................................. 4
2.0 Package Contents ........................................................................ 4
3.0 Setup .............................................................................................. 5
Installation ............................................................................................. 5
4.0 Connector and Indicator Functions ......................................... 6
SP-HD-2B (front) .................................................................................. 6
SP-HD-2B (back) .................................................................................. 6
5.0 Serial RS-232 Control ................................................................. 7
Serial Communication Parameters ........................................................ 7
Serial Commands .................................................................................. 7
6.0 Troubleshooting .......................................................................... 8
Contacting Hall Research ...................................................................... 8
7.0 Specifications ............................................................................... 9
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference even if it causes undesired operation.
This equipment has been designed to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy, and if it is not installed and used in accordance with the instruction
manual, it may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.

2
-
Channel HDMI 2.0 Splitter
© Copyright 2020 Hall Research, LLC
.
3
1.0 Introduction
The SP-HD-2B is a compact 2-port HDMI 2.0 splitter that can produce two
identical outputs from a single HDMI or DVI source for display on two displays.
It supports PC and HD resolutions from 480p up to UHD - 4K @ 60 Hz 4:4:4. It is
HDCP 2.2 compliant, and supports deep color, 3D, and HDMI audio formats
including LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio. Each HDMI
output can be independently downscaled from 4K to 1080p if needed.
The SP-HD-2B also extracts audio from the HDMI source and outputs it as
analog (L/R) stereo and digital optical TOSLINK for connection to an audio
amplifier or other device. If no display is connected, the SP-HD-2B will emulate
a display using an internal EDID, so the source will still output HDMI video, and
the splitter will still be able to extract the audio signal.
RS-232 is available for basic configuration and
control, if needed. For convenience, a pair of
mounting brackets and hardware is included for
installation either under-desk or surface-mount.
Typical Connection Diagram
Mounting Brackets

SP
-
HD
-
2B
4
© Copyright 2020 Hall Research, LLC
.
Features
 1 x 2 HDMI 2.0 Splitter supports PC and HDTV resolutions from VGA to
WQXGA and 480p to UHD 4K @ 60 Hz 4:4:4
 18 Gbps bandwidth for a sharp digital image up to 4Kx2K
 HDCP 2.2 compliant
 Optional Downscaling of 4K to 1080p for each Output
 Extracts HDMI Audio to both L/R analog and TOSLINK (optical)
 Supports LPCM 7.1 CH, Dolby TrueHD, and DTS-HD Master Audio
 Audio extraction does not require connected displays
 Plug and play installation with smart EDID management
 Unplugging one output will not cause interruption of the other
 LED indication for power, source, and output connections
 RS-232 configuration and control
 Mounting brackets included
 Universal power adapter
2.0 Package Contents
Model SP-HD-2B
(x1) SP-HD-2B
(x1) 3-position Phoenix connector for RS-232
(x1) 5 V DC Universal locking power adapter
(x2) Mounting brackets with screws
(x4) Anti-skid Mounting feet
(x1) Manual Card

2
-
Channel HDMI 2.0 Splitter
© Copyright 2020 Hall Research, LLC
.
5
3.0 Setup
Installation
 Connect the HDMI source to the “INPUT” port.
 Connect each HDMI display to the “VIDEO OUT” ports.
 Connect and securely attach the included power supply to the power jack.
 Optionally, connect the “AUDIO OUT” to an amplifier or audio device.
 When no display devices are detected on the “VIDEO OUT” ports, the
default internal EDID will be seen by the HDMI source.
o The external display EDID is read only on power-up. By default,
the EDID from Output 1 is used. If Output 1 is not available,
Output 2 is used. If neither is available, the internal EDID is
used.
 Optionally, connect the RS-232 to a PC or serial control device.
 Optionally, use the “MAX OUTPUT RES” dipswitches to downscale a 4K
image to 1080p for one or both of the displays, if needed.
NOTE If the video source sends multi-channel audio, the 3.5 mm
analog audio output is muted and the extracted audio output
will only be available as digital on the TOSLINK output.

SP
-
HD
-
2B
6
© Copyright 2020 Hall Research, LLC
.

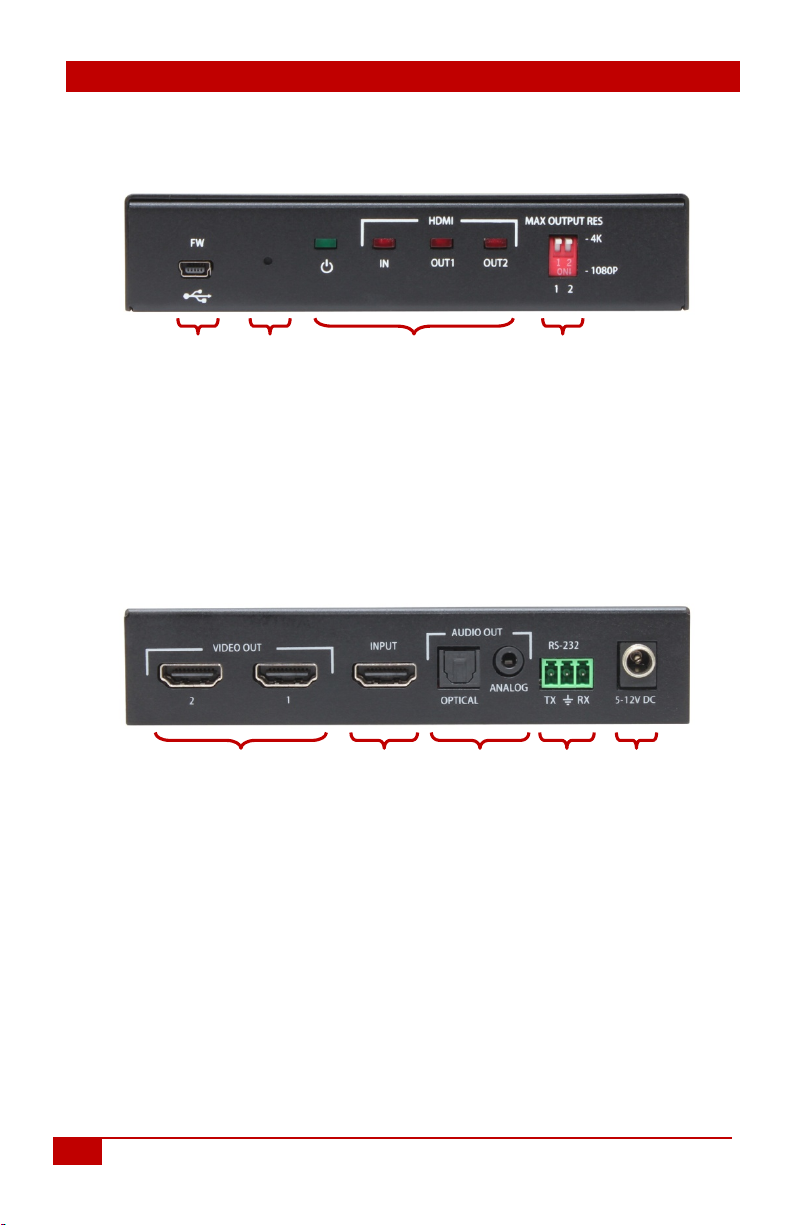

4.0 Connector and Indicator Functions
SP-HD-2B (front)
1 2 3 4
1) FW: USB Firmware update port
2) FW swtich: Used for firmware update.
3) LED Indicators:
a. Power: Power status indicator.
b. HDMI IN/OUT1/OUT2: HDMI input/output detection.
4) MAX OUTPUT RES: Use DIP switches to force 1080p output when
source is 4K.
SP-HD-2B (back)
1 2 3 4 5
1) VIDEO OUT: Connect to HDMI displays.
2) INPUT: Connect to HDMI source.
3) AUDIO OUT: Extracted audio from HDMI source.
a. OPTICAL: TOSLINK Digital audio output. Supports multi-
channel audio.
b. ANALOG: 3.5mm stereo analog audio output. EDID must be 2-
channel to use.
4) RS-232: RS-232 serial control for configuration and control.
5) 5-12V DC: DC power input. Use supplied locking power adapter.

2
-
Channel HDMI 2.0 Splitter
© Copyright 2020 Hall Research, LLC
.
7
5.0 Serial RS-232 Control
The SP-HD-2B is controllable via RS-232 to change EDID and audio settings, and
to query the unit’s status.
Serial Communication Parameters
Baud rate: 115200, Bits: 8, Parity: None, Stop bits: 1, Flow Control: None
Serial Commands
 Each Command and Response must be terminated with a Carriage
Return <CR>
 Unknown or Invalid commands will return INVALID COMMAND<CR>
Command Description Response
EMn
Where:
n = 0 for Auto (Default)
n = 1 for Output 1
n = 2 for Output 2
Set the EDID mode OK
EM? Query the EDID mode EMn
Where:
n = 0 for Auto
n = 1 for Output 1
n = 2 for Output 2
AUn,m
Where:
n = Output [1,2]
m = 0 for Mute OFF
m = 1 for Mute ON
Set the HDMI Output
Audio state
OK
SCn,m
Where:
n = Output [1,2]
m = 0 for Scaler OFF
m = 1 for Scaler ON
Sets the HDMI Down
scaler state
OK

SP
-
HD
-
2B
8
© Copyright 2020 Hall Research, LLC
.
Command Description Response
SCn,?
Where:
n = Output [1,2]
Query the HDMI down
scaler state
SCn,m
Where:
n = Output [1,2]
m = 0 for Scaler OFF
m = 1 for Scaler ON
FD Reset unit to factory
defaults
[after reset]
HR [System Info]
HR Show System Info Model: SP-HD-2B
FW: VX.X
[ED, AU, SC Statuses]
6.0 Troubleshooting
If you are experiencing problems getting the SP-HD-2B to work properly, please
use the following troubleshooting suggestions.
 Make sure that all of the connections are solid. Loose connections are the
number one cause of issues.
 Check the LEDs on the front panel. The three red LEDs indicate if the
device is receiving video, if it is detecting a display (that is turned on), and
if it is sending video output to them.
 Check the Max Output Res switches. If a connected display does not
support 4K UHD video, ensure the dipswitch is set to 1080P.
 If the 3.5 mm L/R analog audio output is not working, make sure your
source is not sending multi-channel (Dolby, DTS, etc.) audio. In that case
use the TOSLINK output or change the setting on your source device to
output 2-channel PCM audio instead of multi-channel.
Contacting Hall Research
If you determine that your SP-HD-2B is malfunctioning, do not attempt to repair
the unit. Instead, contact Hall Research Technical Support at 714-641-6607. To
return the unit to Hall Research you must first get a Return Authorization
(RMA) number. Package the unit carefully, if returning. We recommend that you
use the original container.

2
-
Channel HDMI 2.0 Splitter
© Copyright 2020 Hall Research, LLC
.
9
7.0 Specifications
Video
Standards
HDMI 2.0 video specifications including 12 bit color depth, 3D video, and 4K/60
DVI (single link)
HDCP 2.2
Connectors
HDMI
(1x INPUT, 2x OUTPUT)
Bandwidth
18 Gbps total
Resolutions
HDTV signal
480
i
through
4K/60 4:4:4
DVI signal VGA (640x480) thru WUXGA (1920x1200)
Audio
Formats
All HDMI Embedded audio including: LPCM 7.1, Dolby TrueHD, and DTS
-
HD Master Audio
(32-192 kHz sample rate)
Connectors
3.5
mm Stereo Analog
Optical SPDIF Digital (TOSLINK)
Other Signals
RS
-
232
(
1
)
RX, TX and GND on Terminal Strip
RS-232 Baud Rate: 115200, N, 8, 1
FW Update
USB
-
Mini
General
Power S
upply
100 VAC to 240 VAC, 47
-
63 Hz, External;
5
VDC
with universal blades
Temp/humidity
Storage:
-
40 to +158 °F (
-
40 to +70 °C) / 10% to 90%, non
-
condensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
Typical DC
Current Draw
5
VDC,
1
.0
A Power Supply
2.2 watts
Cooling
Convection
Enclosure type
Metal (Steel)
Dimensions
1.1
0" H x
5.35
" W x
2.85" D (27.9
mm H x 135.
9
mm W x 72.4
mm D)
Product weight
Splitter alone: 10.4 oz. (0.65 lb. or 295 g )
Package (shipping): 32 oz. (2 lb. or 920 g)
Vibration ISTA 1A in carton (International Safe Transit Association)
Safety
CE
EMI/EMC
CE, FCC Class A
MTBF
9
0,000 hours (
e
stimate)
Warranty
3 years parts and labor
Specifications are subject to change without notice
