Hall Research Technologies CNT-IP-264 User manual

User’s
Manual



CNT-IP-264
HHD-264/FHD-264 Controller and Monitor
Video Over IP WEB Manager
Serial Over IP
Real Time Scheduler
©Copyright2018.HallResearch,Inc.Allrightsreserved.
1163WarnerAveTustin,CA92780,Ph:(714)641‐6607,Fax(714)641‐6698
UMA1267 Rev NC


CNT‐IP‐264User'sManual2

CNT-IP-264

Tableofcontents
TABLEOFCONTENTS................................................................................ 2
TRADEMARKSUSEDINTHISMANUAL...................................................... 3
FCCRADIOFREQUENCYINTERFERENCESTATEMENT ................................ 3
1.INTRODUCTION ................................................................................... 4
KEYFEATURES ................................................................................................ 5
INSTALLATION ................................................................................................ 5
PACKAGECONTENTS........................................................................................ 5
ACCESSINGWEBMANAGER .............................................................................. 6
SOIPFEATUREINHHD‐264/FHD‐264............................................................. 6
2.WEBMANAGER ................................................................................... 7
ROUTINGTAB ................................................................................................ 7
SETTINGSTAB ................................................................................................ 8
NetworkSettingsTab ..................................................................................... 8
SystemSettingsTab ....................................................................................... 9
EXTERNALDEVICETAB ................................................................................... 10
ACTIONSTAB ............................................................................................... 11
SchedulerTab............................................................................................... 12
SOIPTAB.................................................................................................... 13
LOGINTAB................................................................................................... 13
SPECIFICATIONS..................................................................................... 14


3

CNT-IP-264

TRADEMARKSUSEDINTHISMANUAL
Hall Research and its logo are trademarks of Hall Research. Any other
trademarks mentioned in this manual are acknowledged as the property of the
trademark owners.
FCCRADIOFREQUENCYINTERFERENCESTATEMENT
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been designed to
comply with the limits for a Class A computing device in accordance with the
specifications in Subpart B of Part 15 of FCC rules, which are intended to provide
reasonable protection against such interference when the equipment is operated in a
commercial environment. Operation of this equipment in a residential area is likely to
cause interference, in which case the user at their own expense will be required to take
whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



CNT‐IP‐264User'sManual4

CNT-IP-264

1.Introduction
TheCNT‐IP‐264isapowerfulnetworkingmoduledesignedtomanage
ModelsHHD‐264andFHD‐264‐‐HDMIoverLANSendersandReceivers,
whichutilizethelatestH.264encoding.TheCNT‐IP‐264actsasaWEB
Serverandservesadynamicwebapplicationsotoitsuserstocontrolnot
onlythenetworkofencodersanddecoders,butalsotheircompanion
productssuchasTV's,Projector's,Mediaplayers,etc.TheCNT‐IP‐264uses
HallResearch’sDVM(DynamicVirtualMatrix™)technologytomanageup
to64sourcesand256displays.TheCNT‐IP‐264canswitchtheModelHHD‐
264andFHD‐264videogroupsontheflyandshowsthevideostatusand
routinginformationonagraphicaluserinterface.

Userscanaccessthewebapplicationusinganycomputingdevice(PC,Smart
phoneorTablet)thatrunastandardbrowser.

Figure1.1BlockDiagram

TheCNT‐IP‐264providesaneasywaytoaddandcontrolyourdevices,
whichhaveSerial,Telnetand/orTCPcontrol.Acustomizedcontrolpanel


5

CNT-IP-264
containingbuttonsandlabelscanbeaddedtotheuserinterfacetocontrol
yourdevicesindividually.

Ifyourdevicehasaserialinterface,theCNT‐IP‐264usestheModelHHD‐
264orFHD‐264asagatewaytoestablishafullduplexcommunication
(SerialOverIP)withthedevicetobecontrolled.
TheCNT‐IP‐264providesareal‐timeschedulerthatcanruneventsto
automaticallychangetheModelHHD‐264/FHD‐264videogroupsandthen
runactionsonexternaldevices.
KeyFeatures
PlugandPlay,noinstallationrequired
EmbeddedWEBServerwithGraphicalUserInterface
ControlModelHHD‐264/FHD‐264videorouting
ControlExternalDevicesoverSerial(SOIP),TelnetorTCP
Createcustomcontrolforexternaldevices
RealtimeeventschedulingwithReal‐Timeclock
CompatiblewithHallResearchDeviceFinderUtility
SupportsDHCP

Installation
Touseallthefeaturesoftheunit,theusershouldhave
StandardCat5/5E/6networkcabling
A working LAN infrastructure 
Current web browser with web sockets capability

PackageContents

NameQuantity
CNT‐IP‐2641
QuickStartGuide1
PowerSupply1


CNT‐IP‐264User'sManual6

CNT-IP-264

AccessingWebmanager
TheModelCNT‐IP‐2devicecomespreconfiguredforDHCPIPaddressing.

TofindthecurrentIPaddressofthedevice,downloadandinstallthe
DeviceFinderutilityavailableonHallResearchWebsite.

ThissoftwarecanrunonbothWindowsandMACcomputers.



RuntheDeviceFinderprogramonthesamenetworkastheModelCNT‐IP‐
264oranycompatibleHallResearchIPdeviceinthenetwork.


Figure1.2DeviceFinderutility
EntertheCNT‐IP‐264'sIPaddressinacompatiblewebbrowsertoaccess
thedevicesWEBManger.

SOIPFeatureinHHD‐264/FHD‐264
TheCNT‐IP‐264canuseHHD‐264/FHD‐264devicesasagatewaytocontrol
aserialdeviceconnectedtotheHHD‐264/FHD‐264RS‐232port.



Figure1.3SOIPFeatureinHHD/FHD
NOTE We recommend that you set a static IP on each system in order to
guarantee it the same IP address between system power cycles.


7

CNT-IP-264

2.WEBManager

Figure2.1Devicewebmanagernavigationtree
RoutingTab
TheRoutingtabshowsthelistofHHD‐264/FHD‐264receiversandsenders
onthenetwork.
ItusesHallResearch’sDVM(DynamicVirtualMatrix™)technologyto
manage64sourcesand256displays.

TheRoutingtabshowssimilarinformationwhenyouloginasadmin.

Figure2.2RoutingTab
Tochangethegroupofanyreceiver,simpleselectthesenderinthe
correspondingdropdownlist.Theroutingtabwillbeupdatedinrealtime,
soanychangesmadetotheFHDmadeoutsideCNT‐IP‐264willbe
automaticallyupdated.


CNT‐IP‐264User'sManual8

CNT-IP-264
ControlTab
TheControltabshowstheuserinterfaceofexternaldevices.
WhenanexternaldeviceisaddedtotheCNT‐IP‐264,adedicatedcontrol
paneliscreatedwiththeuserspecifiednameinthecontroltab.
Alltheactionsrelatedtothatdevicepopulatethecorrespondingcontrol
panel.


Figure2.3ControlTab
SettingsTab
TheSettingstabisusedtochangethesystemconfigurationoftheCNT‐IP‐
264.Usersneedtologinasadmintoaccessthistab.
NetworkSettingsTab
TheNetworkSettingstabisusedtochangetheIPconfigurationoftheCNT‐
IP‐264.
NotethattheNameandlocationfieldsareusedbytheDeviceFinderUtility
tolocateCNT‐IP‐264inthenetwork.


Figure2.4NetworkSettings


9

CNT-IP-264
SystemSettingsTab
TheSystemSettingstabisusedtodooperationslike:

FactoryReset
Generateconfigfile
Savethedeviceconfigurationtoaconfigfile.
Clickthe“Generateconfigfile”buttonfollowedbydownloadtodownload
thefiletoyourlocalcomputer.

Uploadingnewconfigfile
BrowseandUploadtheconfigfilebyclicking"ChooseFile"button.
Changingguestpassword
Bydefault,CNT‐IP‐264givesguestaccesstoallitsfunctions,butthe
passwordisdisabled.
Tosetanewpasswordfortheguestaccount,click"ChangeGuest
Password?"button


Figure2.4SystemSettings
NOTE
A
lso, enable guest login from the Network Settings
tb
Do not manuall
y
edit the confi
g
file
Factory reset configuration:
Removes all of the the following:
oExternal device configuration
oScheduled events
DHCP will be turned on
Defaults device name and Location 
Uploading new configuration will discard the existing configuration


CNT‐IP‐264User'sManual10

CNT-IP-264

ExternalDeviceTab
Allthe3rdpartydevicesthatareusedalongwiththeModelCNT‐IP‐264and
HHD‐264/FHD‐264subsystemsarereferredasexternaldevices.
TheCNT‐IP‐264cancontrolexternaldevicesviaserial,Telnetand/orTCP.

TheExternalDevicetabhastwosubtabstomanagetheIPconfiguration
andactionsthatrelatetotheexternaldevicesonthenetwork.
DeviceTab
Usedtoadd/remove,changetheIPconfigurationofexternaldevices.
ToaddIPdevice:

ClickAddDeviceEnterNameIPAddress
oftheexternaldeviceTCPPortClickOK
Figure2.5AddingIPDevice
ToaddaSerialdevice:AddtheFHD/HHD
connectedtothecorrespondingRS232portasa
device.
ClickAddDevicecheckSOIPSelect
FHD/HHDfromtheNameIPandPortfields
willbefilledautomaticallyClickOK

Figure2.6AddingSerialdevice

NOTE To send serial commands to an external device, connect your device
to the FHD/HHD264
RS232 port.
NOTE
If your device has a Telnet interface and supports raw TCP
connection, enter the telnet port in Port text field. 
NOTE Port: 7000 -- SOIP port of FHD/HHD 264
Deletin
g
a device will remove all the actions linked to it


11

CNT-IP-264
ActionsTab
Theactionsthatrelatetoexternaldeviceareshownonthistab.

Eachactioncreatesabutton,whichcanbeeitherToggleorMomentaryin
thecorrespondingdevicecontrolpanel.Togglebuttonshavebothonaction
andoffactionwhereasMomentaryhasonlyonaction.Notethateach
actioncanrunmultiplecommandsonthedevice.
Toaddanactiontoexternaldevice:
ClickAddActionSelectButtonTypeEnterActionNameand
ButtonClickName(ifbuttontypeistoggle)SelectExternal
devicefromtheNamedropdownmenuEnterlistof
CommandsaddmorecommandsbyusingAddCommand
buttonSubmit

Figure2.7AddingAction


Figure2.8SampleHexcommand
Todeleteoreditanaction,simplyselecttheactionfromthelistandmake
necessarychanges.
NOTE Serial Commands must end with
\
r carriage return
Telnet commands supports all ASCII characters
\x : Hex
\r : Carriage return
\n : Line feed 


CNT‐IP‐264User'sManual12

CNT-IP-264
SchedulerTab
TheCNT‐IP‐264usesareal‐timeclocktoscheduleitsevents.AnEventcan
runmultipleactionscreatedforexternaldevicesatscheduledtimesand
dates.SchedulerTabshowsrealtimestampsofalltheeventsintheGUI..

AneventcanbesetuptorepeatOnce,Daily,WeeklyandMonthly

Figure2.8EventRepeattypes

AddingEvent:
ClickAddEventEnterEventNameSelectEventNameEnterDataand
TimeAddExternaldeviceactionstotheeventorFHD/HHD264group
changeSubmit



Figure2.9AddingEvent
NOTE You can schedule a FHD/HHD264 group change in an event
NOTE You need to Set system date and time to schedule events accordingly


13

CNT-IP-264


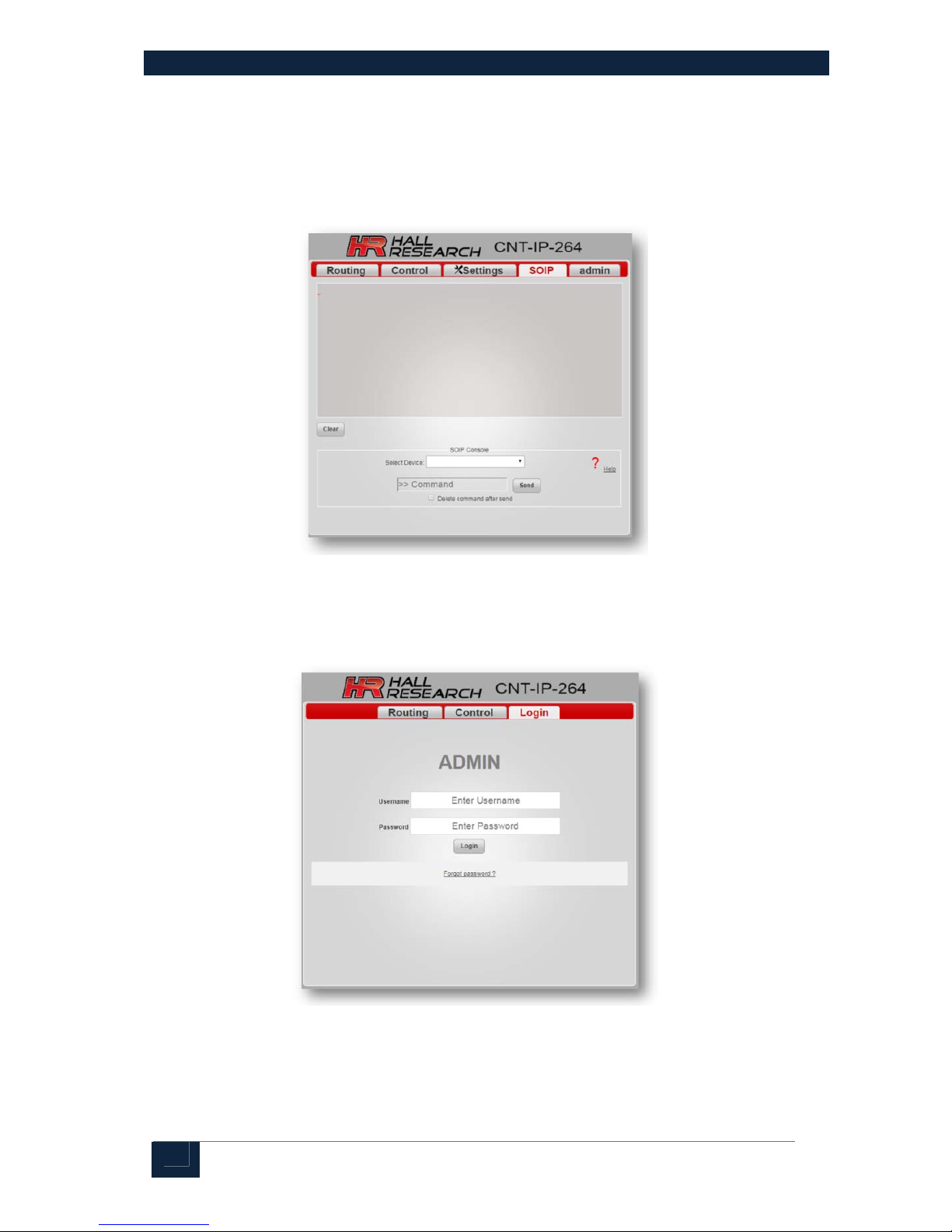

SOIPTab
SOIPConsoleprovidesafullduplexserialcommunicationwithexternal
devicesconnectedviaFHD/HHD264.

Figure2.10SOIPTab

LoginTab
LogintabprovidesadminaccesstoCNT‐IP‐264.

Figure2.11LoginTab


CNT‐IP‐264User'sManual14

CNT-IP-264
Specifications

SerialPorts:Port1:DB9(Female)
Port2:DB9(Male)
IP/LAN10/100Ethernet
Dimensions:
1.18”(H)x2.75”(W)x3.85”(D)
30mmx70mmx98mm
Depthexcludesconnectorsandflanges
Enclosure:AluminumwithSteelEnds
Weight: 0.5Pounds(225g)
InputPower: 5vDCat1Amax.
OperatingTemperature: 0to70°C
StorageTemperature:‐10to+80°C



15

CNT-IP-264















©Copyright 2018. Hall Research, Inc.
All rights reserved.
1163 Warner Ave, Tustin, CA 92780
Ph: [phone]




