Hama 118564 User manual
118564
More information
E
CZ
F
D
GB
I
P
NL
H
PL
SK
Operating Instructions
Bedienungsanleitung
Mode d‘emploi
Instrucciones de uso
Istruzioni per l‘uso
Gebruiksaanwijzing
Instrukcja obsługi
Használati útmutató
Návod k použití
Návod na použitie
Manual de instruções
Digital Photo Frame
Digitaler Bilderrahmen
00
118564
2
GB
1 2
4
6
7
9
3
8
5
A
B
10 1198
7
6
1
3
245
3
GB
Design and functionality
A: Digital picture frame – Control and
connection panel
1•Switch on/off
•Main menu direct access
2•Return to menu above
3►II
•Pause/begin playback /
conrm selection (in selection
menus)
•Quick selection menu
•Playback settings
4p
•Cursor up (in selection menus)
•Previous image/audio le
•Rewind (in audio les)
•Increase brightness (in video
les)
5t
•Cursor left (in selection
menus)
•Decrease volume
•Decrease brightness
6u
•Cursor right (in selection
menus)
•Increase volume
•Increase brightness
7q
•Cursor down (in selection
menus)
•Next image/audio le
•Fast forward (in audio les)
•Decrease brightness (in video
les)
8•DC-In power supply
9•Micro-USB 2.0 connection
10 •Battery compartment
11 •SD/SDHC memory card slot
B: Remote control
1•Switch on/off
•Main menu direct access
2•Return to menu above
3►II
•Pause/begin playback /
conrm selection (in selection
menus)
•Quick selection menu
•Playback settings
4p
•Cursor up (in selection menus)
•Previous image/audio le
•Rewind (in audio les)
•Increase brightness (in video
les)
5t
•Cursor left (in selection
menus)
•Decrease volume
•Decrease brightness
6u
•Cursor right (in selection
menus)
•Increase volume
•Increase brightness
7q
•Cursor down (in selection
menus)
•Next image/audio le
•Fast forward (in audio les)
•Decrease brightness (in video
les)
8MODE
•Rotate image 90° clockwise
•Select image format in video
les
9ì
ì•Quick selection menu
A B
4
GB
Content
1. Explanation of Warning Symbols
and Notes ........................................... 5
2. Package Contents........................... 5
3. Safety Instructions ......................... 5
4. Defective Pixels .............................. 6
5. Technical Characteristics ................ 7
6. Getting Started............................... 7
6.1. Setting up.........................................7
6.2 Picture frames – Inserting or
changing the battery ...............................7
6.3 Remote control ..................................8
6.4 Connecting the power supply.............8
7. Operation........................................ 9
7.1 Main menu ........................................9
7.2 Playback ..........................................10
7.3 Storage media (Folder).....................14
7.4 Calendar..........................................15
7.5 Settings ...........................................16
7.6 Additional functions.........................17
8. Causes of errors and error
rectication ...................................... 18
9. Care and Maintenance ................. 19
10. Warranty Disclaimer................... 20
11. Service and Support ................... 20
12. Supported le formats ............... 20
13. Technical data............................. 21
14. Menu structure........................... 22
15. Recycling Information ................ 23
5
GB
Thank you for choosing a Hama product.
Take your time and read the following instructions and information completely. Please keep
these instructions in a safe place for future reference. If you sell the device, please pass these
operating instructions on to the new owner.
1. Explanation of Warning Symbols and Notes
Warning
This symbol is used to indicate safety instructions or to draw your attention to specic hazards and
risks.
Note
This symbol is used to indicate additional information or important notes.
2. Package Contents
•Digital picture frame
•230V power supply unit
•Remote control
•2x CR2032 batteries (already inserted)
•These operating instructions
Note
Check the delivery for completeness and visible damage. Inform your supplier/dealer in the
event of incomplete or damaged deliveries.
3. Safety Instructions
•The product is intended for private, non-commercial use only.
•Protect the product from dirt, moisture and overheating, and only use it in a dry environment.
•Do not drop the product and do not expose it to any major shocks.
•Do not operate the product outside the power limits given in the specications.
•Only connect the product to a socket that has been approved for the device. The socket must
be installed close to the product and easily accessible.
•Disconnect the product from the network using the power button – if this is not available,
unplug the power cord from the socket.
•Lay all cables so that they do not pose a tripping hazard.
•Do not bend or crush the cable.
•Do not modify the product in any way. Doing so voids the warranty.
•Do not attempt to service or repair the product yourself. Leave any and all service work to
qualied experts.
•Keep the packaging material out of the reach of children due to the risk of suffocation.
•Dispose of packaging material immediately according to locally applicable regulations.
6
GB
Warning - Batteries
•Immediately remove and dispose of dead batteries from the product.
•Only use batteries (or rechargeable batteries) that match the specified type.
•When inserting batteries, note the correct polarity (+ and - markings) and insert the
batteries accordingly. Failure to do so could result in the batteries leaking or exploding.
•Do not overcharge batteries.
•Keep batteries out of the reach of children.
•Do not short circuit the batteries/rechargeable batteries and keep them away from
uncoated metal objects.
Warning
•Do not open the product. Do not continue to operate the product if it is damaged, which
may be indicated by smoke, odour or loud noises. Immediately contact your dealer or our
service department (see item “Service and Support”).
•Do not use the product if the adapter, connection cable or power cable is damaged.
4. Defective Pixels
Note
Pixel defects can occur due to the manufacturing process. These manifest themselves as white
or black pixels that permanently light up during playback. Within the context of production
tolerances, a maximum of 0.01% of these pixel defects measured against the total size of the
screen are permitted as a tolerance and are not considered a product defect.
7
GB
5. Technical Characteristics
•Supported image formats: JPG, JPEG, BMP
•Supported audio format: MP3
•Supported video formats: H.264 / DIVX / XVID / AVI / MOV / MPEG4 / MJPEG
•Supported memory cards: SD, SDHC
•Internal storage: 4GB
•Connections: Micro-USB 2.0, DC power supply
6. Getting Started
6.1. Setting up
•Remove the protection foil from the display.
•Set the product on a at, level surface where it will not slip.
•Do not place any other objects on top of the device.
Note
•The device can be damaged if it tips over or falls.
•Make sure that the device cannot tip over.

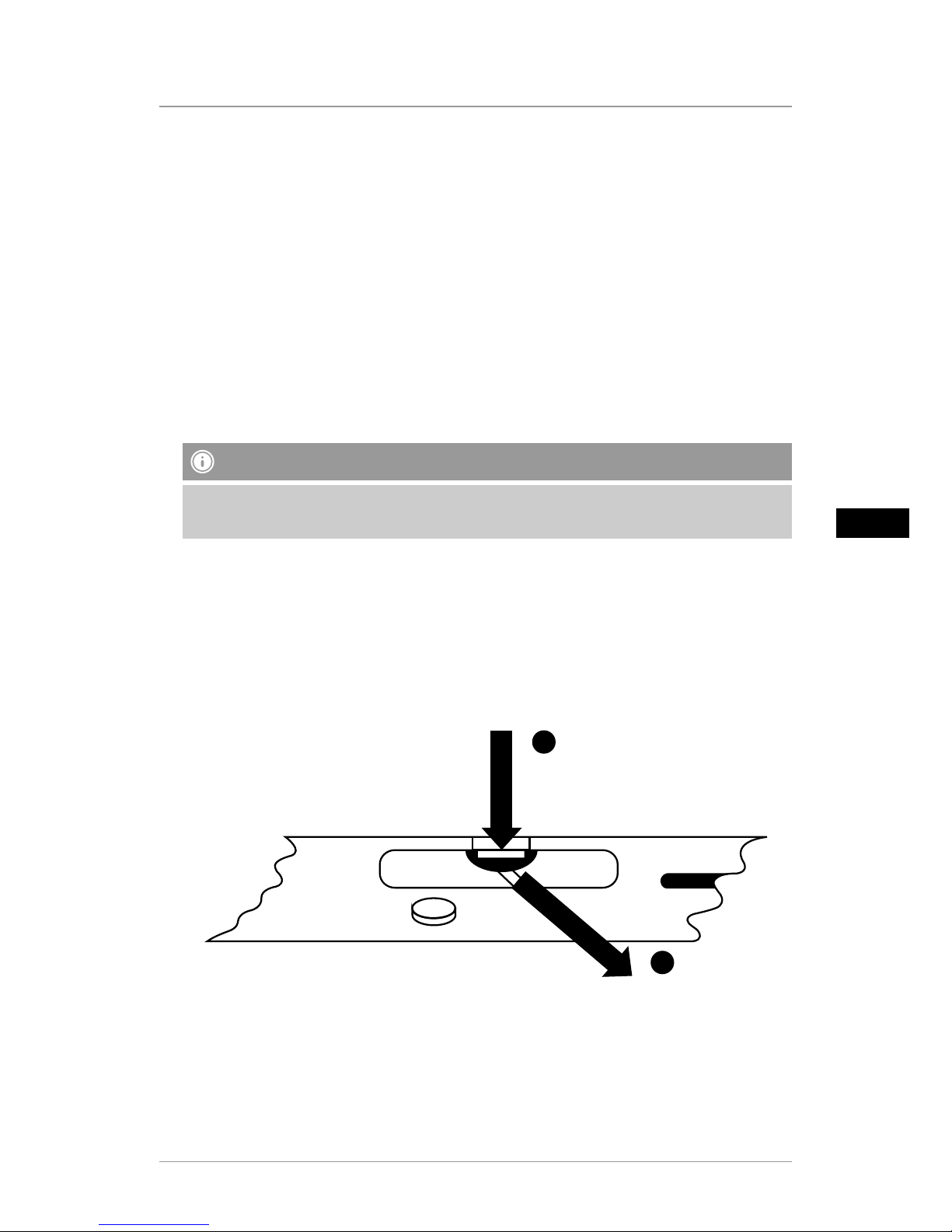

6.2 Picture frames – Inserting or changing the battery
