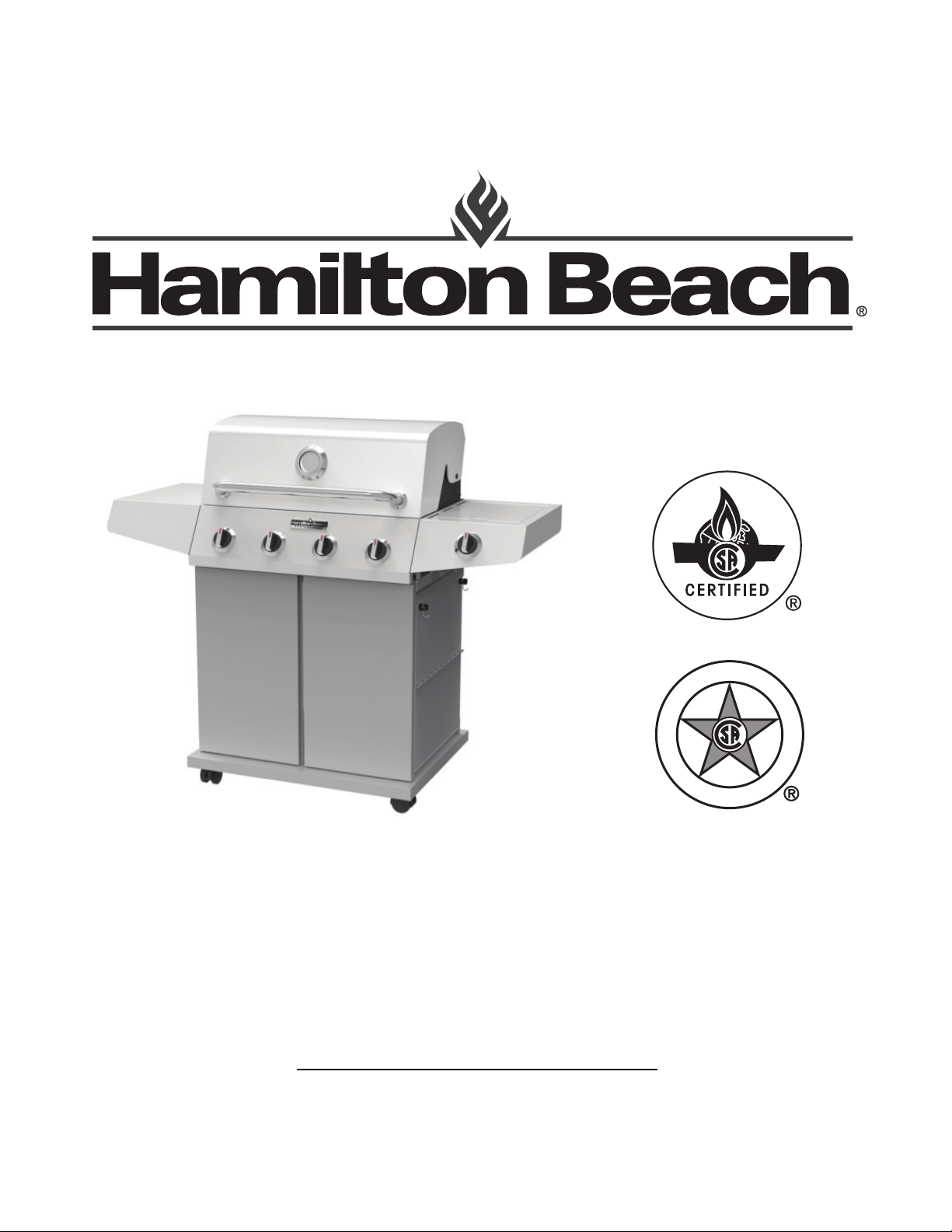

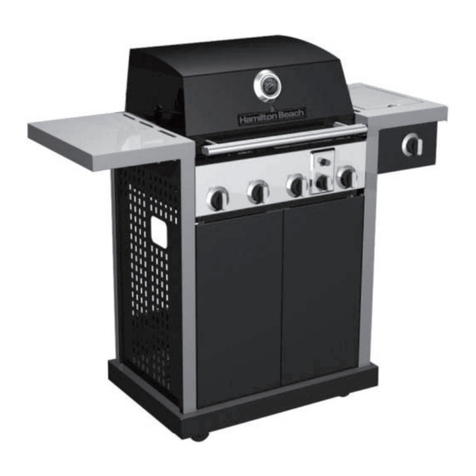

Hamilton Beach 84341 Installation and operating instructions

840252000
Type OG03 Gas Grill
Assembly and Operation Manual
Consumer Affairs: USA 1-800-851-8900
Canada: 1-800-267-2826
FOR OUTDOOR USE ONLY
Hamilton Beach Brands, Inc.
Glen Allen, Virginia 23060
C
E
R
T
I
F
I
E
D
D
E
S
I
G
N
STOP! TO PREVENT DAMAGING YOUR GRILL, READ
THIS MANUAL FIRST FOR IMPORTANT UNPACKING AND
ASSEMBLY INSTRUCTIONS!
Two people are required for assembly of this grill. See Assembly Step 1 inside.
840252000 ENv12.indd 1 10/31/14 11:25 AM

TABLE OF CONTENTS
BEFORE YOU BEGIN
Message to Our Users .............................................................................................................. 3
Safety Symbols ........................................................................................................................ 3
Installation/Safety Precautions ................................................................................................ 4
ASSEMBLY
Before the Assembly ................................................................................................................ 5
Assembly Steps ...................................................................................................................... 9
POST-ASSEMBLY
Gas Connection ..................................................................................................................... 18
LeakTesting............................................................................................................................21
Final Installation Checklist ...................................................................................................... 22
Grill Lighting Instructions ........................................................................................................22
Operating Instructions ........................................................................................................... 24
Safety Tips .............................................................................................................................. 26
Care and Maintenance ........................................................................................................... 26
Troubleshooting......................................................................................................................28
Food Safety ............................................................................................................................ 29
Grill Storage ........................................................................................................................... 29
WARRANTY
Warranty..................................................................................................................................30
• If you smell gas:
1. Shut off gas to the grill.
2. Extinguish any open ames immediately.
3. Open the grill lid.
4. If the odor persists, keep away from the grill and call your gas supplier or your
re department immediately.
wDANGER
• Do not store or use gasoline or other ammable items in the vicinity of this grill or
any other appliance.
• Any LP tank that is not connected for use should not be stored in the vicinity of this
grill or any other appliance.
wWARNING
2
840252000 ENv12.indd 2 10/31/14 11:25 AM

BEFORE YOU BEGIN
Thank you for your purchase of our Gas Grill. We sincerely hope you will enjoy using this ne
product.
• Please read this manual in its entirety before using the grill.
• Please contact Consumer Affairs if you have any questions.
• Please read this manual carefully. Failure to follow the provided instructions can result in
serious bodily injury and/or property damage.
• Some parts of this grill may have sharp edges. Please wear suitable protective gloves.
IMPORTANT: This grill is intended for outdoor use only and is not intended for indoor use or
to be installed in or on recreational vehicles or boats.
NOTE TO INSTALLER: Leave this manual with the customer after delivery and/or installation.
NOTE TO CONSUMER: Leave this manual in a convenient place for future reference.
The symbols listed here are being used throughout this manual. Please pay
special attention to them. The meaning of each of the symbols is listed here:
This symbol indicates an imminently hazardous
situation which will result in death or serious bodily
injury if instructions are not followed.
wDANGER
wWARNING This symbol indicates serious bodily injury may result
if the instructions are not followed.
wCAUTION This symbol indicates a hazardous situation which
may result in minor or moderate bodily injury if the
instructions are not properly followed.
MESSAGE TO OUR USERS
SAFETY SYMBOLS
3
840252000 ENv12.indd 3 10/31/14 11:25 AM

4
• This grill is designed to use LP gas only. The regulator supplied by Hamilton Beach must
be used.
• The installation of this appliance must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CSA
B149.1, Natural Gas and Propane Installation Code, or CAN/CSA B149.2, Propane
Storage and Handling Code.
•
The LP gas supply tank is to be constructed and marked in accordance with the specications
for LP gas cylinders of the U.S. Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for the
Transportation of Dangerous Goods.
• If an external electrical source is utilized, the outdoor cooking gas appliance, when installed,
must be electrically grounded in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1. Keep the power cord of the motor away from the hot surfaces of the
grill while in use. Remove and store the motor in a dry place when not in use.
• This grill is safety-certied for use in the United States and Canada only. Never modify
to use in other places. Modication may cause serious bodily injury or property damage.
Hamilton Beach is not responsible for any modications, and all warranties will be void.
wWARNING
READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL
BEFORE YOU BEGIN
INSTALLATION/SAFETY PRECAUTIONS
1. Combustion by-products produced when using this product contain chemicals
known to the State of California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to
the State of California to cause cancer, birth defects, or other reproductive harm.
Wash your hands after handling this product.
wWARNING
CALIFORNIA PROPOSITION 65
TOTAL GAS CONSUMPTION:
Total gas consumption (per hour) of OG03 grill with all burners on HI:
84341 Main burners 48,000 Btu/hr
Side burner 13,000 Btu/hr
Total 61,000 Btu/hr
84340 Main burners 48,000 Btu/hr
Total 48,000 Btu/hr
840252000 ENv12.indd 4 10/31/14 11:25 AM

ASSEMBLY
BEFORE THE ASSEMBLY
READ AND FOLLOW THE INSTRUCTIONS BELOW TO CORRECTLY
UNPACK GRILL PARTS FROM SHIPPING BOX.

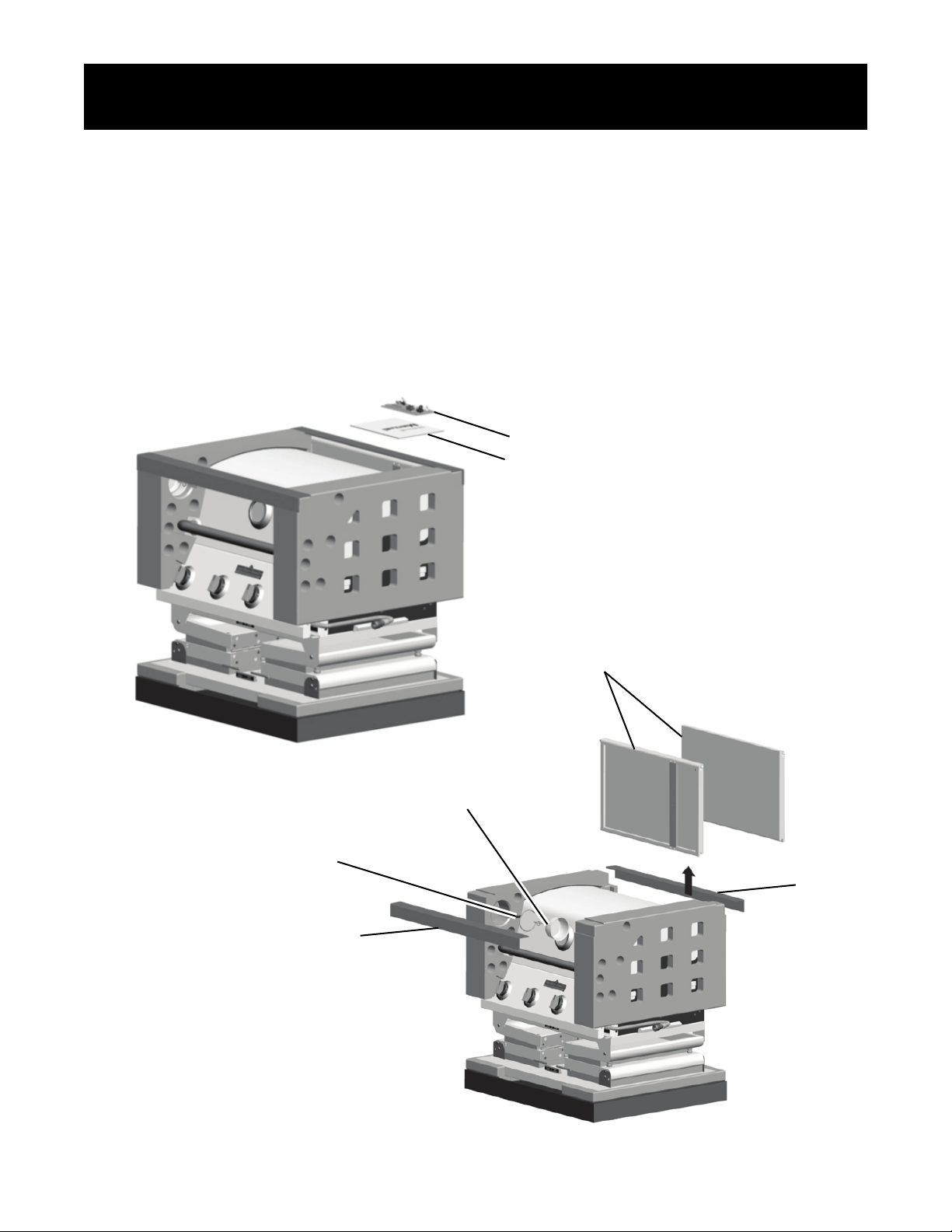

Unpacking the Grill:
1. Open shipping box by carefully cutting plastic straps with scissors. Remove the carton from
top; take out blister pack and manual from top as shown in Fig. A. Remove two paper
corners on the top, and then remove the doors, grease cup, and grease cup clip as shown
in Fig. B.
5
Manual
Blister Pack
Fig. B
Fig. A
Paper Corner
Doors
Grease Cup Clip
Paper
Corner
Grease Cup
840252000 ENv12.indd 5 10/31/14 11:25 AM

ASSEMBLY
BEFORE THE ASSEMBLY
Unpacking the Grill (cont.):
2. Remove the left and right packing foam as shown in Fig. C. Slice down the edge of the
bottom pallet with a box cutter as Fig. D shows. Fold down the edges of the bottom pallet as
shown in Fig. E. Then take out the bottom protective packing foam as Fig. F shows.
Fig. D
6
Fig. E Fig. F
Fig. C
840252000 ENv12.indd 6 10/31/14 11:25 AM

ASSEMBLY
BEFORE THE ASSEMBLY
Unpacking the Grill (cont.):
3. Open grill lid, as shown in Fig. G, and take out the small boxes and packing materials
packed within the grill’s lid.
Fig. G
Side Shelf Box Warming Rack
Packing
Foam
Cooking Grates
Grate
Packing
Packing Foam
Right-Side Shelf
Left-Side Shelf
7
Packing Foam
840252000 ENv12.indd 7 10/31/14 11:25 AM

PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY
STEP BY STEP

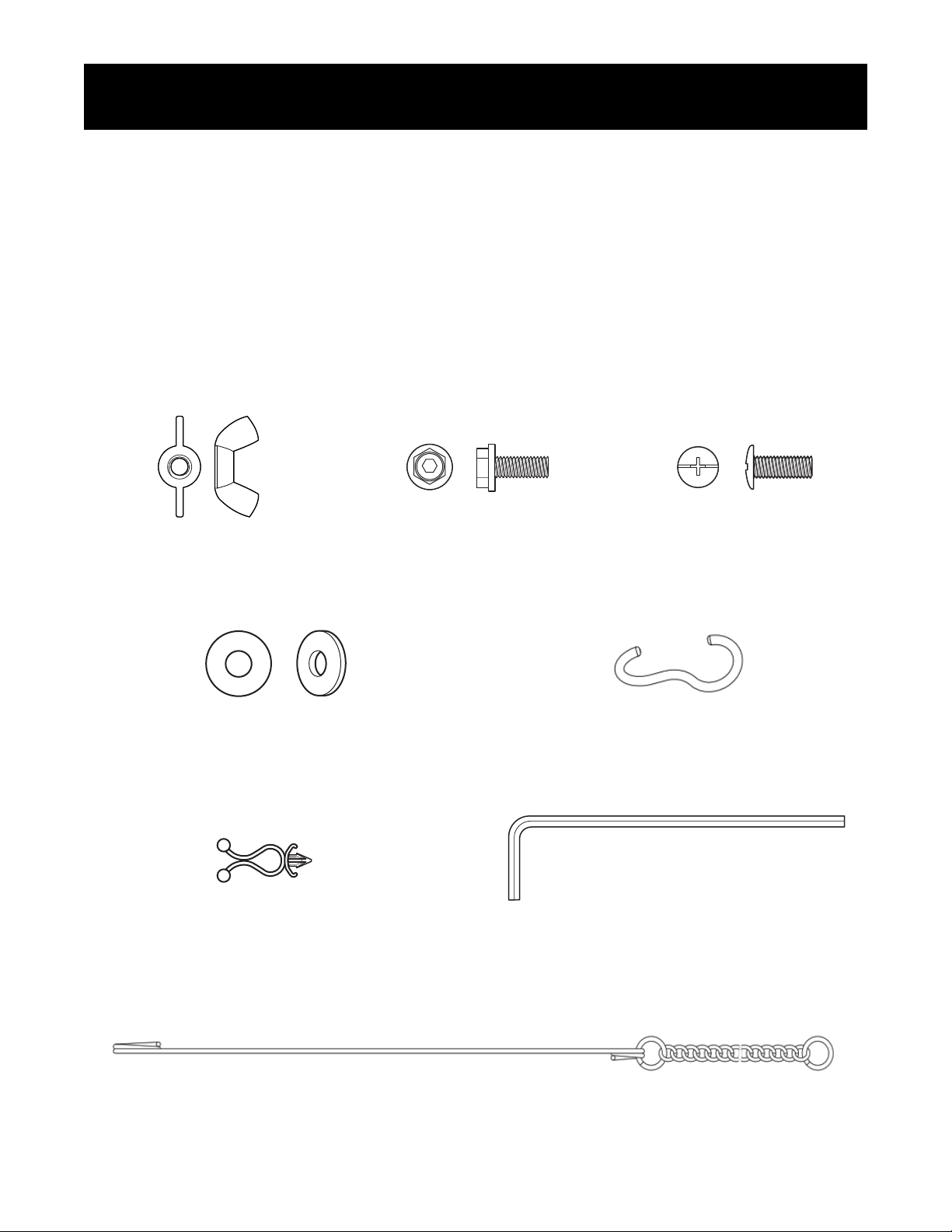

Tools Required:
• #2 Phillips screwdriver and needlenose pliers (not provided)
• The following hardware is provided in the blister pack:
ASSEMBLY
BEFORE THE ASSEMBLY
Wing Nut (1)
Hook (4)
Hex Key (1)
Match Holder Bracket
(Nylon Twist Lock) (1)
Match Holder (1)
M6 x 13 Screw (4)
M6 x 12 Screw (4)
M6 Washer (4)
8
840252000 ENv12.indd 8 10/31/14 11:25 AM

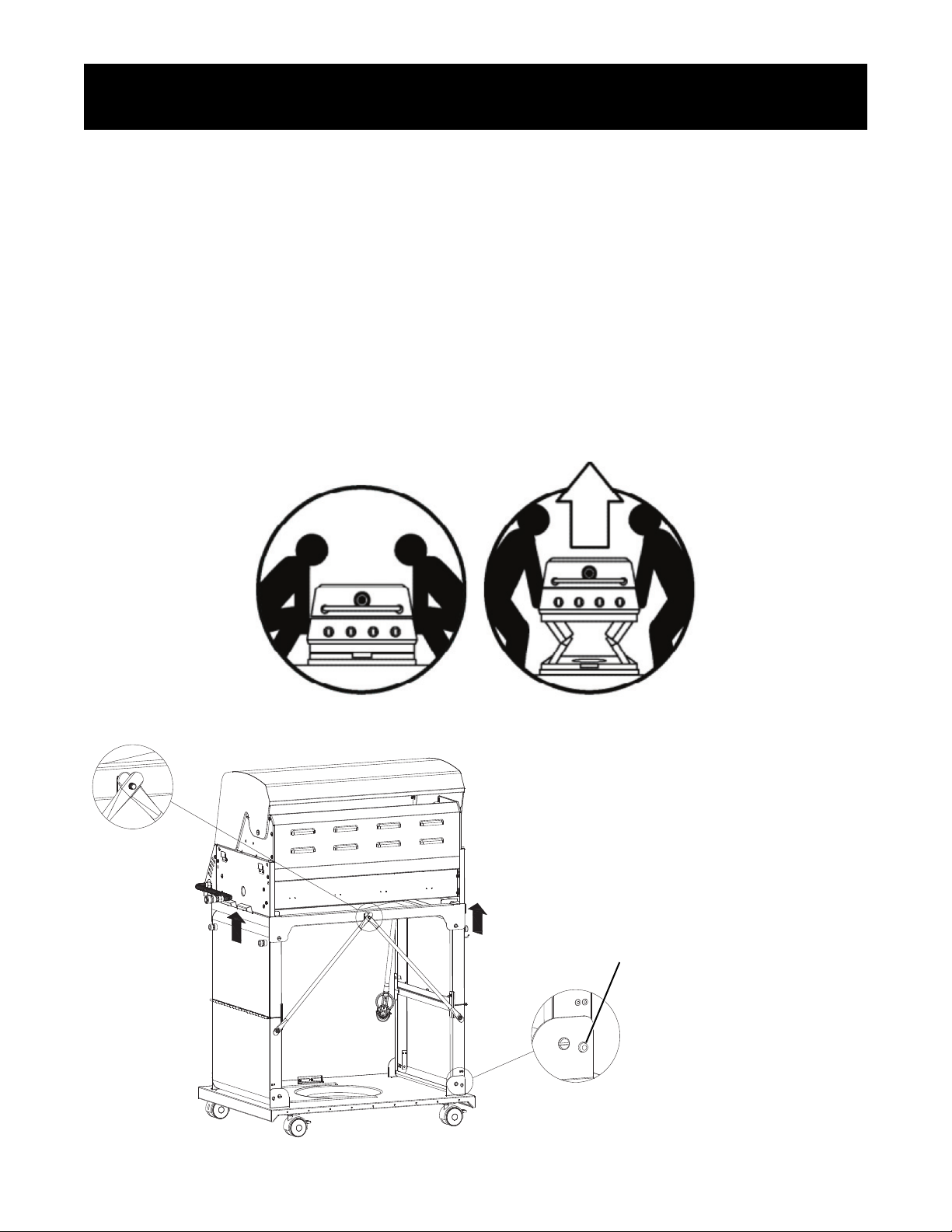

STEP 1: Cart
NOTE: This step requires two people to lift the grill and unfold the cart.
1. Have one person stand on the left side of the grill and another person stand on the right side
of grill. Then have each person hold the handle and lift the grill with one hand. When the grill
is fully unfolded and the side panels are straight, have each person place the crossbar into its
location with their other hand as shown in Fig. 1.
NOTE: Do not let go until the two crossbars are positioned onto the bolt as shown below. After
crossbars are in position, it is advised that you ensure that the spring pins have snapped into
place. This should have occurred as the side panels unfolded. These four spring pins help lock
the side panels in an upright position.
ASSEMBLY
ASSEMBLY STEPS
Fig. 1
9
Spring Pin
840252000 ENv12.indd 9 10/31/14 11:25 AM

ASSEMBLY
ASSEMBLY STEPS

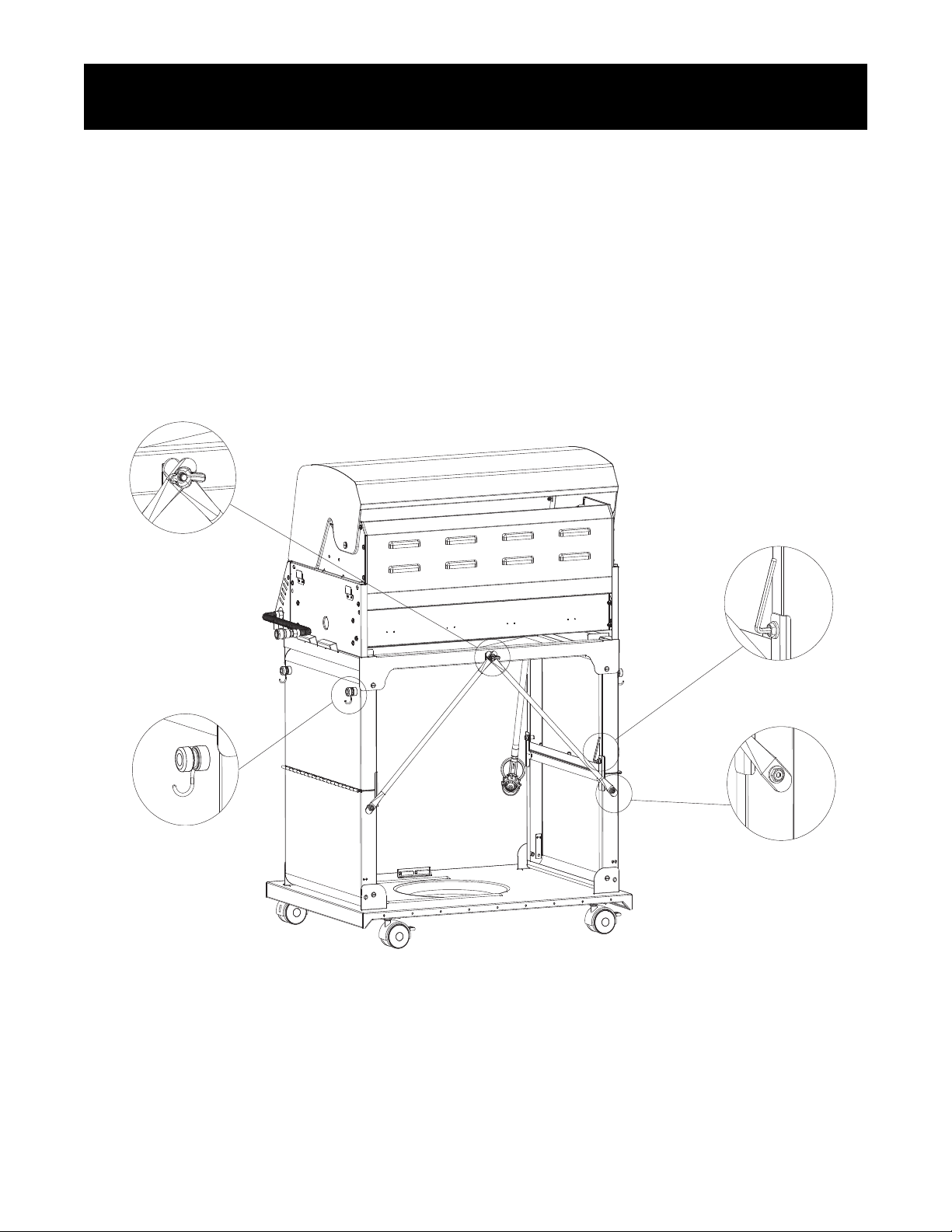

STEP 1: Cart (cont.)
2. Attach the wing nut onto the bolt and tighten as shown in Fig. 2a.
3. Attach M6 x 12 screw to four support plates and tighten with hex key (provided) as shown in
Fig. 2b.
4. Using the hex key,
tighten each M6 x 12 screw holding the other end of the crossbars, as
shown in Fig. 2c
.
5. Place the accessory hooks (4) onto the bumpers on the side panels as shown in Fig. 2d.
Fig. 2
10
Fig 2a
Fig 2d Fig 2c
Fig 2b
840252000 ENv12.indd 10 10/31/14 11:25 AM

ASSEMBLY
ASSEMBLY STEPS

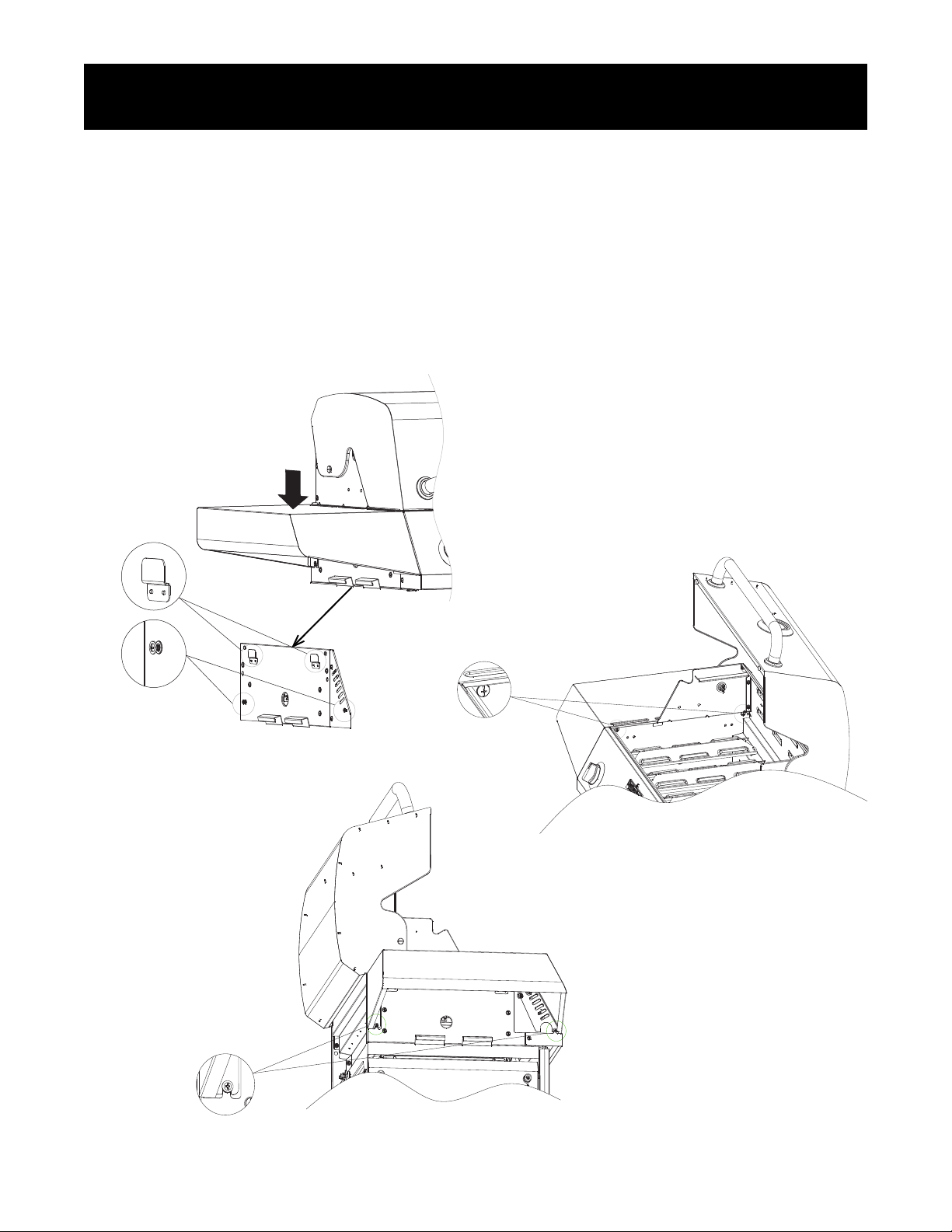

STEP 2: Left-Side Shelf
1. Hang left-side shelf on the two brackets outside rebox; make sure the cutouts on the
bottom of shelf are inserted behind the two lower screws as shown in Fig. 3a.
2. Open lid; attach left-side shelf to the left-side panel from inside to outside of the rebox with
(2) M6 x 13 screws and (2) M6 washers as shown in Fig. 3b.
3. Tighten the two screws on the bottom as shown in Fig. 3c.
Fig. 3a
11
Fig. 3b
Fig. 3c
840252000 ENv12.indd 11 10/31/14 11:25 AM

ASSEMBLY

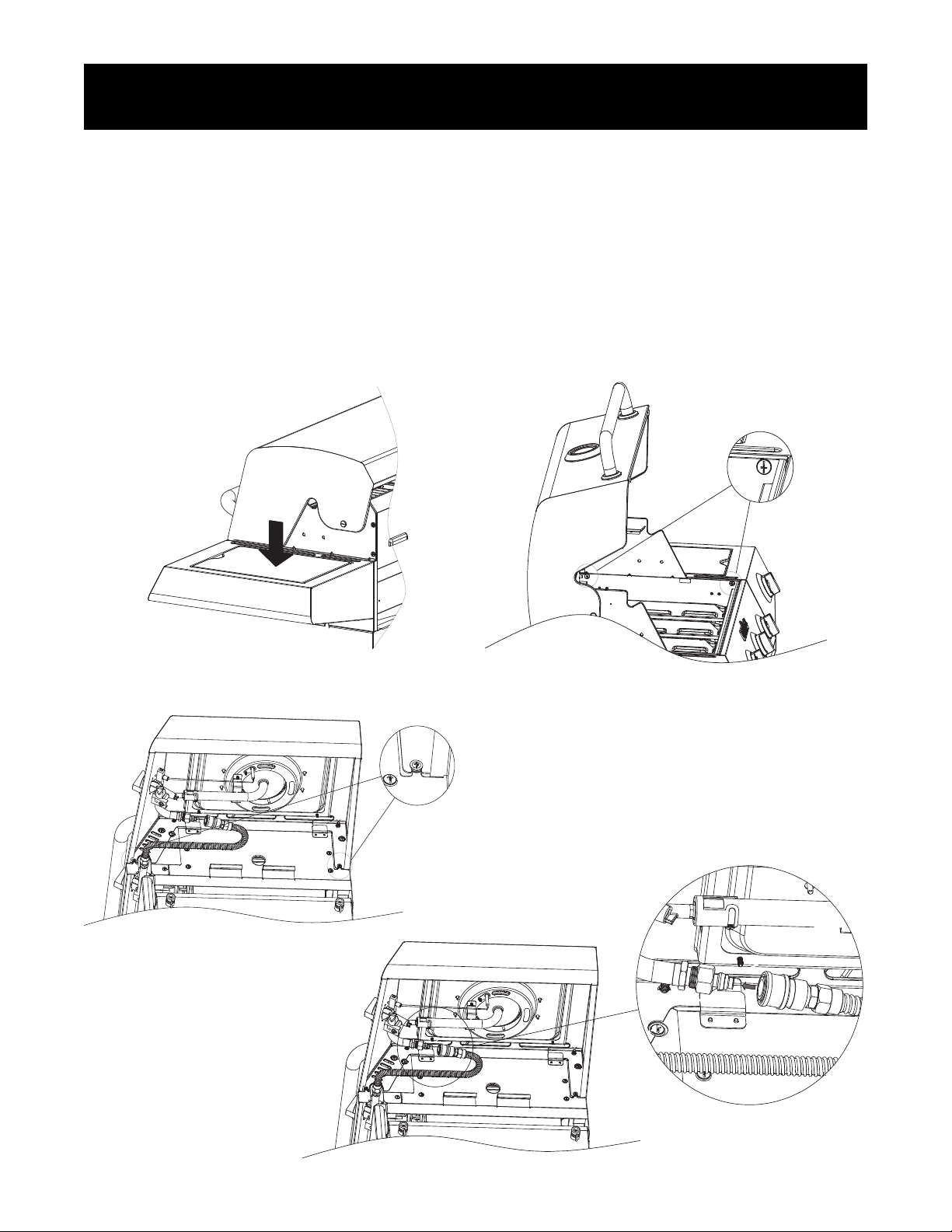

STEP 3: Right-Side Shelf
1. Repeat Step 2 to attach the right-side shelf as shown in Fig. 4a, 4b, and 4c.
NOTE: Side burner is not available on all models. For models without a side burner, proceed
to STEP 4: Door.
2. Connect the quick-assemble connector to side burner hose by sliding outer ring on quick
connector back and positioning it over male tting on side burner hose. Then release the
outer ring on the quick connector hose to lock it to the side burner hose as shown in Fig. 4d.
Fig. 4a
12
Fig. 4b
Fig. 4c
Fig. 4d
ASSEMBLY STEPS
840252000 ENv12.indd 12 10/31/14 11:25 AM

ASSEMBLY
ASSEMBLY STEPS
STEP 3: Right-Side Shelf (cont.)
3. Place side burner grate on side burner as shown in Fig. 4e.
Fig. 4e
13
4. The side burner is now fully assembled. This step (part 4 of STEP 3: Right-Side Shelf) is
only necessary if you nd later that you cannot light the side burner by using the side burner
knob. Often, this is caused by poor alignment of the igniter tip with a hole in the side burner.
To adjust this alignment, grab the igniter tip with a pair of needlenose pliers as shown in
Fig. 4. Using gentle force, move the position of the tip so it is about 1/8”from the bottom
of one of the holes in the burner, as shown in Fig. 4g.
Fig. 4f Fig. 4g
840252000 ENv12.indd 13 10/31/14 11:25 AM

ASSEMBLY
ASSEMBLY STEPS
STEP 4: Door
1. Insert the xed lower-left door pin into the hole on the bottom shelf. Push down the spring-
loaded upper door pin, aligning it beneath the hole in the upper-door pin bracket, and release
pin so that it inserts into the hole as shown in Fig. 5a. (NOTE: Side shelves omitted in Fig. 5a
for clarity.)
2. Repeat part 1 of this step for the right door.
3. Insert the match holder bracket into the hole on the inside of right door; then put the match
holder in it and capture it as shown in Fig. 5b.
Fig. 5a
Fig. 5b
14
Fixed Pin
Spring-
Loaded Pin
840252000 ENv12.indd 14 10/31/14 11:25 AM

15
ASSEMBLY
ASSEMBLY STEPS
STEP 5: Cooking Grates
1. During shipping the heat diffusers may have shifted; thus, you should check their position
and adjust it if necessary. The heat diffusers should be positioned over the burners and held
in place by tabs located on the rebox that will protrude through two slots in the front of each
heat diffuser as shown in Fig. 6a and two slots in the back of each heat diffuser as shown in
Fig. 6b.
2. Place cooking grates onto grate rests as shown in Fig. 6c.
3. Insert warming rack at the top of the rebox as shown as shown in Fig. 6c.
Fig. 6c
Fig. 6a
Front of Heat Diffusers
Fig. 6b
Rear of Heat Diffusers
Cooking Grates
Warming Rack
Heat Diffusers
Heat Diffusers
840252000 ENv12.indd 15 10/31/14 11:25 AM

ASSEMBLY
16
STEP 6: Grease Cup
1. Place grease cup into grease cup clip and hang grease cup clip from bottom of rebox as
shown in Fig. 7.
Fig. 7
ASSEMBLY STEPS
840252000 ENv12.indd 16 10/31/14 11:25 AM

ASSEMBLY
ASSEMBLY STEPS
17
Brake
Off
Brake
On
STEP 7: Lock Casters
1. The back two casters lock to help the grill stay in place for safe operation as shown in Fig. 8.
It may be desirable to do this now before the installation of the gas tank in the next step.
Fig. 8
STEP 8: Gas Tank Holder
1. Place LP tank into hole in bottom shelf with tank collar opening facing to the left side panel
as shown. Raise tank holder to hold LP tank securely in place as shown in Fig. 9.
Fig. 9
840252000 ENv12.indd 17 10/31/14 11:25 AM

POST-ASSEMBLY
GAS CONNECTION
ONLY USE THE REGULATOR AND HOSE ASSEMBLY PROVIDED WITH THIS
GRILL. REPLACEMENT PRESSURE REGULATORS AND HOSE ASSEMBLIES
MUST BE THOSE SUPPLIED BY THE MANUFACTURER.
This is an LP (Liqueed Petroleum Gas) congured grill. Do not attempt to use a natural gas
supply unless the grill has been recongured for natural gas use.
The installation of this appliance must conform with local codes or, in the absence of local
codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or CAN/CSA B149.1,
Natural Gas and Propane Installation Code, or CAN/CSA B149.2, Propane Storage and
Handling Code.
LP TANK REQUIREMENTS –
THE LP TANK USED WITH YOUR GRILL MUST MEET THE FOLLOWING:
1. Measurement: 12”(30.5-cm) diameter x 18”(45.7-cm) tall.
2. Maximum capacity: 20 lbs. (9 kg).
3. Constructed and marked in accordance with the specications for LP gas cylinders of the
U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-
B339, Cylinders, Spheres, and Tubes for the Transportation of Dangerous Goods. See LP
tank collar for marking.
4. Tank must be oriented to provide proper vapor withdrawal, as shown in Fig. 9.
5. Includes a collar to protect the tank valve.
6. Has no dents or rust. A dented or rusty LP tank may be hazardous and should be checked
by your supplier.
7. Provides a shut-off valve terminating in an LP gas tank valve outlet specied, as applicable,
for connection type QCC1 in the standard for compressed gas tank valve outlet and inlet
connection ANSI/CGA V-1.
8. Other tanks may be acceptable for use with your grill provided they are compatible with the
tank retention means shown in Fig. 9.
LP TANK VALVE USED MUST MEET THE FOLLOWING:
1. Have type I outlet compatible with regulator provided.
2. Have safety relief valve.
3. UL-listed Overll Protection Device (OPD). This OPD safety feature is identied by a unique
triangular hand wheel. Only use tanks equipped with this type of valve (as the gure shown
on the next page).
FOR YOUR SAFETY:
Ensure that the black plastic grommets of the regulator provided are in place and that the hose
does not come into contact with the heat shield or the grill head.
18
840252000 ENv12.indd 18 10/31/14 11:25 AM

POST-ASSEMBLY
GAS CONNECTION
19
CONNECT THE REGULATOR TO THE LP TANK – VERY IMPORTANT:
• THE REGULATOR SHALL NOT BE IN A LOCATION THAT WILL ATTAIN A
TEMPERATURE ABOVE 140°F (60°C).
• THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE OR
OVERPRESSURE DEVICE.
• THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO CONNECT THE
TYPE I CONNECTION OF THE TANK VALVE PER ANSI Z21.81/CSA 6.25.
1. Make sure tank valve is in its full OFF position (turn clockwise to stop).
2. Check tank valve to ensure it has proper external male threads (type I connection per ANSI
Z21.81/CSA 6.25).
3. Make sure all burner knobs are in their OFF position.
4.
Remove the protective cap from LP tank valve. Always use cap and strap supplied with valve.
5. Inspect valve connection port and regulator assembly. Look for any damage or debris.
Remove any debris. Inspect hose for damage. Never attempt to use damaged or plugged
equipment. Contact your local LP gas supplier for repair.
6. When connecting regulator assembly to the valve, hand-tighten nut clockwise to a positive
stop as shown in Fig. 10. Do not use a wrench to tighten. Use of a wrench may damage the
quick-coupling nut and result in a hazardous condition.
7.
Open tank valve fully (counterclockwise). Use a soapy water solution to check all connections
for leaks before attempting to light grill. If a leak is found, turn tank valve OFF and do not use
grill until a local LP gas supplier can make repairs.
Regulator Assembly
Tank Valve
Fig. 10
840252000 ENv12.indd 19 10/31/14 11:25 AM

20
POST-ASSEMBLY
GAS CONNECTION
• Never insert any foreign objects into the valve outlet. It may damage the valve and cause
a leak. Leaking gas may result in re, explosion, heavy body injury, or even death.
• Do not connect this grill to the self-contained LP gas system of a motor home or camper
trailer.
• Do not use this grill until leak-tested.
• STOP and call the re department if any leaks are detected.
• If you cannot stop a gas leak, close the LP tank valve IMMEDIATELY and call the LP gas
supplier or the re department.
Failure to follow these instructions exactly WILL start a re causing death or serious
injury.
• NEVER store a spare LP tank under or near grill or in an enclosed area.
• NEVER ll the tank beyond 80% full. An overlled spare LP tank is dangerous because
surplus gas may leak from safety relief valve. The safety relief valve on an LP tank could
activate to release gas and cause a re.
• Place dust cap on tank valve outlet whenever the tank is not in use. Only install the type of
dust cap on the tank valve outlet that is provided with the tank valve. Other types of caps
or plugs may result in leakage of propane.
• If any gas leaks are found on the LP tank, IMMEDIATELY step away from the grill and call
the re department.
VERY IMPORTANT:
TO DISCONNECT LP GAS TANK:
1. Turn all the control knobs OFF.
2. Turn the tank valve off fully (turn clockwise to the stop).
3. Detach the regulator assembly from tank valve by turning the quick-coupling nut
counterclockwise.
4. Install the protective cap back onto the LP tank valve.
wWARNING
wDANGER
840252000 ENv12.indd 20 10/31/14 11:25 AM
