Hammerhead HCID120 User manual

COMPACT
IMPACT DRIVER/
AUTO HAMMER
MODEL HCID120
CHARGE INTEGRATED LITHIUM-ION
BATTERY BEFORE FIRST USE.
ATTACH YOUR RECEIPT HERE
Serial Number _____________________ Purchase Date ______________________
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-877-888-1880, 8:30 a.m.–5 p.m., EST,
Monday– Friday.

2 COMPACT IMPACT DRIVER/AUTO HAMMER
TABLE OF CONTENTS
Product Specications ....................................................2
Safety Information .......................................................3
Preparation.............................................................7
Package Contents........................................................8
Operating Instructions ...................................................10
Care and Maintenance ...................................................16
Troubleshooting ........................................................16
Warranty..............................................................17
PRODUCT SPECIFICATIONS
COMPONENT SPECIFICATIONS
Motor 12.0 V DC
Switch VSR (Variable Speed Reversible)
No-load speed 0-2,100 RPM
Beats per minute 0-3,500 BPM
Maximum torque (Impact Driver) 700 in. lbs.
Collet size 1/4 in.
Nail capacity (Auto Hammer) Up to 8D (2-1/2") Uncoated Nails
Screw capacity (Impact Driver) Up to #10 x 4" Screws
Lag bolt capacity (Impact Driver) Up to 1/4" x 3" Lag Screws
Tool weight 2.45 lbs.

COMPACT IMPACT DRIVER/AUTO HAMMER 3
󰌥SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble or operate
this product. If you have any questions regarding the product, please call customer service
at 1-888-HAMMERHEAD (1-877-888-1880), 8 a.m. - 8 p.m., EST, Monday – Friday.
󰌥WARNING
• Theoperationofanypowertoolcanresultinforeignobjectsbeingthrownintoyoureyes,
which can result in severe eye damage. Before beginning power-tool operation, always
wear safety goggles or safety glasses with side shields and a full-face shield, when
needed. We recommend using a wide vision safety mask over eyeglasses or standard
safety glasses with shields. Always use eye protection marked to comply with ANSI Z87.1.
• Somedustcreatedbypowersanding,sawing,grinding,drillingandotherconstruction
activities contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
— Lead from lead-based paints.
— Crystalline silica from bricks, cement, and other masonry products.
— Arsenic and chromium from chemically-treated lumber.
• Yourriskfromtheseexposuresvaries,dependinguponhowoftenyoudothistypeof
work. To reduce your exposure to these chemicals:
— Work in a well-ventilated area.
— Work with approved safety equipment, such as dust masks that are specially
designed to lter out microscopic particles.
— Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with
soap and water. Allowing dust to get into your mouth or eyes or to lie on the skin may
promote absorption of harmful chemicals.

4 COMPACT IMPACT DRIVER/AUTO HAMMER
󰌥SAFETY INFORMATION
Know the Tool
To operate this tool, carefully read this manual and all labels afxed to the impact driver/
auto hammer before using it. Keep this manual available for future reference.
Some of the following symbols may be used on this tool. Please study them and their
meaning. Proper interpretation of these symbols will allow you to operate the tool better
and more safely.
SYMBOL DEFINITION SYMBOL DEFINITION
VVolts n 0No-load Speed
AAmps /min Revolutions, Strokes, Beats or
Impacts per Minute
Hz Hertz ⧈Class II Construction
WWatts 󰌪Direct Current
󰌥A danger, warning or caution.
It means ‘ATTENTION! Your
safety is involved.’
󰌩Alternating Current
IMPORTANT: This tool should only be serviced only by a qualied service technician.
General Power Tool Safety Warnings
󰌥WARNING
Read all safety warnings and all instructions. Failure to follow all warnings and instructions
mayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work Area Safety
• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.

COMPACT IMPACT DRIVER/AUTO HAMMER 5
󰌥SAFETY INFORMATION
Electrical Safety
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
• Donotexposepowertoolstorainorwetconditions.Water entering a power tool will
increase the risk of electric shock.
• Donotabusethecord.Neverusethecordforcarrying,pullingorunpluggingthe
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
• Whenoperatingapowertooloutdoors,useanextensioncordsuitableforoutdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tools in a damp location is unavoidable, use a ground-fault
circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of
electric shock.
Personal Safety
• Stayalert,watchwhatyouaredoingandusecommonsensewhenoperatinga
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools
mayresultinseriouspersonalinjury.
• Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection
usedforappropriateconditionswillreducepersonalinjuries.
• Preventunintentionalstarting.Ensurethattheswitchisintheoff-positionbefore
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energizing power tools that have
the switch on invites accidents.
• Removeanyadjustingkeyorwrenchbeforeturningthepowertoolon.A wrench or
akeyleftattachedtoarotatingpartofthepowertoolmayresultinpersonalinjury.
• Donotoverreach.Keepproperfootingandbalanceatalltimes.This enables better
control of the power tool in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjewelry.Keepyourhair,clothingand
gloves away from moving parts. Looseclothes,jewelryorlonghaircanbecaughtin
moving parts.

6 COMPACT IMPACT DRIVER/AUTO HAMMER
󰌥SAFETY INFORMATION
• Ifdevicesareprovidedfortheconnectionofdustextractionandcollection
facilities, ensure these are connected and properly used. Use of dust devices can
reduce dust-related hazards.
Power Tool Use and Care
• Donotforcethepowertool.Usethecorrectpowertoolforyourapplication.
Thecorrectpowertoolwilldothejobbetterandmoresafelyattherateforwhichit
was designed.
• Donotusethepowertooliftheswitchdoesnotturnitonandoff.Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnecttheplugfromthepowersourceand/orthebatterypackfromthe
powertoolbeforemakinganyadjustments,changingaccessories,orstoring
power tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
• Storeidlepowertoolsoutofthereachofchildrenanddonotallowpersons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintainpowertools.Checkformisalignmentorbindingofmovingparts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keepcuttingtoolssharpandclean.Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
• Usethepowertool,accessories,toolbits,etc.inaccordancewiththese
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
Battery Tool Use and Care
• Rechargeonlywiththechargerspecifiedbythemanufacturer. A charger that is
suitable for one type of battery pack may create a risk of re when used with another
battery pack.
• Underabusiveconditions,liquidmaybeejectedfromthebattery;avoidcontact.
If contact accidentally occurs, flush with water. If liquid contact eyes, additionally
seek medical help. Liquidejectedfromthebatterymaycauseirritationorburns.
• Use power tools only with specifically designated battery packs. Use of any other
batterypacksmaycreateariskofinjuryandre.

COMPACT IMPACT DRIVER/AUTO HAMMER 7
󰌥SAFETY INFORMATION
• Whenbatterypackisnotinuse,keepitawayfromothermetalobjects,likepaper
clips,coins,keys,nails,screwsorothersmallmetalobjectsthatcanmakea
connection from one terminal to another. Shorting the battery terminals together may
cause burns or a re.
Service
• Haveyourpowertoolservicedbyaqualifiedrepairpersonusingonlyidentical
replacement parts. This will ensure that the safety of the power tool is maintained.
Specic Safety Warnings for Right-Angle Impact Driver Function
• Holdpowertoolsbytheirinsulatedgrippingsurfaceswhenperformingan
operation where the cutting accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
Specic Safety Warnings for Auto-Hammer Function
• Wearearprotectors.Exposure to noise can cause hearing loss.
• Useauxiliaryhandle(s),ifsuppliedwiththetool.Loss of control can cause
personalinjury.
• Holdpowertoolsbytheirinsulatedgrippingsurfaceswhenperformingan
operation where the cutting accessory may contact hidden wiring. Cutting
accessory contacting a "live" wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
PREPARATION
Before attempting to use the tool, familiarize yourself with all of its operating features and
safety requirements.

8 COMPACT IMPACT DRIVER/AUTO HAMMER

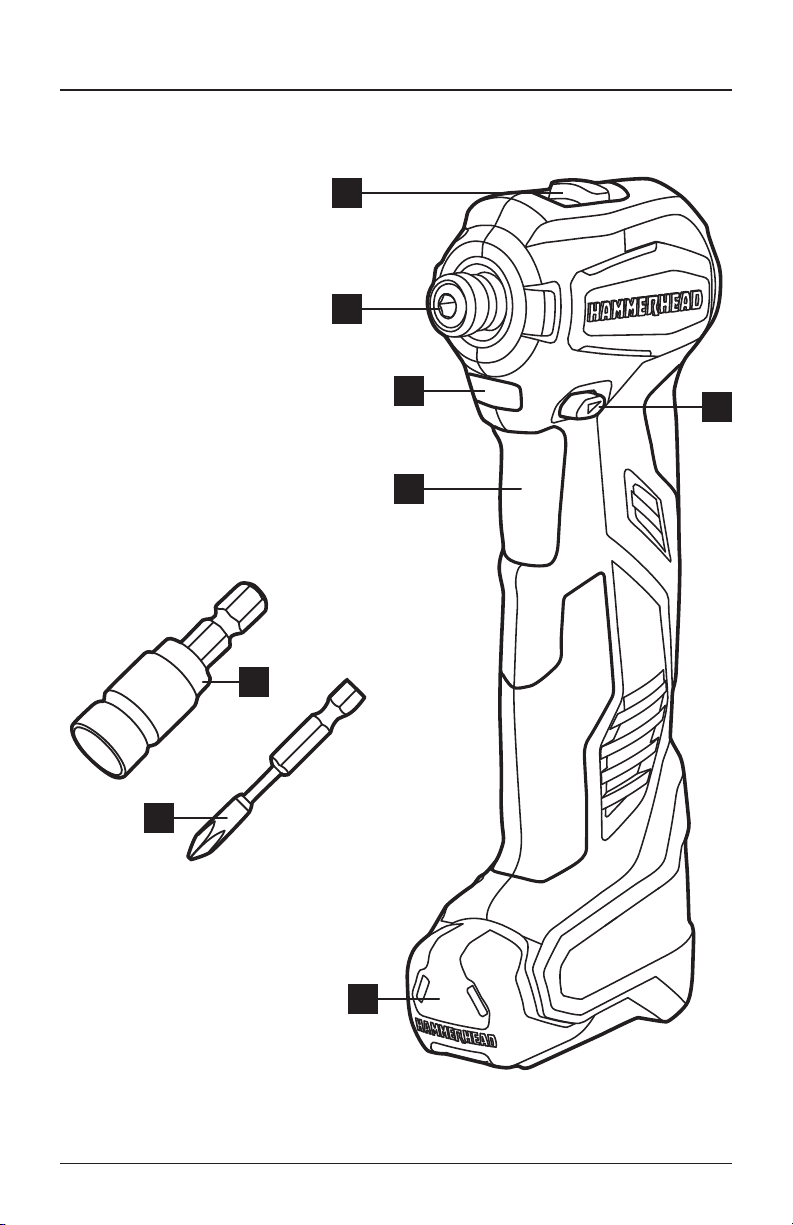

PACKAGE CONTENTS
B
D
C
E
A
G
F
H

COMPACT IMPACT DRIVER/AUTO HAMMER 9
PACKAGE CONTENTS
PARTS DESCRIPTION
ADual-Function Switch
BQuick-Release 1/4" Hex Collet
CLED Worklight
DVariable-Speed Trigger
EForward/Lock/Reverse Selector
FIntegrated 12V Lithium-Ion Battery
GAuto Hammer Adaptor
HImpact Bit

10 COMPACT IMPACT DRIVER/AUTO HAMMER

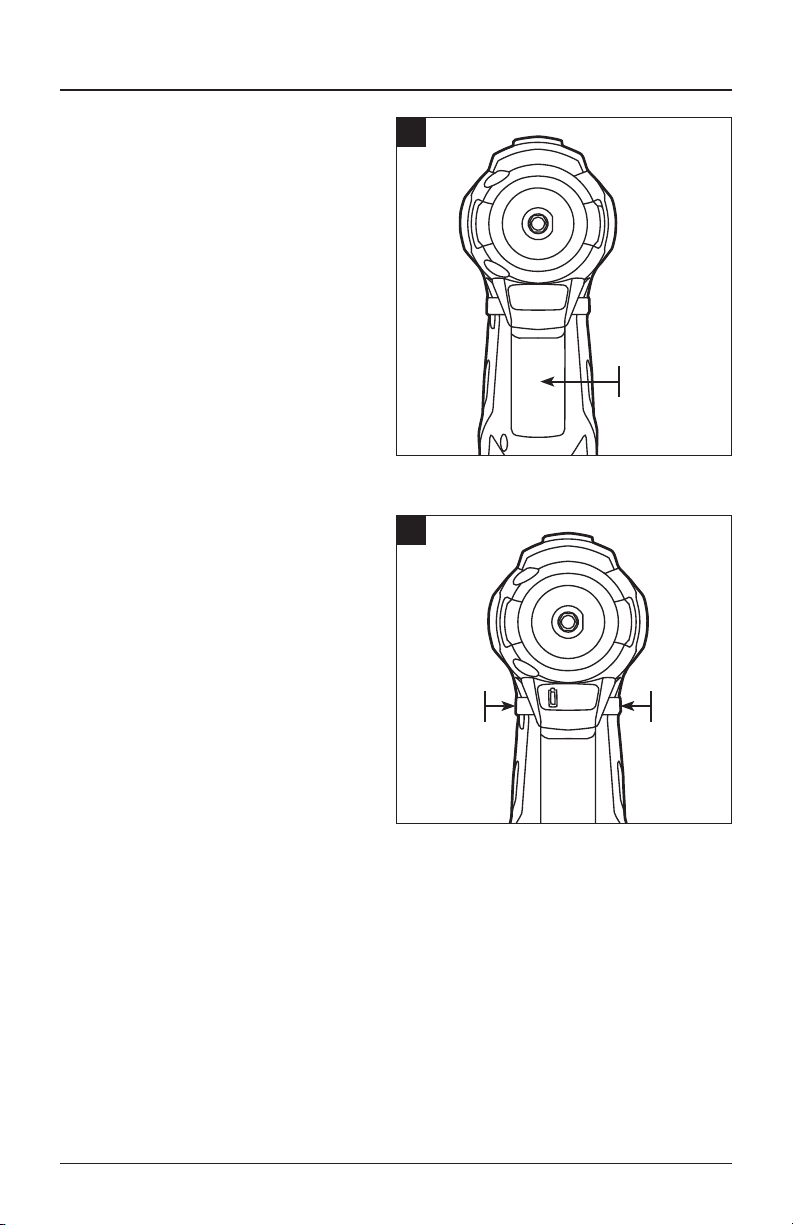

OPERATING INSTRUCTIONS
1. How To Charge
NOTICE: The integrated Lithium-Ion
battery is shipped partially charged.
Before using it the first time, fully
charge the battery. A fully discharged
battery will normally charge in about
2 hours in a surrounding temperature
between 32°F (0°C) and 131°F
(55°C)
a. Charge the tool only with the
correct charger.
b. Lock the variable-speed trigger
on the tool by placing the forward/
lock/reverse selector in the center
position.
c. Align the slots of the integrated
Lithium-Ion battery with the
electrical contacts of the charger,
and then slide the tool into the
charger.
d. Connect the charger to the power
supply. The charger can only
be used with normal household
voltage of 120 volt AC, 60 Hz.
e. The red and green charging indicator lights will illuminate for approximately one
second and then turn off. The charger will communicate with the tool to evaluate the
condition of the integrated Lithium-Ion battery.
f. The green light will ash while the integrated Lithium-Ion battery is charging
normally. When charging is complete, the green indicator light on the charger will
illuminate.
g. A ickering red light indicates a defective battery or a bad connection between the
integrated Lithium-Ion battery and the charger.
h. The integrated Lithium-Ion battery will fully charge if left on the charger, but it will
not overcharge.
NOTICE: For your convenience, the charger can operate with most generators and inverters
rated at 13 watts or higher.
1

COMPACT IMPACT DRIVER/AUTO HAMMER 11
OPERATING INSTRUCTIONS
2. Variable-speed Trigger
a. To turn the tool ON, depress the
variable-speed trigger.
b. To turn it OFF, release the
variable-speed trigger.
NOTICE: The variable-speed trigger
delivers higher speed with increased
trigger pressure and lower speed with
decreased trigger pressure.
3. Forward/Lock/Reverse Selector
The direction of rotation while impact
driving is reversible and is controlled
by a selector located above the
variable-speed trigger. With the tool
held toward you as shown in figure 3.
a. Position the forward/lock/reverse
selector to the right of the tool for
forward rotation.
b. Position the forward/lock/reverse
selector to the left of the tool for
reverse rotation.
c. Setting the forward/lock/reverse
selector in the OFF (center-lock) position helps reduce the possibility of accidental
starting when not in use.
NOTICE: To prevent gear damage, always allow the tool to come to a complete stop before
changing the direction of rotation.
NOTICE: The tool will not run unless the forward/lock/reverse selector is engaged to the left
or right.
3
REVERSEFORWARD
2
VARIABLE-
SPEED
TRIGGER

12 COMPACT IMPACT DRIVER/AUTO HAMMER
OPERATING INSTRUCTIONS
4. LED Worklight
a. The LED worklight, located on
the head of the tool, illuminates
when the variable-speed trigger
is depressed. This provides
additional light on the surface of
the workpiece for operation in
lower-light areas.
b. The LED worklight will turn off
when the variable-speed trigger
is released.
c. This tool is equipped with a
Fuel Gauge that indicates the
charge remaining in the integrated
Lithium-Ion battery.
If the Fuel Gauge displays a red light, it indicates that the integrated Lithium-Ion
battery needs to be charged.
5. Dual-Function Switch
Impact Driving Function
Auto Hammer Function
Set the dual-function switch to
Impact driving function, marked
for tightening or loosening
screws and nuts or drilling.
Set the dual-function switch to auto
hammering function, marked with
for hammering nails.
5
AUTO HAMMER FUNCTION
5
IMPACT DRIVING FUNCTION
4
FUEL
GAUGE LED

COMPACT IMPACT DRIVER/AUTO HAMMER 13
OPERATING INSTRUCTIONS
6. Auto Hammer Adaptor
The auto hammer adapter permits the
tool to be used in the auto hammer
function.
When not in use, the auto hammer
adaptor provided with the tool
can be placed in the storage area
located on the base of the tool.
Store the adaptor on the base of the
tool by snapping it into place.
7. Installing Bits/
Auto Hammer Adaptor
a. Lock the variable-speed trigger
by placing the forward/lock/
reverse selector in the LOCKED
(center) position.
b. With one hand, pull the quick-
release 1/4" hex collet toward the
front of the tool and hold it in place.
c. With the other hand, insert a 1/4"
bit or the auto hammer adaptor
into the hexagonal opening in the
bit retainer.
d. Release the quick-release 1/4" hex collet and check that it returns to itsoriginal position.
󰌥WARNING: If the quick-release 1/4" hex collet does not return to its original position,
the bit or adaptor is not correctly installed. Retry until the bit or adaptor is properly installed
and the quick-release 1/4" hex collet returns to its original position.
Removing Bits /Auto Hammer Adaptor
a. Lock the variable-speed trigger by placing the forward/lock/reverse selector in the
LOCKED (center) position.
b. Pull the quick-release 1/4" hex collet towards the front of the tool and hold it in place.
c. Remove the bit or adaptor from the hexagonal opening in the bit retainer.
d. Release the quick-release 1/4" hex collet.
󰌥WARNING: The bit may be hot after prolonged use. Use protective gloves when
removing the bit or adaptor from the tool, or rst allow the bit to cool down.
6
7

14 COMPACT IMPACT DRIVER/AUTO HAMMER
OPERATING INSTRUCTIONS
8. Tightening and Loosening
Screws and Nuts
a. Set the dual-function switch to the
impact driving function, marked
with “ ” .
b. Install the correct bit.
c. Position the forward/lock/reverse
selector to the proper direction.
 d. Applyjustenoughpressureto
keep the bit engaged on the screw
or nut.
e. Apply minimal pressure to the
variable-speed trigger initially.
Increase the speed only when you
can maintain full control.
󰌥WARNING: Do not over-tighten, as the force of the impact driver can break the
fastener. Keep the Impact driver at a right angle to the fastener to avoid damaging the
fastener head.
󰌥WARNING: After operating, the tool should be placed horizontally on a surface; do not
attempt to stand it upright.
NOTICE: This tool can also be used for drilling in wood with suitable drilling bits when the
dual-function switch is set to drive function. For maximum performance, never use this tool
for drilling in metal or masonry.
8

COMPACT IMPACT DRIVER/AUTO HAMMER 15
OPERATING INSTRUCTIONS
9. Hammering Nails
a. Set the dual-function switches
to the auto hammering function
marked with “ ”.
b. Attach the auto hammer adaptor
to the tool.
c. Position the forward/lock/reverse
selector to either the right or the left.
d. Secure the material to be nailed
with clamps to keep it from
turning when hammering.
e. Insert the head of the nail into the
adaptor so that it contacts the
recessed shaft. Place the tip of the
nail against the workpiece.
󰌥WARNING: Before depressing the variable-speed trigger to start hammering, make
sure that the adaptor is securely attached on the tool. Otherwise, the adaptor would move,
causingseriouspersonalinjury.
f. Holding the shaft of the nail steady with your hand, push down on the tool and press
thevariable-speedtriggertoinitiatethehammeringaction,anddrivethenailjustfar
enough into the workpiece so that it will stand on its own. Release variable-speed
trigger and remove your hand from the nail.
󰌥CAUTION: Be especially careful when driving shorter nails, such as brads, that you
remove your hand as soon as the nail stands on its own in the workpiece.
g. Resume pushing down on the tool and pressing the variable-speed trigger to
continue hammering until the nail is fully driven into the workpiece. Near the end
of hammering, the adaptor will retract to allow the hammerhead to drive the nail
head ush to the workpiece.
󰌥WARNING: Toavoidpossibleseriousinjury,donotexertexcessiveforceonthetool
or apply side pressure. Hold the tool rmly while pushing steadily to allow the hammerhead
to drive the nail automatically.
9

16 COMPACT IMPACT DRIVER/AUTO HAMMER
OPERATING INSTRUCTIONS
Recommended Nails to Use
The tool is versatile for use with a variety of nails. Bright common and nishing nails from
2d to 8d are recommended for use with this tool.
Recommended Nailing Materials for the Impact Driver/Auto-hammer
The tool may be used for nailing into all types of woods, wood-like materials, and plaster board.
NOTICE: The tool is not suitable for nailing in hard metal or concrete.
CARE AND MAINTENANCE
All maintenance should only be carried out by an authorized service organization.
Cleaning
Before cleaning or performing any maintenance, lock the variable-speed trigger on the
tool by placing the forward/lock/reverse selector in the OFF (center) position. For safe and
proper operation, always keep the tool and its ventilation slots clean.
Always use only a soft, dry cloth to clean your impact driver/auto-hammer; never use
detergent or alcohol.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The tool does not work Integrated Lithium-Ion
battery is depleted
Charge the integrated
Lithium-Ion battery
The tool stops rotation
during operation
Integrated Lithium-Ion
battery is depleted
Charge the integrated
Lithium-Ion battery
Bit cannot be installed
Quick-release 1/4" hex
collet is not released
Release the quick-release
1/4" hex collet
Bit does not t the quick-
release 1/4" hex collet
Use suitable adaptor
Motor overheating
Be sure the cooling vents
are free from dust and
obstacles
Clean and clear vents. Do
not cover with hand during
operation

COMPACT IMPACT DRIVER/AUTO HAMMER 17
BATTERY PACK REMOVAL AND PREPARATION
FOR RECYCLING
To preserve natural resources, please recycle or dispose of batteries
properly. This product contains lithium-ion batteries. Local, state, or
federal laws may prohibit disposal of lithium-ion batteries in ordinary
trash. Consult your local waste authority for information regarding
available recycling and/or disposal options.
󰌥WARNING: Upon removal of the battery pack for disposal or recycling, cover the
battery pack’s terminals with heavy-duty adhesive tape. Do not attempt to destroy or
disassemble the battery pack or remove any of its components. Lithium-Ion batteries must
berecycledordisposedofproperly.Also,nevertouchtheterminalswithmetalobjectsand/
or body parts as a short circuit may result. Keep away from children. Failure to comply with
thesewarningscouldresultinreand/orseriousinjury.
3 YEAR LIMITED WARRANTY
This compact impact driver/auto hammer is warranted to the original purchaser from the
original purchase date for two years, plus one additional year with product registration at
www.hammerheadtools.com(2+1),foratotalthreeyearssubjecttothewarrantycoverage
described herein.
Please retain your receipt.
This compact impact driver/auto hammer is warranted to the original user to be free from
defects in material and workmanship. If you believe that the impact driver/auto hammer is
defective at any time during the specied warranty period, call HAMMERHEAD support at
1-877-888-1880 to speak with a customer service agent. This warranty does not cover: (1)
Part failure due to normal wear or tool abuse (2) Any parts have been altered or modied by
anyone other than an authorized HAMMERHEAD personnel.
This warranty excludes bits, bulbs and accessories. This warranty gives you specic legal
rights, and you may also have other rights that vary from state.

18 COMPACT IMPACT DRIVER/AUTO HAMMER

DESTORNILLADOR
ELÉCTRICO COMPACTO Y
MARTILLO AUTOMÁTICO
MODELO HCID120
CARGUE LA BATERÍA INTEGRADA DE IONES
DE LITIO ANTES DEL PRIMER USO.
ADJUNTE SU RECIBO AQUÍ
Número de serie ___________________ Fecha de compra ____________________
Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame
a nuestro Departamento de Servicio al Cliente al 1-877-888-1880, de lunes
a viernes, de 8:30 a.m. a 5 p.m., hora estándar del Este.

20 DESTORNILLADOR ELÉCTRICO COMPACTO Y MARTILLO AUTOMÁTICO
ÍNDICE
Especicaciones del producto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Información de seguridad.................................................21
Preparación ...........................................................26
Contenido del paquete ...................................................27
Instrucciones de funcionamiento ...........................................29
Cuidado y mantenimiento.................................................35
Solución de problemas ...................................................36
Garantía ..............................................................37
ESPECIFICACIONES DEL PRODUCTO
COMPONENTE ESPECIFICACIONES
Motor 12,0 V de CD
Interruptor VSR (velocidad variable reversible)
Velocidad sin carga 0-2100 RPM
Golpes por minuto 0-3500 GPM
Torque máximo (destornillador eléctrico) 80,65 kgf-m
Tamaño del mandril 6,35 mm
Capacidad de clavos (martillo automático) Clavos no recubiertos de hasta 8D
(6,35 cm)
Capacidad del destornillador (destornillador
eléctrico) Tornillos hasta #10 de 10,16 cm
Capacidad del tirafondo (destornillador eléctrico) Tirafondos de hasta 6,35 mm x 7,62
cm
Peso de la herramienta 1,11 kg
