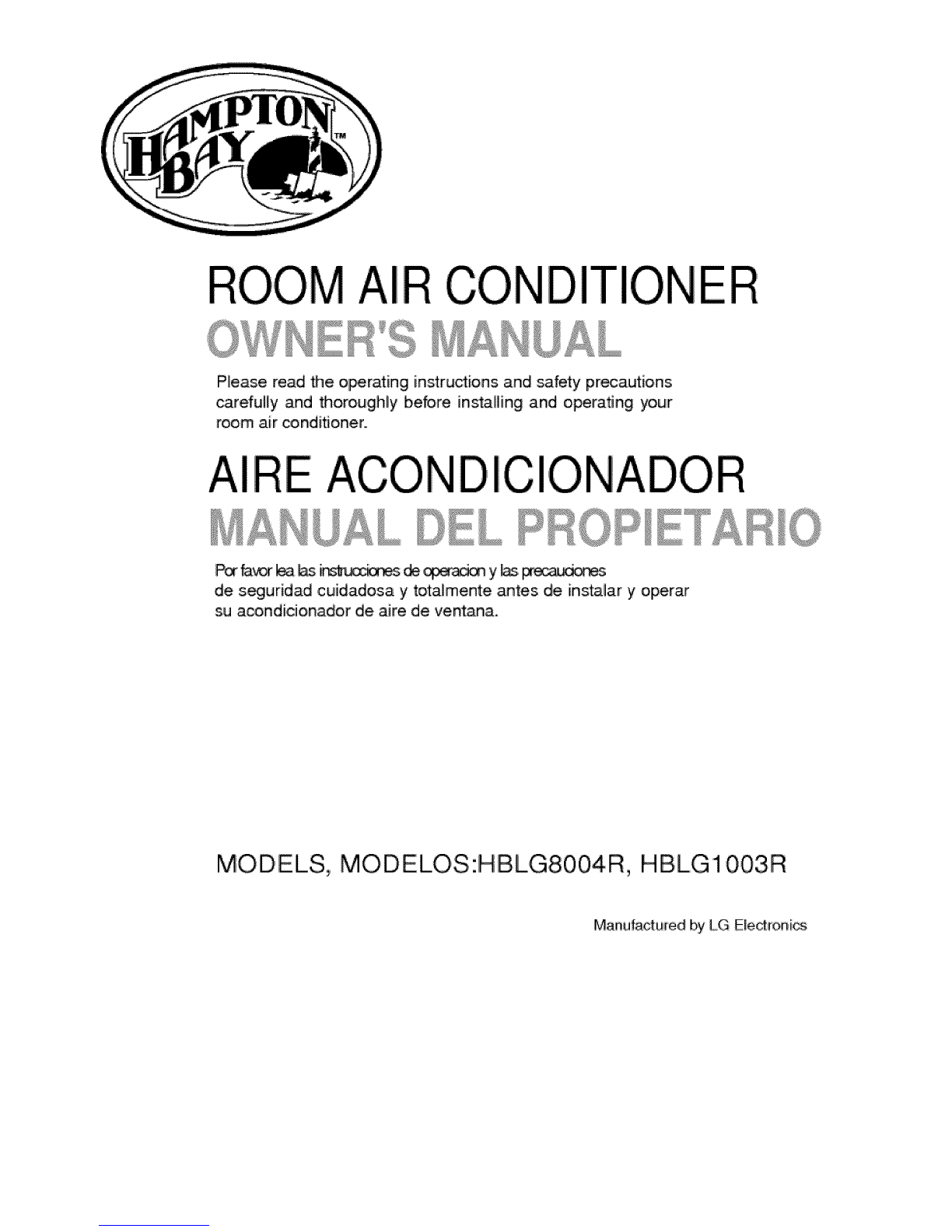

HAMPTON BAY HB1003R User manual

AI NE
Please read _e operating instru_ions and safety pr_autions
_refuffy and thoroughl!y before instal[ling and o_raflng your
room air conditioner. ICI
_favor _ _ i____ y _,
de s_iuridad ,cuidadosa y totaJmente antes dle instalar y operar
su a_ndicionado, r de aJre de ventana.
MODELS, MODELOS:HIBL, G8004R, HiBLG1003R
IManJufactuted_, LG Ele_ronics

FOR YOUR RECORDS
Write the model and seria_ numbers here:
Mode! #
Serial #
"Youcan fi_'ld the numbers on a labe_ on the side of the
pr_uct,
Dealer's Name
Dale P'urchas_
IIi Staple your receipt to this Ipaglein the ewat yo_=need i_
to p_ove _te ,ofpurchase or for warranty issues,
READ THiS MANUAL
Inside you will {ind many _lp{u{ hints oin how to use and
maintain your .air conditio,r_r pro_dy. Just a little pr_entive
care on your _rt can save, y_ a great deal of' time and
money over the iife of your air cond_ioner.
htbulll find mar_/answers to, common problems in the chart
of troub[esho@ing t#s Ill you review ,our chart of
Troubleshooting Tips first, you may rlo¢ r_ed to, ca[I for
serv_e at a&
•Contact an Authorized _r_ Center for repair or
maintenance of this un_ Call i-_,-243_00 to
locate the nearest ASC
.,This air cond_toner is no_ int_ded for u_ by 'young
children or invalids without supervision.
•Young children shou|d be su_rvis_ to ensure that
they do not p|ay wRh the ai_,_nditioner,
•if the power cord r_uires rep,la_ment, have an
Author_z_ Servicer instal| _n exa_ rep|ace_nt pa_.
.,installation wo_ must be performed in ac_rdl_nce
with the National E|ectri,c Code by q_a||Ii_ and
authorlzed personnel on|y;
2 Room Air Conditioner

To prevent iniury to the user or other _op_e and property damage, the following instructions
must be folllowed.
[] incorrect operation due to ignoring instructions willl cause harm or damage. The seriiousness
is classified by the following indications.
[] Because of the weight of the product, it is re_mmended that you have a helper to assist in
the installation.
[] Meanings of symbols us_ in this manual are as shown below.
Be sure not to do. "/
q
Be sure to follow t
[] Installation
. improper assemNy or installation may cause
incorrect o_ration, inclluding injury,fire, and
electric shock hazards.
. It may cause explosion or fire.
. It may cause fire and electric shock.
•It may cause ,el,ectric shock and failure.
Owner_ Manual 3

[] Operation
. ._he_ise, itwill cause
electric shock or fire
, _will _use electric shock or
fire.
, _herwise it will cause fire
and electric shock accident.
• It willlcause e_ectricshock or
fire.
• It will cause ele_ric sho_ or
fire.
• It may cause fire and electri.c
shock...
•litwiillcause ellectric shock or
fire.
• No grounding may _use
ele_ric sho_.
4 Room Air Conditioner
• It may cause electric shock.

, The air conditioner must be operated in a
enclosed area to be most effective
, Ut:wi!l cause electric shock or failure of
machine.
• It may cause explosion, fire, and burn.
[] Installation
. They are sharp and may
cause injury.
. Water may enter the unit: and degrade the
insulation. It may cause an elec#ic shock.
CAUTiO'N
• _ may _use failure of
appliance or performance
J
• If the o_er case is damaged,
it must be repair_ or
repi_aced immediately.
Leaving it damaged could
result in the air _nditioner
hlling out of the window,
creating a _fety hazard.
Owner_ Manual 5

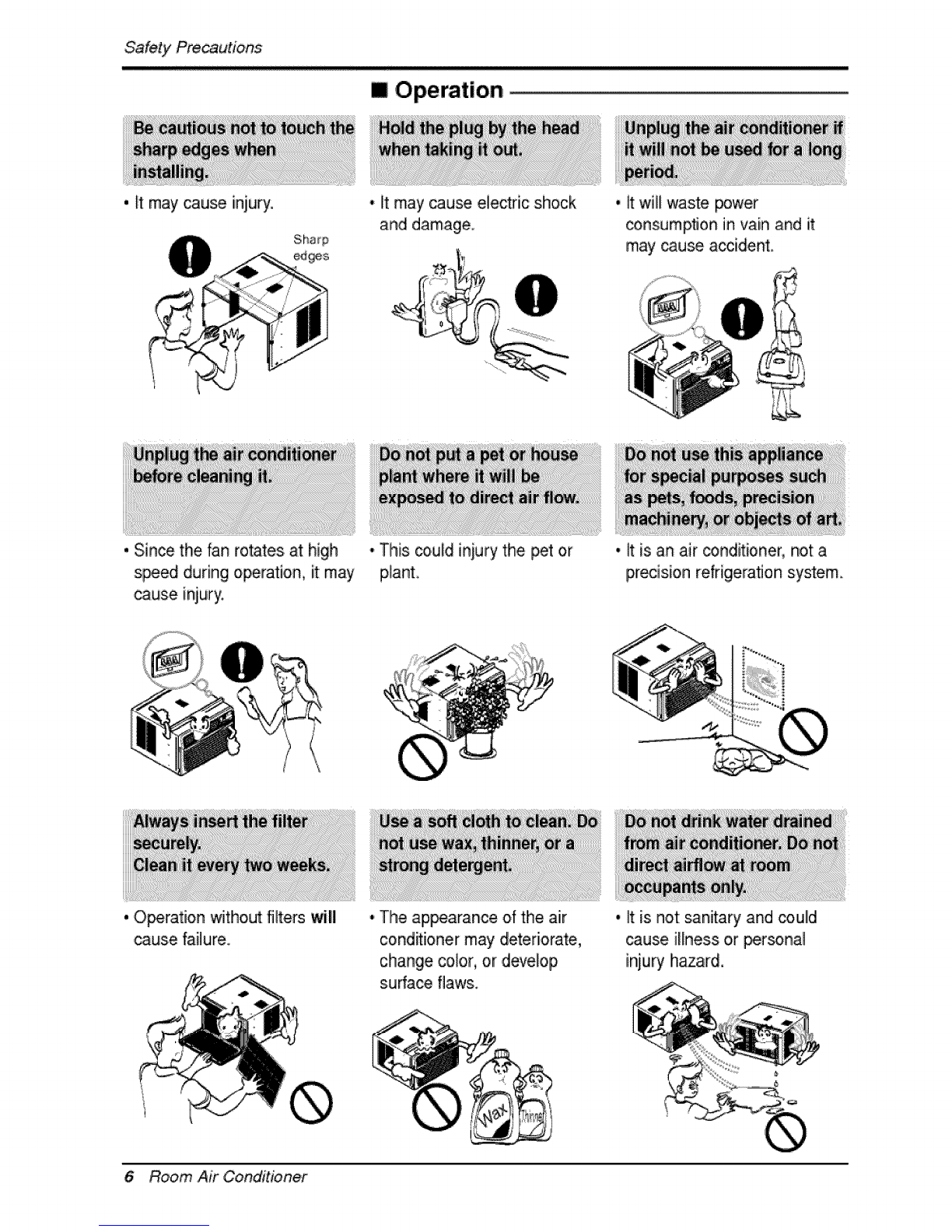

m Operation
, It may cause injury. •It may cause electric shock
and damage. ., it will waste power consumption in vain and it
may cause accident
, Since the fan rotates at high
sp.e_ during operation, it:may
cause injury.
. Operation without riflers will
cause failure..
• This _,uld iniury the _t or
plant, • ff is an air _nditioner, not a precision refrigeration system
• Tlhe ap_arance of the air
condffi,oner may deteriorate,
change color, or develop
s.ufface flaws.
.,It is not sanitary and coulld
cause illness or _r_nal
injury hazard.
6 Room Air Conditioner

Be_re Opera#on
1i' Plug in the, power cord properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Iao not use an extension cord. See page 10 for more detaii]s.
4. Do not staWstop operation by plugging/unplugging the power cord.
5. IIfthe power cord is damaged and requires, replacement, have an Authorized
Servicer install an exact replacement part.
1i_ Being exposed to direct airflow for .an extended period o,ftime could b,e
hazardous to your health, Do, not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2i_Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices,
3 Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, peR, p,lan_, and art objects). Such usage
could damage the, items.
43The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries ,can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure t,owater can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The, fan rotates at a very high speed during operation. There is a
possibility of injury if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the,
warranty page for details or call ,(800),243-000& Have your model number and
serial number available. They should be written on page, 2 of this manual.
Owner_ Manual 7

/ntrodu'c#on
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates s_cial notes.
WARNING: This appliance should be install_ in accordance with the
National El_tric C_e.
Upper Guide
Cabinet
Front Grille
Air Filter
Horizontal Air Deflector
(Horizontal Louver)
Ve_ica! Air Deflecto, r
(Ve,rt[cal Louver),
Air Diischarge
Brace
Evaporator
Control Board
Remote Controi]ler ...............................................
Compressor
Condenser
Base Pan
Power Cord
8 Room Air Con,d_tioner

ElectricalSafety
WARNING: This appliance must be pro_rly grounded.
The power cord of this appliance is.equipped with a three-prong grounding plug.
To minimize the rusk of electric shock, use the plug with a standard three-slot
grounding wall power outlet.. IIfthe power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner,.
Changing the outlet without making the appropriate wiring
changes will create an uncle condition that could result in fire or
electrical shock. Refer all such work to a licens_ and qualified
Pt_err_ method_
E_ _rsu_eFope_ground
II exists before us4
WARNING: DO not cut or remove the grounding prong from tlhe _wer
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance gnlesis the
cover screw is metal and not insulated, and the wall r_eptacle is
grounded through the house wiring.
W'ARNING: If you have any doubt whether the air conditioner is
properly ground_, have the wal! receptacle and cimuit ch_k_ by a
qualified electrician.
Owner_ Manual 9

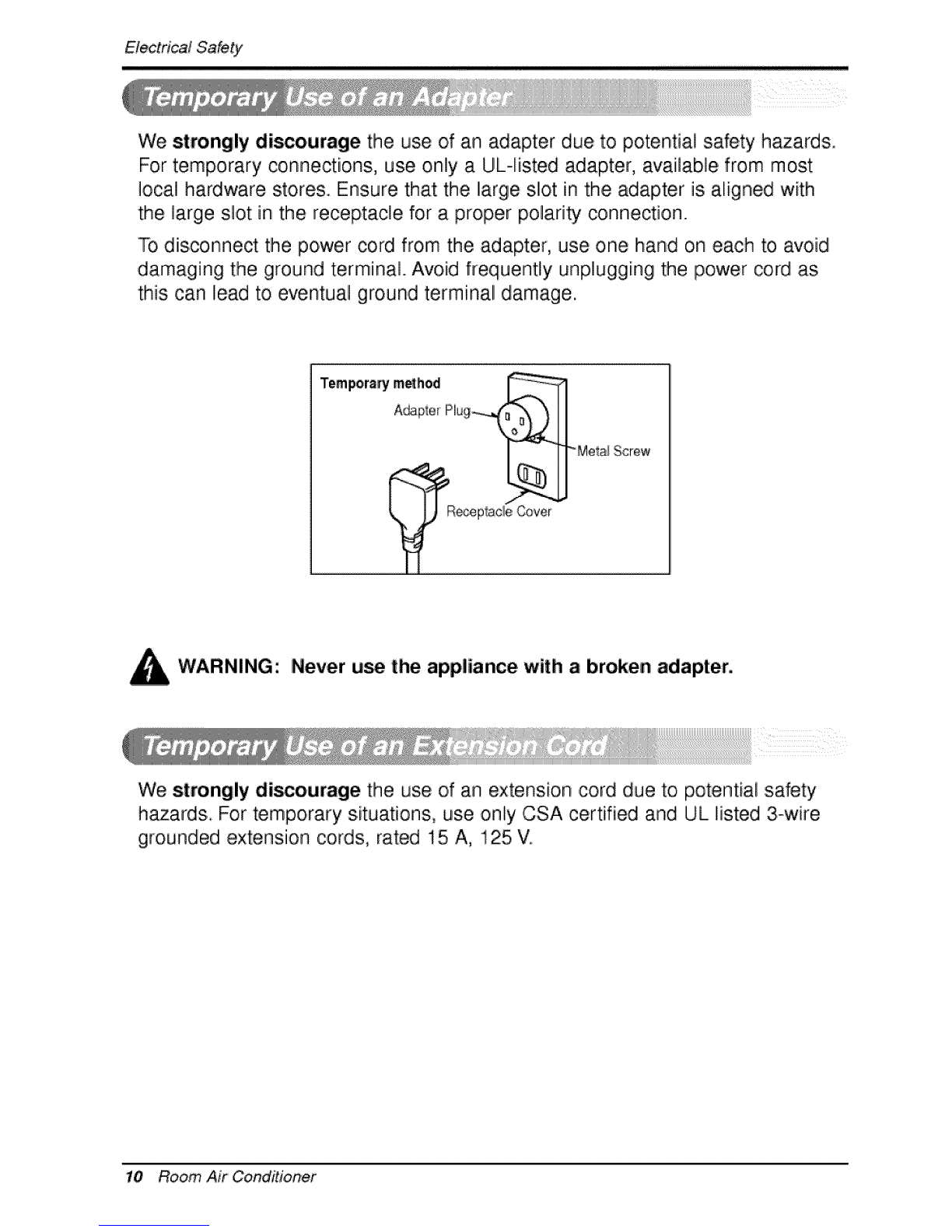

We strongly discourage the use of an adapter due to potentia! safety h_ards.
For temporary connections, use only a UL-lis.ted adapter, available from most
local hardware stores. Ensure that the large slot in the adapter is aligned with
the large slot in the receptacle for a proper polarity connection.
To,disconnect the power cord from the adapter, use one hand on each to avoid
damaging the ground terminal. Avoiid frequently unplugging the power cord as
this can lead to eventual ground terminal damage,
"_Met_ Screw
WARNING: Never u_ the appliance with abroken adapter,
We strongly discourage the use of an extension ,cord due to potential safety
hazards.. For temporary situations, use only CSA certified and UL listed 3-wire
grounded extension cords, rated 15 A, 125 \,L
10 Room Air Conditionier

tns,_ltafion
TypeA: 11 EA Type C::1 EA Ty_ D: 3 EA
(ShortScrew) ,(DrainJoint Pi_}
TypeB: 5 EA
(Wood Screw}
_ E
...._ype E: 1 EA [ype F: 1 EA Type G:2 EA lype H: i EA
(Seal Strip} (Sash Se,al} (Guide Panel}
(MhesNe backed) (Notadhesiveb_ked)
Have the fallowing tools available for installation:
* Screwdriver (,Slotted and Phillips) * Ruler
* Knife * Hammer
* Pencil * Level
This room air conditioner is
designed for installation in standard
double-hung windows with actual
opening widths from 22" to 36"_
The upper ,and lower window sash
must open sufficiently to allow a
clear verticall opening of 13" from the
bottom of the upper sash to the
wi ndow s,tooli.
,,_,_,_,,_" to 36" ---,,
13" re,in
WARNING: This product is a WINDOW AIR CONDITIONER.
As such, a standard single-hung or double-hung window is required
for proper insitallatiorl. Non-wind_ installations, including using
sleeves, holes in walls, and other installations are not recommended,
Owne, s Manud 11

Installation

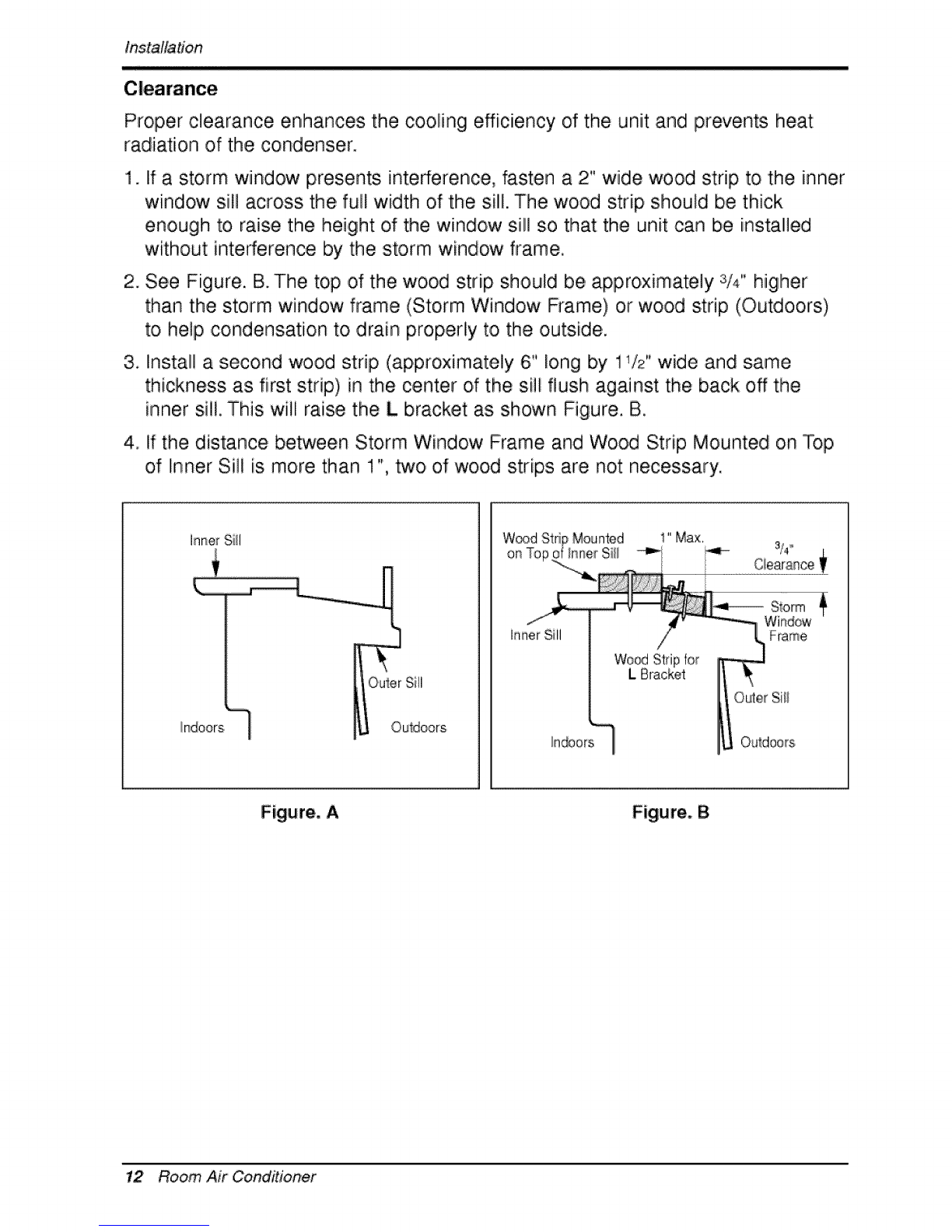

Proper clearance enhances the cooling! efficiency of the unit and prevents heat
radiation of the condenser.
1. If a storm window presents interference, fasten a 2" wide wood strip to the inner
window sill across the full width of the sill. The wood strip should be thick
enough to raise the height ,of the window sill so that the unit can b,e installed
without interference by the storm window frame.
2..See Figure. B. The top of the wood strip should be, approximately 3/4" higher
than the storm window frame (Storm Window Rame) or wood strip (Outdoors)
to help ,condensation to drain properly t,o the outside.
3. Install a second wood strip (approximately 6" long by 11/2"wide and same
thickness as first strip) in the center of the sill flush against the back off the
inner sill. This will raise the L bracket as shown Figure. B.
4. If the distance between Storm Window Frame and Wood Strip Mounted on Top
of Inner Sill is more than 1", two of wood strips are not necessary.
Inner Si_l
indoors
Figure, A Figure, B
12 Room Air Conditioner

Installation
ii

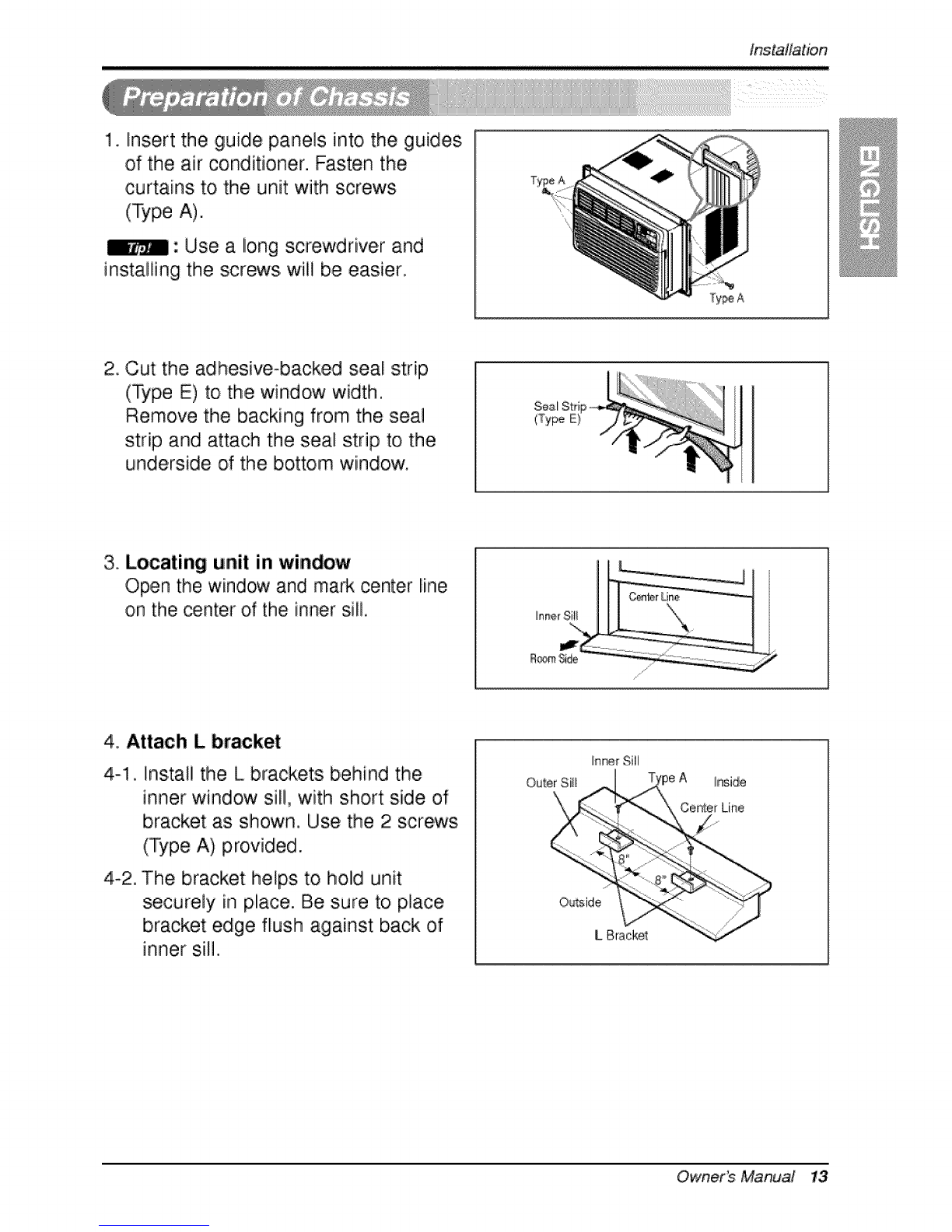

1. insert the guide panels into the guides
of the air conditioner. Fasten the
curtains to the unit with screws
(Type A).
_: Use a long screwdriver and
installing the screws will be easier,
Ty_ A
2. Cut the adhesive-backed seal strip
(Type E) to the window width,
Remove the backing from the seai
strip and attach the seal strip to the
underside of the bottom window.
3. Locating unit in window
Open the window and mark center line
on the center of the inner sill.
4Attach L bracket
4-!. Ins.tatlithe L brackets behind the
inner window sill, with short side of
bracket as shown, Use the 2 screws
(Type A) provided.
4-2. The bracket helps to hold unit
securely in pliace. Be sure to place
bracket edge flush against back of
inner sill,.
A Inside
,Cen{erLime
O_id,e
ILBracket
Owne, s Manual 13

in,stallation
Caution: During the following step, hold unit firmly until window sash
is lowered to top channel behind side panel frames, Personal injury or
property damage may result if unit falls from window.
1. Install the air conditioner in the window
1-1. Carefully ][ftthe, air ,conditioner and
slide it into the open window. Make
sure the bottom guide of the air
conditioner drops into the notches of
the L bracket.
: When the air conditioner drops
into the Lbracket, the air conditioner
will be centered in window opening.
-2 While steadying the air conditioner,
carefully bring the window sash
down behind the upper guide of the
air conditioner.
When the air conditioner [s properly
installed, it should t:ilt sligihtly down at
the back. If it is set correctly in the
window, [twill hang lower in the back
automatically. If it does not, there is a
problem with the installation.
2_S_ure the guide _neis
Extend the guide panels (Type G) to
filli the window opening using 4
screws (5ype B) to, secure them.
3install tlhe _sh seal and sash lock
3-1,
3-2,
Cut the sash seal (Type F) to the
window width Stuff the sash seal
be_een the glass and the window
to prevent air and iinsiects from
geeing into the room,
Fasten the L bracket using a screw
(Type A),.
3,_3.Remove the screws that secure the
cabinet and base pan in the right
side.
LIB_'acket
Type
Ty_ B
14 Room Air CoinditJoRec

Installation
3-4. Fasten the support bracket (Type H)
using a screw removed from the air
conditioner cabinet. Attach the
support bracket (Type H) to the inner
window sili with a screw (Type B)_
Super [email protected](TF_ H}
4Window installation of room air conditioner is now completed,,
S_ ELEiCTRICAL DATA for attaching power cord to electrical outlet.
Owner_ Manual 15

OpeFaitjn,g instructions

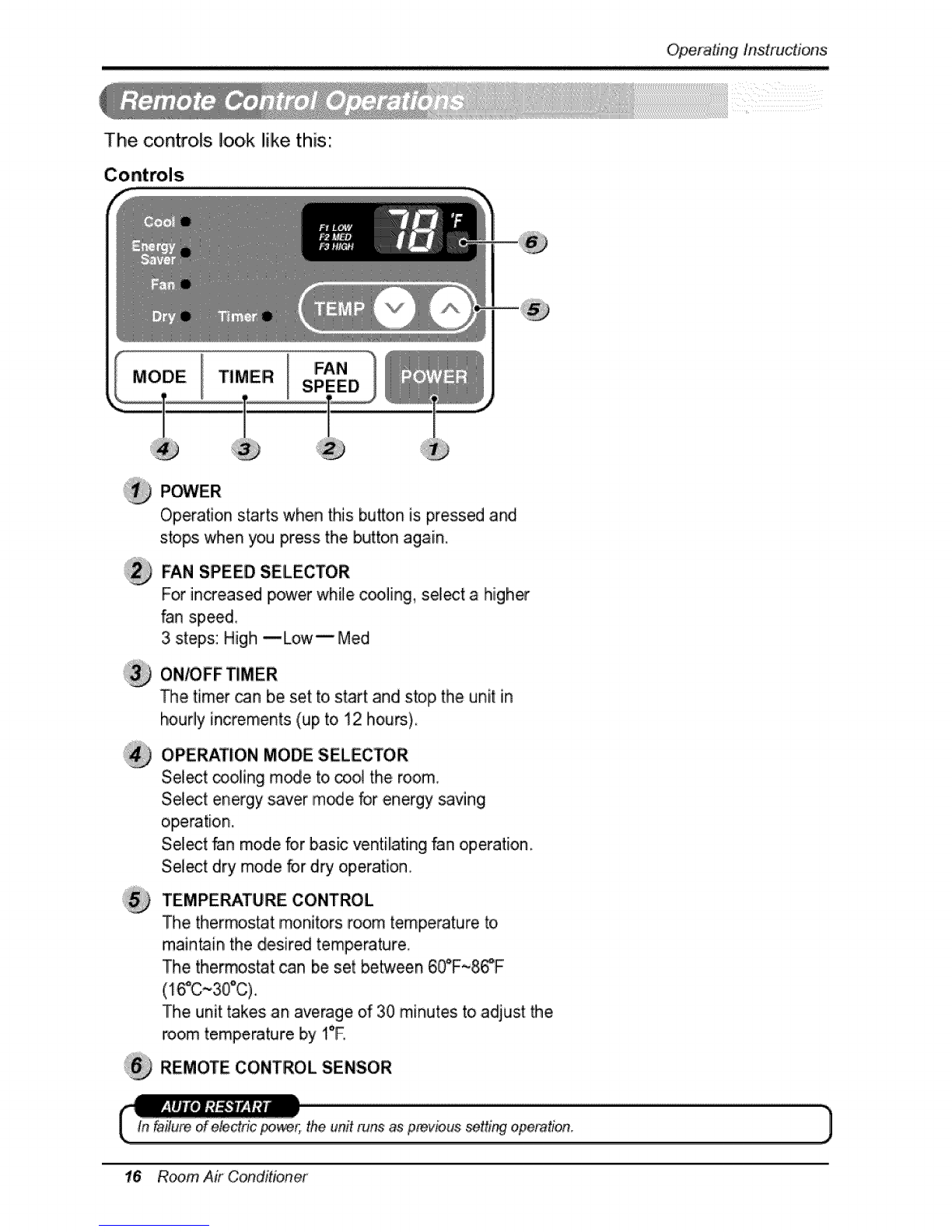

The controls ]looklike this
FAN
Operation starts when this button is pressed and
stops when you press the button again.
FAN SPEED SELECTOR
For increased power while coo,ling, select a higher
fan speed,
3,steps: High --Low i Med
Re timer can be set to,start and stop, the unit in
hourly increments (up to,12 hour).
OPERATION MODE SELECTOR
Select _oling m_e to cool the room.
Select energy saver m_e for energy saving
operation.
Select fan mode for basic ventilating _n operation.
Select dry mode for dry operation.
TEMPERATURE CONTROL
The thermostat monitors room temperature to,
main_in the desired temperature,
The thermostat can be set between 60_F~8,_F
(16"C~30°C).
The unit takes an average d30 minutes to adjust Me
room temperature by I°R
REMOTE CONTROL SENSOR
the unit _Jnsas ptevious _tting operation.
16 Room Air Conditioner

CAU'TION: Tlhe Remote Controller will not funcition pro_rly if strong
light strikes the sensor wind_ of the air conditioner or if there are
obs_cles Ibe_een the Remote Controller and the air conditioner.
Operation starts when this button is pressed and
stops when you press the button again,
Temperature Control
The thermostat monitors room temperature to
maintain the desired temperature,
The thermostat can be set between 60°F~86°F
(16"C~30"C).
The unit takes an average of 30 minutes to adjust the
room temperature by 1 F.
FaR ,Speed
For increased power while c_lling, select a higher
fan speed.
3 steps: High-Low-M_
Fan S_ed
Power
The timer can be set to sta_ and stop the unit in
houdy incremen%(up to t2 hours:),
O,pe_tion Mode Selectom
Select cc.oling mode to cool the room,
Select energy saver mode for energy saving
Select fan mode for basic ventilating fan oiperation,
Select dry mode for dry operation.,
H_ to In_
1i.,Remove the cover from the _ck dthe remote
controller
2_ Inert two ba_eri_.
Be sure o# _e polarity when installing the
batteries.
Be sure that both batteries are new.
3. Re-attach _e cover.
Do not use rechargeable
batteries,,,Such batteries
differ from standard dry _lls
in sha_, dimensions, and
performance.
Remove the batteri_ _rom
the remote controller if the air
conditioner is not going to be
used for an extend_ length
of time,
Owner's Manual 17

Operating instructions
Air Dire_ion
Airflow can be adjusted by changing the direction of the
air _,nditJoner's louvers, This can a_so increase the
cooling efficiency of me air conditioner
Adjusting Horizontal Air Flow Direction
Adius_ng the ve_i_U louvers Ueftand right will
change horizontal ai_ow.
Adjusting Ve_ical Air Flow Direction
Adiusflng the horizon_l vane up and down will
change vertica!l .airflow, The vane can be .adjusted
by nudging 'the back or up and down of the vane.
Recommended orientation _ louvers
Adiust louvers to face upwards when cooling
'to maximize cooling efficiency.
Adjusting hodzon_! air 'flow
Adjusting vertical air flow
Vent Control
For maximum _oling efficient, CLOSE the venL [his will allow in[ernal air circulation°
OPEN the ven[ to discharge stale air.
CLOSE,_VENT_OP'EN
18 R_)m Air Ce_idoner

Operating Instructions
Drain Pipe
In humid weather, excess water may
cause the Base Pan to overflow. To
drain the water, remove the Drain Cap
and secure the Drain Pipe to the rear
hole of the Base Pan.
Press the drain pipe into the hole by
pushing d_n and away from the fins
to avoid injury.
This air _nditioner is equipped with a
slinger fan. (See drawing, below:)
The fan has an outer ring that runs in
the water that collects in the base pan
if it gets deep. That condensate is then
picked up by the fan and expelled
through the _ndenser, making the air
_nditioner more efficient.
Be careful when inseffing the drain pi_. Push away from
the sharp fin area to avoid slipping injuring you_elf.
Removal From Window
Turn the air conditioner off, disconnect the power cord, remove the L bracket, the
screws and Support Bracket installed through the top and bottom dthe guide
panels, and save for reinstallation later: Close the guide panels. Keeping a firm grip,
on the air condiitioner; raise the sash, andi cardullly tilt the air conditioner Ibackward,
d_ining any condensate, Lift the air conditioner from the window and remove the
sash seal from between the windows.
Be sure to drain ALL condensate from the air conditioner. IIfyou don't, it _ulld! ruin
out while you carry the unit, making a mess and creating a slipping hazard, This
simple step wil! save you much cleaning and make a safer work environment
O'wner,s Manual 19

Maintenance ,aitld Service

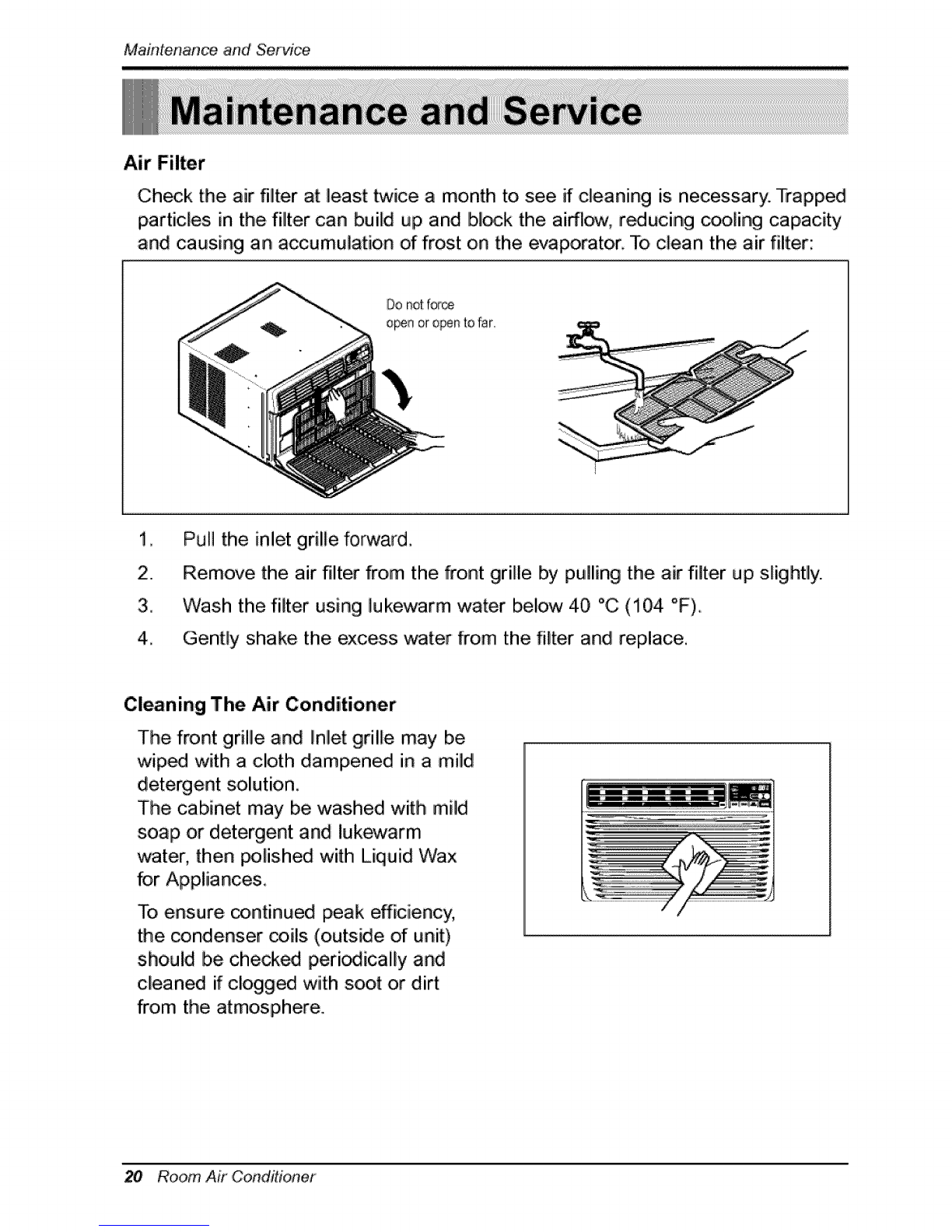

Air Filter
Check the air filter at least: twice a month to see if cleaning is necessary.. Trapped
particles in the filter can build up and Ibl_k the airflow, r_ucing _oling capacity
and causing an accumulation of frost on the evaporato,r, To clean the air filter:
Donot'ror_
openoro_n tofar.
1.
2.
3.
4.
Pull the inlet grille forward.
Remove the air filter from the front grille Iby pulling the air filter up slightly:
Wash the filter using lukewarm water below 40 °C (1i04 °F).
Gently shake the excess water _om the filter and replace.
Cleaning The Air Conditioner
The front grille and Inlet grille may be
wip_ with a cloth dampened in a mild
detergent solution,
The cabinet may be washed with mild
soap or detergent and lukewarm
water, then _iished with Liquid Wax
for Appliances
To ensure continued peak efficiency,
the condenser _ils ,(outside of unit),
should be check_ periodically and
cleanedl if clogged with soot or dirt
from the atmosphere.
20 Room Air ,C'onditi_er
