HAMPTON BAY HBLG1800H User manual

C N ITIONE
£ RII IR I
II
Please read the operating instructions and safety precautons
carefu/y and thoroughly before installing and operating your
room air conditioner.
N ICI
I ST ,
_=I=LIIOPll _AIIO
Pot favor lea las instrucciones de operaciOn y las precauciones
de segundad cuidadosa y totalmente antes de instalar y operar
su acondicionador de aire de ventana,
MODEL, MODELO" HBLG1800H
Manufactured bv LG Electronics

.o

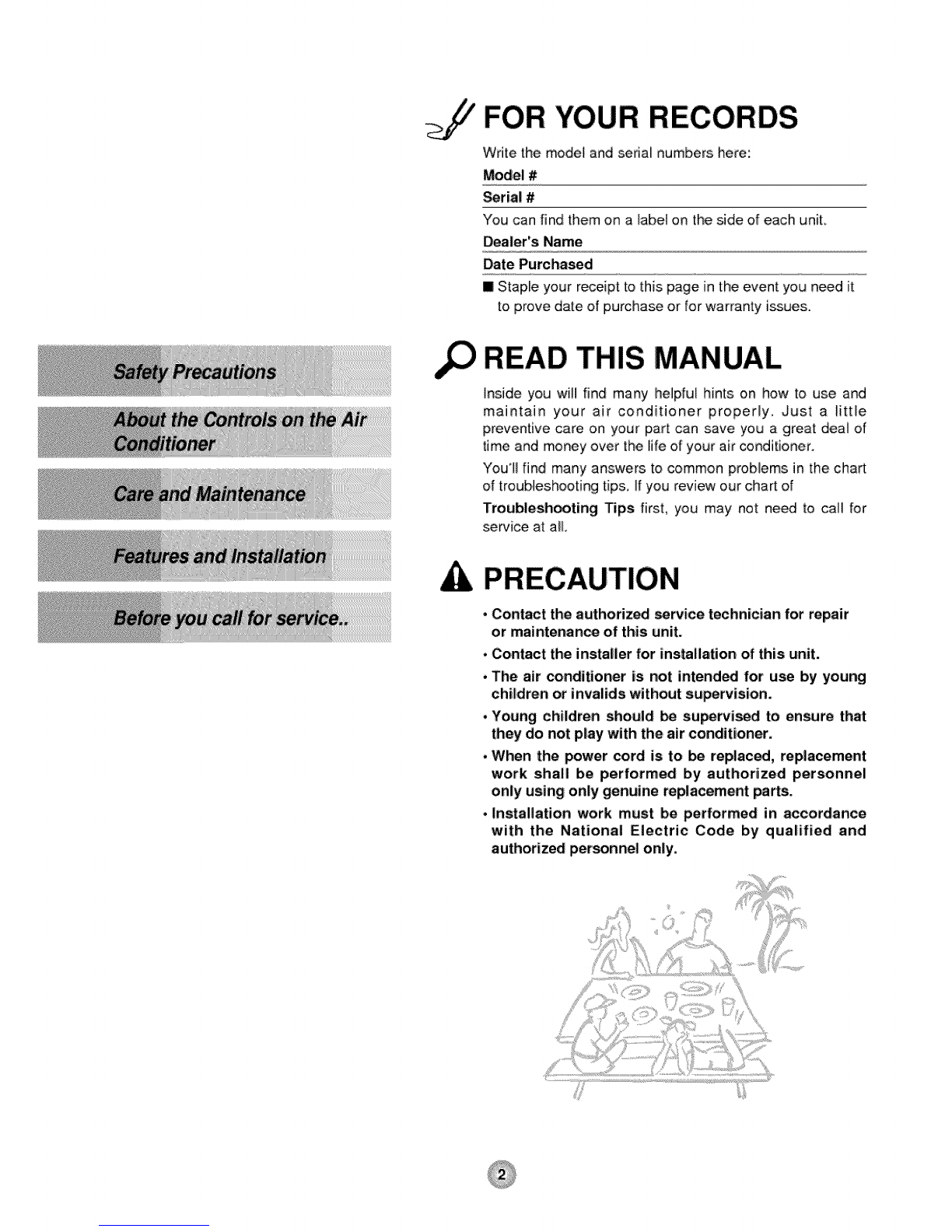

FOR YOUR RECORDS
Wdte the model and sedal numbers here:
Model #
Serial #
You can find them on a label on the side of each uniL
Dealer's Name
Date Purchased
II Staple your receipt to this page in the event you need it
[o prove date of purchase or for warranty issues.
READ THIS MANUAL
inside you will find many helpful hints on how to use and
maintain your air conditioner properly, Just a _itt_e
preventive care on your part can save you agreat deal of
time and money over the iJfeof your air conditioner.
You'L! find many answers to common problems in the chart
of troubleshooting tips, if you review our chart of
Troubleshooting Tips first, you may not need to call for
sewice at all
PRECAUTION
•Contact the authorized _rvice technician for repair
or maintenance of this unit.
•Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervisiom
• Young children should _su_rvised to ensure that
they do not play with the air conditioner.
• When the power cord is to _replaced, replacement
work shall be performed by authorized personnel
only using only genuine replacement parts.
°Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.

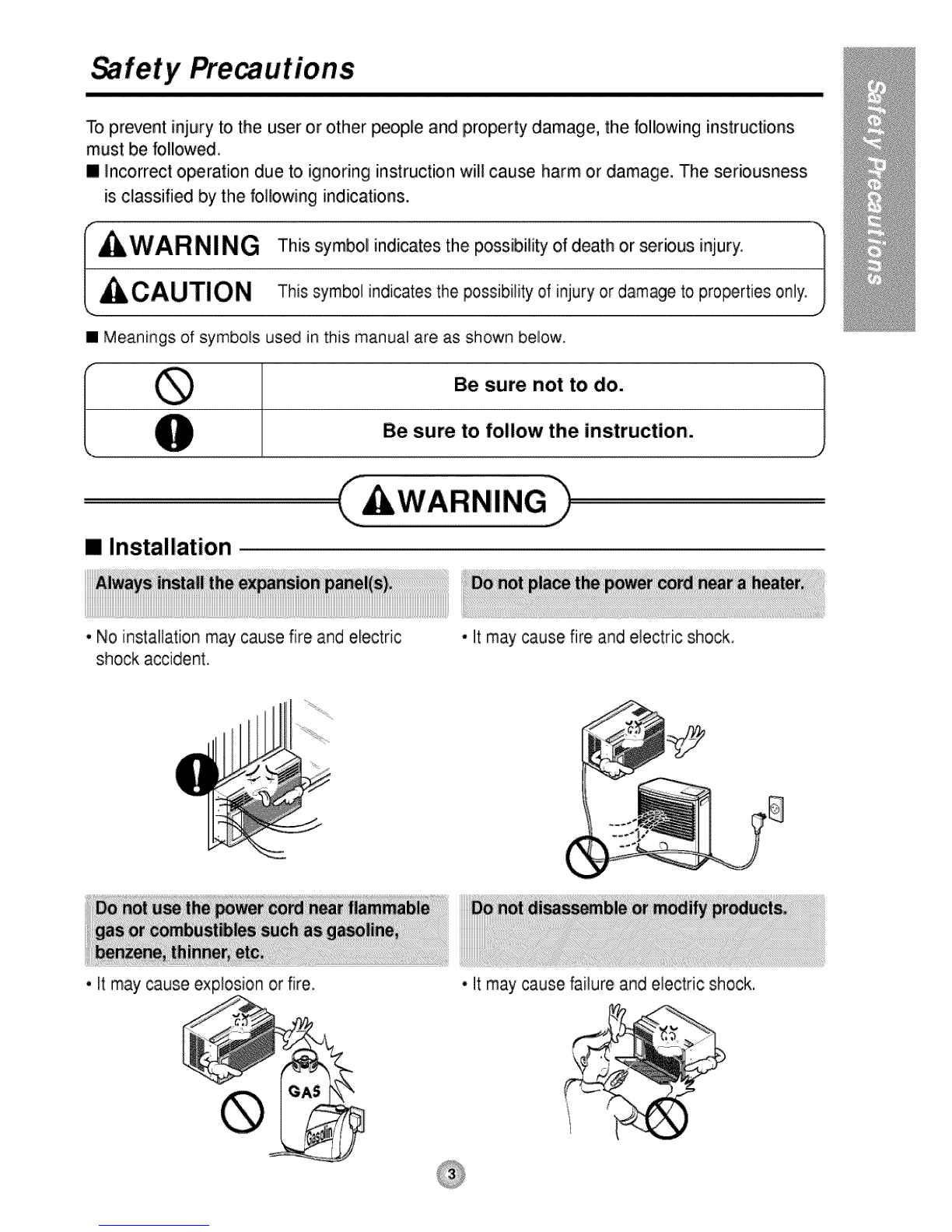

fety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
[] incorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is c_assified by the foilo,Mng indications.
WARNING
CAUTION
[] Meanings of symbols used in this manual are as shown beUow_
This symbol indicates the possibility of death or serious injury',,
Thissymbol indicates the possbility of injury or damage to properties only,
Be sure not to do.
Be sure to follow the instruction.
[] Installation
•No installation may cause fire and electric • it may cause fire and electric shock.
shock accident.
•It may cause explosion or fire, • itmay cause failure and electric shock.

•Operation
• Otherwise, it will cause electric
shock or fire due to heat
generation or electric shock,
• ]t will cause electric shock or
fire due to heat generation.
• Othe_ise it may cause fire
and electric shock accident.
,it will cause electric shock or
fire due to heat generation.
•it will cause electric shock or
fire due to heat generation.
• It may cause fire and electric
shock.
• Itwill causeebct:ricshockor
fire.
• No grounding may cause
electric shock (See installation
Manual).
• it will causeelectricshock.

i_i5_!_!_i£_!i_i__!_!_!_!i_i!_ii_£i_!:!_!_!_i_i!i_!ii
i,!,!!_ii_iii£i_!i!i!!i_il_i!££!!_i_'__i_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iii_iii_iii!iii!iii!iiiiiiiii_i_i
!!ii!!!!!!!!!!!!!!!!!!!!i!ii!!iii]!i!iii

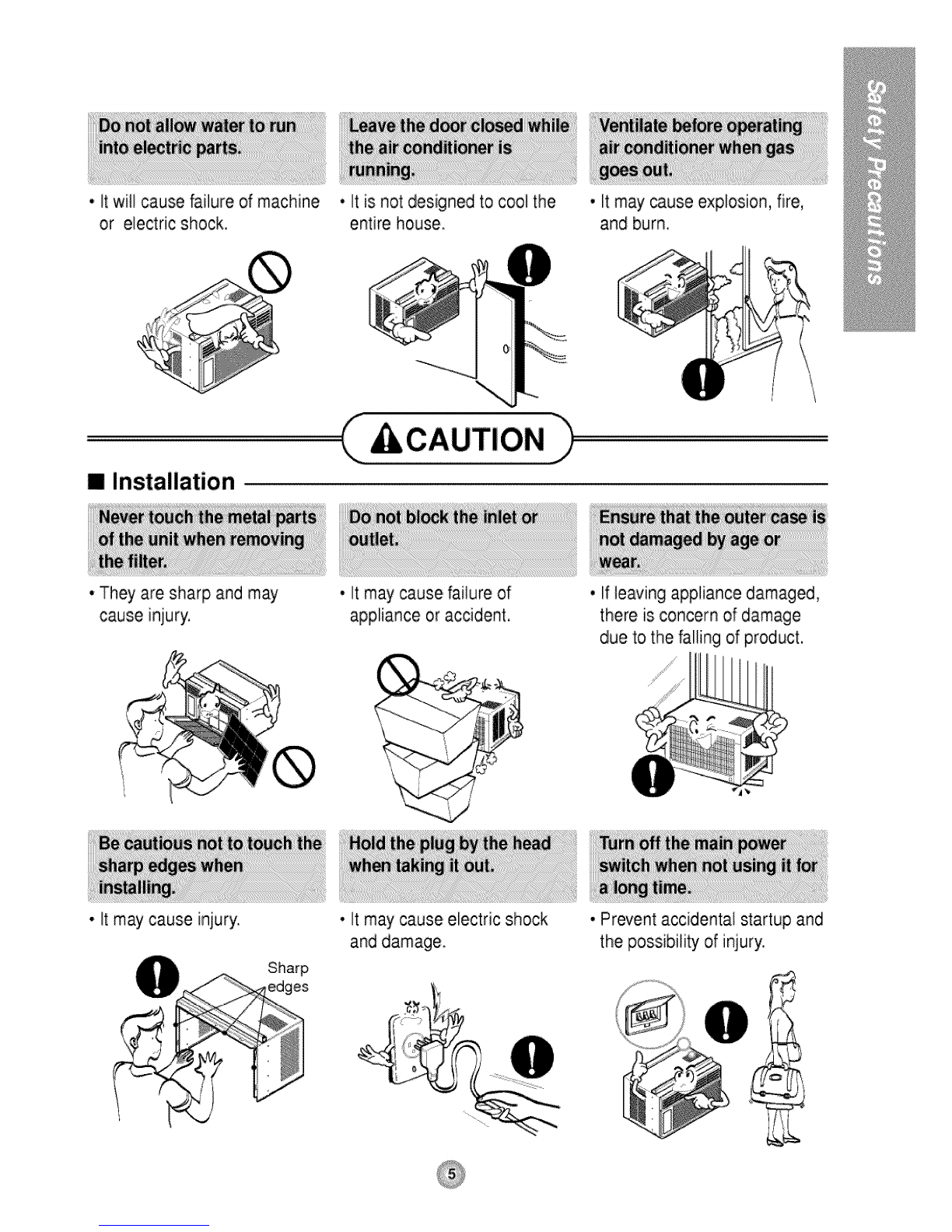

•Itwill cause failure of machine
or electnc shock.
nInstallation
•They aresharp and may
causeinjury.
• It may cause injury.
Sharp
edges
• it is not designed to cool the
entire house.
• It may cause falure of
appliance or accident.
• It may cause electric shock
and damage.
• It may cause explosion, fire,
and burn.
• If leaving appliance damaged,
there is concern of damage
due to the fa/ing of product.
• Prevent accidental startup and
the possibility of injury:

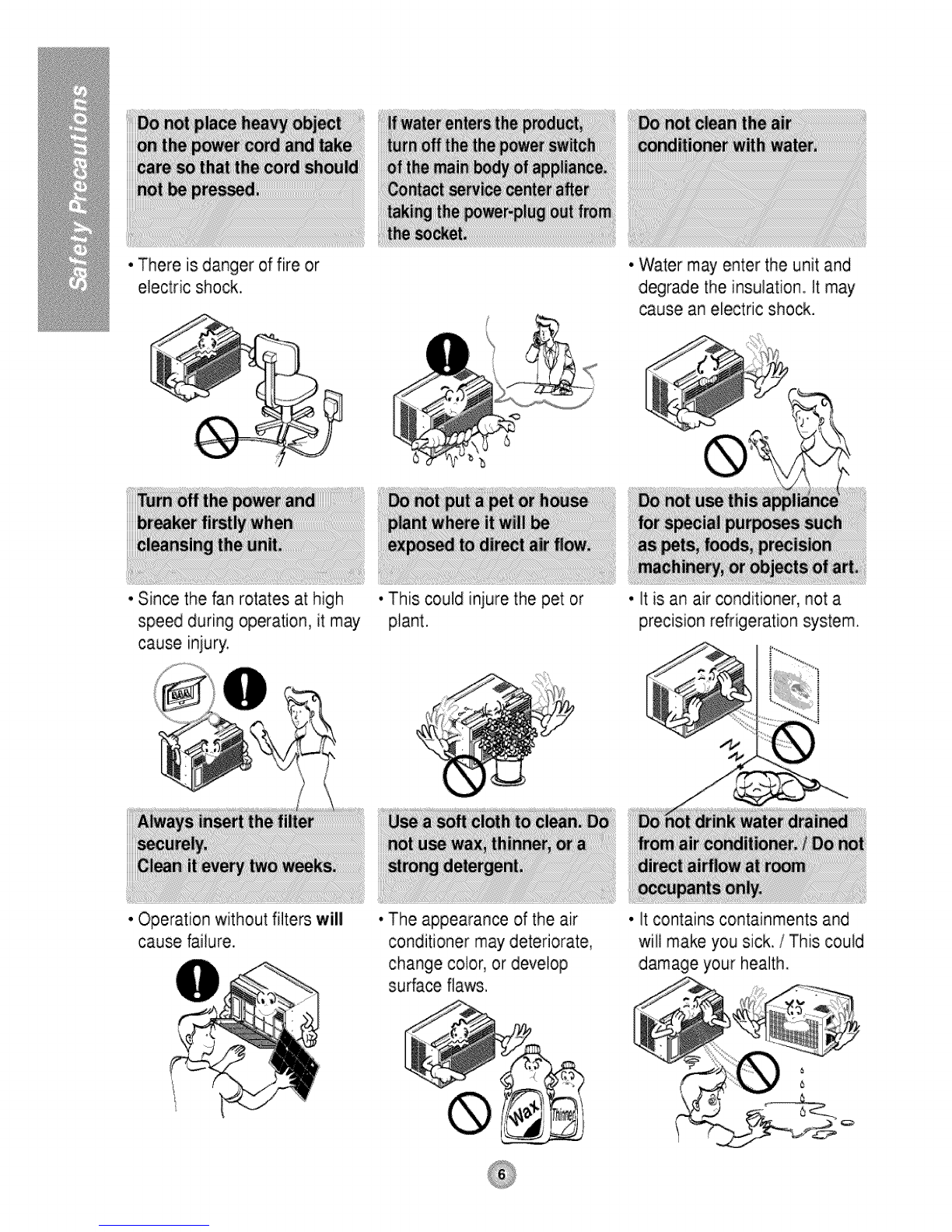

• There is danger of fire or
electric shock. • Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
• Since the fan rotates at high
speed during operation, it may
cause injury.
• This could injure the pet or
plant, • It is an air conditioner, not a precision refrigeration system.
• Operation without filters will
cause failure. • The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws,
• It contains containments and
will mane you sick. /This could
damage your health.

About the ntro, ls on the Air Conditioner
The controls will look like one,of the following.
WARNING: To reduce the risk of fire, ei_tric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
CAUTION: When the air conditioner has b_n performing its cooling
operation and is turned off or set to the fan position, wait at least 3
minutes before res.e_ing to the cooling operation again.
FUNCTION
Thermostat A_o Swing
War_r ¢_oler
'WaitTh_ee #ir_tes Hgh He_ H_gh Ceol
,THERMOSTAT
Turn the thermostat _ntrol to the desired
setting. The centrol position is a normal setting
for average conditions. You can change this
setting, if necessary, in accordance with your
temperature preference.
The thermostat automatically controls cooling or
heating, but the fan runs continuously whenever
the air conditioner is in operation. If the room is
too warm, turn the thermostat control clo_wise.
If the room is too cool, turn the themostat _ntrol
anticlockwise.
• Auto Swing
ON : Starts the operation of air swing.
OFF : Stops the operation of air swing.
Please turn off Auto Swing when Operation Switch
iS Off. Auto Swing
Off On
•OPERATION
OFF ( 0
FAN ( 0
LOW COOL (
HIGH COOL ( _1}_
LOW HEAT ( -,_ ):
HIGH HEAT (_) :
:Turns the air conditioner off.
: Permits the low fan speed
operation without cooling
(heating).
: Permits cooling with the low
fan speed operation.
: Permits cooling with the
high fan speed operation.
Permits heating with the low
fan speed operation.
Permits heating with the
high fan speed operation
A siight heat odor may come from the unit
when first switching to HEAT after the
cooling season is over. This odor, caused
by fine dust particles on the heater, win
disappear quickly.

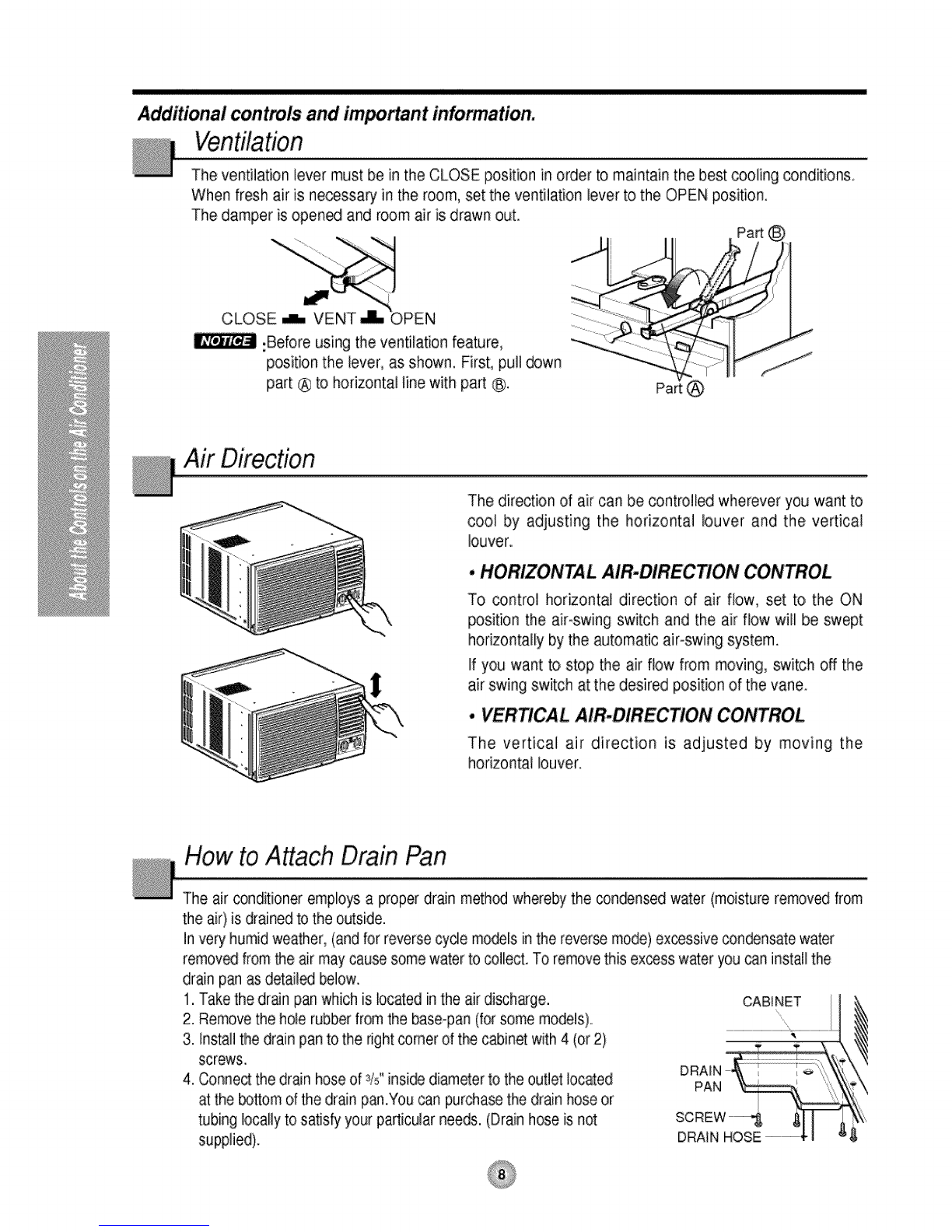

Additional controls and important information.
The ventilation lever must be in the CLOSE position in order to maintain the best cooling _nditions.
When fresh air is necessary' in the room, set the ventilation lever to the OPEN position.
The damper is open_ and room air is drawn out.
:Before using the ventilation feature,
position the lever, as shown. First:,pull down
part @to horizontal line with part ®.
i
I
I
i
Pa_
Air Direction
The direction of air can be controlled wherever you want to
cool by adjusting the horizontal louver and the vertical
louver..
. HORIZONTAL AIR-DIRECTION CONTROL
To control horizontal direction of air flow, set to the ON
position the air-swing switch and the air flow will be swept
horizontally by the automatic air-swing system.
If you want to stop the sir flow from moving, switch off the
air swing switch at the desired position of the vane.
. VERTICAL AIR- TION CONTROL
The vertical air direction is adjusted by moving the
horizontal louver.
How to Attach Drain Pan
The air conditioner employs a proper drain method whereby the con@nsed water (moisture removed from
the air} is drained to the outside.
Invery humid weather, (and for reverse cycle mo_ls in the reverse mode) excessive con_nsate water
removed from the air may cause some water to collect. To remove this excess water you can install the
drain p_ as detail_ below.
1.Take the drain pan which is located inthe air di_hage. CABINET
2. Remove the hole rubber from the base-pan (for some models). .............
3. Installthe drain panto the right comer of the cabinet with 4 (or 2) "*
screws.
4. Connect the drain hose of 3/5"insi_ diameter to the outlet locked PAN
at the _ttom of the drain p_.You _n purchase the drain hose or
tubing locally to sa_sfy your particular needs. (Drain hose is not
supplied). DRAIN HOSE

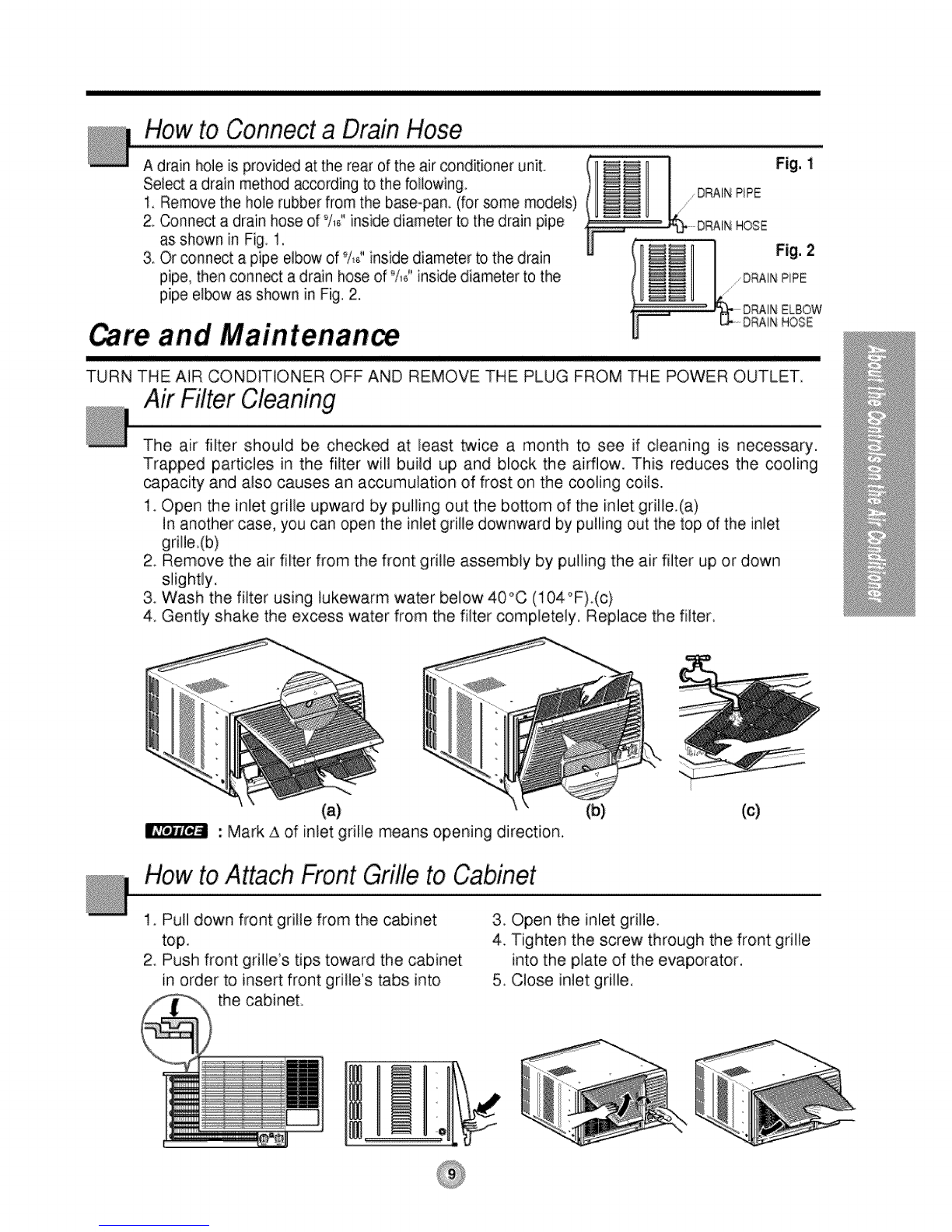

How to Connect a Drain Hose
A drain hole is provided at the rear of the air condit:ioner unit. ii I Fig. 1
Select a drain method according to the following _ DRAINPiPE
1. Remove the hole rubber from the base-pan. (for _me models)
2. Connect a drain hose of % inside diameter to the drain pipe _ '_t, DRAfNHOSE
as shown in Fig. 1, ,,
3. Or connect a pipe elbow of %, inside diameter to the drain _ Fig. 2
pipe' then c°nnect a drain h°se °f _/1_'inside diameter t° the (1_1
pipe elbow as shown in Fig. 2. DRAINELBOW
_re and Maintenan_ F ORA,NHOSE
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET
Air Filter Cleaning
The air filter should be checked at least twice a month to see if cleaning is necessary.
Trapped particles in the filter will build up and block the airflow. This reduces the cooling
capacity and also causes an accumulation of frost on the cooling coils.
1. Open the inlet grille upward by pulling out the bosom of the inlet gdlle.(a)
in another case, you can open the inlet grille downward by pulling out the top of the inlet
grille.(b)
2. Remove the air filter from the front gdlle assembly by pulling the air filter up or down
slightly.
3. Wash the filter using lukewarm water below 40°C (104°F).(c)
4. Gently shake the excess water from the filter completely. Replace the filter.
(a)
: Mark A of inlet grille means opening direction.
How to Attach Front Grille to Cabinet
(b) (c)
1. Pull down front grille from the cabinet
top
2. Push front griIWs tips toward the cabinet
in order to insert front grille's tabs into
the cabinet
3. Open the inlet grille.
4 Tighten the screw through the front grille
into the plate of the evaporator,
5 Close inlet grille,

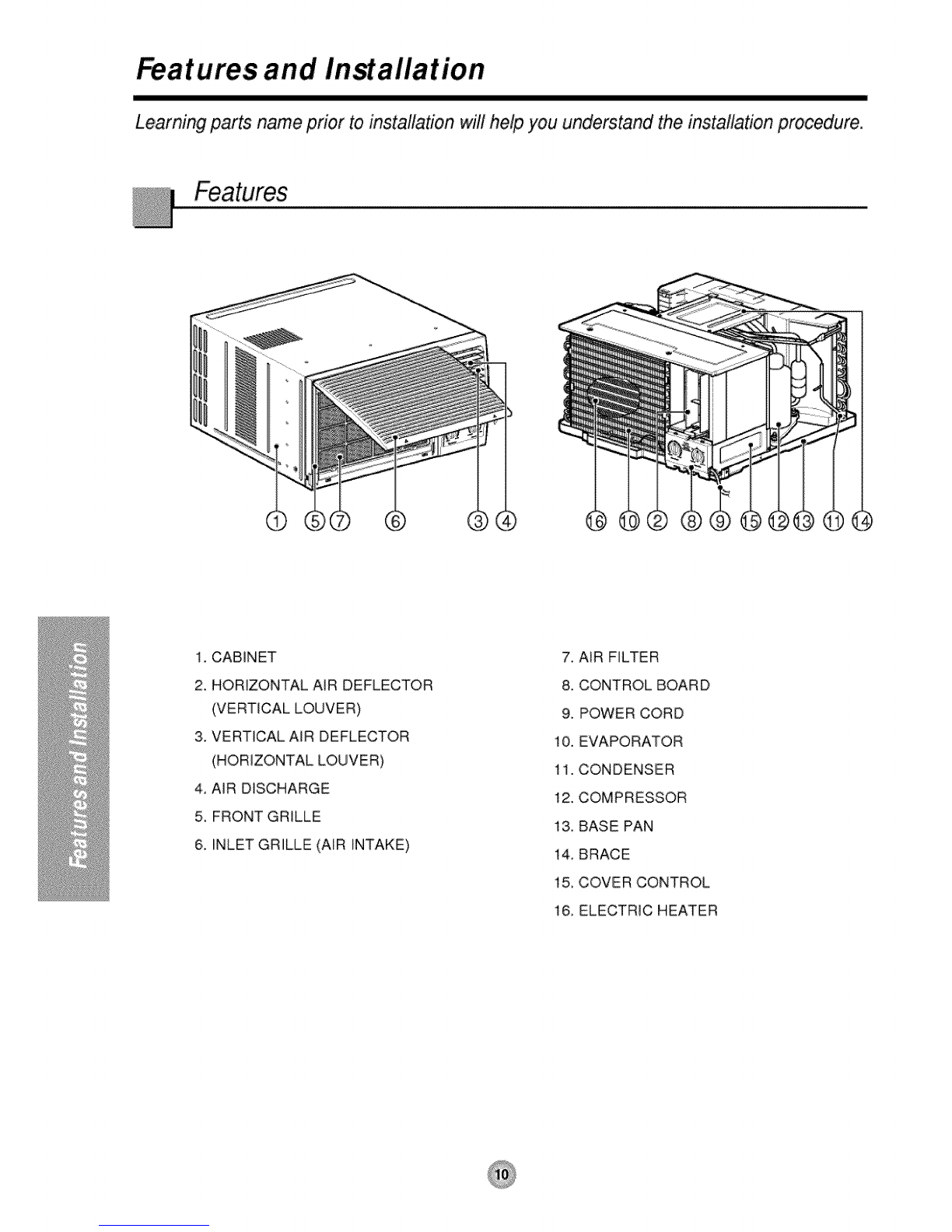

Features and InMallation
Learning parts name prior to installation will help you understand the installation procedure.
1. CABINET
2. HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
3. VERTICAL A_R DEFLECTOR
(HORIZONTAL LOUVER)
4, AIR DISCHARGE
5, FRONT GRILLE
6, INLET GRILLE (AIR INTAKE)
7. AIR FILTER
8. CONTROL BOARD
9. POWER CORD
10. EVAPORATOR
11. CONDENSER
12. COMPRESSOR
13, BASE PAN
14, BRACE
15. COVER CONTROL
16, ELECTRIC HEATER

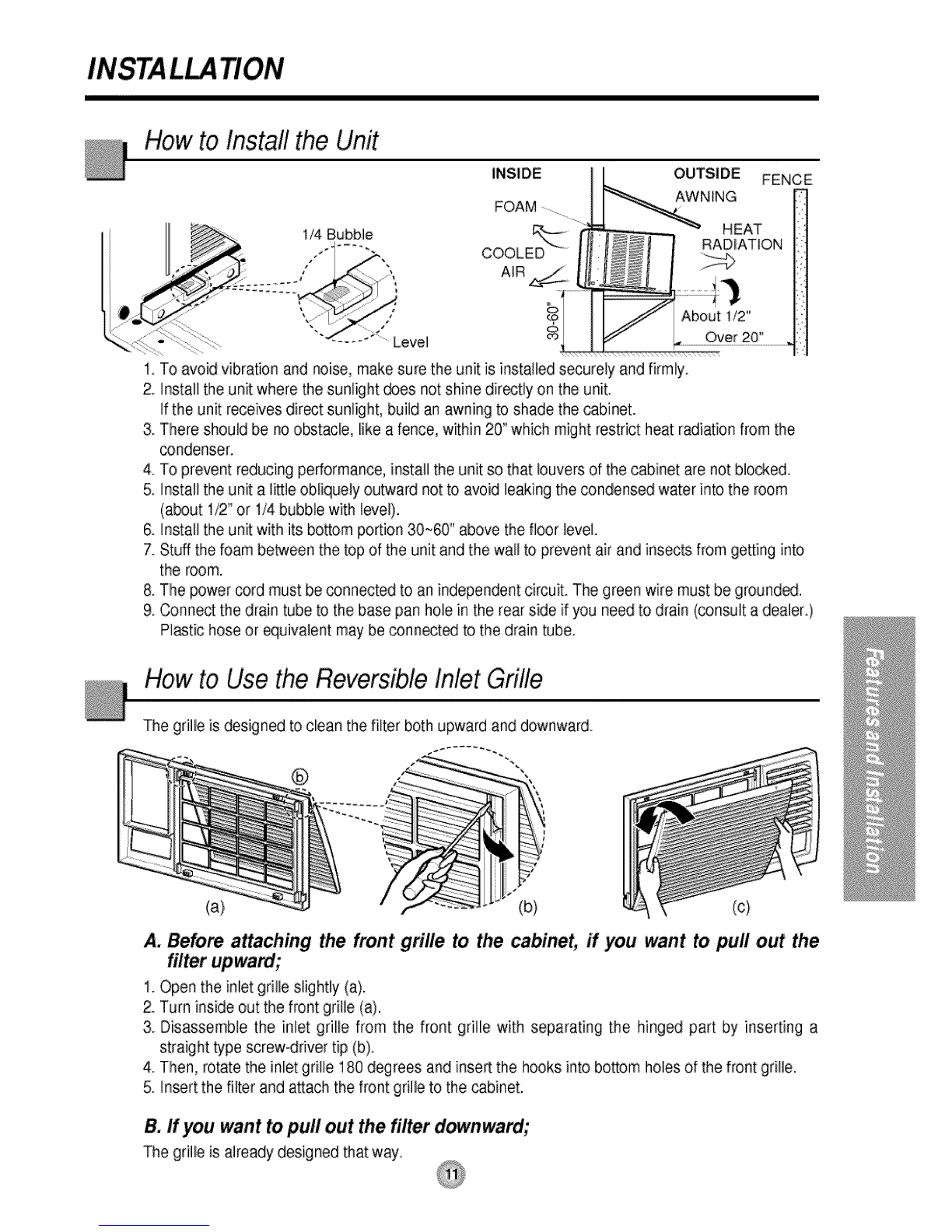

How to Install the Unit
1/4 Bubble
INSIDE OUTSIDE FENCE
AWNING
FOAM ...........
COOLEU_ HEAT
RADIATION
% About 1/2'_
Over 20"
1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. install the unit where the sunlight _es not shine dir_tly on the unit.
if the unit receives dir_t: sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, like a fence, within 20" which might restrict heat radiation from the
_ndenser.
4. To prevent reducing performance, instal] the unit so that louvers of the cabinet are not blocked.
5. install the unit a little obliquely outward not to,avoid leaking the condensed water into the room
(about 1/2" or 1/4 bubble with level).
6. install the unit with its bottom portion 30~60" above the floor level.
7. Stuff the foam between the top of the unit and the wa!l to prevent air and insects from getting into
the room.
8. The power _rd must be connected to an independent circuit. The green wire must be ground_.
9. Connect the drain tube to the base pan hole in the rear side if you need to drain (_nsult a dealer.)
Plastic hose or equivalent may be conn_t_ to the drain tube.
How to Use the Reversible Inlet Grille
The grille is designed to clean the filter both upward and downward.
@ ",
(a)
A. Before attaching
(b) (c)
the front grille to the cabinet, if you want _puff out the
1. Open the inlet grille slightly (a).
2. Turn inside out the front grille (a).
3. Disassemble the inlet grille from the front grille with separating the hinged part by inserting a
straight type screw-driver tip (b).
4. Then, rotate the inlet grille 180 degrees and insert the hooks into bottom holes of the front grille.
5. insert the filter and attach the front grille to the cabinet.
B. If you want to,puff out the filter downward;
The grille is already designed that way,

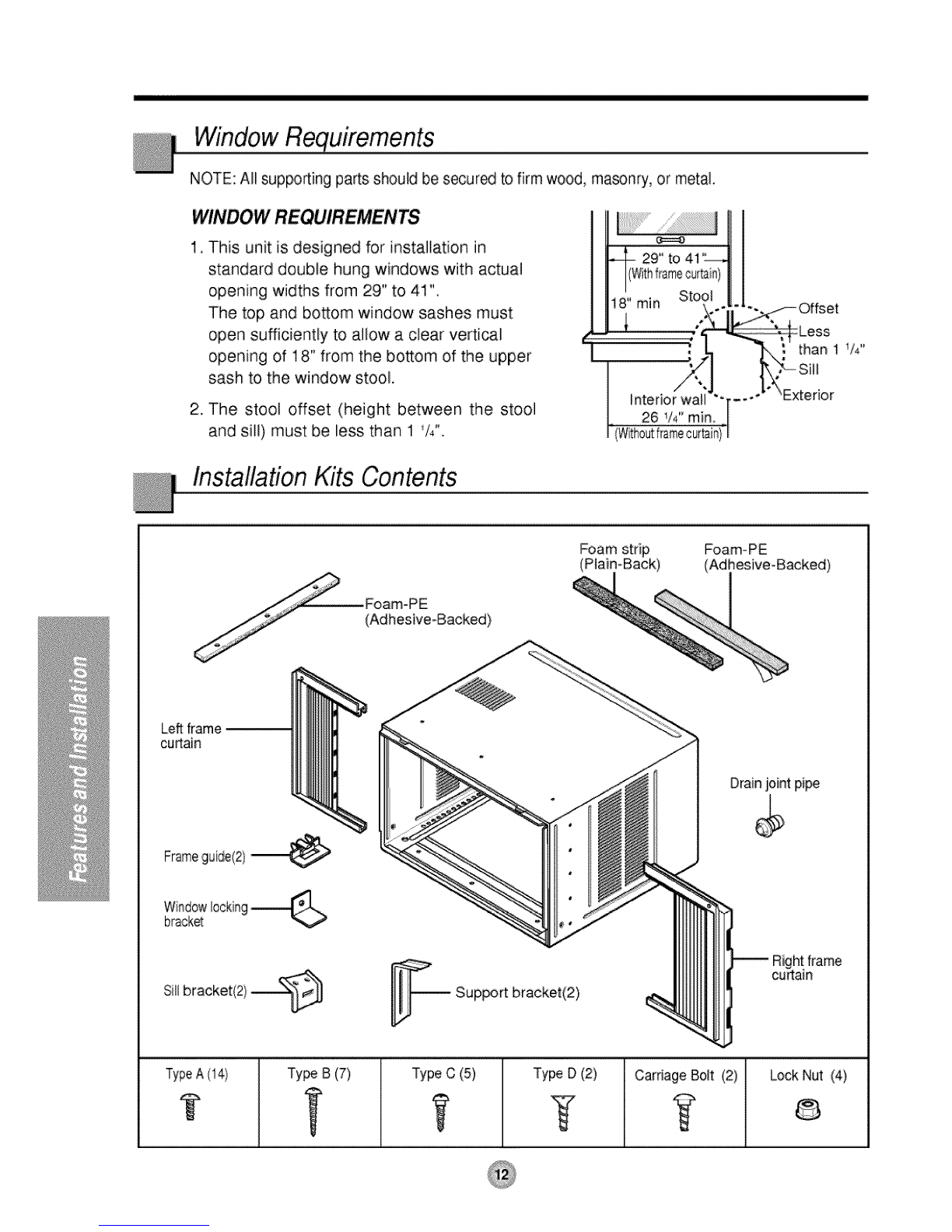

WindowRequirements
NOTE: AI supporting parts should be secur_ to firm wood, masonry, or metal.
WINDOW REQUIREMENTS
1. This unit is designed for installation in
standard double hung windows with actual
opening widths from 29" to 41".
The top and botom window sashes must
open sufficiently to a/owa cFear vertical
opening of 18" from the bottom of the upper
sash to the window stool.
2. The stool offset (height between the stool
and sill) must be less than 1 V4".
InstallationKits Contents
Foam strip Foam-PE
(Plain-Back) (Adhesive-Backed)
/
TypeA(14) Ty_ B (7) Type C (5) Type D (2) CarriageBolt (2) Lock Nut (4)

Suggested ToolRequirements
SCREWDRIVER(+,-), RULER, KNIFE, HAMMER, PENCIL, LEVEL
PREPARATION OF CHASSlS
1. Remove the screws which fasten the cabinet at
both sides and at the back.
2, Slide the unit out flom the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabinet,
3. Cut the window sash seal to the proper length. Peel
off the backing and attach the Foam-PE to the
underside of the window sash.
Shippingscrews
4. Remove the backing from Foam-PE with 3 holes
and attach it to the bottom of the Top retainer bar.
5, Attach the Top retainer bar on the top of the cabinet
with 3 screws (Type A),
6. Insert the Frame guides into the bottom of the
cabinet.
7. Unse_ the Frame Curtain into the Top retainer bar
and Frame guides. Foam-PE
Top retainerbar
8, Fasten the cu_ains to the unit with 10 screws
(Type A) at both sides. Top retainer_r
Screw
(TypeA)
"Frameguide
Screw(TypeA)

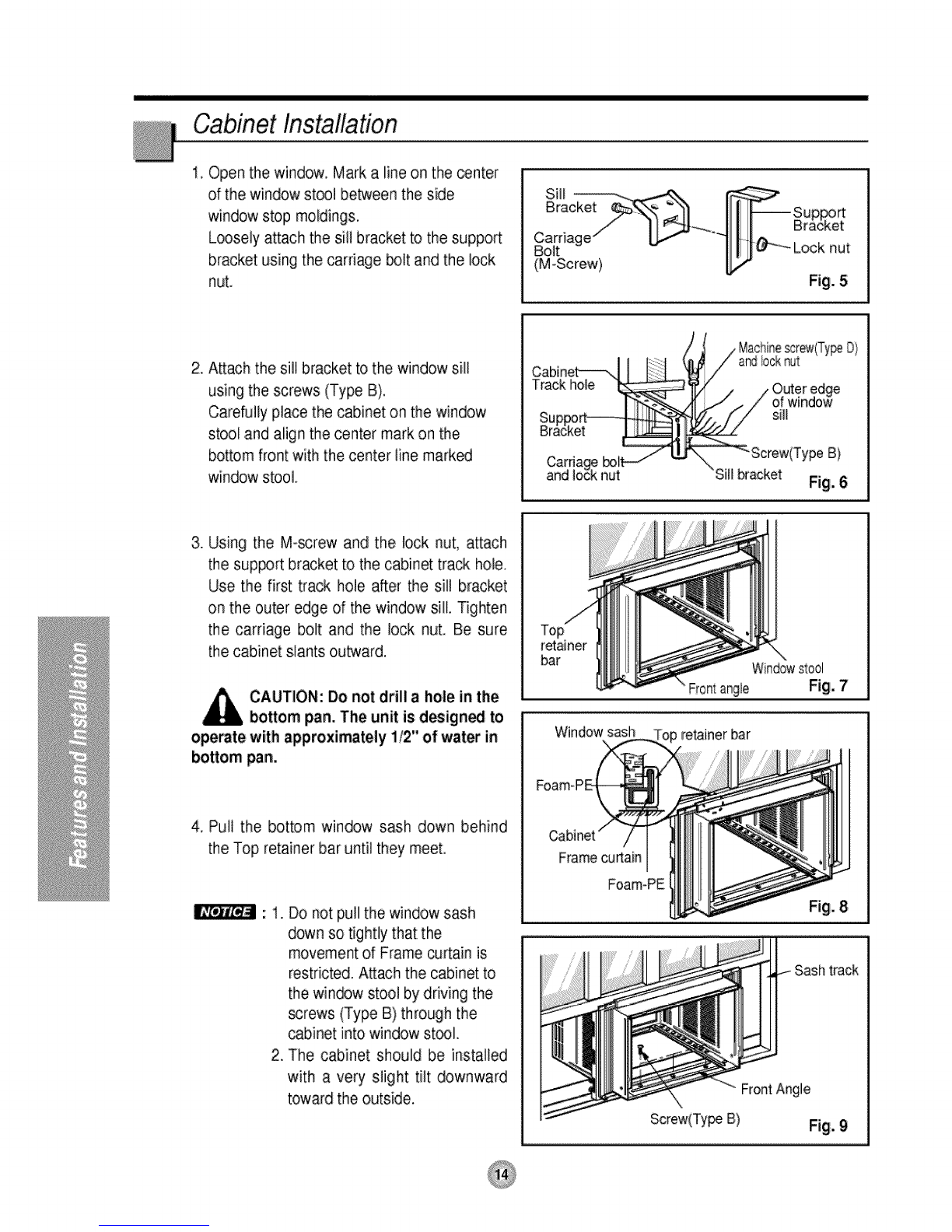

Cabinet Installadon
1. Open the window, Mark a line on the center
of the window stool between the side
window stop moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the lock
nut.
Sill
Bracket
Carriage
Bo_t
(M-Screw) nut
2. A_ach the sill bracket to the window s,ill
using the screws (Type B).
Carefully place the cabinet on the window
stool and align the center mark on the
bottom front with the center line marked
window stool. Carnage
and Jocknut
Machinescrew(Ty_D)
andlocknut
O_er edge
window
sill
B)
"SJl[bracket
3. Using the M-screw and the lock nut, attach
the sup_rt bracket to the cabinet track hole.
Use the first track hole after the sill bracket
on the outer edge of the window sill. Tighten
the carriage bolt and the lock nut. Be sure
the cabinet slants outward.
CAUTION: Do not drill ahole in the
bottom pan. The unit is designed to
operate with approximately 112" of water in
bottom pan.
4, Pull the bottom window sash down behind
the Top retainer bar until they meet.
:1. Do not pull the window sash
down so tightly that the
movement of Frame curtain is
restricted. Attach the cabinet to
the win_w stool by driving the
screws (Type B) through the
cabinet into window st_l.
2. The cabinet should be installed
with a very slight tilt downward
toward the outside.
retainer
bar
Window sash
Framecu_ain
Foam-PE
Windowstool
Frontangle
retainerbar
track
FrontAngle
Screw(Ty_ B)

5. Pull each Frame curtain fully to each window
sash track, and pull the bottom window sash
down behind the Top retainer bar until it
meets.
6, Attach each Frame curtain the window saslh
by using screws (Type C.) (See Fig. 10)
7, Slide the unit into the cabinet,(See Fig. 11)
CAUTION: For security purpose, reins_li
screws(Type A)at cabinet's sides,
Screw
c)
Fig. i0
Cord
Screw(Ty_ A)
Fig. 11
8. Cut the Foam-strip to the proper length and
insert between the upper window sash and
the iower window sash,(See Fig. 12)
9. Attach the Window locking bracket with a
screw (Type C.) (See Fig, 13)
fJ
WindowIockhg
bracket
Fig. i3
10. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet, Push the grille in
until it snaps into place.(See Fig,14)
11. Lift the inlet grille and secure it with a screw
(Type A) through the, front grille,(See Fig. 14) Fig. 14
12. Window installation of room air conditioner is
now completed, See ELECTRICAL DATA for
attaching power cord to electrical outlet,
,Fig, 15

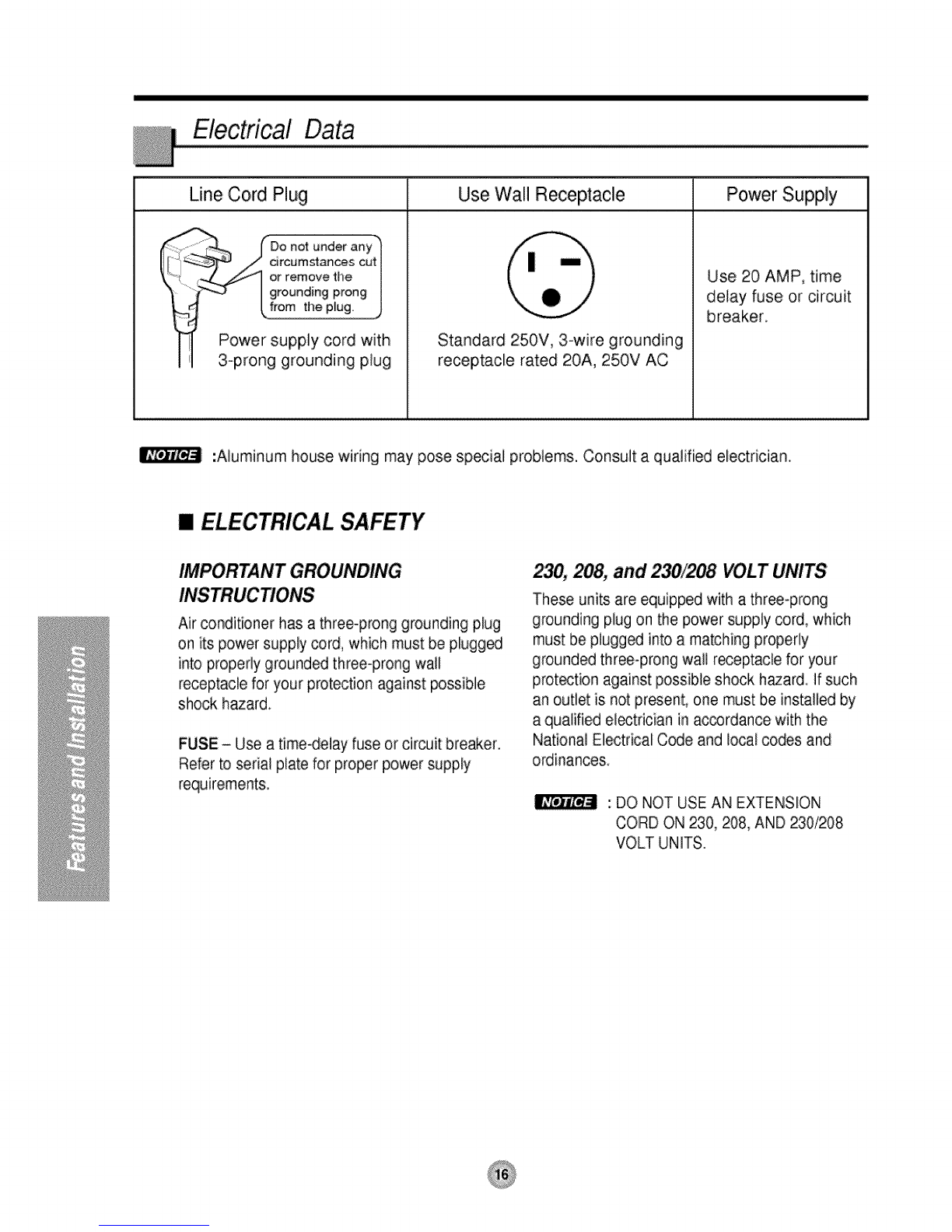

Line Cord Plug Power Supply
Use Wall Receptacle
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Use 20 AMP, time
delay fuse or circuit
breaker.
:Aluminum house winng may pose special problems. Consult a qualified electrician.
[] ELECTRICAL SAFETY
IMPORTANT GRO
Air conditioner has a three-prong grounding plug
on its power supply cord, which must be plugged
into properly grounded three-prong wail
receptacle for your protection against possible
shock hazard.
FUSE - Use a time-delay fuse or cir_it breaker.
Refer to serial plate for proper power supply
requirements.
230, 208, and 230/208 VOLT UNITS
These units are equipped with a three-prong
grounding plug on the power supply cord, which
must be plugged into a matching properly
grounded three-prong wall receptacle for your
protection against possibie shock hazard if such
an outlet is not present, one must be installed by
a qualified electrician in accordance with the
National Electrical Code and local codes and
ordinances
: DO NOT USE AN EXTENSION
CORD ON 230, 208, AND 230/208
VOLT UNITS.

fore you for
Troubleshooting T(ps
Save time and money! Review the chart below first and
you may not ne_ to cat! for service.
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation
Air conditioner
doesnot start
Air conditioner
doesnot cool as it
should
Air conditioner
•Make sure the air conditioner plug is pushed
completely into the outlet.
Check the house fuse!circuit breaker box and
replace the fuse or reset the breaker.
If power failure o_urs, turn the mode control to OFF.
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
• Turn the knob to a higher number. The highest
sexing provides m_imum cooling.
, Clean the filter at least every 2 weeks.
See the operating instructions s_tion.
• When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
° Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Fan or High Co,ol with
thermostat at I or 2,
