HAMPTON BAY HBQ100 User manual

-Including Service-and Warranty-
Incluidos mantenimlento y la garanffa
Avec service et garantie
Room Air Conditioners for Double-Hung Windows
Acondicionadores de aire ambiental para ventanas dobles
Ciimatiseur d'air individuel pour fen_tres _guillotine
•mo|
5,000 -10,000 BTU'S

ENGLISH
Installation ........................... 1
Warning (Electrical)
Important Grounding Requirements
Warning (Product Damage & Safety)
Tools Needed
Window Requirements
Unit & Window Size
Attach Filler Panels
Installation in Normal Width Window
hTstallation in Minimum Width Window
Operation ............................. 5
MECHANICAL CONTROL PANEL _Control Functions •
Cooling Operation •Air Circulation Without Cooling •
ExlTaustOperation Without Cooling
ELECTRONIC CONTROL PANEL -Control Function_ •"
Cooling Operation •Air Circulation Without Cooling.
Exhaust Operation without cooling
Directing Airflow (Unit With Adjustable Louvers)
Cleaning Air Filter
Service & Warranty. ............. 9
Insufficient Cooling
Unit Fails to Start
Service or Parts are Required
Room Air Conditioner Warranty
ESPA OL
Instalaci6n ......................... 11
Aviso (El_ctrica)
Requistos importantes para la conexi6n
Aviso (Daffo al producto y seguridad)
Hen'amientas necesarias
Requisitos de la ventana
Tamafio de la ventana y la unidad
Instate los paneles de tlenado
Instalaci6n en una ventana de ancho nom_al
lnstatacidn en una ventana de ancho mfnimo
Funcionamiento ................. 15
PANEL DE CONTROL MEC,_NICO -rundon_s de los
controlus •Operaddn de enfriamiento •CirculaciSn de aire
sin enfriamientn •Ventitaci6n del cuarto sin enfriamiento
PANEL DE CONTROL ELECTR_NtCO Funciones de 1o5
cont_otes °Operacidn de on#(am(onto •Circulacidn de aire
sin enfrian_iento •Ventilaci6n del cuarto sin enfriamientn
Orientaci6n de la corrienze de aire
(Unidad con rejilla directriz ajustabte)
Limpieza dot fittro de aire
Servicio y Garantia ............ 19
Enfriamiento insuficiente
Sila unidad no se enciende
Necesidad de servicio o piezas
Garanffa de! acondicionador de aire
IIII
FRAN_AI$
Montage. ............................ 21
Avertissement (E'/ectrique)
lmportantes exigences de raise _ la terre
Avertissement (Endommagement du produit et s#cufit#)
Outils n_cessaires
Caract#ristiques des fenOtres
Dimensions de i'appareil et de la fen_tre
Fixation des panneaux de rempiissage
Pose dons une fen_tre de iargeur normale
Pose dons une fengtre de largeur minimum
Fonctionnement ................. 25
PANNEAU DE COMMANDE ML'CANtQUE -
Fonctionsde commando •Refroidissement *Circulation d'air
sansrefroidissement •Sortie d'air sans refroidissemen[
PANNEAU DE COMMANDE ELECTRONIQUE-
fonctions de commando •Refroidissement *Circulation d'ah"
sans refroidissement ,Sortie d'air sans ret?oidissement
Orientation de ['air (Modble avec d_ftecteurs r@lables)
Nettoyage du fiftre _air
Service et Garant|e ............ 2-(
Refroidissement insuffisant
L'apparei] nese met pasen marche
Roarations ou pi_ees s'av_rent n#cessaires
Garantie du climatiseur

Electrical Shock Hazard
_ Plug unit on)y into grounded ele_rical out_et.
Do not use an exlension cord or ])lug adaptor with
this unit.
3. Do not operate unit with front removed.
Failure to follow the aboveprecautions could result in deClrieal
shade fire or personal inj.ry,
If the ak conditioner has a serial _late ratin_ of 11_ volts
and up lo and including 7,5 amps the unit mat,' be on a fuse
or circuit breaker with other devices, However, the marlmum
amps of all devlees on lbat fu_eor drcuit breaker can not exceed
the amps of the fuse or circuit breaker,
If the air conditioner has a serial plate rating of 1t5 volts
and l]reater than 7.5 amps it must have itsown fuse or dr-
cull breaker, and no other device or unit should be operated
on that fuse or circuit breaker.
If the air conditioner has a serial plate ratin_ of 230 voIts
it must have its ov.,n fuse or circuit breaker, and no other
device or unit should be operated on that fuse or circuit
breaker.
The location of the serial pIate that applies to this model
can be found on the back page of this manual,
Notice
Do not operate this air conditioner witl:tout )roper time
delay circuit protection. Refer to serial plate 1"orproper
power supply requirements.
gECOMMENDED ORCUIT WIRESIZES
(As installedper buildiag code)
PROTECTORSiZE WIREGAUGE
I5 AMP #t4 MINIMUM
20 AMP #12 MINIMUM
30 AMP #'_0 MINIMUM
@©©@
115V 230V 230V 230V
I5A tSA 20A 30A
IIIII Ii I1[111III I I
1. ELECTRICAL REQUIREMENTS
DGrounded
three-prong
wall receplacle
Three-prong
grounding plug
DSingle outlet
grounding
wall receptacle
Important
Grounding Requirements
1. Air conditioner has a three-prong grounding
plug on power suppIy cord, which must be
plugged into properly grounded three-prong
walI receptacle for your protection against
possible shock hazard. For models up to and
including 7.5 amperes use grounding type
wall receptacle to match cord plug (Fig, 1).
2, For models above 7.5 amperes use single
outlet grounding type wall receptacle to
match cord plug (Jig. 2).
Caution: We recommend that aqualified electrician
install unit in accordance with the National Electrical
Code and local codes and ordinances.
Caution:Usecopperconductorsonly.
Product Damage:
Do not cut, alter or remove any of the expanded
polystyrene {white foam) }nside this air condiL_oner,
For Your Safety:
Do not store or use gasoliee or other flammable vapors
and liquids in the vicinity o_ this or any other appliance,
The fumes can create a fire hazard or explosion,
Tools Needed
•Screwdrivers /_ "Ruler - _
,_ or tape measure
Window Requirements
1. Air conditioner is factory prepared for instal-
lation in standard double hung window (air
conditioner cannot be insta[Ied in other types
of windows without modification, consult
with a qualified installation serviceman).
2, Instal[ the air conditioner in a window where
there will be enough clearance around the
cabinet to allow ample circuIat[on of air
through the unit.
Caution: Do not block air circulation to outside
louvers of cabinet.
3. All supporting parts should be secured to
firm wood, masonry or metal.

2. WINDOW INSTALLATION
Unit & Window Size
1. If your air conditioner cabinet is 20" wide, it will fit window openings 23 7/8" Io39" in width.
Minimum opening heigi_t is 12 3/4" from bottom of sasbto sill. Removal of botil filler panels
permits installation in windows with a minimum opening width of 20 1/4". This size unit requires
one leveling bracket (Fig. 3).
2, If your air conditioner cabinet is 23 3/4" wide, it will fit window openings 27 5/8" to 39" in widti_.
Minimum opening height is 16" from bottom of sashto silt. Removal of both filler panels permits
installation in windows with a minimum opening width of 24". This size unit requh'es two leveling
brackets (Fig, 4).
1" long
wood screw
11/4"
OUTSIDE VIEW
3/8" tbreaded hole
Attach Filler Panels on somemodels.,.
1, Attach filler panels to the existing holes in timecabinet using the supplied screws (Fig.5),
nrl
o 9--.-i11
D Top bar
Screws Bottom bar Cabinet
Installation in Normal Width Window
1. Open and marl( center line of window. Dependh_g on the size of your unit, attach one leveling
bracket on the center line of the window or one 8" to the right and one 8" to the left of the center
line. Brackets may be attached to window sitl in either direction for maximum support, depending
on the depth of the window sill.
Sill
edge"
Screw
Leveling bolt Leveling bracket
2. Mark line 1 1/4" from edge of window sill
and fasten leveling bracket with 1" long
wood screws at marl( through larger holes in
bracket (Fig. 6).
3, Screw leveling bolt in 3/8" threaded hole of
leveling bracket and adjust so bolt is 1/4"
below t(_pof window sill (Fig. 7).
4. Repeat steps 2 and 3 for second leveling
bracket, if required.
5. Keeping a firm grip on air conditioner,
carefully center air conditioner in window
opening with the bottom bar sitting behind
window sill. Be sure cabinet maintains an
outward pitch. Air conditioner should slant
slightly downward on the outside as shown

3
_i_ ill edge Screw
i
I® i
space
1/4-
t
SIDE VIEW
by half a bubble off on a carpenter's ]evel.
This outward pitch prevents water from
entering the room (Fig;.8.).
6, Close window until it touches behind air
conditioner top bar. Slide filler panels out-
ward until they touch window sash tracks.
(Do not release grip on air conditioner until
lower window sash is in final position)
(Fig. 9).
T. Secure top of filler panels by driving 5/8"
long wood screws through top mounting
holes into window sash (Fig, 9).
8, Secure bottom of filler panels by driving 5/8"
long screws into window sill through filler
panel tabs (Fig, 9)°
11/4" space rll[llllll
ii _ Levelingbracket
Window sill SIDE VIEW
Silledge 'Screw
Caution:Do ool drill ahole inbottom pan. Unit is designed to operate with approximately 1/2"of water in bottom pan.

2.WINDOW INSTALLATION
DPlasticfoamseal
iiiiiiiiirllllllll
Upper window sash
Lowerwindow sash
5/8" wood screws
.......... _:__:==;_ _= ,_...........
9. Cut plastic foam seal to width of window
and install between upper and lower window
sash (Fig. 9).
10, Use sealant to filI any minor openings.
Installation in
Minimum Width Window
1. Remove both filler panels from air
conditioner cabinet (Fig. 5).
2. Refer to steps 1 through 7 of preceding
instructions (Pgs. 2&3).
3. Close window until it touches behind air
conditioner top bar (Fig. 8).
4, Fasten lower window sash to window
frame (use finishing nails, wood screws,
or "L" brackets) (Fig. 9).
5. If filler is required on sides of air
conditioner, cut plastic foam sea[ to size
and fill both sides.
6, Cut plastic foam seal to width of window
and install between upper and Iower
window sash (Fig. 9).
7, Use sealant to fiII any minor openings.
Consult your authorized dealer or importer for
alternative instaIlation instructions.
Window sill Fillerpanel
INSIDE VIEW

5
IIII I I I ,_._,,.,t_,=,,,_,_,._,n,,: ........................_"=""_:=!j=_i_='_'_=_i.'_'_ _ _
3. MECHANICAL CONTROL PANEL
Thepictured controlpanelissimilar to your panel.
VENT
PUL_
OPEN
OFF
e
HI C°OOL
•••• COOLE_
•O0
C
o
eeeeiO
WAIT3 MIEUTES EETORERESTAET_[_E
Open Vent Door - When the vent door is
open it allows for fresh air to circu[ate and for
sta]e air to be removed from the room. Maximum
air circulation and cooIing occur when the vent
door is CLOSED.
Master Control - The Master Control turns tile
unit off and on. It is aIso used to select the desired
function of the unit such as Ht COOL, MED
COOL (on some models), LO COOL, HI FAN,
MED FAN (on some models) or LO FAN. When
one of the fan functions is seIected, the unit will
only circulate timeexisting room air. The unit will
only cool the air when one of the cool functions is
selected.
Thermostat - The Thermostat Control adiusts
the sensitivity of the unit thermostat, which regu-
]ates timeroom temperature by automatically turn-
ing the compressor on and off. The cooIer the
setting, the cooler the room temperature will be.
Cooling Operation
1. Close the vent door.
2. Turn the Thermostat Control to "Cooler".
3. Turn the Master Control to H[ COOL.
4. if the room becomes to cool for comfon%turn
the Thermostat Control counterclockwise
untiI the compressor turns off (air-circulating
fan will remain in operation),
5, When the desired comfort level is reached,
the Master Control may be turned to
LO COOL.
6. To turn off unit or in the event of a power
interruption, turn the Master Control to OFF.
Air Circulation
Without Cooling
1. Close the vent door.
2, Turn Master Control to HI FAN.
Exhaust Operation
Without Cooling
1. Open timevent door.
2, Turn Master Control to HI FAN.
Caution:flair conditioneris shut off,wait a minimum of three minutes before restarting.

II II II IIIII IIII I IIIIIII I

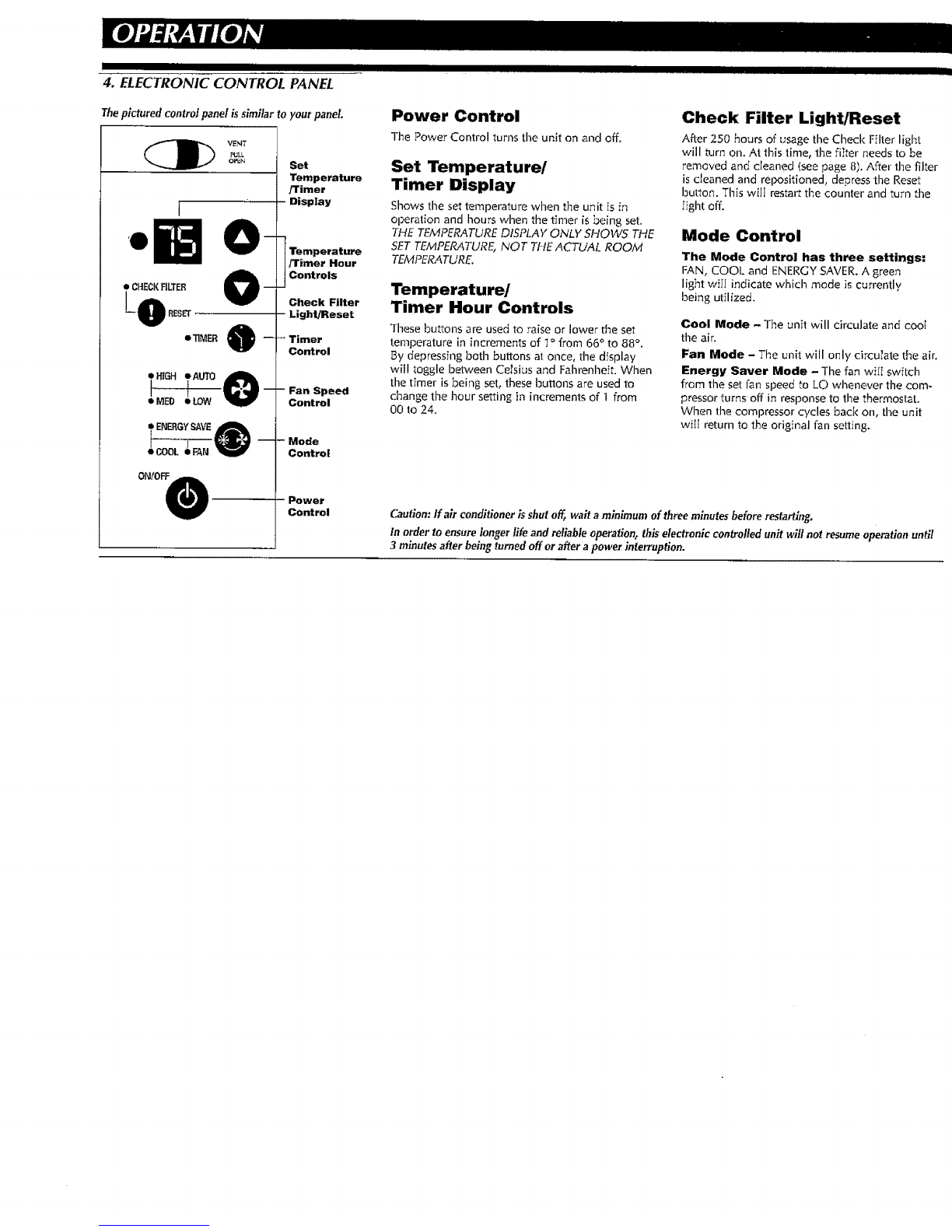

4. ELECTRONIC CONTROL PANEL
The pictured control panel is similar to your panel.
VENT
PULL
OPEN
•HIGHT AUTO :
tENERGYSAVE
•COOL • FAN
Set
Temperature
Primer
Temperature
!rimer Hour
Controls
Check Filter
Control
Fan Speed
Control
-- Mode
Control
Power
Control
Power Control
The Power Control turns the unit on _nd off.
Set Temperature/
Timer Display
Shows tile set temperature when the unit is in
operation and hours when the timer is being set.
THE TEMPERATUREDISPLAY ONLY SHOWS THE
SETTEMPERATURE, NOT THEACTUAL ROOM
TEMPERATURE.
Temperature/
Timer Hour Controls
These buttons are used to raise or lower the set
temperature in increments of _° from 66° to 88°.
By depressing both buttons at once, the display
will toggle between Celsius and Fahrenheit. When
the timer is being set, these buttons are used to
change the hour setting in increments of 1 from
00 to 24.
Check Filter Light/Reset
After 250 hours of usage the Checl< Filter light
will turn on. At this time, the filter needs to be
removed and cleaned (see page 8). After tile filter
is cteaned and repositioned, depress the Reset
button. This w[]] restart the counter and turn the
light off.
Mode Control
The Mode Control has three settings:
FAN, COOL and ENERGYSAVER. A green
light will indicate which mode is currently
being utilized.
Cool Mode - The unit will circuJate and cool
tile air.
Fan Mode - The unit will only circulate the air.
Energy Saver Mode - The fan willswitch
from tile set fan speed to LO whenever tile com_
pressor turns off in response to the thermostat.
When the compressor cycles back on, the unit
wiII return to the original fan setting.
Caution: If air conditioner is shut off, wa# aminimum of three minutes before restarting.
In order to ensure longer life and reliable operationt this electronic controlled unit will not resume operation until
3 minutes aRer being turned off or after a power interruption.

Fan Speed Control
The Fan Speed Control has four
settings: High, Medium, Low and Auto.
The settings are adjusted wffh the Fan Speed
Control, each time the button is depressed it
changes the setting. A green light will indicate
which setting is currently being used.
When the Auto feature is selected while the air
conditioner is in the COOL mode, the fanspeeds
will change automatically as the temperature in
the room changes.
•7_or more above the set temperature
will use HI FAN.
•4°-7°above the set temperalure will
use MED FAN.
•4 ° or less above the set temperature
will use LO FAN.
Timer Control
The timer can be set to either turn the unit on
or off.
To turn the unit ON using the Timer:
Depress the timer key when the power is off, the
display will read 00. Adjust to the desired number
of hours before TURN ON using the Temperature/
Timer Hour Controls. The display will automati-
cally return to the set temperature after approxi-
mately 10 seconds.
To turn the unit OFF using the Timer:
Depress ti_e timer key when the power is on, the
display wi]] read 00. Adjust to the desired number
of hours before TURN OFF using the Temperature/
Timer Hour Controls. The display will automati-
cally return to the set temperature after approxi-
mately 10 seconds.
A green light next to the timer control
indicates that the timer is set,
To display the amount of time left until
turn on or turn off, depress the timer
key once.
To turn the timer off, depress the timer
key twice.

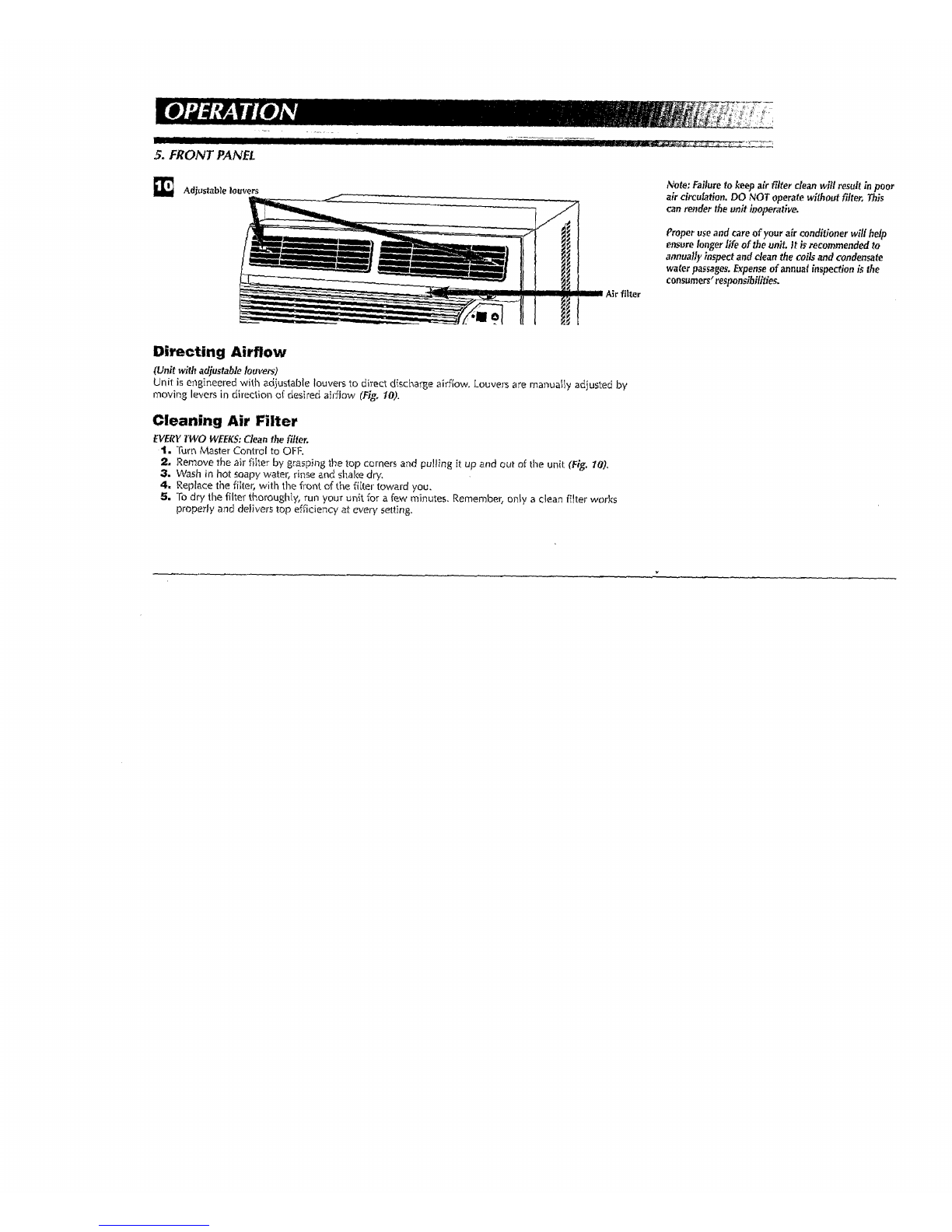

5. FRONT PANEL .......................... _-_______f-_
Note: Failureto keep air filter clean will result in poor
air circulaffon. DO NOT operate without filter, This
can render the unit i_operative.
Proper use and care of your a_r conditioner will help
ensure longer life of the unit. Jib recommended to
annually inspect and clean the coils and condensate
wa{er passages. Expense of annual inspection is the
consumers' responsibilities.
Directing Airflow
(Unit with adjuctable louvers)
Unit is engineered with adjustable louvers to dffect d_scha_geairflow, Louvers are manually adjusted by
moving levers in direction of desired aidjow (Fig, 10).
Cleaning Air Filter
EVERYTWO WEEKS:Clean 1he filter.
1. Turn Master Control to OFF,
2. Remove the air fgter by grasph_g the top corners and pulling it up and out of the unit (Fig. 10),
3. Wash in hot soapy water, rinse and shake dry,
4, Replace the {iltel; with the front of the filter toward you.
5, To dry the filler thoroughly, run your unit for a few minutes, Remember, onIy a clean filter works
properly and delivers top efficiency at every setting.

9
ServiceJnstructions
Tosavetime and expense,check thefollowingbefore
calllngan authorizedservice company.
Insufficient Cooling
1 Turn Master Control to OFF.
1 Shut all windows and doors in room.
1 Remove any obstructions from inside and
outside cabinet louvers.
l Vent Door (available on most models).
1 Inspect filter and clean if dirty.
• Turn Thermostat and Master Controls to
coolest settings.
Under certain conditions the cooling coils directly
behind the fiIter, may ice up and block the airflow.
This is a common occurrence in air conditioners
caused when the outside temperature drops below
70°F (21oC)while the humidity remains high. If
this happens, simply turn the unit off and allow
the ice to melt, then resume normal operation.
Unit Fails to Start
l Turn Master Control to OFF.
• Rep[ug line cord plug into outlet to be sure
e]ectrical contact is being made. (if firm con-
tact is not being made, outlet may have to be
replaced).
1 Turn Master Contro[ to HI FAN. If air circulat-
ing fan does not operate, check house circuit
breaker (orfuses).
For Models, Installed in .......
North America - If Service
or Parts are Required
First, make the recornrnended checks. If it appears
that service or parts are still required, see your
room air conditioner warranty "How to Obtain
Wananty Service or Parts".
For Models Installed
Outside North America
For room air conditioners purchased for use out-
side North America, the manufacturer does not
extend any warranty either expressed or implied.
Consult your Iocal dealer for any warranty terms
extended by the importer in your country.
Room Air
Conditioner Warranty
dA/ithinthe48contiguousUnitedStates,stateofHawaii,
theDistrictofCOlumbia,Pue_oRicoand Canada)
Full (One Year)PartsandLabor Warranty
During the first year after the date of original pur-
chase, Hampton Bay will, through a network of
authorized servicers and free of charge to the
owner or any subsequent user, repair or replace
any parts which are defective in material or work-
manship due to normat use. Ready accessto the
air conditioner is the responsibilit'/of the owner.
(Two.Year)FanMotor PartsWarranty__
During the second year from the original date of
purchase, Hampton Bay will, through a network
of authorized servicers or parts distributors, ex-
change the fan motor during the second year from
the original date of purchase providing such part
is defective in material or workmanship. Transpor-
tation and handling is not covered by this limited
parts warranty and is the owners' responsibility.
Limited (FiveYear)SealedSystemWarranty
In addition to the full (one year) parts and labor
warranty described above, Hampton Bay witl,
through anetwork of authorized servicers or parts
distributors, and free of charge to the owner or
any subsequent user repair or replace sealed sys-
tem parts (consisting of compressor, evaporator,
condenser, and interconnecting tubing) during the
second through fifth yeal; from the original date of
purchase, which are defective in material or work-
manship due to normal use. Ready access to the
air conditioner for service is the responsibility of
the owner.
Note: In the et,entof any required parts replacement witifin the
period of tl_iswarranty, Hampton Bay replacement part5shaft
be usedand will be warranted only for the period remaining on
the original wan'ant);
I •

Exceptions
The above warranty does not cover failure to
function caused by damage to the unit while in
your possession (other than damage caused by
defect or malfunction), or by its improper installa-
tion0 or by unreasonable use of the unit, including
without limitation, failure to provide reasonable
and necessary maintenance or to fol!ow tl_e writ-
ten Installation and Operating Instructions. If the
unit is put to cornmercia!, business, renta!, or other
use or application other than for consumer use, we
make no warranties, express or implied, including
but not limited to, any implied warranty of mer-
chantability or fitness for particular use or purpose.
THE REMEDIES PROVIDED FOR tN THE ABOVE
EXPRESSWARRANTY ARE THE SOLE AND EXCLUSIVE
REMEDIES THEREFOR, NO OTHER EXPRESSWAR-
RANTIES ARE MAD{:". ALL IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARD'CULAR USE OR PURPOSE, ARE LIMITED 1N
DURATION TO ONE YEAR FROM THE DATE OF ORIGI-
NAL PURCHASE. LN NO EVENT SHALL HAMPTON BAY
BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSE-
QUENTIAL DAMAGES. EVEN IF ADVISED IN ADVANCE
OF TIlE POSSIBILITY OF SUCH DAMAGES. NO WAR°
RANT/ES, EXPRESSOR IMPLIED, ARE MADE TO ANY
BUYER UPON RESALE,
Some states do not allow limitations on how long
an implied warranty lasts or do not allow the
exclusion or limitation of incidental or consequen-
tial damages, so the above limitations or exclu-
sions may not apply to you. This warranty gives
you specific legal rights, and you may also have
other rights which may vary from state to state,
No warranties are made for units sold outside of
tl_e above stated areas. Your distributor or final
seller may provide a warranty on units sold out_
side of these areas.
Howto Obtain Warranty Serviceor Parts
Service for your room air conditioner will be pro-
vided by CareCo, a division of the manufacturer
with authorized independent servicers nationwide,
Note: Beforecaltiog for service, carefufly readthe Inst_Itation
and Operatinit Instructions booklet. Then if you need service;
1. Call a CareCo authorized servicer and advise
them of model number, serial number, date
of purchase and nature of complaint. Service
will be provided during normal working
hours. Contact your dealer for the name of
an auti_orized servicer, if unknown to you.
2, If your dealer is unable to give you the name
of a servicer or if you need otber assistance,
call the following toll-free number for the
name of an authorized servicer or authorized
parts distributor:
1.800.345-4z[971-"
or you maywrite:
CareCo, ServiceDepartment
415 14/.WabashAve., P.O. Box200
Effingham, IL 62401
Proofof PurchaseDate
It is the responsibility of the consumer to establisl-
the original purchase date for warranty purposes.
We recommend that a bill of sa_e,cancelled
check, or some other appropriate payment recorc
be kept for that purpose.
