HAMPTON BAY Brookedale II User manual

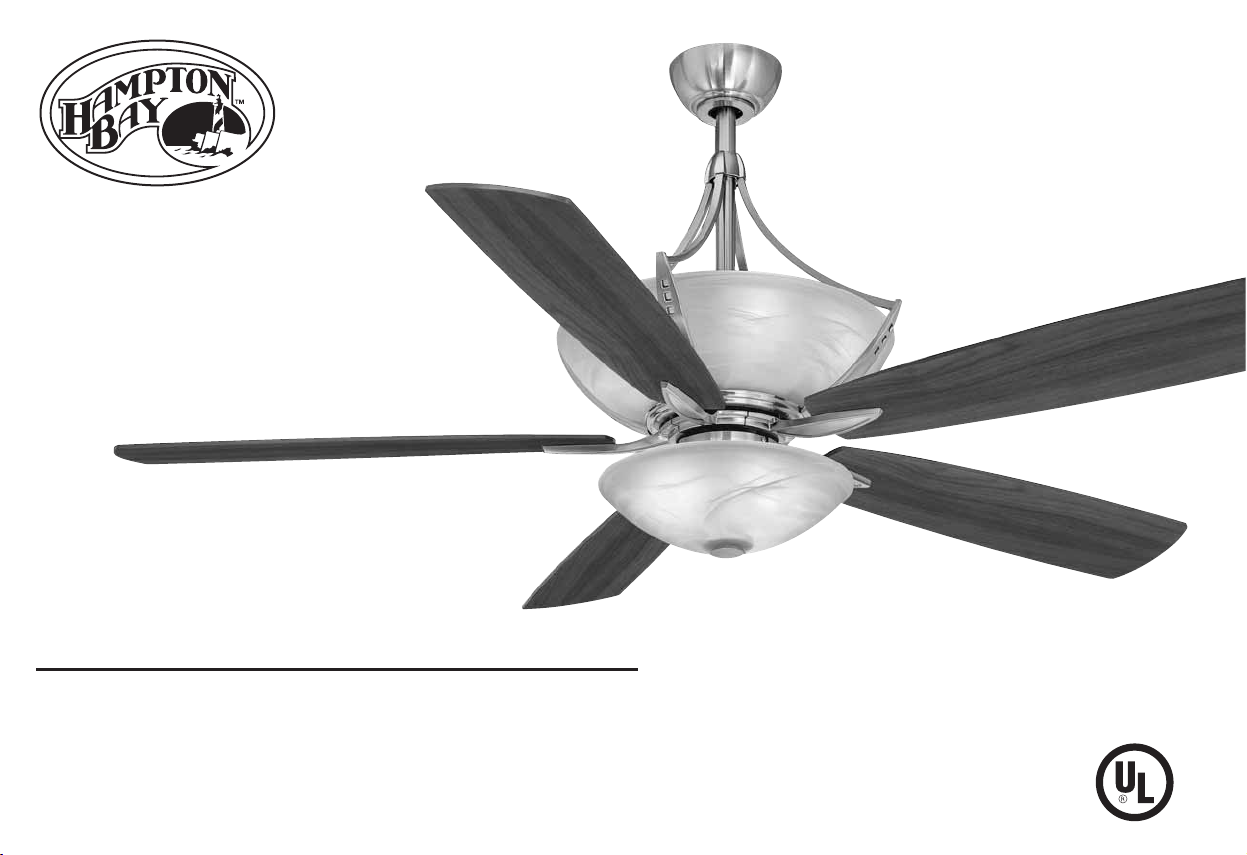

Brookedale II
60 in Ceiling Fan
Owner’s Manual
Brookedale II
Ventilador de Techo de 1,52 m
Manual del Propietario
166 662

Brookedale II by Hampton Bay
®

60” Brookedale II
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . 11
Operating Your Transmitter . . . . . . . . . 13
Care of Your Fan . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . 16
Warranty Information . . . . . . . . . . . . 17
166-662
11289
792145352914

Safety Rules - Read and Save These Instructions
1
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds, Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING
THE BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO
NOT INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.
ATTENTION
FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE
DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS
PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT. PLEASE
USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W
REGULATION.

2
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
1
AB
C
2
3
610 15
16
17
18
11
12
13
14
7
8
9
4
5
Set of blades (5)
Canopy assembly
Ball/downrod assembly (1)
& extra downrod (1)
Scroll cover
Decorative scroll assembly
Coupling cover
Fan motor assembly
1.
2.
3.
4.
5.
6.
7.
Glass housing
Blade arms (5)
Mounting plate
Light kit assembly
Glass shade
Receiver with 7 wire nuts
Transmitter+holder+2 mounting screws
+ 2 plastic plugs
12V MN21/A23 battery
15 Watt candelabra bulbs (6)
40 Watt candelabra bulbs (3)
Extra plastic plug
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.

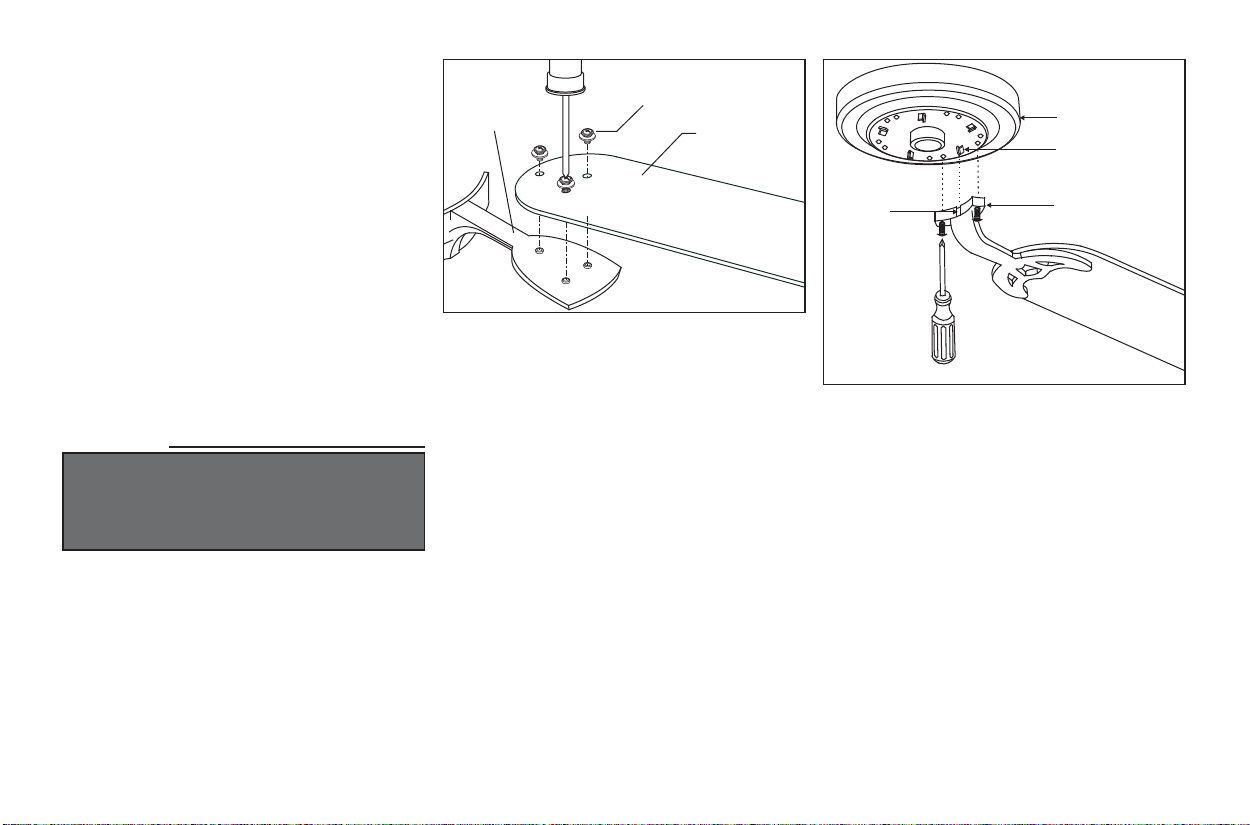

Blade Attachment Hardware
(16 Screws with Fiber Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Decorative scroll hardware
(2 Set Screws)
A.
B.
C.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.

3
Installing Your Fan
Figures 1~3 are examples of different ways to
mount the outlet box.
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling. The maximum angle
allowable is 18°. If the canopy touches downrod,
remove the decorative canopy bottom cover and
turn the canopy 180°before attaching the canopy
to the mounting plate.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise. (Figure 5)
Remove the mounting bracket from the canopy
by removing the 1 of 2 screws from the bottom
of the mounting bracket and loosening the
other one a half turn from the screw head.
Next, turn the canopy counter clockwise to
removing the canopy cover form the canopy.
(Figure 5)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 6)
Route wires exiting from the top of the fan
motor through the coupling cover, decorative
scroll, scroll cover, canopy cover, canopy and
then through the ball/ downrod. (Figure 6)
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing (Figure 6). Carefully insert the
clevis pin through the holes in the collar and
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 6.
1.
2.
3.
4.
5.
WARNING
FAILURE TO PROPERLY INSTALL COTTER PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Tighten two set screws at top of the fan motor
collar firmly and evenly. (Fig. 5)
6.
NOTE: Your fan comes with a 12" downrod
attached to the hanging ball to use with the
decorative scroll assembly (See Fig. 6). In
addition, you have been provided with a 4-1/2"
downrod to use on lower ceilings without
decorative scroll assembly. (See Fig. 6A)
Installing the fan with the decorative scroll
(with 12" downrod) (Recommend min. 9
ft. ceiling height).
CHANGING THE DOWNROD
Figure 6
With 12" Downrod
Motor Wires
Ball/Downrod
Assembly
Ceiling Canopy
Canopy Bottom
Cover
Pin in Locked
Positioon
Motor Collar
Decorative scroll
and cover (Can not
be used with 4 -1/2"
downrod)
Tighten Set Screw
Firmly
Coupling Cover
Follow the Figure 6 and continue on section titled
"Hanging the Fan" for installation.
Cotter Pin
Clevis Pin
Figure 5
Ceiling
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover

5
Installing the fan without arrow style
decorative downrod (with 4-1/2"
downrod) (Recommend min. 8.25 ft ceiling
height).
Remove the hanger ball from the 12" downrod
by loosening the set screw at the top of the
downrod which holds the hanger ball to the
downrod.
Slide the hanger ball down the downrod and
remove the support pin.
Reinstall the ball to the 4-1/2" downrod.
Remove the bolt, clevis pin and set screws
from the motor collar.
Route wires exiting from the motor collar
through the coupling cover, canopy cover,
canopy and then through the ball/downrod
(Fig. 6A).
Follow the steps 5 & 6 in section titled
"Hanging the Fan" for installation.
1.
2.
3.
4.
5.
6.
Figure 6A
Motor Wires
Ball/Downrod
Assembly
Ceiling Canopy
Canopy Bottom
Cover
Pin in Locked
Positioon
Motor Collar
Coupling Cover
Tighten Screw
Firmly
With 4 1/2" Downrod
Installing Fan to
the Electrical Box
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
Cotter Pin
Clevis Pin
Figure 7
UL Listed Outlet Box
Ceiling Mounting
Bracket
120V
Wires
Mounting
Screws (Supplied
with Electrical Box)
Tab
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 7.
Install the ceiling mounting bracket to the
outlet box; be sure to align the holes in the
hanger bracket with the post holes in the outlet
box and secure with screws and washers
provided by the outlet box (Fig. 7).
Security tighten the two mounting screws.

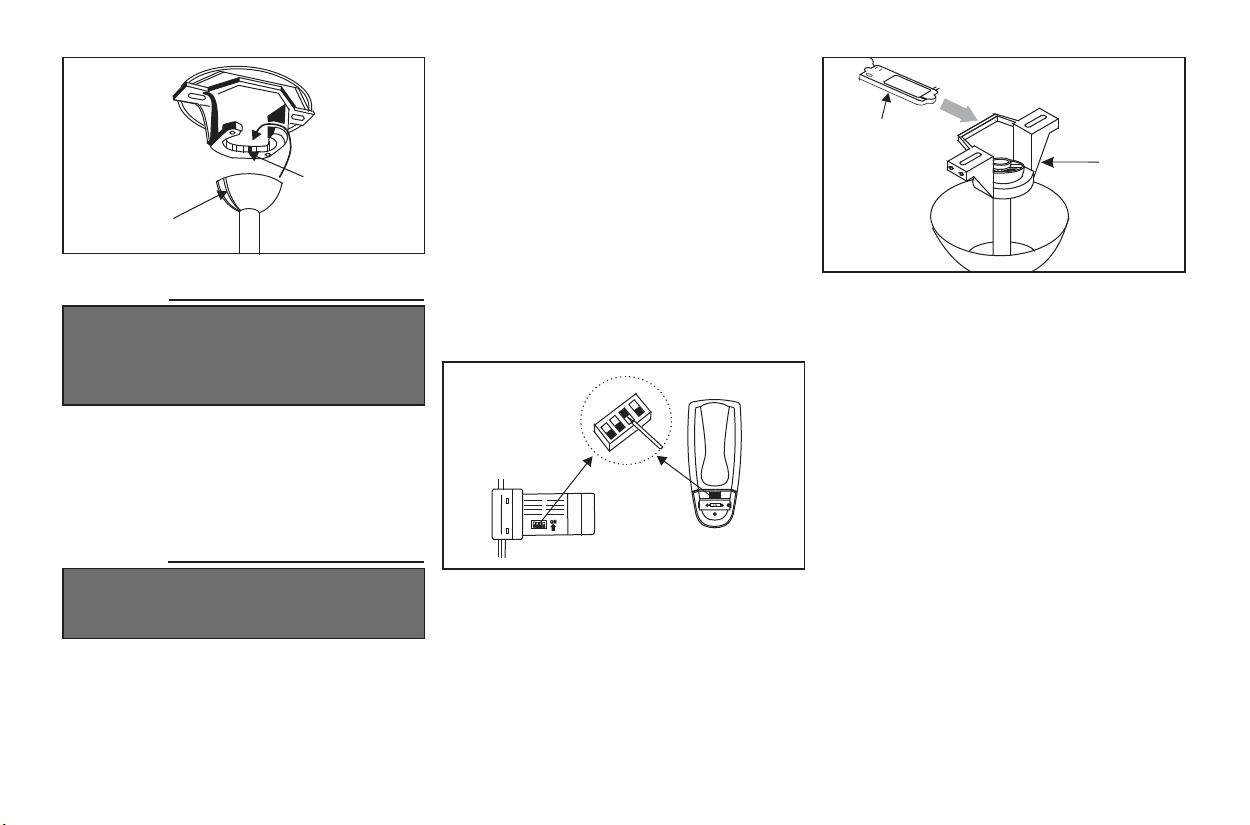

Seat the hanger ball in the mounting bracket
socket. Make sure the tab on the mounting
bracket socket is properly seated in the groove
in the hanger ball (Figure 8).
1.
2.
3.
4.

6
Figure 8
Groove
Tab
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 8.
FAILURE TO PROPERLY SEAT THE TAB IN
THE GROOVE COULD CAUSE DAMAGE TO
WIRING.

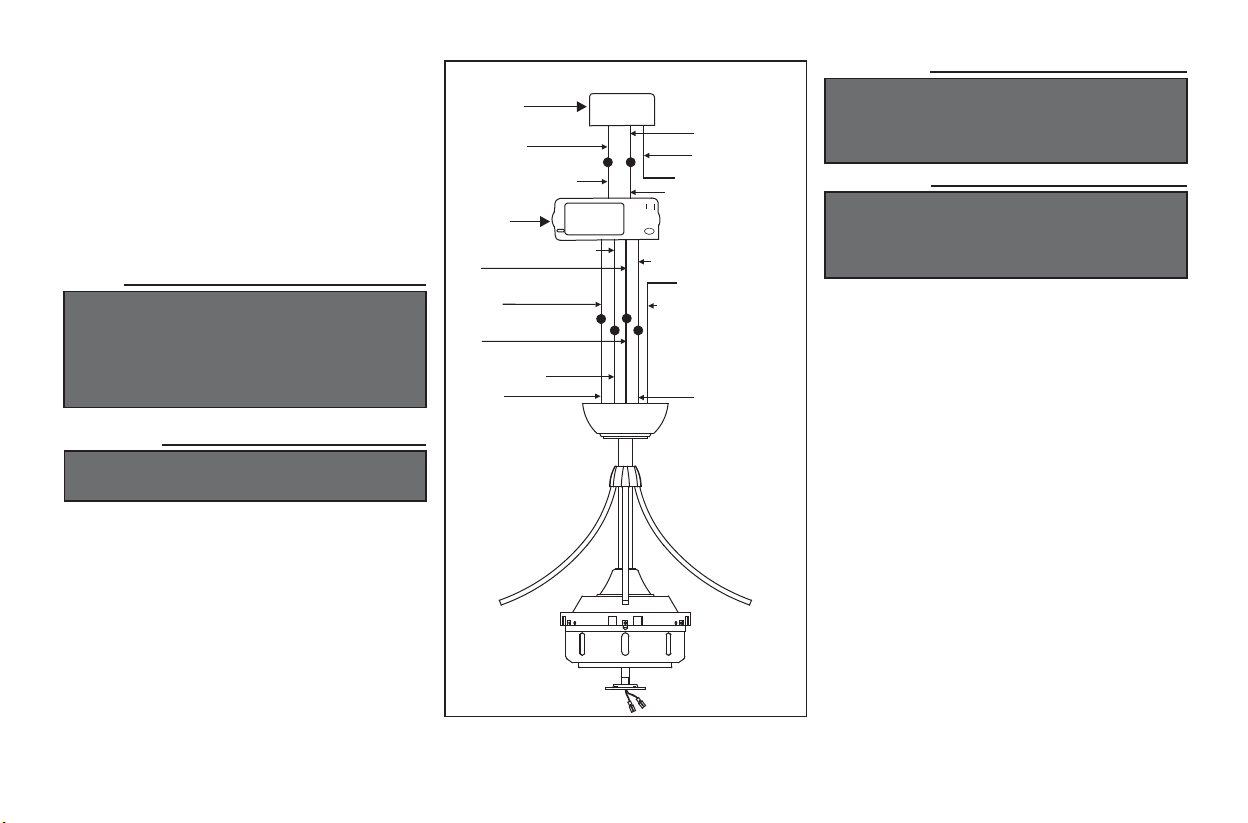

Making the Electrical
Connections
WARNING
TO AVOID POSSIBLE ELECTRICAL SHOCK, BE
SURE ELECTRICITY IS TURNED OFF AT THE
MAIN FUSE BOX BEFORE WIRING.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference
from or to other remote units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to make
sure the switches on the transmitter and the
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitterand receiver are set to the
same position (Figure 9).
Insert the receiver into the mounting bracket
with the flat side of the receiver facing the
ceiling as Figure 10.
1. (Figure 11) Motor to receiver electrical
connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "For bottom Light" from
the receiver. Connect the orange wire from fan
to the orange wire from receiver marked "For
Upper Light". Secure wire from fan to the
orange wire from receiver marked "For Upper
Light". Secure wire connections with the
plastic wire nuts provided.
(Figure 11) Receiver to House Supply Wires
Electrical Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from he receiver. Connect
the white (neutral) wire from the ceiling to the
white wire marked "AC in N" from the
Receiver. Secure the wire connections with the
plastic wire nuts provided.
2.
3.
Figure 10
Receiver
Ceiling
Mounting
Bracket
Figure 9
Frequency Switch

7
Tuck connections neatly into ceiling outlet
box.
Slide the canopy up to mounting bracket and
place the key hole on the canopy over the
screw on the mounting bracket, turn canopy
until it locks in place at the narrow section of
the key holes. (Fig. 12)
Align the circular hole on canopy with the
remaining hole on the mounting bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until the
canopy and canopy cover are snug.
1.
2.
3.
Finishing the Fan
Installation
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
WARNING
ELECTRICAL DIAGRAMS ARE FOR REFER-
ENCE ONLY. OPTIONAL USE OF ANY LIGHT
KIT SHELL BE UL LISTED AND MARKED
SUITABLE FOR USE WITH THIS FAN.
CAUTION
DO NOT USE WITH WALL LIGHT DIMMER
SWITCH.
SUPPLY CIRCUIT
Figure 11
Outlet Box
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
White (neutral)
-(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Ground
(green)
Black (hot)
Black ("AC in L")
Receiver
Black ("to motor L")
Blue
(for bottom light)
Orange
(for upper light)
Blue
(for bottom light)
Black (motor)
Orange
(for upper light)
(Figure 11) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires spread
them apart so that the green and white wires are
on one side of the outlet box and black and blue
wires are on the other side. Carefully tuck the
wire connections up into the outlet box.
4.
NOTE
FAN MUST BE INSTALLED AT A MAXIMUM
DISTANCE OF 20 FEET FROM THE TRANSMIT-
TING UNIT FOR PROPER SIGNAL TRANSMIS-
SION BETWEEN THE TRANSMITTING UNIT
AND THE FAN'S RECEIVING UNIT.

8

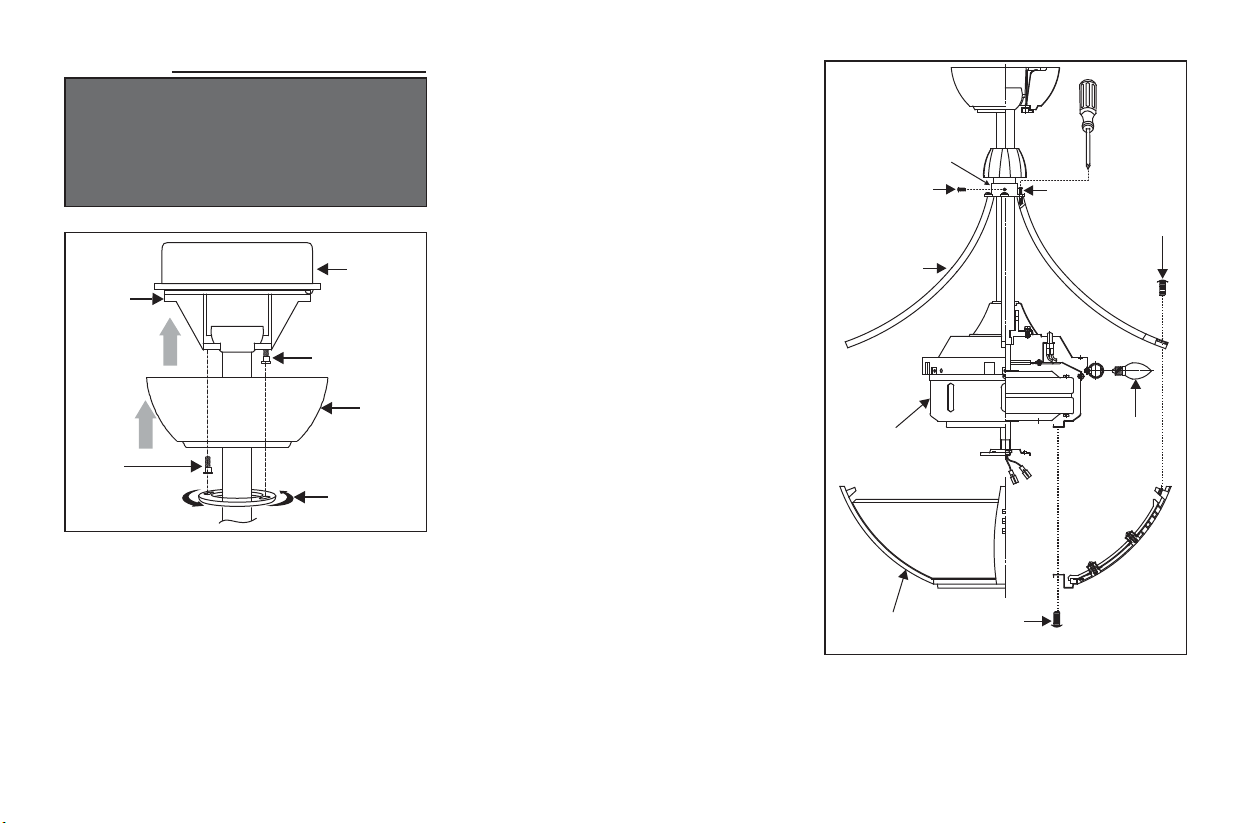

Installing the Glass Housing
Figure 13
Scroll Ring
Set Screws
Scroll Arms
Screws
Screws
Screws
Glass Housing
Motor Housing Bulbs
Remove 1 of the 4 screws from the bottom of
the motor housing and loosen the other 3
screws. (Do not remove)
Raise and hold the glass housing close to the
motor, place the key holes on the glass housing
over the 3 screws previously loosened from the
motor housing, turn glass housing until it locks
in place at the narrow section of the key holes.
Secure by tightening the 3 screws previously
loosened and the one previously removed.
(Fig. 13)
Remove the screw located on the top of glass
housing, place the decorative scroll arm on to
the top of the glass housing and secure with the
screw removed previously. Repeat for other
decorative scroll arms. (Fig. 13)
Tighten the 4 screws on the scroll ring, be sure
to secure the decorative scroll arm to scroll ring
tightly. Tighten two set screws on scroll ring
firmly. (Fig. 13)
Install the 6 x 15W bulbs (provided) into the
sockets of the bulb holder assembly. (Fig. 13)
1.
2.
3.
4.
5.
WARNING
MAKE SURE THE TAB ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE
IN THE HANGER BALL BEFORE ATTACH-
ING THE CANOPY TO THE BRACKET BY
TURNING THE HOUSING UNTIL IT DROPS
INTO PLACE.
Figure 12
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover

9
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Figure 14
Blade
Blade Arm
Screws with
Fiber Washers
Attaching the Fan Blades
Attach blades to blade arms using three screws
with fiber washers (Fig. 14). Start a screw into
the blade arm, do not tighten. Repeat for the 2
remaining screws and washers.
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Fasten the blade assemblies to the motor
housing by lining up the slots of the blade arms
with the tabs on the motor housing, then
tighten the two screws and washers already
installed in the blade arms (Fig. 15).
1.
2.
3.
Figure 15
Motor
Blade arm
Slot
Tab

10
Figure 16
Touching Ceiling
Blade Balancing
Verify that all blades and blade bracket screws are secure (most fan
wobble problems are caused by loose parts). Once the fan is properly
installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level
using the following process:
Select a point on the ceiling above the tip of one of the blades, then select
any fan blade and measure from the center of the selected blade to the
point on the ceiling (as shown in Figure 16). Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from
the ceiling for every blade. Measurement deviations should be within
1/8”.
If all deviations are less than 1/8” and the fan continues to wobble, please
call Customer Service (1-877-902-5588) to order a complimentary Blade
Balancing Kit.
If deviation is greater than 1/8”, please call Customer Service
(1-877-902-5588) to order complimentary replacements of your brackets.
1.
2.
-
-
-
All blades are grouped by weight during assembly. Because natural woods
vary in density, the fan may wobble even though the blades are weight
matched. The following procedure should correct most fan wobble. Check
after each step.

11

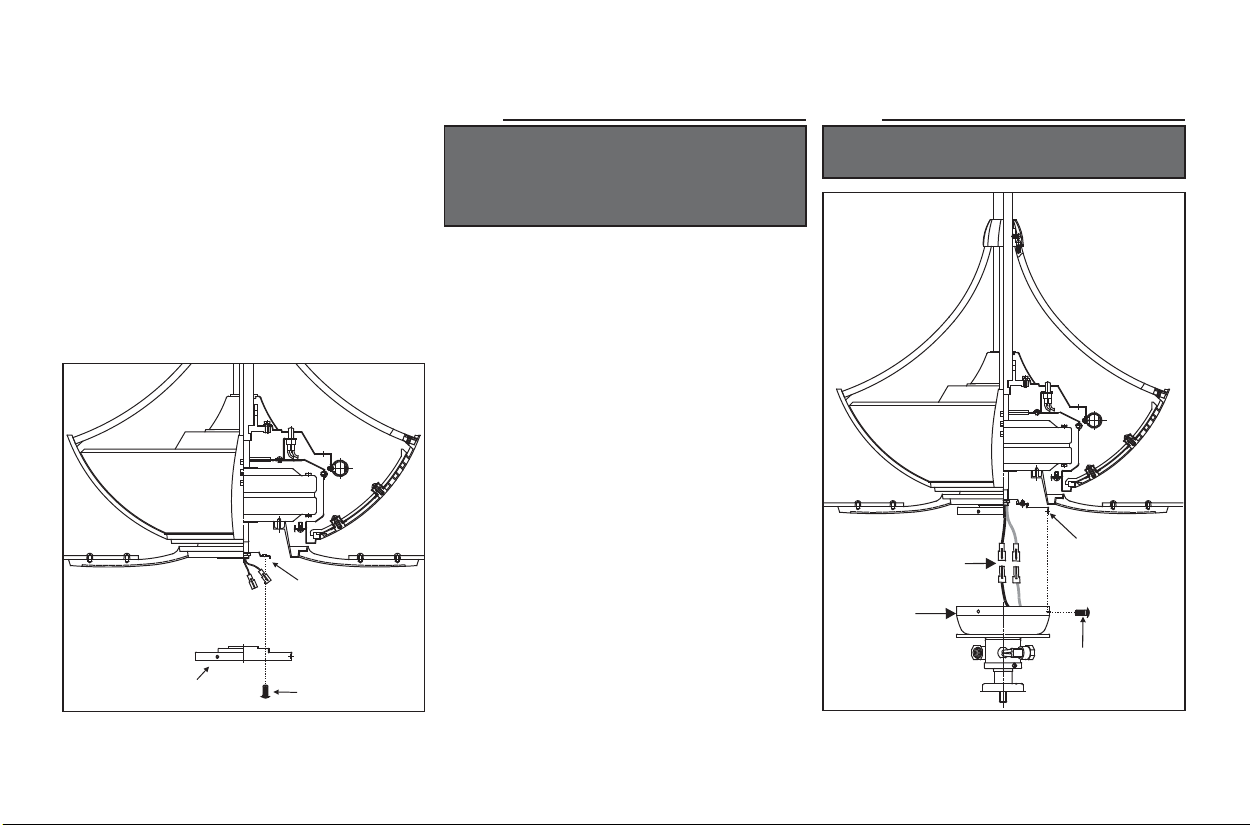

Attaching the Mounting
Plate
Remove the 1 of 3 screws from the mounting
ring and loosen the other 2 screws. (Do not
remove)
Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 17)
1.
2.
Installing the Light Kit
Remove the 1of 3 screws from the mounting
plate and loosen the other 2 screws. (Do not
remove)
Raise and hold the light kit close to the
mounting plate and proceed to do the wire
connections. Connect the white wire
connectors from the light plate and fan, follow
the same procedure with the black wire
connectors. (Fig. 18)
Carefully push all wires back into the
mounting plate, place the key holes on the light
kit over the 2 screws previously loosened from
the mounting plate, turn light kit until it locks
in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed.
(Fig. 18)
Install 3 x 40W candelabra bulbs (included).
(Fig. 19)
Remove the decorative nut from the light kit.
Place the glass shade over the light kit stem,
secure with the decorative nut. Do not
overtighten. (Fig. 19)
1.
2.
3.
4.
5.
Restore and your light kit is ready for
operation.
6.
Figure 17
Mounting Ring
Wire Connection
Plugs
Mounting Ring
Screws
Light Kit
Assembly
Screws
Mounting Plate
Figure 18
NOTE
LIGHT BULBS HAVE NO WARRANTY; CAN BE
PURCHASED AT ANY HOME DEPOT STORE.
NOTE
BEFORE STARTING INSTALLATION, DISCON-
NECT THE POWER BY TURNING OFF THE
CIRCUIT BREAKER OR REMOVING THE FUSE AT
FUSE BOX. TURNING POWER OFF USING THE FAN
SWITCH IS NOT SUFFICIENT TO PREVENT
ELECTRIC SHOCK.

12
Fan without Light Kit
(Optional)
Disassemble the switch housing from the light
kit , you can keep the light kit for future use.
Attach the plastic plug to the switch housing.
(Fig. 20)
Install the switch housing to the mounting
plate with screws provided. (Fig. 20)
1.
2.
3.
Figure 20
Switch
Housing
Screws
Plug
Mounting plate
Figure 19
Glass Shade
Decorative Nut
Light Kit
Assembly Bulbs

13
Installing the Battery:
"HI, MED, LOW" buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed,
MED= Medium speed
HI=High speed
"OFF" button:
This button turns the fan off.
The " " button turns the upper light ON or
OFF and also controls the brightness setting.
The " " button turns the bottom light ON or
OFF and also controls the brightness setting.
Press and release the button to turn the light
ON or OFF. Press and hold the button to set the
desired brightness. The light button has an
autoresume, it will stay at the same brightness
as the last time it was turned off.
1.
2.
3.
Install 12V MN21/A23 battery (included), to
prevent damage to transmitter, remove the battery
if not used for long periods (Figure 21).
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
Restore power to the ceiling fan and test for proper
operation.
Figure 21
Operating Your Transmitter
Figure 22

14
The Reverse switch is located on the top of motor
housing. Slide the switch to the Left for warm
weather operation. Slide the switch to the Right for
cool weather operation.
Warm weather - (Counter-Clockwise direction) A
downward air flow creates a cooling effect.(Fig.
23) This allows you to set your air conditioner on
a higher setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
24) This allows you to set your heating unit on a
lower setting without affecting your comfort.
Figure 23 Figure 24
NOTE
DO NOT OPERATE REVERSING SWITCH
WHILE FAN BLADES ARE IN MOTION. FAN
MUST BE TURNED OFF AND BLADES STOPPED
BEFORE REVERSING BLADE DIRECTION.

15
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire connections in the
switch housing.
Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
Make sure wire nut connections are not rattling against each other or the
interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new
fan disappear during this time.
If using an optional light kit, make sure the screws securing the glassware
are tight. Check that the light bulb is also secure.
Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
2.
Fan will not start
Fan sounds noisy
Remote control
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

16
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
60” 120 15.8 kgs
(34.8 lbs)
17.5 kgs
(38.6 lbs) 4.3’
LOW
MED.
HIGH
0.47
0.64
0.69
24
53
81
63
105
133
2874
4641
6114
These are approximate measures. They do not include Amps and Wattage used by the light kit .

17
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives specific legal rights, and you may also have other rights which vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Hampton Bay Lifetime Limited Warranty
(lifetime warranty on motor)
IMPORTANT NOTE:
To ensure warranty service if ever
needed, please register your fan at:
www.tal-usa.com/registration
You must present a copy of the original
purchase receipt to obtain warranty
service.
Ceiling Fan Parts & Service Department
2919 E. Philadelphia Street
Ontario, CA 91761
U.S.A.
Attach receipt here for easy
location
