HAMPTON BAY 786-756 User manual

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
786-756
219054
718212343425
Hampton Bay Lifetime Motor Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass parts, to be free fromdefects in workmanshipand material at the time of shipment
from the factory for a period of one year after the date of purchase by the original purchaser.
We agree to correct such defects withoutcharge or at our option replace with a comparable or
superior model ifthe product isreturned to the retailer. To obtain warranty service,you must
present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or
improper installation or by affixing any accessories, is not covered by this warranty.
Because of varying climatic conditions in the United States this warranty does not cover any
changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass
finishes of this type give their longest useful life when protected from varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time periodas specified in the express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Hampton Bay Lifetime Motor Warranty

Table of Contents
Safety Rules..........................................................................................................
Unpacking Your Fan...............................................................................................
Installing Your Fan................................................................................................
Hanging The Fan....................................................................................................
Electrical Connection.............................................................................................
Finishing the Installation........................................................................................
Attaching the Fan Blades........................................................................................
Installing the Light Kit...........................................................................................
Operating the Transmitter.......................................................................................
Care of Your Fan....................................................................................................
Troubleshooting....................................................................................................
Specifications.......................................................................................................
1
2
3
4
5
6
7
8
9
10
11
12

1. Before you begin installing the fan, shut power off at the
circuit breaker ofthe fuse box.
2. Be cautious! Read all instructions and safety information
before installing your new fan. Review accompanying
assembly diagrams.
3. Make sure that all electrical connections comply with
local codes, ordinances, or National Electrical Codes.
Hire a qualified electrician or consult a do-it-yourself
wiring handbook if you are unfamiliar with installing
electrical wiring.
4. Make sure the installation site you choose allows the fan
blades to rotate without any obstructions. Allow a
minimum clearance of 7 feet from the floor and 18 inches
from the tipof the bladesto the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use
a U.L. Listed metal octagonal outlet box marked
"Acceptable for Fan Support". Secure the box directly to
the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 50
pounds) Do notuse a plasticbox
6. Caution: To reduce the risk of injury use only the screws
provided with the outlet box in conjunction with the lock
washers provided withthe fan.
7. If you are mounting the fan to a joist, make sure it is able
to support themoving weight ofthe fan (at least 50 pounds).
1. Safety Rules
8. After you install thefan, make sure that all mounting components
are secured toprevent the fanfrom falling.
9. Do not insert anything into the fan blades while the fan is
operating.
10. Turn the fan off and wait for the blades to stop completely before
changing the fandirection.
NOTE: The important safeguards and instructions appearing in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood thatcommon sense, caution and
care are factors which can not be built into this product. These factors
must be supplied by the person (s) installing, caring for and operating
the unit.
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR OTHER PERSONAL
INJURY, MOUNT FAN UNLY TOA U.L. LISTED OUTLETBOX OR SUPPORTING
SYSTEM MARKEDACCEPTABLE FORFAN SUPPORT ANDUSE MOUNTING
SCREWS PROVIDED WITHTHE OUTLET BOX OR INCONJUCTION WITH THE
LOCK WASHERS PROVIDED WITHTHE FAN. MOST OUTLETBOXES
COMMONLYUSED FOR FAN SUPPORTOF LIGHTING FIXTURESARE NOT
ACCEPTABLE FORFAN SUPPORT ANDNEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IFIN DOUBT.
TO REDUCETHE RISK OFPERSONAL INJURY,DO NOT BENDTHE BLADE
HOLDERS WHILE INSTALLING, BALANCING THEBLADES OR CLEANING
THE FAN.DO NOT INSERT FOREIGN OBJECTSBETWEEN ROTATING FAN
BLADES.
TO REDUCETHE RISK OFFIRE OR ELECTRIC SHOCK, DO NOTUSE THIS
WITH ANYSOLID-STATE SPEED CONTROLDEVICE.
WARNING
NOTE
READ AND SAVE ALLINSTRUCTIONS!

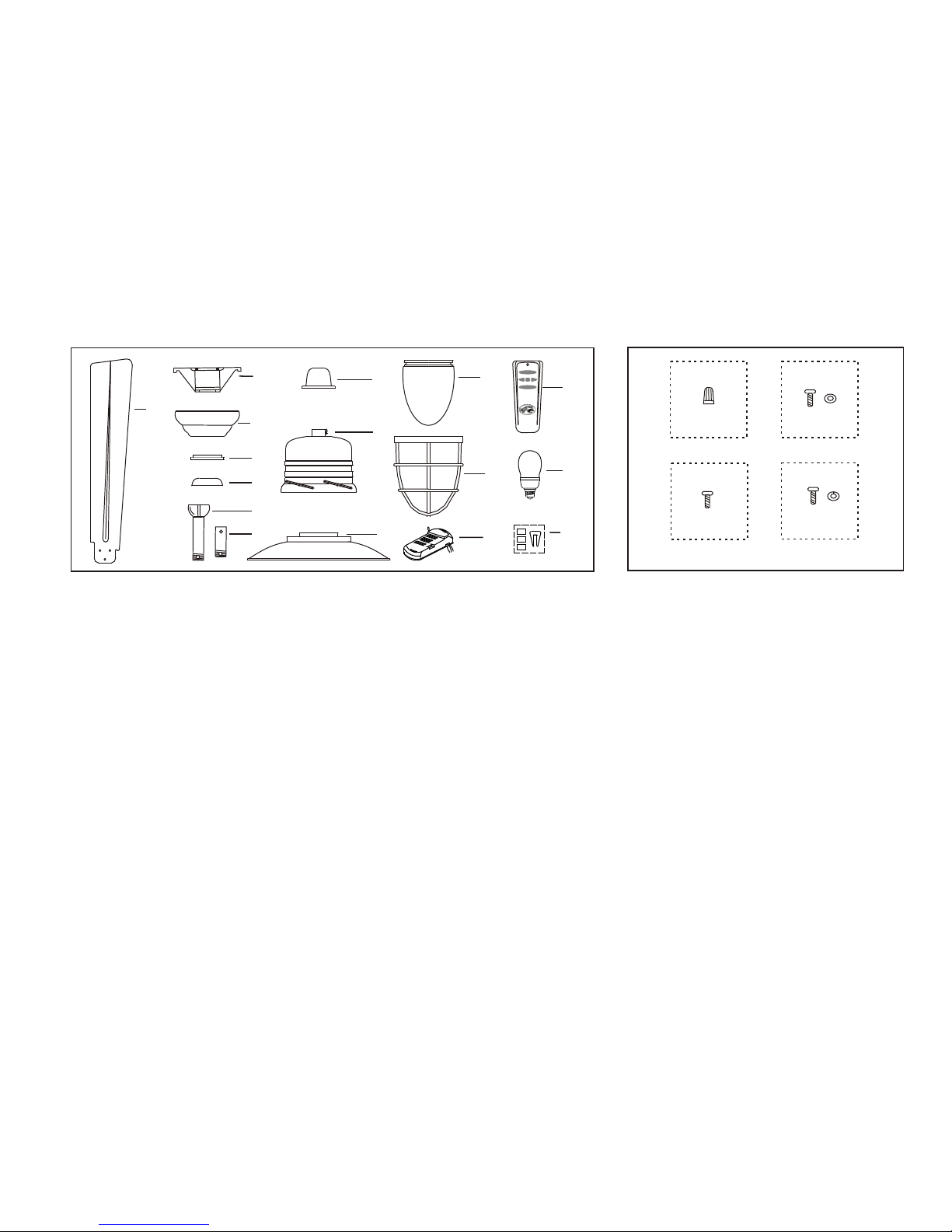

Unpack your fanand check thecontents. You should havethe following items:
Package Contents 2.
1. Fan blades(5 )
2.
7. Coupling cover
Hanger bracket
3. Canopy
4. Canopy cover
5. Rubber cover
6a. Standard downrodass'y
6b. Minimum-length downrod(for close
to ceiling mountingonly)
8. Fan motor/housingass'y
9. Light kithousing
10. Glass shade
11. Glassframe
12. Receiver with6 wire nuts
13. Remote control
14.
15. Balancing kit
14 Watt compact fluorescentbulb
a. Mounting Hardware:
Wire nuts(3 PCs.)
b. BladeAttachment Hardware:
Screws (16 PCs.)
Fiber washers (16PCs.)
c. Light KitHardware:
Thumb screws (1PCs.)
d. Light KitHousing AssemblyScrew:
Screws with lockwashers (5 Purchase.)
a
cd
b
LO MED HI
FAN OFF
LIGHT/ DIMMER
3
1
2
6a
6b
8
710
11
12
4
5
13
14
15
9

Phillips screw driver; slotted screw driver; step-
ladder; wire cutters;electrical tape.
If there isn't an existing mounting box, then read
the following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 50 lbs.). Use a U. L. Listed metal outlet
box. Do notuse a plasticoutlet box.

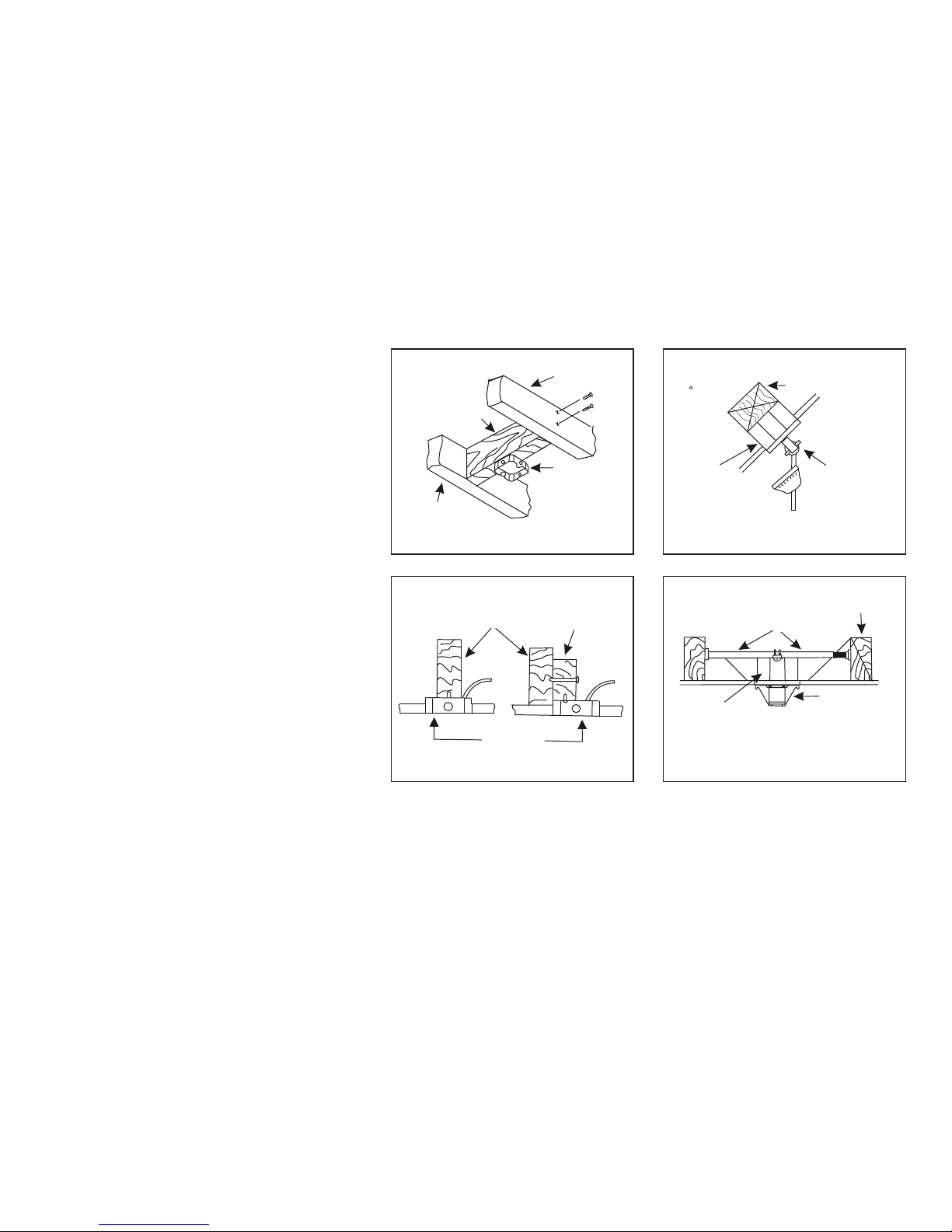

Figure 1, 2 and 3 are examples of different ways to
mount the outletbox.
Note: You may need alonger downrod tomaintain
proper blade clearance when installing on a steep,
sloped ceiling. Longer downrods are available
from your HamptonBay dealer.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need to install a
hanger bar as shown in Fig. 4 (available at our
Hampton Bay dealer).
Tools Required
Mounting Options
3. Installing Your Fan
Outlet box
Figure 1
Ceiling
joist
Ceiling
joist
Cross brace
Outlet box
Figure 2
Ceiling joist
or cross brace Parallel
wood brace
Provide strong
support
Recessed
outlet box
Hanger
opening must
be facing up-side
Figure 3
Angled ceiling
maximum
23 angle
Outlet box
Figure 4
Ceiling
joist
Hanger bar
(optional)
Hanger
bracket

Hanging the Fan 4.
REMEMBER to turn off the power.
Follow the steps below to hang your fan
properly:

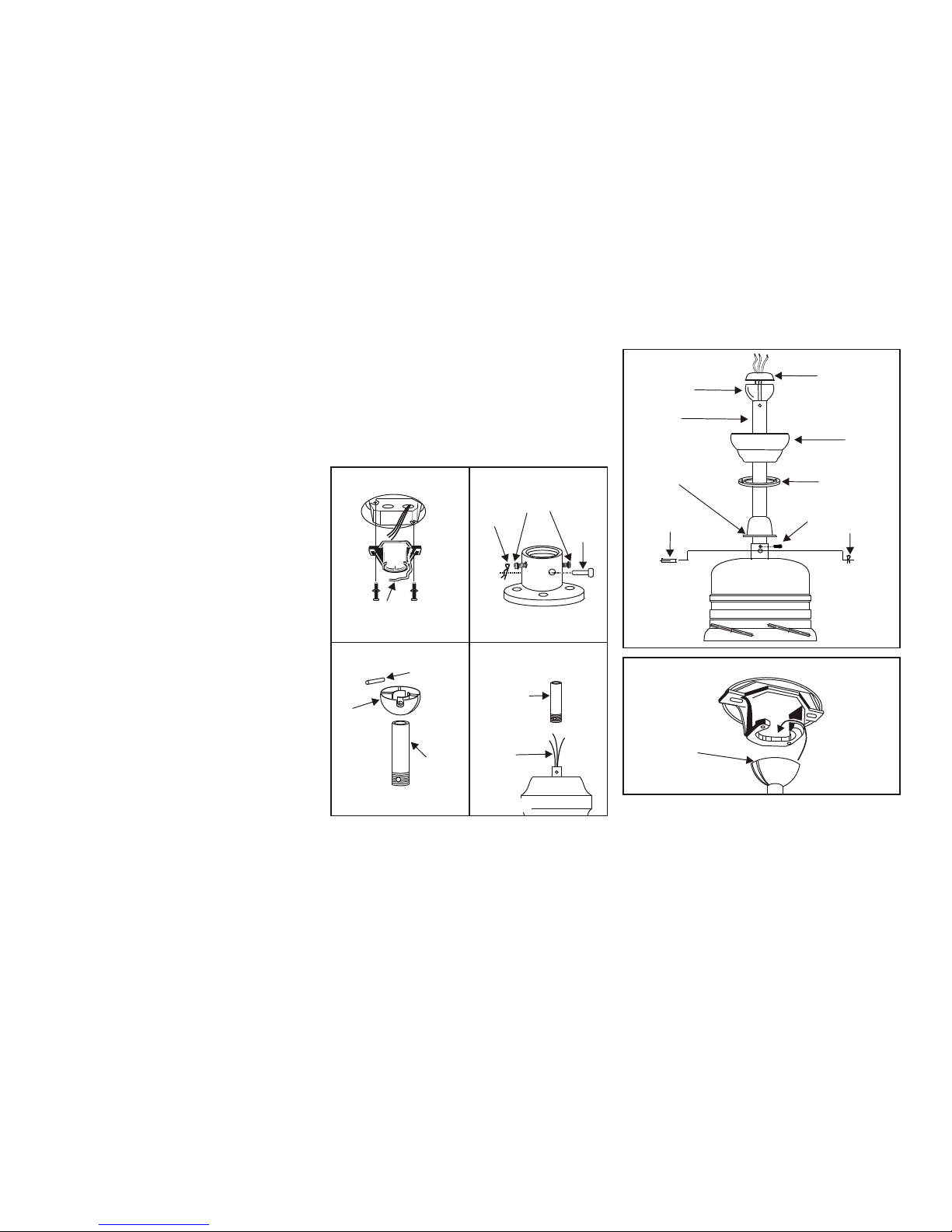

Step 1. Secure the hanger bracket to the
ceiling outlet box using screws included
with your outlet box, lock washers
included with thefan. (Fig.5)
Step 2. Loosen the two set screws and
in the top
coupling of themotor assembly. (Fig. 6)
Step 3. Remove hanger ball from downrod
assembly by loosening set screw,
removing the cross pin, and sliding ball off
rod. (Fig.7)
Step 4. Carefully feed fan wires up
through the downrod. (Fig. 8) Thread the
rod into the coupling. Next line up holes
and replace lock pin and hitch pin. Tighten
set screws.
Step 5. Slip coupling cover, canopy cover
and canopy onto downrod. (Fig. 9)
Carefully reinstall
remove the hitchpin and lock pin
hanger ball onto rod
being sure that cross pin is in correct
position, set screws are tighten and wires
are not twisted.
Step 6.
Now lift motor assembly into position
and place hanger ball into hanger bracket.
Rotate until the check groove has dropped
into the registration slot and seats firmly.
(Fig. 10) Rod should not rotate if this is
done correctly.
Place rubber cover onto the hanger
ball .
Outlet box
Hanger bracket
Cross pin
Hanger
ball
Downrod
Downrod
Supply
wires
Figure 5
Figure 7 Figure 8
Figure 6 Figure 9
Figure 10
Registration
slot
Hitch
pin Lock
pin
Set
screws
Downrod
Coupling
*Omit coupling
cover when
downrod
cover
using
the minimum-length
Canopy
Canopy cover
Hanger ball
Rubber cover
Hitch pin Lock pin
Set screws

WARNING: To avoid possible electrical
shock be sure electricity is turned off at the
main fuse orbreaker box beforewiring.

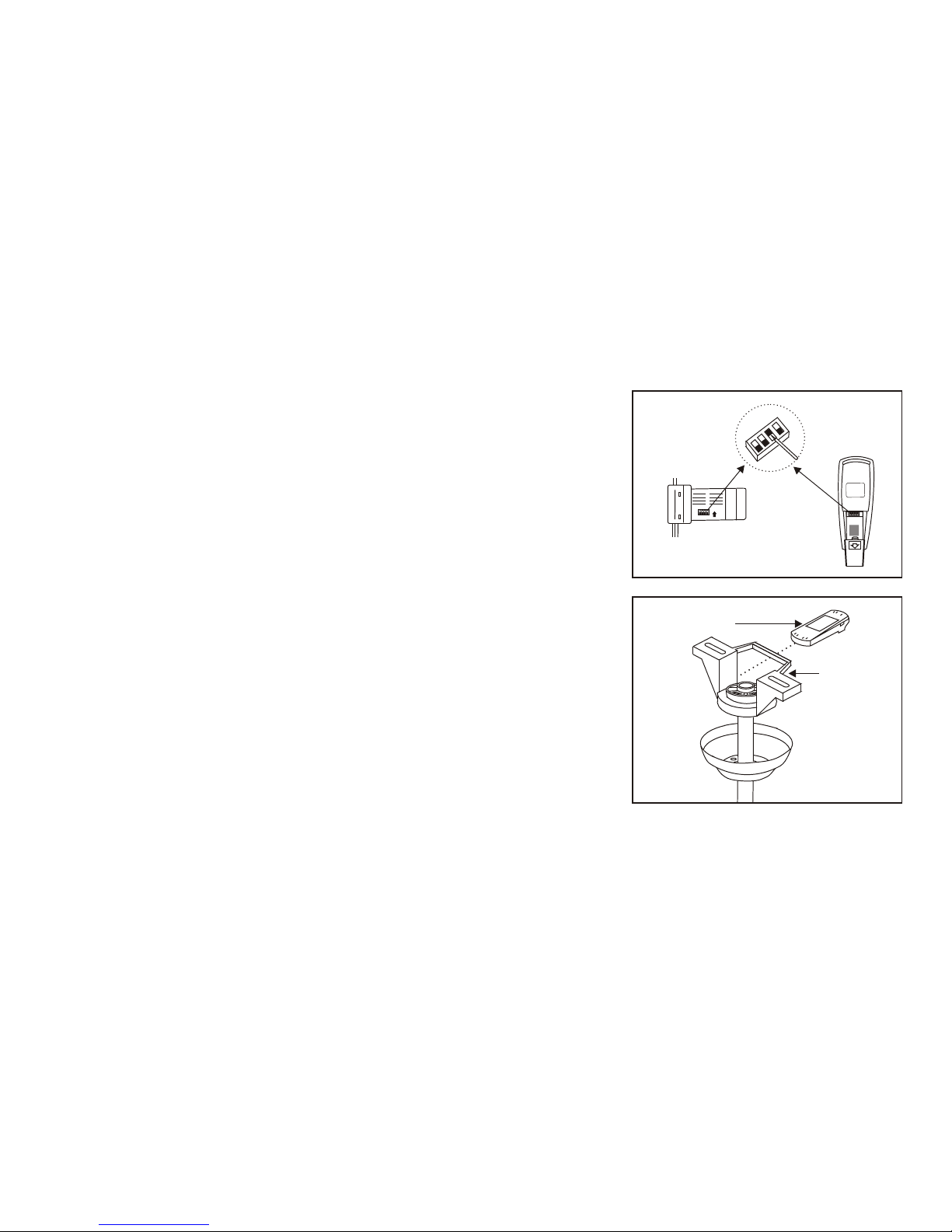

NOTE: The Hand Held Remote or Wall
Control units included with your ceiling fan
are equipped with 16 code combinations to
prevent possible interference from or to other
remote units. The frequency switches on your
Receiver and Transmitter units have been
preset at the factory, please re-check to make
sure the switches on both units are set to the
same positions. The frequency settings should
be changed only in case of interference or if a
second or more remote controlled ceiling fans
are installed in the same structure. Any code
combination will operate the ceiling fan and
light as long as the Receiver and Transmitter
units are setto the samecodes (Fig. 11)
Step 1. Insert Receiver into Hanger Bracket
with the flat side of the Receiver facing the
ceiling. (Fig. 12)
Step 2. Motor to Receiver Electrical
Connections: Connect the WHITE wire from
the fan to the WHITE wire marked "TO
MOTOR N" from the Receiver. Connect the
BLACK wire fromthe fan to the BLACK Wire
marked "TO MOTOR L" from the Receiver.
Connect the BLUE wire from the fan to the
BLUE wire marked "For Light" from the
Receiver. NOTE: If your ceilingfan features
an UP Light: Connect the ORANGE wire
from the fan to the ORANGE wire marked
"For Up Light"from the Receiver. Otherwise
disregard this step and proceed to secure all
wire connections with the plastic wire nuts
provided. (Fig. 13)
connectors
Step 3. Receiver to House Supply Wires
Electrical Connections: Connect the WHITE
wire (Neutral) from the outlet box to the
WHITE wire marked "AC in N" from the
receiver. Connect the BLACK wire (Hot)
from the outlet box to the BLACK wire
marked "AC in L" from the receiver. Secure
all wire connections with the plastic wire
nuts provided. (Fig.13 )
Step 4. If your outlet box has a GROUND
wire (Green or Bare Copper) connect this
wire to the Hanger Ball and Hanger Bracket
Ground wires. If your outlet box does not
have a Ground Wire, then connect the
Hanger Ball and Hanger Bracket Ground
Wires together. Secure wire connection with
the plastic wirenut provided. (Fig.13 )
After all are made, checkto make
sure there are no loose strands. As an
additional precaution we suggest to secure
the plastic wire connectors to the wires with
electrical tape.
ONON
Figure 11
Figure 12
Receiver
Hanger bracket
5. Electrical Connections
Note: The transmitter only works within 40
feet from receiver.

Figure 14
Outlet box
Hanger
bracket
Hanger
ball
Canopy
Canopy
cover
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC INN")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC INL")
Black ("to motor L")
Receiver
Blue ("for light")
Blue (light)
Black (motor)
Fan
Figure 13
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and
over the two crews on hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with onehand, slide the canopy cover
over the screws and rotate clockwise until
tight. Note: adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig.14)
Finishing the Installation 6.

THE FOLLOWING OPERATIONS MUST BE
ACCOMPLISHED BEFORE INSTALLING
THE LIGHT KIT.
Step 1. Insert one fan blade into the blade slot on
the motor housing and secure with three screws
and washers. Securely tighten screws. Repeat
process with otherblades.
Blade
Motor
housing
Screws
Washers
Figure 15
7. Attaching the Fan Blades

REMEMBER to disconnect the power.
The fan blades must already be attached to
the fan.
Your fan and light kit, though pre-wired,
have been disassembled at the factory to
ease in shipping. Please follow these steps
to complete theinstallation of yourfan.

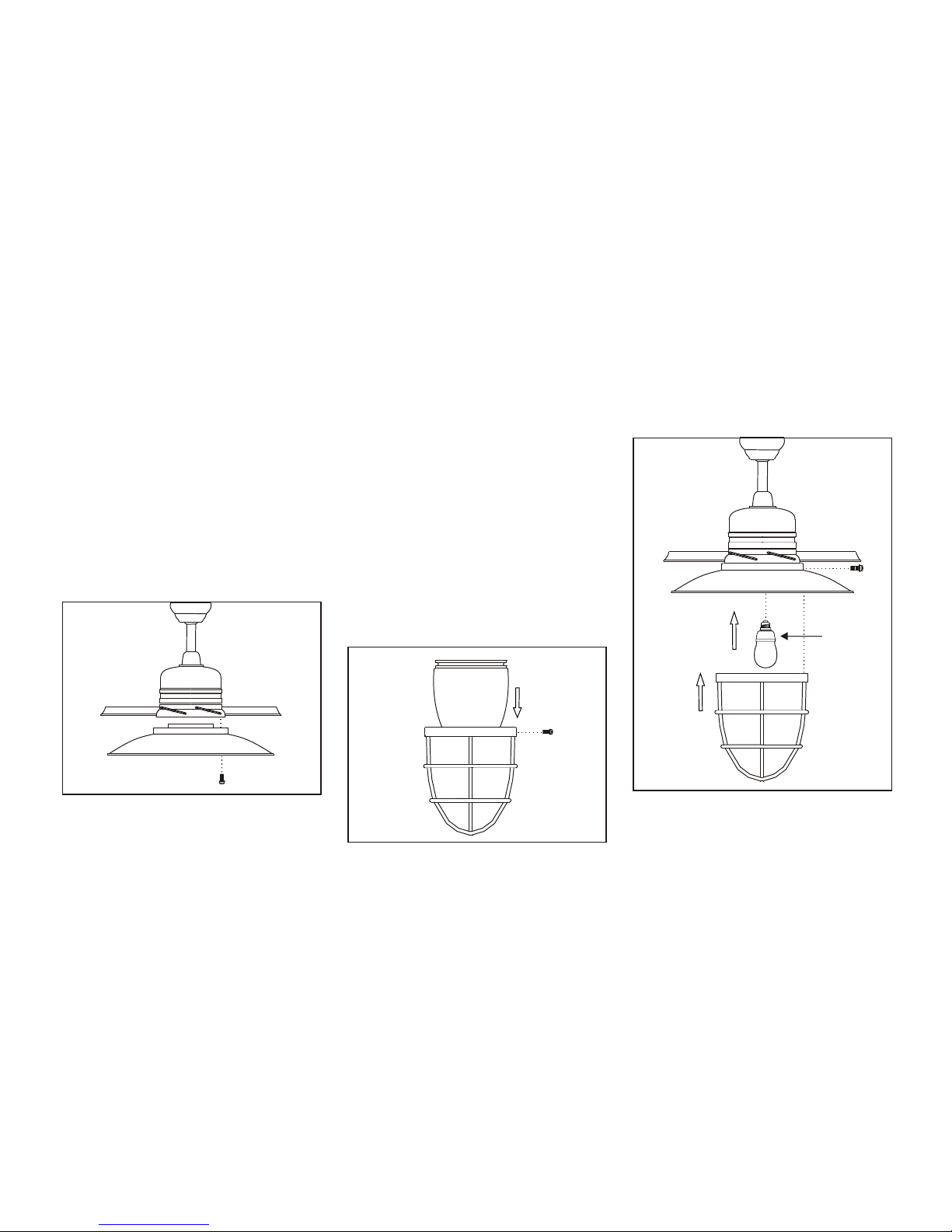

Step 1. (Fig. 16) Remove 1 of the 3 screws
from the
and loosen the other 2 screws. (Do
not remove)
bottom of thebottom of themotor
housing
Bring the Light Kit Housing
close to the Motor Housing, Pass the two
wires from the motor through the access
hole of theLight Kit Housing.
Step 2. (Fig. 16)Proceed to make the wire
connections by snapping the two
connectors from the motor to the two
connectors from theLight Kit Housing.
Step 4. (Fig. 17) Place the glass shade into
the glass frameand secure withfour nuts.
Step 5. (Fig. 18)
Step 3. (Fig. 16) Place the key holes on the
light kit housing over the 2 screws
previously loosened from the mounting
ring, turn light kit housing until it locks in
place at thenarrow section ofthe key holes.
Secure by tightening the 2 screws
previously loosened and the one
previously removed.
Install 1 x 14 Watt
compact fluorescent bulbs(included).
Step 6. (Fig. 18) Take the glass shade and
glass frame assembly and place it over the
light kit housing, secure it in place by
tightening 5 screws from the light kit
housing.
Figure 16
Figure 17
Figure 18
Bulb
Installing the Light Kit 8.

9. Operating the Transmitter
9 Volt
Battery
Figure 19
Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove the
battery if not used for long periods. (Fig. 19)
Restore power to ceiling fan and test for
proper operation.
1. " LO, MED,HI" buttons:
These three buttons are used to set the fan
speed as follows:
LO= Low speed MED= Medium speed
HI= High speed
2. "FAN OFF" button:
This button turns the fanoff.
3. The "LIGHT" button turns the light ON or
OFF.
NOTE: This fan and the bulb provided
are designed NOT to dim.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, etc.
The Reverse switch is located on top of the
motor assembly. Slide the switch to the Left
for warm weatheroperation. Slide the switch
to the Rightfor cool weatheroperation.
NOTE: Wait for fan to stop before changing
the setting ofthe slide switch.

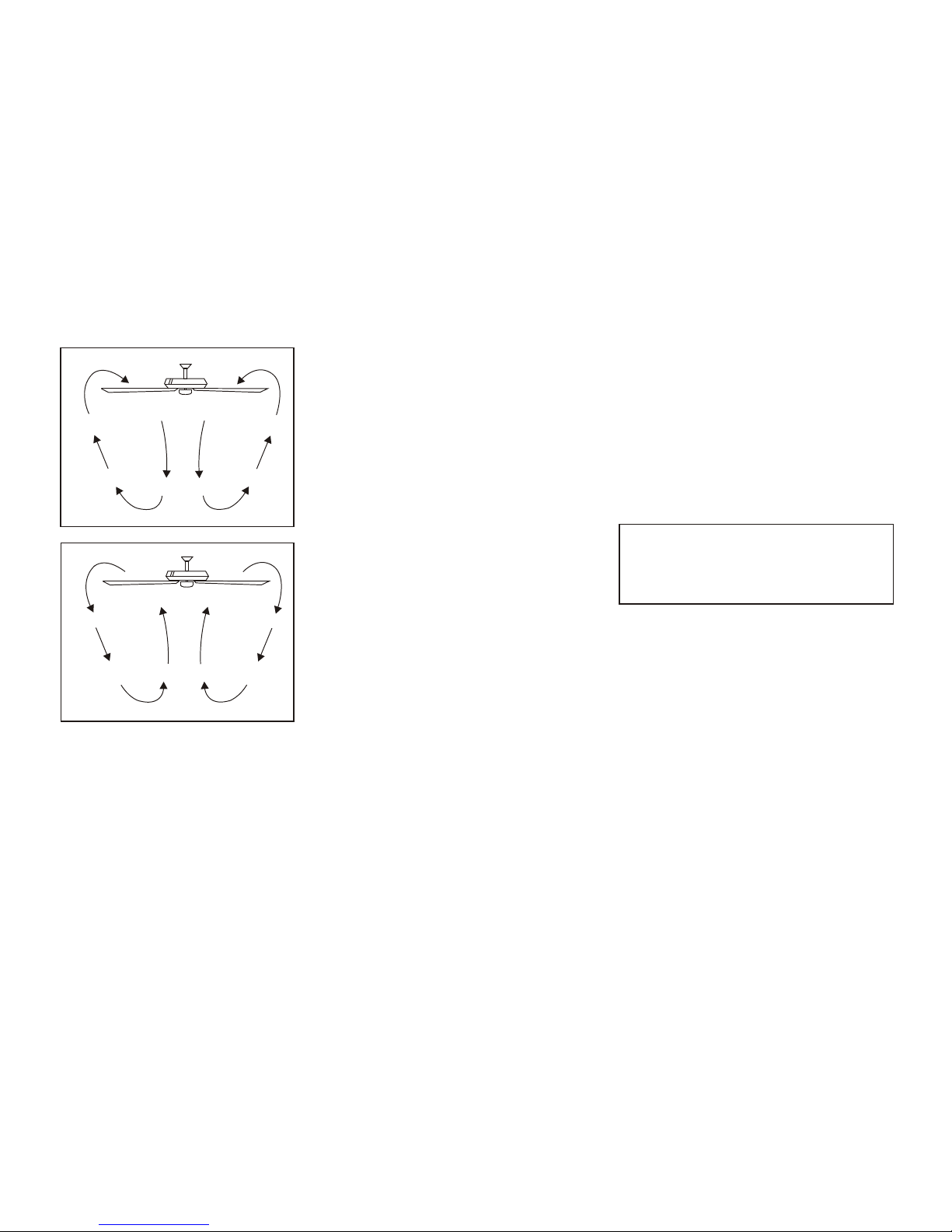

Warm weather - (Forward) A downward air
flow creates a cooling effect as shown in
Figure 21. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area asshown
in Figure 22. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Figure 20
LIGHT
LO MED HI
FAN OFF

Figure 21
Figure 22
Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural movement,
some connections may become loose. Check
the support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan
from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the years.
Use only a soft brush or lint-free cloth to
avoid scratching the finish. The plating is
sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water
when cleaning. This could damage the motor,
or the wood, or possibly cause an electrical
shock.
3. Use only a soft brush or lint-free cloth to
avoid scratching the finish. The plating is
sealed with a lacquer to minimize
discoloration or tarnishing.
4. You can apply a light coat of furniture
polish to the wood blades for additional
protection and enhanced beauty. Cover small
scratches with a light application of shoe
polish.
For any additional information on your
Hampton Bay CeilingFan, please writeto:
THE HAMPTON BAY FAN & LIGHTING CO.
P.O. Box 395
Norco, CA92860
Call toll free 1-800-527-0998
5. There is no need to oil your fan. The
motor has permanentlylubricated bearings.
6. All glass should be cleaned using
lukewarm soapy water and a soft cloth or
sponge.
DO NOT IMMERSE GLASS IN HOT
WATER. DO NOT PUT GLASS INTO AN
AUTOMATICDISHWASHER.
WARNING: Make sure thepower is off
at the electricalpanel box Beforeyou
attempt any repairs.Refer to thesection,
"Making Electrical Connections".
Care of Your Fan 10.

Troubleshooting11.
Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction.
Fan Wobble.
Solution
1. Check circuitfuses or breakers.
2. Check linewire connections tothe fan andswitch wire connectionsin the switchhousing.
CAUTION: Make suremain power isoff.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fanblade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbingagainst each otheror the interiorwall of theswitch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in"period. Most noiseassociated with anew fan disappearduring this time.
5. If usingan optional lightkit, make surethe screws securingthe glassware aretight. Check thatthe light bulb
is also secure.
6. Do notconnect the fanwith a wall mounted variable speedcontrol (s)
7. Make surethe upper canopyis a shortdistance from theceiling. It should not touch the ceiling.
1. Do notconnect the fanwith a wall mounted variable speedcontrol (s).
2. Check tomake sure thedip switches fromthe transmitter andreceiver are setto the samefrequency.
3. Check tomake sure thedip switches fromthe transmitter andreceiver are setto the samefrequency.
NOTE: All blade setsare grouped byweight. Because woodand plastic blades vary in density, the fan
may wobble eventhough blades arematched.
1. Make sureall blade attachmentscrews are tight.
2. Make sureOutlet box issecured to buildingstructure, if necessary use the wood screws provided to
further secure outletbox to joist.
3. Make sureHanger Bracket issecure to theoutlet box, screws are tight.
4. Use the balancing kit provided if the wobble is excessive (follow instructions included with balancing kit)

52"
0.38
0.50
0.60
17
38
70
65
100
155
1035
4000
5600
Specifications 12.
These are typicalreadings. Your actual fanmay vary. They do not include Amps and Wattage used by thelight kit.
RPM CFM N.W. G.W.
C.F.
120
120
11.99 kgs
(26.40 lbs)
14.10 kgs
(31.05 lbs)
3.18'
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by
Home Depot U.S.A.,Inc.
2455 Paces Ferry Rd., N.W.
Atlanta, GA30339
