HAMPTON BAY Palm Beach II User manual

®
Item #191 410
Model #59299
UL Model #48-PBH
USE AND CARE GUIDE
PALM BEACH II 48-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................11
Care and Cleaning.............................................................12
Troubleshooting.................................................................12
1. To reduce the risk of electric shock, ensure the electricity has
been turned off at the circuit breaker or fuse box before you
begin.
2. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70-1999 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 lbs. (15.9 kg). Use only
UL Listed outlet boxes marked “Acceptable for Fan Support of
35 lbs. (15.9 kg) or less.”
4. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
5. Do not operate the reversing switch while the fan blades are
in motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items,
use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are
not packed with the fan must be UL-Listed and marked suitable
for use with the model fan you are installing. If using this fan
in a wet or damp environment, the light kit must be marked
“Suitable for Use in Wet Location”. Refer to the instructions
packaged with the light kits and switches for proper assembly.
9. This product is suitable for use in wet locations when installed
in a GFCI protected branch circuit.
10. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury, do
not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35lbs. (15.9 Kg) or
less” and use screws provided with the outlet box.
WARNING: Remove the rubber motor stops on the
bottom of the fan before installing the blades or
testing the motor.
WARNING: To reduce the risk of re or electric shock,
do not use this fan with any solid-state speed control
device.
WARNING: To avoid possible electrical shock, turn
the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
WARNING: Electrical diagrams are for reference only.
Optional use of any light kit shall be UL-Listed and
marked suitable for use with this fan.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury, use
only the screws provided with the outlet box.

3HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime
after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the
original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is
returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product
are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is not covered by
this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting, pitting, corroding,
tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is
no other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not limited to those of merchantability and tness
for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time
period as specied in the express warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,
so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other rights which vary
from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HamptonBay.com.

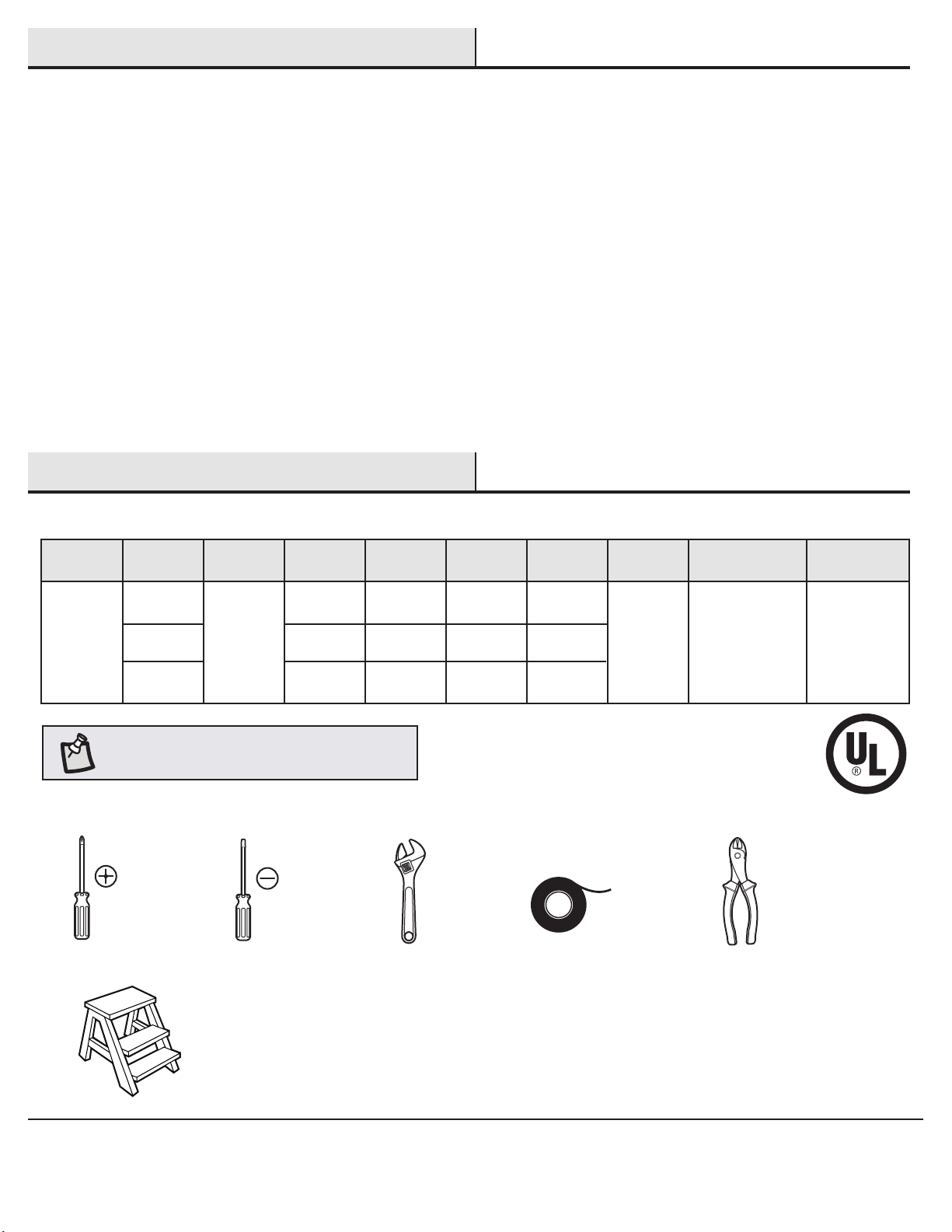

SPECIFICATIONS
TOOLS REQUIRED
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
48”
Low
Medium
High
120
0.26
0.37
0.55
13
30
67
75
120
175
1891
2979
4576
16.98 lbs.
(7.7 kg)
19.84 lbs.
(9 kg) 1.6’
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder

4
Part Description Quantity
AA Blade attachment hardware 16
BB Wire connecting nuts 3
CC Hanger pin 1
DD Locking pin 1
Part Description Quantity
EE Rubber gasket for close-to-ceiling
mounting
1
FF Extra blade bracket attachment
hardware
1
GG Pull chain 1
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB CC DD
EE FF GG

5HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Part Description Quantity
A Slide-on mounting bracket
(inside canopy)
1
B Ball/downrod assembly 1
C Canopy with canopy ring attached 1
D Fan-motor assembly 1
Part Description Quantity
E Switch cup 1
F Decorative motor collar cover 1
G Blade bracket (ange), screws
pre-installed
5
H Blade 5
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
B
C
D
E
F
G
H

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “acceptable
for fan support of 35lbs. (15.9kg) or less” and use screws
provided with the outlet box. An outlet box commonly
used for the support of lighting xtures may not be
acceptable for fan support and may need to be replaced.
If in doubt, consult a qualied electrician.
If your ceiling fan does not have an existing UL-Listed
mounting box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure.
Use the appropriate fasteners and materials. The outlet box
and its bracing must be able to fully support the weight
of the moving fan (at least 35 lbs. (15.9 kg)). Do not use a
plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the decorative canopy
bottom cover and turn the canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

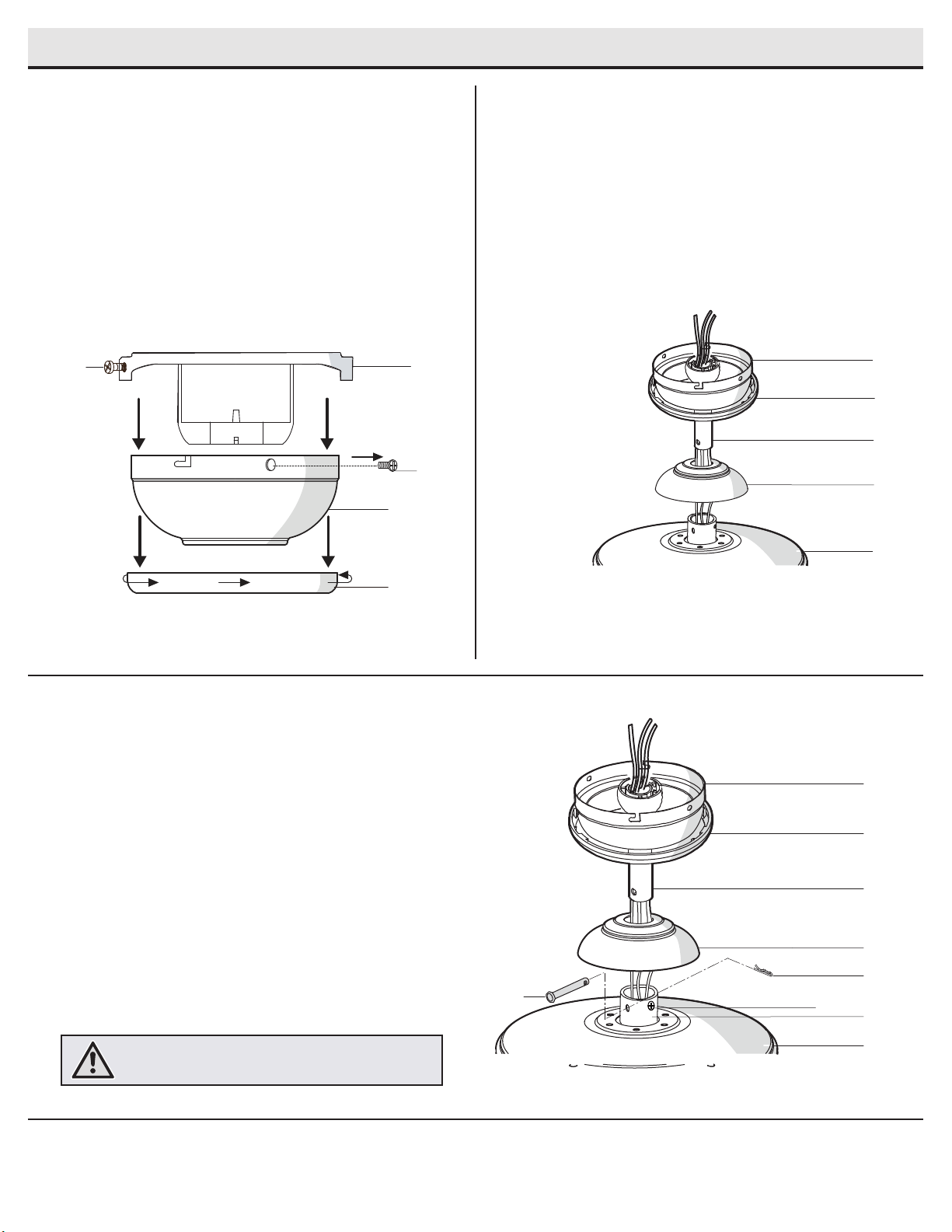

Assembly - Standard Ceiling Mount
Routing the wires
Assembling the fan
Preparation for mounting
□Loosen, but do not remove, the setscrew (QQ) on the collar
(M) on top of the fan-motor housing (D).
□Align the holes at the bottom of the downrod (B) with the
holes in the collar (M) on top of the fan-motor housing (D).
□Carefully insert the hanger pin (CC) through the holes in the
collar (M) and downrod (B). Be careful not to jam the hanger
pin (CC) against the wiring inside the downrod (B).
□Insert the locking pin (DD) through the hole near the end of
the hanger pin (CC) until it snaps into its locked position.
□Re-tighten the setscrews on the collar (M) on top of the
fan-motor housing (D).
□Remove the canopy ring (JJ) from the canopy (C) by turning the
ring counter-clockwise until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L shaped
slots”.
□Remove and save the two canopy screws (II) in the round
holes. This will enable you to remove the mounting bracket (A).
□Route the wires exiting the top of the fan-motor
housing (D) into the decorative motor collar cover (F)
and through the canopy ring (JJ).
□Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the ball/
downrod assembly (B).
2
3
1
C
B
F
D
JJ
C
B
F
D
JJ
CC
DD
M
QQ
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.
C
JJ
II
A
HH

8
Assembly - Hanging the Fan
Attaching the fan to the electrical
box Hanging the fan
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting plate on the outlet box by sliding the
mounting bracket (A) over the two screws (MM) provided with the
outlet box. If necessary, use leveling washers (not included) be-
tween the mounting bracket (A) and the outlet box. Note that the
at side of the mounting bracket (A) is toward the outlet box.
□Securely tighten the two mounting screws (MM).
□Carefully lift the fan-motor assembly (D) up to the mounting
bracket (A).
□Seat the hanger ball portion of the ball/downrod assembly (B)
in the slide-on mounting bracket (A) socket. Ensure that the
tab on the slide-on mounting bracket (A) socket is properly
seated in the groove in the hanger ball. If using close-to-ceiling
mounting, hang the fan on the hook provided by utilizing one of
the holes at the outer rim of the ceiling canopy (C).
4 5
WARNING: To reduce the risk of re, electric shock or
personal injury, mount to outlet box marked “acceptable
for fan support of 35lbs. (15.9 kg) or less” and use screws
provided with the outlet box.
A
MM
MM
Assembly - Close-to-Ceiling Mount
□Remove three of the six screws and lock washers (LL) (every
other one) securing the motor collar (M) to the top of the fan-
motor housing (D).
□Place the rubber gasket (EE) over the remaining three screws,
route the wires exiting the top of the fan-motor housing
through the canopy ring (JJ) (make sure the slot opening are
on top), then proceed to place the ceiling canopy (C) over the
collar at the top of the fan-motor housing (D).
□Align the mounting holes with the holes in the fan-motor
housing (D) and fasten, using the three screws and lock-
washers (LL) removed previously. Tighten the mounting
screws securely.
Routing the wiresPreparation for mounting 21□Remove the canopy ring (JJ) from the canopy (C) by turning the
ring counter clockwise until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L shaped
slots”.
□Remove and save the two canopy screws (II) in the round holes.
This will enable you to remove the mounting bracket (A).
□Remove the decorative canopy bottom cover (KK) from the
canopy (C) by depressing the three studs.
WARNING: The hook as shown is only to balance the fan while
attaching wiring. Failure to hang as shown may result in hook
breaking, causing the fan to fall. The hook must pass from
inside to the outside of the canopy.
C
EE
D
LL
JJ
M
C
JJ
II
A
HH
KK
A
B
D
C
XX
A
D
C

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly - Hanging the Fan (continued)
Making the electrical connection Mounting the fan
□The fan comes with 54 in. lead wires for use with and
extended ball/downrod (B) provided, you can cut the lead wire
to your desired length (no shorter than 12in.) This will make
extra room in the canopy (C). if you do not wish to cut the
wires, you will need to neatly wrap them.
□Connect the fan motor green wires to the household green or
bare wire using a wire connecting nut (BB).
□Connect the fan motor white to the household white wire
using a wire connecting nut (BB).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (BB).
□Secure each wire connecting nut (BB) using electrical tape.
□Turn the wire connecting nut (BB) upward and push the wiring
into the outlet box (NN).
□Align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock in place.
□Firmly tighten the two mounting screws (HH).
□Install the remaining two mounting screws (II) into the holes
in the canopy (C) and tighten rmly.
□Install the decorative canopy ring (JJ) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
counter-clockwise to lock in place.
6 7
IMPORTANT: Use the wire connecting nuts (BB) supplied with
your fan. Secure the connectors with electrical tape and ensure
there are no loose strands or connections.
WARNING: Each wire nut supplied with this fan is designed to
accept up to one 12-gauge house wire and two wires from the
fan. If you have larger than 12-gauge house wiring or more
than one house wire to connect to the fan wiring, consult an
electrician for the proper size wire nuts to use.
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the slide-on mounting bracket
must rest in the groove of the hanger ball. Failure to properly
seat the tab in the groove could cause damage to the wiring.
D
HH
JJ
C
A
Close-to-Ceiling Mounting
□Carefully unhook the fan from the slide-on mounting bracket
(A) and align the locking slots of the ceiling canopy (C) with
the two screws (HH) in the slide-on mounting bracket (A). Push
up to engage the slots and turn clockwise to lock in place.
Immediately tighten the two mounting screws (HH) rmly.
□Install the remaining two mounting screws (II) into the holes in
the canopy (C) and tighten rmly.
□Install the decorative canopy ring (JJ) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
counter-clockwise to lock in place.
□You may now proceed to attaching the fan blades.
WARNING: The locking slots of celling canopy are provided only
as an aid to mounting. Do not leave the fan assembly undattended
until all four canopy screws are engaged and rmly tightened.
D
HH
JJ
C
A
Outlet box
in the ceiling
NN
Green or bare wire
Black White
Blue & Black White Green

10
Assembly - Attaching the Fan Blades
Assembly - Attaching the Switch Cup
Attaching the switch cup
Attaching the blades to the blade
brackets
Fastening the blade assemblies to
the motor
10
8 9
□Attach a blade (H) to a blade bracket (G) by inserting screws
(AA) into the holes in the blade and through the blade
bracket. Note that the rubber washers are preattached to
the blade bracket.
□Tighten each screw securely.
□Repeat these steps for each blade (H) and blade bracket (G). □Fasten the blade assembly to the fan-motor housing (D) by
inserting the alignment post into the slot on the bottom of the
motor and tightening the blade bracket screws (TT). The blade
bracket screws (TT) are pre-installed into the blade bracket (G).
□Repeat this step for the remaining blade assemblies.
AA
H
G
D
G
TT
CAUTION: To reduce the risk of electric shock, disconnect
the electrical supply circuit to the fan before installing the
light xture.
D
E
GG
IMPORTANT: Remove the rubber stopper on the black bracket
below the motor in order to attach the blade assembly to
the motor. Replace the rubber stopper to prevent water from
entering the switch housing and to reduce the risk of re,
electric shock, or other personal injury.
□Remove the four screws on the switch cup (E).
□Connect the wires exiting the bottom of the black bracket
with the switch cup by connecting the molded adaptor
connectors together.
□Secure the switch cup (E) to the black bracket using the four
screws that were removed in the rst step above.
□Attach the pull chain extension (GG) to the fan pull chain.

11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Operating Your Fan
The pull chain controls the fan speed as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off
Speed settings for warm or cool weather depend on factors such as
room size, ceiling height, number of fans, and so on.
The slide switch controls the direction: forward (switch left) or reverse
(switch right).
Warm weather - (Forward) A downward airow creates a cooling effect.
This allows you to set your air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of the
ceiling. This allows you to set your heating unit on a lower setting
without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of blade
rotation.

12
Troubleshooting
Problem Solution
The fan will not start □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of each blade to the point on
the ceiling. Measure this distance. Rotate the fan until the next blade is positioned for measurement. Repeat for
each blade. Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. Run the fan for ten
minutes. If the fan continues to wobble please contact Customer Service and a balacing kit will be sent to you at
no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

®
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
