HAMPTON BAY 25-791-68-Y User manual

USE AND CARE GUIDE
DERRY INFRARED ELECTRIC FIREPLACE
C US
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING!
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this electric fireplace. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Hampton Bay!
Item #205107914, 205107911
Model #25-791-68-Y, 25-791-50-Y
20-10-201 REV. 4/2014

2
Table of Contents
Table of Contents ...................................2
Safety Information ..................................3
Warranty ..........................................5
Pre-Installation.....................................6
Installation ........................................9
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Maintenance ......................................12
Care and Cleaning .................................13
Troubleshooting ...................................14

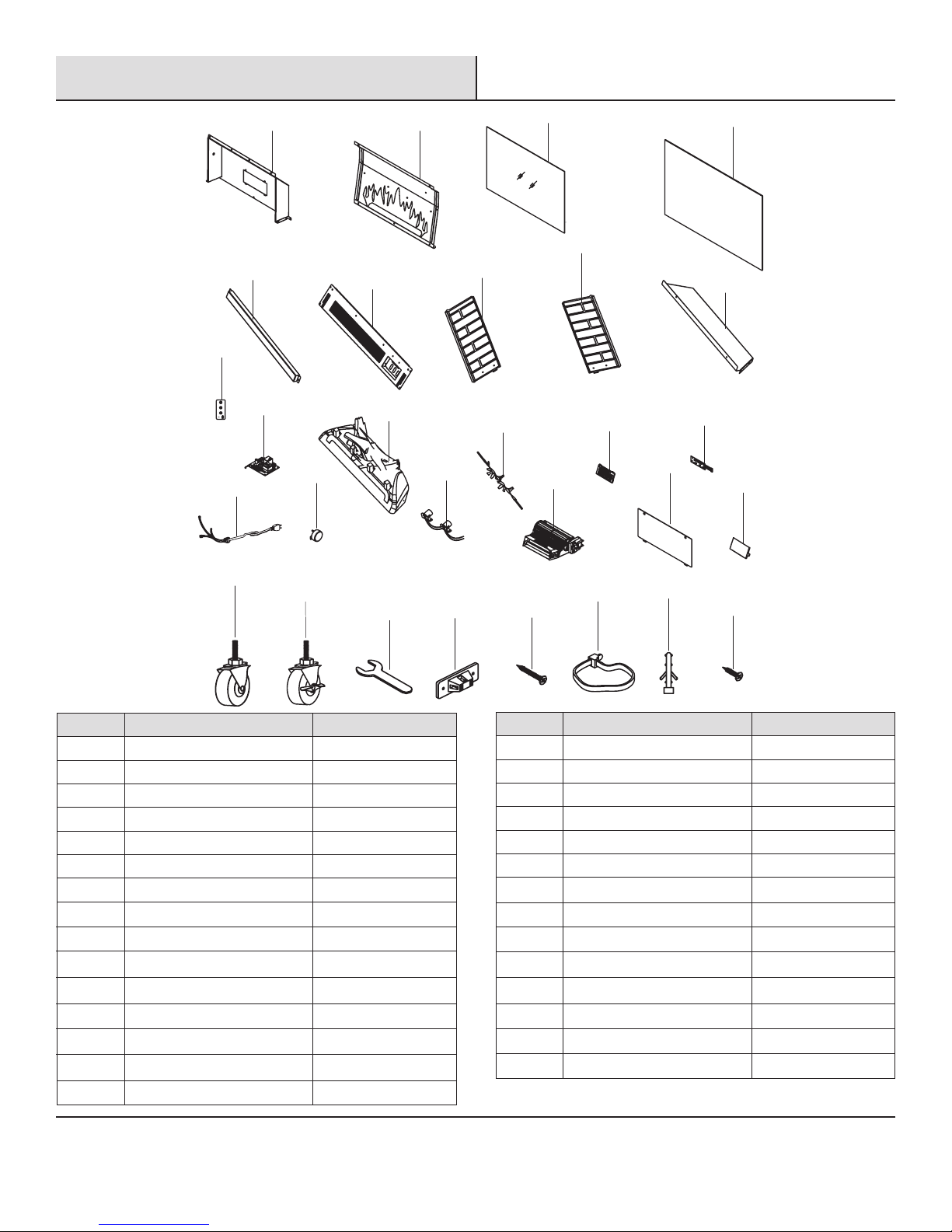

Service Parts......................................15
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock, injury to persons, fire hazard and will void the warranty.
Please read the Installation & Operating Instructions before using this appliance.
PRODUCT DAMAGE MAY OCCUR.
Never attempt to disassemble or alter the product in any way not instructed by this manual.
CAUTION

3 HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
Safety Information
Please read and understand this entire manual before attempting to assemble, operate or install the product.
□Read all instructions before using this appliance.
□This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this
appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 ft. (914 mm) from
the front of this appliance and keep them away from the sides and rear.
CAUTION: Extreme caution is necessary when any heater
is used by or near children or invalids and whenever the
heater is left operating unattended.
□If possible, always unplug this appliance when not in use.
□Do not operate any heater with a damaged cord or plug or after the appliance malfunctions, has been dropped or damaged in any
manner.
□Any repairs to this appliance should be carried out by a qualified service person.
□Under no circumstances should this appliance be modified. Parts having to be removed for servicing must be replaced prior to
operating this appliance again.
□Do not use outdoors.
□This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never place this appliance where it
may fall into a bathtub or other water container.
□Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or the like. Arrange the cord away from traffic
areas and where it will not be tripped over.
□To disconnect this appliance, turn the controls to the off position, then remove the plug from the outlet.
□Connect to properly grounded outlets only.
□This appliance, when installed, must be electrically grounded in accordance with local codes, with the current CSA C22.1 Canadian
Electrical codes or for USA installations, follow local codes and the National Electric Code, ANSI/NFPA No. 70.
□Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire, or
damage to the appliance.
□To prevent possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where
openings may become blocked.
□This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are
used or stored. This appliance should not be used as a drying rack for clothing, nor should Christmas stockings or decorations be
hung on or near it.
□Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
□Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power
strip) because of the risk of overheating the cord and the risk of fire. Extension cords are for temporary use only. If an extension
cord must be used, it must be UL/CSA certified, rated at 15A (1,875W), 125V maximum with 14 AWG minimum and constructed of
two current carrying conductors with ground. A heavy duty extension cord with the shortest length possible for the connection is
recommended and must not be longer than 50 ft. (15.2 m). Do not coil or cover the extension cord.
□“SAVE THESE INSTRUCTIONS FOR FUTURE USE”

4
Safety Information (continued)
WARNING: Electrical outlet wiring must comply with local
building codes and other applicable regulations to reduce
the risk of fire, electrical shock and injury to persons.
WARNING: Do not use this fireplace if any part of it has
been under water. Immediately call a qualified service
technician to inspect the fireplace and replace any part of
the electrical system which has been under water.

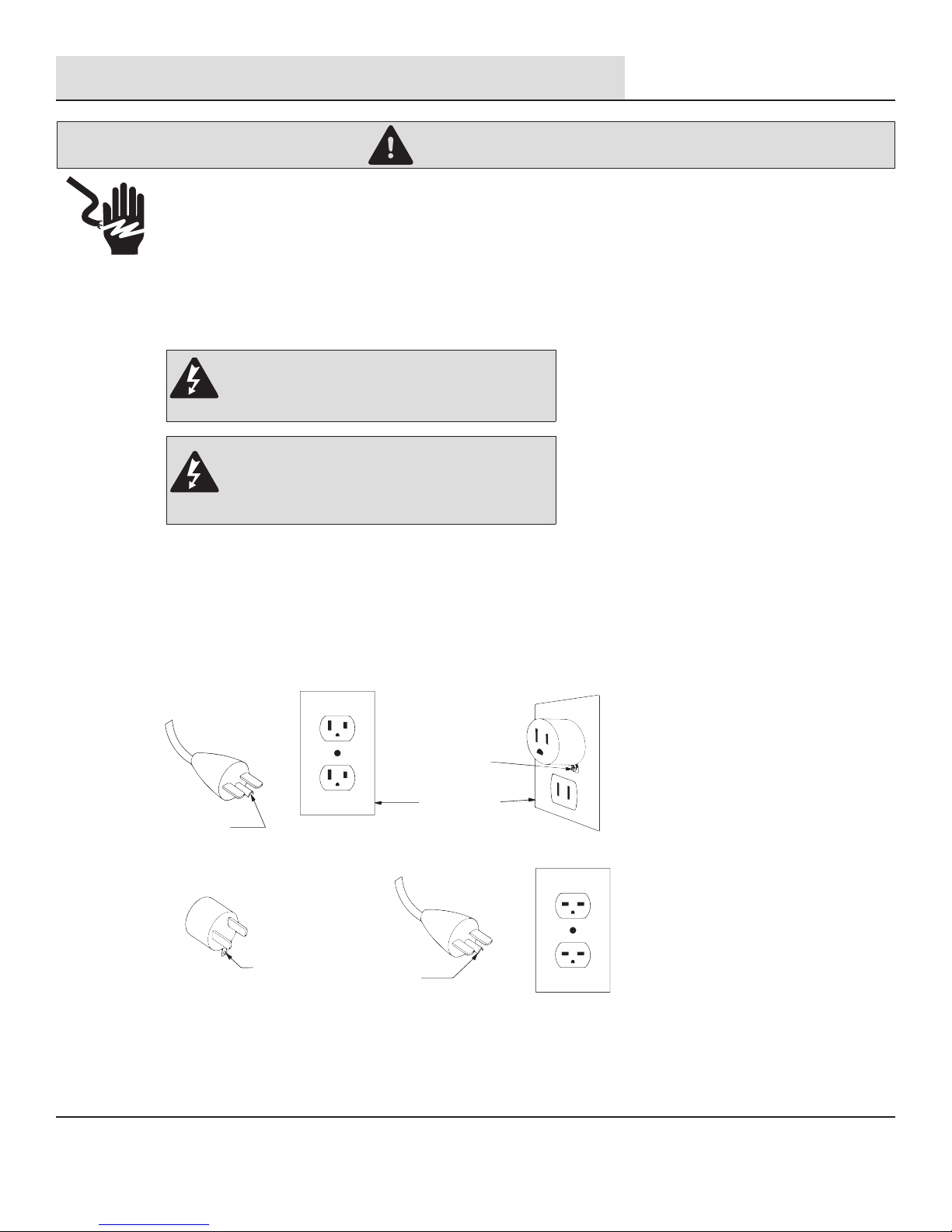

GROUNDING
PIN
METAL SCREW
GROUNDING
MEANS
COVER OF GROUNDED
OUTLET BOX
ADAPTER
Figure 1
GROUNDING
PIN
ELECTRICAL CONNECTION

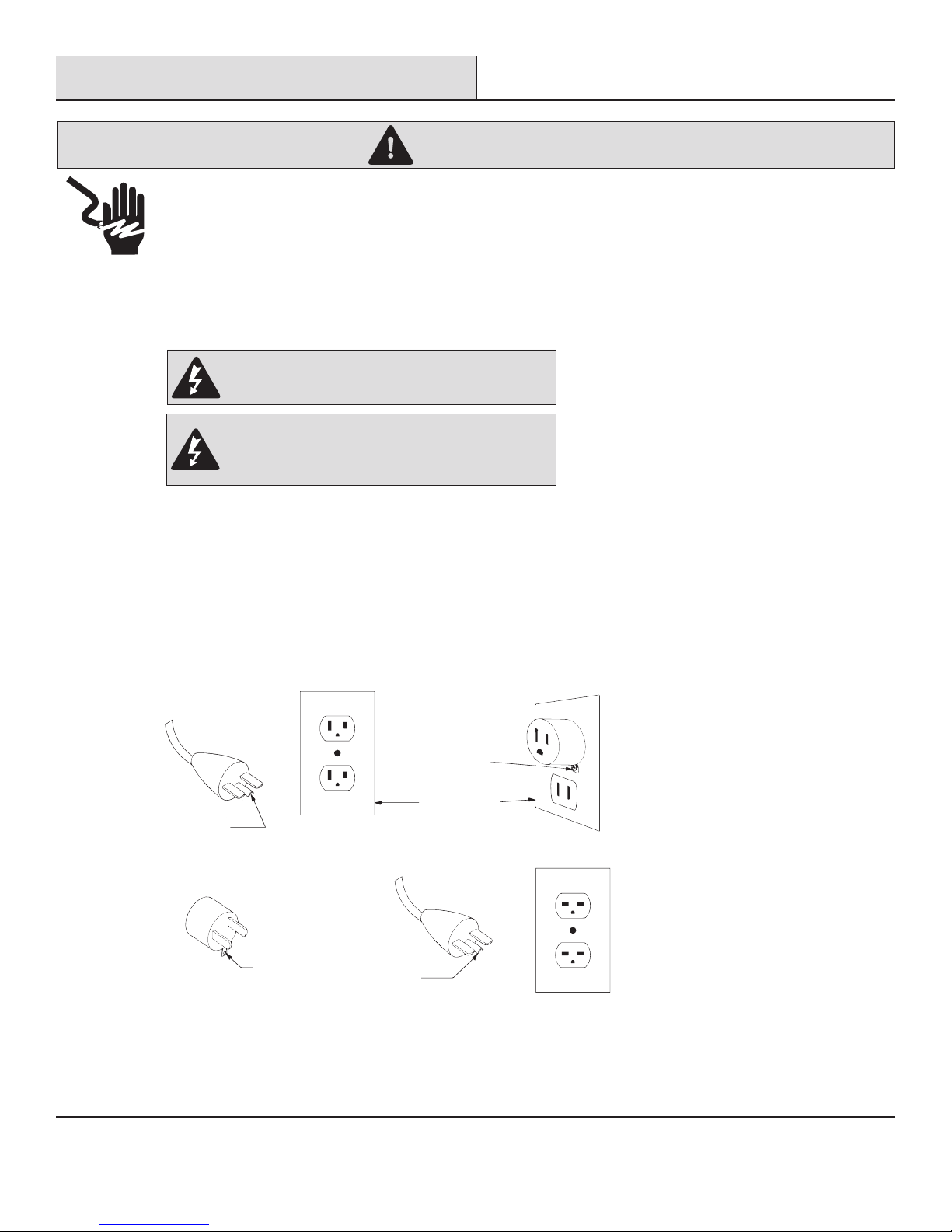

GROUNDING INSTRUCTIONS
This heater is for use on 120 volts. The cord has a plug as shown at (A) in Figure 1. An adapter as shown at (C) is available
for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used
if a three-slot grounded receptacle is available.
NOTE: Adapters are NOT
for use in Canada.
DANGER
A 15-Amp, 120-Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the item will be on a
dedicated circuit, as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow
when the heater is in operation. The unit comes standard with a 6 ft. (1.8 m) long three wire cord, exiting the right side
of the item. Always plug the unit into a wall outlet/receptacle. An extension cord or re-locatable power tap, (outlet/
power strip), should never be used.
(A)
(B)
(D)
(C)

5
1-YEAR WARRANTY
WHAT IS COVERED
The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from
date of purchase, subject to the following conditions and limitations.
Variations in actual wood color and finishes which may result from natural characteristics of the wood, such as grain patterns, mineral
streaks and the like, are not considered defects. As wood continues to move and age you may notice these slight differences in color, even
on different parts of any individual unit. Sound knots and slight surface cracks are the true personality of a quality piece of wood furniture.
This electric fireplace must be installed and operated at all times in accordance with the instructions furnished with the product. Any
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty. This warranty is non-transferrable, and is made to the
original owner, provided that the purchase was made through an authorized supplier of the manufacturer. This warranty is limited to the
repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is confirmed by the manufacturer’s inspection. The manufacturer may, at its discretion, fully
discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).
WHAT IS NOT COVERED
Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement,
or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility for same. Further, the
manufacturer will not be responsible for any incidental, indirect, or consequential damages, except as provided by law.
All other warranties - expressed or implied - with respect to the product, its components and accessories, or any obligations/liabilities on
the part of the manufacturer are hereby expressly excluded. The manufacturer neither assumes, nor authorizes any third party to assume, on
its behalf, any other liabilities with respect to the sale of this product. The warranties as outlined within this document do not apply to non-
manufacturer accessories used in conjunction with the installation of this product.
This warranty does not cover the lightbulb(s) included with the fireplace.
This warranty is void if: the fireplace has been operated in atmospheres contaminated by chlorine, fluorine, or other damaging chemicals;
the fireplace is subjected to prolonged periods of dampness or condensation; the fireplace is altered, willfully abused, damaged by accident,
or misused in any way.
If warranty service is needed, contact the Customer Service Team at 855-HD-HAMPTON from 8 a.m. - 6 p.m., EST, Monday-Friday or visit
www.hamptonbay.com.
Make sure you have your warranty, your sales receipt, and the model/serial number of your product.
DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
Warranty
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.

6
AA BB CC DD EE FF
Phillips
screwdriver
TOOLS REQUIRED
PLANNING INSTALLATION

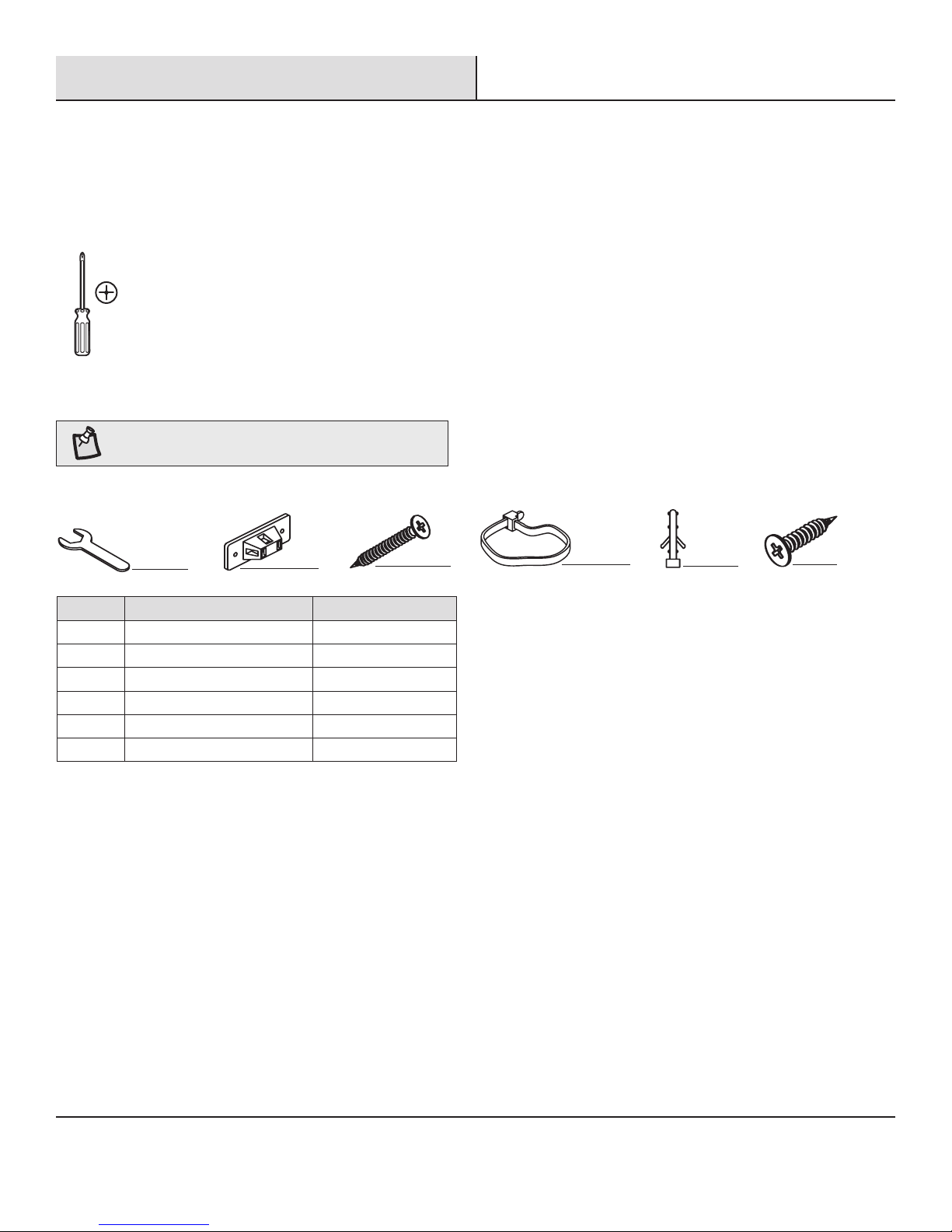

HARDWARE INCLUDED
Part Description Quantity
AA Wrench 1
BB Mounting Bracket 2
CC Screw (1-3/8 in.) 2
DD Nylon Strap 1
EE Wall Anchor 2
FF Screw (5/8 in.) 2
NOTE: Hardware not shown to actual size.
To avoid scratching the finish, assemble the product on a soft, non-abrasive surface, such as carpet or cardboard.
Assembly of this product may require more than one person.
Pre-Installation

7

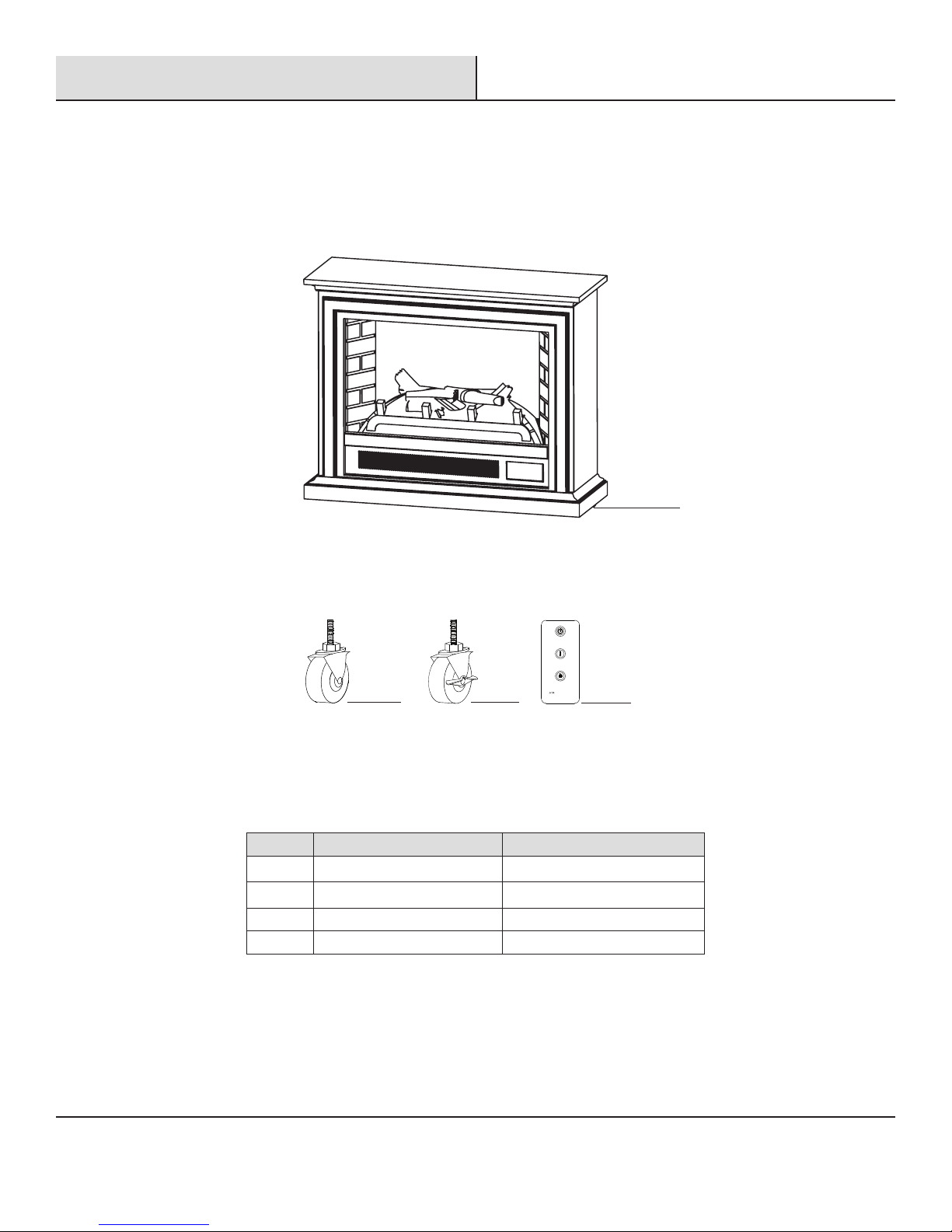

PACKAGE CONTENTS
Part Description Quantity
A
B
C
Mantel (with fireplace insert)
Front Caster
Rear Brake Caster
1
2
2
D Remote Control 1
BC
A
D
Pre-Installation (continued)
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.

8
Specifications
Clearance to Combustibles
Sides
Floor
Top
Front
Rear
2 27/64 in. (61.5 mm)
0 in. (0 mm)
2 in. (51 mm)
36 in. (914 mm)
0 in. (0 mm)
Pre-Installation (continued)
Voltage 120 V AC
60 Hz
1350 W
12.5 A
31.75 in. (806 mm)
12.75 in. (324 mm)
27.75 in. (705 mm)
Frequency
Heater Rating
Max. Amps
Width
Depth
Height
12.75 in. (324 mm)
31.75 in. (806 mm)
27.75 in. (750 mm)

9
Installation

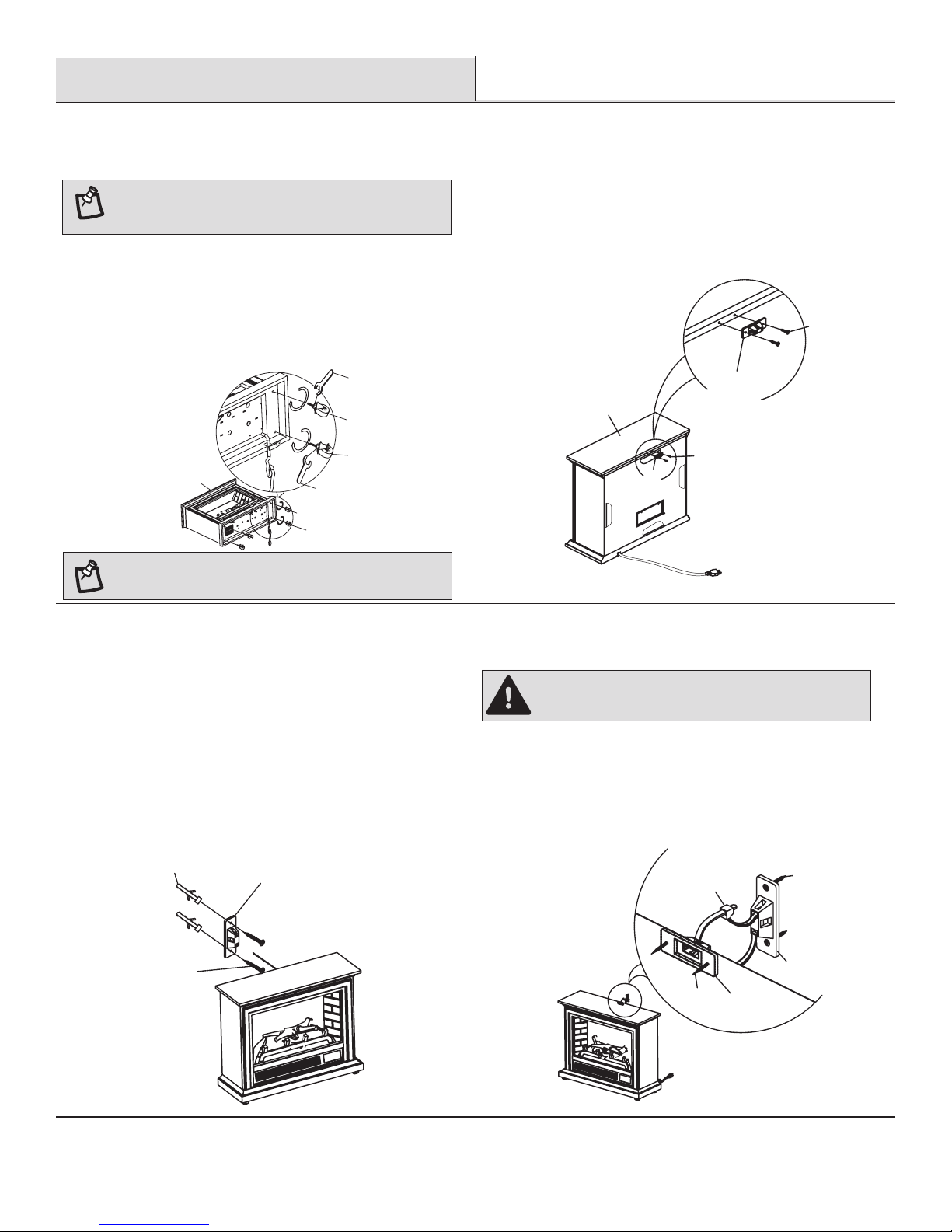

1 Attaching the casters to the mantel
NOTE: To avoid scratching the finish, assemble the
product on a soft, non-abrasive surface, such as carpet or
cardboard.
□Lay the mantel (A) on its back.
□Screw a front caster (B) into the pre-drilled hole in the
front-right corner of the mantel (A) base.
□Screw a rear brake caster (C) into the pre-drilled hole in
the right-rear corner of the mantle (A) base.
□Repeat this process for the left side of the mantel (A) base.
□Tighten all of the casters with the wrench (AA) provided.
2 Attaching the mounting bracket to
the mantel
□Attach a mounting bracket (BB) to the top edge of the back
of the mantel (A) by inserting two screws (FF) through the
mounting bracket (BB) and into the pre-drilled holes in the
mantel (A). Tighten with a screwdriver.
3 Attaching the mounting bracket to
the wall
□Attach a mounting bracket (BB) to the wall in the location
you have selected to put the mantel (A) by positioning the
mounting bracket (BB) at approximately the same height
as the mounting bracket (BB) previously attached to the
mantel (A).
□Insert screws (CC) through the mounting bracket (BB) and
into a wall stud. If there is no stud present, insert wall
anchors (EE) before inserting the screws (CC). Tighten with
a screwdriver.
4 Attaching the nylon strap
DANGER: This product is only a deterrent. It is not a
substitute for proper adult supervision.
□Set the mantel (A) 2-3 inches from the wall with both
mounting brackets (BB) aligned.
□Slip the nylon strap (DD) through the openings in each of
the mounting brackets (BB) and secure the nylon strap
(DD). This will help prevent the mantel from tipping.
CC
DD
BB
FF
BB
EE BB
CC
FF
BB
FF
A
BB
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
AA
C
A
C
B
B
AA
NOTE: Installing casters is highly recommended as using fireplace
without casters could impede air flow and cause fan heater failure.

10
Operation
NOTE: When the heat function is used for the first time, a slight
odor may be present. This is normal and should not occur again
unless the heater is not used for an extended period of time.
NOTE: After the fireplace has been operating, when the unit is turned
off, the fan (not the heater) will continue to run for about 1 minute to
cool down the interior of the unit. During this time, you may feel cool
air from the blower outlet. This is normal and does not require any
action. The fan will stop once the interior cools down.
1Using the Control Panel
□Check that the heater outlet grill is not covered or
obstructed in anyway, and make sure the power to the
unit is switched on.

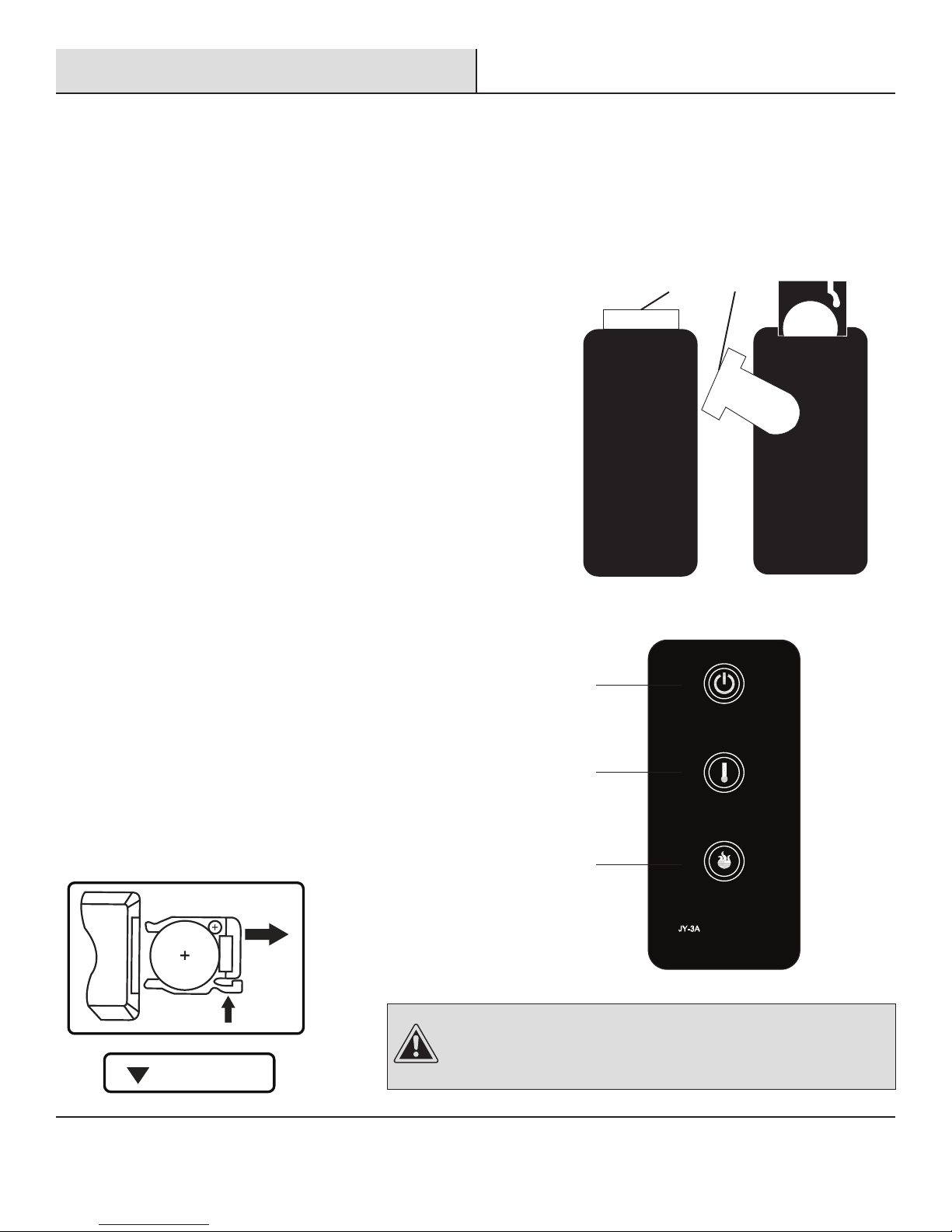

□Press the appropriate button to operate your fireplace:
1
4 2
3
1. Main Power Button: This button supplies power to
all the functions of the electric fireplace. The main
power button must be in the ON position, either from
the remote or controls on the electric fireplace for the
function to work.
2. Heater Control Button: This button controls the heater
ON/OFF and 5 temperature modes from Low to High.
When the heater is first turned on, it will come on at
the lowest room temperature setting. The log set will
remember the last heat setting and in later use the
heater will start at that setting, unless power to the
unit has been interrupted. Each time the temperature
button is pressed, the temperature set point increases,
allowing you to adjust the ambient temperature.
3. Heater Locking Function: When fireplace is ON, press
the main power button (1) for 10 seconds. The heater
will be locked, and the heater control button (2) on the
control panel as well as on the remote control will be
disabled. Before the heater is locked, the flame will
flash 6 times. To unlock the heater, press the main
power button (1) for 10 seconds. Before the heater is
unlocked, the flame will flash 6 times.
4. Flame Control Button: This button controls the
brightness of the flame effect with settings at High,
Medium, and Low. When the electric fireplace is first
turned on, the flame will come on at the highest
setting. The log set will remember the last flame
setting used and in later use the flame brightness will
start at that setting, unless power to the unit has been
interrupted. Each time the flame button is pressed,
the flame brightness decreases. The only way to turn
off the flame effect completely is to turn off the main
power button (1).
Figure 2

11
IMPORTANT: Under normal operation, when power is interrupted from either an
outage or from unplugging unit from wall while still in operation, the heat level
indicator lights may blink repeatedly and the unit will cease operation. In order to
reset the unit, unplug for 10 minutes, then plug back in and operate normally in
accordance with the Use and Care Guide.
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
The infrared remote control relies on a line of sight and must be pointed at the controls of the log set to work. The remote control unit
has the controls required to turn ON/OFF both the main power and the heater. If you prefer to use the control buttons on the log set unit
itself, they are on the lower right corner of the unit. The layout of the buttons and remote control unit can be seen in Figures 2 and 3,
respectively.
□Plug your log set into a 15-amp, 120-volt power outlet.
□Turn the power on. Flame will show on the wall behind the log set.
□Remove the plastic tab from inside the battery compartment
to activate the remote control.
□Point the remote control directly at the control buttons of the log set and
use the buttons to operate the
log set.
1. Main Power Button: This button supplies power to all the functions of
the electric fireplace. The main power button must be in the ON position,
either from the remote or the controls on the electric fireplace for the
functions to work.
2. Heater Control Button: This button controls the heater ON/OFF and 5
temperature modes from Low to High. When the heater is first turned on,
the heater will come on at the lowest room temperature setting. The log
set will remember the last heat setting. In later use, the heater will start
at that setting, unless power to the unit has been interrupted. Each time
this button is pressed, the temperature set point increases, allowing you
to adjust the ambient temperature.
3. Flame Control Button: This button controls the brightness of the flame
effect with settings at High, Medium and Low. When the log set is first
turned on, the flame will come on at the highest setting. The log set will
remember the last flame setting used. In later use, the flame brightness
will start at that setting, unless power to the unit has been interrupted.
Each time the Flame button is pressed, the flame brightness decreases.
The only way to turn off the flame effect completely is to turn off the
Main Power button.
Battery Replacement Procedure: (Size CR2025)
The plastic tab inside the battery
compartment MUST be removed
before the remote control will operate.
(Pull tab)
Battery replacement instruction
CR2025
OPEN
PUSH
RELEASE
Operation (continued)
Figure 3
2Using the Remote Control
1
2
3

12
Maintenance
GLASS INFORMATION
□Under no circumstances should this product be operated with broken glass.
□Do not strike or slam the glass.
□Do not use abrasive cleaners to clean the glass.
□This product uses tempered glass. Replacement of the glass supplied by the manufacturer should be done by a qualified
service person.
LIGHT BULB INSPECTION AND REPLACEMENT
WARNING: Light bulbs become very hot during use. Allow
at least 10 minutes for the bulbs to cool before touching.
WARNING: Do not exceed 40 watts per bulb. Use of
higher rated bulbs may result in a fire, causing property
damage or personal injury.
CAUTION: Do not operate this heater without the access
panel in place. Do not remove the back cover of this heater.
There are no serviceable parts inside.
The flame effect is created by two 40-Watt light bulbs with an E-12
(small) socket base. Use only this type of light bulb. If the flame \
effect does not work, the bulbs may have come loose or been
damaged during shipping.
To inspect or replace the bulbs:
□Unplug the power cord from the outlet.
□Locate the access panel on the back of the stove.
□Remove the screws and the panel.
□Check the bulbs to be sure they are finger tight and in working
order.
□Replace any damaged or faulty bulbs. Reattach the access
panel.

13
Care & Cleaning
□Always turn the heater OFF and unplug the power cord from the outlet before cleaning.
□Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
□To maintain the finish, clean with a soft, slightly damp cloth and buff with a dry cloth. Never use abrasive cleansers, liquid sprays, or
any cleaner that could scratch the surface.
□Wood furniture should never be dragged across a floor. The added stress from dragging the unit may cause the dragged edge to
splinter, or it may cause a joint to loosen.
Maintenance (continued)
CIRCUIT DIAGRAM
Disconnect power before servicing.
Any electrical re-wiring of this appliance must be done by a qualified electrician. This wiring must be done in
accordance with local codes and/or in Canada with the current CSA C22.1 Canadian Electrical Code, and for US
installations, the National Electrical Code ANSI/NFPA NO 70.
If repairing or replacing any electrical component or wiring, the original wire routing, color coding and securing
locations must be followed.
DANGER
WARNING: Disconnect power before servicing.
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.

14
Troubleshooting
Problem Possible Cause Solution
The fireplace does
not operate.
The power light is ON but
the flame effect is not
visible.
There is excessivee
noise when the heater is
operating.
The heater is not
operating.
□The fireplace is not plugged in.
□A circuit breaker is tripped or a fuse
blown.
□The ON/OFF switch is defective.
□There is loose wiring.
□The fireplace is not operating
correctly.
□There are loose light bulb(s).
□There are burnt out light bulb(s).
□The fan is defective.
□The heater assembly is defective.
□The fireplace is not operating
correctly.
□The heater switch is defective.
□The heater assembly is defective.
□There is loose wiring.
□The vents are dirty or clogged.
□Make sure the fireplace is plugged in
to a standard 120V outlet.
□Check additional appliances on the
circuit; ideally the fireplace should be
on a dedicated 15-amp circuit.
□Call customer service.
□Call customer service.
□Refer to the operating instructions.
□Tighten the light bulb(s).
□Replace the light bulb(s).
□Call customer service.
□Call customer service.
□Refer to the operating instructions.
□Call customer service.
□Call customer service.
□Call customer service.
□Unplug the unit. Clear the vent area of
dust and debris. Wait ten minutes, plug
the unit in again and turn on the heater.
If you have any questions regarding the product, please call Hampton Bay Customer Service, 855-HD-HAMPTON, 8 a.m. – 6 p.m. EST,
Monday – Friday.
Part Description Part #
1 Back Panel EF237916501AC
2 Flame Panel EF237916502AC
3 Glass EF237916503AC
4 Screen EF237916504AC
5 Front Decorative Panel EF237916505AC
6 Front Panel EF237916506AC-14
7 Left Brick Side Panel EF237916507AC
8
9
10
11
12
13
14
15
Right Brick Side Panel
Top Panel
Remote Control
Main Board (PCB)
Logset
Flame Reflector
Control Panel
Control Panel Circuit Board
EF237916508AC
EF237916509AC
EF33510AS
EF237916510AC-14
EF237916511AC
EF237916512AC
EF237916513AC-14
EF237916514AC

Service Parts
Part Description Part #
1 Back Panel EF237916501AC
2 Flame Panel EF237916502AC
3 Glass EF237916503AC
4 Screen EF237916504AC
5 Front Decorative Panel EF237916505AC
6 Front Panel EF237916506AC-14
7 Left Brick Side Panel EF237916507AC
8
9
10
11
12
13
14
15
Right Brick Side Panel
Top Panel
Remote Control
Main Board (PCB)
Logset
Flame Reflector
Control Panel
Control Panel Circuit Board
EF237916508AC
EF237916509AC
EF33510AS
EF237916510AC-14
EF237916511AC
EF237916512AC
EF237916513AC-14
EF237916514AC
Part Description Part #
16 Power Cord & Connector EF24900015AC
17 Synchronous Motor EFES323020ST
18 Lamp Socket & Bracket EFES323021ST
19 Fan Heater EF23022501X-14
20 Access Panel EFES323008ST
21 Control Panel Door EF23791AC-14
22
23
Front Caster
Rear Brake Caster
20-12-486
20-12-487
24
25
26
27
28
29
Wrench
Mounting Bracket
1-3/8 in. Screw
Nylon Strap
Wall Anchor
5/8 in. Screw
20-12-488
20-09-518
20-09-518
20-09-518
20-09-518
20-09-518
15
1 2 34
567
8
9
10
11 12 13 15
16
14
17 18 19 20
22 23
24 25
27 28
26 29
HAMPTONBAY.COM
PLEASE CONTACT 855-HD-HAMPTON FOR FURTHER ASSISTANCE.
21

Printed in China
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Manufactured by: GHP Group, Inc. • 6440 W. Howard St. • Niles, IL 60714-3302

GUÍA DE USO Y CUIDADO
CHIMENEA ELÉCTRICA INFRARROJA DERRY
C US
INSTALADOR: Deje este manual con el dispositivo.
CONSUMIDOR: Conserve este manual para uso futuro.
¡ADVERTENCIA!
SI LA INFORMACIÓN EN ESTE MANUAL NO SE SIGUE CON EXACTITUD,
PUEDE RESULTAR UN CHOQUE ELÉCTRICO O INCENDIO
OCASIONANDO DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O LA MUERTE.
INSTRUCCIONES IMPORTANTES
POR FAVOR, LEA ESTE MANUAL ANTES DE LA INSTALACIÓN Y USO DEL DISPOSITIVO
¿Tiene preguntas, problemas, o faltan piezas? Antes de regresar a la tienda,
llame a Servicio al Cliente de Hampton Bay
de lunes a viernes de 8 a.m. a 6 p.m., hora local del Este
855-HD-HAMPTON
HAMPTONBAY.COM
GRACIAS
Apreciamos la confianza que ha depositado en Hampton Bay por la compra de esta chimenea eléctrica. Nos esforzamos por crear
continuamente productos de calidad diseñados para mejorar su hogar. Visítenos en internet para ver nuestra línea completa de productos
disponibles para sus necesidades de mejorar su hogar. ¡Gracias por elegir a Hampton Bay!
Núm. de artículo 205107914,
205107911
Núm. de modelo 25-791-68-Y,
25-791-50-Y
20-10-201 REV. 4/2014

2
Tabla de contenido
Tabla de contenido..................................2
Información de seguridad ............................3
Garantía. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pre-instalación .....................................6
Instalación ........................................9
Operación ........................................10
Mantenimiento ....................................12
Cuidado y limpieza .................................13
Resolución de fallas ................................14
Piezas de repuesto .................................15
IMPORTANTE: Lea cuidadosamente todas las instrucciones y advertencias antes de comenzar la instalación.
No seguir estas instrucciones puede resultar en un posible choque eléctrico, lesiones a las personas, peligro de incendio y anulará la garantía.
Lea las Instrucciones de instalación y operación antes de usar este dispositivo.
PUEDEN OCURRIR DAÑOS AL PRODUCTO.
Nunca intente desmontar o alterar el producto en ninguna manera que no la indique este manual.
PRECAUCIÓN

3 HAMPTONBAY.COM
PÓNGASE EN CONTACTO CON EL 855-HD-HAMPTON PARA ASISTENCIA ADICIONAL.
Información de seguridad
Por favor, lea y comprenda este manual completo antes de intentar ensamblar, operar o instalar el producto.
□Lea todas las instrucciones antes de usar este aparato.
□Este dispositivo se calienta cuando está en uso. Para evitar quemaduras, no permita que la piel desnuda toque las superficies
calientes. Si se proporcionan, use manijas cuando mueva este dispositivo. Mantenga los materiales combustibles, como muebles,
almohadas, ropa de cama, papeles, telas y cortinas al menos a 3 pies (914 mm) del frente de este dispositivo y manténgalos lejos de
los lados y la parte trasera.
PRECAUCIÓN: Es necesario que se tomen extremas
precauciones cuando cualquier calefactor es usado por o
cerca de niños o inválidos y siempre que el calefactor se deje
funcionando y desatendido.
□Si es posible, desconecte siempre este dispositivo cuando no esté en uso.
□No opere ningún calefactor con un cable o enchufe dañado o después de que el dispositivo funcione mal, se haya caído o dañado
en alguna manera.
□Cualquier reparación a este dispositivo deberá ser hecha por una persona de servicio calificada.
□Bajo ninguna circunstancia este aparato debe ser modificado. Las piezas que tienen que ser retiradas para servicio deben ser
reemplazadas antes de operar de nuevo este dispositivo.
□No lo use en exteriores.
□Este calefactor no está diseñado para ser usado en baños, áreas de lavado y ubicaciones de interiores similares. Nunca coloque
este dispositivo donde se pueda caer dentro de una tina u otro contenedor de agua.
□No tienda el cable bajo las alfombras. No cubra el cable con alfombras decorativas, alfombras de pasillo o cosas semejantes.
Coloque el cable lejos de áreas de tráfico y donde no se pueda tropezar con él.
□Para desconectar este dispositivo, apague los controles y retire el enchufe del tomacorriente.
□Conecte a tomacorrientes con conexión a tierra solamente.
□Este dispositivo, cuando está instalado, debe estar electricamente aterrizado de acuerdo con códigos locales, con los Códigos
Eléctricos Canadienses actuales CSA C22.1 o para instalaciones en los EE. UU., siga los códigos locales y el Código Eléctrico
Nacional ANSI/NFPA NO 70.
□No inserte ni permita que objetos extraños ingresen a cualquier abertura de ventilación o escape, ya que esto puede causar un
choque eléctrico o incendio, o daños al dispositivo.
□Para evitar un posible incendio, no bloquee las entradas de aire y escapes de ninguna manera. No lo use en superficies suaves,
como una cama, donde las aberturas se puedan bloquear.
□Este dispositivo tiene en el interior piezas calientes o de arco eléctrico o que generan chispas. No lo use en áreas donde se use
o almacene gasolina, pintura o líquidos inflamables. Este dispositivo no debe ser usado como tendedero para secar ropa, ni para
colgar medias o decoraciones de Navidad en o cerca de él.
□Use este dispositivo solamente como se describe en este manual. Cualquier otro uso no recomendado por el fabricante puede
causar incendio, choque eléctrico o lesiones a las personas.
□Conecte siempre los calefactores directamente en un tomacorriente/receptáculo de pared. Nunca use un cable de extensión o
tomacorriente móvil (tomacorriente/enchufe múltiple) debido al riesgo de sobrecalentamiento del cable y el riesgo de incendio.
Los cables de extensión son solo para uso temporal. Si se debe usar un cable de extensión, debe ser UL/CSA certificado, con
capacidad nominal de 15A (1,875W), 125V máximo con 14 AWG mínimo y construido de dos conductores de corriente con tierra.
Se recomienda un cable de extensión resistente con la longitud más corta posible para la conexión y no debe ser más largo que 50
pies (15.2 m). No enrolle ni cubra el cable de extensión.
□"CONSERVE ESTAS INSTRUCCIONES PARA USO FUTURO"

4
Información de seguridad (continuación)
ADVERTENCIA: El cableado del tomacorriente eléctrico
debe cumplir con los códigos locales y otras regulaciones
aplicables para reducir el riesgo de incendio, choque
eléctrico y lesiones a las personas.
ADVERTENCIA: No use esta chimenea si alguna pieza
de la chimenea ha estado bajo el agua. Llame de inmediato
a un técnico de servicio calificado para inspeccionar
la chimenea y reemplazar cualquier pieza del sistema
eléctrico que haya estado bajo el agua.
CUCHILLA DE TIERRA
TORNILLO METÁLICO
PUNTO PARA
CONEXIÓN A
TIERRA
CUBIERTA DE
CAJA DE SALIDA ATERRIZADA
ADAPTADOR
Figura 1
PUNTO PARA
CONEXIÓN A
PASADOR
CONEXIÓN ELÉCTRICA
INSTRUCCIONES DE CONEXIÓN A TIERRA
Este calefactor es para uso con 120 voltios. El cable tiene un enchufe como se muestra en (A) en la Figura 1. Un adaptador
como se muestra en (C) está disponible para conectar enchufes de tres cuchillas con conexión a tierra. La orejeta verde
de conexión a tierra que se extiende del adaptador, debe ser conectada a una tierra permanente como una caja de salida
aterrizada adecuadamente. El adaptador no debe ser usado si está disponible un receptáculo aterrizado de tres ranuras.
NOTA: Los adaptadores NO son
para uso en Canadá.
PELIGRO
Se requiere un circuito de 15 Amp, 120 Voltios, 60 Hz con un tomacorriente aterrizado adecuadamente. De preferencia,
el artículo estará en un circuito dedicado, ya que otros dispositivos en el mismo circuito podrían hacer que el disyuntor
de circuito se active o el fusible explote cuando el calefactor esté en funcionamiento. La unidad viene estándar con
un cable de tres alambres de 6 pies (1.8 m) de longitud, que sale del lado derecho del artículo. Conecte siempre la
unidad en un tomacorriente/receptáculo de pared. Nunca se debe de usar un cable de extensión o tomacorriente móvil
(tomacorriente/enchufe múltiple).
(A)
(B)
(D)
(C)
