HAMPTON BAY 34HF601ARA User manual

USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-877-527-0313
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this electric replace. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home imporvement
needs. Thank you for choosing Hampton Bay!
WESTRIDGE WALL HANGING FIREPLACE
XXX XXX/34HF601ARA

2
Table of Contents
Safety Information.....................................................3
Warranty .....................................................................4
Pre-Assembly............................................................. 5
Hardware Included ............................................................ 5
Product Specications....................................................... 5
Tools Required................................................................... 5
Package Contents.............................................................. 6
Assembly....................................................................7
Wall Mounting Conguartion ..................................... 7
Stand/Base Conguration ......................................... 9
Operation .................................................................11
FCC/ICC Information...................................................... 14
Care & Cleaning.......................................................14
Troubleshooting....................................................... 15

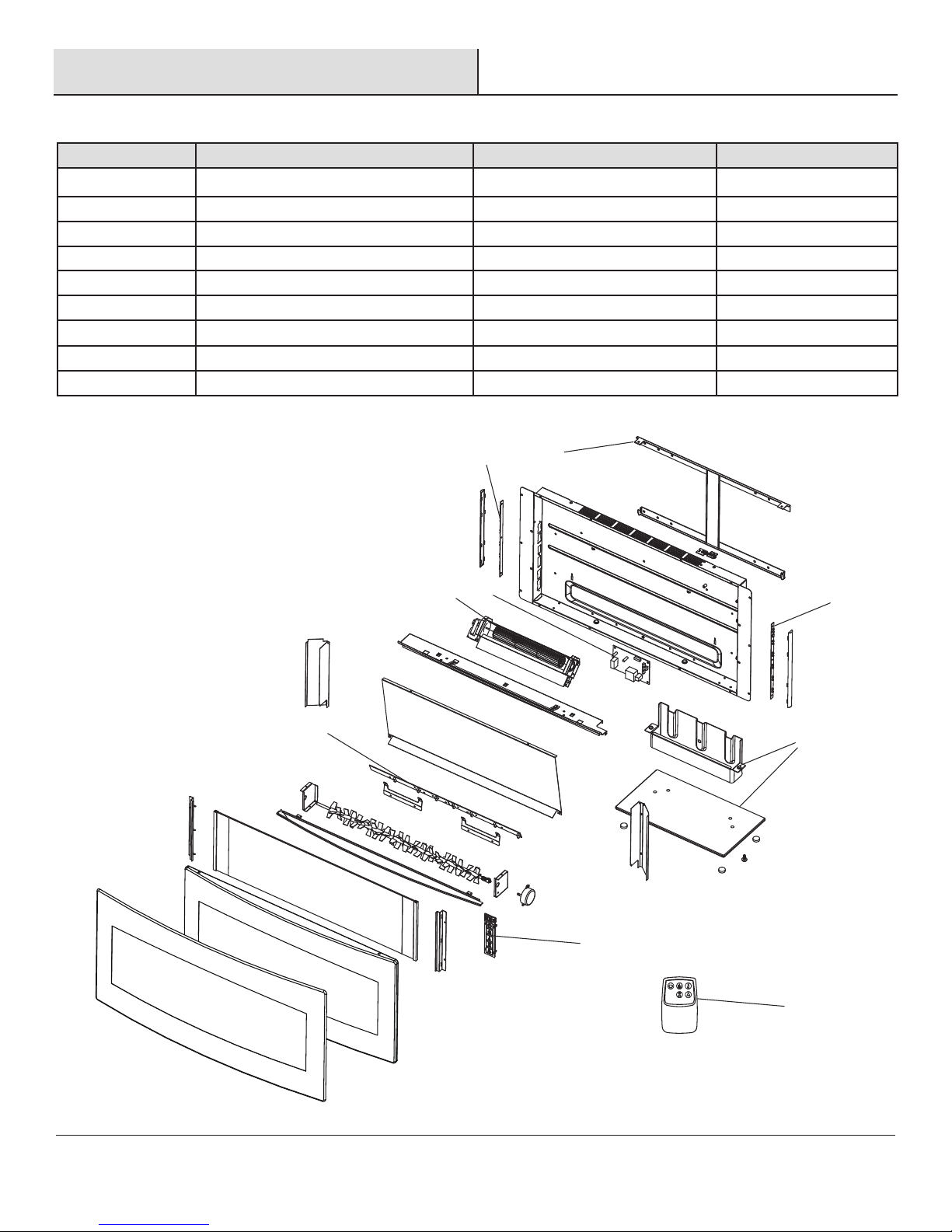

Replacement Parts..................................................16

3HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Please read and understand this entire manual before attempting
to assemble, operate or install the product. If you have any question
regarding the product, please call customer service at 1-877-527-
0313, 8 a.m.-6 p.m., EST, Monday-Friday.
When using electrical appliances, always follow basic precautions to
reduce the risk of re, electrical shock, and injury to persons including
the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5. Do not cover the cord under the carpeting. Do not cover with
throw rugs, runners or the like. Arrange the cord away from
trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8. This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence
of local codes, with the current CSA C22.1 Canadian
Electrical Code. For U.S.A. installations, follow local codes
and the National Electrical Code, ANSI/NFPA NO.70.
9. This appliance has hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint or ammable liquids
are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or
other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply to
avoid damage to the replace or risk of re.
Safety Information
WARNING:
Use extreme caution when operating heater
near children and the disabled.
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Donotsitonanypartofthemantel.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.
DANGER:
In order to avoid overheating, do not cover the
heater.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
WARNING:
This appliance is hot when in use. To avoid
burns, do not touch hot surfaces with bare skin. If provided,
use handles when moving this appliance. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes
and curtains at least 3 ft. (0.9 m) from the front of this appliance.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: Under no circumstances should this fireplace be
modified. Parts that must be removed for servicing must be re-
placed prior to operating this replace again.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING:This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.

4
Warranty
1 Year Limited Warranty: The manufacturer warrants this product to be free from manufacturing and material defects for a period of one
year from date of purchase, subject to the following conditions and limitations:
1. Install and operate this Electric Fireplace in accordance with the installation and operating instructions furnished with the product
at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable and is made to the original owner, provided that the purchase was made through an authorized
supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship, provided that
such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale
price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair,
replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility
for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or damage arising out
of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any obligations/
liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with respect to
the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in conjunction with the installation of
this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. There has been unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
Contact the manufacturer by calling customer service department at 1-877-527-0313,
8 a.m.-6 p.m., EST, Monday-Friday. Make sure you have your warranty, your sales receipt,
location of purchase and the model/serial number of your product.

5HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Pre-Assembly

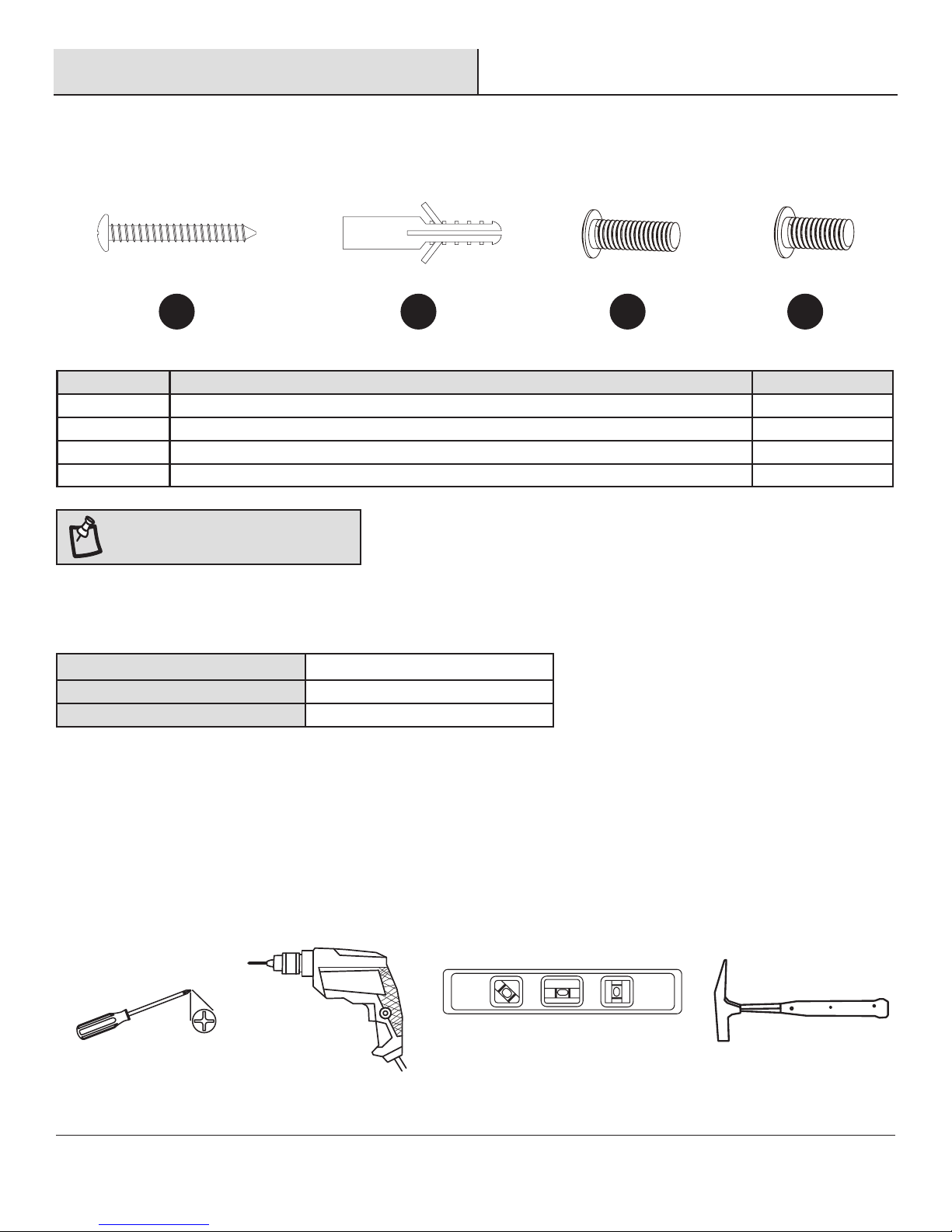

HARDWARE INCLUDED
Part Description Quantity
AA Screw 4
BB Wall Anchors 4
CC Screw 4
DD Screw 1
PRODUCT SPECIFICATIONS
TOOLS REQUIRED
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any
part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 Minutes
Tools Required for Assembly (not included)
NOTE:
Hardware not shown to actual size.
BBAA CC DD
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
Phillips Screwdriver Drill Level Hammer

6
Part Description Quantity
A Mounting Bracket 1
B Fireplace 1
C Front Glass 1
D Base Bracket 1
E Base 1
F Remote Control 1
G Decorative Rocks 1

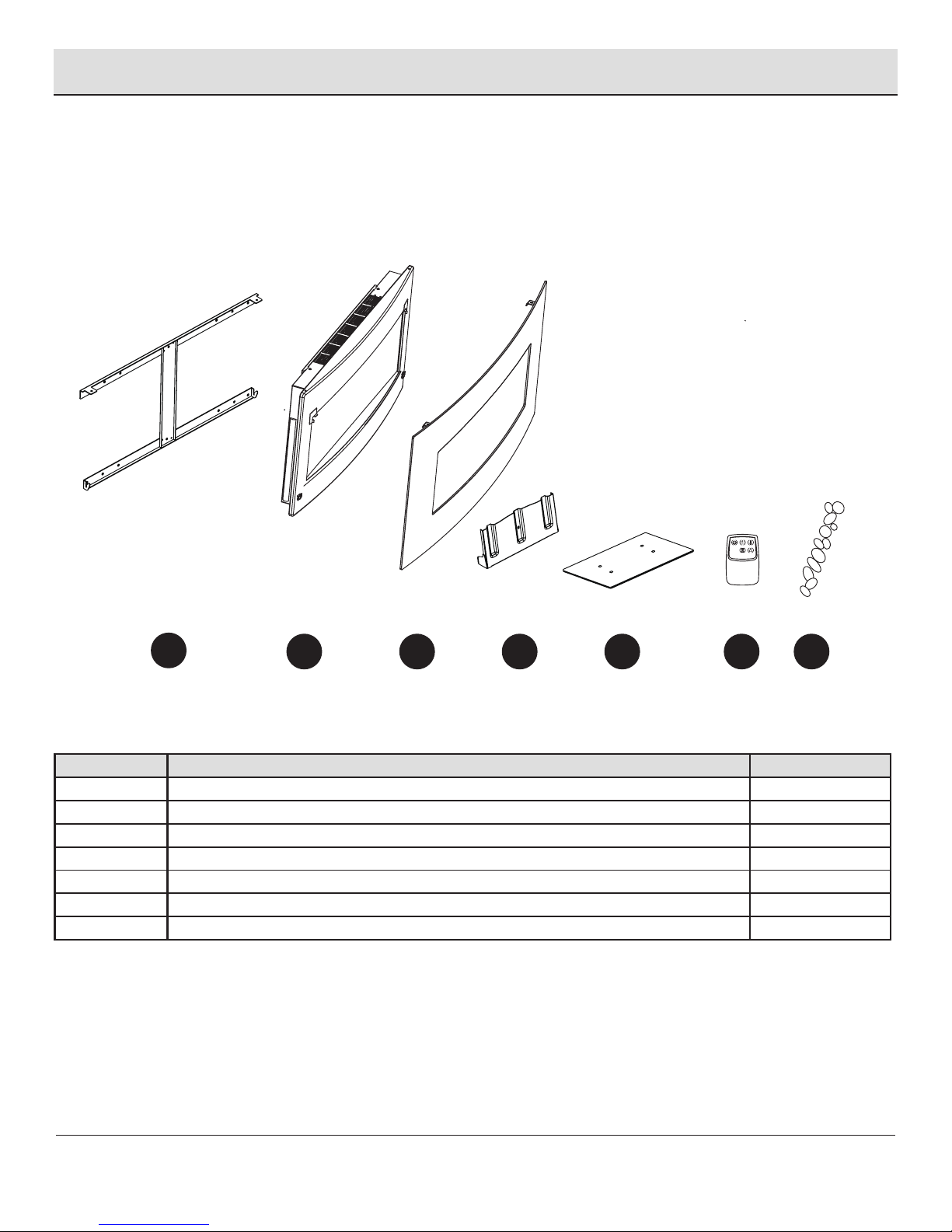

PACKAGE CONTENTS
Pre-Assembly (continued)
A
D
ACB GFE

7HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

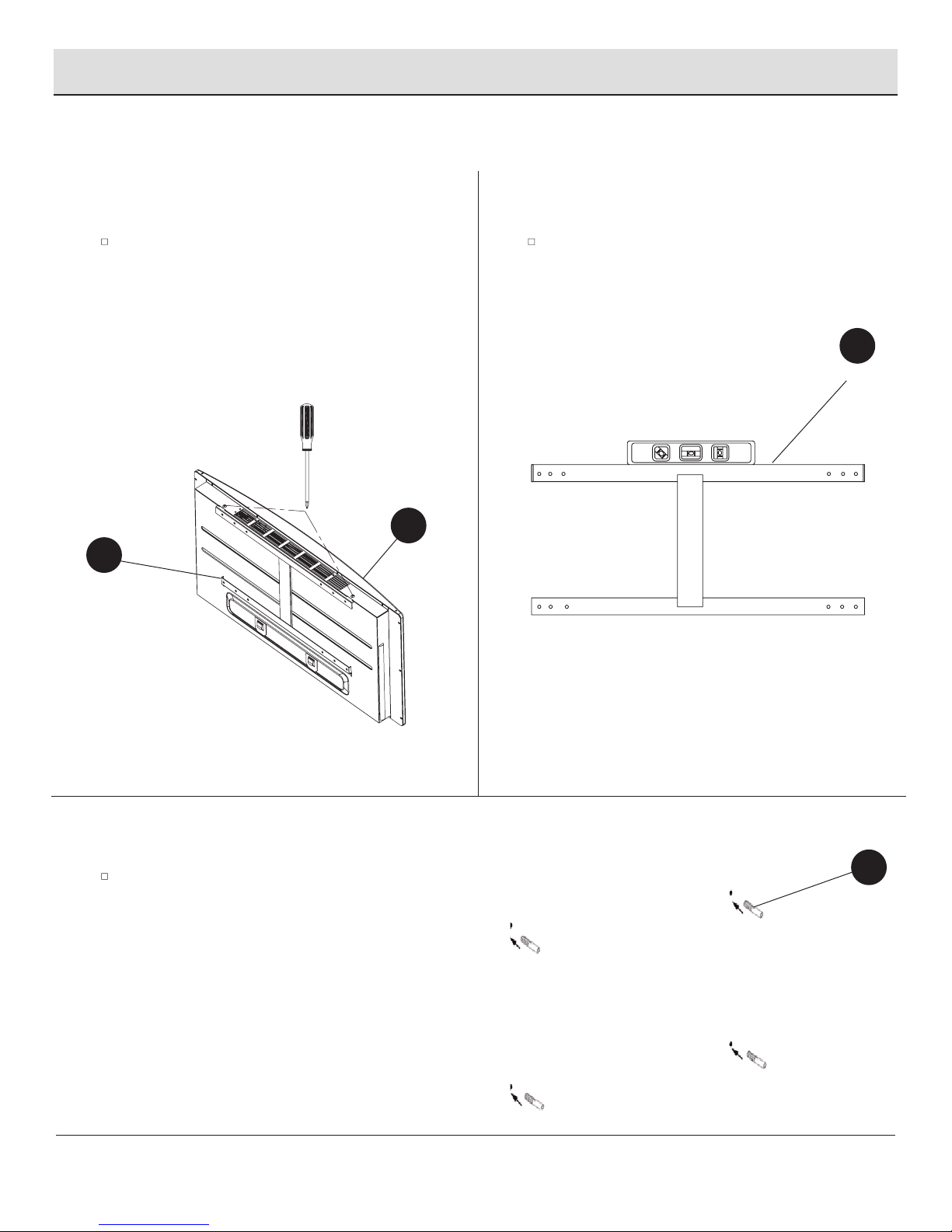

Remove mounting bracket (A) from back of
Fireplace (B) by removing the two screws at the
top back of the unit.
Choose a wall location to attach the mounting
bracket (A). Position the mounting bracket (A)
in the desired location. Use a level to align the
bracket and mark the four holes with a pencil.
Drill 4 holes 3/8”in / 0.7cm in the wall. Insert
the wall anchors (BB) into the holes using a
hammer.
Assembly
1
3
2
Removing the mounthing bracket
Preparing the wall
Choosing the wall location
A
B
A
BB
WALL MOUNTING CONFIGURATION

8
AA
Hang the replace (B) on the hooks at bottom of
mounting bracket (A) and push the replace (B) into
mounting bracket (A). Re-fasten the two screws re-
moved in Step 1.
Attach the mounting bracket (A) to the wall fasten
ing the 4 screws (AA) into the wall anchors.
Remove the two retaining screws on top of the replace
(B). Hang the front glass (C) on the replace and gently
push on the lower part of the frame until it snaps into
place. Secure the top frame hooks with the two retain-
ing screws (Fig. 6.1 & 6.2).
Assembly (continued)
4
6
5
Attaching the bracket to the wall
Hanging the front glass
Hanging the replace
Fig. 6.2
Fig. 6.1
A
B
C
BC
B
A

9HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Use 4 screws (CC) to fasten the base bracket (D) to the
base (E).
Mount the replace to the base bracket (D) by
hooking the clips into position.
Assembly (continued)
21 Installing the stand/baseAssembling the base
D
B
E
E
D
C
CC
CC
STAND/BASE CONFIGURATION
Place the decorative rocks as desired.
7Installing the rock placement

10

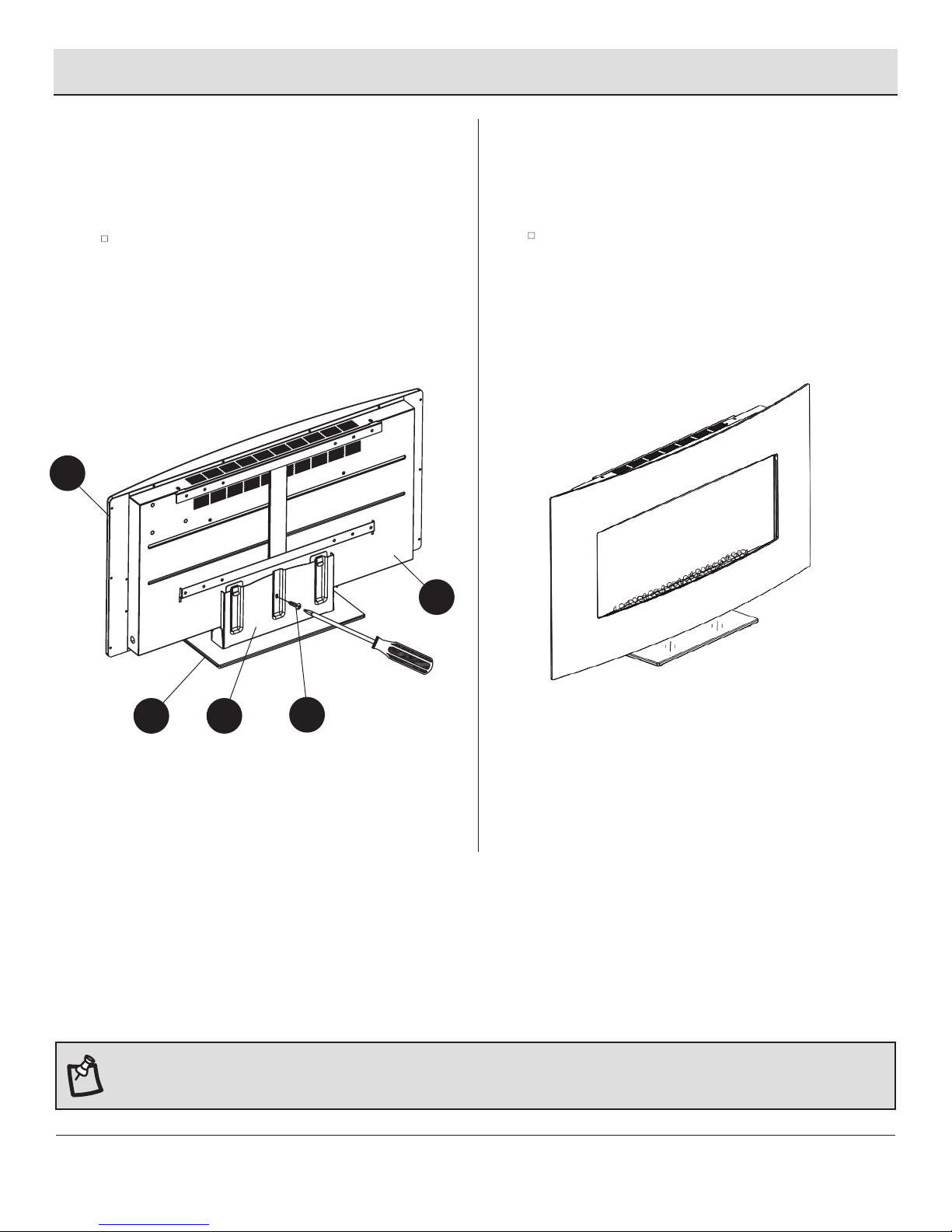

Fasten the base bracket (D) to the replace
with the provided screw (DD).
Place the decorative rocks as desired.
34
Securing the replace to the base Installing the rock placement
NOTE:
Cold climate installation recommendation: When installing this unit against a non-insulated
exterior wall or chase the outer walls must be insulated to conform to applicable insulation codes.
C
DE
B
DD
Assembly (continued)

11 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

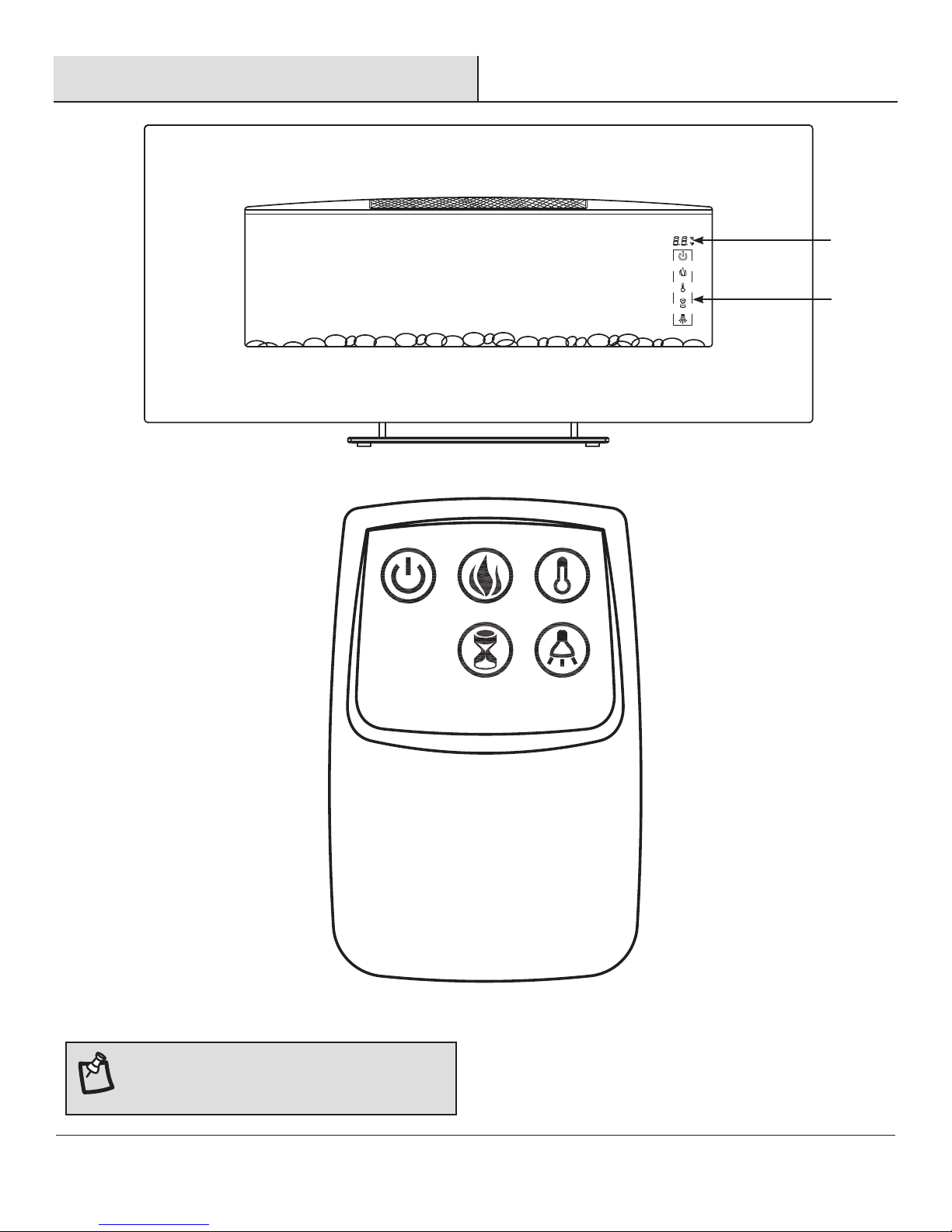

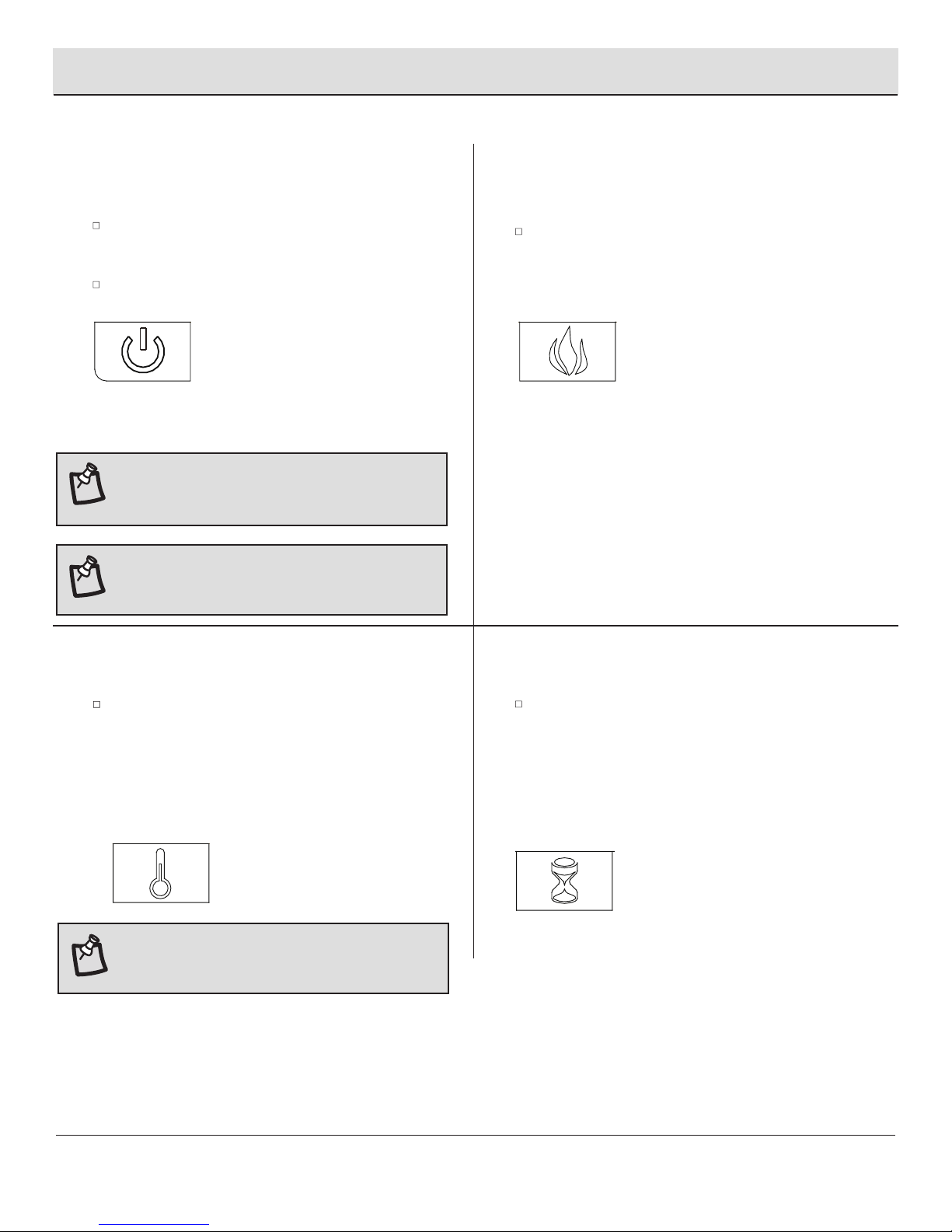

Touch
Panel
Display
Operation
NOTE: The replace can be operated by either the remote
control or the control panel.
Fireplace
Remote Control

12
Push the Power button to supply power to all
functions of the replace and put the insert in
standby mode.
Push the Power button again to turn off all functions.
Press the Heater button to set the thermostat. Your
replace consists of a fan-forced wire-element-type
heater. The thermostat setting range is 62°F - 82°F or
17°C - 27°C or always ON.
This button on the remote control only turns ON and
OFF the heater function.
Press the Flame button to increase and decrease the
ame intensity. There are 6 brightness levels you can
cycle through as well as the OFF setting.
Press the Timer button to cycle through the 10 timer
settings (30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H,
7H, 8H and 9H) and the OFF setting.
1
3
2
4
Powering the replace
Adjusting the heater
Adjusting the ame
Setting the timer
NOTE: To change between °F and °C press and hold the
Heater button on the control panel for 10 seconds.
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Operation (continued)

13 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

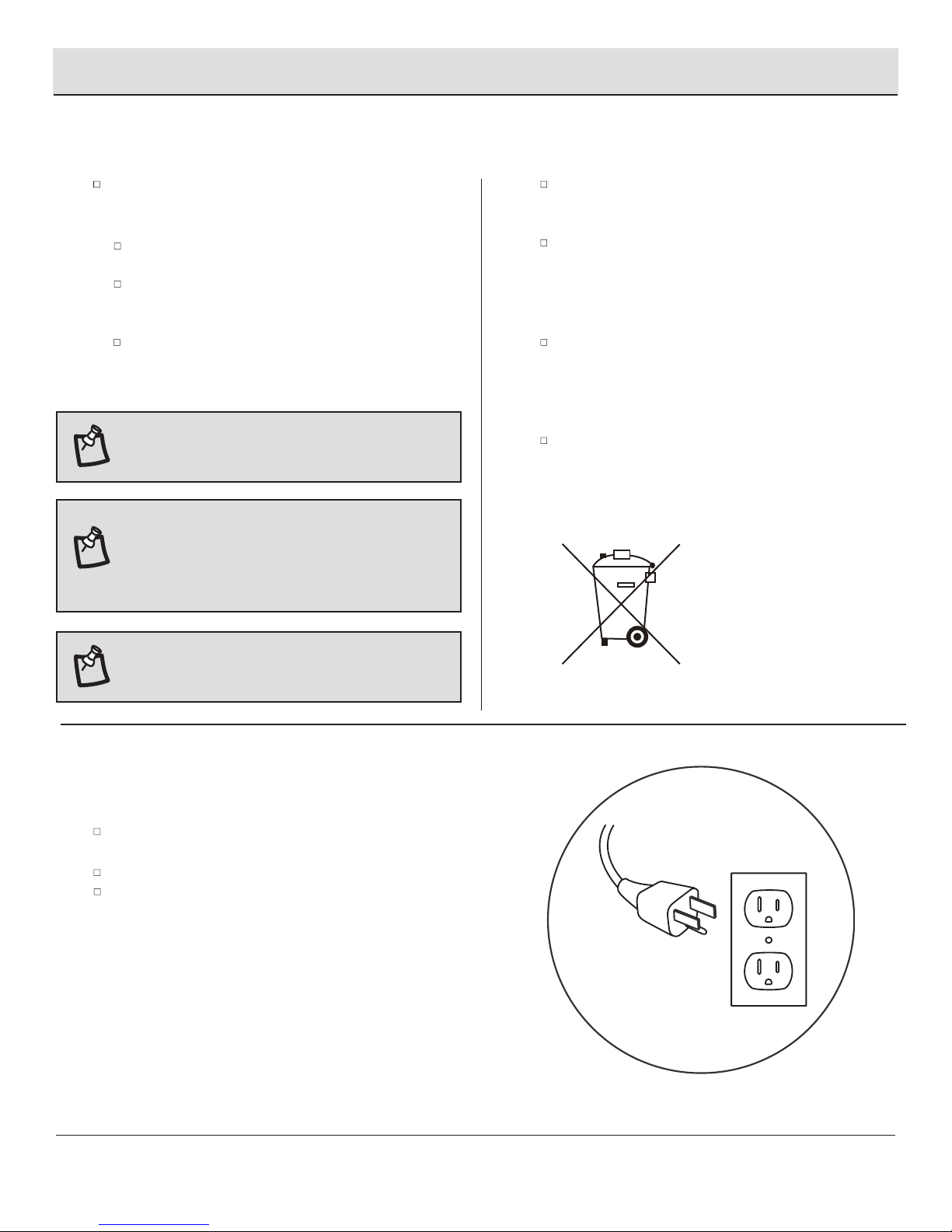

NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (Carbon Zinc), or rechargeable (NiCad,
NiMh, etc) batteries.
Operation (continued)
When the remote control stops operating or its range
seems reduced, it is time to replace the battery with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the
battery compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the enviroment and human health.
This symbol marked on the battery and/or packaging
indicates that used battery shall not be treated
as municipal waste. Instead it shall be left at the
appropriate collection point for recycling.
By correctly disposing used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.

14
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
FCC/ICC Information
This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Modications not approved by the party responsible for compliance could void user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.

15 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.
Troubleshooting
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is no power. There is no power to the unit.
Check that the unit is plugged into a
standard 120V outlet. Press the Power button
several times, make sure power is set to the
“ON”position.
The power cord gets warm. This is normal operation.
Check your heater cord and plug
connections. Faulty wall outlet connections
or loose plugs can cause the outlet or plug
to overheat. Be sure the plug ts tight in the
outlet. Heaters draw more current than small
appliances, overheating of the outlet may
occur even if it has not occurred with the
use of other appliances. During use check
frequently to determine if your plug outlet or
faceplate is HOT! If so, discontinue use of the
heater and have a qualied electrician check
and/or replace the faulty outlet(s).
The heater does not blow warm air. The thermostat setting is preventing the heater
from turning on.
Adjust the temperature settings to ensure
that the thermostat is set higher than the
current room temperature.
The heater does not work, but Power and
Heater settings are “ON” and the
thermostat is set.
Manual reset overheat protection
triggered.
Turn the Power to “OFF” and unplug the unit
from the wall outlet for 5 minutes. After 5
minutes plug the unit back into the wall out-
let, and operate as normal. If the problem
persists contact customer service.
The ame effect works but the heater
function does not and the ame effect
ashes when the Heater button is
pressed.
The heater is disabled.
With the power on press and hold the Power
button on the control panel for 10 seconds.
Once re-enabled the ame effect lights will
ash multiple times.
The remote control is not working. There are no batteries or the signal is poor.
Change the remote batteries.
Operate the remote control at a slow meas-
ured pace. Press the remote control buttons
with an even motion and gentle pressure.
Repeatedly pressing buttons in rapid
succession may cause the transmitter to
malfunction.

16
For replacement parts, call our customer service department at 1-877-527-0313, 8 a.m.-6 p.m., EST, Monday-Friday.
Replacement Parts
Part Part Name Part Number Quantity
A Control Panel 5 Buttons Y12-S84-P32 1
B Right Backlight PCBA Y12-S84-P49R 1
C Left Backlight PCBA Y12-S84-P49L 1
DBlower/Heater Assembly Y12-S84-P01 1
E Flame PCBA Y12-S84-P40 1
F Remote Control - 5 Buttons P91 1
G Main Circuit Board Y12-S84-P15 1
H Base and Stand Y12-S84-B&S 1
I Mounting Bracket Y12-S84-MT BRT 1
A
B
C
DF
E
G
H
I

17 HAMPTONBAY.COM
Please contact 1-877-527-0313 for further assistance.

Questions, problems, missing parts? Before returning to the store call
Hampton Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-877-527-0313
HAMPTONBAY.COM
RETAIN THIS MANUAL FOR FUTURE USE.
