HAMPTON BAY GC-41016-SRP User manual

THANK YOU
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
needs. Thank you for choosing Hampton Bay!
FIDDLER S CREEK PC MOTION LP FIRE CHAT SET CHAIR
xxxxxxxxxxxx
Model #GB-5085-AAT
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Item #xxxxxxxxxxxx
Model# GC- 4 1016 - SRP
Item# 1005 118 9 4 5
We appreciate the trust and condence you have placed in Hampton Bay through the purchase of this chair. We strive to
5
,
-
1005 118 9 7 0
continually
improvement

2
Table of Contents
Table of Contents ................................ . . . 2
Important Safety Instructions ............................... . . . 2
Warranty ....................................... . . . 2
What is Covered ................................ . . . 2
What is not Covered ............................. . . . 2
Important Safety Instructions
2.
SAVE THESE INSTRUCTIONS
Use this furnishing only for its intended use as described in
these instructions. Do not use attachments not recommended by
the manufacturer.
Close supervision is necessary when this furnishing is used by or
near children, or disabled persons, if applicable.
READ ALL INSTRUCTIONS BEFORE USE
To reduce the risk of injury to persons:
1.
Pre-Assembly.
................................ . . . . 3
Planning Assembly
........................... . . . . 3
Hardware Included ............................ . . . . 3
Package Contents ............................. . . . . 3
Assembly .................................... . . . . 4
Care and Clea.ning .............................. . . . . 5
Warranty
THIS IS A RESIDENTIAL WARRANTY ONLY AND THIS WARRANTY DOES NOT APPLY TO COMMERCIAL
USE
WHAT IS COVERED
WHAT IS NOT COVERED
YEAR FRAME AND FABRIC LIMITED WARRANTY
3
We warrant the frame to be free of manufacturing defects to the original purchaser for three years.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.
It remains the customer's responsibility for freight and packaging charges to and from our service center. This warranty does not cover
commercial use, hardware, acts of nature, re, freezing, and abusive use. In addition, purchased parts are not covered under this warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
For a copy of our full limited warranty, please contact our customer service team below.

HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
3
Part Description Quantity
M6 x 35 mm Allen Bolt
Spout Plug 2
Pre-Assembly
NOTE: More than one person may be required to
complete the assembly of this product.

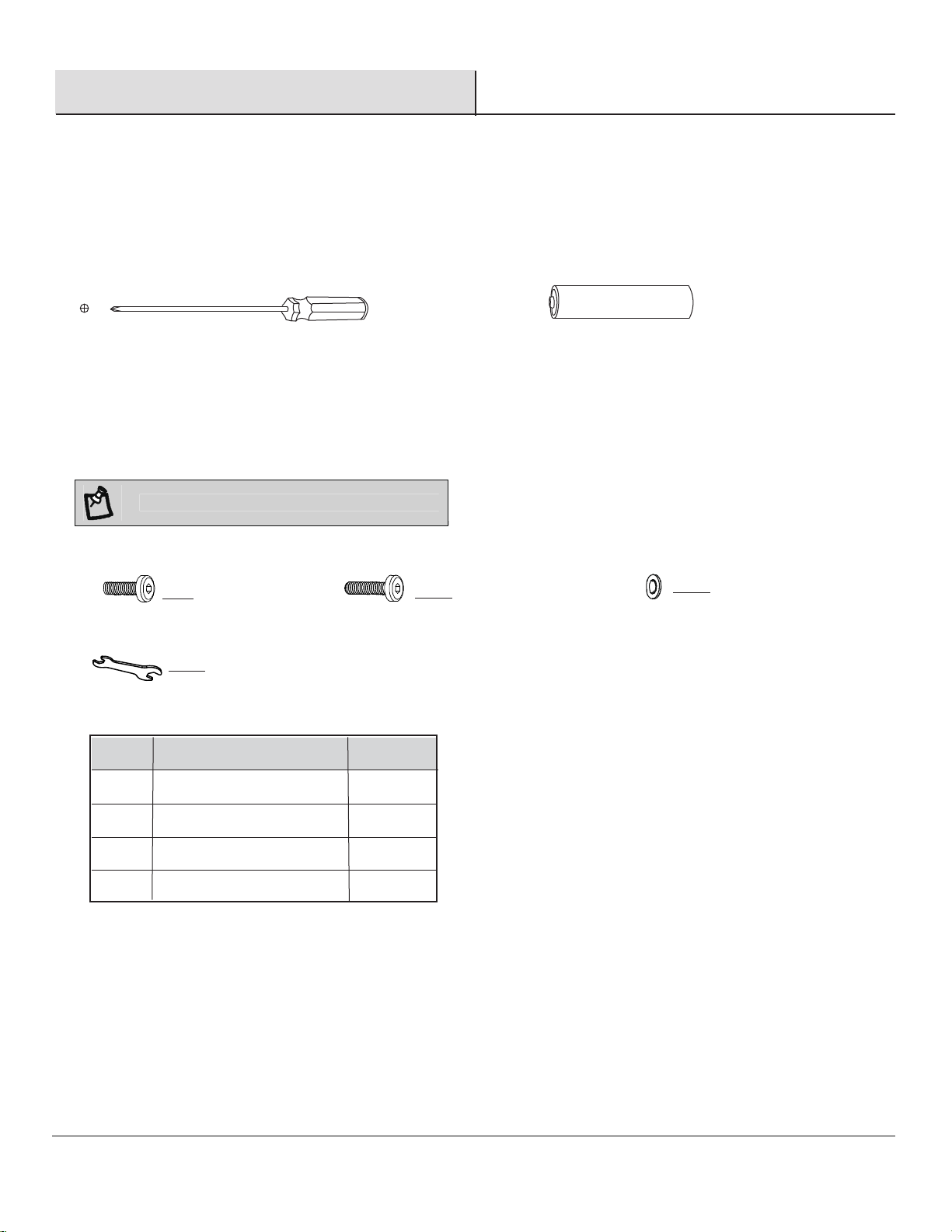

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
PLANNING ASSEMBLY
Please read this entire instruction manual prior to assembly.
Verify all parts packed in the carton against the parts list. Remove all protective materials and place the parts on a non-ab rasive surface to
avoid scratching.
_AA _BB
AA
BB
2
6
CC
_CC _DD _EE _FF _GG _HH
_I I _
M6 Washer
4
DD
EE
6
8
GG M8 Spring Washer
4
HH
4
M6 - M8 Hex Wrench 2
M6 Allen Wrench 1
I I
FF
M6 x 35 mm Hex Bolt
M8 x 50 mm Hex Bolt
M8 Washer
M8 Nut
JJ
JJ

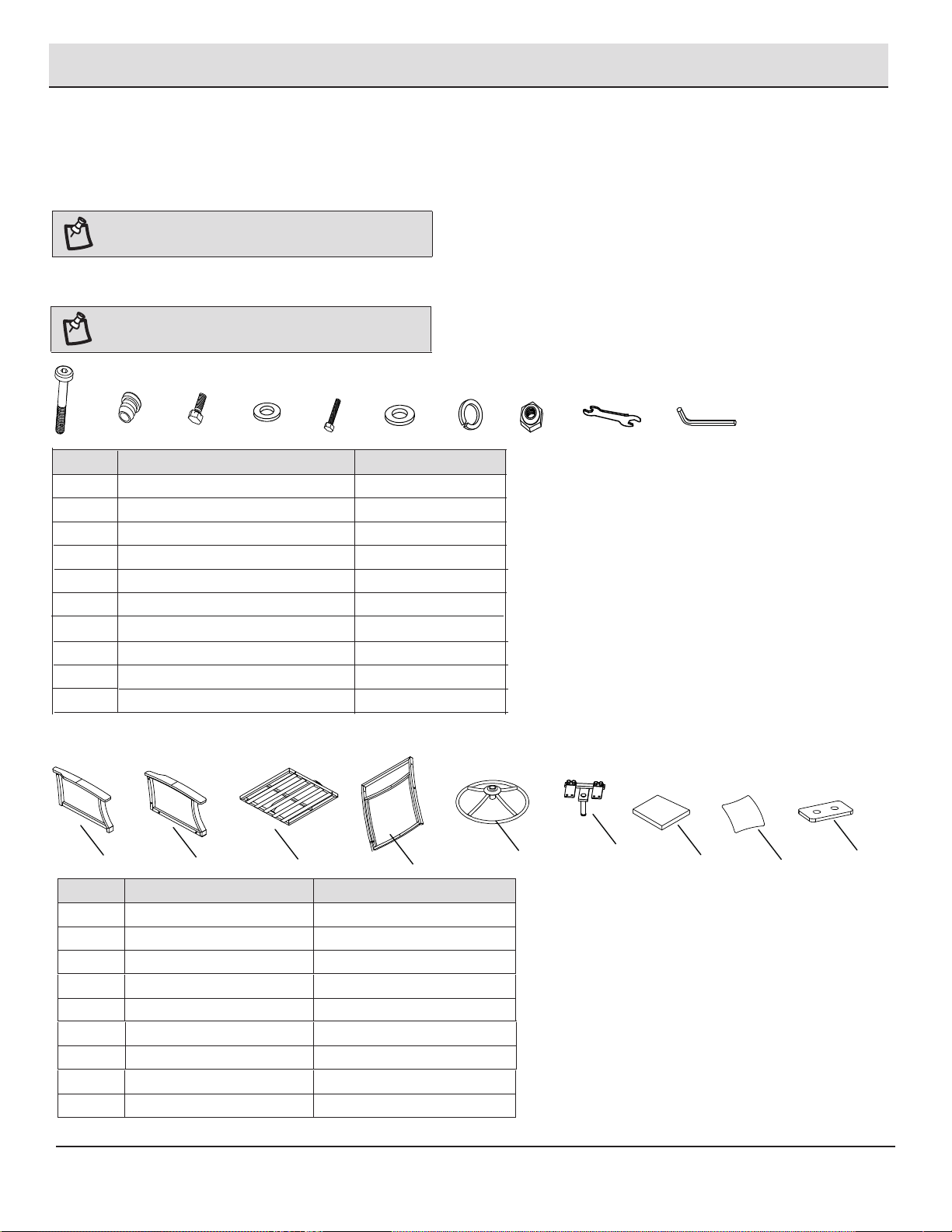

ACKAGE CONTENTS
P
AC
BＤＤ ＦＦ
ＥＥ
Part Description Quantity
B Left Arm
1
C S eat Panel
1
A Right Arm
1
DBack Panel 1
E Chair Base 1
F 1
G
S eat Cushion
1
I
1
4
H Back Cushion
S teel Plate
T-rock
GH I

4
Assembly

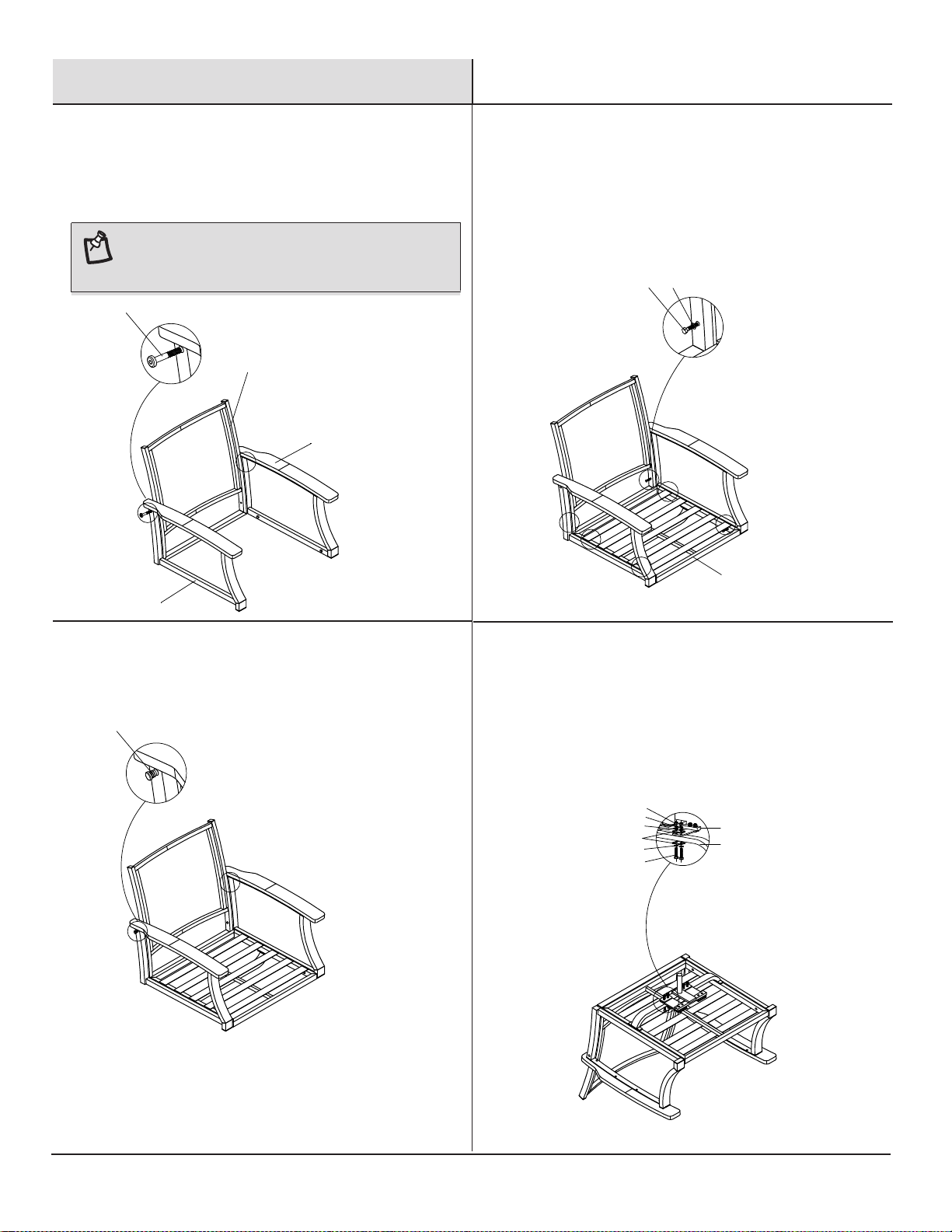

1 2
Attaching the arms to the back panel
Attach the left arm (B) and right arm (A) to the back panel (D)
□
(AA).M6 x 3 5 bolts
NOTE: Please ensure all bolts are aligned and assembled
correctly. Do not tighten bolts until the f rame assembly is
complete.
Attaching the seat panel
Attach the seat panel (C) to the arms (A and B) with
□
(CC) and M6 washers (DD).M6 x 3 5 bolts
□
Attach the left arm (B) and right arm (A) to the back panel (D) with
(CC) and M6 washers (DD).M6 x 3 5 bolts
□Tighten all the bolts with hex wrench (II) and Allen wrench ( ).
3
Attaching the spout plugs
□
Attach the spout plugs (BB).
4Attaching the T-rock
□Attach the T-rock (F) to the finished frame with four M8 x 50mm
hex bolts in the order of bolts (EE), M8 washers (FF), rectangular
steel plates (I), chair seat (C), T-rock (F), rectangular steel plates
( ), M8 washers (FF), M8 spring washers (GG) and M8 nuts (HH).
□Tighten all M8 x 50mm bolts (EE) with M6-M8 hex wrench ( ).
II
I
JJ
AA
A
BB
B
D
CC DD
C
F
C
FF
EE
I
HH
GG
FF
with

HAMPTONBAY.COM
5
Please contact 1-855-HD-HAMPTON for further assistance.
Assembly (continued)
□
Connecting the chair base to the chair
bucket
5
Adding the cushions
Turn the chair upside down. Insert the chair bucket into the
chair base (E).
□Place the seat cushion (G) and back cushion (H) on the lounge chair.
The chair now is ready for use.
6
6
ＦＦ
E
H
G

Care and Cleaning
Do notallow water to buildupinthe frames.Thiswillcausecorrosionandpossible freezingdamageincoldclimates.
Use a mildsoapand waterfornormalcleaning. Do notusejanitorial or alcoholbasedcleaners.Somecleaners may be marked as
natural,butsomeingredients may causediscoloration or have an adverse reaction to yourfinish.
Rinse with cleanwateranddry with a soft,absorbent clothtowel.
Treatthe frames with a liquid wax for maximumprotectionagainst UV raysand/orsalty,dampair.
□
□
□
□

Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.

USE AND CARE GUIDE
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
WWW.HAMPTONBAY.COM
1-855-HD-HAMPTON
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8.00 a.m. - 7.00 p.m. EST, Monday - Friday,
9.00 a.m. - 6.00 p.m. EST, Saturday
FIDDL ER S CREEK 5PC MO TIO N L P FIRE CH AT SET-
WARNING:
Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage.
Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
,
Model# GT -1118 4-SSR
1005 118 9 05
me
tI # 1005 118 9 45
TABLE

Table of Contents
2
Important Safety Instructions..................................3
Table of Contents.....................................................2
..................................................................9
Specification............................................................4
Safety Warning.........................................................5
S tructure of the Gas Firepit....................................11
Installation..............................................................12
Location......................................................
Setting Up...................................................
Gas Connection...........................................
Leak Check .................................................
Operation
................................................................1 4
Lighting........................................................
Shutting Down the Gas Appliance ...............
How to Disconnect the Cylinder...................
Storage and Maintenance .......................................1
7
Troubleshooting.......................................................
1 6
Cleaning and Clearing.......
......................................
1 6
Limited Warranty......................................................17
Gas Cylinder Required..............................................
15
A ssembly
P re-Assembly...........................................................7
Loading the Propane Tank..........................
Loading theBattery ..................................
12
12
12
13
13
15
15
14
14

Important Safety Instructions
SAVE THESE INSTRUCTIONS
1. Close supervision is necessary when this furnishing is used by or near children, or disabled persons, if applicable.
2. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recommended by
the manufacturer.
DANGER:
For outdoor use only.
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of any other appliance.
An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
CARBON MONOXIDE HAZARD
This appliance complies with ANS Z21.97-2014/CSA 2.41-2014 outdoor decorative gas appliances.
READ ALL INSTRUCTIONS BEFORE USE
To reduce the risk of injury to persons:
WARNING: FUELS USED IN LIQUEFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU
TO CHEMICALS INCLUDING BENZENE, WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. For more information go to: www.P65Warnings.ca.gov.
WARNING:
WARNING:
WARNING:
DANGER:
3
Surfaces of fire pit can remain extremely hot for a period after use. Allow 45 minutes to cool down before
touching or moving the fire pit.
FOR Y OUR SAFETY :
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. If the odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
1.This appliance can produce carbon monoxide, which has no odor.
2.Using it in an enclosed space can result in death.
3.Never use this appliance in an enclosed space such as a camper, tent, car or home.
WARNING: Do not connect to a remote gas supply.

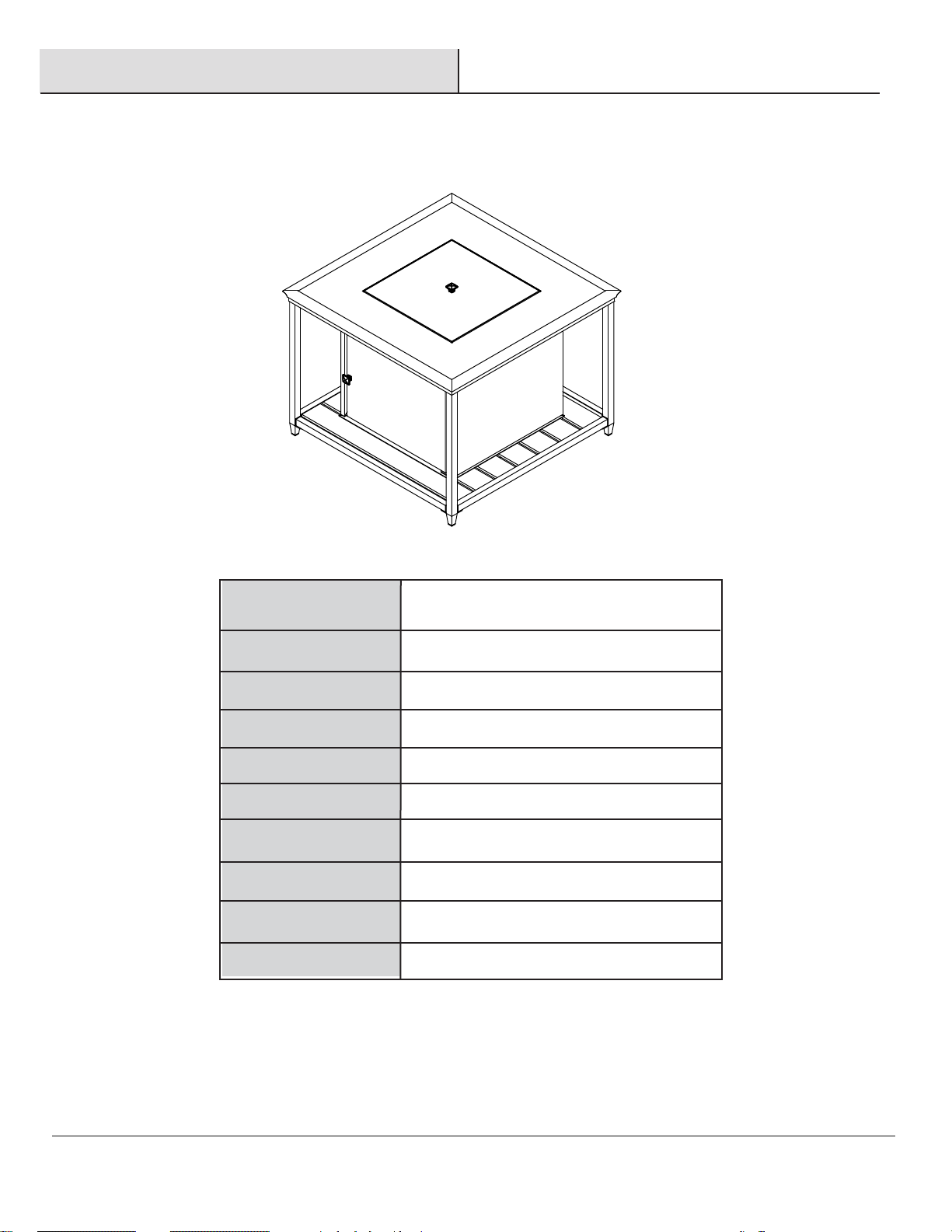

Product Name Fiddler' s C reek 5pc motion LP f ire chat set-table
Model No. GT-11184-SSR
Rated Heat Input 55,000 BTU
Fuel Propane
Gas Supply
20-lb LP gas cylinder
Manifold Pressure 11 in. water column
Orifice Size (diameter) 0.09 in. (2.3mm)
Gas Supply Pressure 250 PSI (max)
Specifications
Dimension (Lx Wx H)
Weight (w/o tank)
36.02 in x36.02 in x 27.56 in
NW: 78.48 lbs
4
GW:113.32 lbs

5
CAUTION
CAUTION
When the appliance is connected to a f ixed-gas system, the installation must conf orm with local codes, or in the
absence of local codes with the National Fuel Gas C ode, A NSZ 223.1/NFPA 54; International Fuel Gas C ode,
Natural Gas and Propane Installation C ode, C SA B149.1;
or Propane Storage and H andling C ode, B149.2, as
applicable.
The LP gas supply cylinder used must be:
1. C onstructed and marked in accordance with the U.S. D epartment of Transportation (D O T) Specif ications f or
LP Gas C ylinders, or the Standard f or C ylinders, Spheres and Tubes f or Transportation of D angerous Goods
and C ommission, C A N/C SA -B339 as applicable.
2. Prov ided with a listed ov erf ill prev ention dev ice.
3. Prov ided with cylinder connection dev ice compatible with the connection f or the appliance.
A lways place the appliance on a f irm and lev el surf ace.
Solid f uels shall not be burned in this gas appliance.
The appliance shall be used only outdoors in a well-v entilated space and shall not be used in a building,
garage or any other enclosed area.
When in use, keep the appliance area clear with at least 48 in. (121.9 cm) on the sides and 72 in. (182.9 cm)
on top away f rom combustible materials, gasoline and other f lammable liq uid and v apors.
D o not use the appliance under combustible surf aces. C ertain items or materials, when stored under the
appliance or nearby, will be subj ected to radiant heat and could be damaged. Inspect the hose assembly
and burner prior to each use. If there is ev idence of excessiv e abrasion or wear,
or if the hose or burner is damaged, it must be replaced by an appropriate part f rom the manuf acturer.
Inspect the gas connections of the appliance prior to each use. D o not operate the unit if
there is a gas leak. H av e the appliance inspected annually by a q ualif ied serv ice person.
The pressure regulator and hose assembly prov ided with the appliance must be used.
The replacement part must be the same as specif ied by the manuf acturer.To attach the LP gas
cylinder please ref er to the " Gas C onnection" section on page 13 and perf orm the leak check on
page 14.
Safety Warnings
CAUTION

Safety Warnings (continued )
6
CAUTION
CAUTION
C hildren and adults should be alerted to the haz ards of high surf ace temperature and should stay away to
av oid burns or prev ent clothing f rom igniting.
Y oung children should be caref ully superv ised when they are in the area of the appliance.
C lothing or other f lammable materials should not be hung f rom the appliance or placed on or near
the appliance.
A ny guard or other protectiv e dev ice remov ed f or serv icing the appliance must be replaced prior
to operating the appliance.
Installation and repair should be done by a q ualif ied serv ice person. The appliance should be inspected bef ore
use and at least annually by a q ualif ied serv ice person. M ore f req uent cleaning may be req uired as necessary.
It is imperativ e that the control compartment, burners, and circulating air passageways of the appliance are
kept clean.
D o not use the appliance if any part has been under water. Immediately call a q ualif ied technician to inspect
the appliance and to replace any part of the control system and any gas control which has been under water.
The LP gas supply cylinder to be used must be constructed and marked in accordance with the specif ications
f or LP gas cylinders of the U. S. D epartment of Transportation (D O T). See page 15.
The cylinder system must be arranged f or v apor withdrawal, and the cylinder must include a collar to protect
the cylinder v alv e.
Use only 20 lb (9 kg) LP gas cylinders.
D o not burn wood or any other materials in this appliance.
The burner must be replaced prior to the appliance being put into operation if it is ev ident that the burner is
damaged. The replacement burner must be the same as the part specif ied by manuf acturer.
To clean the appliance, including the burner, please ref er to the " C leaning and C learing" section on page 16.
D o not try to cool glass beads with water soon af ter shutting of f the gas appliance or they will break.
D o not use the gas appliance in strong wind and/or heav y rain.

Pre-Assembly
PLANNING
ASSEMBLY
It will take two people about 30 minutes to complete the assembly process.
HARDWARE INCLUDED
NOTE:Hardware not shown to actual size.
AA BB CC
DD
7
TOOLS NEEDED
AAA
AAA Battery (1 pc)
Part Description Quantity
AA
BB
CC
DD
24
8
32
1
Bolt (M6 x 20)
Hex wrench (M6-M8)
Washer (M6)
Bolt (M6 x 40)
Philips screwdriver

Pre-Assembly (continued)
8
PACKAGE CONTENTS
Part Description Quantity
A
B
C
D
E
F
G
1
4
1
1
1
1
2
Table top incl. gas furnace
Rear panel
Right side panel incl. door
Lid
Left side panel
H
1
I
Rocks
A
G
B
D
B
E
B
C
H
F
B
I
8.8 lbs( 4 kg)
Table leg
Tank rack
Tank barrel

Assembly
Attaching the tank barrel
9
2
IMPORTANT:
Do not fully tighten bolts.
Attaching the side panels to the rear panel
Attach the left side panel (D) and right side panel include door (C) to
M6 - M8 wrench (DD).
and M6 washers using M6 - M8 hex wrench (DD).
1
the rear panel (E) with M6 x 4 0 hex bolts and M6 washers (CC)using
Attach the tank barrels (I I ) to tank rack with M6 x 2 0
(FF)
IMPORTANT:
Fully tighten bolts.
Attaching the tank rack
Attach the side panels (C and D) and rear panel (E) to the tank rack (F)
with M6 x 4 0 hex bolts (BB) and M6 washers (CC) using M6 - M8
Fully tighten all the bolts.
3
hex wrench (DD).
Attaching the table top
4Attach the whole table base to the table top (A) with M6 x 2 0
hex bolts (AA) and M6 washers (CC) using M6 - M8 hex wrench (DD).
Do not fully tighten bolts until the end of Step 5.
AA
CC
CC
C
BB
E
D
BB
CC
AA
CC
A
F
hex bolts (AA)

Assembly (continued)
Attaching the tank rack
10
5
Turn the table upright.
Put the rocks (I ) to the bowl. Put the lid (G) on.
6
Attaching the table legs
Attach the table legs (B) to the table top and tank rack with M6 x 2 0
and M6 washers using wrench (DD).
bolts
Fully tighten all the bolts.
AA
CC
B
B
G

11
service center for replenishment or replacement with the part number provided.

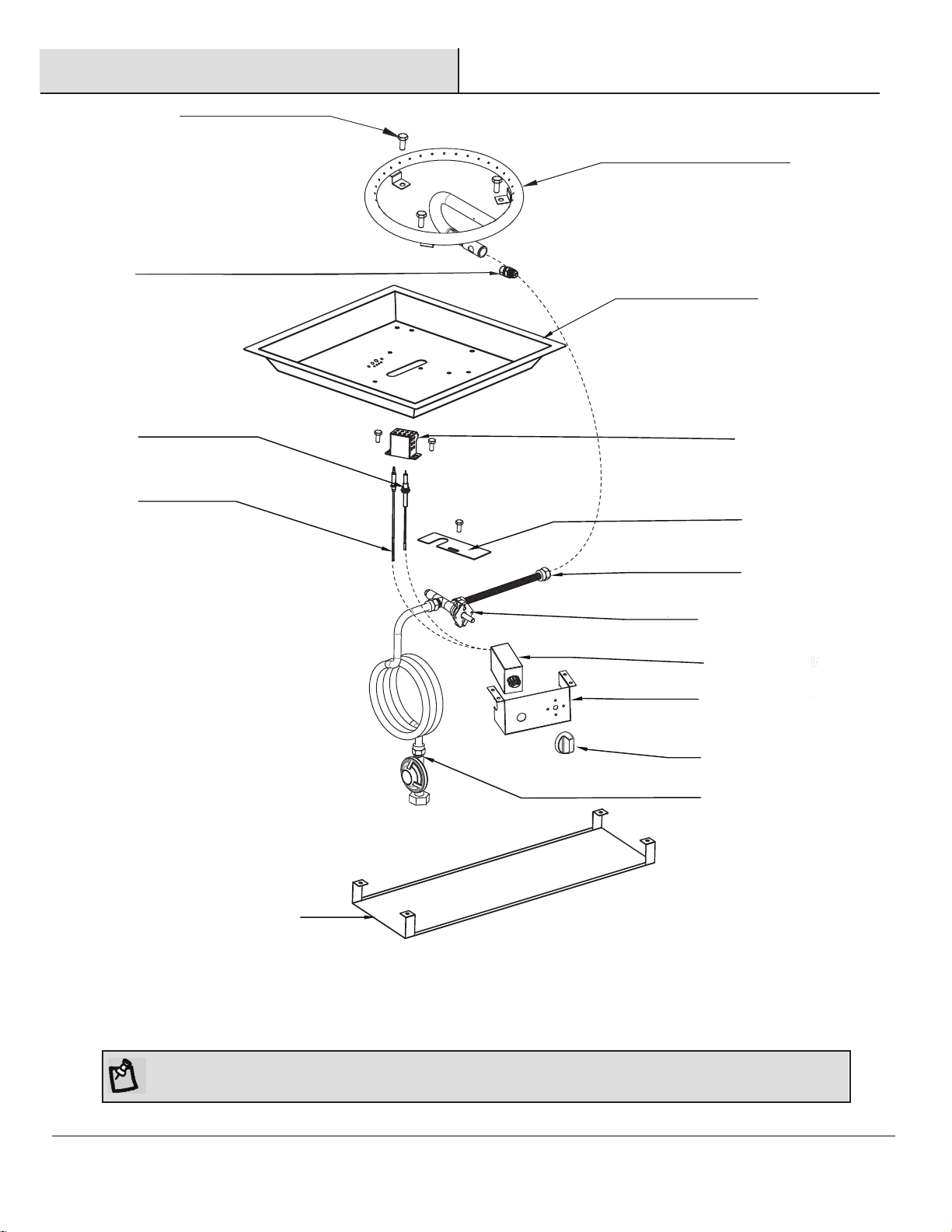

Structure of the Gas Firepit
NOTE:
If any part is damaged during the one year limited warranty period, please contact the Hampton Bay customer
51 - Hex Cross Screw & Nut
52 - Orifice Connector & Orifice
53 - Ignition Needle
54 - Thermocouple
55 - Heat Insulation Board
57 - Fire Basin
58 - Burner Baffle
59 - Backup Plate for Burner
50 - Flex Line
5a - Safety Valve
5b - Electric Igniter
5c - Control Panel
5d - Control Knob
5e - Regulator
56 - 10 in. Single Ring Burner Component

Location
.
Installation
Setting up
NOTE:
(Fig. 3)
1
2
3Loading the propane tank
Fig. 2
O pen the door. (Fig. 2 )
Fig. 3
Do not place this appliance on grass or dirt areas.
This may prevent proper safety venting.
Use the rotation knob (#1) to position the tank in the tank rack.
36 in. / 914 mm,
Fig. 1
72 in 1829mm
36 in 914mm
36 in 914mm

13
Installation (continued)
Connecting the gas
Fig.
P
U
S
H
NOTE:
4
5
Loading the battery
IMPORTANT:
Fig.
Fig.
Fig. 7
Please follow the above instructions
to replace the battery when needed.
If the knob (#5) is not properly threaded to the
outlet of the cylinder, gas leakage can occur.
U nscrew the battery box and insert the negative electrode side
of the battery into the bottom of the battery box .
Cover the battery with the plastic cover. (Fig.4 )
Connect the pressure regulator (# 4 ) to the tank by rotating
the knob (# 5 ) clockwise until it is fully secured. (Fig.5 )
M ake sure there is no leakage or damage
Please refer to the " L eak Check" information and instructions
on how to check for hose or burner damage on page 14 .
Close the door. (Fig.6 )
R emove the lid (G) and place rocks ( I ) into the fire bowl, making sure
to keep the igniter block (# 6 ) open. (Fig.7 )
