USER MANUAL CONTROLS EN
VR2 (PG DT)

2 VR2

VR2 3
© 2014 Handicare
All rights reserved.
The information provided herein may not be reproduced and/or published in any form, by print,
photoprint, microfilm or any other means whatsoever (electronically or mechanically) without the prior
written authorization of Handicare.
The information provided is based on general data concerning the construction known at the time of
the publication of this manual. Handicare executes a policy of continuous improvement and reserves
the right to changes and modifications.
The information provided is valid for the product in its standard version. Handicare can therefore not
be held liable for any damage resulting from specifications of the product deviating from the standard
configuration. Illustrations contained in the manual may deviate from the configuration of your product.
The information made available has been prepared with all possible diligence, but Handicare cannot
be held liable for any errors contained in the information or the consequences thereof.
Handicare accepts no liability for loss resulting from work executed by third parties.
Names, trade names, trademarks etc. used by Handicare may not, as per the legislation concerning
the protection of trade names, be considered as being available.
English

4 VR2

VR2 Table of content 5
Table of content
1 Introduction....................................................................................................................................6
1.1 This user manual 6
1.2 Symbols used in this manual 6
2 The controller ................................................................................................................................7
2.1 VR2 controller 7
2.2 VR2 attendant steering 7
2.3 Main components 8
3 Driving the wheelchair.................................................................................................................10
3.1 Switching the controller on or off 10
3.2 Driving the wheelchair 10
3.3 Adjusting the push bar height 10
3.4 Speed 11
4 The electrical adjustment options ...............................................................................................12
4.1 Selecting and operating the electrical adjustment option 12
5. Lights...........................................................................................................................................14
6. Troubleshooting...........................................................................................................................15
7 Locking the controller..................................................................................................................16
8 Technical specifications...............................................................................................................17
9 Technical diagrams......................................................................................................................18
9.1 Technical diagram 18
9.2 Technical diagram battery charger 19

6 Introduction VR2
1 Introduction
1.1 This user manual
This user manual will help you to use and
maintain the controller of your power wheelchair
safely. This user manual is a supplement to
Handicare’s general wheelchair user manual.
When necessary this user manual refers to
other manuals as shown below:
Wheelchair: Refers to the general
wheelchair user manual.
Battery charger: Refers to the user
manual for the battery charger.
Read this user manual and the other user
manuals referred to carefully before using
the product. If one of the user manuals was
not included with your wheelchair, please
contact your dealer immediately.
In addition to this user manual, there is also a
service manual for qualified specialists.
CONTACT HANDICARE IF YOU HAVE A
VISUAL IMPAIRMENT.
1.2 Symbols used in this manual
Note!
Pointing out possible problems to the user.
Caution!
Advice for the user to prevent damage to the
product.
Warning!
Warnings for the user to prevent personal in
jury.
Not following these instructions may result
in physical injury, damage to the product or
damage to the environment!

The controller 7VR2
1
2
3
4
2 The controller
2.1 VR2 controller
A controller will usually have three basic
functions:
• Driving and steering a wheelchair
• Operating electrical seat adjustments
• Charging the wheelchairs batteries
There are many different control systems for
wheelchairs on the market. If the controller on
your wheelchair does not resemble the one in
figure 1, 2, 3 or 4 contact your dealer.
1. VR2 Drive only
2. VR2 Lights
3. VR2 Seats&Lights
4. VR2 Attendant steering
VR2 by PG Drives Technologies is a collective
name for the entire control system of the
wheelchair. The wheelchair is operated by
means of a controller. Main components of the
controller can be found in chapter 2.3.
2.2 VR2 attendant steering
It is possible to connect an extra controller
(figure 4) on the back. This so the attendant can
control the wheelchair and operate electrical
options.

8 The controller VR2
L
F1+F2 M
D2
E
A
G
H
F2
D1
C
F1 F1
D2
B
F2
D1
C
K1 K2
D2
J I
B
F1 F2
D1
C
K1 K2
D2
J I
B
ED3
5

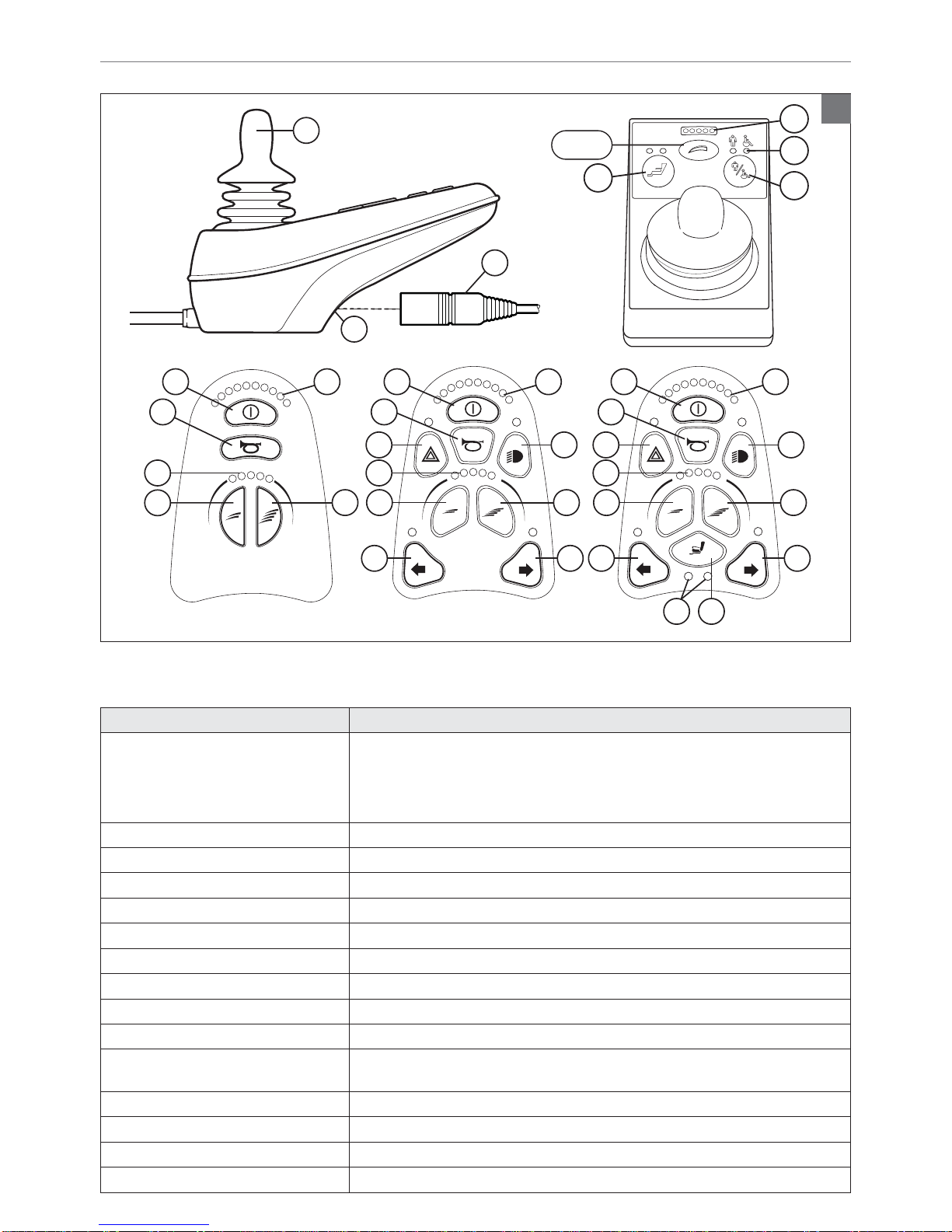

2.3 Main components
Part Function
A. Joystick In the ´drive´ mode: driving and steering
In the ‘adjustment options’ mode:
• Left/right to select the adjustment options
• Front/back to select the adjustment mode
B. On/off switch Switching the controller on or off
C. Horn Warning signal with sound
D. 1 Battery indicator Displays the power level of the battery
D. 2 Maximum speed Displays the maximum speed limit as set by the user
D. 3 Adjustment option Displays the selected adjustment options
E. “Mode” button Changing between the ‘driving’ and the ‘adjustment options’ mode
F. 1 Speed regulator Reduce driving speed (slower)
F. 2 Speed regulator Increase driving speed (faster)
G. Charge connector Input for the battery charger
H. Charge plug for the battery
charger Connector for the battery charger
I. Lights button Switching the lights on or off
J. Hazard lights Warning signal with lights
K. 1 Direction indicator left Switches the left direction indicator on or off
K. 2 Direction indicator right Switches the right direction indicator on or off

VR2 The controller 9
Part Function
L. User/attendant switch Switching between user and attendant controller
M. User/attendant indicator Displays the active controller

10 Driving the wheelchair VR2
A
6
3 Driving the wheelchair
3.1 Switching the controller on or
off
To be able to drive or operate the electronic
adjustment options of the wheelchair, the
controller must be switched on. Press the on/off
button (B in figure 5).
Note!
The joystick should be released (neutral
position) when switching on the controller
otherwise there will be an error code
If the attendant steering needs to be activated,
the user/attendant switch needs to be pressed
(L in figure 5).
3.2 Driving the wheelchair
Driving an electric wheelchair is done by
operating a joystick.
Joystick mounted on armrest or as
attendant control mounted on the push
handle
Move the joystick forwards and the wheelchair
will also move forwards. Steer left and right and
the wheelchair will turn.
Joystick mounted in the Z-steering
mechanism
To operate the controller in the Z-steering
mechanism the push handles needs to be
squeezed to the metal bar below. The chair will
drive in the forward direction. When moving the
bars to the left, the chair will turn right and when
moving them right, the chair will turn left. Lift the
push handles if you want to drive backwards.
3.3 Adjusting the push bar height
The height of the push bar with the Z-steering
mechanism is adjustable in 6 steps and can
easily be set. Pull A (figure 6) and set the height
by releasing the strap on the desired height.
You should hear a click when setting the push
bar height. This indicates that the bar has
locked into place. It is also possible to flip down
the total Z-steering.

Driving the wheelchair 11VR2
3.4 Speed
The maximum speed can be controlled by the
speed regulator on the controller (F1 en F2 in
figure 5). The maximum speed is displayed
by the LED lights above the speed regulators.
Speed can be controlled with the joystick while
driving. If the joystick is moved a little, the
wheelchair will move more slowly.

12 The electrical adjustment options VR2
B
C
A
A
B
C
7
8
9
4 The electrical adjustment
options
Not every wheelchair has been equipped with
electronic adjustment options. We make a
distinction between four different adjustment
options to the seating system:
• Tilt adjustments
• High/low adjustments
• Backrest adjustments
• Legrest adjustments
Note
If you adjust the seat height by using the
high/low option or use the electrical tilt
adjustment 0 - 45°, the speed will be reduced
for your safety.
To use electrical adjustment options, the VR2
Seats&Lights controller is required (maximum
of two options).
4.1 Selecting and operating the
electrical adjustment option
1. Switch on the controller (A in figure 8)
2. To activate the attendant steering the user/
attendant switch needs to be pressed (A in
figure 9 + 10)
3. Press on the ‘mode’ button (B) to select the
‘adjustment options’ mode. The controller
will now be in the ‘adjustment options’ mode.
It is possible to follow the status on the
actuator.
The joystick or the push handles (C) are used
to select and operate the electronic adjustment
options.
4. Move the joystick / handles to the left or the
right to select the desired adjustment option.
The actuator LED’s indicates the currently
selected seating function.
5. Moving the joystick forwards / backwards
or the handles up / down will activate the
selected electric adjustment option (see
table on next page). Move the joystick /
handles until the desired adjustment option
has been attained.

The electrical adjustment options 13VR2
A
B
C
10
Adjustment Move joystick backwards / Pushing the push handles down
Tilt The entire chair will tilt backwards
High/low The entire chair will be raised
Backrest The backrest will tilt backwards
Legrest The legrest angle will increase, the
footplate will be raised
Adjustment Move joystick forwards / Lifting the push handles up
Tilt The entire chair will tilt forwards
High/low The entire chair will be lowered
Backrest The backrest will tilt forwards
Legrest The legrest angle will decrease,
the footplate will be lowered
6. To return to the ‘drive’ mode: Press on the
‘mode’ button to select the ‘drive’ mode

14 Lights VR2
5. Lights
Not every wheelchair has been equipped
with lights. You can activate the following
functions only by using VR2 Lights and/or VR2
Seat&Lights:
 Lights (I in figure 5)
 Hazard Lights (J in figure 5)
 Direction indicators (K1 & K2 in figure 5)

Troubleshooting 15VR2
6. Troubleshooting
If the wheelchair will not function while the
batteries are fully charged, check the following
points before consulting your dealer:
 Switch the controller off and then switch it on
again. Check to see if the malfunction has
been solved.
 Check if the free wheel switch was switched
to Drive.
 Check if the joystick was in the 0 position
when the controller was switched on. In
other words, the joystick must not be moved
when the controller is being switched on or
off.
Malfunctions list
An extended malfunction list can be found in
the appendix of the service manual (for qualified
specialists only). The service manual can be
found on www.handicare.com

16 Locking the controller VR2
7 Locking the controller
To lock the controller;
 While the control system is switched on,
depress and hold the on/off button.
 After 1 second the control system will beep.
Now release the on/off button
 Deflect the joystick forwards until the control
system beeps.
 Deflect the joystick in reverse until the
control system beeps.
 Release the joystick, there will be a long
beep.
 The wheelchair is now locked.
To unlock the controller;
 If the control system has switched off, press
the on/off button.
 Deflect the joystick forwards until the control
system beeps.
 Deflect the joystick in reverse until the
control system beeps.
 Release the joystick, there will be a long
beep.
 The wheelchair is now unlocked.

VR2 Technical specifications 17
8 Technical specifications
Supply Voltage 24 Vdc
Operating Voltage 16Vdc to 35Vdc
Peak Voltage 35Vdc
Reverse Battery Voltage 40Vdc
PWM Frequency 20kHz ± 0.5%
Brake Voltage 12Vdc or 24Vdc
Brake Current 100mA min.
1A max.
Charger Connector Use only Neutrik NC3MX
Batt. Charging Current 12Arms max.
Actuator Current 12A max.
Maximum Drive Current VR2 50 50A
VR2 60 60A
VR2 70 70A
VR2 90 90A
Moisture Resistance IPx4
Operating Temperature -25°C to +50°C
Storage Temperature -40°C to +65°C
EMC tested on sample wheelchair:
Applicable aspects Applicable standards
Radiated emissions
Electrostatic discharge immunity
Radiated r.f. field immunity
EN12184: 2009 and underlying norms

18 Technical diagrams VR2
70 A Fuse
-+
1008386 VR-2 Lighting module
joystick
lights right
lights left
11
12
9 Technical diagrams
9.1 Technical diagram
The technical diagrams can also be found on the cover of the specific electronic component.

VR2 Technical diagrams 19
9006377A
9002474 VR-2 90A Powermodule
1008388 VR-2 90A Powermodule twin actuators mounting holes
motor battery motor seat FWD
seat RWD 13
14
9.2 Technical diagram battery charger
The controller’s standard configuration includes a ‘3-pin connection’. Ensure that the battery charger
is properly connected so that the ‘negative pole’ and the ‘inhibit’ are connected, enabling the system to
prevent the wheelchair from moving when the battery is being charged.

Dealer:
Serial number:
