Handy Dryers ANTILLO 2280 User manual

Antillo Slim Hand Dryer
PLEASE READ CAREFULLY THROUGH THIS MANUAL BEFORE USING
THE PRODUCT, OBSERVING ALL SAFETY INFORMATION, WARNINGS.
V2 Jun.19
Stianless Steel finish
Product 2280
White Coated Steel
Product 2281

Before installing, be sure to read this installation manual and retain for future reference.
This product must be installed by qualified personnel in accordance with the instructions given
in this manual and installation must comply with all applicable regulations, national security
standards and laws in force in the country where the product is installed.
Turn off the power at the main switch before installing or servicing the dryer unit
The dryer must not be installed on a flammable surface. Do not damage any parts of
the electrical connections.
Pre-arrange an appropriate power outlet and a system of disconnection in accordance with
current local regulations. Make sure the product is properly connected to ground. If there is
no ground connection, there is a risk of an electrical shock.
Do not install the dryer over a washbasin. If the power cord is damaged, it must be repaired
by qualified personnel to avoid any type of risk.
This dryer can be used by children aged 8 years and above. People with reduced physical,
sensory or mental abilities or lack of experience and knowledge, if they have been given
supervision and appropriate training regarding the use of the dryer in a safe manner, can use
it with no restriction. Children should not play with the apparatus. Cleaning and
maintenance performed by the owner should not be done without the children having
supervision.
During use, temperatures above 158℉ [70℃] may develop in the parts near the hot air nozzle.
Do not touch or cover the dryer during use or when finished using it.
General safety information:
WARNING
WARNING
WA R N I N G
WA R N I N G
WARNING
DANGER
WARNING
WARNING
This product is intended
Failure to properly ground
Disconnect power at the
All units must be suppllied
for installation by a qualified service person.
Use AWG NO.12 solid conductor for wiring.
unit could result in service electrical shock
and/or death.
service breaker before installing or servicing.
with a 3-wire service. The ground wire must
be connected to the dryer’s backplate.
--NOTE: Do not install dryer over washbasin --
SAFETY WARNINGS

PACKING LIST
SPECIFICATION
Voltage: 220V-240V 50/60Hz,4A/1000W
110V-120V 60Hz, 8A/1000W
Stand-by Power: Less than 2.0W
Air Temperature: 40℃[104°F](Distance from nozzle=100MM[4"],Room Temp.=25℃[77°F])
Air Velocity: 100M/S[328 FT/S] / 360KM/H[224MPH]
3
Air Flow: 130M /H[76.5CFM]
Drying Time: 10-12 Seconds
Timing Protection: Forced Hold-On 60 Seconds auto shut-off
Timing Duration: Auto Shut-Off ≤3 Seconds after last sensor read
Sensor Range: 5-15CM[2"~ 5-7/8"], Owner Adjustable
Fuse Protection: 1kW,Main PCB, Φ5x20, 250V, 6A[230V] / 12A[120V]
Protection Level: IP23
Electric Isolation: CLASS ǀ(Metal cover)/CLASS II(Plastic cover)
Brush Motor: 30000RPM, 600W[0.8HP]
Noise [at 1M]: 74dB
Weight : 2.5KG[5.5lb]/Net Weight / 3.0KG[6.6lb]/Shipping Weight
ONLY be used on same voltage
as product rated label marked.
}
ITEM KEY ITEM QTY NOTES
A1
ITEM DESCRIPTION
Hand Dryer Unit Complete
Owner Manual(OM - this booklet)
Mounting Template(MT)
Wall Anchors, Expansion
Self-threading Phillips PH Screws
Flat Washer
Hex Key (for cover screws)
B1
C1
D4
E4
F4
G1
AD
F
CB
MT
G
E
Φ8x38MM [ 5/16" Dia.x 1-1/2"], for#10
Stainless Steel 304 Cover&Cabinet
M5x36MM [ No.10 AB x 1-3/16"]
F1 For M5[No.10 AB]Phillips PH Screws
For 4MM[ 5/32"] hex socket FH Screws
4MM [5/32"]
102MM
[4"]
102MM
[4"]
102MM
[4"]
102MM
[4"]
174MM
[6-27/32"]
174MM
[6-27/32"]
174MM
[6-27/32"]
174MM
[6-27/32"]
256MM[10-5/164"]
256MM[10-5/164"]
256MM[10-5/164"]
256MM[10-5/164"]

1200MM
[47-1/4"]
1000MM
[39-3/8"]

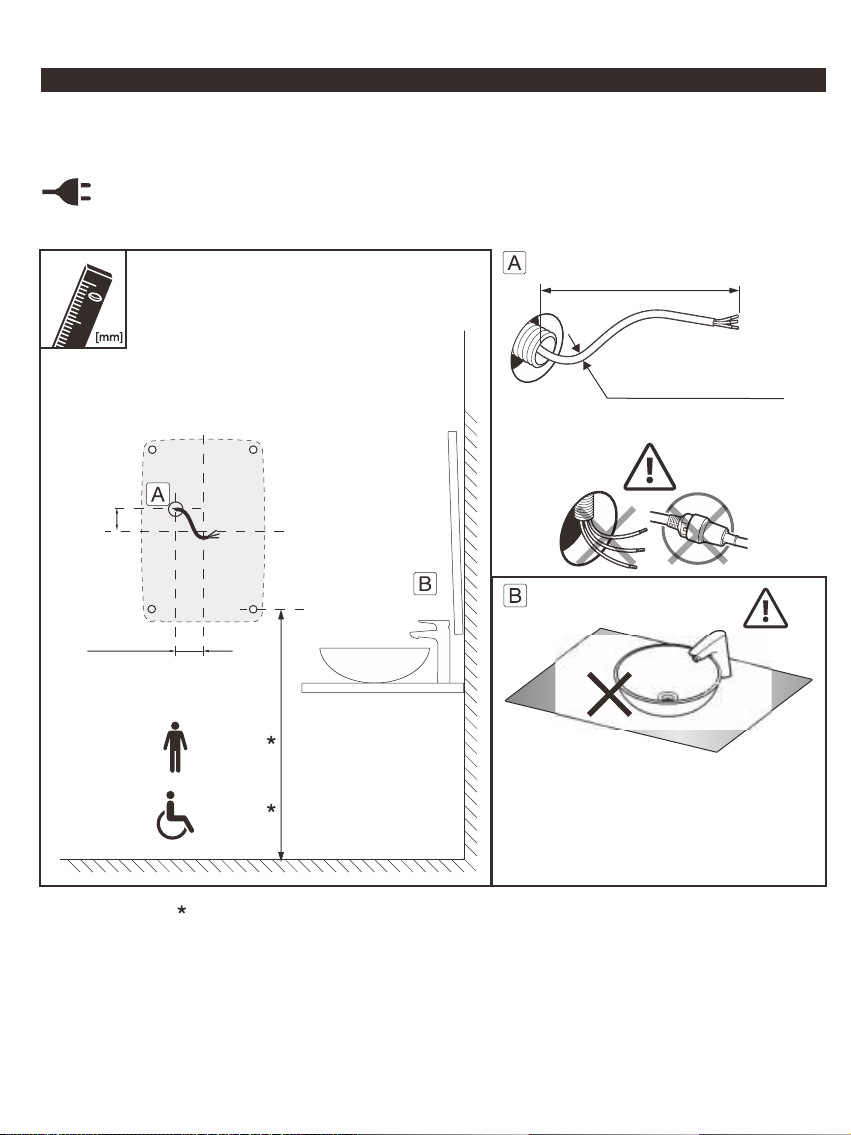

It is recommended to avoid installation
of dryer near high reflective objects
(mirror, stainless steel washbasins,
etc.) in order to avoid faulty function of
the presence sensor.
Recommeded
L Min. = 300MM[11-13/16"]
If hand dryer is to be installed with hardwired
stub provided in advance of install by others.
See MT for complete reference to mounting
heights and power KO locations.
Please check if hand dryer is supplied with convenient plug in feature.
1kW: 220-240V/ 6A
110-120V/ 12A
BEFORE INSTALLATION
Installation must be carried out in accordance with the current edition of the local wiring regulations
code having jurisdiction. Installation should be performed only by a qualified electrician.
39MM
[1-17/32"]
27MM
[1-1/16"]

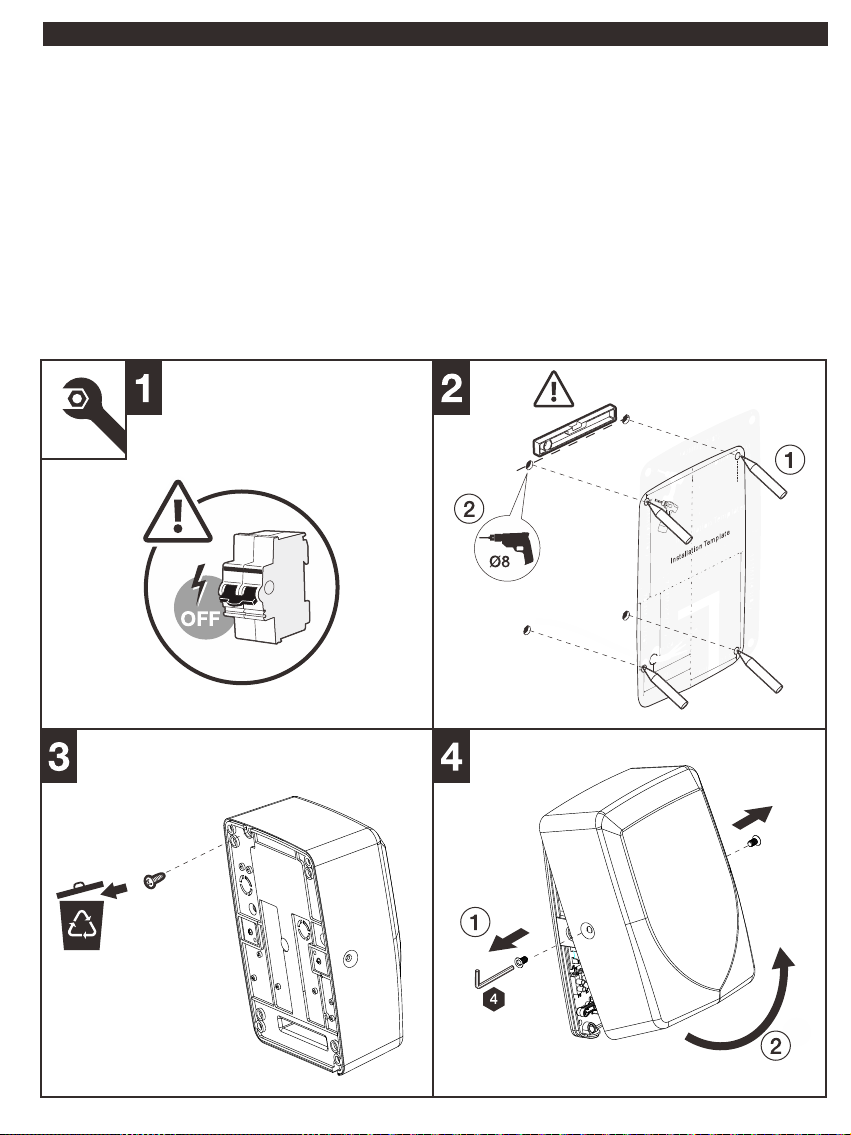

INSTALLATION
1. Be sure to break the electric supply before any operation.
2. Place template against wall at desired height(see mounting height recommendations)
and mark locations of 4 mounting holes Dia. 8mm(5/16").
3. Remove hand dryer back transportation only purpose screw.
4. Remove and retain 2 side security hex cover screws and cover.
5. Mount the hand dryer base on the wall.
6. If the hand dryer is supplied in hardwired:
a. Connect the live wire(Coloured Brown, Red, or Black) to the terminal block marked “L”.
b. Connect the neutral wire(Coloured Black, Blue) to the terminal block marked “N”.
c. Connect the ground wire(Coloured Green or Yellow) to the terminal block marked “E”.
7. Before replacing cover, there is a customized option to run the dryer heater on (1000W)
or heater off(600W).The switch is clearly marked.
8. Default setting is 12-15CM from nozzle. If it needs and please adjust its range.
9. Replace cover. Do not over-tighten screws.
10. Connect the hand dryer plug to the power supply socket if needed then turn on power.

HOT AIR ON/OFF (Customized) DETECTION DISTANCE SETTING

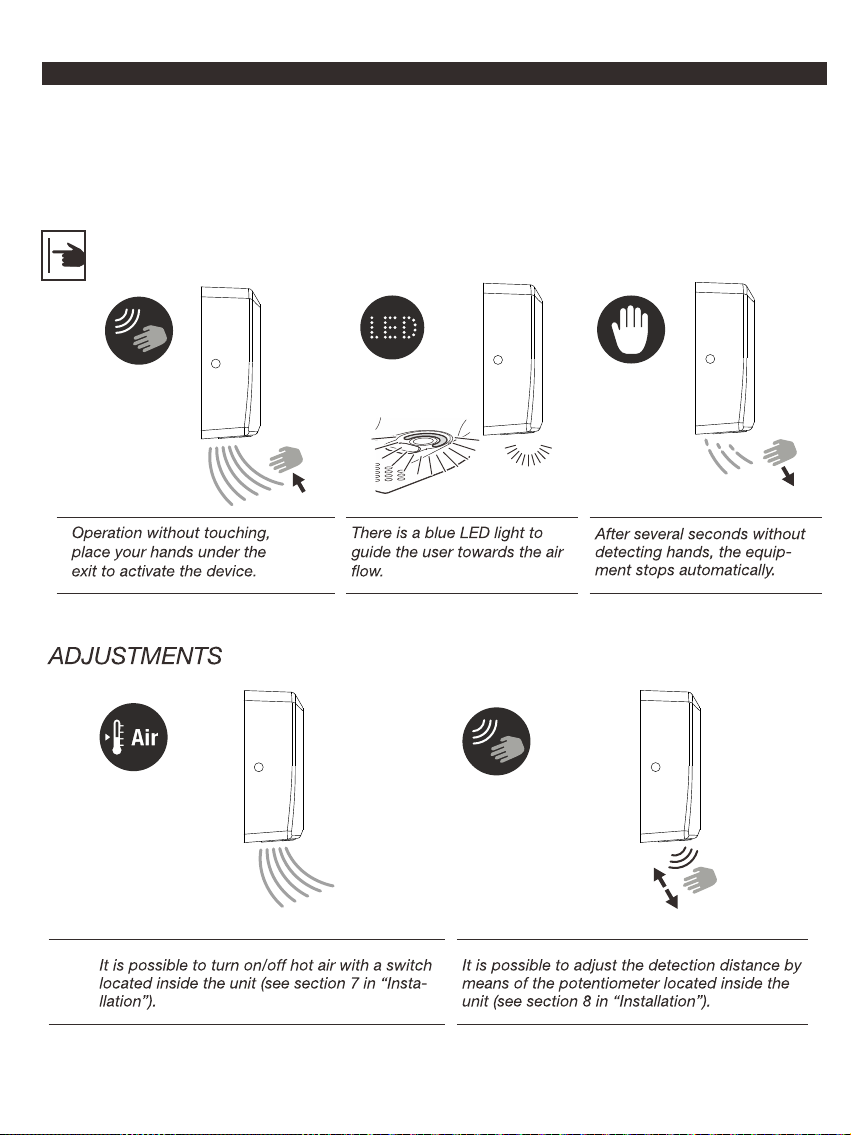

OPERATION
Basic use
No-touch operation.
There is a blue LED light to guide user to the air flow.
Shake excess water from hands.
Place hands under the outlet to start operation.
Rub hands lightly and rapidly.
Stops automatically after hands are removed.

WARRANTY
All of our dryers are designed and manufactured to provide years of dependable performance.
Component parts are guaranteed to be free of defects in material and workmanship for a
period of one (1) year from date of original invoice. This guarantee will be honored provided
that the dryer is installed and maintained in accordance with the instructions. Parts damaged
during the installation are the purchaser’s responsibility. The warranty covers defects
exclusively, and only liability for the replacement of defective parts will be accepted. This
warranty does not cover wear and tear, or misuse and abuse. Transportation, freight cost and
labor are also excluded. Defective parts must be returned prepaid, accompanied by the serial
number, to the point of purchase.
This warranty is granted solely to the original purchaser of the unit and is subject to registration.
Periodic cleaning of the unit is recommended.
Remove cover and clean dryer dust lint.
Wipe the cover with a damp cloth and mildcleaning solution. Do not soak.
Never use abrasives to clean the cover.
Ensure the breaker supplying the dryer is operational. If it is,
disconnect the power and remove the hand dryer cover.
Check all the wire connection to sure they are well fixed.
Turn on power and if it does not work then replace circuit board.
Turn motor blower several times by hand to see it is blocked.
Ensure that there is no obstruction on or in front of the infrared
sensor zone. Clean any dirty off the sensor lens.
Try adjusting the sensitivity potentiometer on program board.
If not still not work, replace circuit board and sensor board.
Check the motor brush worn condition. Replace them or a new
motor.
Check if the heat element switch is power on.
Check if the heat element was broken. If yes, replace a new one.
Hand dryer fails to
start
Hand dryer turns
on/off erratically
or not sensitive
enough
Hand dryer makes
ticking noise
Not hot air
MAINTENANCE
DIAGNOSTICS & REMEDIES

Periodic cleaning of the unit is recommended. Remove cover and clean dryer dust lint.
Stainless steel is highly resistant to rust, but there are some very strict cleaning and maintenance rules
to be followed to prevent damage to its appearance.
Apply neutral detergents formulated for these purposes (non-ionic surfactants and citric acid).
Apply the detergent with soft cloth. Be careful with abrasive cloths. They may scratch the surface.
Rinse with water until all the detergent has gone.
Residue from hygiene products, liquid soap, shampoos, bath gel, etc, can also damage surfaces.
Rinse the surface with plenty of water after use.
Limescale stains can be prevented by drying the surface with a soft cloth after use.
Limescale from mains water: Apply a solution of one part vinegar and three parts water directly to the
stains and leave to work for a few minutes. Then rub with a soft cloth or damp sponge. Then give it a
final wash with plenty of water and neutral soap to ensure it is thoroughly rinsed.
Unacceptable practices (loss of guarantee)
- Do not apply detergents with abrasive products or which contain:
Hydrochloric acid
Sodium hypochlorite (bleach)
Formic acid.
- Do not use abrasive utensils like metal sourcing pads or abrasive sponges.
- Do not spray the detergent on the surface, because the liquid can get into the openings or cracks in
them and cause damage.
- Do not use anti-limescale and descaling cleaning products. They are not suitable for cleaning satin
less steel.
- Do not use silver cleaners, contain chlorides that attach stainless steel.
Bleach and descalers are often applied to bathroom equipment and left to work for a time. This
leads to the release of gases that contain chloride, which together with the water in the surface
cause chlorides to run down the surface of the stainless steel. This rusts both internal and
external surfaces.

Program Board Assembly
Main Board Assembly
Main Fuse
Power
Power
Motor
Motor Heating
Heating
Sensor Assembly
LED Light Assembly [ Selection ]
Motor
Blue
Black
These two connector
is interchangeable
Brown
Black
Heat Element
HOT/COLD Switch
[ Selection ]
See owner
adjustments
DIAGRAM BY STANDARD CIRCUIT BOARD
Yellow
Terminal Block
Grounding
Power (Hardwired or Plug into Socket) :
220V-240V 50/60Hz
110V-120V 60Hz OR
}

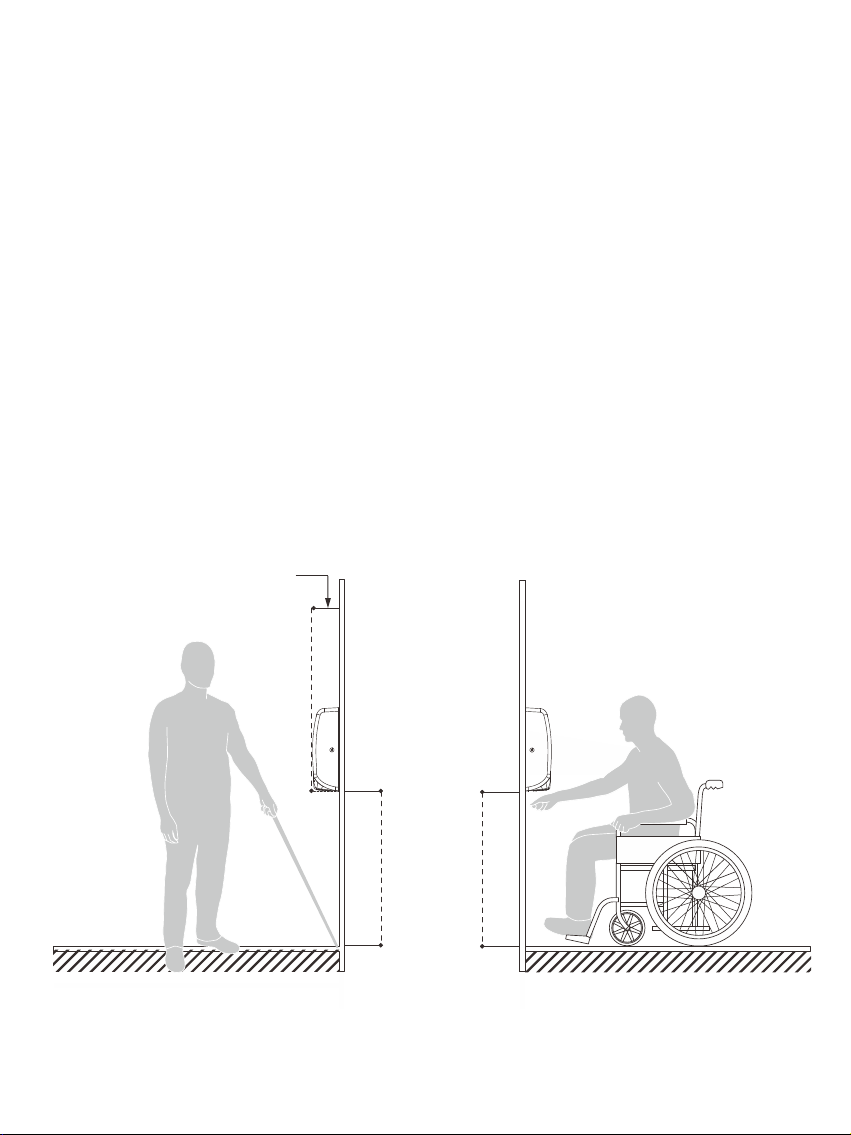

860MM 860MM
101MM[4"]
(No recessing needed)
[33-55/64"] [33-55/64"]
Surface-Mounted
ADA-Compliant
