Hank HKTM0204MH4 User manual

Model
：
HKTM0402MH4
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.
Model：HKTM0204MH4

Notice:
HANK Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior
written notice.

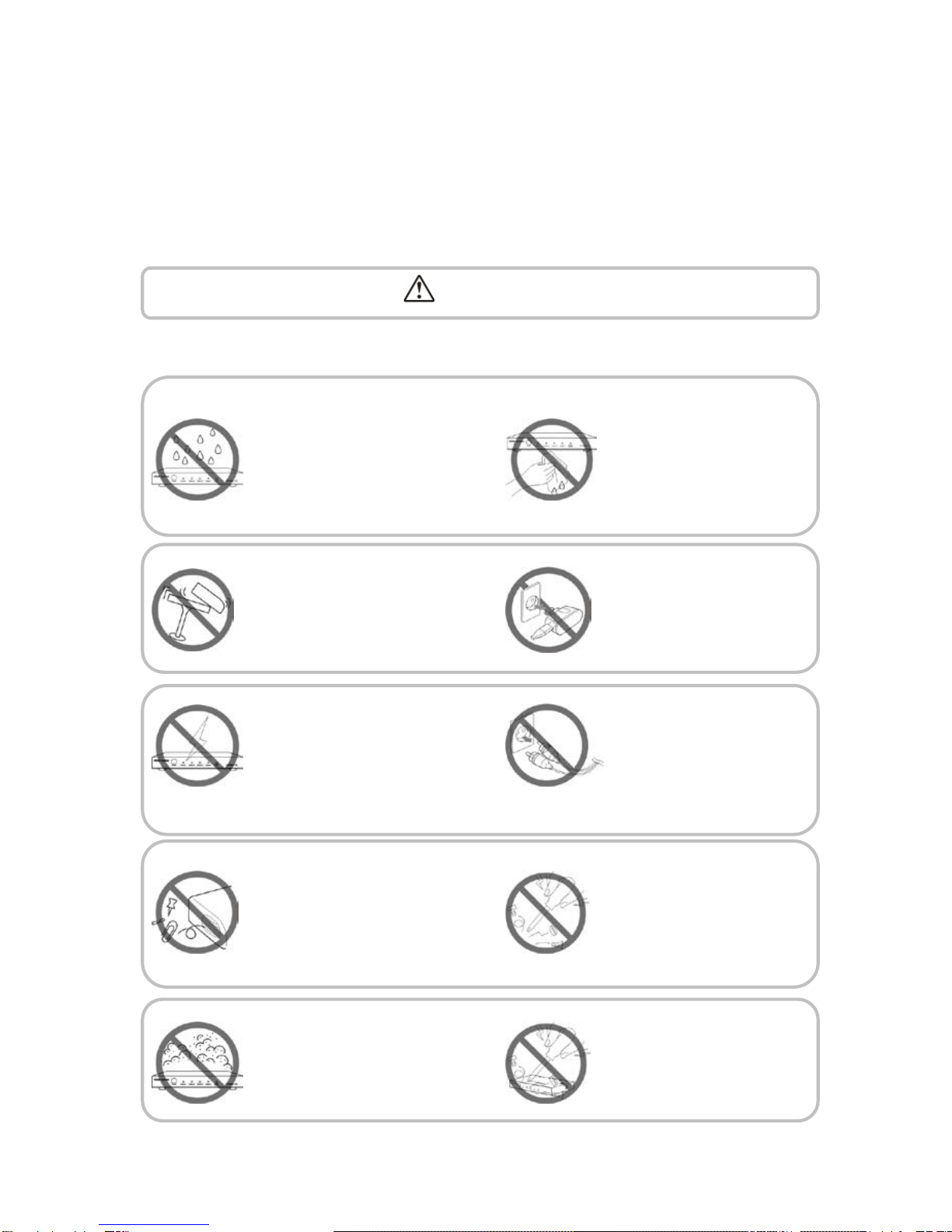

Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, drippi
ng or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Contents
CONTENTS...................................................................................................3
■
PRODUCT OVERVIEW........................................................................1
■
FEATURES..............................................................................................1
■
PACKAGE CONTENTS.........................................................................1
■
SPECIFICATIONS .................................................................................2
■
PANEL DESCRIPTIONS .......................................................................3
■
CONNECTIONS AND OPERATIONS .................................................6
■
EDID MANAGEMENT..........................................................................8
■
TROUBLESHOOTINGAND MAINTENANCE .................................9
■
WARNINGAND PRECAUTIONS........................................................9

1
■
Product Overview
HKTM0204MH4 is a matrix with 4K x 2K@30Hz - 2 input and 4 output,
which has 2 HDMI Input, 4 HDMI Output.HKTM0402MH4 is a matrix with
4K x 2K@30Hz - 4 input and 2 output, which has 4 HDMI Input, 2 HDMI Output.
It can be switched between the input and output channels whether HDMI Input
source is encrypted or not. It supports Local IR Extension, EDID Management.
For easy operation, it is widely applied in home, theatre, shopping mall, school,
conference, hotel installation industry.
■
Features
● Support up to 4K x 2K@30Hz.
●Support local IR extension.
●Support Bi-directional IR: IR transport channels to control Source device
and Display.
● Support HDCP 1.3 version 3D and EDID Management.
●HKTM0204MH4 Support 12V power supply, 2 HDMI Input, 4 HDMI Output.
●HKTM0402MH4 Support 9V power supply, 4 HDMI Input, 2 HDMI Output.
●HKTM0402MH4 Support analog stereo outputs and a TOSLINK fiber
optical digital audio output.
● Easy installation and operation.
■
Package Contents
HKTM0204MH4:
①Main unit:HKTM0204MH4
②Operating instructions
③1x 12V/2A power supply
④1x AC Power Cord

2
⑤1x IR Receiver (38KHz for IR local control)
⑥1x IR Remote(with Button Cell)
HKTM0402MH4:
①Main unit:HKTM0402MH4
②Operating instructions
③1x 9V/2A power supply
④1x AC Power Plug
⑤1x IR Receiver (38KHz for IR local control)
⑥1x IR Remote(with Button Cell)
■
Specifications
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported 4K x 2K
/1080p/1080i/720p/576p/480p/576i/480i
Output Video HDMI 1.4
Output Audio Support DTS-HD, Dolby-HD
Transmission Distance 4K x 2K ≤8m，1080P≤15m
Power Supply HKTM0204MH4: DC 12V
HKTM0402MH4: DC 9V
Power Consumption HKTM0204MH4: 18Watts
HKTM0402MH4: 9Watts
Dimensions
317mmL×156mmW×28mmH
Net Weight (Main unit)
1.3Kg

3
■

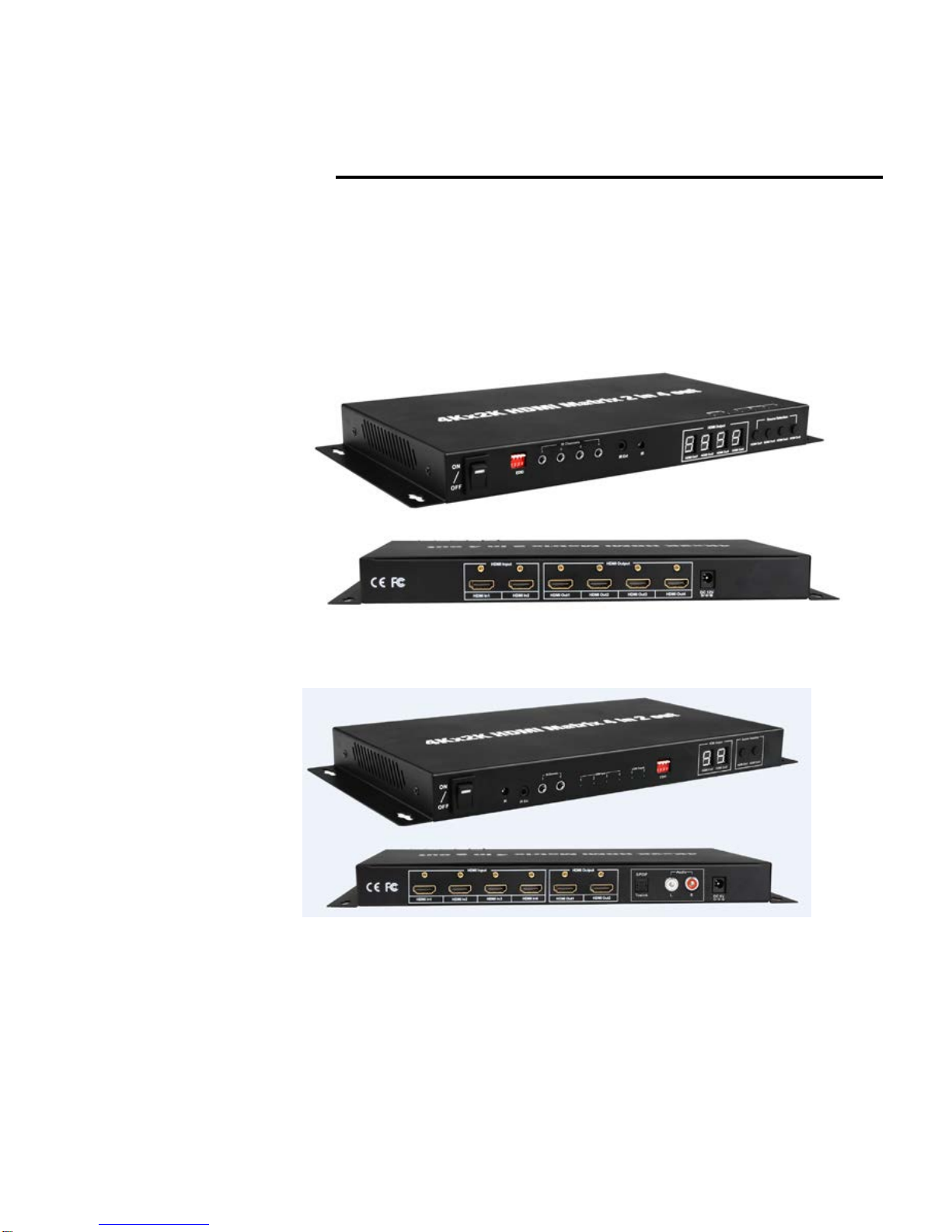

Panel Descriptions
HKTM0204MH4:
TOP Panel
Front Panel
①: Power Switch
②: EDID Management
③: IR Channels
④: Local IR Extension Port
⑤: Local IR Control
⑥:LED Digital Display
⑦:Source Selection

4
Back Panel
①.②: HDMI In1 - HDMI In2
③.④.⑤.⑥: HDMI Out1 - HDMI Out4
⑦: Power Input Port (DC12V/2A)
HKTM0402MH4:
TOP Panel
Front Panel

5
①: Power Switch
②: Local IR Control
③: Local IR Extension Port
④: IR Channels
⑤: HDMI input LED indicator
⑥:HDMI output LED indicator
⑦: EDID Management
⑧:LED Digital Display
⑨:Source Selection
Back Panel
①: HDMI in
②: HDMI out
③: TOSLINK
④: Audio L/R input
⑤: DC9V input

6
■
Connections and Operations

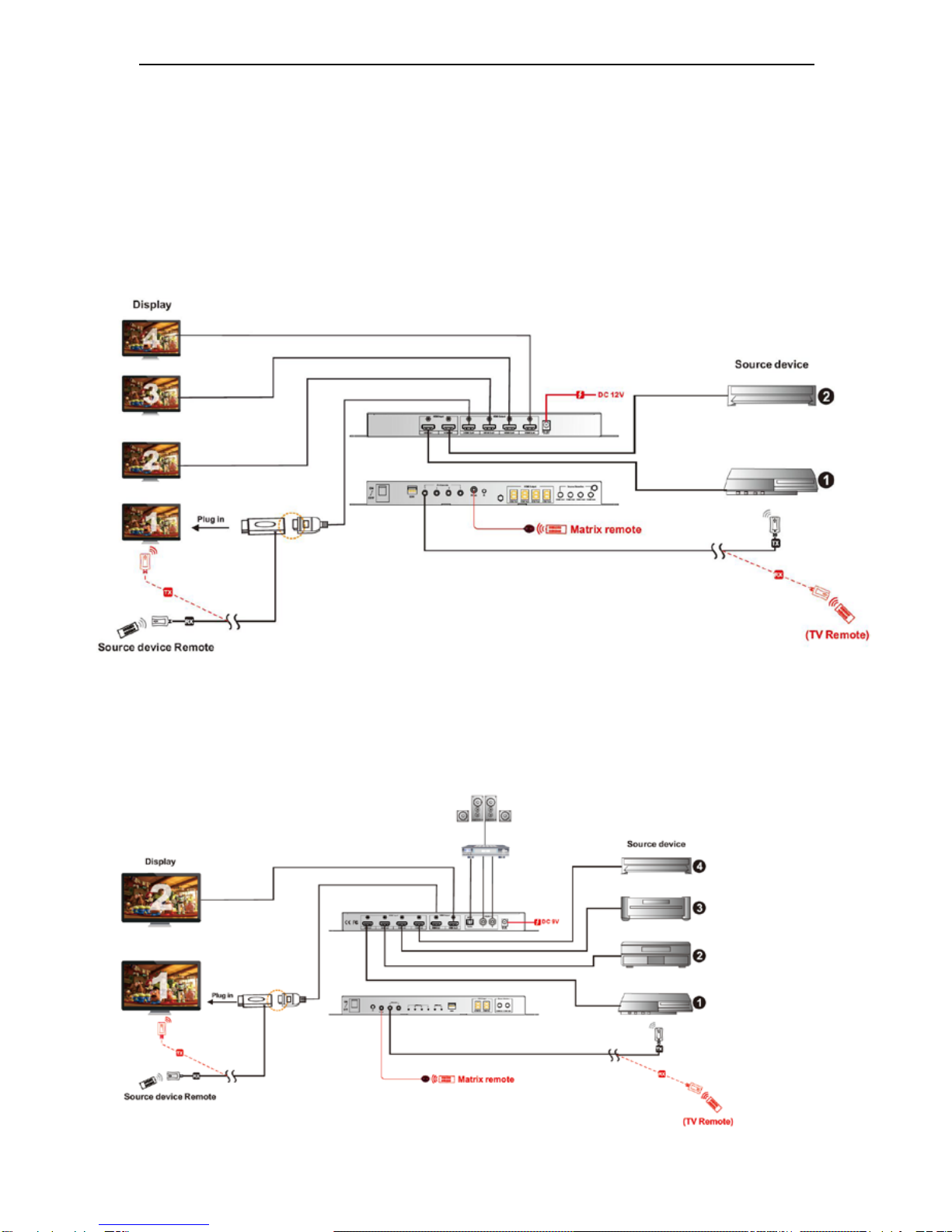

1. Connection diagram:
HKTM0204MH4:
HKTM0402MH4:

7
2. Installation:
①.Connect the Matrix’s HDMI Input to signal source (eg. DVD, STB) with
HDMI cable.
②.Connect the Matrix’s HDMI Output to display device (eg.TV set) with HDMI
cable.
③.Turn on DVD, TV set and HKTM0204MH4 or HKTM0204MH4 matrix.
④.Switch and select the Input source by button or IR remote.
3.Operation
①Manual Control: You can operate HDMI source switching manually by
using the buttons labeled “HDMI out” located on the front panel. Press the
button that corresponds to the output that you want to change the HDMI
source on and toggle through until the desired HDMI input source video is
being displayed. A numerical LED indicates which HDMI source in being
shown on each output. On the HKTM0402MH4, long press the “HDMI out1”
button long than 3 seconds, the analog audio outputs and TOSLINK fiber
optical digital audio output will be open and the audio output provides audio
from source device used by Output 1. long press the “HDMI out1” button long
than 3 seconds again, the analog audio outputs and TOSLINK fiber optical
digital audio output will be close.
②Remote Control: Included with the Matrix is a remote control. The remote
control can be control the matrix by pointing it at the front of the matrix.
Targeting the integrated IR receiver labeled IR.IR uses line-of-sight between
the remote control (or IR-TX) and the receiver. The angle which the remote will
work is at about a 15 degree angle in either direction to the receiver. If the
receiver is positioned such that there is not line-of-sight, the port labeled “IR
EXT.” accepts an optional IR receiver. The receiver enables line-to-sight if the
matrix is out of position.

8
■
EDID Management
HKTM0204MH4 EDID Information:
DIP
switch4
DIP
switch3
DIP
switch2
DIP
switch1 EDID Information
X 0 0 0 reserve
X
0
0
1
1080p/60hz 24bit 2d 2.1ch
X
0
1
0
1080p/60hz 24bit 2d 7.1ch
X
0
1
1
1080p/60hz 36bit 2d 7.1ch
X
1
0
0
1080p/60hz 36bit 2d 2.1ch
X 1 0 1 4K*2K
X 1 1 0 1080p/30hz 1080i/60hz 720p/60hz
24bit 2d 2.1ch
X 1 1 1 Press and hold the button for more
than 3 seconds after the release,
that is, the copy of the current
output port of EDID
HKTM0402MH4 EDID Information:
MODE DIP SWITCH 21 EDID INFO
0 00 copy output1
1 01 1080p/60hz 24bit 2d 7.1ch
2 10 1080p/60hz 24bit 2d 2ch
3 11 4kx2k 24bit 3d 5.1ch
MODE DIP SWITCH 43 EDID INFO

9
0 00 copy output2
1 01 1080p/60hz 24bit 2d 7.1ch
2 10 1080p 60hz 24bit 2d 2ch
3 11 4kx2k 24bit 3d 5.1ch
■
Troubleshooting and Maintenance
1) If the connected display devices around have noise, it should be the wire
quality issue, please use Cat6.
2) If colour distorted or no video signal output: a) check the corresponding
input signal, if there is no input signal, please check the wire connection. B)
check the output interface is consistent with the right controlled one.
3) If the front panel digital light is with no shine and operating unresponsive,
please ensure the power input is in well-connected.
4) Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or
benzine to clean this unit.
■
Warning and Precautions
1) Away from the heat source and avoid direct sunlight.
2) To ensure proper heat dissipation, avoid poorly ventilated spaces and do not
block the vents.
3) To prevent electrical shock and fire, do not keep the machine in rain or wet
places.
4) Do not connected to power supplies when installation or moving the device.
5) Do not touch the power adapter plug with wet hands.
6) Do not spill liquid on the machine, as it may cause internal short circuit or
fire.
7) Do not attempt to open the cabinet. Please contact qualified service
personnel for maintenance.
