Hanwha Techwin Wisenet HCV-6080 User manual

High Resolution Camera
User Manual
HCV-6080
HCO-6080

High Resolution Camera
User Manual
Copyright
©2019 Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the
registered trademark of their respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed,
partially or wholly, without formal authorization.
Disclaimer
Hanwha Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal
guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsi-
bility. Hanwha Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.

English_3
●SAFETY INFORMATION
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
• To prevent damage which may result in fire or electric shock hazard, do not expose this appliance
to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with
the installation instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.

4_ safety information
safety information
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled
with water on top of the camera. doing so may cause personal injury due to fire, electric shock,
or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric
shock.
8. If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use in
such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. never disassemble
or modify this product in any way. (Hanwha Techwin is not liable for problems caused by
unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. doing so may cause fire
or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibrationor magnetic interference.
2. Do not install in a location subject to high temperature (over 55°C), low temperature (below
-30°C), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may
cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may
damage the CMOS image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time
10. Do not expose the camera to radioactivity. Radioactivity exposure may damage the CMOS.

English_5
●SAFETY INFORMATION
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed
of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb
indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If
batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

6_ important safety instructions
important safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus.
13. Unplug this apparatus when a card is used. Use caution when moving the
cart/ apparatus combination to avoid injury from tip-over.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as powersupply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or
“LPS” and rated from 24Vac(50/60hz) min.0.46 A or 12Vdc, min.0.41A.
16.
If you use excessive force when installing the product, the camera may be damaged and
malfunction.
If you forcibly install the product using non-compliant tools, the product may be damaged.

English_7
●IMPORTANT SAFETY INSTRUCTIONS
17. Do not install the product in a place where chemical substances or oil mist exists or may be
generated. As edible oils such as soybean oil may damage or warp the product, do not install
the product in the kitchen or near the kitchen table.
This may cause damage to the product.
18. When installing the product, be careful not to allow the surface of the product to be stained
with chemical substance.
Some chemical solvents such as cleaner or adhesives may cause serious damage to the
product’s surface.
19. If you install/disassemble the product in a manner that has not been recommended, the
production functions/performance may not be guaranteed.
Install the product by referring to “Installation & connection” in the user manual.
20. Installing or using the product in water can cause serious damage to the product.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
Hanwha Techwin cares for the environment at all product manufacturing
stages, and is taking measures to provide customers with more environmentally
friendly products.
The Eco mark represents Hanwha Techwin's devotion to creating
environmentally friendly products, and indicates that the product satisfies the
EU RoHS Directive.
important safety instructions

8_ contents
contents
INTRODUCTION
9
9Features
10 Components and Accessories
12 Component names and functions
INSTALLATION
15
15 Before installation
15 Installation
18 Adjusting the monitoring
direction for the camera
CONNECTION
19
19 Connecting to Monitor
20 Connecting to Power
21 Using Coaxial Communications
CAMERA OPERATION
23
23 Menu Conguration
23 Menu Setup
TROUBLESHOOTING
37
37 Troubleshooting
SPECIFICATIONS
38
38 Specications
40 Dimension

English_9
●INTRODUCTION
introduction
FEATURES
yHigh Resolution
Use of a 2.1 mega pixel CMOS device provides clear pictures with a resolution of 1920x1080.
yExcellent Sensitivity
-
Color : 0.11Lux(F1.6, 1/30sec)
B/W : 0.01Lux(F1.6, 1/30sec)
ySSNR4 Function
High performance DSP Chip removes noises of GAIN resulting from the low light level and
shows a vivid, high denition video even in the dark place.
yDay&Night
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and B/W mode operates in night-time conditions to enhance
the denition of the image.
yPROFILE
You can set a mode according to the camera installation conditions.
- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER
yWDR
By adopting a proprietary high performance DSP chip, the camera delivers clear,
high quality pictures even in backlight, by increasing exposure in dark areas while
decreasing it in bright areas; a corrected image with clear details results.
yMiscellaneous Functions
HLC(High Light Compensation), REVERSE , SHARPNESS and PRIVACY functions are
provided.
ySIMPLE FOCUS
Using SIMPLE FOCUS, you can easily adjust the focus.
yCommunication
AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)
CCP (CVI Coax Protocol), TCP (TVI Coax Protocol)
yOSD
The camera’s OSD is complimented by 16 languages.
- English, Korean, Japanese, German, Italian, French, Spanish, Russian, Czech, Polish,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese

10_ introduction
introduction

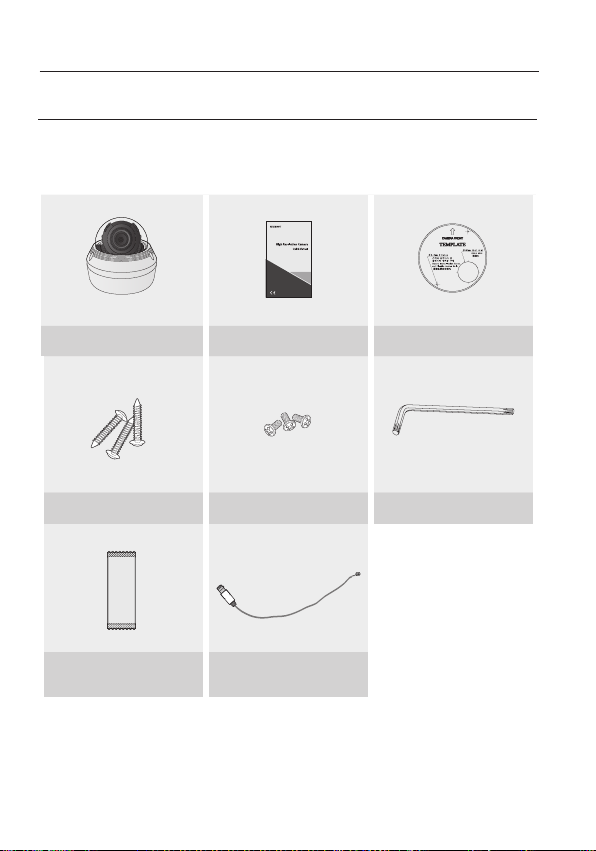

COMPONENTS AND ACCESSORIES
Check if the following items are included in the product package.
<HCV-6080>
TOP
FRONT
Camera Quick Manual Template
Tapping Screw Machine Screws L Wrench
Card-type moisture
absorbent Video Output Cable

English_11
●INTRODUCTION
<HCO-6080>
Camera Quick Manual Screws
Template Wrench Card-type moisture
absorbent
Video Output Cable

12_ introduction
introduction
COMPONENT NAMES AND FUNCTIONS
HCV-6080
1 Dome Cover
2 Rotate base : control rotating angle of camera.
3 Vari-focal Lens Module : 3.2 ~ 10mm (F1.6).
4 Function Setup switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a
selected item.
Simple Focus: Press the SET button for more than 2 seconds.
 Switching between AHD and CVBS modes: Press the SET button for more than 5 seconds.
5 Video Output Terminal to Monitor
6 Pan Base : Control panning angle of camera.
7 Power Input Connector
8 Ground Terminal
9 MD Output Terminal: Motion detection signals are output through this terminal.
❿ Video Output Jack : Video signals are output through this port. Connect this port to the Video IN port of a AHD DVR.
TOP
FRONT
2
3
4 5
❿
8
7
1
9
6

English_13
●INTRODUCTION

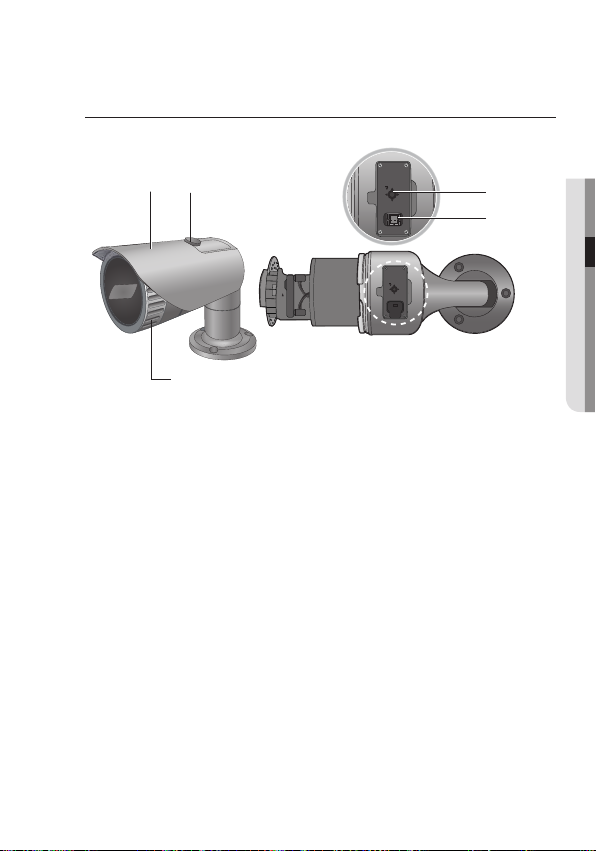

Front (HCO-6080)
1Camera Sunshield
2Knob Sunshield : Fixing the sunshield onto the camera.
3Front cover
4Function Setup Switch : Display the menu on the screen and move the cursor to four directions to confirm
status or after changing a selected item.
`Simple Focus: Press the SET button for more than 2 seconds.
`
Switching between AHD and CVBS modes: Press the SET button for more than 5 seconds.
`When menu is off, use this switch for adjusting focus.
`When menu is off, use this switch for adjusting zoom.
5Video Output Terminal to Monitor
M
`To adjust the zoom & focus loosen the individual levers before tightening them again.
`To ensure the weatherproof integrity is maintained, Before installation the front cover,
it’s necessary to push tight first. and then turn it clockwise to locking indication.
NF
AF
T
W
IN
VIDEO
NF
AF
T
W
2
1
3
4
5

14_ Installation
6Function jack (ALARM OUT, GND)
7VIDEO OUTPUT jack : Video signals are output through this port. Connect this port to the Video IN port of a
AHD DVR.
8Power input terminal : Connect the power as specified for each model here.
Back (HCO-6080)
CAUTION:
Beware of the
RatedVo ltageand Polarity
ofthe power connection.
6
7
8

English_15
●INSTALLATION
BEFORE INSTALLATION
Ensure you read out the following instructions before installing the camera:
yYou have to check whether the location (ceiling or wall) can bear ve times the weight of
your camera.
yDon’t let the cable to be caught in improper place or the electric line cover to be damaged.
Otherwise it may cause a breakdown or re.
yBefore installing your camera, you have to adjust the lens focus, zoom, and switch settings.
yWhen installing your camera, don’t allow any person to approach the installation site.
INSTALLATION
Disassembling(HCV-6080)
Using the L-wrench provided, loosen 3 screws by turning them counterclockwise
and separate the dome cover.
Installation
TOP
FRONT
Dome Cover
L Wrench

Installation
16_ Installation
Installing the camera on a ceiling or wall(HCV-6080)
1. Drill holes on the ceiling by matching to the holes on the case bed, and insert
plastic anchors (HUD 5) (not included) fully into the holes. Fix the case bed on the
ceiling by using screws . (3 places)
2. Connect Power and video cables and arrange them through the hole you want to pass
when mounting the main body on the mounting bracket, note that not to damage or
squeeze the cables.
TOP
FRONT
screw
TOP
FRONT
Video output jack
Function jack
Power input terminal

English_17
●INSTALLATION
3. Adjust the lens in a desired direction by referring to the “Adjusting the monitoring
direction for the camera”section.
4. Close the dome cover.
`To ensure waterproong, tight up the xing bolts using the L-wrench.
TOP
FRONT
Dome Cover
L Wrench
M
`The installation should be done by qualified service personnel or system installers.
`If the ceiling material is not strong enough to hold the installation screws, the camera
may fall off. Reinforce the ceiling as needed.

Installation
18_ Installation
ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA
TOP
FRONT
Pan
Tilt Lens rotation
<HCV-6080>
`Adjusting the monitoring direction
You can adjust the camera direction only when the camera is xed on the ceiling.
Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is
called Tilt, and turning the lens on its axis is called Rotation.
- The eective range of pan is a total of 350 degrees.
- The eective range of rotation is a total of 355 degrees.
- The eective range of tilt is a total of 67 degrees.
`Methods of adjustment
1. After installing the camera, adjust the panning angle in consideration of the monitoring
direction.
2. Adjust the view angle and focus for the video.
- For convenience of operation, adjust the rotation part to fix the lever.
3. Set the horizontal angle so that the image is not reversed.
4. Adjust the tilt angle so that the camera faces toward the monitoring object.

English_19
●CONNECTION
connection
CONNECTING TO MONITOR
Connect the Video OUT port on the rear panel of the camera to a AHD DVR.
yAs the connecting method varies with the instruments, refer to the manual supplied
with the instrument.
yOnly connect the cable when the power is turned o.
M`This product supports 4 video output formats of AHD, CVBS, TVI, and CVI. The default is
AHD. Select the video output appropriate for your DVR.
REC HDD ALARM NETWORK BACKUP POWER
TOP
FRONT
HCV-6080
HCO-6080
AHD DVR
Monitor
REC HDD ALARM NETWORK BACKUP POWER
CAUTION:
Beware of the
RatedVoltage and Polarity
ofthe power connection.
AHD DVR
Monitor

connection
20_ connection
CONNECTING TO POWER
You can connect power as shown in the following figure.
When the resistance value of copper wire is at [20°C(68°F)]
Copper wire size (AWG) #24 (0.22mm2)#22 (0.33mm2)#20 (0.52mm2)#18 (0.83mm2)
Resistance value(Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
TOP
FRONT
HCV-6080
Power Input Terminal
REC HDD ALARM NETWORK BACKUP POWER
CAUTION:
Bew areof the
RatedVoltage and Polarity
ofthe power connection.
Power Input Terminal
HCO-6080
