Mobotix D25 Instructions for use

32.718-002_EN_07/2016
Security-Vision-Systems
EN
Quick Install Dome D25
MX-D25
Innovations - Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution
video systems cost-ecient.
MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • [email protected]
www.mobotix.com
• Includes MxAnalytics video analysis tools out-of-the-box
• Recording on internal microSD card (SDXC, SDHC installed)
• Signal inputs/outputs via optional MxBus modules
• Audio (microphone and speaker) using optional accessory (ExtIO)
• Sensors for temperature and shock detection integrated
• Simply mounted to poles using Pole Mount (accessory)
Standard Delivery D25
1.1
1.15
1.14
1.3
1.12
1.11
1.13
1.2
1.4
1.5
1.6
1.7
1.8
1.9
1.18
1.17
1.16
1.10
Item Count Part Name
1.1 1 Camera housing
1.2 1 Lens (installed)
1.3 1 Dome, transparent
1.4 1 microSD card (SDXC, SDHC pre-installed)
1.5 1 Ethernet cable CAT5 0.5 m/20" (pre-installed)
1.6 1 Allen wrench 3mm
1.7 1 Torx wrench TX20
1.8 1 Toothed wrench
1.9 1 Outer shell
1.10 1 Mounting ring
1.11 4 Stainless steel washers 5.3mm dia.
1.12 4 Dowels 8 mm
1.13 4 Stainless steel Torx screws 4.5x60 mm
1.14 4 Stainless steel washers 4.3mm dia.
1.15 4 Stainless steel Allen screws M4x16 mm
1.16 1 Single-wire plug, black (MxBus)
1.17 2 Single-wire connector
1.18 1 MxBus plug with two-wire connection line
Connections and Initial Operation of the D25
You can find detailed information on the installation and connections of the D25 in the D25 Camera Manual (PDF, available on
www.mobotix.com> Support> Manuals).
Regarding the initial operation of the D25, please see the
D25 Camera Manual in Chapter 3, «Initial Operation» .
Outer shell
Dome
MxBusNetwork connection
USB
Slot for microSD card
LEDs
Lens
"R" key "L" key
Mounting
ring
Mounting Options of the D25
Remove the outer shell and the dome of the D25.
Installation on Walls or Ceilings Without Accessories
After drilling the holes for fixtures (see «Drilling Templates» ), attach the mounting
ring of the D25 at the designated position using dowels and screws. Next,
connect the cabling, point the camera into the viewing direction and adjust
the focus of the lens (see «Initial Operation of the D25» ). Finally, install the
dome and the outer shell.
Installation With On-Wall Set/On-Wall Set 10° (Accessory)
After drilling the holes for fixtures (see «Drilling Templates» ), attach the On-Wall Set
at the designated position using dowels and screws, then lead the cabling
into the On-Wall Set. Next, remove the mounting ring of the D25, connect the
cabling and install the camera on the On-Wall Set. Finally, install the dome
and the outer shell.
Installation With Cavity Wall Installation Set (Accessory)
After cutting out the hole (see «Drilling Templates» ), remove the mounting ring of
the D25 and install the camera in the Cavity Wall Installation Set. Next, connect
the cabling and install the camera together with the Cavity Wall Installation Set
into the cut-out and fasten it using the winged cams. Finally, press the deco-
ration ring onto the camera and lock it in place using the toothed wrenches.
Installation With Outdoor Wall Mount (Accessory)
Remove the cover plate of the Outdoor Wall Mount. After drilling the holes
for fixtures (see «Drilling Templates» ), attach the Outdoor Wall Mount at the
designated position using dowels and screws, then lead the cabling into the
mount. Next, remove the mounting ring of the D25, connect the cabling and
click the camera into the clamps of the cover plate of the Outdoor Wall Mount.
Then attach the cover plate with the camera to the Outdoor Wall Mount. Finally,
install the dome and the outer shell.
Installation With Pole Mount and Outdoor Wall Mount
(Accessory)
Lead the cabling from the rear through the Pole Mount and attach to a pole
(using steel straps). Then attach the Outdoor Wall Mount to the Pole Mount.
The remaining installation of the D25 follows the steps under
«Installation With
Outdoor Wall Mount (Accessory)» above.
Installation of the Vandalism Kit (Accessory)
Screw in the reinforced dome and set the four spacers onto the mounting
ring of the camera. Place the stainless steel outer shell onto the camera and
tighten it using the four security screws.
100mm
Dia. 5.5mm
100mm
141.4mm
4x
MOBOTIX 6MP camera for flexible use in indoor and outdoor applications,
available as complete Dome D25 (Day or Night) with lenses MX-B036 to MX-
B237. Can be extended flexibly using various sets for outdoor applications,
on-wall or flush-mount installations. Use the Vandalism Kit for surveillance at
extremely critical locations.
www.mobotix.com> Products> D25
Allround Outdoor Camera for Ceiling, Wall and Pole Mounting
with Outdoor Wall Mount
with On-Wall Set with On-Wall Set 10°
with Cavity Wall Installation Set with Vandalism Kit
Weatherproof (IP65)
–30 to +50 °C/–22 to 122 °F
Inserting/Exchanging the SD Card
All camera models can use the integrated microSD card (SDXC) to record video data. In order to exchange the microSD card, please proceed as outlined in the
following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com> Support> MX Media Library> Planning
in the document
MicroSD Card Whitelist for MOBOTIX Cameras .
When replacing the SD card, make sure that recording has been deactivated in the browser (
Admin Menu> Storage> Storage on External File Server/ Flash
Device ; activate recording again in the same dialog after exchanging the card).
1. Remove the SD Card
If a microSD card has been installed, gently
press with your finger as indicated by the
arrow until you hear a
click . Then release the
SD card. The card is protruding slightly and
can be easily removed.
2. Insert the SD Card
Insert the microSD card and gently press with
your finger as indicated by the arrow until you
hear another click .
Make sure that the SD card is fully inserted.
Click! Click!

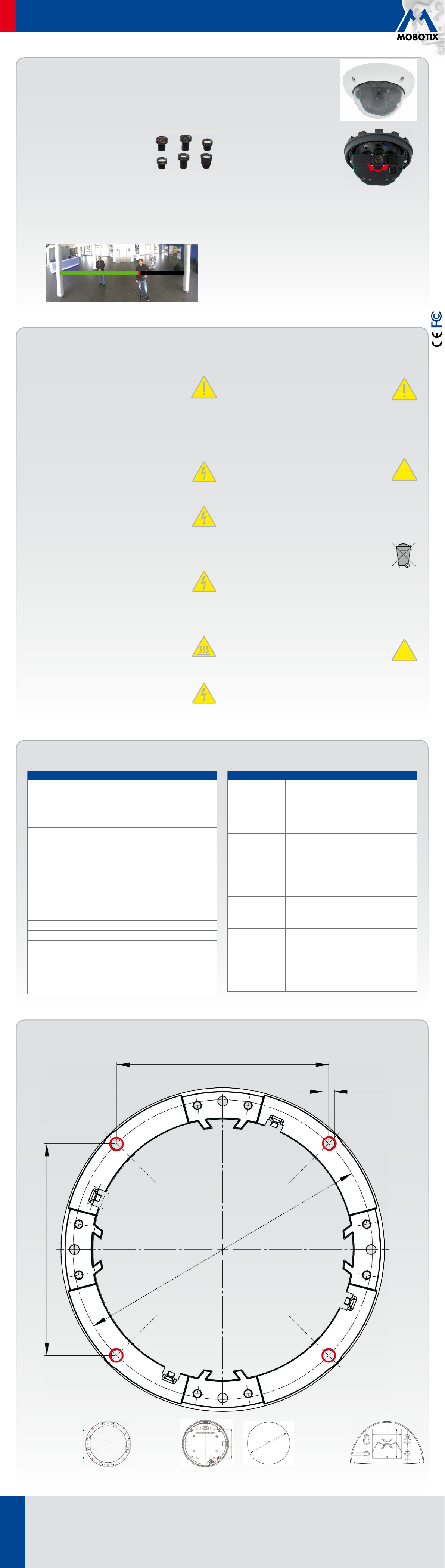

Security-Vision-Systems
EN
Quick Install Dome D25
Innovations - Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution
video systems cost-ecient.
MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • [email protected]
www.mobotix.com
 2015 • Declaration of Conformity: www.mobotix.com> Support> Media Library> Certificates
Copyright © MOBOTIX AG 2016 • Made in Germany • Technical information subject to change without notice. MOBOTIX AG and its subsidiaries do not assume any liability for technical or editorial errors or omissions contained herein.
Technical Specifications
Technical Specifications D25
Lens Options
MX-B036 to MX-B237 (20 to 135mm in 35mm format),
103° to 15° horizontal angle of view
Min. Illumination Color sensor: 0.1Lux at 1/60s, 0.005Lux at 1s
black & white sensor: 0.02 Lux at 1/60s,
0.001 Lux at 1/1s
Image Sensor 1/1.8“ CMOS, 6Mega pixels, Progressive Scan
Max. Image Size Color/Black & White 3072x2048 (6MP)
Image Formats 3072x2048 (6MP), 2592x1944 (5MP), 2048x1536 (QXGA),
1920x1080 (Full-HD), 1280x960 (MEGA), 1280x720 (HD),
1024x768, 800x600, 768x576 (D1-PAL),
704x576(TV-PAL),
640x480, 384x288, 320x240, 160x120,
custom formats
Max. Frame Rate
M-JPEG
(Live/Recording)
HD: 20fps, MEGA: 15fps, QXGA: 8fps, 5MP: 5fps, 6MP:
4fps
Max. Frame Rate
MxPEG
(Live/Recording with
Sound)
HD: 30fps, MEGA: 30fps, QXGA: 20fps, 5MP: 10fps, 6MP:
8fps
Image Compression
MxPEG, M-JPEG, JPEG
Internal DVR MicroSD card pre-installed (SDXC)
External
Video Ring Buer
Directly on NAS or PC/Server, no additional recording software
required
Software (Included) MxManagementCenter
MOBOTIX App for iOS devices version 5.0 and higher
Image Processing Backlight compensation, automatic white balance, image
distortion correction, panorama correction,
video motion
detection, MxActivitySensor
Technical Specifications D25
Virtual PTZ
Digital pan/tilt/zoom, continuous up to 8X
Alarm/Events Video Motion detection, MxActivitySensor, external signals,
temperature sensor, PIR, microphone, shock detector, noti-
fication via e-mail, FTP, IP telephony (VoIP, SIP), visual/sound
alarms, pre- and post-alarm images
Microphone and
Speaker
Microphone and speaker using optional accessory (ExtIO)
Audio Functions Lip-synchronous audio, two-way communication, audio
recording
Interfaces Ethernet 10/100, IPv4/IPv6, MiniUSB; MxBus; inputs/outputs
using optional accessory
Video Telephony VoIP/SIP, two-way communication, remote controlling using key
codes, event notification
Security User/group management, HTTPS/SSL, IP address filter, IEEE
802.1x, intrusion detection, digital image signature
Certifications EMV (EN55022, CISPR22, EN55024, EN61000-6-1/2,
FCCPart15B, CFR47, AS/NZS3548)
Power Supply Year-round Power-over-Ethernet (IEEE 802.3af);
PoE class variable
Power Consumption Typ. <4.5W
Operating Conditions
IP65, –30 to +50 °C/–22 to 122 °F
D25 Dimensions/
Weight
Diameter x Height: 160 x 86mm (on-wall installation); weight:
approx. 350g (including lens)
Standard Delivery Housing (high-resistance composite, PBT), white, shock-re-
sistant dome (transparent), freely selectable lens, mounting
supplies, wrenches, 50cm patch cable, software, MicroSD
card (installed)
Drilling Templates
100mm/3.94in
Dia.
5.5mm/0.22in
100mm/3.94in
141.4mm/5.57in
Installation with mounting ring (without
accessories)
Manuals and drilling templates: www.mobotix.com> Support> Manuals> IP Camera Systems> Dome D25.
Camera
without acces-
sories
On-Wall Set/
On-Wall Set 10°
Cavity Wall Installation Set
Outdoor Wall Mount
Important Notes
Safety Warnings
Notes on Installing:
• This product must not be used in locations exposed to the
dangers of explosion.
• Make sure that you install this product as outlined in
Chap-
ter 2, «Installation» of the corresponding manual. A faulty installation can
damage the camera!
• When installing this product, make sure that you are only using genuine
MOBOTIX parts and MOBOTIX connection cables.
• Only install this product on suitable, solid materials that provide for a sturdy
installation of the fixing elements used.
Electrical installation: Electrical systems and equipment may
only be installed, modified and maintained by a qualified elec-
trician or under the direction and supervision of a qualified elec-
trician in accordance with the applicable electrical guidelines.
Make sure to properly set up all electrical connections.
Electrical surges: MOBOTIX cameras are protected against the
eects of small electrical surges by numerous measures. These
measures, however, cannot prevent the camera from being
damaged when stronger electrical surges occur. Special care
should be taken when installing the camera outside of buildings to ensure
proper protection against lightning, since this also protects the building and
the whole network infrastructure.
Max. power consumption of attached extension modules: The
power consumption of all attached MxBus modules must not
exceed 2.5W . When attaching modules to the MxBus connec-
tor and the USB socket, the power consumption of all attached
modules must not exceed 3W , if the camera is powered by PoE class3 . If
PoE class2 is used, the power consumption of all attached modules must
not exceed 1W!
Never touch the lens: Due to the high performance of the D25,
the area of the image sensor can get quite hot, especially when
the ambient temperature is also high. This does not aect the
proper functioning of the camera in any way. For this reason,
the product must not be installed within the reach of persons without the dome.
Power o before opening the camera: Make sure the power
supply to the camera is disconnected before opening the camera
housing (e.g., when inserting or exchanging lenses, lens units
and SD cards).
Network security: MOBOTIX products include all of the necessary
configuration options for operation in Ethernet networks in com-
pliance with data protection laws. The operator is responsible for
the data protection concept across the entire system. The basic
settings required to prevent misuse can be configured in the software and
are password-protected. This prevents unauthorized parties from accessing
these settings.
Legal Notes
Legal aspects of video and sound recording: You must comply
with all data protection regulations for video and sound moni-
toring when using MOBOTIX products. Depending on national
laws and the installation location of the D25, the recording of video and sound
data may be subject to special documentation or it may be prohibited. All
users of MOBOTIX products are therefore required to familiarize themselves
with all applicable regulations and to comply with these laws. MOBOTIX AG
is not liable for any illegal use of its products.
Disposal
Electrical and electronic products contain many valuable materials.
For this reason, we recommend that you dispose of MOBOTIX
products at the end of their service life in accordance with all legal requirements
and regulations (or deposit these products at a municipal collection center).
MOBOTIX products must not be disposed of in household waste! If the product
contains a battery, please dispose of the battery separately (the corresponding
product manuals contain specific directions if the product contains a battery).
Disclaimer
MOBOTIX AG does not assume any responsibility for damages,
which are the result of improper use or failure to comply to the
manuals or the applicable rules and regulations. Our General
Terms and Conditions apply. You can download the current version of the
General Terms and Conditions from our website at www.mobotix.com by
clicking on the COS link at the bottom of every page.
§
§
Initial Operation of the D25
The initial operation starts with connecting the power supply (see section «Network and Power Connection, Additional Cables»
in the D25 Camera Manual ). The first access follows the procedure described in the same manual in the «Initial Operation of
the Camera» section. All other tasks require access to the camera's user interface in the browser. Enter the camera’s IP address
into the address bar of the browser.
1. Select the lens
Open the Admin Menu> Hardware Configura-
tion> Lens Configuration dialog and select the
installed lens. This step is required to select the
proper special functions of the installed lens (e.g.,
for wide-angle lenses).
2. Adjust the lens focus
Remove the dome before proceeding.
Check the live image from the camera in the browser. Activate the focusing
aid in the browser (Focusing Aid quick control, Activated value).
Carefully turn the lens by hand in clockwise or
counter-clockwise direction until the red area
of the focusing aid is as small as possible.
Once the focus is adjusted properly, deactivate
the focusing aid again (Focusing Aid quick
control, Disabled value).
Note: Due to the lens eect of the dome, the focus of the B237 tele lens is
shifting slightly once the dome has been mounted. Before mounting the dome,
the tele lens should be turned about 90° in counter-clockwise direction (as
seen from the lens' front). Make sure that you check the focus of the live image
in your browser with the dome installed and re-adjust the lens, if required.
3. Save the configuration
In the live image of the browser, select the Manage Settings quick control and
set Store Entire Configuration as value. The camera stores the configuration
in the permanent camera memory so that the settings will be applied at the
next camera reboot.
