Hanyoung HNPS Series User manual

MI0101E060121
Before you use, read safety precautions carefully, and use this product
properly. The precautions described in this manual contain important
contents related with safety; therefore, please follow the instructions
accordingly. The precautions are composed of DANGER, WARNING
and CAUTION.
There is a danger of occurring electric shock in the input/output
terminals so please never let your body or conductive substance is
touched.
1. This product does not contain an electric switch or fuse, so the user
needs to install a separate electric switch or fuse externally. (Fuse
rating: 250 V 0.5 A)
2. To prevent defection or malfunction of this product, apply a proper
power voltage in accordance with the rating.
3. To prevent electric shock or malfunction of product, do not supply
the power until the wiring is completed.
4. Since this product is not designed with explosion-protective
structure, do not use it any place with flammable or explosive gas.
5. Do not decompose, modify, revise or repair this product. This may
be a cause of malfunction, electric shock or fire.
6. Reassemble this product while the power is OFF. Otherwise, it may
be a cause of malfunction or electric shock.
7. If you use the product with methods other than specified by the
manufacturer, there may be bodily injuries or property damages.
8. There is a possibility of occurring electric shock so please use this
product after installing it onto a panel while it is operating.
1. Before you are using this product, please make sure the product°Øs
capacity which you want to use.
2. Please use only the indicated rated input voltage on the product.
3. According to the types of wiring cables, each cable has its own
allowable value of voltage or current so that use the adequate wiring
cables of the rated capacity while you are connecting the cables to
the product.
4. Make sure that you connect the earth terminal (FG) of this product in
order to prevent the electric shock or the electromagnetic
wavelength.
5. In the case of the unapproved substance is entered inside of this
product, it can be a cause of the product’s malfunction such as
damaging parts so please be careful.
6. In the case of the built-in fuse is down while the product is running, it
accompanies damaging other parts. By only replacing a fuse, the
product will be not working properly. Therefore, use it after taking
A/S.
7. This product has the leakage current so the total value of the
leakage current gets larger when using several products in parallel.
Please consider this fact while you are using it.
8. In this product, there is a part which needs high voltage to operate
so there is a concern about an electric shock. Therefore, please be
careful and do not touch it.
9. For the safety and the reliability of the product, do not use the
product in the following places.
A place where can be easily accessible to water and fire
A place with not many ventilations and the high ambient
temperature
A place with much unapproved substance and much dust
A place with a volatile matter and inflammable substance
A place with high humidity
A place with much impact and much shock
1. Rated Input Voltage
The default of this product is 110 V ~ 220 V AC 50 ~ 60 and the
rated input voltage is indicated on its model so please make sure the
rated input voltage before using it.
2. Variable Output Voltage
As the variable resistor of the inside of the product, it can be varied
within the adjusting range ( 10 %) of the output voltage. However, if it
is out of the adjusting range, the malfunction of the product is occurred
or the over-voltage protection function is activated.
3. Over-current Protection Function
In the case of the output current of this product is higher than the rated
capacity or the output is short-circuited, this function is operated so the
output voltage will not be lowered or generated. In the case of this
function is activated, the output voltage is automatically returned if the
cause is eliminated.
4. Input Rush Current Limitation
For this product, when the input power is applied, the rush current
limitation circuit is activated but please consider the fact when selecting
the switch or fuse in the outside of the product
5. RIPPLE NOISE
For the wires of the product, to lower the inductive noise, please
shorten the wires as much as possible and use it after sufficiently
lowering the Ripple Noise in the load.
Safety information The functions of the product
Model Name and Suffix Code

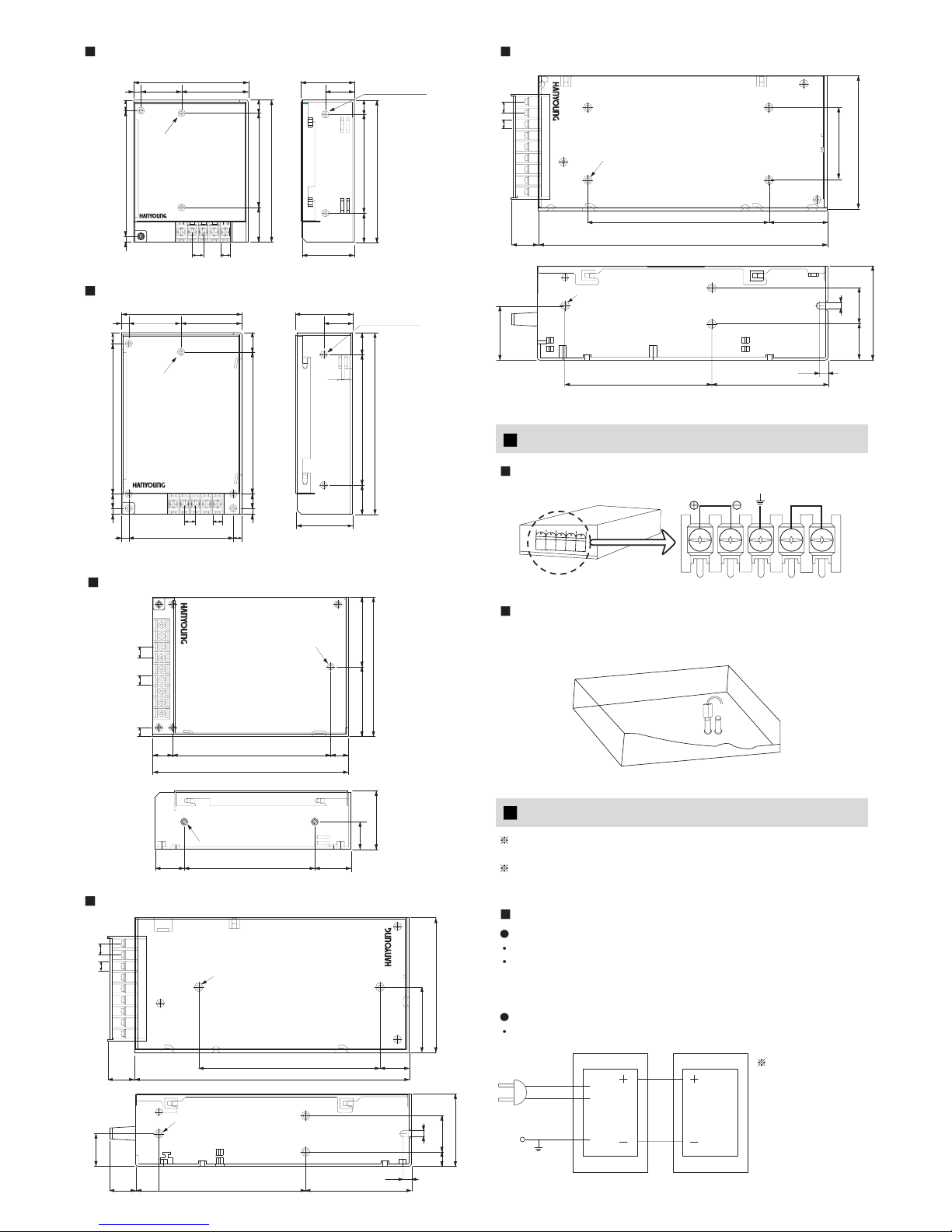

Aspect & Dimension
WARNING
CAUTION
DANGER
HEAD OFFICE
1381-3, Juan-Dong, Nam-Gu Incheon, Korea
TEL: [phone] FAX:[phone]
MAIN PRODUCTS
- DIGITAL : Temperature Controller, Counter, Timer,Speedmeter,
Tachometer, Panel Meter, Recorder
- SENSOR : Proximity Sensor/Photo Electric Sensor,
Rotary Encoder, Optical Fiber Sensor,
Pressure Sensor
- ANALOG : Timer, Temperature Controller
DC Power Supply
HNPS series
We appreciate you for purchasing HanYoung NUX Co.,Ltd
product. Before using the product you have purchased,
check to make sure that it is exactly what you ordered. Then,
please use it following the instructions below.
INSTRUCTION MANUAL
unit: mm
Suffix code
MODEL Description
DC POWER SUPPLY
15 / 30 / 50 / 75 / 100 / 150 W
Single Output
Dual Output
Triple Output
Single Output Voltage
Dual Output Voltage
Triple Output Voltage
Terminal Type
PCB Type
5 / 9 / 12 /
15 / 24 V DC
S
D
T
T
N
HNPS
Output Watts
Output
Output Voltage
TYPE
HNPS-15S (15 W)
60.5
16
32
16.6
20.5
97.6
50 18.629
97.5
31
7.5855
64.1
5 27.5 31.6
6.67.6
2 - M3 MOUNTING HOLE
2 - M3 MOUNTING HOLE

Open the case like the below picture and please connect the SELECT
JUMPER which is in the inside of the product to the desired voltage.
Before you are using the product, if you have any questions then
please inquire and then make sure the questions with us.
The existence of terminals or connection method is different
according to its model so please confirm the model.
Input Terminal
L (Live) / N (Neutral): this is AC input terminals.
F.G (Frame Ground): As an earth terminal, it is used for the
prevention of the electric shock and the
improvement of EMI.
Output Terminal
(+) / (-): Please connect them after confirming the polarity.
Rated Input Voltage
How to use
HNPS-30S (30 W)
HNPS-50S (50 W)
HNPS-75S (75 W)
HNPS-100S (100 W)
HNPS-150S (150 W)
85-264 V AC 50-60 Hz
Using Connector (above 50W)
The terminals of the product
98 65 924
98 68 1020
36
79
528 46
37
20
7.486.6
4
6.67.6
2 - M3 MOUNTING HOLE
2 - M3 MOUNTING HOLE
5672
7.6 6.6
13.397.7
83
536 20
39.8
38.8
1520 90
125
42
7.5
103.6
104
104
3 - M3 MOUNTING HOLE
2 - M3 MOUNTING HOLE
3 - M4 x L8 MOUNTING
72.5
50
2510
4.5
5.75
19 100.5
22.5
7.66.6
2 - M4 x L8 MOUNTING HOLE
93
45
125 20
19 189
3 - M4 x L8 MOUNTING
5.75
100.5 79.5
37.5
25
4.5
25
65
4 - M4 x L8 MOUNTING
7.66.6
19 199
125 40
93 50
7.66.66
3 - M3 MOUNTING HOLE
96
48 48
14
135
109 12
2-M3 MOUNTING HOLE
19
40.2
20 90 25
In the case of
short-circuiting
GROUND of the
output together,
both (-) terminals
of the output are
need to be short-
circuited.
110 V 220 V
AC IN
FG
SMPS APPLICATION
LOAD
V DC F.G AC(L) AC(N)
