Harbor Freight Tools One Stop Gardens Winter 61796 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 20h
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2020 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 61796
Specifications
Electrical Input 120VAC / 60Hz / 12A
Heat Settings 750W / 1500W
Light Bulb Type 40W Type E-12 Candelabra
253158
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.

Page 3For technical questions, please call 1-888-866-5797.Item 61796
IMPORTANT SAFETY INFORMATION
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. Keep
combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least
3 feet (0.9 m) from the front of the heater and
keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is
used by or near children or invalids and whenever
the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord
or plug or after the heater malfunctions, has been
dropped or damaged in any manner. Return heater
to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations.
Never locate heater where it may fall into
a bathtub or other water container.
8. Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from traffic
area and where it will not be tripped over.
9. To disconnect heater, turn controls to
off, then remove plug from outlet.
10. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline,
paint, or flammable liquids are used or stored.
13. Use this heater only as described in this manual.
Any other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons.
14. Avoid the use of an extension cord because the
extension cord may overheat and cause a risk
of fire. However, if you have to use an extension
cord, the cord shall be 16 AWG minimum
size and rated not less than 1,500 watts.
15. The output of this heater may vary and its
temperature may become intense enough to
burn exposed skin. Use of this heater is not
recommended for persons with reduced sensitivity
to heat or an inability to react to avoid burns.
16. Heater service must be performed only
by an authorized service representative.
Service or maintenance performed by unqualified
personnel could result in a risk of fire or injury.
17. Do not abuse the Power Cord. Never use the
Power Cord to carry this heater or pull the Plug
from an outlet. Keep the Power Cord away from
heat, oil, or sharp edges. Replace damaged
Power Cords immediately. Damaged Power
Cords increase the risk of electric shock.
18. Disconnect the Power Cord Plug from the power
source and allow the heater to thoroughly cool
before making any adjustments, changing
accessories, or storing this heater. Such preventive
safety measures reduce the risk of burns.
19. When servicing this heater, use only identical
replacement parts. Follow instructions in the
“Inspection, Maintenance, and Cleaning” section
of this manual. Use of unauthorized parts or
failure to follow maintenance instructions may
create a risk of electric shock or injury.
20. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
21. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-888-866-5797. Item 61796

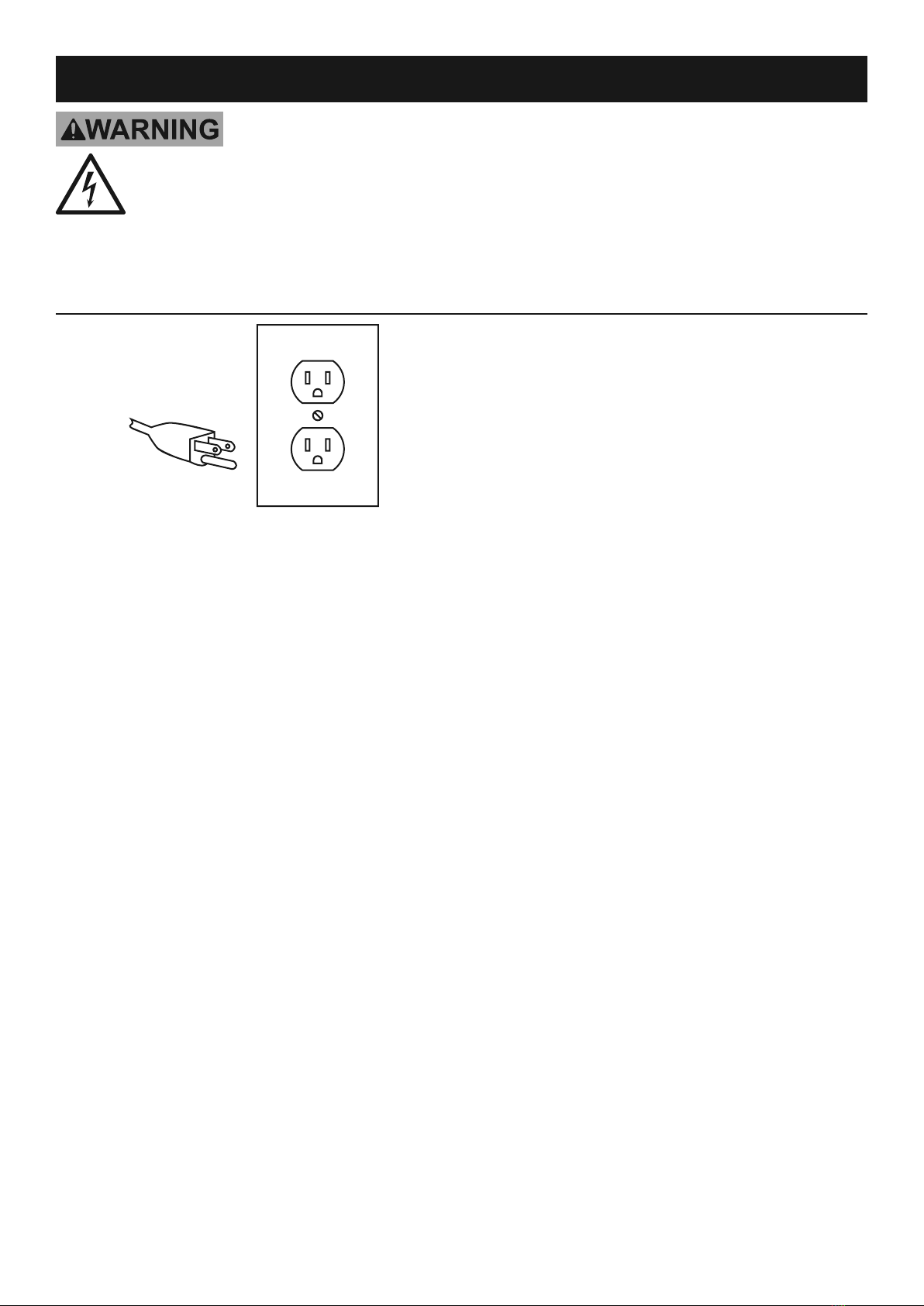

Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM
INCORRECT GROUNDING WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded.
Do not modify the power cord plug provided with the tool. Never remove the grounding prong from
the plug. Do not use the tool if the power cord or plug is damaged. If damaged, have it repaired by a service
facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
Grounded Tools: Tools with Three Prong Plugs
3-Prong Plug and Outlet
1. Tools marked with “Grounding Required” have a three
wire cord and three prong grounding plug. The plug
must be connected to a properly grounded outlet.
If the tool should electrically malfunction or break
down, grounding provides a low resistance path to
carry electricity away from the user, reducing the risk
of electric shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected through
the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must
be the only wire connected to the tool’s grounding
system and must never be attached to an electrically
“live” terminal. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)

Page 5For technical questions, please call 1-888-866-5797.Item 61796
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Symbology
Double Insulated
VAC Volts Alternating Current
AAmperes
n0 xxxx/min. No Load Revolutions per Minute (RPM)
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.

Page 6 For technical questions, please call 1-888-866-5797. Item 61796
Assembly
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Switches of the heater off, unplug the heater from its electrical outlet, and allow
the heater to cool completely before performing any procedure in this section.
Note: For additional information regarding
the parts listed in the following pages, refer to
Parts List and Assembly Diagram on pages 6 and 7.
1. Install one Foot (28) on each corner of the
housing using 3 Bolts (41) as shown in Figure A.
2. Make sure all Feet are installed securely before use.
Do not use with any Feet missing,
bent, crooked or loose.
Housing
Foot
(28) Bolt
(41)
Figure A

Page 7For technical questions, please call 1-888-866-5797.Item 61796
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Switches of the heater off, unplug the heater from its electrical outlet, and allow
the heater to cool completely before performing any procedure in this section.
1. Place Heater on dry, hard, stable floor away from
combustible materials. DO NOT USE ON CARPET.
Note: If the Heater is tilted at a 45° or greater
angle, the tip-over switch will issue a warning
sound and the heater will shut off.
2. Supervise children closely when near heater.
3. Keep pets away from heater.
Controls
Note: Controls are located on the
side of the Heater housing.
OFFON
LOW HEAT
HIGH HEAT
Figure B: Control Panel
1. On/Off: Switch to
I
position to turn the
unit on and enable the flame effect.
2. Low Heat: Switch to
I
position to
turn the heater and fan on low.
Note: Low Heat must be on to use High Heat.
3. High Heat: Switch to
I
position to set
the heather and fan on high.
Note: If heater reaches an unsafe temperature
(212°F/100°C) the Temperature Limiting Control
will automatically turn the Heater off.
4. To reset:
a. Unplug the power cord from the outlet.
b. Turn the ON/OFF switch to OFF.
c. Wait 5 minutes.
d. Inspect the fireplace to make sure no vents
are blocked, or clogged with dust or lint. If they
are, use a vacuum to clean the vent areas.
e. With the POWER switch in the OFF position,
plug the power cord back into the outlet.
General Operating Instructions
1. To prevent accidental operation, turn the
Switches off, then plug the heater into a
grounded 120VAC electrical outlet.
2. Adjust the controls as desired.
3. After use, to prevent accidents, turn the Switches off,
and unplug the power cord.
WARNING! Do not leave the heater
unattended while switched on.
WARNING! TO PREVENT SERIOUS INJURY:
Allow Heater to cool completely before cleaning
or storage. Once cool, clean, then store the
heater indoors out of children’s reach.

Page 8 For technical questions, please call 1-888-866-5797. Item 61796
Inspection and Maintenance
Procedures not specifically explained
in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Switches
of the heater off, unplug the heater from its electrical outlet, and allow the heater
to cool completely before performing any procedures in this section.
TO PREVENT SERIOUS INJURY AND FIRE
FROM HEATER FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning and Maintenance
1. BEFORE EACH USE, inspect the general
condition of the heater. Check for loose hardware,
misalignment or binding of moving parts, cracked
or broken parts, damaged electrical wiring, and any
other condition that may affect its safe operation.
2. For the metal parts of the Heater:
a. Buff using a soft cloth, slightly dampened
with a citrus oil-based product.
b. DO NOT use brass polish or household
cleaners as these will damage the metal.
3. For the glass parts of the Heater:
a. Use glass cleaner and dry thoroughly
with a paper towel or lint-free cloth.
b. DO NOT use abrasive cleansers or any
cleaner that could scratch the surface.
4. For the vents of the Heater:
a. Use a vacuum or duster to remove dust
and dirt from the heater and vent areas.
b. Clean the exterior of the stove with
a slightly damp cloth or duster.
5. Dry case thoroughly with a soft dry
cloth before operating the heater.
WARNING! Do not allow water to run into
the interior of the heater as this could
create a fire or electric shock hazard.
WARNING! TO PREVENT SERIOUS INJURY: If the
supply cord of this heater is damaged, it must be
replaced only by a qualified service technician.

Page 9For technical questions, please call 1-888-866-5797.Item 61796
Changing the Light Bulb
1. Unplug Power Cord from outlet.
2. Let Bulb cool for 10 minutes.
3. Open the Lamp Replacement Door on the rear of
the Heater by removing the Screws. See Figure C.
Bulb
Lamp Replacement Door
Screw (42)
Figure C
4. Replace the Bulb with a new bulb described
under Specifications section on page 2.
WARNING! TO PREVENT SERIOUS INJURY:
Do not use a different type of light bulb or one
with output greater than 40 watts to prevent fire.
5. Reattach Lamp Replacement Door with Screws.
WARNING! TO PREVENT SERIOUS INJURY:
Do not operate this heater without the access
panel in place. Do not remove back cover.
Troubleshooting
If the heater does not operate:
a. Make sure that the heater is plugged in.
b. Ensure that the outlet used is powered and
that the circuit breaker is not tripped.
c. Avoid the use of an extension cord. However,
if you have to use an extension cord, the
cord shall be No. 16 AWG minimum size
and rated not less than 1500 watts.
d. Check for any obstruction in the heater’s vents.
If an obstruction is found, unplug the
heater and wait for it to cool completely.
Then, carefully remove the obstruction.
e. Make sure the heater is placed on an even
surface. Uneven surfaces may activate the
heater’s tip-over switch, which turns the heater off.
If the above remedies do not solve the problem,
take the heater to a qualified service technician
for diagnosis and repair.

Page 10 For technical questions, please call 1-888-866-5797. Item 61796
Part Description Qty.
1 Lamp Replacement Door 1
2 Plate 1
3 Plate Frame 1
4 Light Buble Socket Bracket 1
5 Plate Strip 1
6 Left Side Plate 1
7 Left Synchronous Motor Support 1
8 Frame 1
9 Plate Batten 1
10 Right Synchronous Motor Support 1
11 Right Side Plate 1
12 Outside Glass Strip 1
13 Terminal Support 1
14 Motor Box 1
15 Upper Cover 1
16 Upper Cover Plate 1
17 Reflection Panel 1
18 Back Cover 1
19 Glass 1
20 Resin Log 1
21 Base Plate 1
Part Description Qty.
22 Synchronous Motor 1
23 Roller Sleeve 1
24 Reflector Roller 1
25 Fan Motor 1
26 Heating Element 1
27 Close-end Connector 3
28 Foot 4
29 Wiring Terminal 1
30 Power Cord 1
31 Cord Fastener 1
32 Single Plug Spring 14
33 Power Line Deduction 1
34 Screw 1
35 Light Bulb Socket 1
36 Tieline Buckle 7
37 Light Bulb 1
38 Retaining Coil 2
39 Rocker Switch 3
40 Knob 1
41 Bolt* 12
42 Screw* 2
Parts List and Assembly Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 792363617963 when ordering parts.
*Parts not shown.
Parts List

Page 11For technical questions, please call 1-888-866-5797.Item 61796
Assembly Diagram
37
34
35
32
31 27
30
29
28
33
38
36
39
2
3
4
19
20
5
21 6
7
10
11
12
13
25
26
14
16
15
17
18
22
23
24
1
16A 250VAC T85
20A 125VAC μ
1
23
39
16A 250VAC T85
20A 125VAC μ
1
23
39
16A 250VAC T85
20A 125VAC μ
1
23
40
8
9

26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
